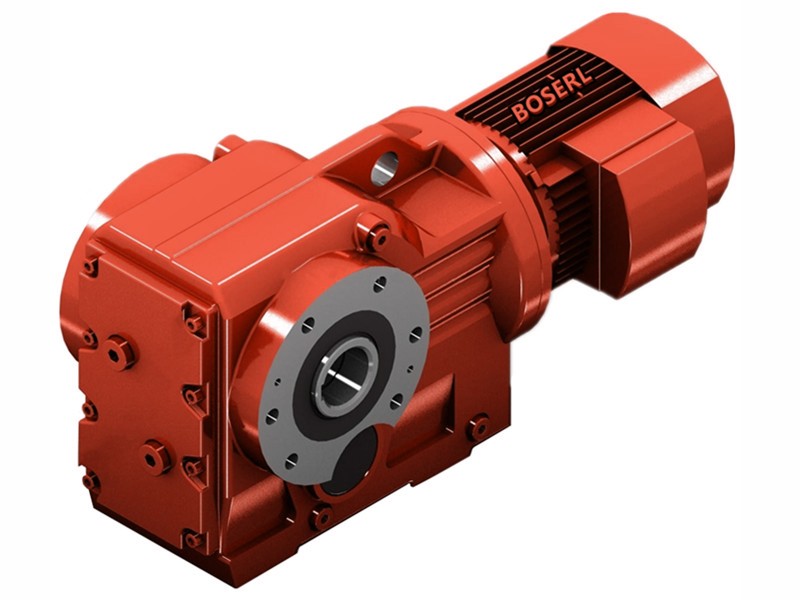

KA129減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA129減速器選型樣本。
KA129-BVB-22KW-4P-89.89-M4-270°
KA:系列代號
129:減速機規格代號
BVB:電機
22KW:電機功率
4P:電機級數
89.89:減速機傳動比
M4:減速機安裝位置
270°:接線盒位置
KA129減速器逆止器安裝:

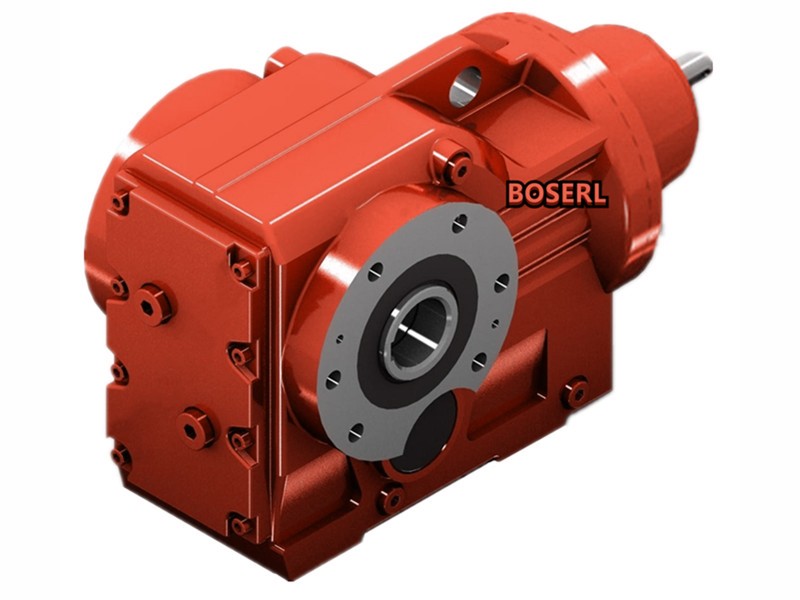

KA129減速器帶逆止器的輸入端裝置AD../RS:安裝或運送前檢查驅動裝置的旋轉方向是否正確,若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中,逆止器不需要特別維護或其他的維護措施。齒輪減速電機
如果低于最小超越轉速,則逆止器將會發生摩擦而產生高溫,可能造成財產損失;在額外工作狀態下,不得低于最小超越轉速;在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格,逆止器的最小超越轉速如下表:
型號 | 逆止器最大逆止力矩 [Nm] | 最小超越轉速 [r/min] |
AD2/RS | 65 | 820 |
AD3/RS | 425 | 620 |
AD4/RS | 850 | 530 |
AD5/RS | 1450 | 480 |
AD6/RS | 1950 | 450 |
AD7/RS | 1950 | 450 |
AD8/RS | 1950 | 450 |
逆止器用來避免逆向轉動;如此便可確保運行過程中的定向轉動。注意:逆向運轉可能導致逆止器損壞;電機不允許逆向轉動;注意供電是否正確,以確保電機定向轉動;可以使電機輸出一半的額定扭矩來檢查逆止器方向。
轉向要根據輸出軸(LSS)來確定;順時針旋轉(CW);逆時針旋轉(CCW);應在箱體上標識出許可轉向。
KA129減速器潤滑油更換:
由于KA129減速器發熱或KA129減速器油溫過高可能引起燙傷,對KA129減速器進行操作前先冷卻,KA129減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機
通過放油螺栓和透氣閥進行換油:將一個容器置于放油螺栓下方;卸下油位檢查螺栓、透氣閥與放油螺栓;將潤滑油完全排放;重新擰入放油螺栓;通過透氣閥注入新的同類潤滑油(否則必須與客戶服務聯系),禁止混用不同種類的合成潤滑油;重新擰入油位檢查螺栓與透氣閥。
通過安裝蓋換油:擰開安裝蓋的螺絲,打開安裝蓋提取少許潤滑油,檢查潤滑油的狀況,將潤滑油完全排放,裝上安裝蓋。
通過密封螺栓換油:通過密封孔將潤滑油完全排放;通過檢查孔加入新的同類潤滑油(否則必須與客戶服務部聯系),禁止混用不同種類的合成潤滑油;檢查油位;重新擰緊密封螺栓。空心軸減速機
KA129減速器電機型號:
KWA127-Y112M4,KWA127-Y11KWA,KWA127-Y132M4,KWA127-Y15KWA,KWA127-Y160M4,KWA127-Y18.5KWA,KWA127-Y180M4,KWA127-Y200M4,KWA127-Y225M4,KWA127-Y22KWA,KWA127-Y250M4,KWA127-Y280M4,KWA127-Y30KWA,KWA127-Y37KWA,KWA127-Y45KWA,KWA127-Y4KWA,KWA127-Y5.5KWA,KWA127-Y55KWA,KWA127-Y7.5KWA,KWA127-Y75KWA,KWA127-YB112M4,KWA127-YB132M4,KWA127-YB160M4,KWA127-YB180M4,KWA127-YB200M4,KWA127-YB225M4,KWA127-YB250M4,KWA127-YB280M4,KWA127-YDP112M4,KWA127-YDP132M4,KWA127-YDP160M4,KWA127-YDP180M4,KWA127-YDP200M4,KWA127-YDP225M4,KWA127-YDP250M4,KWA127-YDP280M4,KWA127-YE112M4,KWA127-YE132M4,KWA127-YE160M4,KWA127-YE180M4,KWA127-YE200M4,KWA127-YE225M4,KWA127-YE250M4,KWA127-YE280M4,KWA127-YEJ112M4,KWA127-YEJ132M4,KWA127-YEJ160M4,KWA127-YEJ180M4,KWA127-YEJ200M4,KWA127-YEJ225M4,KWA127-YEJ250M4,KWA127-YEJ280M4,KWA127-YEJB112M4,KWA127-YEJB132M4,KWA127-YEJB160M4,KWA127-YEJB180M4,KWA127-YEJB200M4,KWA127-YEJB225M4,KWA127-YEJB250M4,KWA127-YEJB280M4,KWA127-YP112M4,KWA127-YP132M4,KWA127-YP160M4,KWA127-YP180M4,KWA127-YP200M4,KWA127-YP225M4,KWA127-YP250M4,KWA127-YP280M4,KWA127-YPB112M4,KWA127-YPB132M4,KWA127-YPB160M4,KWA127-YPB180M4,KWA127-YPB200M4,KWA127-YPB225M4,KWA127-YPB250M4,KWA127-YPB280M4,KWA127-YPE112M4,KWA127-YPE132M4,KWA127-YPE160M4,KWA127-YPE180M4,KWA127-YPE200M4,KWA127-YPE225M4,KWA127-YPE250M4,KWA127-YPE280M4,KWA127-YS112M4,KWA127-YS132M4,KWA127-YS160M4,KWA127-YS180M4,KWA127-YS200M4,KWA127-YS225M4,KWA127-YS250M4,KWA127-YS280M4,KWA127-YVB112M4,KWA127-YVB132M4,KWA127-YVB160M4,KWA127-YVB180M4,KWA127-YVB200M4,KWA127-YVB225M4,KWA127-YVB250M4,KWA127-YVB280M4,KWA127-YVP112M4,KWA127-YVP132M4,KWA127-YVP160M4,KWA127-YVP180M4,KWA127-YVP200M4,KWA127-YVP225M4,KWA127-YVP250M4,KWA127-YVP280M4,KWA127-YVPEJ112M4,KWA127-YVPEJ132M4,KWA127-YVPEJ160M4,KWA127-YVPEJ180M4,KWA127-YVPEJ200M4,KWA127-YVPEJ225M4,KWA127-YVPEJ250M4,KWA127-YVPEJ280M4,XDKA127-Y112M4,XDKA127-Y11KWA,XDKA127-Y132M4,XDKA127-Y15KWA,XDKA127-Y160M4,XDKA127-Y18.5KWA,XDKA127-Y180M4,XDKA127-Y200M4,XDKA127-Y225M4,XDKA127-Y22KWA,XDKA127-Y250M4,XDKA127-Y280M4,XDKA127-Y30KWA,XDKA127-Y37KWA,XDKA127-Y45KWA,XDKA127-Y4KWA,XDKA127-Y5.5KWA,XDKA127-Y55KWA,XDKA127-Y7.5KWA,XDKA127-Y75KWA,XDKA127-YB112M4,XDKA127-YB132M4,XDKA127-YB160M4,XDKA127-YB180M4,XDKA127-YB200M4,XDKA127-YB225M4,XDKA127-YB250M4,XDKA127-YB280M4,XDKA127-YDP112M4,XDKA127-YDP132M4,XDKA127-YDP160M4,XDKA127-YDP180M4,XDKA127-YDP200M4,XDKA127-YDP225M4,XDKA127-YDP250M4,XDKA127-YDP280M4,XDKA127-YE112M4,XDKA127-YE132M4,XDKA127-YE160M4,XDKA127-YE180M4,XDKA127-YE200M4,XDKA127-YE225M4,XDKA127-YE250M4,XDKA127-YE280M4,XDKA127-YEJ112M4,XDKA127-YEJ132M4,XDKA127-YEJ160M4,XDKA127-YEJ180M4,XDKA127-YEJ200M4,XDKA127-YEJ225M4,XDKA127-YEJ250M4,XDKA127-YEJ280M4,XDKA127-YEJB112M4,XDKA127-YEJB132M4,XDKA127-YEJB160M4,XDKA127-YEJB180M4,XDKA127-YEJB200M4,XDKA127-YEJB225M4,XDKA127-YEJB250M4,XDKA127-YEJB280M4,XDKA127-YP112M4,XDKA127-YP132M4,XDKA127-YP160M4,XDKA127-YP180M4,XDKA127-YP200M4,XDKA127-YP225M4,XDKA127-YP250M4,XDKA127-YP280M4,XDKA127-YPB112M4,XDKA127-YPB132M4,XDKA127-YPB160M4,XDKA127-YPB180M4,XDKA127-YPB200M4,XDKA127-YPB225M4,XDKA127-YPB250M4,XDKA127-YPB280M4,XDKA127-YPE112M4,XDKA127-YPE132M4,XDKA127-YPE160M4,XDKA127-YPE180M4,XDKA127-YPE200M4,XDKA127-YPE225M4,XDKA127-YPE250M4,XDKA127-YPE280M4,XDKA127-YS112M4,XDKA127-YS132M4,XDKA127-YS160M4,XDKA127-YS180M4,XDKA127-YS200M4,XDKA127-YS225M4,XDKA127-YS250M4,XDKA127-YS280M4,XDKA127-YVB112M4,XDKA127-YVB132M4,XDKA127-YVB160M4,XDKA127-YVB180M4,XDKA127-YVB200M4,XDKA127-YVB225M4,XDKA127-YVB250M4,XDKA127-YVB280M4,XDKA127-YVP112M4,XDKA127-YVP132M4,XDKA127-YVP160M4,XDKA127-YVP180M4,XDKA127-YVP200M4,XDKA127-YVP225M4,XDKA127-YVP250M4,XDKA127-YVP280M4,XDKA127-YVPEJ112M4,XDKA127-YVPEJ132M4,XDKA127-YVPEJ160M4,XDKA127-YVPEJ180M4,XDKA127-YVPEJ200M4,XDKA127-YVPEJ225M4,XDKA127-YVPEJ250M4,XDKA127-YVPEJ280M4,YQKA127-Y112M4,YQKA127-Y11KWA,YQKA127-Y132M4,YQKA127-Y15KWA,YQKA127-Y160M4,YQKA127-Y18.5KWA,YQKA127-Y180M4,YQKA127-Y200M4,YQKA127-Y225M4,YQKA127-Y22KWA,YQKA127-Y250M4,YQKA127-Y280M4,YQKA127-Y30KWA,YQKA127-Y37KWA,YQKA127-Y45KWA,YQKA127-Y4KWA,YQKA127-Y5.5KWA,YQKA127-Y55KWA,YQKA127-Y7.5KWA,YQKA127-Y75KWA,YQKA127-YB112M4,YQKA127-YB132M4,YQKA127-YB160M4,YQKA127-YB180M4,YQKA127-YB200M4,YQKA127-YB225M4,YQKA127-YB250M4,YQKA127-YB280M4,YQKA127-YDP112M4,YQKA127-YDP132M4,YQKA127-YDP160M4,YQKA127-YDP180M4,YQKA127-YDP200M4,YQKA127-YDP225M4,YQKA127-YDP250M4,YQKA127-YDP280M4,YQKA127-YE112M4,YQKA127-YE132M4,YQKA127-YE160M4,YQKA127-YE180M4,YQKA127-YE200M4,YQKA127-YE225M4,YQKA127-YE250M4,YQKA127-YE280M4,YQKA127-YEJ112M4,YQKA127-YEJ132M4,YQKA127-YEJ160M4,YQKA127-YEJ180M4,YQKA127-YEJ200M4,YQKA127-YEJ225M4,YQKA127-YEJ250M4,YQKA127-YEJ280M4,YQKA127-YEJB112M4,YQKA127-YEJB132M4,YQKA127-YEJB160M4,YQKA127-YEJB180M4,YQKA127-YEJB200M4,YQKA127-YEJB225M4,YQKA127-YEJB250M4,YQKA127-YEJB280M4,YQKA127-YP112M4,YQKA127-YP132M4,YQKA127-YP160M4,YQKA127-YP180M4,YQKA127-YP200M4,YQKA127-YP225M4,YQKA127-YP250M4,YQKA127-YP280M4,YQKA127-YPB112M4,YQKA127-YPB132M4,YQKA127-YPB160M4,YQKA127-YPB180M4,YQKA127-YPB200M4,YQKA127-YPB225M4,YQKA127-YPB250M4,YQKA127-YPB280M4,YQKA127-YPE112M4,YQKA127-YPE132M4,YQKA127-YPE160M4,YQKA127-YPE180M4,YQKA127-YPE200M4,YQKA127-YPE225M4,YQKA127-YPE250M4,YQKA127-YPE280M4,YQKA127-YS112M4,YQKA127-YS132M4,YQKA127-YS160M4,YQKA127-YS180M4,YQKA127-YS200M4,YQKA127-YS225M4,YQKA127-YS250M4,YQKA127-YS280M4,YQKA127-YVB112M4,YQKA127-YVB132M4,YQKA127-YVB160M4,YQKA127-YVB180M4,YQKA127-YVB200M4,YQKA127-YVB225M4,YQKA127-YVB250M4,YQKA127-YVB280M4,YQKA127-YVP112M4,YQKA127-YVP132M4,YQKA127-YVP160M4,YQKA127-YVP180M4,YQKA127-YVP200M4,YQKA127-YVP225M4,YQKA127-YVP250M4,YQKA127-YVP280M4,YQKA127-YVPEJ112M4,YQKA127-YVPEJ132M4,YQKA127-YVPEJ160M4,YQKA127-YVPEJ180M4,YQKA127-YVPEJ200M4,YQKA127-YVPEJ225M4,YQKA127-YVPEJ250M4,YQKA127-YVPEJ280M4,JCKA127-Y112M4,JCKA127-Y11KWA,JCKA127-Y132M4,JCKA127-Y15KWA,JCKA127-Y160M4,JCKA127-Y18.5KWA,JCKA127-Y180M4,JCKA127-Y200M4,JCKA127-Y225M4,JCKA127-Y22KWA,JCKA127-Y250M4,JCKA127-Y280M4,JCKA127-Y30KWA,JCKA127-Y37KWA,JCKA127-Y45KWA,JCKA127-Y4KWA,JCKA127-Y5.5KWA,JCKA127-Y55KWA,JCKA127-Y7.5KWA,JCKA127-Y75KWA,JCKA127-YB112M4,JCKA127-YB132M4,JCKA127-YB160M4,JCKA127-YB180M4,JCKA127-YB200M4,JCKA127-YB225M4,JCKA127-YB250M4,JCKA127-YB280M4,JCKA127-YDP112M4,JCKA127-YDP132M4,JCKA127-YDP160M4,JCKA127-YDP180M4,JCKA127-YDP200M4,JCKA127-YDP225M4,JCKA127-YDP250M4,JCKA127-YDP280M4,JCKA127-YE112M4,JCKA127-YE132M4,JCKA127-YE160M4,JCKA127-YE180M4,JCKA127-YE200M4,JCKA127-YE225M4,JCKA127-YE250M4,JCKA127-YE280M4,JCKA127-YEJ112M4,JCKA127-YEJ132M4,JCKA127-YEJ160M4,JCKA127-YEJ180M4,JCKA127-YEJ200M4,JCKA127-YEJ225M4,JCKA127-YEJ250M4,JCKA127-YEJ280M4,JCKA127-YEJB112M4,JCKA127-YEJB132M4,JCKA127-YEJB160M4,JCKA127-YEJB180M4,JCKA127-YEJB200M4,JCKA127-YEJB225M4,JCKA127-YEJB250M4,JCKA127-YEJB280M4,JCKA127-YP112M4,JCKA127-YP132M4,JCKA127-YP160M4,JCKA127-YP180M4,JCKA127-YP200M4,JCKA127-YP225M4,JCKA127-YP250M4,JCKA127-YP280M4,JCKA127-YPB112M4,JCKA127-YPB132M4,JCKA127-YPB160M4,JCKA127-YPB180M4,JCKA127-YPB200M4,JCKA127-YPB225M4,JCKA127-YPB250M4,JCKA127-YPB280M4,JCKA127-YPE112M4,JCKA127-YPE132M4,JCKA127-YPE160M4,JCKA127-YPE180M4,JCKA127-YPE200M4,JCKA127-YPE225M4,JCKA127-YPE250M4,JCKA127-YPE280M4,JCKA127-YS112M4,JCKA127-YS132M4,JCKA127-YS160M4,JCKA127-YS180M4,JCKA127-YS200M4,JCKA127-YS225M4,JCKA127-YS250M4,JCKA127-YS280M4,JCKA127-YVB112M4,JCKA127-YVB132M4,JCKA127-YVB160M4,JCKA127-YVB180M4,JCKA127-YVB200M4,JCKA127-YVB225M4,JCKA127-YVB250M4,JCKA127-YVB280M4,JCKA127-YVP112M4,JCKA127-YVP132M4,JCKA127-YVP160M4,JCKA127-YVP180M4,JCKA127-YVP200M4,JCKA127-YVP225M4,JCKA127-YVP250M4,JCKA127-YVP280M4,JCKA127-YVPEJ112M4,JCKA127-YVPEJ132M4,JCKA127-YVPEJ160M4,JCKA127-YVPEJ180M4,JCKA127-YVPEJ200M4,JCKA127-YVPEJ225M4,JCKA127-YVPEJ250M4,JCKA127-YVPEJ280M4,KA129-Y112M4,KA129-Y11KWA,KA129-Y132M4,KA129-Y15KWA,KA129-Y160M4,KA129-Y18.5KWA,KA129-Y180M4,KA129-Y200M4,KA129-Y225M4,KA129-Y22KWA,KA129-Y250M4,KA129-Y280M4,KA129-Y30KWA,KA129-Y37KWA,KA129-Y45KWA,KA129-Y4KWA,KA129-Y5.5KWA,KA129-Y55KWA,KA129-Y7.5KWA,KA129-Y75KWA,KA129-YB112M4,KA129-YB132M4,KA129-YB160M4,KA129-YB180M4,KA129-YB200M4,KA129-YB225M4,KA129-YB250M4,KA129-YB280M4,KA129-YDP112M4,KA129-YDP132M4,KA129-YDP160M4,KA129-YDP180M4,KA129-YDP200M4,KA129-YDP225M4,KA129-YDP250M4,KA129-YDP280M4,KA129-YE112M4,KA129-YE132M4,KA129-YE160M4,KA129-YE180M4,KA129-YE200M4,KA129-YE225M4,KA129-YE250M4,KA129-YE280M4,KA129-YEJ112M4,KA129-YEJ132M4,KA129-YEJ160M4,KA129-YEJ180M4,KA129-YEJ200M4,KA129-YEJ225M4,KA129-YEJ250M4,KA129-YEJ280M4,KA129-YEJB112M4,KA129-YEJB132M4,KA129-YEJB160M4,KA129-YEJB180M4,KA129-YEJB200M4,KA129-YEJB225M4,KA129-YEJB250M4,KA129-YEJB280M4,KA129-YP112M4,KA129-YP132M4,KA129-YP160M4,KA129-YP180M4,KA129-YP200M4,KA129-YP225M4,KA129-YP250M4,KA129-YP280M4,KA129-YPB112M4,KA129-YPB132M4,KA129-YPB160M4,KA129-YPB180M4,KA129-YPB200M4,KA129-YPB225M4,KA129-YPB250M4,KA129-YPB280M4,KA129-YPE112M4,KA129-YPE132M4,KA129-YPE160M4,KA129-YPE180M4,KA129-YPE200M4,KA129-YPE225M4,KA129-YPE250M4,KA129-YPE280M4,KA129-YS112M4,KA129-YS132M4,KA129-YS160M4,KA129-YS180M4,KA129-YS200M4,KA129-YS225M4,KA129-YS250M4,KA129-YS280M4,KA129-YVB112M4,KA129-YVB132M4,KA129-YVB160M4,KA129-YVB180M4,KA129-YVB200M4,KA129-YVB225M4,KA129-YVB250M4,KA129-YVB280M4,KA129-YVP112M4,KA129-YVP132M4,KA129-YVP160M4,KA129-YVP180M4,KA129-YVP200M4,KA129-YVP225M4,KA129-YVP250M4,KA129-YVP280M4,KA129-YVPEJ112M4,KA129-YVPEJ132M4,KA129-YVPEJ160M4,KA129-YVPEJ180M4,KA129-YVPEJ200M4,KA129-YVPEJ225M4,KA129-YVPEJ250M4,KA129-YVPEJ280M4,KA127SF80,KA127SF90,KA127SF100,KA127SF112,KA127SF115,KA127SF140,KA127SF160,KA127SF190。
