KA99減速機詳細信息

prevnext

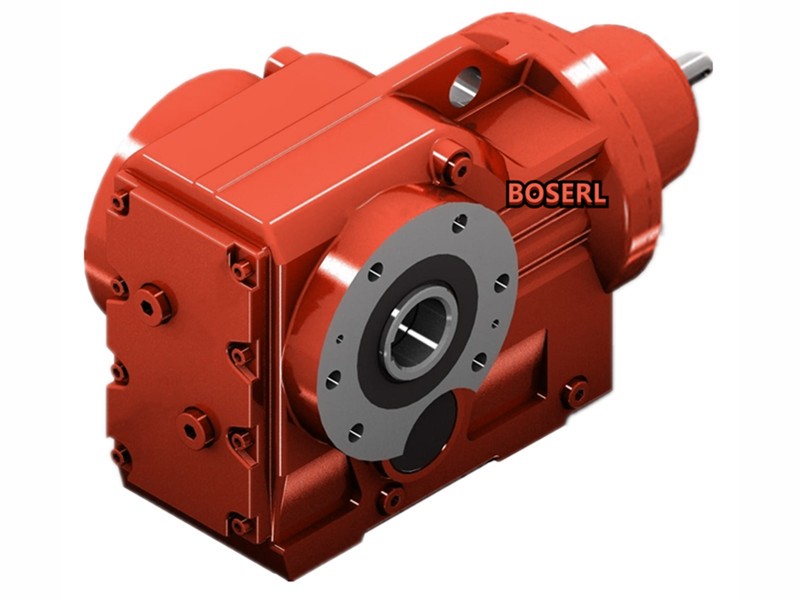

KA99減速機

訂購熱線:13360667204
  1. 詳細信息

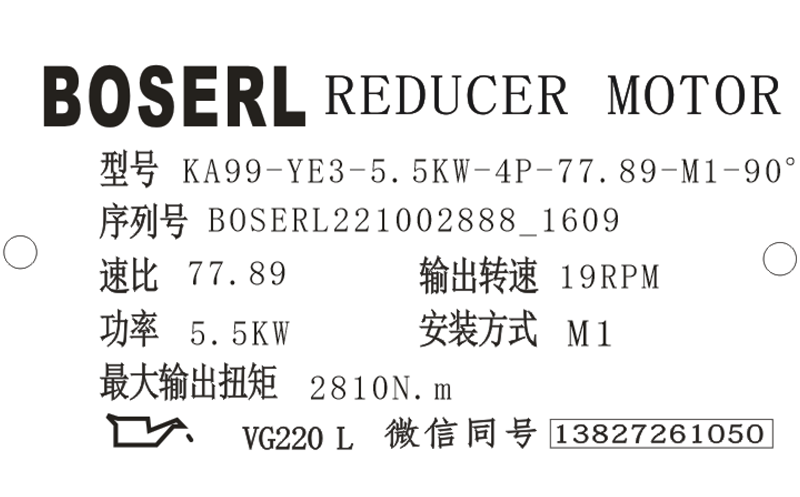

KA99減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA99減速機選型樣本。

KA99-YE3-5.5KW-4P-77.89-M1-90°

KA:系列代號

99:減速機規格代號

YE3:電機

5.5KW:電機功率

4P:電機級數

77.89:減速機傳動比

M1:減速機安裝位置

90°:接線盒位置


KA99減速機空心軸扭矩臂安裝:

裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA99減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機


減速機型號

螺栓

擰緊扭矩

KA39減速機

4Xm10x25-8.8

48Nm

KA49減速機

4Xm10x30-8.8

48Nm

KA69減速機

4Xm12x35-8.8

86Nm

KA79減速機

4Xm16x40-8.8

210Nm

KA89減速機

4Xm16x45-8.8

210Nm

KA99減速機

4Xm20x50-8.8

410Nm

KA109減速機

4Xm24x60-8.8

710Nm

KA129減速機

4Xm36x60-8.8

2500Nm

KA159減速機

4Xm36x60-8.8

2500Nm

KA169減速機

4Xm30x60-8.8

1450Nm

KA189減速機

4Xm36x60-8.8

2500Nm

KA99減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA99減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機


KA99減速機型號:

WKA97-Y1.1SKA,WKA97-Y1.5SKA,WKA97-Y100M4,WKA97-Y112M4,WKA97-Y11SKA,WKA97-Y132M4,WKA97-Y15SKA,WKA97-Y160M4,WKA97-Y18.5SKA,WKA97-Y180M4,WKA97-Y2.2SKA,WKA97-Y200M4,WKA97-Y22SKA,WKA97-Y30SKA,WKA97-Y3SKA,WKA97-Y4SKA,WKA97-Y5.5SKA,WKA97-Y7.5SKA,WKA97-Y80M4,WKA97-Y90M4,WKA97-YB100M4,WKA97-YB112M4,WKA97-YB132M4,WKA97-YB160M4,WKA97-YB180M4,WKA97-YB200M4,WKA97-YB80M4,WKA97-YB90M4,WKA97-YDP100M4,WKA97-YDP112M4,WKA97-YDP132M4,WKA97-YDP160M4,WKA97-YDP180M4,WKA97-YDP200M4,WKA97-YDP80M4,WKA97-YDP90M4,WKA97-YE100M4,WKA97-YE112M4,WKA97-YE132M4,WKA97-YE160M4,WKA97-YE180M4,WKA97-YE200M4,WKA97-YE80M4,WKA97-YE90M4,WKA97-YEJ100M4,WKA97-YEJ112M4,WKA97-YEJ132M4,WKA97-YEJ160M4,WKA97-YEJ180M4,WKA97-YEJ200M4,WKA97-YEJ80M4,WKA97-YEJ90M4,WKA97-YEJB100M4,WKA97-YEJB112M4,WKA97-YEJB132M4,WKA97-YEJB160M4,WKA97-YEJB180M4,WKA97-YEJB200M4,WKA97-YEJB80M4,WKA97-YEJB90M4,WKA97-YP100M4,WKA97-YP112M4,WKA97-YP132M4,WKA97-YP160M4,WKA97-YP180M4,WKA97-YP200M4,WKA97-YP80M4,WKA97-YP90M4,WKA97-YPB100M4,WKA97-YPB112M4,WKA97-YPB132M4,WKA97-YPB160M4,WKA97-YPB180M4,WKA97-YPB200M4,WKA97-YPB80M4,WKA97-YPB90M4,WKA97-YPE100M4,WKA97-YPE112M4,WKA97-YPE132M4,WKA97-YPE160M4,WKA97-YPE180M4,WKA97-YPE200M4,WKA97-YPE80M4,WKA97-YPE90M4,WKA97-YS100M4,WKA97-YS112M4,WKA97-YS132M4,WKA97-YS160M4,WKA97-YS180M4,WKA97-YS200M4,WKA97-YS80M4,WKA97-YS90M4,WKA97-YVB100M4,WKA97-YVB112M4,WKA97-YVB132M4,WKA97-YVB160M4,WKA97-YVB180M4,WKA97-YVB200M4,WKA97-YVB80M4,WKA97-YVB90M4,WKA97-YVP100M4,WKA97-YVP112M4,WKA97-YVP132M4,WKA97-YVP160M4,WKA97-YVP180M4,WKA97-YVP200M4,WKA97-YVP80M4,WKA97-YVP90M4,WKA97-YVPEJ100M4,WKA97-YVPEJ112M4,WKA97-YVPEJ132M4,WKA97-YVPEJ160M4,WKA97-YVPEJ180M4,WKA97-YVPEJ200M4,WKA97-YVPEJ80M4,WKA97-YVPEJ90M4,SKA97-Y1.1SKA,SKA97-Y1.5SKA,SKA97-Y100M4,SKA97-Y112M4,SKA97-Y11SKA,SKA97-Y132M4,SKA97-Y15SKA,SKA97-Y160M4,SKA97-Y18.5SKA,SKA97-Y180M4,SKA97-Y2.2SKA,SKA97-Y200M4,SKA97-Y22SKA,SKA97-Y30SKA,SKA97-Y3SKA,SKA97-Y4SKA,SKA97-Y5.5SKA,SKA97-Y7.5SKA,SKA97-Y80M4,SKA97-Y90M4,SKA97-YB100M4,SKA97-YB112M4,SKA97-YB132M4,SKA97-YB160M4,SKA97-YB180M4,SKA97-YB200M4,SKA97-YB80M4,SKA97-YB90M4,SKA97-YDP100M4,SKA97-YDP112M4,SKA97-YDP132M4,SKA97-YDP160M4,SKA97-YDP180M4,SKA97-YDP200M4,SKA97-YDP80M4,SKA97-YDP90M4,SKA97-YE100M4,SKA97-YE112M4,SKA97-YE132M4,SKA97-YE160M4,SKA97-YE180M4,SKA97-YE200M4,SKA97-YE80M4,SKA97-YE90M4,SKA97-YEJ100M4,SKA97-YEJ112M4,SKA97-YEJ132M4,SKA97-YEJ160M4,SKA97-YEJ180M4,SKA97-YEJ200M4,SKA97-YEJ80M4,SKA97-YEJ90M4,SKA97-YEJB100M4,SKA97-YEJB112M4,SKA97-YEJB132M4,SKA97-YEJB160M4,SKA97-YEJB180M4,SKA97-YEJB200M4,SKA97-YEJB80M4,SKA97-YEJB90M4,SKA97-YP100M4,SKA97-YP112M4,SKA97-YP132M4,SKA97-YP160M4,SKA97-YP180M4,SKA97-YP200M4,SKA97-YP80M4,SKA97-YP90M4,SKA97-YPB100M4,SKA97-YPB112M4,SKA97-YPB132M4,SKA97-YPB160M4,SKA97-YPB180M4,SKA97-YPB200M4,SKA97-YPB80M4,SKA97-YPB90M4,SKA97-YPE100M4,SKA97-YPE112M4,SKA97-YPE132M4,SKA97-YPE160M4,SKA97-YPE180M4,SKA97-YPE200M4,SKA97-YPE80M4,SKA97-YPE90M4,SKA97-YS100M4,SKA97-YS112M4,SKA97-YS132M4,SKA97-YS160M4,SKA97-YS180M4,SKA97-YS200M4,SKA97-YS80M4,SKA97-YS90M4,SKA97-YVB100M4,SKA97-YVB112M4,SKA97-YVB132M4,SKA97-YVB160M4,SKA97-YVB180M4,SKA97-YVB200M4,SKA97-YVB80M4,SKA97-YVB90M4,SKA97-YVP100M4,SKA97-YVP112M4,SKA97-YVP132M4,SKA97-YVP160M4,SKA97-YVP180M4,SKA97-YVP200M4,SKA97-YVP80M4,SKA97-YVP90M4,SKA97-YVPEJ100M4,SKA97-YVPEJ112M4,SKA97-YVPEJ132M4,SKA97-YVPEJ160M4,SKA97-YVPEJ180M4,SKA97-YVPEJ200M4,SKA97-YVPEJ80M4,SKA97-YVPEJ90M4,AKA97-Y1.1SKA,AKA97-Y1.5SKA,AKA97-Y100M4,AKA97-Y112M4,AKA97-Y11SKA,AKA97-Y132M4,AKA97-Y15SKA,AKA97-Y160M4,AKA97-Y18.5SKA,AKA97-Y180M4,AKA97-Y2.2SKA,AKA97-Y200M4,AKA97-Y22SKA,AKA97-Y30SKA,AKA97-Y3SKA,AKA97-Y4SKA,AKA97-Y5.5SKA,AKA97-Y7.5SKA,AKA97-Y80M4,AKA97-Y90M4,AKA97-YB100M4,AKA97-YB112M4,AKA97-YB132M4,AKA97-YB160M4,AKA97-YB180M4,AKA97-YB200M4,AKA97-YB80M4,AKA97-YB90M4,AKA97-YDP100M4,AKA97-YDP112M4,AKA97-YDP132M4,AKA97-YDP160M4,AKA97-YDP180M4,AKA97-YDP200M4,AKA97-YDP80M4,AKA97-YDP90M4,AKA97-YE100M4,AKA97-YE112M4,AKA97-YE132M4,AKA97-YE160M4,AKA97-YE180M4,AKA97-YE200M4,AKA97-YE80M4,AKA97-YE90M4,AKA97-YEJ100M4,AKA97-YEJ112M4,AKA97-YEJ132M4,AKA97-YEJ160M4,AKA97-YEJ180M4,AKA97-YEJ200M4,AKA97-YEJ80M4,AKA97-YEJ90M4,AKA97-YEJB100M4,AKA97-YEJB112M4,AKA97-YEJB132M4,AKA97-YEJB160M4,AKA97-YEJB180M4,AKA97-YEJB200M4,AKA97-YEJB80M4,AKA97-YEJB90M4,AKA97-YP100M4,AKA97-YP112M4,AKA97-YP132M4,AKA97-YP160M4,AKA97-YP180M4,AKA97-YP200M4,AKA97-YP80M4,AKA97-YP90M4,AKA97-YPB100M4,AKA97-YPB112M4,AKA97-YPB132M4,AKA97-YPB160M4,AKA97-YPB180M4,AKA97-YPB200M4,AKA97-YPB80M4,AKA97-YPB90M4,AKA97-YPE100M4,AKA97-YPE112M4,AKA97-YPE132M4,AKA97-YPE160M4,AKA97-YPE180M4,AKA97-YPE200M4,AKA97-YPE80M4,AKA97-YPE90M4,AKA97-YS100M4,AKA97-YS112M4,AKA97-YS132M4,AKA97-YS160M4,AKA97-YS180M4,AKA97-YS200M4,AKA97-YS80M4,AKA97-YS90M4,AKA97-YVB100M4,AKA97-YVB112M4,AKA97-YVB132M4,AKA97-YVB160M4,AKA97-YVB180M4,AKA97-YVB200M4,AKA97-YVB80M4,AKA97-YVB90M4,AKA97-YVP100M4,AKA97-YVP112M4,AKA97-YVP132M4,AKA97-YVP160M4,AKA97-YVP180M4,AKA97-YVP200M4,AKA97-YVP80M4,AKA97-YVP90M4,AKA97-YVPEJ100M4,AKA97-YVPEJ112M4,AKA97-YVPEJ132M4,AKA97-YVPEJ160M4,AKA97-YVPEJ180M4,AKA97-YVPEJ200M4,AKA97-YVPEJ80M4,AKA97-YVPEJ90M4,NKA97-Y1.1SKA,NKA97-Y1.5SKA,NKA97-Y100M4,NKA97-Y112M4,NKA97-Y11SKA,NKA97-Y132M4,NKA97-Y15SKA,NKA97-Y160M4,NKA97-Y18.5SKA,NKA97-Y180M4,NKA97-Y2.2SKA,NKA97-Y200M4,NKA97-Y22SKA,NKA97-Y30SKA,NKA97-Y3SKA,NKA97-Y4SKA,NKA97-Y5.5SKA,NKA97-Y7.5SKA,NKA97-Y80M4,NKA97-Y90M4,NKA97-YB100M4,NKA97-YB112M4,NKA97-YB132M4,NKA97-YB160M4,NKA97-YB180M4,NKA97-YB200M4,NKA97-YB80M4,NKA97-YB90M4,NKA97-YDP100M4,NKA97-YDP112M4,NKA97-YDP132M4,NKA97-YDP160M4,NKA97-YDP180M4,NKA97-YDP200M4,NKA97-YDP80M4,NKA97-YDP90M4,NKA97-YE100M4,NKA97-YE112M4,NKA97-YE132M4,NKA97-YE160M4,NKA97-YE180M4,NKA97-YE200M4,NKA97-YE80M4,NKA97-YE90M4,NKA97-YEJ100M4,NKA97-YEJ112M4,NKA97-YEJ132M4,NKA97-YEJ160M4,NKA97-YEJ180M4,NKA97-YEJ200M4,NKA97-YEJ80M4,NKA97-YEJ90M4,NKA97-YEJB100M4,NKA97-YEJB112M4,NKA97-YEJB132M4,NKA97-YEJB160M4,NKA97-YEJB180M4,NKA97-YEJB200M4,NKA97-YEJB80M4,NKA97-YEJB90M4,NKA97-YP100M4,NKA97-YP112M4,NKA97-YP132M4,NKA97-YP160M4,NKA97-YP180M4,NKA97-YP200M4,NKA97-YP80M4,NKA97-YP90M4,NKA97-YPB100M4,NKA97-YPB112M4,NKA97-YPB132M4,NKA97-YPB160M4,NKA97-YPB180M4,NKA97-YPB200M4,NKA97-YPB80M4,NKA97-YPB90M4,NKA97-YPE100M4,NKA97-YPE112M4,NKA97-YPE132M4,NKA97-YPE160M4,NKA97-YPE180M4,NKA97-YPE200M4,NKA97-YPE80M4,NKA97-YPE90M4,NKA97-YS100M4,NKA97-YS112M4,NKA97-YS132M4,NKA97-YS160M4,NKA97-YS180M4,NKA97-YS200M4,NKA97-YS80M4,NKA97-YS90M4,NKA97-YVB100M4,NKA97-YVB112M4,NKA97-YVB132M4,NKA97-YVB160M4,NKA97-YVB180M4,NKA97-YVB200M4,NKA97-YVB80M4,NKA97-YVB90M4,NKA97-YVP100M4,NKA97-YVP112M4,NKA97-YVP132M4,NKA97-YVP160M4,NKA97-YVP180M4,NKA97-YVP200M4,NKA97-YVP80M4,NKA97-YVP90M4,NKA97-YVPEJ100M4,NKA97-YVPEJ112M4,NKA97-YVPEJ132M4,NKA97-YVPEJ160M4,NKA97-YVPEJ180M4,NKA97-YVPEJ200M4,NKA97-YVPEJ80M4,NKA97-YVPEJ90M4,GKA99-Y1.1SKA,GKA99-Y1.5SKA,GKA99-Y100M4,GKA99-Y112M4,GKA99-Y11SKA,GKA99-Y132M4,GKA99-Y15SKA,GKA99-Y160M4,GKA99-Y18.5SKA,GKA99-Y180M4,GKA99-Y2.2SKA,GKA99-Y200M4,GKA99-Y22SKA,GKA99-Y30SKA,GKA99-Y3SKA,GKA99-Y4SKA,GKA99-Y5.5SKA,GKA99-Y7.5SKA,GKA99-Y80M4,GKA99-Y90M4,GKA99-YB100M4,GKA99-YB112M4,GKA99-YB132M4,GKA99-YB160M4,GKA99-YB180M4,GKA99-YB200M4,GKA99-YB80M4,GKA99-YB90M4,GKA99-YDP100M4,GKA99-YDP112M4,GKA99-YDP132M4,GKA99-YDP160M4,GKA99-YDP180M4,GKA99-YDP200M4,GKA99-YDP80M4,GKA99-YDP90M4,GKA99-YE100M4,GKA99-YE112M4,GKA99-YE132M4,GKA99-YE160M4,GKA99-YE180M4,GKA99-YE200M4,GKA99-YE80M4,GKA99-YE90M4,GKA99-YEJ100M4,GKA99-YEJ112M4,GKA99-YEJ132M4,GKA99-YEJ160M4,GKA99-YEJ180M4,GKA99-YEJ200M4,GKA99-YEJ80M4,GKA99-YEJ90M4,GKA99-YEJB100M4,GKA99-YEJB112M4,GKA99-YEJB132M4,GKA99-YEJB160M4,GKA99-YEJB180M4,GKA99-YEJB200M4,GKA99-YEJB80M4,GKA99-YEJB90M4,GKA99-YP100M4,GKA99-YP112M4,GKA99-YP132M4,GKA99-YP160M4,GKA99-YP180M4,GKA99-YP200M4,GKA99-YP80M4,GKA99-YP90M4,GKA99-YPB100M4,GKA99-YPB112M4,GKA99-YPB132M4,GKA99-YPB160M4,GKA99-YPB180M4,GKA99-YPB200M4,GKA99-YPB80M4,GKA99-YPB90M4,GKA99-YPE100M4,GKA99-YPE112M4,GKA99-YPE132M4,GKA99-YPE160M4,GKA99-YPE180M4,GKA99-YPE200M4,GKA99-YPE80M4,GKA99-YPE90M4,GKA99-YS100M4,GKA99-YS112M4,GKA99-YS132M4,GKA99-YS160M4,GKA99-YS180M4,GKA99-YS200M4,GKA99-YS80M4,GKA99-YS90M4,GKA99-YVB100M4,GKA99-YVB112M4,GKA99-YVB132M4,GKA99-YVB160M4,GKA99-YVB180M4,GKA99-YVB200M4,GKA99-YVB80M4,GKA99-YVB90M4,GKA99-YVP100M4,GKA99-YVP112M4,GKA99-YVP132M4,GKA99-YVP160M4,GKA99-YVP180M4,GKA99-YVP200M4,GKA99-YVP80M4,GKA99-YVP90M4,GKA99-YVPEJ100M4,GKA99-YVPEJ112M4,GKA99-YVPEJ132M4,GKA99-YVPEJ160M4,GKA99-YVPEJ180M4,GKA99-YVPEJ200M4,GKA99-YVPEJ80M4,GKA99-YVPEJ90M4。

KA99減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kaxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:K99減速機

關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器

KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機

KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   KA99減速機 KA97減速機結構圖 KA97減速機數模 KA97減速機樣本 KA97減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA99減速機數模 點擊下載
KA99減速機樣本 點擊下載
