網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速電機 > KA系列齒輪減速電機

KA109減速機詳細信息

prevnext

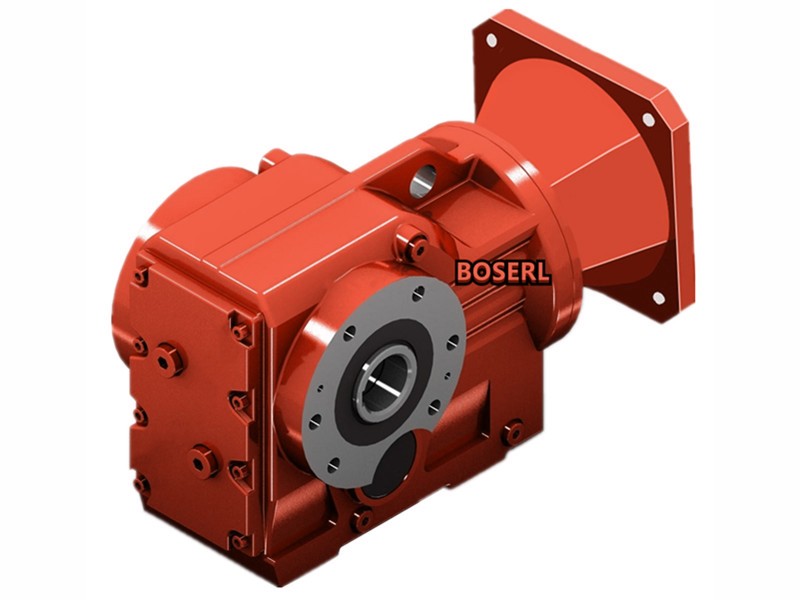

KA109減速機

訂購熱線:13360667204
  1. 詳細信息

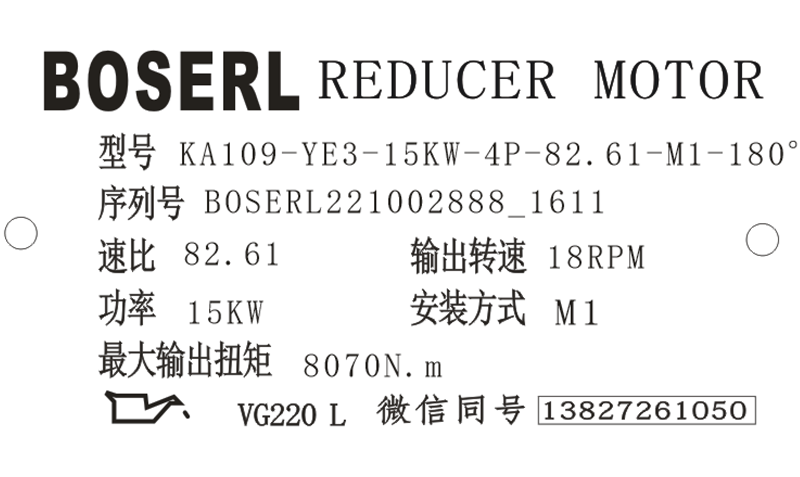

KA109減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA109減速機選型樣本。

KA109-YE3-15KW-4P-82.61-M1-180°

KA:系列代號

109:減速機規格代號

YE3:電機

15KW:電機功率

4P:電機級數

82.61:減速機傳動比

M1:減速機安裝位置

180°:接線盒位置


KA109減速機空心軸扭矩臂安裝:

裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA109減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機


減速機型號

螺栓

擰緊扭矩

KA39減速機

4Xm10x25-8.8

48Nm

KA49減速機

4Xm10x30-8.8

48Nm

KA69減速機

4Xm12x35-8.8

86Nm

KA79減速機

4Xm16x40-8.8

210Nm

KA89減速機

4Xm16x45-8.8

210Nm

KA99減速機

4Xm20x50-8.8

410Nm

KA109減速機

4Xm24x60-8.8

710Nm

KA129減速機

4Xm36x60-8.8

2500Nm

KA159減速機

4Xm36x60-8.8

2500Nm

KA169減速機

4Xm30x60-8.8

1450Nm

KA189減速機

4Xm36x60-8.8

2500Nm

KA109減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA109減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機


KA109減速機型號:

WKA107-Y100M4,WKA107-Y112M4,WKA107-Y11SKA,WKA107-Y132M4,WKA107-Y15SKA,WKA107-Y160M4,WKA107-Y18.5SKA,WKA107-Y180M4,WKA107-Y200M4,WKA107-Y225M4,WKA107-Y22SKA,WKA107-Y30SKA,WKA107-Y37SKA,WKA107-Y3SKA,WKA107-Y45SKA,WKA107-Y4SKA,WKA107-Y5.5SKA,WKA107-Y7.5SKA,WKA107-YB100M4,WKA107-YB112M4,WKA107-YB132M4,WKA107-YB160M4,WKA107-YB180M4,WKA107-YB200M4,WKA107-YB225M4,WKA107-YDP100M4,WKA107-YDP112M4,WKA107-YDP132M4,WKA107-YDP160M4,WKA107-YDP180M4,WKA107-YDP200M4,WKA107-YDP225M4,WKA107-YE100M4,WKA107-YE112M4,WKA107-YE132M4,WKA107-YE160M4,WKA107-YE180M4,WKA107-YE200M4,WKA107-YE225M4,WKA107-YEJ100M4,WKA107-YEJ112M4,WKA107-YEJ132M4,WKA107-YEJ160M4,WKA107-YEJ180M4,WKA107-YEJ200M4,WKA107-YEJ225M4,WKA107-YEJB100M4,WKA107-YEJB112M4,WKA107-YEJB132M4,WKA107-YEJB160M4,WKA107-YEJB180M4,WKA107-YEJB200M4,WKA107-YEJB225M4,WKA107-YP100M4,WKA107-YP112M4,WKA107-YP132M4,WKA107-YP160M4,WKA107-YP180M4,WKA107-YP200M4,WKA107-YP225M4,WKA107-YPB100M4,WKA107-YPB112M4,WKA107-YPB132M4,WKA107-YPB160M4,WKA107-YPB180M4,WKA107-YPB200M4,WKA107-YPB225M4,WKA107-YPE100M4,WKA107-YPE112M4,WKA107-YPE132M4,WKA107-YPE160M4,WKA107-YPE180M4,WKA107-YPE200M4,WKA107-YPE225M4,WKA107-YS100M4,WKA107-YS112M4,WKA107-YS132M4,WKA107-YS160M4,WKA107-YS180M4,WKA107-YS200M4,WKA107-YS225M4,WKA107-YVB100M4,WKA107-YVB112M4,WKA107-YVB132M4,WKA107-YVB160M4,WKA107-YVB180M4,WKA107-YVB200M4,WKA107-YVB225M4,WKA107-YVP100M4,WKA107-YVP112M4,WKA107-YVP132M4,WKA107-YVP160M4,WKA107-YVP180M4,WKA107-YVP200M4,WKA107-YVP225M4,WKA107-YVPEJ100M4,WKA107-YVPEJ112M4,WKA107-YVPEJ132M4,WKA107-YVPEJ160M4,WKA107-YVPEJ180M4,WKA107-YVPEJ200M4,WKA107-YVPEJ225M4,AKA107-Y100M4,AKA107-Y112M4,AKA107-Y11SKA,AKA107-Y132M4,AKA107-Y15SKA,AKA107-Y160M4,AKA107-Y18.5SKA,AKA107-Y180M4,AKA107-Y200M4,AKA107-Y225M4,AKA107-Y22SKA,AKA107-Y30SKA,AKA107-Y37SKA,AKA107-Y3SKA,AKA107-Y45SKA,AKA107-Y4SKA,AKA107-Y5.5SKA,AKA107-Y7.5SKA,AKA107-YB100M4,AKA107-YB112M4,AKA107-YB132M4,AKA107-YB160M4,AKA107-YB180M4,AKA107-YB200M4,AKA107-YB225M4,AKA107-YDP100M4,AKA107-YDP112M4,AKA107-YDP132M4,AKA107-YDP160M4,AKA107-YDP180M4,AKA107-YDP200M4,AKA107-YDP225M4,AKA107-YE100M4,AKA107-YE112M4,AKA107-YE132M4,AKA107-YE160M4,AKA107-YE180M4,AKA107-YE200M4,AKA107-YE225M4,AKA107-YEJ100M4,AKA107-YEJ112M4,AKA107-YEJ132M4,AKA107-YEJ160M4,AKA107-YEJ180M4,AKA107-YEJ200M4,AKA107-YEJ225M4,AKA107-YEJB100M4,AKA107-YEJB112M4,AKA107-YEJB132M4,AKA107-YEJB160M4,AKA107-YEJB180M4,AKA107-YEJB200M4,AKA107-YEJB225M4,AKA107-YP100M4,AKA107-YP112M4,AKA107-YP132M4,AKA107-YP160M4,AKA107-YP180M4,AKA107-YP200M4,AKA107-YP225M4,AKA107-YPB100M4,AKA107-YPB112M4,AKA107-YPB132M4,AKA107-YPB160M4,AKA107-YPB180M4,AKA107-YPB200M4,AKA107-YPB225M4,AKA107-YPE100M4,AKA107-YPE112M4,AKA107-YPE132M4,AKA107-YPE160M4,AKA107-YPE180M4,AKA107-YPE200M4,AKA107-YPE225M4,AKA107-YS100M4,AKA107-YS112M4,AKA107-YS132M4,AKA107-YS160M4,AKA107-YS180M4,AKA107-YS200M4,AKA107-YS225M4,AKA107-YVB100M4,AKA107-YVB112M4,AKA107-YVB132M4,AKA107-YVB160M4,AKA107-YVB180M4,AKA107-YVB200M4,AKA107-YVB225M4,AKA107-YVP100M4,AKA107-YVP112M4,AKA107-YVP132M4,AKA107-YVP160M4,AKA107-YVP180M4,AKA107-YVP200M4,AKA107-YVP225M4,AKA107-YVPEJ100M4,AKA107-YVPEJ112M4,AKA107-YVPEJ132M4,AKA107-YVPEJ160M4,AKA107-YVPEJ180M4,AKA107-YVPEJ200M4,AKA107-YVPEJ225M4,NKA107-Y100M4,NKA107-Y112M4,NKA107-Y11SKA,NKA107-Y132M4,NKA107-Y15SKA,NKA107-Y160M4,NKA107-Y18.5SKA,NKA107-Y180M4,NKA107-Y200M4,NKA107-Y225M4,NKA107-Y22SKA,NKA107-Y30SKA,NKA107-Y37SKA,NKA107-Y3SKA,NKA107-Y45SKA,NKA107-Y4SKA,NKA107-Y5.5SKA,NKA107-Y7.5SKA,NKA107-YB100M4,NKA107-YB112M4,NKA107-YB132M4,NKA107-YB160M4,NKA107-YB180M4,NKA107-YB200M4,NKA107-YB225M4,NKA107-YDP100M4,NKA107-YDP112M4,NKA107-YDP132M4,NKA107-YDP160M4,NKA107-YDP180M4,NKA107-YDP200M4,NKA107-YDP225M4,NKA107-YE100M4,NKA107-YE112M4,NKA107-YE132M4,NKA107-YE160M4,NKA107-YE180M4,NKA107-YE200M4,NKA107-YE225M4,NKA107-YEJ100M4,NKA107-YEJ112M4,NKA107-YEJ132M4,NKA107-YEJ160M4,NKA107-YEJ180M4,NKA107-YEJ200M4,NKA107-YEJ225M4,NKA107-YEJB100M4,NKA107-YEJB112M4,NKA107-YEJB132M4,NKA107-YEJB160M4,NKA107-YEJB180M4,NKA107-YEJB200M4,NKA107-YEJB225M4,NKA107-YP100M4,NKA107-YP112M4,NKA107-YP132M4,NKA107-YP160M4,NKA107-YP180M4,NKA107-YP200M4,NKA107-YP225M4,NKA107-YPB100M4,NKA107-YPB112M4,NKA107-YPB132M4,NKA107-YPB160M4,NKA107-YPB180M4,NKA107-YPB200M4,NKA107-YPB225M4,NKA107-YPE100M4,NKA107-YPE112M4,NKA107-YPE132M4,NKA107-YPE160M4,NKA107-YPE180M4,NKA107-YPE200M4,NKA107-YPE225M4,NKA107-YS100M4,NKA107-YS112M4,NKA107-YS132M4,NKA107-YS160M4,NKA107-YS180M4,NKA107-YS200M4,NKA107-YS225M4,NKA107-YVB100M4,NKA107-YVB112M4,NKA107-YVB132M4,NKA107-YVB160M4,NKA107-YVB180M4,NKA107-YVB200M4,NKA107-YVB225M4,NKA107-YVP100M4,NKA107-YVP112M4,NKA107-YVP132M4,NKA107-YVP160M4,NKA107-YVP180M4,NKA107-YVP200M4,NKA107-YVP225M4,NKA107-YVPEJ100M4,NKA107-YVPEJ112M4,NKA107-YVPEJ132M4,NKA107-YVPEJ160M4,NKA107-YVPEJ180M4,NKA107-YVPEJ200M4,NKA107-YVPEJ225M4,SKA107-Y100M4,SKA107-Y112M4,SKA107-Y11SKA,SKA107-Y132M4,SKA107-Y15SKA,SKA107-Y160M4,SKA107-Y18.5SKA,SKA107-Y180M4,SKA107-Y200M4,SKA107-Y225M4,SKA107-Y22SKA,SKA107-Y30SKA,SKA107-Y37SKA,SKA107-Y3SKA,SKA107-Y45SKA,SKA107-Y4SKA,SKA107-Y5.5SKA,SKA107-Y7.5SKA,SKA107-YB100M4,SKA107-YB112M4,SKA107-YB132M4,SKA107-YB160M4,SKA107-YB180M4,SKA107-YB200M4,SKA107-YB225M4,SKA107-YDP100M4,SKA107-YDP112M4,SKA107-YDP132M4,SKA107-YDP160M4,SKA107-YDP180M4,SKA107-YDP200M4,SKA107-YDP225M4,SKA107-YE100M4,SKA107-YE112M4,SKA107-YE132M4,SKA107-YE160M4,SKA107-YE180M4,SKA107-YE200M4,SKA107-YE225M4,SKA107-YEJ100M4,SKA107-YEJ112M4,SKA107-YEJ132M4,SKA107-YEJ160M4,SKA107-YEJ180M4,SKA107-YEJ200M4,SKA107-YEJ225M4,SKA107-YEJB100M4,SKA107-YEJB112M4,SKA107-YEJB132M4,SKA107-YEJB160M4,SKA107-YEJB180M4,SKA107-YEJB200M4,SKA107-YEJB225M4,SKA107-YP100M4,SKA107-YP112M4,SKA107-YP132M4,SKA107-YP160M4,SKA107-YP180M4,SKA107-YP200M4,SKA107-YP225M4,SKA107-YPB100M4,SKA107-YPB112M4,SKA107-YPB132M4,SKA107-YPB160M4,SKA107-YPB180M4,SKA107-YPB200M4,SKA107-YPB225M4,SKA107-YPE100M4,SKA107-YPE112M4,SKA107-YPE132M4,SKA107-YPE160M4,SKA107-YPE180M4,SKA107-YPE200M4,SKA107-YPE225M4,SKA107-YS100M4,SKA107-YS112M4,SKA107-YS132M4,SKA107-YS160M4,SKA107-YS180M4,SKA107-YS200M4,SKA107-YS225M4,SKA107-YVB100M4,SKA107-YVB112M4,SKA107-YVB132M4,SKA107-YVB160M4,SKA107-YVB180M4,SKA107-YVB200M4,SKA107-YVB225M4,SKA107-YVP100M4,SKA107-YVP112M4,SKA107-YVP132M4,SKA107-YVP160M4,SKA107-YVP180M4,SKA107-YVP200M4,SKA107-YVP225M4,SKA107-YVPEJ100M4,SKA107-YVPEJ112M4,SKA107-YVPEJ132M4,SKA107-YVPEJ160M4,SKA107-YVPEJ180M4,SKA107-YVPEJ200M4,SKA107-YVPEJ225M4,GKA109-Y100M4,GKA109-Y112M4,GKA109-Y11SKA,GKA109-Y132M4,GKA109-Y15SKA,GKA109-Y160M4,GKA109-Y18.5SKA,GKA109-Y180M4,GKA109-Y200M4,GKA109-Y225M4,GKA109-Y22SKA,GKA109-Y30SKA,GKA109-Y37SKA,GKA109-Y3SKA,GKA109-Y45SKA,GKA109-Y4SKA,GKA109-Y5.5SKA,GKA109-Y7.5SKA,GKA109-YB100M4,GKA109-YB112M4,GKA109-YB132M4,GKA109-YB160M4,GKA109-YB180M4,GKA109-YB200M4,GKA109-YB225M4,GKA109-YDP100M4,GKA109-YDP112M4,GKA109-YDP132M4,GKA109-YDP160M4,GKA109-YDP180M4,GKA109-YDP200M4,GKA109-YDP225M4,GKA109-YE100M4,GKA109-YE112M4,GKA109-YE132M4,GKA109-YE160M4,GKA109-YE180M4,GKA109-YE200M4,GKA109-YE225M4,GKA109-YEJ100M4,GKA109-YEJ112M4,GKA109-YEJ132M4,GKA109-YEJ160M4,GKA109-YEJ180M4,GKA109-YEJ200M4,GKA109-YEJ225M4,GKA109-YEJB100M4,GKA109-YEJB112M4,GKA109-YEJB132M4,GKA109-YEJB160M4,GKA109-YEJB180M4,GKA109-YEJB200M4,GKA109-YEJB225M4,GKA109-YP100M4,GKA109-YP112M4,GKA109-YP132M4,GKA109-YP160M4,GKA109-YP180M4,GKA109-YP200M4,GKA109-YP225M4,GKA109-YPB100M4,GKA109-YPB112M4,GKA109-YPB132M4,GKA109-YPB160M4,GKA109-YPB180M4,GKA109-YPB200M4,GKA109-YPB225M4,GKA109-YPE100M4,GKA109-YPE112M4,GKA109-YPE132M4,GKA109-YPE160M4,GKA109-YPE180M4,GKA109-YPE200M4,GKA109-YPE225M4,GKA109-YS100M4,GKA109-YS112M4,GKA109-YS132M4,GKA109-YS160M4,GKA109-YS180M4,GKA109-YS200M4,GKA109-YS225M4,GKA109-YVB100M4,GKA109-YVB112M4,GKA109-YVB132M4,GKA109-YVB160M4,GKA109-YVB180M4,GKA109-YVB200M4,GKA109-YVB225M4,GKA109-YVP100M4,GKA109-YVP112M4,GKA109-YVP132M4,GKA109-YVP160M4,GKA109-YVP180M4,GKA109-YVP200M4,GKA109-YVP225M4,GKA109-YVPEJ100M4,GKA109-YVPEJ112M4,GKA109-YVPEJ132M4,GKA109-YVPEJ160M4,GKA109-YVPEJ180M4,GKA109-YVPEJ200M4,GKA109-YVPEJ225M4。

KA109減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kaxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:K109減速機

關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器

KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機

KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   KA109減速機 KA107減速機結構圖 KA107減速機數模 KA107減速機樣本 KA107減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA109減速機數模 點擊下載
KA109減速機樣本 點擊下載
