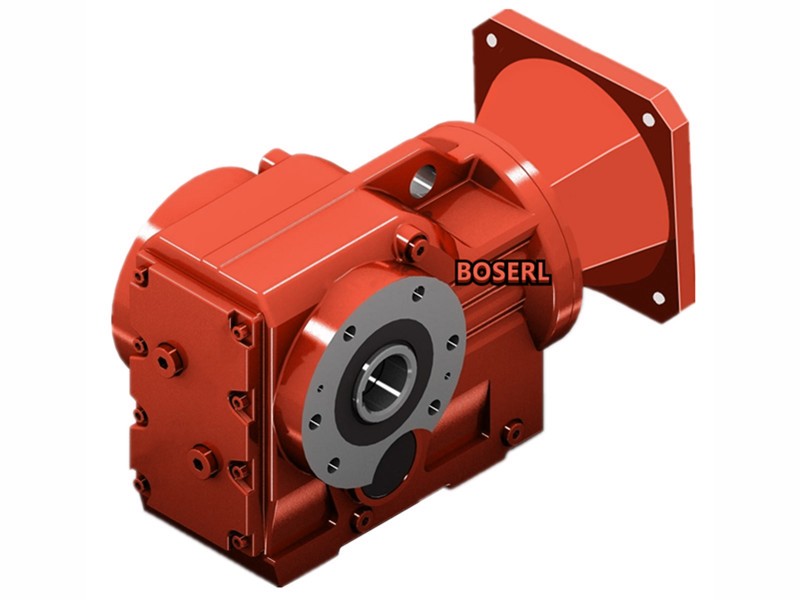

KA39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA39減速機選型樣本。
KA39-YE3-0.75KW-4P-28.83-M5-270°
KA:系列代號
39:減速機規格代號
YE3:電機
0.75KW:電機功率
4P:電機級數
28.83:減速機傳動比
M5:減速機安裝位置
270°:接線盒位置
KA39減速機空心軸扭矩臂安裝:
裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA39減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機
減速機型號 | 螺栓 | 擰緊扭矩 |
KA39減速機 | 4Xm10x25-8.8 | 48Nm |
KA49減速機 | 4Xm10x30-8.8 | 48Nm |
KA69減速機 | 4Xm12x35-8.8 | 86Nm |
KA79減速機 | 4Xm16x40-8.8 | 210Nm |
KA89減速機 | 4Xm16x45-8.8 | 210Nm |
KA99減速機 | 4Xm20x50-8.8 | 410Nm |
KA109減速機 | 4Xm24x60-8.8 | 710Nm |
KA129減速機 | 4Xm36x60-8.8 | 2500Nm |
KA159減速機 | 4Xm36x60-8.8 | 2500Nm |
KA169減速機 | 4Xm30x60-8.8 | 1450Nm |
KA189減速機 | 4Xm36x60-8.8 | 2500Nm |
KA39減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA39減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。空心軸減速機
KA39減速機型號:
AKA37-Y0.12SKA,AKA37-Y0.18SKA,AKA37-Y0.25SKA,AKA37-Y0.37SKA,AKA37-Y0.55SKA,AKA37-Y0.75SKA,AKA37-Y1.1SKA,AKA37-Y1.5SKA,AKA37-Y100M4,AKA37-Y2.2SKA,AKA37-Y3SKA,AKA37-Y63M4,AKA37-Y71M4,AKA37-Y80M4,AKA37-Y90M4,AKA37-YB100M4,AKA37-YB63M4,AKA37-YB71M4,AKA37-YB80M4,AKA37-YB90M4,AKA37-YDP100M4,AKA37-YDP63M4,AKA37-YDP71M4,AKA37-YDP80M4,AKA37-YDP90M4,AKA37-YE100M4,AKA37-YE63M4,AKA37-YE71M4,AKA37-YE80M4,AKA37-YE90M4,AKA37-YEJ100M4,AKA37-YEJ63M4,AKA37-YEJ71M4,AKA37-YEJ80M4,AKA37-YEJ90M4,AKA37-YEJB100M4,AKA37-YEJB63M4,AKA37-YEJB71M4,AKA37-YEJB80M4,AKA37-YEJB90M4,AKA37-YP100M4,AKA37-YP63M4,AKA37-YP71M4,AKA37-YP80M4,AKA37-YP90M4,AKA37-YPB100M4,AKA37-YPB63M4,AKA37-YPB71M4,AKA37-YPB80M4,AKA37-YPB90M4,AKA37-YPE100M4,AKA37-YPE63M4,AKA37-YPE71M4,AKA37-YPE80M4,AKA37-YPE90M4,AKA37-YS100M4,AKA37-YS63M4,AKA37-YS71M4,AKA37-YS80M4,AKA37-YS90M4,AKA37-YVB100M4,AKA37-YVB63M4,AKA37-YVB71M4,AKA37-YVB80M4,AKA37-YVB90M4,AKA37-YVP100M4,AKA37-YVP63M4,AKA37-YVP71M4,AKA37-YVP80M4,AKA37-YVP90M4,AKA37-YVPEJ100M4,AKA37-YVPEJ63M4,AKA37-YVPEJ71M4,AKA37-YVPEJ80M4,AKA37-YVPEJ90M4,WKA37-Y0.12SKA,WKA37-Y0.18SKA,WKA37-Y0.25SKA,WKA37-Y0.37SKA,WKA37-Y0.55SKA,WKA37-Y0.75SKA,WKA37-Y1.1SKA,WKA37-Y1.5SKA,WKA37-Y100M4,WKA37-Y2.2SKA,WKA37-Y3SKA,WKA37-Y63M4,WKA37-Y71M4,WKA37-Y80M4,WKA37-Y90M4,WKA37-YB100M4,WKA37-YB63M4,WKA37-YB71M4,WKA37-YB80M4,WKA37-YB90M4,WKA37-YDP100M4,WKA37-YDP63M4,WKA37-YDP71M4,WKA37-YDP80M4,WKA37-YDP90M4,WKA37-YE100M4,WKA37-YE63M4,WKA37-YE71M4,WKA37-YE80M4,WKA37-YE90M4,WKA37-YEJ100M4,WKA37-YEJ63M4,WKA37-YEJ71M4,WKA37-YEJ80M4,WKA37-YEJ90M4,WKA37-YEJB100M4,WKA37-YEJB63M4,WKA37-YEJB71M4,WKA37-YEJB80M4,WKA37-YEJB90M4,WKA37-YP100M4,WKA37-YP63M4,WKA37-YP71M4,WKA37-YP80M4,WKA37-YP90M4,WKA37-YPB100M4,WKA37-YPB63M4,WKA37-YPB71M4,WKA37-YPB80M4,WKA37-YPB90M4,WKA37-YPE100M4,WKA37-YPE63M4,WKA37-YPE71M4,WKA37-YPE80M4,WKA37-YPE90M4,WKA37-YS100M4,WKA37-YS63M4,WKA37-YS71M4,WKA37-YS80M4,WKA37-YS90M4,WKA37-YVB100M4,WKA37-YVB63M4,WKA37-YVB71M4,WKA37-YVB80M4,WKA37-YVB90M4,WKA37-YVP100M4,WKA37-YVP63M4,WKA37-YVP71M4,WKA37-YVP80M4,WKA37-YVP90M4,WKA37-YVPEJ100M4,WKA37-YVPEJ63M4,WKA37-YVPEJ71M4,WKA37-YVPEJ80M4,WKA37-YVPEJ90M4,NKA37-Y0.12SKA,NKA37-Y0.18SKA,NKA37-Y0.25SKA,NKA37-Y0.37SKA,NKA37-Y0.55SKA,NKA37-Y0.75SKA,NKA37-Y1.1SKA,NKA37-Y1.5SKA,NKA37-Y100M4,NKA37-Y2.2SKA,NKA37-Y3SKA,NKA37-Y63M4,NKA37-Y71M4,NKA37-Y80M4,NKA37-Y90M4,NKA37-YB100M4,NKA37-YB63M4,NKA37-YB71M4,NKA37-YB80M4,NKA37-YB90M4,NKA37-YDP100M4,NKA37-YDP63M4,NKA37-YDP71M4,NKA37-YDP80M4,NKA37-YDP90M4,NKA37-YE100M4,NKA37-YE63M4,NKA37-YE71M4,NKA37-YE80M4,NKA37-YE90M4,NKA37-YEJ100M4,NKA37-YEJ63M4,NKA37-YEJ71M4,NKA37-YEJ80M4,NKA37-YEJ90M4,NKA37-YEJB100M4,NKA37-YEJB63M4,NKA37-YEJB71M4,NKA37-YEJB80M4,NKA37-YEJB90M4,NKA37-YP100M4,NKA37-YP63M4,NKA37-YP71M4,NKA37-YP80M4,NKA37-YP90M4,NKA37-YPB100M4,NKA37-YPB63M4,NKA37-YPB71M4,NKA37-YPB80M4,NKA37-YPB90M4,NKA37-YPE100M4,NKA37-YPE63M4,NKA37-YPE71M4,NKA37-YPE80M4,NKA37-YPE90M4,NKA37-YS100M4,NKA37-YS63M4,NKA37-YS71M4,NKA37-YS80M4,NKA37-YS90M4,NKA37-YVB100M4,NKA37-YVB63M4,NKA37-YVB71M4,NKA37-YVB80M4,NKA37-YVB90M4,NKA37-YVP100M4,NKA37-YVP63M4,NKA37-YVP71M4,NKA37-YVP80M4,NKA37-YVP90M4,NKA37-YVPEJ100M4,NKA37-YVPEJ63M4,NKA37-YVPEJ71M4,NKA37-YVPEJ80M4,NKA37-YVPEJ90M4,SKA37-Y0.12SKA,SKA37-Y0.18SKA,SKA37-Y0.25SKA,SKA37-Y0.37SKA,SKA37-Y0.55SKA,SKA37-Y0.75SKA,SKA37-Y1.1SKA,SKA37-Y1.5SKA,SKA37-Y100M4,SKA37-Y2.2SKA,SKA37-Y3SKA,SKA37-Y63M4,SKA37-Y71M4,SKA37-Y80M4,SKA37-Y90M4,SKA37-YB100M4,SKA37-YB63M4,SKA37-YB71M4,SKA37-YB80M4,SKA37-YB90M4,SKA37-YDP100M4,SKA37-YDP63M4,SKA37-YDP71M4,SKA37-YDP80M4,SKA37-YDP90M4,SKA37-YE100M4,SKA37-YE63M4,SKA37-YE71M4,SKA37-YE80M4,SKA37-YE90M4,SKA37-YEJ100M4,SKA37-YEJ63M4,SKA37-YEJ71M4,SKA37-YEJ80M4,SKA37-YEJ90M4,SKA37-YEJB100M4,SKA37-YEJB63M4,SKA37-YEJB71M4,SKA37-YEJB80M4,SKA37-YEJB90M4,SKA37-YP100M4,SKA37-YP63M4,SKA37-YP71M4,SKA37-YP80M4,SKA37-YP90M4,SKA37-YPB100M4,SKA37-YPB63M4,SKA37-YPB71M4,SKA37-YPB80M4,SKA37-YPB90M4,SKA37-YPE100M4,SKA37-YPE63M4,SKA37-YPE71M4,SKA37-YPE80M4,SKA37-YPE90M4,SKA37-YS100M4,SKA37-YS63M4,SKA37-YS71M4,SKA37-YS80M4,SKA37-YS90M4,SKA37-YVB100M4,SKA37-YVB63M4,SKA37-YVB71M4,SKA37-YVB80M4,SKA37-YVB90M4,SKA37-YVP100M4,SKA37-YVP63M4,SKA37-YVP71M4,SKA37-YVP80M4,SKA37-YVP90M4,SKA37-YVPEJ100M4,SKA37-YVPEJ63M4,SKA37-YVPEJ71M4,SKA37-YVPEJ80M4,SKA37-YVPEJ90M4,GKA39-Y0.12SKA,GKA39-Y0.18SKA,GKA39-Y0.25SKA,GKA39-Y0.37SKA,GKA39-Y0.55SKA,GKA39-Y0.75SKA,GKA39-Y1.1SKA,GKA39-Y1.5SKA,GKA39-Y100M4,GKA39-Y2.2SKA,GKA39-Y3SKA,GKA39-Y63M4,GKA39-Y71M4,GKA39-Y80M4,GKA39-Y90M4,GKA39-YB100M4,GKA39-YB63M4,GKA39-YB71M4,GKA39-YB80M4,GKA39-YB90M4,GKA39-YDP100M4,GKA39-YDP63M4,GKA39-YDP71M4,GKA39-YDP80M4,GKA39-YDP90M4,GKA39-YE100M4,GKA39-YE63M4,GKA39-YE71M4,GKA39-YE80M4,GKA39-YE90M4,GKA39-YEJ100M4,GKA39-YEJ63M4,GKA39-YEJ71M4,GKA39-YEJ80M4,GKA39-YEJ90M4,GKA39-YEJB100M4,GKA39-YEJB63M4,GKA39-YEJB71M4,GKA39-YEJB80M4,GKA39-YEJB90M4,GKA39-YP100M4,GKA39-YP63M4,GKA39-YP71M4,GKA39-YP80M4,GKA39-YP90M4,GKA39-YPB100M4,GKA39-YPB63M4,GKA39-YPB71M4,GKA39-YPB80M4,GKA39-YPB90M4,GKA39-YPE100M4,GKA39-YPE63M4,GKA39-YPE71M4,GKA39-YPE80M4,GKA39-YPE90M4,GKA39-YS100M4,GKA39-YS63M4,GKA39-YS71M4,GKA39-YS80M4,GKA39-YS90M4,GKA39-YVB100M4,GKA39-YVB63M4,GKA39-YVB71M4,GKA39-YVB80M4,GKA39-YVB90M4,GKA39-YVP100M4,GKA39-YVP63M4,GKA39-YVP71M4,GKA39-YVP80M4,GKA39-YVP90M4,GKA39-YVPEJ100M4,GKA39-YVPEJ63M4,GKA39-YVPEJ71M4,GKA39-YVPEJ80M4,GKA39-YVPEJ90M4。
KA39減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kaxiliejiansuji-cn.html
推薦類似型號:K39減速機
關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機
KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
