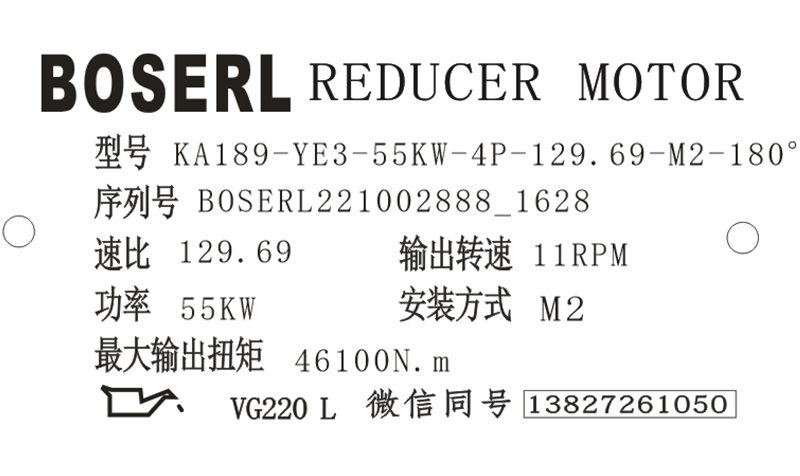

KA189減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA189減速機選型樣本。
KA189-YE3-55KW-4P-129.69-M2-180°
KA:系列代號
189:減速機規格代號
YE3:電機
55KW:電機功率
4P:電機級數
129.69:減速機傳動比
M2:減速機安裝位置
180°:接線盒位置
KA189減速機空心軸扭矩臂安裝:
裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA189減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機
減速機型號 | 螺栓 | 擰緊扭矩 |
KA39減速機 | 4Xm10x25-8.8 | 48Nm |
KA49減速機 | 4Xm10x30-8.8 | 48Nm |
KA69減速機 | 4Xm12x35-8.8 | 86Nm |
KA79減速機 | 4Xm16x40-8.8 | 210Nm |
KA89減速機 | 4Xm16x45-8.8 | 210Nm |
KA99減速機 | 4Xm20x50-8.8 | 410Nm |
KA109減速機 | 4Xm24x60-8.8 | 710Nm |
KA129減速機 | 4Xm36x60-8.8 | 2500Nm |
KA159減速機 | 4Xm36x60-8.8 | 2500Nm |
KA169減速機 | 4Xm30x60-8.8 | 1450Nm |
KA189減速機 | 4Xm36x60-8.8 | 2500Nm |
KA189減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA189減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。空心軸減速機
KA189減速機型號:
WKA187-Y110SKA,WKA187-Y132SKA,WKA187-Y160SKA,WKA187-Y18.5SKA,WKA187-Y180M4,WKA187-Y200SKA,WKA187-Y200M4,WKA187-Y225M4,WKA187-Y22SKA,WKA187-Y250M4,WKA187-Y280M4,WKA187-Y30SKA,WKA187-Y315M4,WKA187-Y37SKA,WKA187-Y45SKA,WKA187-Y55SKA,WKA187-Y75SKA,WKA187-Y90SKA,WKA187-YB180M4,WKA187-YB200M4,WKA187-YB225M4,WKA187-YB250M4,WKA187-YB280M4,WKA187-YB315M4,WKA187-YDP180M4,WKA187-YDP200M4,WKA187-YDP225M4,WKA187-YDP250M4,WKA187-YDP280M4,WKA187-YDP315M4,WKA187-YE180M4,WKA187-YE200M4,WKA187-YE225M4,WKA187-YE250M4,WKA187-YE280M4,WKA187-YE315M4,WKA187-YEJ180M4,WKA187-YEJ200M4,WKA187-YEJ225M4,WKA187-YEJ250M4,WKA187-YEJ280M4,WKA187-YEJ315M4,WKA187-YEJB180M4,WKA187-YEJB200M4,WKA187-YEJB225M4,WKA187-YEJB250M4,WKA187-YEJB280M4,WKA187-YEJB315M4,WKA187-YP180M4,WKA187-YP200M4,WKA187-YP225M4,WKA187-YP250M4,WKA187-YP280M4,WKA187-YP315M4,WKA187-YPB180M4,WKA187-YPB200M4,WKA187-YPB225M4,WKA187-YPB250M4,WKA187-YPB280M4,WKA187-YPB315M4,WKA187-YPE180M4,WKA187-YPE200M4,WKA187-YPE225M4,WKA187-YPE250M4,WKA187-YPE280M4,WKA187-YPE315M4,WKA187-YS180M4,WKA187-YS200M4,WKA187-YS225M4,WKA187-YS250M4,WKA187-YS280M4,WKA187-YS315M4,WKA187-YVB180M4,WKA187-YVB200M4,WKA187-YVB225M4,WKA187-YVB250M4,WKA187-YVB280M4,WKA187-YVB315M4,WKA187-YVP180M4,WKA187-YVP200M4,WKA187-YVP225M4,WKA187-YVP250M4,WKA187-YVP280M4,WKA187-YVP315M4,WKA187-YVPEJ180M4,WKA187-YVPEJ200M4,WKA187-YVPEJ225M4,WKA187-YVPEJ250M4,WKA187-YVPEJ280M4,WKA187-YVPEJ315M4,AKA187-Y110SKA,AKA187-Y132SKA,AKA187-Y160SKA,AKA187-Y18.5SKA,AKA187-Y180M4,AKA187-Y200SKA,AKA187-Y200M4,AKA187-Y225M4,AKA187-Y22SKA,AKA187-Y250M4,AKA187-Y280M4,AKA187-Y30SKA,AKA187-Y315M4,AKA187-Y37SKA,AKA187-Y45SKA,AKA187-Y55SKA,AKA187-Y75SKA,AKA187-Y90SKA,AKA187-YB180M4,AKA187-YB200M4,AKA187-YB225M4,AKA187-YB250M4,AKA187-YB280M4,AKA187-YB315M4,AKA187-YDP180M4,AKA187-YDP200M4,AKA187-YDP225M4,AKA187-YDP250M4,AKA187-YDP280M4,AKA187-YDP315M4,AKA187-YE180M4,AKA187-YE200M4,AKA187-YE225M4,AKA187-YE250M4,AKA187-YE280M4,AKA187-YE315M4,AKA187-YEJ180M4,AKA187-YEJ200M4,AKA187-YEJ225M4,AKA187-YEJ250M4,AKA187-YEJ280M4,AKA187-YEJ315M4,AKA187-YEJB180M4,AKA187-YEJB200M4,AKA187-YEJB225M4,AKA187-YEJB250M4,AKA187-YEJB280M4,AKA187-YEJB315M4,AKA187-YP180M4,AKA187-YP200M4,AKA187-YP225M4,AKA187-YP250M4,AKA187-YP280M4,AKA187-YP315M4,AKA187-YPB180M4,AKA187-YPB200M4,AKA187-YPB225M4,AKA187-YPB250M4,AKA187-YPB280M4,AKA187-YPB315M4,AKA187-YPE180M4,AKA187-YPE200M4,AKA187-YPE225M4,AKA187-YPE250M4,AKA187-YPE280M4,AKA187-YPE315M4,AKA187-YS180M4,AKA187-YS200M4,AKA187-YS225M4,AKA187-YS250M4,AKA187-YS280M4,AKA187-YS315M4,AKA187-YVB180M4,AKA187-YVB200M4,AKA187-YVB225M4,AKA187-YVB250M4,AKA187-YVB280M4,AKA187-YVB315M4,AKA187-YVP180M4,AKA187-YVP200M4,AKA187-YVP225M4,AKA187-YVP250M4,AKA187-YVP280M4,AKA187-YVP315M4,AKA187-YVPEJ180M4,AKA187-YVPEJ200M4,AKA187-YVPEJ225M4,AKA187-YVPEJ250M4,AKA187-YVPEJ280M4,AKA187-YVPEJ315M4,NKA187-Y110SKA,NKA187-Y132SKA,NKA187-Y160SKA,NKA187-Y18.5SKA,NKA187-Y180M4,NKA187-Y200SKA,NKA187-Y200M4,NKA187-Y225M4,NKA187-Y22SKA,NKA187-Y250M4,NKA187-Y280M4,NKA187-Y30SKA,NKA187-Y315M4,NKA187-Y37SKA,NKA187-Y45SKA,NKA187-Y55SKA,NKA187-Y75SKA,NKA187-Y90SKA,NKA187-YB180M4,NKA187-YB200M4,NKA187-YB225M4,NKA187-YB250M4,NKA187-YB280M4,NKA187-YB315M4,NKA187-YDP180M4,NKA187-YDP200M4,NKA187-YDP225M4,NKA187-YDP250M4,NKA187-YDP280M4,NKA187-YDP315M4,NKA187-YE180M4,NKA187-YE200M4,NKA187-YE225M4,NKA187-YE250M4,NKA187-YE280M4,NKA187-YE315M4,NKA187-YEJ180M4,NKA187-YEJ200M4,NKA187-YEJ225M4,NKA187-YEJ250M4,NKA187-YEJ280M4,NKA187-YEJ315M4,NKA187-YEJB180M4,NKA187-YEJB200M4,NKA187-YEJB225M4,NKA187-YEJB250M4,NKA187-YEJB280M4,NKA187-YEJB315M4,NKA187-YP180M4,NKA187-YP200M4,NKA187-YP225M4,NKA187-YP250M4,NKA187-YP280M4,NKA187-YP315M4,NKA187-YPB180M4,NKA187-YPB200M4,NKA187-YPB225M4,NKA187-YPB250M4,NKA187-YPB280M4,NKA187-YPB315M4,NKA187-YPE180M4,NKA187-YPE200M4,NKA187-YPE225M4,NKA187-YPE250M4,NKA187-YPE280M4,NKA187-YPE315M4,NKA187-YS180M4,NKA187-YS200M4,NKA187-YS225M4,NKA187-YS250M4,NKA187-YS280M4,NKA187-YS315M4,NKA187-YVB180M4,NKA187-YVB200M4,NKA187-YVB225M4,NKA187-YVB250M4,NKA187-YVB280M4,NKA187-YVB315M4,NKA187-YVP180M4,NKA187-YVP200M4,NKA187-YVP225M4,NKA187-YVP250M4,NKA187-YVP280M4,NKA187-YVP315M4,NKA187-YVPEJ180M4,NKA187-YVPEJ200M4,NKA187-YVPEJ225M4,NKA187-YVPEJ250M4,NKA187-YVPEJ280M4,NKA187-YVPEJ315M4,SKA187-Y110SKA,SKA187-Y132SKA,SKA187-Y160SKA,SKA187-Y18.5SKA,SKA187-Y180M4,SKA187-Y200SKA,SKA187-Y200M4,SKA187-Y225M4,SKA187-Y22SKA,SKA187-Y250M4,SKA187-Y280M4,SKA187-Y30SKA,SKA187-Y315M4,SKA187-Y37SKA,SKA187-Y45SKA,SKA187-Y55SKA,SKA187-Y75SKA,SKA187-Y90SKA,SKA187-YB180M4,SKA187-YB200M4,SKA187-YB225M4,SKA187-YB250M4,SKA187-YB280M4,SKA187-YB315M4,SKA187-YDP180M4,SKA187-YDP200M4,SKA187-YDP225M4,SKA187-YDP250M4,SKA187-YDP280M4,SKA187-YDP315M4,SKA187-YE180M4,SKA187-YE200M4,SKA187-YE225M4,SKA187-YE250M4,SKA187-YE280M4,SKA187-YE315M4,SKA187-YEJ180M4,SKA187-YEJ200M4,SKA187-YEJ225M4,SKA187-YEJ250M4,SKA187-YEJ280M4,SKA187-YEJ315M4,SKA187-YEJB180M4,SKA187-YEJB200M4,SKA187-YEJB225M4,SKA187-YEJB250M4,SKA187-YEJB280M4,SKA187-YEJB315M4,SKA187-YP180M4,SKA187-YP200M4,SKA187-YP225M4,SKA187-YP250M4,SKA187-YP280M4,SKA187-YP315M4,SKA187-YPB180M4,SKA187-YPB200M4,SKA187-YPB225M4,SKA187-YPB250M4,SKA187-YPB280M4,SKA187-YPB315M4,SKA187-YPE180M4,SKA187-YPE200M4,SKA187-YPE225M4,SKA187-YPE250M4,SKA187-YPE280M4,SKA187-YPE315M4,SKA187-YS180M4,SKA187-YS200M4,SKA187-YS225M4,SKA187-YS250M4,SKA187-YS280M4,SKA187-YS315M4,SKA187-YVB180M4,SKA187-YVB200M4,SKA187-YVB225M4,SKA187-YVB250M4,SKA187-YVB280M4,SKA187-YVB315M4,SKA187-YVP180M4,SKA187-YVP200M4,SKA187-YVP225M4,SKA187-YVP250M4,SKA187-YVP280M4,SKA187-YVP315M4,SKA187-YVPEJ180M4,SKA187-YVPEJ200M4,SKA187-YVPEJ225M4,SKA187-YVPEJ250M4,SKA187-YVPEJ280M4,SKA187-YVPEJ315M4,GKA189-Y110SKA,GKA189-Y132SKA,GKA189-Y160SKA,GKA189-Y18.5SKA,GKA189-Y180M4,GKA189-Y200SKA,GKA189-Y200M4,GKA189-Y225M4,GKA189-Y22SKA,GKA189-Y250M4,GKA189-Y280M4,GKA189-Y30SKA,GKA189-Y315M4,GKA189-Y37SKA,GKA189-Y45SKA,GKA189-Y55SKA,GKA189-Y75SKA,GKA189-Y90SKA,GKA189-YB180M4,GKA189-YB200M4,GKA189-YB225M4,GKA189-YB250M4,GKA189-YB280M4,GKA189-YB315M4,GKA189-YDP180M4,GKA189-YDP200M4,GKA189-YDP225M4,GKA189-YDP250M4,GKA189-YDP280M4,GKA189-YDP315M4,GKA189-YE180M4,GKA189-YE200M4,GKA189-YE225M4,GKA189-YE250M4,GKA189-YE280M4,GKA189-YE315M4,GKA189-YEJ180M4,GKA189-YEJ200M4,GKA189-YEJ225M4,GKA189-YEJ250M4,GKA189-YEJ280M4,GKA189-YEJ315M4,GKA189-YEJB180M4,GKA189-YEJB200M4,GKA189-YEJB225M4,GKA189-YEJB250M4,GKA189-YEJB280M4,GKA189-YEJB315M4,GKA189-YP180M4,GKA189-YP200M4,GKA189-YP225M4,GKA189-YP250M4,GKA189-YP280M4,GKA189-YP315M4,GKA189-YPB180M4,GKA189-YPB200M4,GKA189-YPB225M4,GKA189-YPB250M4,GKA189-YPB280M4,GKA189-YPB315M4,GKA189-YPE180M4,GKA189-YPE200M4,GKA189-YPE225M4,GKA189-YPE250M4,GKA189-YPE280M4,GKA189-YPE315M4,GKA189-YS180M4,GKA189-YS200M4,GKA189-YS225M4,GKA189-YS250M4,GKA189-YS280M4,GKA189-YS315M4,GKA189-YVB180M4,GKA189-YVB200M4,GKA189-YVB225M4,GKA189-YVB250M4,GKA189-YVB280M4,GKA189-YVB315M4,GKA189-YVP180M4,GKA189-YVP200M4,GKA189-YVP225M4,GKA189-YVP250M4,GKA189-YVP280M4,GKA189-YVP315M4,GKA189-YVPEJ180M4,GKA189-YVPEJ200M4,GKA189-YVPEJ225M4,GKA189-YVPEJ250M4,GKA189-YVPEJ280M4,GKA189-YVPEJ315M4。
