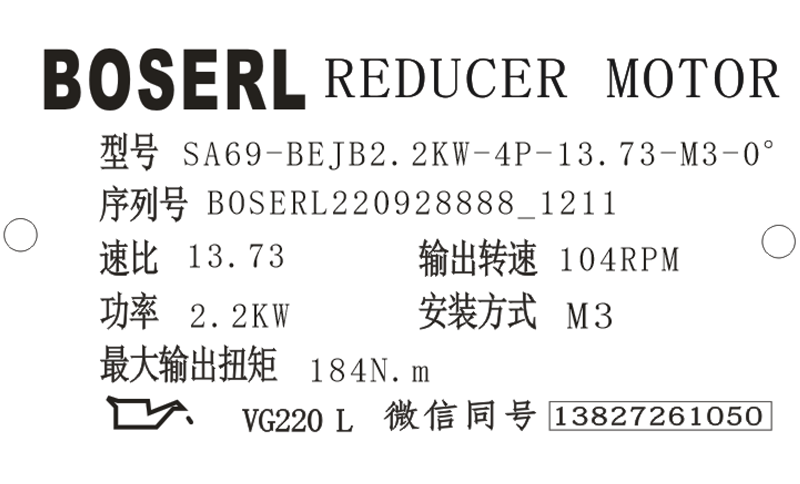

SA69減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA69減速機選型樣本。
SA69-BEJB2.2KW-4P-13.73-M3-0°
SA:系列代號
69:減速機規格代號
BEJB:電機
2.2KW:電機功率
4P:電機級數
13.73:減速機傳動比
M3:減速機安裝位置
0°:接線盒位置
SA69減速機扭力臂安裝:
裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA69減速機的扭力臂安裝示意圖:兩面均安裝支架。齒輪減速電機
減速機型號 | 螺栓 | 擰緊扭矩 |
SA39減速機 | 4xM6x16-8.8 | 11Nm |
SA49減速機 | 4xM8x20-8.8 | 25Nm |
SA59減速機 | 6xM8x20-8.8 | 25Nm |
SA69減速機 | 8xM12x25-8.8 | 86Nm |
SA79減速機 | 8xM12x35-8.8 | 86Nm |
SA89減速機 | 8xM16x35-8.8 | 210Nm |
SA99減速機 | 8xM16x35-8.8 | 210Nm |
SA69減速機電機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA69減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。自鎖減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。伺服電機連接減速機
SA69減速機型號:
NSA67-Y0.18KW,NSA67-Y0.25KW,NSA67-Y0.37KW,NSA67-Y0.55KW,NSA67-Y0.75KW,NSA67-Y1.1KW,NSA67-Y1.5KW,NSA67-Y100M4,NSA67-Y112M4,NSA67-Y132M4,NSA67-Y2.2KW,NSA67-Y3KW,NSA67-Y4KW,NSA67-Y5.5KW,NSA67-Y63M4,NSA67-Y71M4,NSA67-Y80M4,NSA67-Y90M4,NSA67-YB100M4,NSA67-YB112M4,NSA67-YB132M4,NSA67-YB63M4,NSA67-YB71M4,NSA67-YB80M4,NSA67-YB90M4,NSA67-YDP100M4,NSA67-YDP112M4,NSA67-YDP132M4,NSA67-YDP63M4,NSA67-YDP71M4,NSA67-YDP80M4,NSA67-YDP90M4,NSA67-YE100M4,NSA67-YE112M4,NSA67-YE132M4,NSA67-YE63M4,NSA67-YE71M4,NSA67-YE80M4,NSA67-YE90M4,NSA67-YEJ100M4,NSA67-YEJ112M4,NSA67-YEJ132M4,NSA67-YEJ63M4,NSA67-YEJ71M4,NSA67-YEJ80M4,NSA67-YEJ90M4,NSA67-YEJB100M4,NSA67-YEJB112M4,NSA67-YEJB132M4,NSA67-YEJB63M4,NSA67-YEJB71M4,NSA67-YEJB80M4,NSA67-YEJB90M4,NSA67-YP100M4,NSA67-YP112M4,NSA67-YP132M4,NSA67-YP63M4,NSA67-YP71M4,NSA67-YP80M4,NSA67-YP90M4,NSA67-YPB100M4,NSA67-YPB112M4,NSA67-YPB132M4,NSA67-YPB63M4,NSA67-YPB71M4,NSA67-YPB80M4,NSA67-YPB90M4,NSA67-YPE100M4,NSA67-YPE112M4,NSA67-YPE132M4,NSA67-YPE63M4,NSA67-YPE71M4,NSA67-YPE80M4,NSA67-YPE90M4,NSA67-YS100M4,NSA67-YS112M4,NSA67-YS132M4,NSA67-YS63M4,NSA67-YS71M4,NSA67-YS80M4,NSA67-YS90M4,NSA67-YVB100M4,NSA67-YVB112M4,NSA67-YVB132M4,NSA67-YVB63M4,NSA67-YVB71M4,NSA67-YVB80M4,NSA67-YVB90M4,NSA67-YVP100M4,NSA67-YVP112M4,NSA67-YVP132M4,NSA67-YVP63M4,NSA67-YVP71M4,NSA67-YVP80M4,NSA67-YVP90M4,NSA67-YVPEJ100M4,NSA67-YVPEJ112M4,NSA67-YVPEJ132M4,NSA67-YVPEJ63M4,NSA67-YVPEJ71M4,NSA67-YVPEJ80M4,NSA67-YVPEJ90M4,WSA67-Y0.18KW,WSA67-Y0.25KW,WSA67-Y0.37KW,WSA67-Y0.55KW,WSA67-Y0.75KW,WSA67-Y1.1KW,WSA67-Y1.5KW,WSA67-Y100M4,WSA67-Y112M4,WSA67-Y132M4,WSA67-Y2.2KW,WSA67-Y3KW,WSA67-Y4KW,WSA67-Y5.5KW,WSA67-Y63M4,WSA67-Y71M4,WSA67-Y80M4,WSA67-Y90M4,WSA67-YB100M4,WSA67-YB112M4,WSA67-YB132M4,WSA67-YB63M4,WSA67-YB71M4,WSA67-YB80M4,WSA67-YB90M4,WSA67-YDP100M4,WSA67-YDP112M4,WSA67-YDP132M4,WSA67-YDP63M4,WSA67-YDP71M4,WSA67-YDP80M4,WSA67-YDP90M4,WSA67-YE100M4,WSA67-YE112M4,WSA67-YE132M4,WSA67-YE63M4,WSA67-YE71M4,WSA67-YE80M4,WSA67-YE90M4,WSA67-YEJ100M4,WSA67-YEJ112M4,WSA67-YEJ132M4,WSA67-YEJ63M4,WSA67-YEJ71M4,WSA67-YEJ80M4,WSA67-YEJ90M4,WSA67-YEJB100M4,WSA67-YEJB112M4,WSA67-YEJB132M4,WSA67-YEJB63M4,WSA67-YEJB71M4,WSA67-YEJB80M4,WSA67-YEJB90M4,WSA67-YP100M4,WSA67-YP112M4,WSA67-YP132M4,WSA67-YP63M4,WSA67-YP71M4,WSA67-YP80M4,WSA67-YP90M4,WSA67-YPB100M4,WSA67-YPB112M4,WSA67-YPB132M4,WSA67-YPB63M4,WSA67-YPB71M4,WSA67-YPB80M4,WSA67-YPB90M4,WSA67-YPE100M4,WSA67-YPE112M4,WSA67-YPE132M4,WSA67-YPE63M4,WSA67-YPE71M4,WSA67-YPE80M4,WSA67-YPE90M4,WSA67-YS100M4,WSA67-YS112M4,WSA67-YS132M4,WSA67-YS63M4,WSA67-YS71M4,WSA67-YS80M4,WSA67-YS90M4,WSA67-YVB100M4,WSA67-YVB112M4,WSA67-YVB132M4,WSA67-YVB63M4,WSA67-YVB71M4,WSA67-YVB80M4,WSA67-YVB90M4,WSA67-YVP100M4,WSA67-YVP112M4,WSA67-YVP132M4,WSA67-YVP63M4,WSA67-YVP71M4,WSA67-YVP80M4,WSA67-YVP90M4,WSA67-YVPEJ100M4,WSA67-YVPEJ112M4,WSA67-YVPEJ132M4,WSA67-YVPEJ63M4,WSA67-YVPEJ71M4,WSA67-YVPEJ80M4,WSA67-YVPEJ90M4,ASA67-Y0.18KW,ASA67-Y0.25KW,ASA67-Y0.37KW,ASA67-Y0.55KW,ASA67-Y0.75KW,ASA67-Y1.1KW,ASA67-Y1.5KW,ASA67-Y100M4,ASA67-Y112M4,ASA67-Y132M4,ASA67-Y2.2KW,ASA67-Y3KW,ASA67-Y4KW,ASA67-Y5.5KW,ASA67-Y63M4,ASA67-Y71M4,ASA67-Y80M4,ASA67-Y90M4,ASA67-YB100M4,ASA67-YB112M4,ASA67-YB132M4,ASA67-YB63M4,ASA67-YB71M4,ASA67-YB80M4,ASA67-YB90M4,ASA67-YDP100M4,ASA67-YDP112M4,ASA67-YDP132M4,ASA67-YDP63M4,ASA67-YDP71M4,ASA67-YDP80M4,ASA67-YDP90M4,ASA67-YE100M4,ASA67-YE112M4,ASA67-YE132M4,ASA67-YE63M4,ASA67-YE71M4,ASA67-YE80M4,ASA67-YE90M4,ASA67-YEJ100M4,ASA67-YEJ112M4,ASA67-YEJ132M4,ASA67-YEJ63M4,ASA67-YEJ71M4,ASA67-YEJ80M4,ASA67-YEJ90M4,ASA67-YEJB100M4,ASA67-YEJB112M4,ASA67-YEJB132M4,ASA67-YEJB63M4,ASA67-YEJB71M4,ASA67-YEJB80M4,ASA67-YEJB90M4,ASA67-YP100M4,ASA67-YP112M4,ASA67-YP132M4,ASA67-YP63M4,ASA67-YP71M4,ASA67-YP80M4,ASA67-YP90M4,ASA67-YPB100M4,ASA67-YPB112M4,ASA67-YPB132M4,ASA67-YPB63M4,ASA67-YPB71M4,ASA67-YPB80M4,ASA67-YPB90M4,ASA67-YPE100M4,ASA67-YPE112M4,ASA67-YPE132M4,ASA67-YPE63M4,ASA67-YPE71M4,ASA67-YPE80M4,ASA67-YPE90M4,ASA67-YS100M4,ASA67-YS112M4,ASA67-YS132M4,ASA67-YS63M4,ASA67-YS71M4,ASA67-YS80M4,ASA67-YS90M4,ASA67-YVB100M4,ASA67-YVB112M4,ASA67-YVB132M4,ASA67-YVB63M4,ASA67-YVB71M4,ASA67-YVB80M4,ASA67-YVB90M4,ASA67-YVP100M4,ASA67-YVP112M4,ASA67-YVP132M4,ASA67-YVP63M4,ASA67-YVP71M4,ASA67-YVP80M4,ASA67-YVP90M4,ASA67-YVPEJ100M4,ASA67-YVPEJ112M4,ASA67-YVPEJ132M4,ASA67-YVPEJ63M4,ASA67-YVPEJ71M4,ASA67-YVPEJ80M4,ASA67-YVPEJ90M4,SSA67-Y0.18KW,SSA67-Y0.25KW,SSA67-Y0.37KW,SSA67-Y0.55KW,SSA67-Y0.75KW,SSA67-Y1.1KW,SSA67-Y1.5KW,SSA67-Y100M4,SSA67-Y112M4,SSA67-Y132M4,SSA67-Y2.2KW,SSA67-Y3KW,SSA67-Y4KW,SSA67-Y5.5KW,SSA67-Y63M4,SSA67-Y71M4,SSA67-Y80M4,SSA67-Y90M4,SSA67-YB100M4,SSA67-YB112M4,SSA67-YB132M4,SSA67-YB63M4,SSA67-YB71M4,SSA67-YB80M4,SSA67-YB90M4,SSA67-YDP100M4,SSA67-YDP112M4,SSA67-YDP132M4,SSA67-YDP63M4,SSA67-YDP71M4,SSA67-YDP80M4,SSA67-YDP90M4,SSA67-YE100M4,SSA67-YE112M4,SSA67-YE132M4,SSA67-YE63M4,SSA67-YE71M4,SSA67-YE80M4,SSA67-YE90M4,SSA67-YEJ100M4,SSA67-YEJ112M4,SSA67-YEJ132M4,SSA67-YEJ63M4,SSA67-YEJ71M4,SSA67-YEJ80M4,SSA67-YEJ90M4,SSA67-YEJB100M4,SSA67-YEJB112M4,SSA67-YEJB132M4,SSA67-YEJB63M4,SSA67-YEJB71M4,SSA67-YEJB80M4,SSA67-YEJB90M4,SSA67-YP100M4,SSA67-YP112M4,SSA67-YP132M4,SSA67-YP63M4,SSA67-YP71M4,SSA67-YP80M4,SSA67-YP90M4,SSA67-YPB100M4,SSA67-YPB112M4,SSA67-YPB132M4,SSA67-YPB63M4,SSA67-YPB71M4,SSA67-YPB80M4,SSA67-YPB90M4,SSA67-YPE100M4,SSA67-YPE112M4,SSA67-YPE132M4,SSA67-YPE63M4,SSA67-YPE71M4,SSA67-YPE80M4,SSA67-YPE90M4,SSA67-YS100M4,SSA67-YS112M4,SSA67-YS132M4,SSA67-YS63M4,SSA67-YS71M4,SSA67-YS80M4,SSA67-YS90M4,SSA67-YVB100M4,SSA67-YVB112M4,SSA67-YVB132M4,SSA67-YVB63M4,SSA67-YVB71M4,SSA67-YVB80M4,SSA67-YVB90M4,SSA67-YVP100M4,SSA67-YVP112M4,SSA67-YVP132M4,SSA67-YVP63M4,SSA67-YVP71M4,SSA67-YVP80M4,SSA67-YVP90M4,SSA67-YVPEJ100M4,SSA67-YVPEJ112M4,SSA67-YVPEJ132M4,SSA67-YVPEJ63M4,SSA67-YVPEJ71M4,SSA67-YVPEJ80M4,SSA67-YVPEJ90M4,GSA69-Y0.18KW,GSA69-Y0.25KW,GSA69-Y0.37KW,GSA69-Y0.55KW,GSA69-Y0.75KW,GSA69-Y1.1KW,GSA69-Y1.5KW,GSA69-Y100M4,GSA69-Y112M4,GSA69-Y132M4,GSA69-Y2.2KW,GSA69-Y3KW,GSA69-Y4KW,GSA69-Y5.5KW,GSA69-Y63M4,GSA69-Y71M4,GSA69-Y80M4,GSA69-Y90M4,GSA69-YB100M4,GSA69-YB112M4,GSA69-YB132M4,GSA69-YB63M4,GSA69-YB71M4,GSA69-YB80M4,GSA69-YB90M4,GSA69-YDP100M4,GSA69-YDP112M4,GSA69-YDP132M4,GSA69-YDP63M4,GSA69-YDP71M4,GSA69-YDP80M4,GSA69-YDP90M4,GSA69-YE100M4,GSA69-YE112M4,GSA69-YE132M4,GSA69-YE63M4,GSA69-YE71M4,GSA69-YE80M4,GSA69-YE90M4,GSA69-YEJ100M4,GSA69-YEJ112M4,GSA69-YEJ132M4,GSA69-YEJ63M4,GSA69-YEJ71M4,GSA69-YEJ80M4,GSA69-YEJ90M4,GSA69-YEJB100M4,GSA69-YEJB112M4,GSA69-YEJB132M4,GSA69-YEJB63M4,GSA69-YEJB71M4,GSA69-YEJB80M4,GSA69-YEJB90M4,GSA69-YP100M4,GSA69-YP112M4,GSA69-YP132M4,GSA69-YP63M4,GSA69-YP71M4,GSA69-YP80M4,GSA69-YP90M4,GSA69-YPB100M4,GSA69-YPB112M4,GSA69-YPB132M4,GSA69-YPB63M4,GSA69-YPB71M4,GSA69-YPB80M4,GSA69-YPB90M4,GSA69-YPE100M4,GSA69-YPE112M4,GSA69-YPE132M4,GSA69-YPE63M4,GSA69-YPE71M4,GSA69-YPE80M4,GSA69-YPE90M4,GSA69-YS100M4,GSA69-YS112M4,GSA69-YS132M4,GSA69-YS63M4,GSA69-YS71M4,GSA69-YS80M4,GSA69-YS90M4,GSA69-YVB100M4,GSA69-YVB112M4,GSA69-YVB132M4,GSA69-YVB63M4,GSA69-YVB71M4,GSA69-YVB80M4,GSA69-YVB90M4,GSA69-YVP100M4,GSA69-YVP112M4,GSA69-YVP132M4,GSA69-YVP63M4,GSA69-YVP71M4,GSA69-YVP80M4,GSA69-YVP90M4,GSA69-YVPEJ100M4,GSA69-YVPEJ112M4,GSA69-YVPEJ132M4,GSA69-YVPEJ63M4,GSA69-YVPEJ71M4,GSA69-YVPEJ80M4,GSA69-YVPEJ90M4。
SA69減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html
推薦類似型號:S69減速機
關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機
SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
