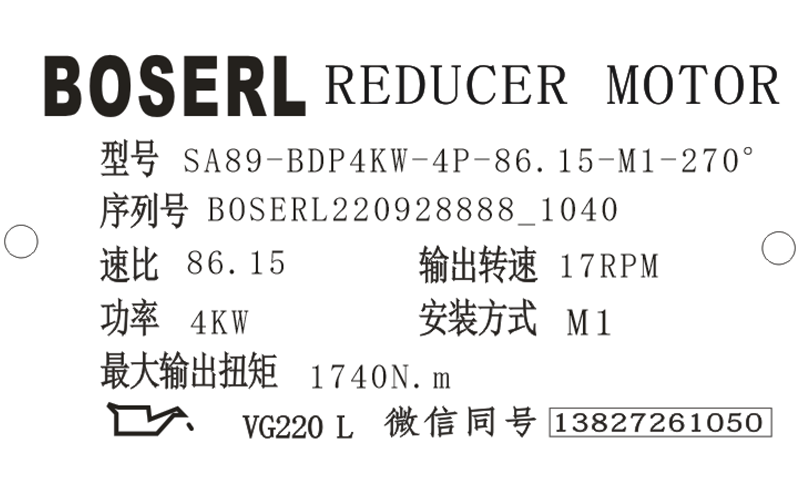

SA89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA89減速器選型樣本。

SA89-BDP4KW-4P-86.15-M1-270°

SA：系列代號

89：減速機規格代號

BDP：電機

4KW：電機功率

4P：電機級數

86.15：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

SA89減速器逆止器安裝：

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

SA89減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。自鎖減速機

SA89減速器無油位檢查螺栓和安裝蓋：

通過密封螺栓檢查油位:由于SA89減速器無油位螺栓或安裝蓋，因此需要通過檢查孔進行檢查；按照M5或M6的安裝位置防止SA89減速器，即檢查孔朝上；擰出密封螺栓1（見下圖）；將測量標尺垂直通過檢查孔伸入減速器箱體的底部，然后再將測量標尺重新從檢查孔中垂直抽出（見下圖）。

用油標卡尺測出測量標尺上所沾的潤滑油長度（見下圖）。

將側的值“X”與下表中根據安裝位置所列的最小值進行比較，必要情況下調節油位高度；重新擰緊密封螺栓。伺服電機連接減速機

SA89減速器型號：

XDSA87-Y0.55KW，XDSA87-Y0.75KW，XDSA87-Y1.1KW，XDSA87-Y1.5KW，XDSA87-Y100M4，XDSA87-Y112M4，XDSA87-Y11KW，XDSA87-Y132M4，XDSA87-Y15KW，XDSA87-Y160M4，XDSA87-Y2.2KW，XDSA87-Y3KW，XDSA87-Y4KW，XDSA87-Y5.5KW，XDSA87-Y7.5KW，XDSA87-Y71M4，XDSA87-Y80M4，XDSA87-Y90M4，XDSA87-YB100M4，XDSA87-YB112M4，XDSA87-YB132M4，XDSA87-YB160M4，XDSA87-YB71M4，XDSA87-YB80M4，XDSA87-YB90M4，XDSA87-YDP100M4，XDSA87-YDP112M4，XDSA87-YDP132M4，XDSA87-YDP160M4，XDSA87-YDP71M4，XDSA87-YDP80M4，XDSA87-YDP90M4，XDSA87-YE100M4，XDSA87-YE112M4，XDSA87-YE132M4，XDSA87-YE160M4，XDSA87-YE71M4，XDSA87-YE80M4，XDSA87-YE90M4，XDSA87-YEJ100M4，XDSA87-YEJ112M4，XDSA87-YEJ132M4，XDSA87-YEJ160M4，XDSA87-YEJ71M4，XDSA87-YEJ80M4，XDSA87-YEJ90M4，XDSA87-YEJB100M4，XDSA87-YEJB112M4，XDSA87-YEJB132M4，XDSA87-YEJB160M4，XDSA87-YEJB71M4，XDSA87-YEJB80M4，XDSA87-YEJB90M4，XDSA87-YP100M4，XDSA87-YP112M4，XDSA87-YP132M4，XDSA87-YP160M4，XDSA87-YP71M4，XDSA87-YP80M4，XDSA87-YP90M4，XDSA87-YPB100M4，XDSA87-YPB112M4，XDSA87-YPB132M4，XDSA87-YPB160M4，XDSA87-YPB71M4，XDSA87-YPB80M4，XDSA87-YPB90M4，XDSA87-YPE100M4，XDSA87-YPE112M4，XDSA87-YPE132M4，XDSA87-YPE160M4，XDSA87-YPE71M4，XDSA87-YPE80M4，XDSA87-YPE90M4，XDSA87-YS100M4，XDSA87-YS112M4，XDSA87-YS132M4，XDSA87-YS160M4，XDSA87-YS71M4，XDSA87-YS80M4，XDSA87-YS90M4，XDSA87-YVB100M4，XDSA87-YVB112M4，XDSA87-YVB132M4，XDSA87-YVB160M4，XDSA87-YVB71M4，XDSA87-YVB80M4，XDSA87-YVB90M4，XDSA87-YVP100M4，XDSA87-YVP112M4，XDSA87-YVP132M4，XDSA87-YVP160M4，XDSA87-YVP71M4，XDSA87-YVP80M4，XDSA87-YVP90M4，XDSA87-YVPEJ100M4，XDSA87-YVPEJ112M4，XDSA87-YVPEJ132M4，XDSA87-YVPEJ160M4，XDSA87-YVPEJ71M4，XDSA87-YVPEJ80M4，XDSA87-YVPEJ90M4，JCSA87-Y0.55KW，JCSA87-Y0.75KW，JCSA87-Y1.1KW，JCSA87-Y1.5KW，JCSA87-Y100M4，JCSA87-Y112M4，JCSA87-Y11KW，JCSA87-Y132M4，JCSA87-Y15KW，JCSA87-Y160M4，JCSA87-Y2.2KW，JCSA87-Y3KW，JCSA87-Y4KW，JCSA87-Y5.5KW，JCSA87-Y7.5KW，JCSA87-Y71M4，JCSA87-Y80M4，JCSA87-Y90M4，JCSA87-YB100M4，JCSA87-YB112M4，JCSA87-YB132M4，JCSA87-YB160M4，JCSA87-YB71M4，JCSA87-YB80M4，JCSA87-YB90M4，JCSA87-YDP100M4，JCSA87-YDP112M4，JCSA87-YDP132M4，JCSA87-YDP160M4，JCSA87-YDP71M4，JCSA87-YDP80M4，JCSA87-YDP90M4，JCSA87-YE100M4，JCSA87-YE112M4，JCSA87-YE132M4，JCSA87-YE160M4，JCSA87-YE71M4，JCSA87-YE80M4，JCSA87-YE90M4，JCSA87-YEJ100M4，JCSA87-YEJ112M4，JCSA87-YEJ132M4，JCSA87-YEJ160M4，JCSA87-YEJ71M4，JCSA87-YEJ80M4，JCSA87-YEJ90M4，JCSA87-YEJB100M4，JCSA87-YEJB112M4，JCSA87-YEJB132M4，JCSA87-YEJB160M4，JCSA87-YEJB71M4，JCSA87-YEJB80M4，JCSA87-YEJB90M4，JCSA87-YP100M4，JCSA87-YP112M4，JCSA87-YP132M4，JCSA87-YP160M4，JCSA87-YP71M4，JCSA87-YP80M4，JCSA87-YP90M4，JCSA87-YPB100M4，JCSA87-YPB112M4，JCSA87-YPB132M4，JCSA87-YPB160M4，JCSA87-YPB71M4，JCSA87-YPB80M4，JCSA87-YPB90M4，JCSA87-YPE100M4，JCSA87-YPE112M4，JCSA87-YPE132M4，JCSA87-YPE160M4，JCSA87-YPE71M4，JCSA87-YPE80M4，JCSA87-YPE90M4，JCSA87-YS100M4，JCSA87-YS112M4，JCSA87-YS132M4，JCSA87-YS160M4，JCSA87-YS71M4，JCSA87-YS80M4，JCSA87-YS90M4，JCSA87-YVB100M4，JCSA87-YVB112M4，JCSA87-YVB132M4，JCSA87-YVB160M4，JCSA87-YVB71M4，JCSA87-YVB80M4，JCSA87-YVB90M4，JCSA87-YVP100M4，JCSA87-YVP112M4，JCSA87-YVP132M4，JCSA87-YVP160M4，JCSA87-YVP71M4，JCSA87-YVP80M4，JCSA87-YVP90M4，JCSA87-YVPEJ100M4，JCSA87-YVPEJ112M4，JCSA87-YVPEJ132M4，JCSA87-YVPEJ160M4，JCSA87-YVPEJ71M4，JCSA87-YVPEJ80M4，JCSA87-YVPEJ90M4，YQSA87-Y0.55KW，YQSA87-Y0.75KW，YQSA87-Y1.1KW，YQSA87-Y1.5KW，YQSA87-Y100M4，YQSA87-Y112M4，YQSA87-Y11KW，YQSA87-Y132M4，YQSA87-Y15KW，YQSA87-Y160M4，YQSA87-Y2.2KW，YQSA87-Y3KW，YQSA87-Y4KW，YQSA87-Y5.5KW，YQSA87-Y7.5KW，YQSA87-Y71M4，YQSA87-Y80M4，YQSA87-Y90M4，YQSA87-YB100M4，YQSA87-YB112M4，YQSA87-YB132M4，YQSA87-YB160M4，YQSA87-YB71M4，YQSA87-YB80M4，YQSA87-YB90M4，YQSA87-YDP100M4，YQSA87-YDP112M4，YQSA87-YDP132M4，YQSA87-YDP160M4，YQSA87-YDP71M4，YQSA87-YDP80M4，YQSA87-YDP90M4，YQSA87-YE100M4，YQSA87-YE112M4，YQSA87-YE132M4，YQSA87-YE160M4，YQSA87-YE71M4，YQSA87-YE80M4，YQSA87-YE90M4，YQSA87-YEJ100M4，YQSA87-YEJ112M4，YQSA87-YEJ132M4，YQSA87-YEJ160M4，YQSA87-YEJ71M4，YQSA87-YEJ80M4，YQSA87-YEJ90M4，YQSA87-YEJB100M4，YQSA87-YEJB112M4，YQSA87-YEJB132M4，YQSA87-YEJB160M4，YQSA87-YEJB71M4，YQSA87-YEJB80M4，YQSA87-YEJB90M4，YQSA87-YP100M4，YQSA87-YP112M4，YQSA87-YP132M4，YQSA87-YP160M4，YQSA87-YP71M4，YQSA87-YP80M4，YQSA87-YP90M4，YQSA87-YPB100M4，YQSA87-YPB112M4，YQSA87-YPB132M4，YQSA87-YPB160M4，YQSA87-YPB71M4，YQSA87-YPB80M4，YQSA87-YPB90M4，YQSA87-YPE100M4，YQSA87-YPE112M4，YQSA87-YPE132M4，YQSA87-YPE160M4，YQSA87-YPE71M4，YQSA87-YPE80M4，YQSA87-YPE90M4，YQSA87-YS100M4，YQSA87-YS112M4，YQSA87-YS132M4，YQSA87-YS160M4，YQSA87-YS71M4，YQSA87-YS80M4，YQSA87-YS90M4，YQSA87-YVB100M4，YQSA87-YVB112M4，YQSA87-YVB132M4，YQSA87-YVB160M4，YQSA87-YVB71M4，YQSA87-YVB80M4，YQSA87-YVB90M4，YQSA87-YVP100M4，YQSA87-YVP112M4，YQSA87-YVP132M4，YQSA87-YVP160M4，YQSA87-YVP71M4，YQSA87-YVP80M4，YQSA87-YVP90M4，YQSA87-YVPEJ100M4，YQSA87-YVPEJ112M4，YQSA87-YVPEJ132M4，YQSA87-YVPEJ160M4，YQSA87-YVPEJ71M4，YQSA87-YVPEJ80M4，YQSA87-YVPEJ90M4，SWA87-Y0.55KW，SWA87-Y0.75KW，SWA87-Y1.1KW，SWA87-Y1.5KW，SWA87-Y100M4，SWA87-Y112M4，SWA87-Y11KW，SWA87-Y132M4，SWA87-Y15KW，SWA87-Y160M4，SWA87-Y2.2KW，SWA87-Y3KW，SWA87-Y4KW，SWA87-Y5.5KW，SWA87-Y7.5KW，SWA87-Y71M4，SWA87-Y80M4，SWA87-Y90M4，SWA87-YB100M4，SWA87-YB112M4，SWA87-YB132M4，SWA87-YB160M4，SWA87-YB71M4，SWA87-YB80M4，SWA87-YB90M4，SWA87-YDP100M4，SWA87-YDP112M4，SWA87-YDP132M4，SWA87-YDP160M4，SWA87-YDP71M4，SWA87-YDP80M4，SWA87-YDP90M4，SWA87-YE100M4，SWA87-YE112M4，SWA87-YE132M4，SWA87-YE160M4，SWA87-YE71M4，SWA87-YE80M4，SWA87-YE90M4，SWA87-YEJ100M4，SWA87-YEJ112M4，SWA87-YEJ132M4，SWA87-YEJ160M4，SWA87-YEJ71M4，SWA87-YEJ80M4，SWA87-YEJ90M4，SWA87-YEJB100M4，SWA87-YEJB112M4，SWA87-YEJB132M4，SWA87-YEJB160M4，SWA87-YEJB71M4，SWA87-YEJB80M4，SWA87-YEJB90M4，SWA87-YP100M4，SWA87-YP112M4，SWA87-YP132M4，SWA87-YP160M4，SWA87-YP71M4，SWA87-YP80M4，SWA87-YP90M4，SWA87-YPB100M4，SWA87-YPB112M4，SWA87-YPB132M4，SWA87-YPB160M4，SWA87-YPB71M4，SWA87-YPB80M4，SWA87-YPB90M4，SWA87-YPE100M4，SWA87-YPE112M4，SWA87-YPE132M4，SWA87-YPE160M4，SWA87-YPE71M4，SWA87-YPE80M4，SWA87-YPE90M4，SWA87-YS100M4，SWA87-YS112M4，SWA87-YS132M4，SWA87-YS160M4，SWA87-YS71M4，SWA87-YS80M4，SWA87-YS90M4，SWA87-YVB100M4，SWA87-YVB112M4，SWA87-YVB132M4，SWA87-YVB160M4，SWA87-YVB71M4，SWA87-YVB80M4，SWA87-YVB90M4，SWA87-YVP100M4，SWA87-YVP112M4，SWA87-YVP132M4，SWA87-YVP160M4，SWA87-YVP71M4，SWA87-YVP80M4，SWA87-YVP90M4，SWA87-YVPEJ100M4，SWA87-YVPEJ112M4，SWA87-YVPEJ132M4，SWA87-YVPEJ160M4，SWA87-YVPEJ71M4，SWA87-YVPEJ80M4，SWA87-YVPEJ90M4，SA89-Y0.55KW，SA89-Y0.75KW，SA89-Y1.1KW，SA89-Y1.5KW，SA89-Y100M4，SA89-Y112M4，SA89-Y11KW，SA89-Y132M4，SA89-Y15KW，SA89-Y160M4，SA89-Y2.2KW，SA89-Y3KW，SA89-Y4KW，SA89-Y5.5KW，SA89-Y7.5KW，SA89-Y71M4，SA89-Y80M4，SA89-Y90M4，SA89-YB100M4，SA89-YB112M4，SA89-YB132M4，SA89-YB160M4，SA89-YB71M4，SA89-YB80M4，SA89-YB90M4，SA89-YDP100M4，SA89-YDP112M4，SA89-YDP132M4，SA89-YDP160M4，SA89-YDP71M4，SA89-YDP80M4，SA89-YDP90M4，SA89-YE100M4，SA89-YE112M4，SA89-YE132M4，SA89-YE160M4，SA89-YE71M4，SA89-YE80M4，SA89-YE90M4，SA89-YEJ100M4，SA89-YEJ112M4，SA89-YEJ132M4，SA89-YEJ160M4，SA89-YEJ71M4，SA89-YEJ80M4，SA89-YEJ90M4，SA89-YEJB100M4，SA89-YEJB112M4，SA89-YEJB132M4，SA89-YEJB160M4，SA89-YEJB71M4，SA89-YEJB80M4，SA89-YEJB90M4，SA89-YP100M4，SA89-YP112M4，SA89-YP132M4，SA89-YP160M4，SA89-YP71M4，SA89-YP80M4，SA89-YP90M4，SA89-YPB100M4，SA89-YPB112M4，SA89-YPB132M4，SA89-YPB160M4，SA89-YPB71M4，SA89-YPB80M4，SA89-YPB90M4，SA89-YPE100M4，SA89-YPE112M4，SA89-YPE132M4，SA89-YPE160M4，SA89-YPE71M4，SA89-YPE80M4，SA89-YPE90M4，SA89-YS100M4，SA89-YS112M4，SA89-YS132M4，SA89-YS160M4，SA89-YS71M4，SA89-YS80M4，SA89-YS90M4，SA89-YVB100M4，SA89-YVB112M4，SA89-YVB132M4，SA89-YVB160M4，SA89-YVB71M4，SA89-YVB80M4，SA89-YVB90M4，SA89-YVP100M4，SA89-YVP112M4，SA89-YVP132M4，SA89-YVP160M4，SA89-YVP71M4，SA89-YVP80M4，SA89-YVP90M4，SA89-YVPEJ100M4，SA89-YVPEJ112M4，SA89-YVPEJ132M4，SA89-YVPEJ160M4，SA89-YVPEJ71M4，SA89-YVPEJ80M4，SA89-YVPEJ90M4，SA87SF80，SA87SF90，SA87SF100，SA87SF112，SA87SF115，SA87SF140，SA87SF160，SA87SF190。
