SA39減速器詳細信息

prevnext

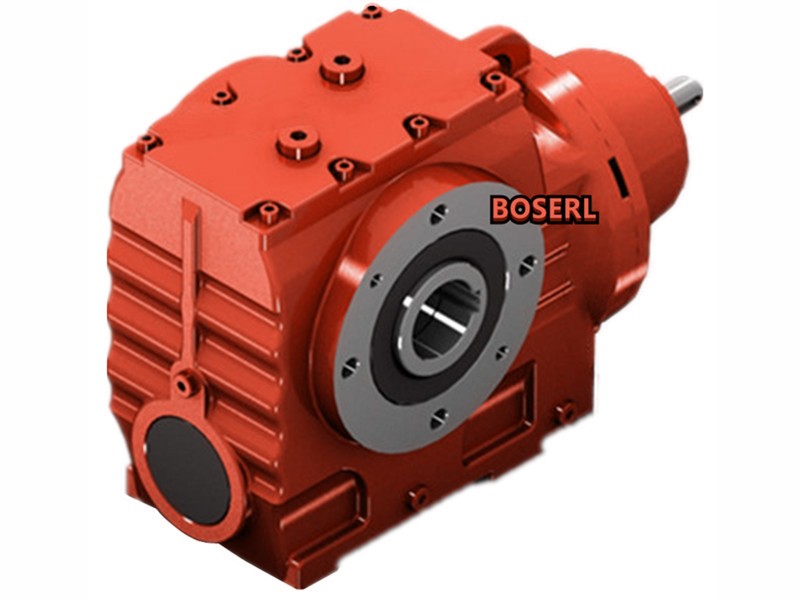

SA39減速器

訂購熱線:13360667204
  1. 詳細信息

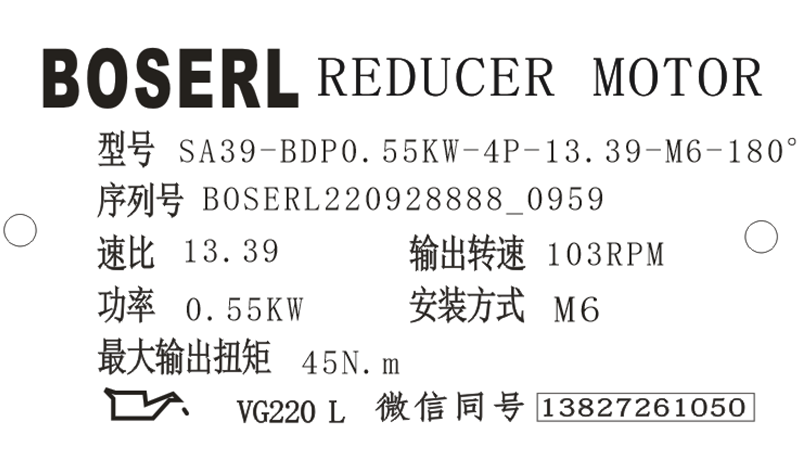

SA39減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA39減速器選型樣本。

SA39-BDP0.55KW-4P-13.39-M6-180°

SA:系列代號

39:減速機規格代號

BDP:電機

0.55KW:電機功率

4P:電機級數

13.39:減速機傳動比

M6:減速機安裝位置

180°:接線盒位置


SA39減速器逆止器安裝:

如果低于最小超越轉速,則逆止器將會發生摩擦而產生高溫,可能造成財產損失;在額外工作狀態下,不得低于最小超越轉速;在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格,逆止器的最小超越轉速如下表:

型號

逆止器最大逆止力矩

[Nm]

最小超越轉速

[r/min]

AD2/RS

65

820

AD3/RS

425

620

AD4/RS

850

530

AD5/RS

1450

480

AD6/RS

1950

450

AD7/RS

1950

450

AD8/RS

1950

450

SA39減速器帶逆止器的輸入端裝置AD../RS:安裝或運送前檢查驅動裝置的旋轉方向是否正確,若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中,逆止器不需要特別維護或其他的維護措施。齒輪減速電機

逆止器用來避免逆向轉動;如此便可確保運行過程中的定向轉動。注意:逆向運轉可能導致逆止器損壞;電機不允許逆向轉動;注意供電是否正確,以確保電機定向轉動;可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸(LSS)來確定;順時針旋轉(CW);逆時針旋轉(CCW);應在箱體上標識出許可轉向。自鎖減速機


SA39減速器無油位檢查螺栓和安裝蓋:

通過密封螺栓檢查油位:由于SA39減速器無油位螺栓或安裝蓋,因此需要通過檢查孔進行檢查;按照M5或M6的安裝位置防止SA39減速器,即檢查孔朝上;擰出密封螺栓1(見下圖);將測量標尺垂直通過檢查孔伸入減速器箱體的底部,然后再將測量標尺重新從檢查孔中垂直抽出(見下圖)。


用油標卡尺測出測量標尺上所沾的潤滑油長度(見下圖)。


將側的值“X”與下表中根據安裝位置所列的最小值進行比較,必要情況下調節油位高度;重新擰緊密封螺栓。伺服電機連接減速機

減速機型號

油位=測量標尺上所沾的長度X(mm)安裝位置

SA39減速器

M1

M2

M3

M4

M5

M6

10±1

24±1

34±1

37±1

24±1

24±1


SA39減速器型號:

XDSA37-Y0.12KW,XDSA37-Y0.18KW,XDSA37-Y0.25KW,XDSA37-Y0.37KW,XDSA37-Y0.55KW,XDSA37-Y0.75KW,XDSA37-Y1.1KW,XDSA37-Y1.5KW,XDSA37-Y63M4,XDSA37-Y71M4,XDSA37-Y80M4,XDSA37-Y90M4,XDSA37-YB63M4,XDSA37-YB71M4,XDSA37-YB80M4,XDSA37-YB90M4,XDSA37-YDP63M4,XDSA37-YDP71M4,XDSA37-YDP80M4,XDSA37-YDP90M4,XDSA37-YE63M4,XDSA37-YE71M4,XDSA37-YE80M4,XDSA37-YE90M4,XDSA37-YEJ63M4,XDSA37-YEJ71M4,XDSA37-YEJ80M4,XDSA37-YEJ90M4,XDSA37-YEJB63M4,XDSA37-YEJB71M4,XDSA37-YEJB80M4,XDSA37-YEJB90M4,XDSA37-YP63M4,XDSA37-YP71M4,XDSA37-YP80M4,XDSA37-YP90M4,XDSA37-YPB63M4,XDSA37-YPB71M4,XDSA37-YPB80M4,XDSA37-YPB90M4,XDSA37-YPE63M4,XDSA37-YPE71M4,XDSA37-YPE80M4,XDSA37-YPE90M4,XDSA37-YS63M4,XDSA37-YS71M4,XDSA37-YS80M4,XDSA37-YS90M4,XDSA37-YVB63M4,XDSA37-YVB71M4,XDSA37-YVB80M4,XDSA37-YVB90M4,XDSA37-YVP63M4,XDSA37-YVP71M4,XDSA37-YVP80M4,XDSA37-YVP90M4,XDSA37-YVPEJ63M4,XDSA37-YVPEJ71M4,XDSA37-YVPEJ80M4,XDSA37-YVPEJ90M4,SA39-Y0.12KW,SA39-Y0.18KW,SA39-Y0.25KW,SA39-Y0.37KW,SA39-Y0.55KW,SA39-Y0.75KW,SA39-Y1.1KW,SA39-Y1.5KW,SA39-Y63M4,SA39-Y71M4,SA39-Y80M4,SA39-Y90M4,SA39-YB63M4,SA39-YB71M4,SA39-YB80M4,SA39-YB90M4,SA39-YDP63M4,SA39-YDP71M4,SA39-YDP80M4,SA39-YDP90M4,SA39-YE63M4,SA39-YE71M4,SA39-YE80M4,SA39-YE90M4,SA39-YEJ63M4,SA39-YEJ71M4,SA39-YEJ80M4,SA39-YEJ90M4,SA39-YEJB63M4,SA39-YEJB71M4,SA39-YEJB80M4,SA39-YEJB90M4,SA39-YP63M4,SA39-YP71M4,SA39-YP80M4,SA39-YP90M4,SA39-YPB63M4,SA39-YPB71M4,SA39-YPB80M4,SA39-YPB90M4,SA39-YPE63M4,SA39-YPE71M4,SA39-YPE80M4,SA39-YPE90M4,SA39-YS63M4,SA39-YS71M4,SA39-YS80M4,SA39-YS90M4,SA39-YVB63M4,SA39-YVB71M4,SA39-YVB80M4,SA39-YVB90M4,SA39-YVP63M4,SA39-YVP71M4,SA39-YVP80M4,SA39-YVP90M4,SA39-YVPEJ63M4,SA39-YVPEJ71M4,SA39-YVPEJ80M4,SA39-YVPEJ90M4,JCSA37-Y0.12KW,JCSA37-Y0.18KW,JCSA37-Y0.25KW,JCSA37-Y0.37KW,JCSA37-Y0.55KW,JCSA37-Y0.75KW,JCSA37-Y1.1KW,JCSA37-Y1.5KW,JCSA37-Y63M4,JCSA37-Y71M4,JCSA37-Y80M4,JCSA37-Y90M4,JCSA37-YB63M4,JCSA37-YB71M4,JCSA37-YB80M4,JCSA37-YB90M4,JCSA37-YDP63M4,JCSA37-YDP71M4,JCSA37-YDP80M4,JCSA37-YDP90M4,JCSA37-YE63M4,JCSA37-YE71M4,JCSA37-YE80M4,JCSA37-YE90M4,JCSA37-YEJ63M4,JCSA37-YEJ71M4,JCSA37-YEJ80M4,JCSA37-YEJ90M4,JCSA37-YEJB63M4,JCSA37-YEJB71M4,JCSA37-YEJB80M4,JCSA37-YEJB90M4,JCSA37-YP63M4,JCSA37-YP71M4,JCSA37-YP80M4,JCSA37-YP90M4,JCSA37-YPB63M4,JCSA37-YPB71M4,JCSA37-YPB80M4,JCSA37-YPB90M4,JCSA37-YPE63M4,JCSA37-YPE71M4,JCSA37-YPE80M4,JCSA37-YPE90M4,JCSA37-YS63M4,JCSA37-YS71M4,JCSA37-YS80M4,JCSA37-YS90M4,JCSA37-YVB63M4,JCSA37-YVB71M4,JCSA37-YVB80M4,JCSA37-YVB90M4,JCSA37-YVP63M4,JCSA37-YVP71M4,JCSA37-YVP80M4,JCSA37-YVP90M4,JCSA37-YVPEJ63M4,JCSA37-YVPEJ71M4,JCSA37-YVPEJ80M4,JCSA37-YVPEJ90M4,YQSA37-Y0.12KW,YQSA37-Y0.18KW,YQSA37-Y0.25KW,YQSA37-Y0.37KW,YQSA37-Y0.55KW,YQSA37-Y0.75KW,YQSA37-Y1.1KW,YQSA37-Y1.5KW,YQSA37-Y63M4,YQSA37-Y71M4,YQSA37-Y80M4,YQSA37-Y90M4,YQSA37-YB63M4,YQSA37-YB71M4,YQSA37-YB80M4,YQSA37-YB90M4,YQSA37-YDP63M4,YQSA37-YDP71M4,YQSA37-YDP80M4,YQSA37-YDP90M4,YQSA37-YE63M4,YQSA37-YE71M4,YQSA37-YE80M4,YQSA37-YE90M4,YQSA37-YEJ63M4,YQSA37-YEJ71M4,YQSA37-YEJ80M4,YQSA37-YEJ90M4,YQSA37-YEJB63M4,YQSA37-YEJB71M4,YQSA37-YEJB80M4,YQSA37-YEJB90M4,YQSA37-YP63M4,YQSA37-YP71M4,YQSA37-YP80M4,YQSA37-YP90M4,YQSA37-YPB63M4,YQSA37-YPB71M4,YQSA37-YPB80M4,YQSA37-YPB90M4,YQSA37-YPE63M4,YQSA37-YPE71M4,YQSA37-YPE80M4,YQSA37-YPE90M4,YQSA37-YS63M4,YQSA37-YS71M4,YQSA37-YS80M4,YQSA37-YS90M4,YQSA37-YVB63M4,YQSA37-YVB71M4,YQSA37-YVB80M4,YQSA37-YVB90M4,YQSA37-YVP63M4,YQSA37-YVP71M4,YQSA37-YVP80M4,YQSA37-YVP90M4,YQSA37-YVPEJ63M4,YQSA37-YVPEJ71M4,YQSA37-YVPEJ80M4,YQSA37-YVPEJ90M4,SWA37-Y0.12KW,SWA37-Y0.18KW,SWA37-Y0.25KW,SWA37-Y0.37KW,SWA37-Y0.55KW,SWA37-Y0.75KW,SWA37-Y1.1KW,SWA37-Y1.5KW,SWA37-Y63M4,SWA37-Y71M4,SWA37-Y80M4,SWA37-Y90M4,SWA37-YB63M4,SWA37-YB71M4,SWA37-YB80M4,SWA37-YB90M4,SWA37-YDP63M4,SWA37-YDP71M4,SWA37-YDP80M4,SWA37-YDP90M4,SWA37-YE63M4,SWA37-YE71M4,SWA37-YE80M4,SWA37-YE90M4,SWA37-YEJ63M4,SWA37-YEJ71M4,SWA37-YEJ80M4,SWA37-YEJ90M4,SWA37-YEJB63M4,SWA37-YEJB71M4,SWA37-YEJB80M4,SWA37-YEJB90M4,SWA37-YP63M4,SWA37-YP71M4,SWA37-YP80M4,SWA37-YP90M4,SWA37-YPB63M4,SWA37-YPB71M4,SWA37-YPB80M4,SWA37-YPB90M4,SWA37-YPE63M4,SWA37-YPE71M4,SWA37-YPE80M4,SWA37-YPE90M4,SWA37-YS63M4,SWA37-YS71M4,SWA37-YS80M4,SWA37-YS90M4,SWA37-YVB63M4,SWA37-YVB71M4,SWA37-YVB80M4,SWA37-YVB90M4,SWA37-YVP63M4,SWA37-YVP71M4,SWA37-YVP80M4,SWA37-YVP90M4,SWA37-YVPEJ63M4,SWA37-YVPEJ71M4,SWA37-YVPEJ80M4,SWA37-YVPEJ90M4,SA37SF80,SA37SF90,SA37SF100,SA37SF112,SA37SF115,SA37SF140,SA37SF160,SA37SF190。

SA39減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html

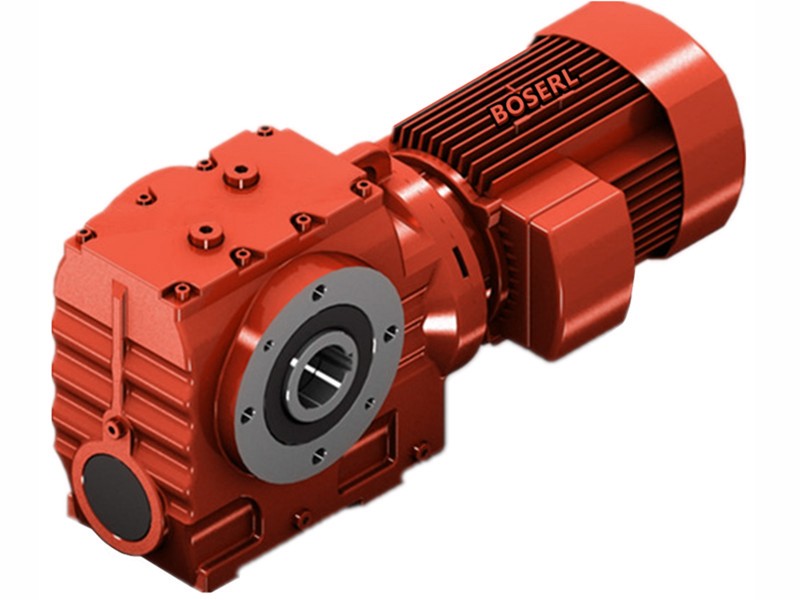

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S39減速機

關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器

SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機

SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SA39減速器 SA37斜齒輪減速機 SA37減速機3D模型 SA37型減速機選型參數 SA37臥式減速機一體機 SA37伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SA39減速器3D模型 點擊下載
SA39減速器選型參數 點擊下載
