SA49減速器詳細信息

prevnext

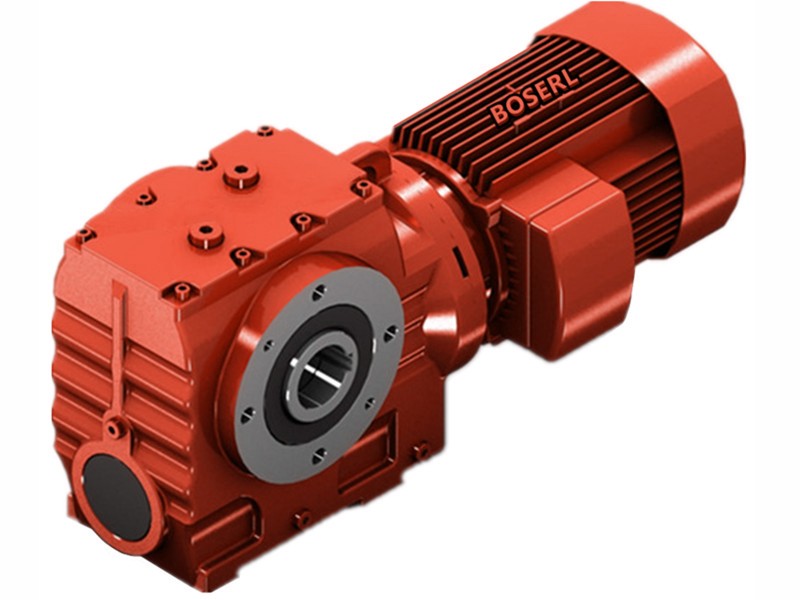

SA49減速器

訂購熱線:13360667204
  1. 詳細信息

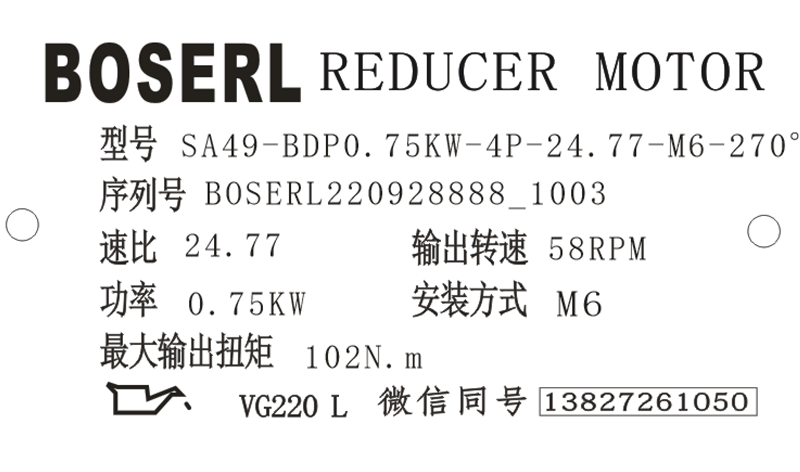

SA49減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA49減速器選型樣本。

SA49-BDP0.75KW-4P-24.77-M6-270°

SA:系列代號

49:減速機規格代號

BDP:電機

0.75KW:電機功率

4P:電機級數

24.77:減速機傳動比

M6:減速機安裝位置

270°:接線盒位置


SA49減速器逆止器安裝:

如果低于最小超越轉速,則逆止器將會發生摩擦而產生高溫,可能造成財產損失;在額外工作狀態下,不得低于最小超越轉速;在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格,逆止器的最小超越轉速如下表:

型號

逆止器最大逆止力矩

[Nm]

最小超越轉速

[r/min]

AD2/RS

65

820

AD3/RS

425

620

AD4/RS

850

530

AD5/RS

1450

480

AD6/RS

1950

450

AD7/RS

1950

450

AD8/RS

1950

450

SA49減速器帶逆止器的輸入端裝置AD../RS:安裝或運送前檢查驅動裝置的旋轉方向是否正確,若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中,逆止器不需要特別維護或其他的維護措施。齒輪減速電機

逆止器用來避免逆向轉動;如此便可確保運行過程中的定向轉動。注意:逆向運轉可能導致逆止器損壞;電機不允許逆向轉動;注意供電是否正確,以確保電機定向轉動;可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸(LSS)來確定;順時針旋轉(CW);逆時針旋轉(CCW);應在箱體上標識出許可轉向。自鎖減速機


SA49減速器無油位檢查螺栓和安裝蓋:

通過密封螺栓檢查油位:由于SA49減速器無油位螺栓或安裝蓋,因此需要通過檢查孔進行檢查;按照M5或M6的安裝位置防止SA49減速器,即檢查孔朝上;擰出密封螺栓1(見下圖);將測量標尺垂直通過檢查孔伸入減速器箱體的底部,然后再將測量標尺重新從檢查孔中垂直抽出(見下圖)。


用油標卡尺測出測量標尺上所沾的潤滑油長度(見下圖)。


將側的值“X”與下表中根據安裝位置所列的最小值進行比較,必要情況下調節油位高度;重新擰緊密封螺栓。伺服電機連接減速機

減速機型號

油位=測量標尺上所沾的長度X(mm)安裝位置

SA49減速器

M1

M2

M3

M4

M5

M6

10±1

24±1

34±1

37±1

24±1

24±1


SA49減速器型號:

XDSA47-Y0.12KW,XDSA47-Y0.18KW,XDSA47-Y0.25KW,XDSA47-Y0.37KW,XDSA47-Y0.55KW,XDSA47-Y0.75KW,XDSA47-Y1.1KW,XDSA47-Y1.5KW,XDSA47-Y63M4,XDSA47-Y71M4,XDSA47-Y80M4,XDSA47-Y90M4,XDSA47-YB63M4,XDSA47-YB71M4,XDSA47-YB80M4,XDSA47-YB90M4,XDSA47-YDP63M4,XDSA47-YDP71M4,XDSA47-YDP80M4,XDSA47-YDP90M4,XDSA47-YE63M4,XDSA47-YE71M4,XDSA47-YE80M4,XDSA47-YE90M4,XDSA47-YEJ63M4,XDSA47-YEJ71M4,XDSA47-YEJ80M4,XDSA47-YEJ90M4,XDSA47-YEJB63M4,XDSA47-YEJB71M4,XDSA47-YEJB80M4,XDSA47-YEJB90M4,XDSA47-YP63M4,XDSA47-YP71M4,XDSA47-YP80M4,XDSA47-YP90M4,XDSA47-YPB63M4,XDSA47-YPB71M4,XDSA47-YPB80M4,XDSA47-YPB90M4,XDSA47-YPE63M4,XDSA47-YPE71M4,XDSA47-YPE80M4,XDSA47-YPE90M4,XDSA47-YS63M4,XDSA47-YS71M4,XDSA47-YS80M4,XDSA47-YS90M4,XDSA47-YVB63M4,XDSA47-YVB71M4,XDSA47-YVB80M4,XDSA47-YVB90M4,XDSA47-YVP63M4,XDSA47-YVP71M4,XDSA47-YVP80M4,XDSA47-YVP90M4,XDSA47-YVPEJ63M4,XDSA47-YVPEJ71M4,XDSA47-YVPEJ80M4,XDSA47-YVPEJ90M4,SWA47-Y0.12KW,SWA47-Y0.18KW,SWA47-Y0.25KW,SWA47-Y0.37KW,SWA47-Y0.55KW,SWA47-Y0.75KW,SWA47-Y1.1KW,SWA47-Y1.5KW,SWA47-Y63M4,SWA47-Y71M4,SWA47-Y80M4,SWA47-Y90M4,SWA47-YB63M4,SWA47-YB71M4,SWA47-YB80M4,SWA47-YB90M4,SWA47-YDP63M4,SWA47-YDP71M4,SWA47-YDP80M4,SWA47-YDP90M4,SWA47-YE63M4,SWA47-YE71M4,SWA47-YE80M4,SWA47-YE90M4,SWA47-YEJ63M4,SWA47-YEJ71M4,SWA47-YEJ80M4,SWA47-YEJ90M4,SWA47-YEJB63M4,SWA47-YEJB71M4,SWA47-YEJB80M4,SWA47-YEJB90M4,SWA47-YP63M4,SWA47-YP71M4,SWA47-YP80M4,SWA47-YP90M4,SWA47-YPB63M4,SWA47-YPB71M4,SWA47-YPB80M4,SWA47-YPB90M4,SWA47-YPE63M4,SWA47-YPE71M4,SWA47-YPE80M4,SWA47-YPE90M4,SWA47-YS63M4,SWA47-YS71M4,SWA47-YS80M4,SWA47-YS90M4,SWA47-YVB63M4,SWA47-YVB71M4,SWA47-YVB80M4,SWA47-YVB90M4,SWA47-YVP63M4,SWA47-YVP71M4,SWA47-YVP80M4,SWA47-YVP90M4,SWA47-YVPEJ63M4,SWA47-YVPEJ71M4,SWA47-YVPEJ80M4,SWA47-YVPEJ90M4,JCSA47-Y0.12KW,JCSA47-Y0.18KW,JCSA47-Y0.25KW,JCSA47-Y0.37KW,JCSA47-Y0.55KW,JCSA47-Y0.75KW,JCSA47-Y1.1KW,JCSA47-Y1.5KW,JCSA47-Y63M4,JCSA47-Y71M4,JCSA47-Y80M4,JCSA47-Y90M4,JCSA47-YB63M4,JCSA47-YB71M4,JCSA47-YB80M4,JCSA47-YB90M4,JCSA47-YDP63M4,JCSA47-YDP71M4,JCSA47-YDP80M4,JCSA47-YDP90M4,JCSA47-YE63M4,JCSA47-YE71M4,JCSA47-YE80M4,JCSA47-YE90M4,JCSA47-YEJ63M4,JCSA47-YEJ71M4,JCSA47-YEJ80M4,JCSA47-YEJ90M4,JCSA47-YEJB63M4,JCSA47-YEJB71M4,JCSA47-YEJB80M4,JCSA47-YEJB90M4,JCSA47-YP63M4,JCSA47-YP71M4,JCSA47-YP80M4,JCSA47-YP90M4,JCSA47-YPB63M4,JCSA47-YPB71M4,JCSA47-YPB80M4,JCSA47-YPB90M4,JCSA47-YPE63M4,JCSA47-YPE71M4,JCSA47-YPE80M4,JCSA47-YPE90M4,JCSA47-YS63M4,JCSA47-YS71M4,JCSA47-YS80M4,JCSA47-YS90M4,JCSA47-YVB63M4,JCSA47-YVB71M4,JCSA47-YVB80M4,JCSA47-YVB90M4,JCSA47-YVP63M4,JCSA47-YVP71M4,JCSA47-YVP80M4,JCSA47-YVP90M4,JCSA47-YVPEJ63M4,JCSA47-YVPEJ71M4,JCSA47-YVPEJ80M4,JCSA47-YVPEJ90M4,YQSA47-Y0.12KW,YQSA47-Y0.18KW,YQSA47-Y0.25KW,YQSA47-Y0.37KW,YQSA47-Y0.55KW,YQSA47-Y0.75KW,YQSA47-Y1.1KW,YQSA47-Y1.5KW,YQSA47-Y63M4,YQSA47-Y71M4,YQSA47-Y80M4,YQSA47-Y90M4,YQSA47-YB63M4,YQSA47-YB71M4,YQSA47-YB80M4,YQSA47-YB90M4,YQSA47-YDP63M4,YQSA47-YDP71M4,YQSA47-YDP80M4,YQSA47-YDP90M4,YQSA47-YE63M4,YQSA47-YE71M4,YQSA47-YE80M4,YQSA47-YE90M4,YQSA47-YEJ63M4,YQSA47-YEJ71M4,YQSA47-YEJ80M4,YQSA47-YEJ90M4,YQSA47-YEJB63M4,YQSA47-YEJB71M4,YQSA47-YEJB80M4,YQSA47-YEJB90M4,YQSA47-YP63M4,YQSA47-YP71M4,YQSA47-YP80M4,YQSA47-YP90M4,YQSA47-YPB63M4,YQSA47-YPB71M4,YQSA47-YPB80M4,YQSA47-YPB90M4,YQSA47-YPE63M4,YQSA47-YPE71M4,YQSA47-YPE80M4,YQSA47-YPE90M4,YQSA47-YS63M4,YQSA47-YS71M4,YQSA47-YS80M4,YQSA47-YS90M4,YQSA47-YVB63M4,YQSA47-YVB71M4,YQSA47-YVB80M4,YQSA47-YVB90M4,YQSA47-YVP63M4,YQSA47-YVP71M4,YQSA47-YVP80M4,YQSA47-YVP90M4,YQSA47-YVPEJ63M4,YQSA47-YVPEJ71M4,YQSA47-YVPEJ80M4,YQSA47-YVPEJ90M4,SA49-Y0.12KW,SA49-Y0.18KW,SA49-Y0.25KW,SA49-Y0.37KW,SA49-Y0.55KW,SA49-Y0.75KW,SA49-Y1.1KW,SA49-Y1.5KW,SA49-Y63M4,SA49-Y71M4,SA49-Y80M4,SA49-Y90M4,SA49-YB63M4,SA49-YB71M4,SA49-YB80M4,SA49-YB90M4,SA49-YDP63M4,SA49-YDP71M4,SA49-YDP80M4,SA49-YDP90M4,SA49-YE63M4,SA49-YE71M4,SA49-YE80M4,SA49-YE90M4,SA49-YEJ63M4,SA49-YEJ71M4,SA49-YEJ80M4,SA49-YEJ90M4,SA49-YEJB63M4,SA49-YEJB71M4,SA49-YEJB80M4,SA49-YEJB90M4,SA49-YP63M4,SA49-YP71M4,SA49-YP80M4,SA49-YP90M4,SA49-YPB63M4,SA49-YPB71M4,SA49-YPB80M4,SA49-YPB90M4,SA49-YPE63M4,SA49-YPE71M4,SA49-YPE80M4,SA49-YPE90M4,SA49-YS63M4,SA49-YS71M4,SA49-YS80M4,SA49-YS90M4,SA49-YVB63M4,SA49-YVB71M4,SA49-YVB80M4,SA49-YVB90M4,SA49-YVP63M4,SA49-YVP71M4,SA49-YVP80M4,SA49-YVP90M4,SA49-YVPEJ63M4,SA49-YVPEJ71M4,SA49-YVPEJ80M4,SA49-YVPEJ90M4,SA47SF80,SA47SF90,SA47SF100,SA47SF112,SA47SF115,SA47SF140,SA47SF160,SA47SF190。

SA49減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S49減速機

關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器

SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機

SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SA49減速器 SA47斜齒輪減速機 SA47減速機3D模型 SA47型減速機選型參數 SA47臥式減速機一體機 SA47伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SA49減速器3D模型 點擊下載
SA49減速器選型參數 點擊下載
