SF99減速器詳細信息

prevnext

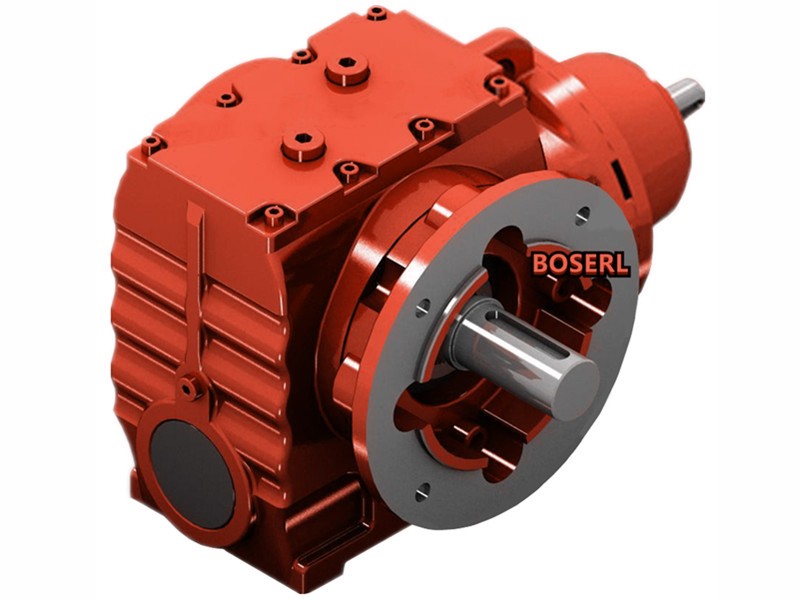

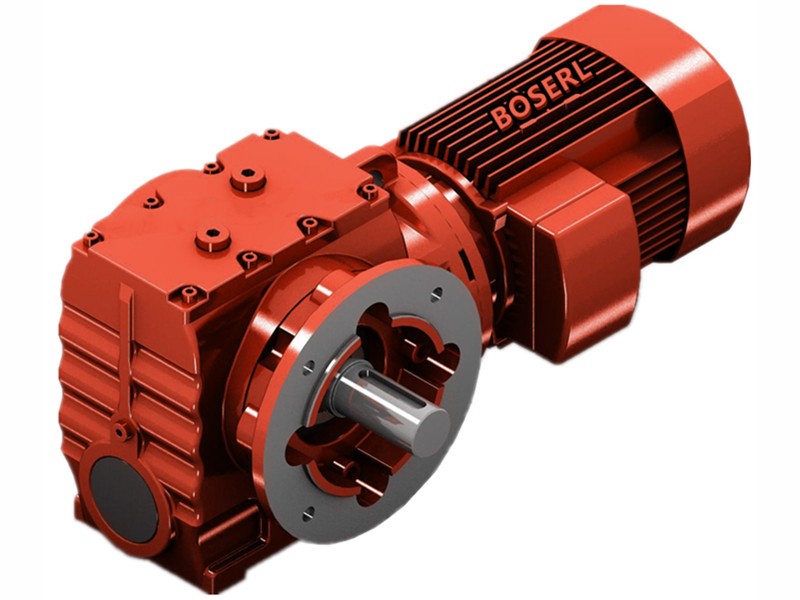

SF99減速器

訂購熱線:13360667204
  1. 詳細信息

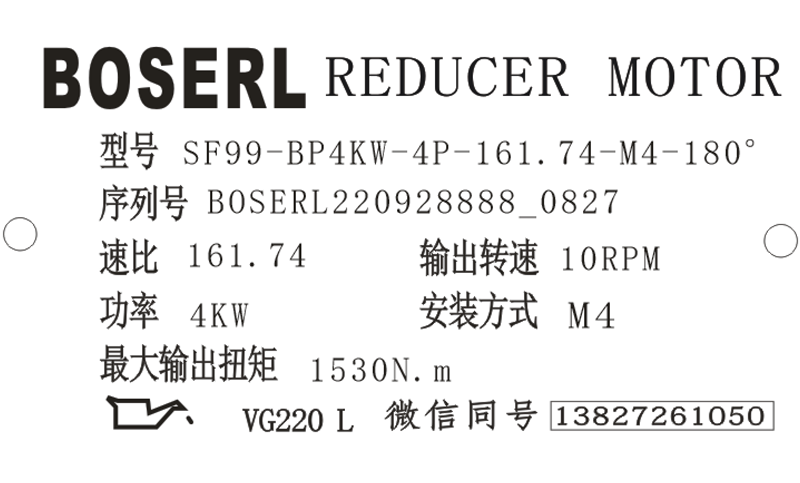

SF99減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF99減速器選型樣本。

SF99-BP4KW-4P-161.74-M4-180°

SF:系列代號

99:減速機規格代號

BP:電機

4KW:電機功率

4P:電機級數

161.74:減速機傳動比

M4:減速機安裝位置

180°:接線盒位置


SF99減速器透氣閥開啟操作教程:

安裝時檢查透氣閥是否開啟,若透氣閥未開啟,則必須在啟動SF99減速器前拆下透氣閥的運輸保險!齒輪減速電機

第一步帶運輸橡膠圈的透氣閥;

第二步拆下運輸橡膠圈;

第三步已經開啟的透氣閥。


SF99減速器安裝操作的正確方法:

SF99減速器實心軸輸出與輸出部件的裝配:不當裝配可能對軸承、箱體或軸造成損傷,可能造成財產損失!只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配;嚴禁用錘擊方式將皮帶輪、聯軸器,小齒輪等裝入軸端部;安裝皮帶輪時皮帶的正確張力要根據制造商的規定;裝配的傳動件應當進行動平衡,并且不允許出現超出許可的徑向力或者軸向力(許可值參見“本頁面附件下載中的SF99減速器選型樣本”)。自鎖減速機

SF99減速器潮濕或露天場地的安裝:若要在潮濕場地或露天情況下使用驅動設備,則設備要做防腐設計,供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落(如透氣閥或吊耳出),進行修補。將電機安裝到聯軸器AM、AD時,法蘭表面要采用合適的密封膠,例如Loctitlre518進行密封。

SF99減速器的透氣:安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟;例外情況:對于下列SF99減速器,BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下,采用傳動式安裝位置,傾斜位置安裝的SF99減速器,啟動SF99減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機蝸輪蝸桿減速機

SF99減速器噴漆:噴漆或補漆時可能對透氣閥和油封造成損傷,要求噴漆前對透氣閥和油封的密封唇進行細致封堵;噴漆后撕去封堵粘條。


SF99減速器型號:

WSF97-Y1.1KW,WSF97-Y1.5KW,WSF97-Y100M4,WSF97-Y112M4,WSF97-Y11KW,WSF97-Y132M4,WSF97-Y15KW,WSF97-Y160M4,WSF97-Y18.5KW,WSF97-Y180M4,WSF97-Y2.2KW,WSF97-Y200M4,WSF97-Y22KW,WSF97-Y3KW,WSF97-Y4KW,WSF97-Y5.5KW,WSF97-Y7.5KW,WSF97-Y80M4,WSF97-Y90M4,WSF97-YB100M4,WSF97-YB112M4,WSF97-YB132M4,WSF97-YB160M4,WSF97-YB180M4,WSF97-YB200M4,WSF97-YB80M4,WSF97-YB90M4,WSF97-YDP100M4,WSF97-YDP112M4,WSF97-YDP132M4,WSF97-YDP160M4,WSF97-YDP180M4,WSF97-YDP200M4,WSF97-YDP80M4,WSF97-YDP90M4,WSF97-YE100M4,WSF97-YE112M4,WSF97-YE132M4,WSF97-YE160M4,WSF97-YE180M4,WSF97-YE200M4,WSF97-YE80M4,WSF97-YE90M4,WSF97-YEJ100M4,WSF97-YEJ112M4,WSF97-YEJ132M4,WSF97-YEJ160M4,WSF97-YEJ180M4,WSF97-YEJ200M4,WSF97-YEJ80M4,WSF97-YEJ90M4,WSF97-YEJB100M4,WSF97-YEJB112M4,WSF97-YEJB132M4,WSF97-YEJB160M4,WSF97-YEJB180M4,WSF97-YEJB200M4,WSF97-YEJB80M4,WSF97-YEJB90M4,WSF97-YP100M4,WSF97-YP112M4,WSF97-YP132M4,WSF97-YP160M4,WSF97-YP180M4,WSF97-YP200M4,WSF97-YP80M4,WSF97-YP90M4,WSF97-YPB100M4,WSF97-YPB112M4,WSF97-YPB132M4,WSF97-YPB160M4,WSF97-YPB180M4,WSF97-YPB200M4,WSF97-YPB80M4,WSF97-YPB90M4,WSF97-YPE100M4,WSF97-YPE112M4,WSF97-YPE132M4,WSF97-YPE160M4,WSF97-YPE180M4,WSF97-YPE200M4,WSF97-YPE80M4,WSF97-YPE90M4,WSF97-YS100M4,WSF97-YS112M4,WSF97-YS132M4,WSF97-YS160M4,WSF97-YS180M4,WSF97-YS200M4,WSF97-YS80M4,WSF97-YS90M4,WSF97-YVB100M4,WSF97-YVB112M4,WSF97-YVB132M4,WSF97-YVB160M4,WSF97-YVB180M4,WSF97-YVB200M4,WSF97-YVB80M4,WSF97-YVB90M4,WSF97-YVP100M4,WSF97-YVP112M4,WSF97-YVP132M4,WSF97-YVP160M4,WSF97-YVP180M4,WSF97-YVP200M4,WSF97-YVP80M4,WSF97-YVP90M4,WSF97-YVPEJ100M4,WSF97-YVPEJ112M4,WSF97-YVPEJ132M4,WSF97-YVPEJ160M4,WSF97-YVPEJ180M4,WSF97-YVPEJ200M4,WSF97-YVPEJ80M4,WSF97-YVPEJ90M4,NSF97-Y1.1KW,NSF97-Y1.5KW,NSF97-Y100M4,NSF97-Y112M4,NSF97-Y11KW,NSF97-Y132M4,NSF97-Y15KW,NSF97-Y160M4,NSF97-Y18.5KW,NSF97-Y180M4,NSF97-Y2.2KW,NSF97-Y200M4,NSF97-Y22KW,NSF97-Y3KW,NSF97-Y4KW,NSF97-Y5.5KW,NSF97-Y7.5KW,NSF97-Y80M4,NSF97-Y90M4,NSF97-YB100M4,NSF97-YB112M4,NSF97-YB132M4,NSF97-YB160M4,NSF97-YB180M4,NSF97-YB200M4,NSF97-YB80M4,NSF97-YB90M4,NSF97-YDP100M4,NSF97-YDP112M4,NSF97-YDP132M4,NSF97-YDP160M4,NSF97-YDP180M4,NSF97-YDP200M4,NSF97-YDP80M4,NSF97-YDP90M4,NSF97-YE100M4,NSF97-YE112M4,NSF97-YE132M4,NSF97-YE160M4,NSF97-YE180M4,NSF97-YE200M4,NSF97-YE80M4,NSF97-YE90M4,NSF97-YEJ100M4,NSF97-YEJ112M4,NSF97-YEJ132M4,NSF97-YEJ160M4,NSF97-YEJ180M4,NSF97-YEJ200M4,NSF97-YEJ80M4,NSF97-YEJ90M4,NSF97-YEJB100M4,NSF97-YEJB112M4,NSF97-YEJB132M4,NSF97-YEJB160M4,NSF97-YEJB180M4,NSF97-YEJB200M4,NSF97-YEJB80M4,NSF97-YEJB90M4,NSF97-YP100M4,NSF97-YP112M4,NSF97-YP132M4,NSF97-YP160M4,NSF97-YP180M4,NSF97-YP200M4,NSF97-YP80M4,NSF97-YP90M4,NSF97-YPB100M4,NSF97-YPB112M4,NSF97-YPB132M4,NSF97-YPB160M4,NSF97-YPB180M4,NSF97-YPB200M4,NSF97-YPB80M4,NSF97-YPB90M4,NSF97-YPE100M4,NSF97-YPE112M4,NSF97-YPE132M4,NSF97-YPE160M4,NSF97-YPE180M4,NSF97-YPE200M4,NSF97-YPE80M4,NSF97-YPE90M4,NSF97-YS100M4,NSF97-YS112M4,NSF97-YS132M4,NSF97-YS160M4,NSF97-YS180M4,NSF97-YS200M4,NSF97-YS80M4,NSF97-YS90M4,NSF97-YVB100M4,NSF97-YVB112M4,NSF97-YVB132M4,NSF97-YVB160M4,NSF97-YVB180M4,NSF97-YVB200M4,NSF97-YVB80M4,NSF97-YVB90M4,NSF97-YVP100M4,NSF97-YVP112M4,NSF97-YVP132M4,NSF97-YVP160M4,NSF97-YVP180M4,NSF97-YVP200M4,NSF97-YVP80M4,NSF97-YVP90M4,NSF97-YVPEJ100M4,NSF97-YVPEJ112M4,NSF97-YVPEJ132M4,NSF97-YVPEJ160M4,NSF97-YVPEJ180M4,NSF97-YVPEJ200M4,NSF97-YVPEJ80M4,NSF97-YVPEJ90M4,ASF97-Y1.1KW,ASF97-Y1.5KW,ASF97-Y100M4,ASF97-Y112M4,ASF97-Y11KW,ASF97-Y132M4,ASF97-Y15KW,ASF97-Y160M4,ASF97-Y18.5KW,ASF97-Y180M4,ASF97-Y2.2KW,ASF97-Y200M4,ASF97-Y22KW,ASF97-Y3KW,ASF97-Y4KW,ASF97-Y5.5KW,ASF97-Y7.5KW,ASF97-Y80M4,ASF97-Y90M4,ASF97-YB100M4,ASF97-YB112M4,ASF97-YB132M4,ASF97-YB160M4,ASF97-YB180M4,ASF97-YB200M4,ASF97-YB80M4,ASF97-YB90M4,ASF97-YDP100M4,ASF97-YDP112M4,ASF97-YDP132M4,ASF97-YDP160M4,ASF97-YDP180M4,ASF97-YDP200M4,ASF97-YDP80M4,ASF97-YDP90M4,ASF97-YE100M4,ASF97-YE112M4,ASF97-YE132M4,ASF97-YE160M4,ASF97-YE180M4,ASF97-YE200M4,ASF97-YE80M4,ASF97-YE90M4,ASF97-YEJ100M4,ASF97-YEJ112M4,ASF97-YEJ132M4,ASF97-YEJ160M4,ASF97-YEJ180M4,ASF97-YEJ200M4,ASF97-YEJ80M4,ASF97-YEJ90M4,ASF97-YEJB100M4,ASF97-YEJB112M4,ASF97-YEJB132M4,ASF97-YEJB160M4,ASF97-YEJB180M4,ASF97-YEJB200M4,ASF97-YEJB80M4,ASF97-YEJB90M4,ASF97-YP100M4,ASF97-YP112M4,ASF97-YP132M4,ASF97-YP160M4,ASF97-YP180M4,ASF97-YP200M4,ASF97-YP80M4,ASF97-YP90M4,ASF97-YPB100M4,ASF97-YPB112M4,ASF97-YPB132M4,ASF97-YPB160M4,ASF97-YPB180M4,ASF97-YPB200M4,ASF97-YPB80M4,ASF97-YPB90M4,ASF97-YPE100M4,ASF97-YPE112M4,ASF97-YPE132M4,ASF97-YPE160M4,ASF97-YPE180M4,ASF97-YPE200M4,ASF97-YPE80M4,ASF97-YPE90M4,ASF97-YS100M4,ASF97-YS112M4,ASF97-YS132M4,ASF97-YS160M4,ASF97-YS180M4,ASF97-YS200M4,ASF97-YS80M4,ASF97-YS90M4,ASF97-YVB100M4,ASF97-YVB112M4,ASF97-YVB132M4,ASF97-YVB160M4,ASF97-YVB180M4,ASF97-YVB200M4,ASF97-YVB80M4,ASF97-YVB90M4,ASF97-YVP100M4,ASF97-YVP112M4,ASF97-YVP132M4,ASF97-YVP160M4,ASF97-YVP180M4,ASF97-YVP200M4,ASF97-YVP80M4,ASF97-YVP90M4,ASF97-YVPEJ100M4,ASF97-YVPEJ112M4,ASF97-YVPEJ132M4,ASF97-YVPEJ160M4,ASF97-YVPEJ180M4,ASF97-YVPEJ200M4,ASF97-YVPEJ80M4,ASF97-YVPEJ90M4,SSF97-Y1.1KW,SSF97-Y1.5KW,SSF97-Y100M4,SSF97-Y112M4,SSF97-Y11KW,SSF97-Y132M4,SSF97-Y15KW,SSF97-Y160M4,SSF97-Y18.5KW,SSF97-Y180M4,SSF97-Y2.2KW,SSF97-Y200M4,SSF97-Y22KW,SSF97-Y3KW,SSF97-Y4KW,SSF97-Y5.5KW,SSF97-Y7.5KW,SSF97-Y80M4,SSF97-Y90M4,SSF97-YB100M4,SSF97-YB112M4,SSF97-YB132M4,SSF97-YB160M4,SSF97-YB180M4,SSF97-YB200M4,SSF97-YB80M4,SSF97-YB90M4,SSF97-YDP100M4,SSF97-YDP112M4,SSF97-YDP132M4,SSF97-YDP160M4,SSF97-YDP180M4,SSF97-YDP200M4,SSF97-YDP80M4,SSF97-YDP90M4,SSF97-YE100M4,SSF97-YE112M4,SSF97-YE132M4,SSF97-YE160M4,SSF97-YE180M4,SSF97-YE200M4,SSF97-YE80M4,SSF97-YE90M4,SSF97-YEJ100M4,SSF97-YEJ112M4,SSF97-YEJ132M4,SSF97-YEJ160M4,SSF97-YEJ180M4,SSF97-YEJ200M4,SSF97-YEJ80M4,SSF97-YEJ90M4,SSF97-YEJB100M4,SSF97-YEJB112M4,SSF97-YEJB132M4,SSF97-YEJB160M4,SSF97-YEJB180M4,SSF97-YEJB200M4,SSF97-YEJB80M4,SSF97-YEJB90M4,SSF97-YP100M4,SSF97-YP112M4,SSF97-YP132M4,SSF97-YP160M4,SSF97-YP180M4,SSF97-YP200M4,SSF97-YP80M4,SSF97-YP90M4,SSF97-YPB100M4,SSF97-YPB112M4,SSF97-YPB132M4,SSF97-YPB160M4,SSF97-YPB180M4,SSF97-YPB200M4,SSF97-YPB80M4,SSF97-YPB90M4,SSF97-YPE100M4,SSF97-YPE112M4,SSF97-YPE132M4,SSF97-YPE160M4,SSF97-YPE180M4,SSF97-YPE200M4,SSF97-YPE80M4,SSF97-YPE90M4,SSF97-YS100M4,SSF97-YS112M4,SSF97-YS132M4,SSF97-YS160M4,SSF97-YS180M4,SSF97-YS200M4,SSF97-YS80M4,SSF97-YS90M4,SSF97-YVB100M4,SSF97-YVB112M4,SSF97-YVB132M4,SSF97-YVB160M4,SSF97-YVB180M4,SSF97-YVB200M4,SSF97-YVB80M4,SSF97-YVB90M4,SSF97-YVP100M4,SSF97-YVP112M4,SSF97-YVP132M4,SSF97-YVP160M4,SSF97-YVP180M4,SSF97-YVP200M4,SSF97-YVP80M4,SSF97-YVP90M4,SSF97-YVPEJ100M4,SSF97-YVPEJ112M4,SSF97-YVPEJ132M4,SSF97-YVPEJ160M4,SSF97-YVPEJ180M4,SSF97-YVPEJ200M4,SSF97-YVPEJ80M4,SSF97-YVPEJ90M4,GSF99-Y1.1KW,GSF99-Y1.5KW,GSF99-Y100M4,GSF99-Y112M4,GSF99-Y11KW,GSF99-Y132M4,GSF99-Y15KW,GSF99-Y160M4,GSF99-Y18.5KW,GSF99-Y180M4,GSF99-Y2.2KW,GSF99-Y200M4,GSF99-Y22KW,GSF99-Y3KW,GSF99-Y4KW,GSF99-Y5.5KW,GSF99-Y7.5KW,GSF99-Y80M4,GSF99-Y90M4,GSF99-YB100M4,GSF99-YB112M4,GSF99-YB132M4,GSF99-YB160M4,GSF99-YB180M4,GSF99-YB200M4,GSF99-YB80M4,GSF99-YB90M4,GSF99-YDP100M4,GSF99-YDP112M4,GSF99-YDP132M4,GSF99-YDP160M4,GSF99-YDP180M4,GSF99-YDP200M4,GSF99-YDP80M4,GSF99-YDP90M4,GSF99-YE100M4,GSF99-YE112M4,GSF99-YE132M4,GSF99-YE160M4,GSF99-YE180M4,GSF99-YE200M4,GSF99-YE80M4,GSF99-YE90M4,GSF99-YEJ100M4,GSF99-YEJ112M4,GSF99-YEJ132M4,GSF99-YEJ160M4,GSF99-YEJ180M4,GSF99-YEJ200M4,GSF99-YEJ80M4,GSF99-YEJ90M4,GSF99-YEJB100M4,GSF99-YEJB112M4,GSF99-YEJB132M4,GSF99-YEJB160M4,GSF99-YEJB180M4,GSF99-YEJB200M4,GSF99-YEJB80M4,GSF99-YEJB90M4,GSF99-YP100M4,GSF99-YP112M4,GSF99-YP132M4,GSF99-YP160M4,GSF99-YP180M4,GSF99-YP200M4,GSF99-YP80M4,GSF99-YP90M4,GSF99-YPB100M4,GSF99-YPB112M4,GSF99-YPB132M4,GSF99-YPB160M4,GSF99-YPB180M4,GSF99-YPB200M4,GSF99-YPB80M4,GSF99-YPB90M4,GSF99-YPE100M4,GSF99-YPE112M4,GSF99-YPE132M4,GSF99-YPE160M4,GSF99-YPE180M4,GSF99-YPE200M4,GSF99-YPE80M4,GSF99-YPE90M4,GSF99-YS100M4,GSF99-YS112M4,GSF99-YS132M4,GSF99-YS160M4,GSF99-YS180M4,GSF99-YS200M4,GSF99-YS80M4,GSF99-YS90M4,GSF99-YVB100M4,GSF99-YVB112M4,GSF99-YVB132M4,GSF99-YVB160M4,GSF99-YVB180M4,GSF99-YVB200M4,GSF99-YVB80M4,GSF99-YVB90M4,GSF99-YVP100M4,GSF99-YVP112M4,GSF99-YVP132M4,GSF99-YVP160M4,GSF99-YVP180M4,GSF99-YVP200M4,GSF99-YVP80M4,GSF99-YVP90M4,GSF99-YVPEJ100M4,GSF99-YVPEJ112M4,GSF99-YVPEJ132M4,GSF99-YVPEJ160M4,GSF99-YVPEJ180M4,GSF99-YVPEJ200M4,GSF99-YVPEJ80M4,GSF99-YVPEJ90M4,SF97SF80,SF97SF90,SF97SF100,SF97SF112,SF97SF115,SF97SF140,SF97SF160,SF97SF190。

SF99減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-sfxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S99減速機

關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器

SF系列減速機型號:SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機

SF系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SF99減速器 SF97斜齒輪減速機 SF97減速機3D模型 SF97型減速機選型參數 SF97立式減速機一體機 SF97伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SF99減速器3D模型 點擊下載
SF99減速器選型參數 點擊下載
