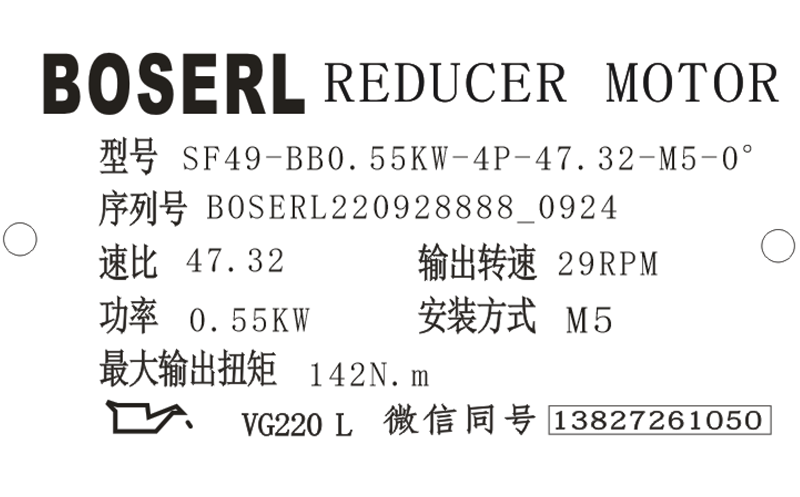

SF49減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF49減速機選型樣本。
SF49-BB0.55KW-4P-47.32-M5-0°
SF:系列代號
49:減速機規格代號
BB:電機
0.55KW:電機功率
4P:電機級數
47.32:減速機傳動比
M5:減速機安裝位置
0°:接線盒位置
SF49減速機潤滑油型號:
SF49減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
SF49減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據SF49減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“SF49減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。齒輪減速電機
SF49減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF49減速機選型樣本中列出了安裝位置從M1到M6SF49減速機相應的潤滑油加注標準,請自行下載查看。
SF49減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。
SF49減速機使用說明:
SF49減速機注意事項:若未注入正確的SF49減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。伺服電機蝸輪蝸桿減速機
SF49減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見SF49減速機說明書安裝位置章節中的內容。
SF49減速機的螺母:立式安裝SF49減速機輸出法蘭螺母規格M8;SF49減速機螺母/螺母擰緊扭矩強度等級10.9。
SF49減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
SF49減速機警告說明:由于SF49減速機發熱或SF49減速機油溫過高可能引起燙傷;對SF49減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機
SF49減速機型號:
SWF47-Y0.12KW,SWF47-Y0.18KW,SWF47-Y0.25KW,SWF47-Y0.37KW,SWF47-Y0.55KW,SWF47-Y0.75KW,SWF47-Y1.1KW,SWF47-Y1.5KW,SWF47-Y63M4,SWF47-Y71M4,SWF47-Y80M4,SWF47-Y90M4,SWF47-YB63M4,SWF47-YB71M4,SWF47-YB80M4,SWF47-YB90M4,SWF47-YDP63M4,SWF47-YDP71M4,SWF47-YDP80M4,SWF47-YDP90M4,SWF47-YE63M4,SWF47-YE71M4,SWF47-YE80M4,SWF47-YE90M4,SWF47-YEJ63M4,SWF47-YEJ71M4,SWF47-YEJ80M4,SWF47-YEJ90M4,SWF47-YEJB63M4,SWF47-YEJB71M4,SWF47-YEJB80M4,SWF47-YEJB90M4,SWF47-YP63M4,SWF47-YP71M4,SWF47-YP80M4,SWF47-YP90M4,SWF47-YPB63M4,SWF47-YPB71M4,SWF47-YPB80M4,SWF47-YPB90M4,SWF47-YPE63M4,SWF47-YPE71M4,SWF47-YPE80M4,SWF47-YPE90M4,SWF47-YS63M4,SWF47-YS71M4,SWF47-YS80M4,SWF47-YS90M4,SWF47-YVB63M4,SWF47-YVB71M4,SWF47-YVB80M4,SWF47-YVB90M4,SWF47-YVP63M4,SWF47-YVP71M4,SWF47-YVP80M4,SWF47-YVP90M4,SWF47-YVPEJ63M4,SWF47-YVPEJ71M4,SWF47-YVPEJ80M4,SWF47-YVPEJ90M4,XDSF47-Y0.12KW,XDSF47-Y0.18KW,XDSF47-Y0.25KW,XDSF47-Y0.37KW,XDSF47-Y0.55KW,XDSF47-Y0.75KW,XDSF47-Y1.1KW,XDSF47-Y1.5KW,XDSF47-Y63M4,XDSF47-Y71M4,XDSF47-Y80M4,XDSF47-Y90M4,XDSF47-YB63M4,XDSF47-YB71M4,XDSF47-YB80M4,XDSF47-YB90M4,XDSF47-YDP63M4,XDSF47-YDP71M4,XDSF47-YDP80M4,XDSF47-YDP90M4,XDSF47-YE63M4,XDSF47-YE71M4,XDSF47-YE80M4,XDSF47-YE90M4,XDSF47-YEJ63M4,XDSF47-YEJ71M4,XDSF47-YEJ80M4,XDSF47-YEJ90M4,XDSF47-YEJB63M4,XDSF47-YEJB71M4,XDSF47-YEJB80M4,XDSF47-YEJB90M4,XDSF47-YP63M4,XDSF47-YP71M4,XDSF47-YP80M4,XDSF47-YP90M4,XDSF47-YPB63M4,XDSF47-YPB71M4,XDSF47-YPB80M4,XDSF47-YPB90M4,XDSF47-YPE63M4,XDSF47-YPE71M4,XDSF47-YPE80M4,XDSF47-YPE90M4,XDSF47-YS63M4,XDSF47-YS71M4,XDSF47-YS80M4,XDSF47-YS90M4,XDSF47-YVB63M4,XDSF47-YVB71M4,XDSF47-YVB80M4,XDSF47-YVB90M4,XDSF47-YVP63M4,XDSF47-YVP71M4,XDSF47-YVP80M4,XDSF47-YVP90M4,XDSF47-YVPEJ63M4,XDSF47-YVPEJ71M4,XDSF47-YVPEJ80M4,XDSF47-YVPEJ90M4,JCSF47-Y0.12KW,JCSF47-Y0.18KW,JCSF47-Y0.25KW,JCSF47-Y0.37KW,JCSF47-Y0.55KW,JCSF47-Y0.75KW,JCSF47-Y1.1KW,JCSF47-Y1.5KW,JCSF47-Y63M4,JCSF47-Y71M4,JCSF47-Y80M4,JCSF47-Y90M4,JCSF47-YB63M4,JCSF47-YB71M4,JCSF47-YB80M4,JCSF47-YB90M4,JCSF47-YDP63M4,JCSF47-YDP71M4,JCSF47-YDP80M4,JCSF47-YDP90M4,JCSF47-YE63M4,JCSF47-YE71M4,JCSF47-YE80M4,JCSF47-YE90M4,JCSF47-YEJ63M4,JCSF47-YEJ71M4,JCSF47-YEJ80M4,JCSF47-YEJ90M4,JCSF47-YEJB63M4,JCSF47-YEJB71M4,JCSF47-YEJB80M4,JCSF47-YEJB90M4,JCSF47-YP63M4,JCSF47-YP71M4,JCSF47-YP80M4,JCSF47-YP90M4,JCSF47-YPB63M4,JCSF47-YPB71M4,JCSF47-YPB80M4,JCSF47-YPB90M4,JCSF47-YPE63M4,JCSF47-YPE71M4,JCSF47-YPE80M4,JCSF47-YPE90M4,JCSF47-YS63M4,JCSF47-YS71M4,JCSF47-YS80M4,JCSF47-YS90M4,JCSF47-YVB63M4,JCSF47-YVB71M4,JCSF47-YVB80M4,JCSF47-YVB90M4,JCSF47-YVP63M4,JCSF47-YVP71M4,JCSF47-YVP80M4,JCSF47-YVP90M4,JCSF47-YVPEJ63M4,JCSF47-YVPEJ71M4,JCSF47-YVPEJ80M4,JCSF47-YVPEJ90M4,YQSF47-Y0.12KW,YQSF47-Y0.18KW,YQSF47-Y0.25KW,YQSF47-Y0.37KW,YQSF47-Y0.55KW,YQSF47-Y0.75KW,YQSF47-Y1.1KW,YQSF47-Y1.5KW,YQSF47-Y63M4,YQSF47-Y71M4,YQSF47-Y80M4,YQSF47-Y90M4,YQSF47-YB63M4,YQSF47-YB71M4,YQSF47-YB80M4,YQSF47-YB90M4,YQSF47-YDP63M4,YQSF47-YDP71M4,YQSF47-YDP80M4,YQSF47-YDP90M4,YQSF47-YE63M4,YQSF47-YE71M4,YQSF47-YE80M4,YQSF47-YE90M4,YQSF47-YEJ63M4,YQSF47-YEJ71M4,YQSF47-YEJ80M4,YQSF47-YEJ90M4,YQSF47-YEJB63M4,YQSF47-YEJB71M4,YQSF47-YEJB80M4,YQSF47-YEJB90M4,YQSF47-YP63M4,YQSF47-YP71M4,YQSF47-YP80M4,YQSF47-YP90M4,YQSF47-YPB63M4,YQSF47-YPB71M4,YQSF47-YPB80M4,YQSF47-YPB90M4,YQSF47-YPE63M4,YQSF47-YPE71M4,YQSF47-YPE80M4,YQSF47-YPE90M4,YQSF47-YS63M4,YQSF47-YS71M4,YQSF47-YS80M4,YQSF47-YS90M4,YQSF47-YVB63M4,YQSF47-YVB71M4,YQSF47-YVB80M4,YQSF47-YVB90M4,YQSF47-YVP63M4,YQSF47-YVP71M4,YQSF47-YVP80M4,YQSF47-YVP90M4,YQSF47-YVPEJ63M4,YQSF47-YVPEJ71M4,YQSF47-YVPEJ80M4,YQSF47-YVPEJ90M4,SF49-Y0.12KW,SF49-Y0.18KW,SF49-Y0.25KW,SF49-Y0.37KW,SF49-Y0.55KW,SF49-Y0.75KW,SF49-Y1.1KW,SF49-Y1.5KW,SF49-Y63M4,SF49-Y71M4,SF49-Y80M4,SF49-Y90M4,SF49-YB63M4,SF49-YB71M4,SF49-YB80M4,SF49-YB90M4,SF49-YDP63M4,SF49-YDP71M4,SF49-YDP80M4,SF49-YDP90M4,SF49-YE63M4,SF49-YE71M4,SF49-YE80M4,SF49-YE90M4,SF49-YEJ63M4,SF49-YEJ71M4,SF49-YEJ80M4,SF49-YEJ90M4,SF49-YEJB63M4,SF49-YEJB71M4,SF49-YEJB80M4,SF49-YEJB90M4,SF49-YP63M4,SF49-YP71M4,SF49-YP80M4,SF49-YP90M4,SF49-YPB63M4,SF49-YPB71M4,SF49-YPB80M4,SF49-YPB90M4,SF49-YPE63M4,SF49-YPE71M4,SF49-YPE80M4,SF49-YPE90M4,SF49-YS63M4,SF49-YS71M4,SF49-YS80M4,SF49-YS90M4,SF49-YVB63M4,SF49-YVB71M4,SF49-YVB80M4,SF49-YVB90M4,SF49-YVP63M4,SF49-YVP71M4,SF49-YVP80M4,SF49-YVP90M4,SF49-YVPEJ63M4,SF49-YVPEJ71M4,SF49-YVPEJ80M4,SF49-YVPEJ90M4。
