SF89減速機詳細信息

prevnext

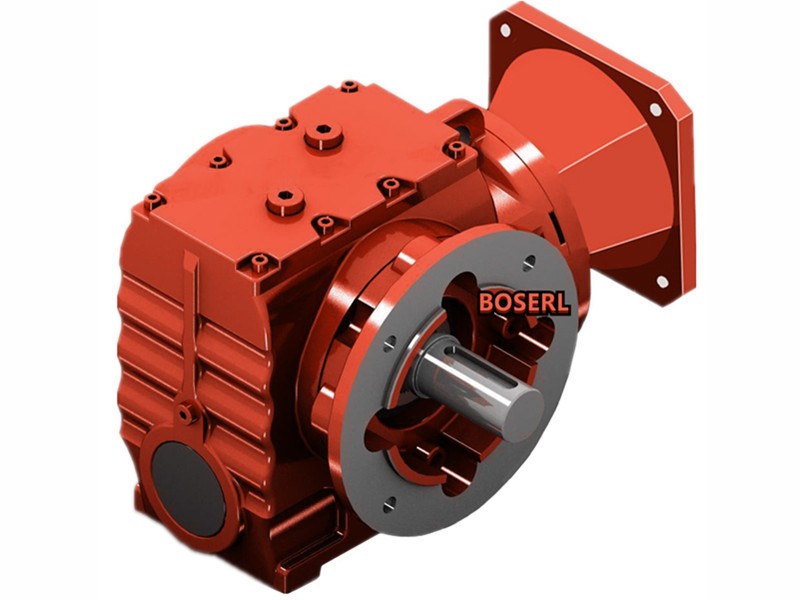

SF89減速機

訂購熱線:13360667204
  1. 詳細信息

SF89減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF89減速機選型樣本。

SF89-BB3KW-4P-99.26-M6-0°

SF:系列代號

89:減速機規格代號

BB:電機

3KW:電機功率

4P:電機級數

99.26:減速機傳動比

M6:減速機安裝位置

0°:接線盒位置


SF89減速機潤滑油型號:

SF89減速機推薦使用的潤滑油,其等級和粘度指標見下表:

ISO標準潤滑油

粘貼指標

環境溫度°C

減速機型號

MINERALOILCLP(cc)

ISOVG220

-10-+40

R系列、F系列、K系列減速機

ISOVG680

0-+40

S系列減速機

ISO標準潤滑油

粘貼指標

環境溫度°C

減速機型號

MINERALOILCLP(cc)

ISOVG100

-20-+25

R系列、F系列、K系列減速機

Synthetic fluid,clp pg

ISOVG220

-25-+80

R系列、F系列、K系列減速機

Synthetic fluid,CLP HC

ISOVG460

-30-+80

S系列減速機

SF89減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據SF89減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“SF89減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。齒輪減速電機

SF89減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF89減速機選型樣本中列出了安裝位置從M1到M6SF89減速機相應的潤滑油加注標準,請自行下載查看。

SF89減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。


SF89減速機使用說明:

SF89減速機注意事項:若未注入正確的SF89減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。伺服電機蝸輪蝸桿減速機

SF89減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見SF89減速機說明書安裝位置章節中的內容。

SF89減速機的螺母:立式安裝SF89減速機輸出法蘭螺母規格M16;SF89減速機螺母/螺母擰緊扭矩強度等級10.9。

SF89減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!

SF89減速機警告說明:由于SF89減速機發熱或SF89減速機油溫過高可能引起燙傷;對SF89減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機

SF89減速機型號:

XDSF87-Y0.55KW,XDSF87-Y0.75KW,XDSF87-Y1.1KW,XDSF87-Y1.5KW,XDSF87-Y100M4,XDSF87-Y112M4,XDSF87-Y11KW,XDSF87-Y132M4,XDSF87-Y15KW,XDSF87-Y160M4,XDSF87-Y2.2KW,XDSF87-Y3KW,XDSF87-Y4KW,XDSF87-Y5.5KW,XDSF87-Y7.5KW,XDSF87-Y71M4,XDSF87-Y80M4,XDSF87-Y90M4,XDSF87-YB100M4,XDSF87-YB112M4,XDSF87-YB132M4,XDSF87-YB160M4,XDSF87-YB71M4,XDSF87-YB80M4,XDSF87-YB90M4,XDSF87-YDP100M4,XDSF87-YDP112M4,XDSF87-YDP132M4,XDSF87-YDP160M4,XDSF87-YDP71M4,XDSF87-YDP80M4,XDSF87-YDP90M4,XDSF87-YE100M4,XDSF87-YE112M4,XDSF87-YE132M4,XDSF87-YE160M4,XDSF87-YE71M4,XDSF87-YE80M4,XDSF87-YE90M4,XDSF87-YEJ100M4,XDSF87-YEJ112M4,XDSF87-YEJ132M4,XDSF87-YEJ160M4,XDSF87-YEJ71M4,XDSF87-YEJ80M4,XDSF87-YEJ90M4,XDSF87-YEJB100M4,XDSF87-YEJB112M4,XDSF87-YEJB132M4,XDSF87-YEJB160M4,XDSF87-YEJB71M4,XDSF87-YEJB80M4,XDSF87-YEJB90M4,XDSF87-YP100M4,XDSF87-YP112M4,XDSF87-YP132M4,XDSF87-YP160M4,XDSF87-YP71M4,XDSF87-YP80M4,XDSF87-YP90M4,XDSF87-YPB100M4,XDSF87-YPB112M4,XDSF87-YPB132M4,XDSF87-YPB160M4,XDSF87-YPB71M4,XDSF87-YPB80M4,XDSF87-YPB90M4,XDSF87-YPE100M4,XDSF87-YPE112M4,XDSF87-YPE132M4,XDSF87-YPE160M4,XDSF87-YPE71M4,XDSF87-YPE80M4,XDSF87-YPE90M4,XDSF87-YS100M4,XDSF87-YS112M4,XDSF87-YS132M4,XDSF87-YS160M4,XDSF87-YS71M4,XDSF87-YS80M4,XDSF87-YS90M4,XDSF87-YVB100M4,XDSF87-YVB112M4,XDSF87-YVB132M4,XDSF87-YVB160M4,XDSF87-YVB71M4,XDSF87-YVB80M4,XDSF87-YVB90M4,XDSF87-YVP100M4,XDSF87-YVP112M4,XDSF87-YVP132M4,XDSF87-YVP160M4,XDSF87-YVP71M4,XDSF87-YVP80M4,XDSF87-YVP90M4,XDSF87-YVPEJ100M4,XDSF87-YVPEJ112M4,XDSF87-YVPEJ132M4,XDSF87-YVPEJ160M4,XDSF87-YVPEJ71M4,XDSF87-YVPEJ80M4,XDSF87-YVPEJ90M4,JCSF87-Y0.55KW,JCSF87-Y0.75KW,JCSF87-Y1.1KW,JCSF87-Y1.5KW,JCSF87-Y100M4,JCSF87-Y112M4,JCSF87-Y11KW,JCSF87-Y132M4,JCSF87-Y15KW,JCSF87-Y160M4,JCSF87-Y2.2KW,JCSF87-Y3KW,JCSF87-Y4KW,JCSF87-Y5.5KW,JCSF87-Y7.5KW,JCSF87-Y71M4,JCSF87-Y80M4,JCSF87-Y90M4,JCSF87-YB100M4,JCSF87-YB112M4,JCSF87-YB132M4,JCSF87-YB160M4,JCSF87-YB71M4,JCSF87-YB80M4,JCSF87-YB90M4,JCSF87-YDP100M4,JCSF87-YDP112M4,JCSF87-YDP132M4,JCSF87-YDP160M4,JCSF87-YDP71M4,JCSF87-YDP80M4,JCSF87-YDP90M4,JCSF87-YE100M4,JCSF87-YE112M4,JCSF87-YE132M4,JCSF87-YE160M4,JCSF87-YE71M4,JCSF87-YE80M4,JCSF87-YE90M4,JCSF87-YEJ100M4,JCSF87-YEJ112M4,JCSF87-YEJ132M4,JCSF87-YEJ160M4,JCSF87-YEJ71M4,JCSF87-YEJ80M4,JCSF87-YEJ90M4,JCSF87-YEJB100M4,JCSF87-YEJB112M4,JCSF87-YEJB132M4,JCSF87-YEJB160M4,JCSF87-YEJB71M4,JCSF87-YEJB80M4,JCSF87-YEJB90M4,JCSF87-YP100M4,JCSF87-YP112M4,JCSF87-YP132M4,JCSF87-YP160M4,JCSF87-YP71M4,JCSF87-YP80M4,JCSF87-YP90M4,JCSF87-YPB100M4,JCSF87-YPB112M4,JCSF87-YPB132M4,JCSF87-YPB160M4,JCSF87-YPB71M4,JCSF87-YPB80M4,JCSF87-YPB90M4,JCSF87-YPE100M4,JCSF87-YPE112M4,JCSF87-YPE132M4,JCSF87-YPE160M4,JCSF87-YPE71M4,JCSF87-YPE80M4,JCSF87-YPE90M4,JCSF87-YS100M4,JCSF87-YS112M4,JCSF87-YS132M4,JCSF87-YS160M4,JCSF87-YS71M4,JCSF87-YS80M4,JCSF87-YS90M4,JCSF87-YVB100M4,JCSF87-YVB112M4,JCSF87-YVB132M4,JCSF87-YVB160M4,JCSF87-YVB71M4,JCSF87-YVB80M4,JCSF87-YVB90M4,JCSF87-YVP100M4,JCSF87-YVP112M4,JCSF87-YVP132M4,JCSF87-YVP160M4,JCSF87-YVP71M4,JCSF87-YVP80M4,JCSF87-YVP90M4,JCSF87-YVPEJ100M4,JCSF87-YVPEJ112M4,JCSF87-YVPEJ132M4,JCSF87-YVPEJ160M4,JCSF87-YVPEJ71M4,JCSF87-YVPEJ80M4,JCSF87-YVPEJ90M4,YQSF87-Y0.55KW,YQSF87-Y0.75KW,YQSF87-Y1.1KW,YQSF87-Y1.5KW,YQSF87-Y100M4,YQSF87-Y112M4,YQSF87-Y11KW,YQSF87-Y132M4,YQSF87-Y15KW,YQSF87-Y160M4,YQSF87-Y2.2KW,YQSF87-Y3KW,YQSF87-Y4KW,YQSF87-Y5.5KW,YQSF87-Y7.5KW,YQSF87-Y71M4,YQSF87-Y80M4,YQSF87-Y90M4,YQSF87-YB100M4,YQSF87-YB112M4,YQSF87-YB132M4,YQSF87-YB160M4,YQSF87-YB71M4,YQSF87-YB80M4,YQSF87-YB90M4,YQSF87-YDP100M4,YQSF87-YDP112M4,YQSF87-YDP132M4,YQSF87-YDP160M4,YQSF87-YDP71M4,YQSF87-YDP80M4,YQSF87-YDP90M4,YQSF87-YE100M4,YQSF87-YE112M4,YQSF87-YE132M4,YQSF87-YE160M4,YQSF87-YE71M4,YQSF87-YE80M4,YQSF87-YE90M4,YQSF87-YEJ100M4,YQSF87-YEJ112M4,YQSF87-YEJ132M4,YQSF87-YEJ160M4,YQSF87-YEJ71M4,YQSF87-YEJ80M4,YQSF87-YEJ90M4,YQSF87-YEJB100M4,YQSF87-YEJB112M4,YQSF87-YEJB132M4,YQSF87-YEJB160M4,YQSF87-YEJB71M4,YQSF87-YEJB80M4,YQSF87-YEJB90M4,YQSF87-YP100M4,YQSF87-YP112M4,YQSF87-YP132M4,YQSF87-YP160M4,YQSF87-YP71M4,YQSF87-YP80M4,YQSF87-YP90M4,YQSF87-YPB100M4,YQSF87-YPB112M4,YQSF87-YPB132M4,YQSF87-YPB160M4,YQSF87-YPB71M4,YQSF87-YPB80M4,YQSF87-YPB90M4,YQSF87-YPE100M4,YQSF87-YPE112M4,YQSF87-YPE132M4,YQSF87-YPE160M4,YQSF87-YPE71M4,YQSF87-YPE80M4,YQSF87-YPE90M4,YQSF87-YS100M4,YQSF87-YS112M4,YQSF87-YS132M4,YQSF87-YS160M4,YQSF87-YS71M4,YQSF87-YS80M4,YQSF87-YS90M4,YQSF87-YVB100M4,YQSF87-YVB112M4,YQSF87-YVB132M4,YQSF87-YVB160M4,YQSF87-YVB71M4,YQSF87-YVB80M4,YQSF87-YVB90M4,YQSF87-YVP100M4,YQSF87-YVP112M4,YQSF87-YVP132M4,YQSF87-YVP160M4,YQSF87-YVP71M4,YQSF87-YVP80M4,YQSF87-YVP90M4,YQSF87-YVPEJ100M4,YQSF87-YVPEJ112M4,YQSF87-YVPEJ132M4,YQSF87-YVPEJ160M4,YQSF87-YVPEJ71M4,YQSF87-YVPEJ80M4,YQSF87-YVPEJ90M4,SWF87-Y0.55KW,SWF87-Y0.75KW,SWF87-Y1.1KW,SWF87-Y1.5KW,SWF87-Y100M4,SWF87-Y112M4,SWF87-Y11KW,SWF87-Y132M4,SWF87-Y15KW,SWF87-Y160M4,SWF87-Y2.2KW,SWF87-Y3KW,SWF87-Y4KW,SWF87-Y5.5KW,SWF87-Y7.5KW,SWF87-Y71M4,SWF87-Y80M4,SWF87-Y90M4,SWF87-YB100M4,SWF87-YB112M4,SWF87-YB132M4,SWF87-YB160M4,SWF87-YB71M4,SWF87-YB80M4,SWF87-YB90M4,SWF87-YDP100M4,SWF87-YDP112M4,SWF87-YDP132M4,SWF87-YDP160M4,SWF87-YDP71M4,SWF87-YDP80M4,SWF87-YDP90M4,SWF87-YE100M4,SWF87-YE112M4,SWF87-YE132M4,SWF87-YE160M4,SWF87-YE71M4,SWF87-YE80M4,SWF87-YE90M4,SWF87-YEJ100M4,SWF87-YEJ112M4,SWF87-YEJ132M4,SWF87-YEJ160M4,SWF87-YEJ71M4,SWF87-YEJ80M4,SWF87-YEJ90M4,SWF87-YEJB100M4,SWF87-YEJB112M4,SWF87-YEJB132M4,SWF87-YEJB160M4,SWF87-YEJB71M4,SWF87-YEJB80M4,SWF87-YEJB90M4,SWF87-YP100M4,SWF87-YP112M4,SWF87-YP132M4,SWF87-YP160M4,SWF87-YP71M4,SWF87-YP80M4,SWF87-YP90M4,SWF87-YPB100M4,SWF87-YPB112M4,SWF87-YPB132M4,SWF87-YPB160M4,SWF87-YPB71M4,SWF87-YPB80M4,SWF87-YPB90M4,SWF87-YPE100M4,SWF87-YPE112M4,SWF87-YPE132M4,SWF87-YPE160M4,SWF87-YPE71M4,SWF87-YPE80M4,SWF87-YPE90M4,SWF87-YS100M4,SWF87-YS112M4,SWF87-YS132M4,SWF87-YS160M4,SWF87-YS71M4,SWF87-YS80M4,SWF87-YS90M4,SWF87-YVB100M4,SWF87-YVB112M4,SWF87-YVB132M4,SWF87-YVB160M4,SWF87-YVB71M4,SWF87-YVB80M4,SWF87-YVB90M4,SWF87-YVP100M4,SWF87-YVP112M4,SWF87-YVP132M4,SWF87-YVP160M4,SWF87-YVP71M4,SWF87-YVP80M4,SWF87-YVP90M4,SWF87-YVPEJ100M4,SWF87-YVPEJ112M4,SWF87-YVPEJ132M4,SWF87-YVPEJ160M4,SWF87-YVPEJ71M4,SWF87-YVPEJ80M4,SWF87-YVPEJ90M4,SF89-Y0.55KW,SF89-Y0.75KW,SF89-Y1.1KW,SF89-Y1.5KW,SF89-Y100M4,SF89-Y112M4,SF89-Y11KW,SF89-Y132M4,SF89-Y15KW,SF89-Y160M4,SF89-Y2.2KW,SF89-Y3KW,SF89-Y4KW,SF89-Y5.5KW,SF89-Y7.5KW,SF89-Y71M4,SF89-Y80M4,SF89-Y90M4,SF89-YB100M4,SF89-YB112M4,SF89-YB132M4,SF89-YB160M4,SF89-YB71M4,SF89-YB80M4,SF89-YB90M4,SF89-YDP100M4,SF89-YDP112M4,SF89-YDP132M4,SF89-YDP160M4,SF89-YDP71M4,SF89-YDP80M4,SF89-YDP90M4,SF89-YE100M4,SF89-YE112M4,SF89-YE132M4,SF89-YE160M4,SF89-YE71M4,SF89-YE80M4,SF89-YE90M4,SF89-YEJ100M4,SF89-YEJ112M4,SF89-YEJ132M4,SF89-YEJ160M4,SF89-YEJ71M4,SF89-YEJ80M4,SF89-YEJ90M4,SF89-YEJB100M4,SF89-YEJB112M4,SF89-YEJB132M4,SF89-YEJB160M4,SF89-YEJB71M4,SF89-YEJB80M4,SF89-YEJB90M4,SF89-YP100M4,SF89-YP112M4,SF89-YP132M4,SF89-YP160M4,SF89-YP71M4,SF89-YP80M4,SF89-YP90M4,SF89-YPB100M4,SF89-YPB112M4,SF89-YPB132M4,SF89-YPB160M4,SF89-YPB71M4,SF89-YPB80M4,SF89-YPB90M4,SF89-YPE100M4,SF89-YPE112M4,SF89-YPE132M4,SF89-YPE160M4,SF89-YPE71M4,SF89-YPE80M4,SF89-YPE90M4,SF89-YS100M4,SF89-YS112M4,SF89-YS132M4,SF89-YS160M4,SF89-YS71M4,SF89-YS80M4,SF89-YS90M4,SF89-YVB100M4,SF89-YVB112M4,SF89-YVB132M4,SF89-YVB160M4,SF89-YVB71M4,SF89-YVB80M4,SF89-YVB90M4,SF89-YVP100M4,SF89-YVP112M4,SF89-YVP132M4,SF89-YVP160M4,SF89-YVP71M4,SF89-YVP80M4,SF89-YVP90M4,SF89-YVPEJ100M4,SF89-YVPEJ112M4,SF89-YVPEJ132M4,SF89-YVPEJ160M4,SF89-YVPEJ71M4,SF89-YVPEJ80M4,SF89-YVPEJ90M4。

SF89減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-sfxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S89減速機

關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器

SF系列減速機型號:SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機

SF系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SAF89減速機 SAF87減速機結構圖 SAF87減速機數模 SAF87減速機樣本 SAF87減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SF89減速機數模 點擊下載
SF89減速機樣本 點擊下載
