網站首頁 > BOSERL減速機 > 斜齒輪蝸輪蝸桿減速機 > SA系列齒輪減速電機

SA39減速機詳細信息

prevnext

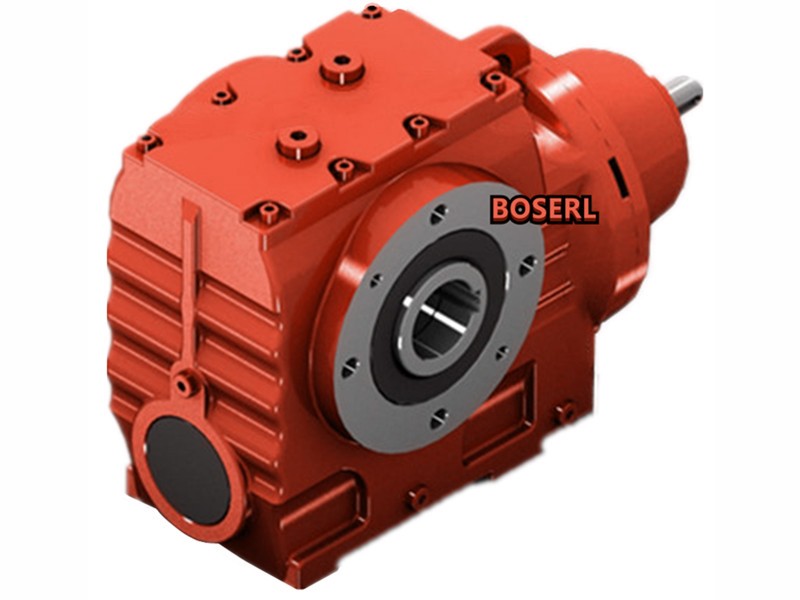

SA39減速機

訂購熱線:13360667204
  1. 詳細信息

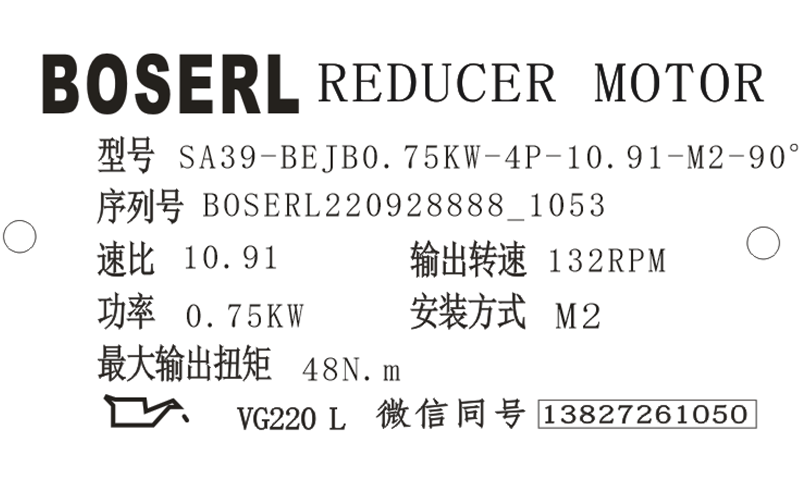

SA39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA39減速機選型樣本。

SA39-BEJB0.75KW-4P-10.91-M2-90°

SA:系列代號

39:減速機規格代號

BEJB:電機

0.75KW:電機功率

4P:電機級數

10.91:減速機傳動比

M2:減速機安裝位置

90°:接線盒位置


SA39減速機扭力臂安裝:

裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA39減速機的扭力臂安裝示意圖:兩面均安裝支架。齒輪減速電機


減速機型號

螺栓

擰緊扭矩

SA39減速機

4xM6x16-8.8

11Nm

SA49減速機

4xM8x20-8.8

25Nm

SA59減速機

6xM8x20-8.8

25Nm

SA69減速機

8xM12x25-8.8

86Nm

SA79減速機

8xM12x35-8.8

86Nm

SA89減速機

8xM16x35-8.8

210Nm

SA99減速機

8xM16x35-8.8

210Nm

SA39減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA39減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。自鎖減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。伺服電機連接減速機


SA39減速機型號:

WSA37-Y0.12KW,WSA37-Y0.18KW,WSA37-Y0.25KW,WSA37-Y0.37KW,WSA37-Y0.55KW,WSA37-Y0.75KW,WSA37-Y1.1KW,WSA37-Y1.5KW,WSA37-Y63M4,WSA37-Y71M4,WSA37-Y80M4,WSA37-Y90M4,WSA37-YB63M4,WSA37-YB71M4,WSA37-YB80M4,WSA37-YB90M4,WSA37-YDP63M4,WSA37-YDP71M4,WSA37-YDP80M4,WSA37-YDP90M4,WSA37-YE63M4,WSA37-YE71M4,WSA37-YE80M4,WSA37-YE90M4,WSA37-YEJ63M4,WSA37-YEJ71M4,WSA37-YEJ80M4,WSA37-YEJ90M4,WSA37-YEJB63M4,WSA37-YEJB71M4,WSA37-YEJB80M4,WSA37-YEJB90M4,WSA37-YP63M4,WSA37-YP71M4,WSA37-YP80M4,WSA37-YP90M4,WSA37-YPB63M4,WSA37-YPB71M4,WSA37-YPB80M4,WSA37-YPB90M4,WSA37-YPE63M4,WSA37-YPE71M4,WSA37-YPE80M4,WSA37-YPE90M4,WSA37-YS63M4,WSA37-YS71M4,WSA37-YS80M4,WSA37-YS90M4,WSA37-YVB63M4,WSA37-YVB71M4,WSA37-YVB80M4,WSA37-YVB90M4,WSA37-YVP63M4,WSA37-YVP71M4,WSA37-YVP80M4,WSA37-YVP90M4,WSA37-YVPEJ63M4,WSA37-YVPEJ71M4,WSA37-YVPEJ80M4,WSA37-YVPEJ90M4,NSA37-Y0.12KW,NSA37-Y0.18KW,NSA37-Y0.25KW,NSA37-Y0.37KW,NSA37-Y0.55KW,NSA37-Y0.75KW,NSA37-Y1.1KW,NSA37-Y1.5KW,NSA37-Y63M4,NSA37-Y71M4,NSA37-Y80M4,NSA37-Y90M4,NSA37-YB63M4,NSA37-YB71M4,NSA37-YB80M4,NSA37-YB90M4,NSA37-YDP63M4,NSA37-YDP71M4,NSA37-YDP80M4,NSA37-YDP90M4,NSA37-YE63M4,NSA37-YE71M4,NSA37-YE80M4,NSA37-YE90M4,NSA37-YEJ63M4,NSA37-YEJ71M4,NSA37-YEJ80M4,NSA37-YEJ90M4,NSA37-YEJB63M4,NSA37-YEJB71M4,NSA37-YEJB80M4,NSA37-YEJB90M4,NSA37-YP63M4,NSA37-YP71M4,NSA37-YP80M4,NSA37-YP90M4,NSA37-YPB63M4,NSA37-YPB71M4,NSA37-YPB80M4,NSA37-YPB90M4,NSA37-YPE63M4,NSA37-YPE71M4,NSA37-YPE80M4,NSA37-YPE90M4,NSA37-YS63M4,NSA37-YS71M4,NSA37-YS80M4,NSA37-YS90M4,NSA37-YVB63M4,NSA37-YVB71M4,NSA37-YVB80M4,NSA37-YVB90M4,NSA37-YVP63M4,NSA37-YVP71M4,NSA37-YVP80M4,NSA37-YVP90M4,NSA37-YVPEJ63M4,NSA37-YVPEJ71M4,NSA37-YVPEJ80M4,NSA37-YVPEJ90M4,ASA37-Y0.12KW,ASA37-Y0.18KW,ASA37-Y0.25KW,ASA37-Y0.37KW,ASA37-Y0.55KW,ASA37-Y0.75KW,ASA37-Y1.1KW,ASA37-Y1.5KW,ASA37-Y63M4,ASA37-Y71M4,ASA37-Y80M4,ASA37-Y90M4,ASA37-YB63M4,ASA37-YB71M4,ASA37-YB80M4,ASA37-YB90M4,ASA37-YDP63M4,ASA37-YDP71M4,ASA37-YDP80M4,ASA37-YDP90M4,ASA37-YE63M4,ASA37-YE71M4,ASA37-YE80M4,ASA37-YE90M4,ASA37-YEJ63M4,ASA37-YEJ71M4,ASA37-YEJ80M4,ASA37-YEJ90M4,ASA37-YEJB63M4,ASA37-YEJB71M4,ASA37-YEJB80M4,ASA37-YEJB90M4,ASA37-YP63M4,ASA37-YP71M4,ASA37-YP80M4,ASA37-YP90M4,ASA37-YPB63M4,ASA37-YPB71M4,ASA37-YPB80M4,ASA37-YPB90M4,ASA37-YPE63M4,ASA37-YPE71M4,ASA37-YPE80M4,ASA37-YPE90M4,ASA37-YS63M4,ASA37-YS71M4,ASA37-YS80M4,ASA37-YS90M4,ASA37-YVB63M4,ASA37-YVB71M4,ASA37-YVB80M4,ASA37-YVB90M4,ASA37-YVP63M4,ASA37-YVP71M4,ASA37-YVP80M4,ASA37-YVP90M4,ASA37-YVPEJ63M4,ASA37-YVPEJ71M4,ASA37-YVPEJ80M4,ASA37-YVPEJ90M4,SSA37-Y0.12KW,SSA37-Y0.18KW,SSA37-Y0.25KW,SSA37-Y0.37KW,SSA37-Y0.55KW,SSA37-Y0.75KW,SSA37-Y1.1KW,SSA37-Y1.5KW,SSA37-Y63M4,SSA37-Y71M4,SSA37-Y80M4,SSA37-Y90M4,SSA37-YB63M4,SSA37-YB71M4,SSA37-YB80M4,SSA37-YB90M4,SSA37-YDP63M4,SSA37-YDP71M4,SSA37-YDP80M4,SSA37-YDP90M4,SSA37-YE63M4,SSA37-YE71M4,SSA37-YE80M4,SSA37-YE90M4,SSA37-YEJ63M4,SSA37-YEJ71M4,SSA37-YEJ80M4,SSA37-YEJ90M4,SSA37-YEJB63M4,SSA37-YEJB71M4,SSA37-YEJB80M4,SSA37-YEJB90M4,SSA37-YP63M4,SSA37-YP71M4,SSA37-YP80M4,SSA37-YP90M4,SSA37-YPB63M4,SSA37-YPB71M4,SSA37-YPB80M4,SSA37-YPB90M4,SSA37-YPE63M4,SSA37-YPE71M4,SSA37-YPE80M4,SSA37-YPE90M4,SSA37-YS63M4,SSA37-YS71M4,SSA37-YS80M4,SSA37-YS90M4,SSA37-YVB63M4,SSA37-YVB71M4,SSA37-YVB80M4,SSA37-YVB90M4,SSA37-YVP63M4,SSA37-YVP71M4,SSA37-YVP80M4,SSA37-YVP90M4,SSA37-YVPEJ63M4,SSA37-YVPEJ71M4,SSA37-YVPEJ80M4,SSA37-YVPEJ90M4,GSA39-Y0.12KW,GSA39-Y0.18KW,GSA39-Y0.25KW,GSA39-Y0.37KW,GSA39-Y0.55KW,GSA39-Y0.75KW,GSA39-Y1.1KW,GSA39-Y1.5KW,GSA39-Y63M4,GSA39-Y71M4,GSA39-Y80M4,GSA39-Y90M4,GSA39-YB63M4,GSA39-YB71M4,GSA39-YB80M4,GSA39-YB90M4,GSA39-YDP63M4,GSA39-YDP71M4,GSA39-YDP80M4,GSA39-YDP90M4,GSA39-YE63M4,GSA39-YE71M4,GSA39-YE80M4,GSA39-YE90M4,GSA39-YEJ63M4,GSA39-YEJ71M4,GSA39-YEJ80M4,GSA39-YEJ90M4,GSA39-YEJB63M4,GSA39-YEJB71M4,GSA39-YEJB80M4,GSA39-YEJB90M4,GSA39-YP63M4,GSA39-YP71M4,GSA39-YP80M4,GSA39-YP90M4,GSA39-YPB63M4,GSA39-YPB71M4,GSA39-YPB80M4,GSA39-YPB90M4,GSA39-YPE63M4,GSA39-YPE71M4,GSA39-YPE80M4,GSA39-YPE90M4,GSA39-YS63M4,GSA39-YS71M4,GSA39-YS80M4,GSA39-YS90M4,GSA39-YVB63M4,GSA39-YVB71M4,GSA39-YVB80M4,GSA39-YVB90M4,GSA39-YVP63M4,GSA39-YVP71M4,GSA39-YVP80M4,GSA39-YVP90M4,GSA39-YVPEJ63M4,GSA39-YVPEJ71M4,GSA39-YVPEJ80M4,GSA39-YVPEJ90M4。

SA39減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S39減速機

關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器

SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機

SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SA39減速機 SA37減速機結構圖 SA37減速機數模 SA37減速機樣本 SA37減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SA39減速機數模 點擊下載
SA39減速機樣本 點擊下載
