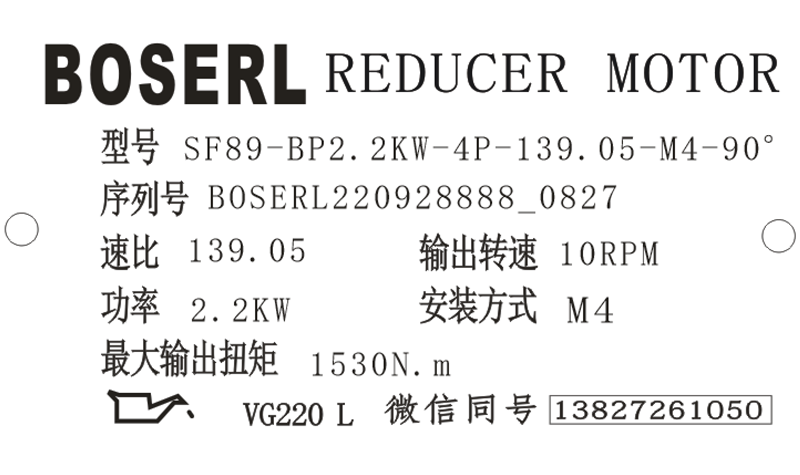

SF89減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF89減速器選型樣本。
SF89-BP2.2KW-4P-139.05-M4-90°
SF:系列代號
89:減速機規格代號
BP:電機
2.2KW:電機功率
4P:電機級數
139.05:減速機傳動比
M4:減速機安裝位置
90°:接線盒位置
SF89減速器透氣閥開啟操作教程:
安裝時檢查透氣閥是否開啟,若透氣閥未開啟,則必須在啟動SF89減速器前拆下透氣閥的運輸保險!齒輪減速電機
第一步帶運輸橡膠圈的透氣閥;
第二步拆下運輸橡膠圈;
第三步已經開啟的透氣閥。
SF89減速器安裝操作的正確方法:
SF89減速器實心軸輸出與輸出部件的裝配:不當裝配可能對軸承、箱體或軸造成損傷,可能造成財產損失!只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配;嚴禁用錘擊方式將皮帶輪、聯軸器,小齒輪等裝入軸端部;安裝皮帶輪時皮帶的正確張力要根據制造商的規定;裝配的傳動件應當進行動平衡,并且不允許出現超出許可的徑向力或者軸向力(許可值參見“本頁面附件下載中的SF89減速器選型樣本”)。自鎖減速機
SF89減速器潮濕或露天場地的安裝:若要在潮濕場地或露天情況下使用驅動設備,則設備要做防腐設計,供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落(如透氣閥或吊耳出),進行修補。將電機安裝到聯軸器AM、AD時,法蘭表面要采用合適的密封膠,例如Loctitlre518進行密封。
SF89減速器的透氣:安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟;例外情況:對于下列SF89減速器,BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下,采用傳動式安裝位置,傾斜位置安裝的SF89減速器,啟動SF89減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機蝸輪蝸桿減速機
SF89減速器噴漆:噴漆或補漆時可能對透氣閥和油封造成損傷,要求噴漆前對透氣閥和油封的密封唇進行細致封堵;噴漆后撕去封堵粘條。
SF89減速器型號:
NSF87-Y0.55KW,NSF87-Y0.75KW,NSF87-Y1.1KW,NSF87-Y1.5KW,NSF87-Y100M4,NSF87-Y112M4,NSF87-Y11KW,NSF87-Y132M4,NSF87-Y15KW,NSF87-Y160M4,NSF87-Y2.2KW,NSF87-Y3KW,NSF87-Y4KW,NSF87-Y5.5KW,NSF87-Y7.5KW,NSF87-Y71M4,NSF87-Y80M4,NSF87-Y90M4,NSF87-YB100M4,NSF87-YB112M4,NSF87-YB132M4,NSF87-YB160M4,NSF87-YB71M4,NSF87-YB80M4,NSF87-YB90M4,NSF87-YDP100M4,NSF87-YDP112M4,NSF87-YDP132M4,NSF87-YDP160M4,NSF87-YDP71M4,NSF87-YDP80M4,NSF87-YDP90M4,NSF87-YE100M4,NSF87-YE112M4,NSF87-YE132M4,NSF87-YE160M4,NSF87-YE71M4,NSF87-YE80M4,NSF87-YE90M4,NSF87-YEJ100M4,NSF87-YEJ112M4,NSF87-YEJ132M4,NSF87-YEJ160M4,NSF87-YEJ71M4,NSF87-YEJ80M4,NSF87-YEJ90M4,NSF87-YEJB100M4,NSF87-YEJB112M4,NSF87-YEJB132M4,NSF87-YEJB160M4,NSF87-YEJB71M4,NSF87-YEJB80M4,NSF87-YEJB90M4,NSF87-YP100M4,NSF87-YP112M4,NSF87-YP132M4,NSF87-YP160M4,NSF87-YP71M4,NSF87-YP80M4,NSF87-YP90M4,NSF87-YPB100M4,NSF87-YPB112M4,NSF87-YPB132M4,NSF87-YPB160M4,NSF87-YPB71M4,NSF87-YPB80M4,NSF87-YPB90M4,NSF87-YPE100M4,NSF87-YPE112M4,NSF87-YPE132M4,NSF87-YPE160M4,NSF87-YPE71M4,NSF87-YPE80M4,NSF87-YPE90M4,NSF87-YS100M4,NSF87-YS112M4,NSF87-YS132M4,NSF87-YS160M4,NSF87-YS71M4,NSF87-YS80M4,NSF87-YS90M4,NSF87-YVB100M4,NSF87-YVB112M4,NSF87-YVB132M4,NSF87-YVB160M4,NSF87-YVB71M4,NSF87-YVB80M4,NSF87-YVB90M4,NSF87-YVP100M4,NSF87-YVP112M4,NSF87-YVP132M4,NSF87-YVP160M4,NSF87-YVP71M4,NSF87-YVP80M4,NSF87-YVP90M4,NSF87-YVPEJ100M4,NSF87-YVPEJ112M4,NSF87-YVPEJ132M4,NSF87-YVPEJ160M4,NSF87-YVPEJ71M4,NSF87-YVPEJ80M4,NSF87-YVPEJ90M4,WSF87-Y0.55KW,WSF87-Y0.75KW,WSF87-Y1.1KW,WSF87-Y1.5KW,WSF87-Y100M4,WSF87-Y112M4,WSF87-Y11KW,WSF87-Y132M4,WSF87-Y15KW,WSF87-Y160M4,WSF87-Y2.2KW,WSF87-Y3KW,WSF87-Y4KW,WSF87-Y5.5KW,WSF87-Y7.5KW,WSF87-Y71M4,WSF87-Y80M4,WSF87-Y90M4,WSF87-YB100M4,WSF87-YB112M4,WSF87-YB132M4,WSF87-YB160M4,WSF87-YB71M4,WSF87-YB80M4,WSF87-YB90M4,WSF87-YDP100M4,WSF87-YDP112M4,WSF87-YDP132M4,WSF87-YDP160M4,WSF87-YDP71M4,WSF87-YDP80M4,WSF87-YDP90M4,WSF87-YE100M4,WSF87-YE112M4,WSF87-YE132M4,WSF87-YE160M4,WSF87-YE71M4,WSF87-YE80M4,WSF87-YE90M4,WSF87-YEJ100M4,WSF87-YEJ112M4,WSF87-YEJ132M4,WSF87-YEJ160M4,WSF87-YEJ71M4,WSF87-YEJ80M4,WSF87-YEJ90M4,WSF87-YEJB100M4,WSF87-YEJB112M4,WSF87-YEJB132M4,WSF87-YEJB160M4,WSF87-YEJB71M4,WSF87-YEJB80M4,WSF87-YEJB90M4,WSF87-YP100M4,WSF87-YP112M4,WSF87-YP132M4,WSF87-YP160M4,WSF87-YP71M4,WSF87-YP80M4,WSF87-YP90M4,WSF87-YPB100M4,WSF87-YPB112M4,WSF87-YPB132M4,WSF87-YPB160M4,WSF87-YPB71M4,WSF87-YPB80M4,WSF87-YPB90M4,WSF87-YPE100M4,WSF87-YPE112M4,WSF87-YPE132M4,WSF87-YPE160M4,WSF87-YPE71M4,WSF87-YPE80M4,WSF87-YPE90M4,WSF87-YS100M4,WSF87-YS112M4,WSF87-YS132M4,WSF87-YS160M4,WSF87-YS71M4,WSF87-YS80M4,WSF87-YS90M4,WSF87-YVB100M4,WSF87-YVB112M4,WSF87-YVB132M4,WSF87-YVB160M4,WSF87-YVB71M4,WSF87-YVB80M4,WSF87-YVB90M4,WSF87-YVP100M4,WSF87-YVP112M4,WSF87-YVP132M4,WSF87-YVP160M4,WSF87-YVP71M4,WSF87-YVP80M4,WSF87-YVP90M4,WSF87-YVPEJ100M4,WSF87-YVPEJ112M4,WSF87-YVPEJ132M4,WSF87-YVPEJ160M4,WSF87-YVPEJ71M4,WSF87-YVPEJ80M4,WSF87-YVPEJ90M4,ASF87-Y0.55KW,ASF87-Y0.75KW,ASF87-Y1.1KW,ASF87-Y1.5KW,ASF87-Y100M4,ASF87-Y112M4,ASF87-Y11KW,ASF87-Y132M4,ASF87-Y15KW,ASF87-Y160M4,ASF87-Y2.2KW,ASF87-Y3KW,ASF87-Y4KW,ASF87-Y5.5KW,ASF87-Y7.5KW,ASF87-Y71M4,ASF87-Y80M4,ASF87-Y90M4,ASF87-YB100M4,ASF87-YB112M4,ASF87-YB132M4,ASF87-YB160M4,ASF87-YB71M4,ASF87-YB80M4,ASF87-YB90M4,ASF87-YDP100M4,ASF87-YDP112M4,ASF87-YDP132M4,ASF87-YDP160M4,ASF87-YDP71M4,ASF87-YDP80M4,ASF87-YDP90M4,ASF87-YE100M4,ASF87-YE112M4,ASF87-YE132M4,ASF87-YE160M4,ASF87-YE71M4,ASF87-YE80M4,ASF87-YE90M4,ASF87-YEJ100M4,ASF87-YEJ112M4,ASF87-YEJ132M4,ASF87-YEJ160M4,ASF87-YEJ71M4,ASF87-YEJ80M4,ASF87-YEJ90M4,ASF87-YEJB100M4,ASF87-YEJB112M4,ASF87-YEJB132M4,ASF87-YEJB160M4,ASF87-YEJB71M4,ASF87-YEJB80M4,ASF87-YEJB90M4,ASF87-YP100M4,ASF87-YP112M4,ASF87-YP132M4,ASF87-YP160M4,ASF87-YP71M4,ASF87-YP80M4,ASF87-YP90M4,ASF87-YPB100M4,ASF87-YPB112M4,ASF87-YPB132M4,ASF87-YPB160M4,ASF87-YPB71M4,ASF87-YPB80M4,ASF87-YPB90M4,ASF87-YPE100M4,ASF87-YPE112M4,ASF87-YPE132M4,ASF87-YPE160M4,ASF87-YPE71M4,ASF87-YPE80M4,ASF87-YPE90M4,ASF87-YS100M4,ASF87-YS112M4,ASF87-YS132M4,ASF87-YS160M4,ASF87-YS71M4,ASF87-YS80M4,ASF87-YS90M4,ASF87-YVB100M4,ASF87-YVB112M4,ASF87-YVB132M4,ASF87-YVB160M4,ASF87-YVB71M4,ASF87-YVB80M4,ASF87-YVB90M4,ASF87-YVP100M4,ASF87-YVP112M4,ASF87-YVP132M4,ASF87-YVP160M4,ASF87-YVP71M4,ASF87-YVP80M4,ASF87-YVP90M4,ASF87-YVPEJ100M4,ASF87-YVPEJ112M4,ASF87-YVPEJ132M4,ASF87-YVPEJ160M4,ASF87-YVPEJ71M4,ASF87-YVPEJ80M4,ASF87-YVPEJ90M4,SSF87-Y0.55KW,SSF87-Y0.75KW,SSF87-Y1.1KW,SSF87-Y1.5KW,SSF87-Y100M4,SSF87-Y112M4,SSF87-Y11KW,SSF87-Y132M4,SSF87-Y15KW,SSF87-Y160M4,SSF87-Y2.2KW,SSF87-Y3KW,SSF87-Y4KW,SSF87-Y5.5KW,SSF87-Y7.5KW,SSF87-Y71M4,SSF87-Y80M4,SSF87-Y90M4,SSF87-YB100M4,SSF87-YB112M4,SSF87-YB132M4,SSF87-YB160M4,SSF87-YB71M4,SSF87-YB80M4,SSF87-YB90M4,SSF87-YDP100M4,SSF87-YDP112M4,SSF87-YDP132M4,SSF87-YDP160M4,SSF87-YDP71M4,SSF87-YDP80M4,SSF87-YDP90M4,SSF87-YE100M4,SSF87-YE112M4,SSF87-YE132M4,SSF87-YE160M4,SSF87-YE71M4,SSF87-YE80M4,SSF87-YE90M4,SSF87-YEJ100M4,SSF87-YEJ112M4,SSF87-YEJ132M4,SSF87-YEJ160M4,SSF87-YEJ71M4,SSF87-YEJ80M4,SSF87-YEJ90M4,SSF87-YEJB100M4,SSF87-YEJB112M4,SSF87-YEJB132M4,SSF87-YEJB160M4,SSF87-YEJB71M4,SSF87-YEJB80M4,SSF87-YEJB90M4,SSF87-YP100M4,SSF87-YP112M4,SSF87-YP132M4,SSF87-YP160M4,SSF87-YP71M4,SSF87-YP80M4,SSF87-YP90M4,SSF87-YPB100M4,SSF87-YPB112M4,SSF87-YPB132M4,SSF87-YPB160M4,SSF87-YPB71M4,SSF87-YPB80M4,SSF87-YPB90M4,SSF87-YPE100M4,SSF87-YPE112M4,SSF87-YPE132M4,SSF87-YPE160M4,SSF87-YPE71M4,SSF87-YPE80M4,SSF87-YPE90M4,SSF87-YS100M4,SSF87-YS112M4,SSF87-YS132M4,SSF87-YS160M4,SSF87-YS71M4,SSF87-YS80M4,SSF87-YS90M4,SSF87-YVB100M4,SSF87-YVB112M4,SSF87-YVB132M4,SSF87-YVB160M4,SSF87-YVB71M4,SSF87-YVB80M4,SSF87-YVB90M4,SSF87-YVP100M4,SSF87-YVP112M4,SSF87-YVP132M4,SSF87-YVP160M4,SSF87-YVP71M4,SSF87-YVP80M4,SSF87-YVP90M4,SSF87-YVPEJ100M4,SSF87-YVPEJ112M4,SSF87-YVPEJ132M4,SSF87-YVPEJ160M4,SSF87-YVPEJ71M4,SSF87-YVPEJ80M4,SSF87-YVPEJ90M4,GSF89-Y0.55KW,GSF89-Y0.75KW,GSF89-Y1.1KW,GSF89-Y1.5KW,GSF89-Y100M4,GSF89-Y112M4,GSF89-Y11KW,GSF89-Y132M4,GSF89-Y15KW,GSF89-Y160M4,GSF89-Y2.2KW,GSF89-Y3KW,GSF89-Y4KW,GSF89-Y5.5KW,GSF89-Y7.5KW,GSF89-Y71M4,GSF89-Y80M4,GSF89-Y90M4,GSF89-YB100M4,GSF89-YB112M4,GSF89-YB132M4,GSF89-YB160M4,GSF89-YB71M4,GSF89-YB80M4,GSF89-YB90M4,GSF89-YDP100M4,GSF89-YDP112M4,GSF89-YDP132M4,GSF89-YDP160M4,GSF89-YDP71M4,GSF89-YDP80M4,GSF89-YDP90M4,GSF89-YE100M4,GSF89-YE112M4,GSF89-YE132M4,GSF89-YE160M4,GSF89-YE71M4,GSF89-YE80M4,GSF89-YE90M4,GSF89-YEJ100M4,GSF89-YEJ112M4,GSF89-YEJ132M4,GSF89-YEJ160M4,GSF89-YEJ71M4,GSF89-YEJ80M4,GSF89-YEJ90M4,GSF89-YEJB100M4,GSF89-YEJB112M4,GSF89-YEJB132M4,GSF89-YEJB160M4,GSF89-YEJB71M4,GSF89-YEJB80M4,GSF89-YEJB90M4,GSF89-YP100M4,GSF89-YP112M4,GSF89-YP132M4,GSF89-YP160M4,GSF89-YP71M4,GSF89-YP80M4,GSF89-YP90M4,GSF89-YPB100M4,GSF89-YPB112M4,GSF89-YPB132M4,GSF89-YPB160M4,GSF89-YPB71M4,GSF89-YPB80M4,GSF89-YPB90M4,GSF89-YPE100M4,GSF89-YPE112M4,GSF89-YPE132M4,GSF89-YPE160M4,GSF89-YPE71M4,GSF89-YPE80M4,GSF89-YPE90M4,GSF89-YS100M4,GSF89-YS112M4,GSF89-YS132M4,GSF89-YS160M4,GSF89-YS71M4,GSF89-YS80M4,GSF89-YS90M4,GSF89-YVB100M4,GSF89-YVB112M4,GSF89-YVB132M4,GSF89-YVB160M4,GSF89-YVB71M4,GSF89-YVB80M4,GSF89-YVB90M4,GSF89-YVP100M4,GSF89-YVP112M4,GSF89-YVP132M4,GSF89-YVP160M4,GSF89-YVP71M4,GSF89-YVP80M4,GSF89-YVP90M4,GSF89-YVPEJ100M4,GSF89-YVPEJ112M4,GSF89-YVPEJ132M4,GSF89-YVPEJ160M4,GSF89-YVPEJ71M4,GSF89-YVPEJ80M4,GSF89-YVPEJ90M4,SF87SF80,SF87SF90,SF87SF100,SF87SF112,SF87SF115,SF87SF140,SF87SF160,SF87SF190。
SF89減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-sfxiliejiansuji-cn.html
推薦類似型號:S89減速機
關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器
SF系列減速機型號:SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機
SF系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
