網站首頁 > BOSERL減速機 > 斜齒輪蝸輪蝸桿減速機 > SF系列齒輪減速電機

SF69減速器詳細信息

prevnext

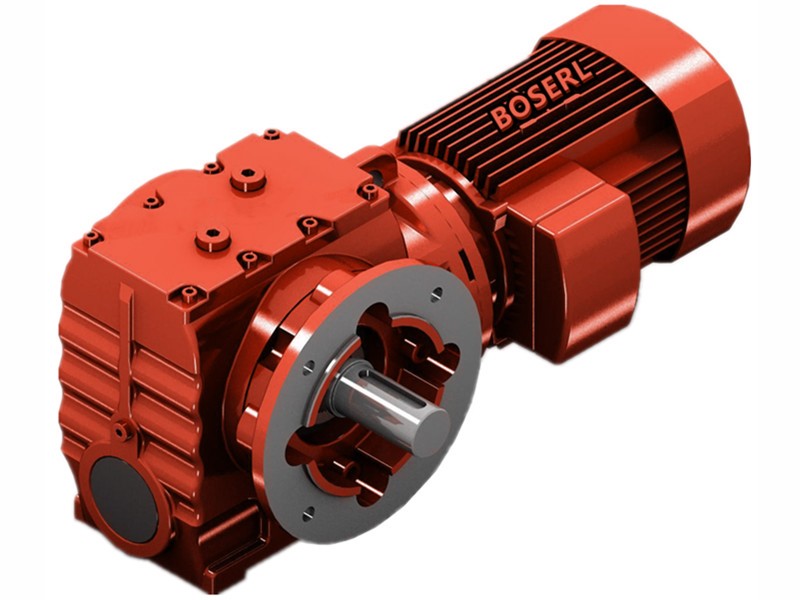

SF69減速器

訂購熱線:13360667204
  1. 詳細信息

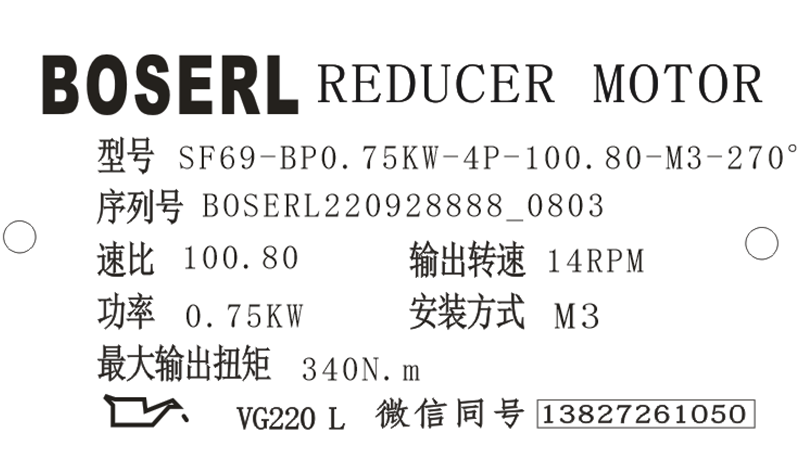

SF69減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF69減速器選型樣本。

SF69-BP0.75KW-4P-100.80-M3-270°

SF:系列代號

69:減速機規格代號

BP:電機

0.75KW:電機功率

4P:電機級數

100.80:減速機傳動比

M3:減速機安裝位置

270°:接線盒位置


SF69減速器透氣閥開啟操作教程:

安裝時檢查透氣閥是否開啟,若透氣閥未開啟,則必須在啟動SF69減速器前拆下透氣閥的運輸保險!齒輪減速電機

第一步帶運輸橡膠圈的透氣閥;

第二步拆下運輸橡膠圈;

第三步已經開啟的透氣閥。


SF69減速器安裝操作的正確方法:

SF69減速器實心軸輸出與輸出部件的裝配:不當裝配可能對軸承、箱體或軸造成損傷,可能造成財產損失!只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配;嚴禁用錘擊方式將皮帶輪、聯軸器,小齒輪等裝入軸端部;安裝皮帶輪時皮帶的正確張力要根據制造商的規定;裝配的傳動件應當進行動平衡,并且不允許出現超出許可的徑向力或者軸向力(許可值參見“本頁面附件下載中的SF69減速器選型樣本”)。自鎖減速機

SF69減速器潮濕或露天場地的安裝:若要在潮濕場地或露天情況下使用驅動設備,則設備要做防腐設計,供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落(如透氣閥或吊耳出),進行修補。將電機安裝到聯軸器AM、AD時,法蘭表面要采用合適的密封膠,例如Loctitlre518進行密封。

SF69減速器的透氣:安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟;例外情況:對于下列SF69減速器,BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下,采用傳動式安裝位置,傾斜位置安裝的SF69減速器,啟動SF69減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機蝸輪蝸桿減速機

SF69減速器噴漆:噴漆或補漆時可能對透氣閥和油封造成損傷,要求噴漆前對透氣閥和油封的密封唇進行細致封堵;噴漆后撕去封堵粘條。


SF69減速器型號:

NSF67-Y0.18KW,NSF67-Y0.25KW,NSF67-Y0.37KW,NSF67-Y0.55KW,NSF67-Y0.75KW,NSF67-Y1.1KW,NSF67-Y1.5KW,NSF67-Y100M4,NSF67-Y112M4,NSF67-Y132M4,NSF67-Y2.2KW,NSF67-Y3KW,NSF67-Y4KW,NSF67-Y5.5KW,NSF67-Y63M4,NSF67-Y71M4,NSF67-Y80M4,NSF67-Y90M4,NSF67-YB100M4,NSF67-YB112M4,NSF67-YB132M4,NSF67-YB63M4,NSF67-YB71M4,NSF67-YB80M4,NSF67-YB90M4,NSF67-YDP100M4,NSF67-YDP112M4,NSF67-YDP132M4,NSF67-YDP63M4,NSF67-YDP71M4,NSF67-YDP80M4,NSF67-YDP90M4,NSF67-YE100M4,NSF67-YE112M4,NSF67-YE132M4,NSF67-YE63M4,NSF67-YE71M4,NSF67-YE80M4,NSF67-YE90M4,NSF67-YEJ100M4,NSF67-YEJ112M4,NSF67-YEJ132M4,NSF67-YEJ63M4,NSF67-YEJ71M4,NSF67-YEJ80M4,NSF67-YEJ90M4,NSF67-YEJB100M4,NSF67-YEJB112M4,NSF67-YEJB132M4,NSF67-YEJB63M4,NSF67-YEJB71M4,NSF67-YEJB80M4,NSF67-YEJB90M4,NSF67-YP100M4,NSF67-YP112M4,NSF67-YP132M4,NSF67-YP63M4,NSF67-YP71M4,NSF67-YP80M4,NSF67-YP90M4,NSF67-YPB100M4,NSF67-YPB112M4,NSF67-YPB132M4,NSF67-YPB63M4,NSF67-YPB71M4,NSF67-YPB80M4,NSF67-YPB90M4,NSF67-YPE100M4,NSF67-YPE112M4,NSF67-YPE132M4,NSF67-YPE63M4,NSF67-YPE71M4,NSF67-YPE80M4,NSF67-YPE90M4,NSF67-YS100M4,NSF67-YS112M4,NSF67-YS132M4,NSF67-YS63M4,NSF67-YS71M4,NSF67-YS80M4,NSF67-YS90M4,NSF67-YVB100M4,NSF67-YVB112M4,NSF67-YVB132M4,NSF67-YVB63M4,NSF67-YVB71M4,NSF67-YVB80M4,NSF67-YVB90M4,NSF67-YVP100M4,NSF67-YVP112M4,NSF67-YVP132M4,NSF67-YVP63M4,NSF67-YVP71M4,NSF67-YVP80M4,NSF67-YVP90M4,NSF67-YVPEJ100M4,NSF67-YVPEJ112M4,NSF67-YVPEJ132M4,NSF67-YVPEJ63M4,NSF67-YVPEJ71M4,NSF67-YVPEJ80M4,NSF67-YVPEJ90M4,WSF67-Y0.18KW,WSF67-Y0.25KW,WSF67-Y0.37KW,WSF67-Y0.55KW,WSF67-Y0.75KW,WSF67-Y1.1KW,WSF67-Y1.5KW,WSF67-Y100M4,WSF67-Y112M4,WSF67-Y132M4,WSF67-Y2.2KW,WSF67-Y3KW,WSF67-Y4KW,WSF67-Y5.5KW,WSF67-Y63M4,WSF67-Y71M4,WSF67-Y80M4,WSF67-Y90M4,WSF67-YB100M4,WSF67-YB112M4,WSF67-YB132M4,WSF67-YB63M4,WSF67-YB71M4,WSF67-YB80M4,WSF67-YB90M4,WSF67-YDP100M4,WSF67-YDP112M4,WSF67-YDP132M4,WSF67-YDP63M4,WSF67-YDP71M4,WSF67-YDP80M4,WSF67-YDP90M4,WSF67-YE100M4,WSF67-YE112M4,WSF67-YE132M4,WSF67-YE63M4,WSF67-YE71M4,WSF67-YE80M4,WSF67-YE90M4,WSF67-YEJ100M4,WSF67-YEJ112M4,WSF67-YEJ132M4,WSF67-YEJ63M4,WSF67-YEJ71M4,WSF67-YEJ80M4,WSF67-YEJ90M4,WSF67-YEJB100M4,WSF67-YEJB112M4,WSF67-YEJB132M4,WSF67-YEJB63M4,WSF67-YEJB71M4,WSF67-YEJB80M4,WSF67-YEJB90M4,WSF67-YP100M4,WSF67-YP112M4,WSF67-YP132M4,WSF67-YP63M4,WSF67-YP71M4,WSF67-YP80M4,WSF67-YP90M4,WSF67-YPB100M4,WSF67-YPB112M4,WSF67-YPB132M4,WSF67-YPB63M4,WSF67-YPB71M4,WSF67-YPB80M4,WSF67-YPB90M4,WSF67-YPE100M4,WSF67-YPE112M4,WSF67-YPE132M4,WSF67-YPE63M4,WSF67-YPE71M4,WSF67-YPE80M4,WSF67-YPE90M4,WSF67-YS100M4,WSF67-YS112M4,WSF67-YS132M4,WSF67-YS63M4,WSF67-YS71M4,WSF67-YS80M4,WSF67-YS90M4,WSF67-YVB100M4,WSF67-YVB112M4,WSF67-YVB132M4,WSF67-YVB63M4,WSF67-YVB71M4,WSF67-YVB80M4,WSF67-YVB90M4,WSF67-YVP100M4,WSF67-YVP112M4,WSF67-YVP132M4,WSF67-YVP63M4,WSF67-YVP71M4,WSF67-YVP80M4,WSF67-YVP90M4,WSF67-YVPEJ100M4,WSF67-YVPEJ112M4,WSF67-YVPEJ132M4,WSF67-YVPEJ63M4,WSF67-YVPEJ71M4,WSF67-YVPEJ80M4,WSF67-YVPEJ90M4,ASF67-Y0.18KW,ASF67-Y0.25KW,ASF67-Y0.37KW,ASF67-Y0.55KW,ASF67-Y0.75KW,ASF67-Y1.1KW,ASF67-Y1.5KW,ASF67-Y100M4,ASF67-Y112M4,ASF67-Y132M4,ASF67-Y2.2KW,ASF67-Y3KW,ASF67-Y4KW,ASF67-Y5.5KW,ASF67-Y63M4,ASF67-Y71M4,ASF67-Y80M4,ASF67-Y90M4,ASF67-YB100M4,ASF67-YB112M4,ASF67-YB132M4,ASF67-YB63M4,ASF67-YB71M4,ASF67-YB80M4,ASF67-YB90M4,ASF67-YDP100M4,ASF67-YDP112M4,ASF67-YDP132M4,ASF67-YDP63M4,ASF67-YDP71M4,ASF67-YDP80M4,ASF67-YDP90M4,ASF67-YE100M4,ASF67-YE112M4,ASF67-YE132M4,ASF67-YE63M4,ASF67-YE71M4,ASF67-YE80M4,ASF67-YE90M4,ASF67-YEJ100M4,ASF67-YEJ112M4,ASF67-YEJ132M4,ASF67-YEJ63M4,ASF67-YEJ71M4,ASF67-YEJ80M4,ASF67-YEJ90M4,ASF67-YEJB100M4,ASF67-YEJB112M4,ASF67-YEJB132M4,ASF67-YEJB63M4,ASF67-YEJB71M4,ASF67-YEJB80M4,ASF67-YEJB90M4,ASF67-YP100M4,ASF67-YP112M4,ASF67-YP132M4,ASF67-YP63M4,ASF67-YP71M4,ASF67-YP80M4,ASF67-YP90M4,ASF67-YPB100M4,ASF67-YPB112M4,ASF67-YPB132M4,ASF67-YPB63M4,ASF67-YPB71M4,ASF67-YPB80M4,ASF67-YPB90M4,ASF67-YPE100M4,ASF67-YPE112M4,ASF67-YPE132M4,ASF67-YPE63M4,ASF67-YPE71M4,ASF67-YPE80M4,ASF67-YPE90M4,ASF67-YS100M4,ASF67-YS112M4,ASF67-YS132M4,ASF67-YS63M4,ASF67-YS71M4,ASF67-YS80M4,ASF67-YS90M4,ASF67-YVB100M4,ASF67-YVB112M4,ASF67-YVB132M4,ASF67-YVB63M4,ASF67-YVB71M4,ASF67-YVB80M4,ASF67-YVB90M4,ASF67-YVP100M4,ASF67-YVP112M4,ASF67-YVP132M4,ASF67-YVP63M4,ASF67-YVP71M4,ASF67-YVP80M4,ASF67-YVP90M4,ASF67-YVPEJ100M4,ASF67-YVPEJ112M4,ASF67-YVPEJ132M4,ASF67-YVPEJ63M4,ASF67-YVPEJ71M4,ASF67-YVPEJ80M4,ASF67-YVPEJ90M4,SSF67-Y0.18KW,SSF67-Y0.25KW,SSF67-Y0.37KW,SSF67-Y0.55KW,SSF67-Y0.75KW,SSF67-Y1.1KW,SSF67-Y1.5KW,SSF67-Y100M4,SSF67-Y112M4,SSF67-Y132M4,SSF67-Y2.2KW,SSF67-Y3KW,SSF67-Y4KW,SSF67-Y5.5KW,SSF67-Y63M4,SSF67-Y71M4,SSF67-Y80M4,SSF67-Y90M4,SSF67-YB100M4,SSF67-YB112M4,SSF67-YB132M4,SSF67-YB63M4,SSF67-YB71M4,SSF67-YB80M4,SSF67-YB90M4,SSF67-YDP100M4,SSF67-YDP112M4,SSF67-YDP132M4,SSF67-YDP63M4,SSF67-YDP71M4,SSF67-YDP80M4,SSF67-YDP90M4,SSF67-YE100M4,SSF67-YE112M4,SSF67-YE132M4,SSF67-YE63M4,SSF67-YE71M4,SSF67-YE80M4,SSF67-YE90M4,SSF67-YEJ100M4,SSF67-YEJ112M4,SSF67-YEJ132M4,SSF67-YEJ63M4,SSF67-YEJ71M4,SSF67-YEJ80M4,SSF67-YEJ90M4,SSF67-YEJB100M4,SSF67-YEJB112M4,SSF67-YEJB132M4,SSF67-YEJB63M4,SSF67-YEJB71M4,SSF67-YEJB80M4,SSF67-YEJB90M4,SSF67-YP100M4,SSF67-YP112M4,SSF67-YP132M4,SSF67-YP63M4,SSF67-YP71M4,SSF67-YP80M4,SSF67-YP90M4,SSF67-YPB100M4,SSF67-YPB112M4,SSF67-YPB132M4,SSF67-YPB63M4,SSF67-YPB71M4,SSF67-YPB80M4,SSF67-YPB90M4,SSF67-YPE100M4,SSF67-YPE112M4,SSF67-YPE132M4,SSF67-YPE63M4,SSF67-YPE71M4,SSF67-YPE80M4,SSF67-YPE90M4,SSF67-YS100M4,SSF67-YS112M4,SSF67-YS132M4,SSF67-YS63M4,SSF67-YS71M4,SSF67-YS80M4,SSF67-YS90M4,SSF67-YVB100M4,SSF67-YVB112M4,SSF67-YVB132M4,SSF67-YVB63M4,SSF67-YVB71M4,SSF67-YVB80M4,SSF67-YVB90M4,SSF67-YVP100M4,SSF67-YVP112M4,SSF67-YVP132M4,SSF67-YVP63M4,SSF67-YVP71M4,SSF67-YVP80M4,SSF67-YVP90M4,SSF67-YVPEJ100M4,SSF67-YVPEJ112M4,SSF67-YVPEJ132M4,SSF67-YVPEJ63M4,SSF67-YVPEJ71M4,SSF67-YVPEJ80M4,SSF67-YVPEJ90M4,GSF69-Y0.18KW,GSF69-Y0.25KW,GSF69-Y0.37KW,GSF69-Y0.55KW,GSF69-Y0.75KW,GSF69-Y1.1KW,GSF69-Y1.5KW,GSF69-Y100M4,GSF69-Y112M4,GSF69-Y132M4,GSF69-Y2.2KW,GSF69-Y3KW,GSF69-Y4KW,GSF69-Y5.5KW,GSF69-Y63M4,GSF69-Y71M4,GSF69-Y80M4,GSF69-Y90M4,GSF69-YB100M4,GSF69-YB112M4,GSF69-YB132M4,GSF69-YB63M4,GSF69-YB71M4,GSF69-YB80M4,GSF69-YB90M4,GSF69-YDP100M4,GSF69-YDP112M4,GSF69-YDP132M4,GSF69-YDP63M4,GSF69-YDP71M4,GSF69-YDP80M4,GSF69-YDP90M4,GSF69-YE100M4,GSF69-YE112M4,GSF69-YE132M4,GSF69-YE63M4,GSF69-YE71M4,GSF69-YE80M4,GSF69-YE90M4,GSF69-YEJ100M4,GSF69-YEJ112M4,GSF69-YEJ132M4,GSF69-YEJ63M4,GSF69-YEJ71M4,GSF69-YEJ80M4,GSF69-YEJ90M4,GSF69-YEJB100M4,GSF69-YEJB112M4,GSF69-YEJB132M4,GSF69-YEJB63M4,GSF69-YEJB71M4,GSF69-YEJB80M4,GSF69-YEJB90M4,GSF69-YP100M4,GSF69-YP112M4,GSF69-YP132M4,GSF69-YP63M4,GSF69-YP71M4,GSF69-YP80M4,GSF69-YP90M4,GSF69-YPB100M4,GSF69-YPB112M4,GSF69-YPB132M4,GSF69-YPB63M4,GSF69-YPB71M4,GSF69-YPB80M4,GSF69-YPB90M4,GSF69-YPE100M4,GSF69-YPE112M4,GSF69-YPE132M4,GSF69-YPE63M4,GSF69-YPE71M4,GSF69-YPE80M4,GSF69-YPE90M4,GSF69-YS100M4,GSF69-YS112M4,GSF69-YS132M4,GSF69-YS63M4,GSF69-YS71M4,GSF69-YS80M4,GSF69-YS90M4,GSF69-YVB100M4,GSF69-YVB112M4,GSF69-YVB132M4,GSF69-YVB63M4,GSF69-YVB71M4,GSF69-YVB80M4,GSF69-YVB90M4,GSF69-YVP100M4,GSF69-YVP112M4,GSF69-YVP132M4,GSF69-YVP63M4,GSF69-YVP71M4,GSF69-YVP80M4,GSF69-YVP90M4,GSF69-YVPEJ100M4,GSF69-YVPEJ112M4,GSF69-YVPEJ132M4,GSF69-YVPEJ63M4,GSF69-YVPEJ71M4,GSF69-YVPEJ80M4,GSF69-YVPEJ90M4,SF67SF80,SF67SF90,SF67SF100,SF67SF112,SF67SF115,SF67SF140,SF67SF160,SF67SF190。

SF69減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-sfxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S69減速機

關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器

SF系列減速機型號:SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機

SF系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SF69減速器 SF67斜齒輪減速機 SF67減速機3D模型 SF67型減速機選型參數 SF67立式減速機一體機 SF67伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SF69減速器3D模型 點擊下載
SF69減速器選型參數 點擊下載
