SA99減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA99減速器選型樣本。
SA99-BDP7.5KW-4P-60.59-M2-0°
SA:系列代號
99:減速機規格代號
BDP:電機
7.5KW:電機功率
4P:電機級數
60.59:減速機傳動比
M2:減速機安裝位置
0°:接線盒位置
SA99減速器逆止器安裝:
如果低于最小超越轉速,則逆止器將會發生摩擦而產生高溫,可能造成財產損失;在額外工作狀態下,不得低于最小超越轉速;在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格,逆止器的最小超越轉速如下表:
型號 | 逆止器最大逆止力矩 [Nm] | 最小超越轉速 [r/min] |
AD2/RS | 65 | 820 |
AD3/RS | 425 | 620 |
AD4/RS | 850 | 530 |
AD5/RS | 1450 | 480 |
AD6/RS | 1950 | 450 |
AD7/RS | 1950 | 450 |
AD8/RS | 1950 | 450 |
SA99減速器帶逆止器的輸入端裝置AD../RS:安裝或運送前檢查驅動裝置的旋轉方向是否正確,若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中,逆止器不需要特別維護或其他的維護措施。齒輪減速電機
逆止器用來避免逆向轉動;如此便可確保運行過程中的定向轉動。注意:逆向運轉可能導致逆止器損壞;電機不允許逆向轉動;注意供電是否正確,以確保電機定向轉動;可以使電機輸出一半的額定扭矩來檢查逆止器方向。

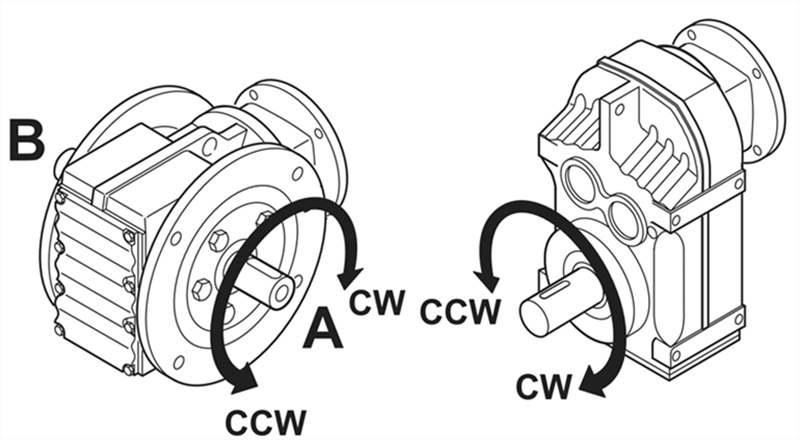

轉向要根據輸出軸(LSS)來確定;順時針旋轉(CW);逆時針旋轉(CCW);應在箱體上標識出許可轉向。自鎖減速機
SA99減速器無油位檢查螺栓和安裝蓋:

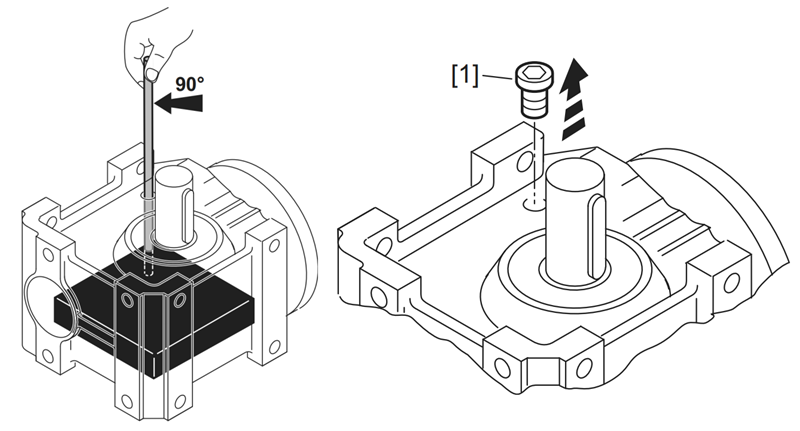

通過密封螺栓檢查油位:由于SA99減速器無油位螺栓或安裝蓋,因此需要通過檢查孔進行檢查;按照M5或M6的安裝位置防止SA99減速器,即檢查孔朝上;擰出密封螺栓1(見下圖);將測量標尺垂直通過檢查孔伸入減速器箱體的底部,然后再將測量標尺重新從檢查孔中垂直抽出(見下圖)。

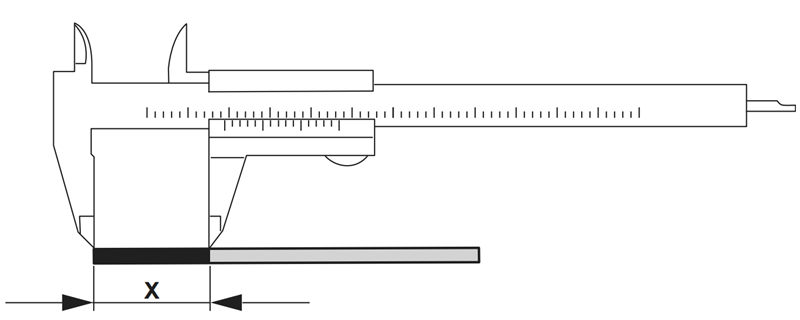

用油標卡尺測出測量標尺上所沾的潤滑油長度(見下圖)。
將側的值“X”與下表中根據安裝位置所列的最小值進行比較,必要情況下調節油位高度;重新擰緊密封螺栓。伺服電機連接減速機
減速機型號 | 油位=測量標尺上所沾的長度X(mm)安裝位置 |
SA99減速器 | M1 | M2 | M3 | M4 | M5 | M6 |
10±1 | 24±1 | 34±1 | 37±1 | 24±1 | 24±1 |
SA99減速器型號:
XDSA97-Y1.1KW,XDSA97-Y1.5KW,XDSA97-Y100M4,XDSA97-Y112M4,XDSA97-Y11KW,XDSA97-Y132M4,XDSA97-Y15KW,XDSA97-Y160M4,XDSA97-Y18.5KW,XDSA97-Y180M4,XDSA97-Y2.2KW,XDSA97-Y200M4,XDSA97-Y22KW,XDSA97-Y3KW,XDSA97-Y4KW,XDSA97-Y5.5KW,XDSA97-Y7.5KW,XDSA97-Y80M4,XDSA97-Y90M4,XDSA97-YB100M4,XDSA97-YB112M4,XDSA97-YB132M4,XDSA97-YB160M4,XDSA97-YB180M4,XDSA97-YB200M4,XDSA97-YB80M4,XDSA97-YB90M4,XDSA97-YDP100M4,XDSA97-YDP112M4,XDSA97-YDP132M4,XDSA97-YDP160M4,XDSA97-YDP180M4,XDSA97-YDP200M4,XDSA97-YDP80M4,XDSA97-YDP90M4,XDSA97-YE100M4,XDSA97-YE112M4,XDSA97-YE132M4,XDSA97-YE160M4,XDSA97-YE180M4,XDSA97-YE200M4,XDSA97-YE80M4,XDSA97-YE90M4,XDSA97-YEJ100M4,XDSA97-YEJ112M4,XDSA97-YEJ132M4,XDSA97-YEJ160M4,XDSA97-YEJ180M4,XDSA97-YEJ200M4,XDSA97-YEJ80M4,XDSA97-YEJ90M4,XDSA97-YEJB100M4,XDSA97-YEJB112M4,XDSA97-YEJB132M4,XDSA97-YEJB160M4,XDSA97-YEJB180M4,XDSA97-YEJB200M4,XDSA97-YEJB80M4,XDSA97-YEJB90M4,XDSA97-YP100M4,XDSA97-YP112M4,XDSA97-YP132M4,XDSA97-YP160M4,XDSA97-YP180M4,XDSA97-YP200M4,XDSA97-YP80M4,XDSA97-YP90M4,XDSA97-YPB100M4,XDSA97-YPB112M4,XDSA97-YPB132M4,XDSA97-YPB160M4,XDSA97-YPB180M4,XDSA97-YPB200M4,XDSA97-YPB80M4,XDSA97-YPB90M4,XDSA97-YPE100M4,XDSA97-YPE112M4,XDSA97-YPE132M4,XDSA97-YPE160M4,XDSA97-YPE180M4,XDSA97-YPE200M4,XDSA97-YPE80M4,XDSA97-YPE90M4,XDSA97-YS100M4,XDSA97-YS112M4,XDSA97-YS132M4,XDSA97-YS160M4,XDSA97-YS180M4,XDSA97-YS200M4,XDSA97-YS80M4,XDSA97-YS90M4,XDSA97-YVB100M4,XDSA97-YVB112M4,XDSA97-YVB132M4,XDSA97-YVB160M4,XDSA97-YVB180M4,XDSA97-YVB200M4,XDSA97-YVB80M4,XDSA97-YVB90M4,XDSA97-YVP100M4,XDSA97-YVP112M4,XDSA97-YVP132M4,XDSA97-YVP160M4,XDSA97-YVP180M4,XDSA97-YVP200M4,XDSA97-YVP80M4,XDSA97-YVP90M4,XDSA97-YVPEJ100M4,XDSA97-YVPEJ112M4,XDSA97-YVPEJ132M4,XDSA97-YVPEJ160M4,XDSA97-YVPEJ180M4,XDSA97-YVPEJ200M4,XDSA97-YVPEJ80M4,XDSA97-YVPEJ90M4,JCSA97-Y1.1KW,JCSA97-Y1.5KW,JCSA97-Y100M4,JCSA97-Y112M4,JCSA97-Y11KW,JCSA97-Y132M4,JCSA97-Y15KW,JCSA97-Y160M4,JCSA97-Y18.5KW,JCSA97-Y180M4,JCSA97-Y2.2KW,JCSA97-Y200M4,JCSA97-Y22KW,JCSA97-Y3KW,JCSA97-Y4KW,JCSA97-Y5.5KW,JCSA97-Y7.5KW,JCSA97-Y80M4,JCSA97-Y90M4,JCSA97-YB100M4,JCSA97-YB112M4,JCSA97-YB132M4,JCSA97-YB160M4,JCSA97-YB180M4,JCSA97-YB200M4,JCSA97-YB80M4,JCSA97-YB90M4,JCSA97-YDP100M4,JCSA97-YDP112M4,JCSA97-YDP132M4,JCSA97-YDP160M4,JCSA97-YDP180M4,JCSA97-YDP200M4,JCSA97-YDP80M4,JCSA97-YDP90M4,JCSA97-YE100M4,JCSA97-YE112M4,JCSA97-YE132M4,JCSA97-YE160M4,JCSA97-YE180M4,JCSA97-YE200M4,JCSA97-YE80M4,JCSA97-YE90M4,JCSA97-YEJ100M4,JCSA97-YEJ112M4,JCSA97-YEJ132M4,JCSA97-YEJ160M4,JCSA97-YEJ180M4,JCSA97-YEJ200M4,JCSA97-YEJ80M4,JCSA97-YEJ90M4,JCSA97-YEJB100M4,JCSA97-YEJB112M4,JCSA97-YEJB132M4,JCSA97-YEJB160M4,JCSA97-YEJB180M4,JCSA97-YEJB200M4,JCSA97-YEJB80M4,JCSA97-YEJB90M4,JCSA97-YP100M4,JCSA97-YP112M4,JCSA97-YP132M4,JCSA97-YP160M4,JCSA97-YP180M4,JCSA97-YP200M4,JCSA97-YP80M4,JCSA97-YP90M4,JCSA97-YPB100M4,JCSA97-YPB112M4,JCSA97-YPB132M4,JCSA97-YPB160M4,JCSA97-YPB180M4,JCSA97-YPB200M4,JCSA97-YPB80M4,JCSA97-YPB90M4,JCSA97-YPE100M4,JCSA97-YPE112M4,JCSA97-YPE132M4,JCSA97-YPE160M4,JCSA97-YPE180M4,JCSA97-YPE200M4,JCSA97-YPE80M4,JCSA97-YPE90M4,JCSA97-YS100M4,JCSA97-YS112M4,JCSA97-YS132M4,JCSA97-YS160M4,JCSA97-YS180M4,JCSA97-YS200M4,JCSA97-YS80M4,JCSA97-YS90M4,JCSA97-YVB100M4,JCSA97-YVB112M4,JCSA97-YVB132M4,JCSA97-YVB160M4,JCSA97-YVB180M4,JCSA97-YVB200M4,JCSA97-YVB80M4,JCSA97-YVB90M4,JCSA97-YVP100M4,JCSA97-YVP112M4,JCSA97-YVP132M4,JCSA97-YVP160M4,JCSA97-YVP180M4,JCSA97-YVP200M4,JCSA97-YVP80M4,JCSA97-YVP90M4,JCSA97-YVPEJ100M4,JCSA97-YVPEJ112M4,JCSA97-YVPEJ132M4,JCSA97-YVPEJ160M4,JCSA97-YVPEJ180M4,JCSA97-YVPEJ200M4,JCSA97-YVPEJ80M4,JCSA97-YVPEJ90M4,YQSA97-Y1.1KW,YQSA97-Y1.5KW,YQSA97-Y100M4,YQSA97-Y112M4,YQSA97-Y11KW,YQSA97-Y132M4,YQSA97-Y15KW,YQSA97-Y160M4,YQSA97-Y18.5KW,YQSA97-Y180M4,YQSA97-Y2.2KW,YQSA97-Y200M4,YQSA97-Y22KW,YQSA97-Y3KW,YQSA97-Y4KW,YQSA97-Y5.5KW,YQSA97-Y7.5KW,YQSA97-Y80M4,YQSA97-Y90M4,YQSA97-YB100M4,YQSA97-YB112M4,YQSA97-YB132M4,YQSA97-YB160M4,YQSA97-YB180M4,YQSA97-YB200M4,YQSA97-YB80M4,YQSA97-YB90M4,YQSA97-YDP100M4,YQSA97-YDP112M4,YQSA97-YDP132M4,YQSA97-YDP160M4,YQSA97-YDP180M4,YQSA97-YDP200M4,YQSA97-YDP80M4,YQSA97-YDP90M4,YQSA97-YE100M4,YQSA97-YE112M4,YQSA97-YE132M4,YQSA97-YE160M4,YQSA97-YE180M4,YQSA97-YE200M4,YQSA97-YE80M4,YQSA97-YE90M4,YQSA97-YEJ100M4,YQSA97-YEJ112M4,YQSA97-YEJ132M4,YQSA97-YEJ160M4,YQSA97-YEJ180M4,YQSA97-YEJ200M4,YQSA97-YEJ80M4,YQSA97-YEJ90M4,YQSA97-YEJB100M4,YQSA97-YEJB112M4,YQSA97-YEJB132M4,YQSA97-YEJB160M4,YQSA97-YEJB180M4,YQSA97-YEJB200M4,YQSA97-YEJB80M4,YQSA97-YEJB90M4,YQSA97-YP100M4,YQSA97-YP112M4,YQSA97-YP132M4,YQSA97-YP160M4,YQSA97-YP180M4,YQSA97-YP200M4,YQSA97-YP80M4,YQSA97-YP90M4,YQSA97-YPB100M4,YQSA97-YPB112M4,YQSA97-YPB132M4,YQSA97-YPB160M4,YQSA97-YPB180M4,YQSA97-YPB200M4,YQSA97-YPB80M4,YQSA97-YPB90M4,YQSA97-YPE100M4,YQSA97-YPE112M4,YQSA97-YPE132M4,YQSA97-YPE160M4,YQSA97-YPE180M4,YQSA97-YPE200M4,YQSA97-YPE80M4,YQSA97-YPE90M4,YQSA97-YS100M4,YQSA97-YS112M4,YQSA97-YS132M4,YQSA97-YS160M4,YQSA97-YS180M4,YQSA97-YS200M4,YQSA97-YS80M4,YQSA97-YS90M4,YQSA97-YVB100M4,YQSA97-YVB112M4,YQSA97-YVB132M4,YQSA97-YVB160M4,YQSA97-YVB180M4,YQSA97-YVB200M4,YQSA97-YVB80M4,YQSA97-YVB90M4,YQSA97-YVP100M4,YQSA97-YVP112M4,YQSA97-YVP132M4,YQSA97-YVP160M4,YQSA97-YVP180M4,YQSA97-YVP200M4,YQSA97-YVP80M4,YQSA97-YVP90M4,YQSA97-YVPEJ100M4,YQSA97-YVPEJ112M4,YQSA97-YVPEJ132M4,YQSA97-YVPEJ160M4,YQSA97-YVPEJ180M4,YQSA97-YVPEJ200M4,YQSA97-YVPEJ80M4,YQSA97-YVPEJ90M4,SWA97-Y1.1KW,SWA97-Y1.5KW,SWA97-Y100M4,SWA97-Y112M4,SWA97-Y11KW,SWA97-Y132M4,SWA97-Y15KW,SWA97-Y160M4,SWA97-Y18.5KW,SWA97-Y180M4,SWA97-Y2.2KW,SWA97-Y200M4,SWA97-Y22KW,SWA97-Y3KW,SWA97-Y4KW,SWA97-Y5.5KW,SWA97-Y7.5KW,SWA97-Y80M4,SWA97-Y90M4,SWA97-YB100M4,SWA97-YB112M4,SWA97-YB132M4,SWA97-YB160M4,SWA97-YB180M4,SWA97-YB200M4,SWA97-YB80M4,SWA97-YB90M4,SWA97-YDP100M4,SWA97-YDP112M4,SWA97-YDP132M4,SWA97-YDP160M4,SWA97-YDP180M4,SWA97-YDP200M4,SWA97-YDP80M4,SWA97-YDP90M4,SWA97-YE100M4,SWA97-YE112M4,SWA97-YE132M4,SWA97-YE160M4,SWA97-YE180M4,SWA97-YE200M4,SWA97-YE80M4,SWA97-YE90M4,SWA97-YEJ100M4,SWA97-YEJ112M4,SWA97-YEJ132M4,SWA97-YEJ160M4,SWA97-YEJ180M4,SWA97-YEJ200M4,SWA97-YEJ80M4,SWA97-YEJ90M4,SWA97-YEJB100M4,SWA97-YEJB112M4,SWA97-YEJB132M4,SWA97-YEJB160M4,SWA97-YEJB180M4,SWA97-YEJB200M4,SWA97-YEJB80M4,SWA97-YEJB90M4,SWA97-YP100M4,SWA97-YP112M4,SWA97-YP132M4,SWA97-YP160M4,SWA97-YP180M4,SWA97-YP200M4,SWA97-YP80M4,SWA97-YP90M4,SWA97-YPB100M4,SWA97-YPB112M4,SWA97-YPB132M4,SWA97-YPB160M4,SWA97-YPB180M4,SWA97-YPB200M4,SWA97-YPB80M4,SWA97-YPB90M4,SWA97-YPE100M4,SWA97-YPE112M4,SWA97-YPE132M4,SWA97-YPE160M4,SWA97-YPE180M4,SWA97-YPE200M4,SWA97-YPE80M4,SWA97-YPE90M4,SWA97-YS100M4,SWA97-YS112M4,SWA97-YS132M4,SWA97-YS160M4,SWA97-YS180M4,SWA97-YS200M4,SWA97-YS80M4,SWA97-YS90M4,SWA97-YVB100M4,SWA97-YVB112M4,SWA97-YVB132M4,SWA97-YVB160M4,SWA97-YVB180M4,SWA97-YVB200M4,SWA97-YVB80M4,SWA97-YVB90M4,SWA97-YVP100M4,SWA97-YVP112M4,SWA97-YVP132M4,SWA97-YVP160M4,SWA97-YVP180M4,SWA97-YVP200M4,SWA97-YVP80M4,SWA97-YVP90M4,SWA97-YVPEJ100M4,SWA97-YVPEJ112M4,SWA97-YVPEJ132M4,SWA97-YVPEJ160M4,SWA97-YVPEJ180M4,SWA97-YVPEJ200M4,SWA97-YVPEJ80M4,SWA97-YVPEJ90M4,SA99-Y1.1KW,SA99-Y1.5KW,SA99-Y100M4,SA99-Y112M4,SA99-Y11KW,SA99-Y132M4,SA99-Y15KW,SA99-Y160M4,SA99-Y18.5KW,SA99-Y180M4,SA99-Y2.2KW,SA99-Y200M4,SA99-Y22KW,SA99-Y3KW,SA99-Y4KW,SA99-Y5.5KW,SA99-Y7.5KW,SA99-Y80M4,SA99-Y90M4,SA99-YB100M4,SA99-YB112M4,SA99-YB132M4,SA99-YB160M4,SA99-YB180M4,SA99-YB200M4,SA99-YB80M4,SA99-YB90M4,SA99-YDP100M4,SA99-YDP112M4,SA99-YDP132M4,SA99-YDP160M4,SA99-YDP180M4,SA99-YDP200M4,SA99-YDP80M4,SA99-YDP90M4,SA99-YE100M4,SA99-YE112M4,SA99-YE132M4,SA99-YE160M4,SA99-YE180M4,SA99-YE200M4,SA99-YE80M4,SA99-YE90M4,SA99-YEJ100M4,SA99-YEJ112M4,SA99-YEJ132M4,SA99-YEJ160M4,SA99-YEJ180M4,SA99-YEJ200M4,SA99-YEJ80M4,SA99-YEJ90M4,SA99-YEJB100M4,SA99-YEJB112M4,SA99-YEJB132M4,SA99-YEJB160M4,SA99-YEJB180M4,SA99-YEJB200M4,SA99-YEJB80M4,SA99-YEJB90M4,SA99-YP100M4,SA99-YP112M4,SA99-YP132M4,SA99-YP160M4,SA99-YP180M4,SA99-YP200M4,SA99-YP80M4,SA99-YP90M4,SA99-YPB100M4,SA99-YPB112M4,SA99-YPB132M4,SA99-YPB160M4,SA99-YPB180M4,SA99-YPB200M4,SA99-YPB80M4,SA99-YPB90M4,SA99-YPE100M4,SA99-YPE112M4,SA99-YPE132M4,SA99-YPE160M4,SA99-YPE180M4,SA99-YPE200M4,SA99-YPE80M4,SA99-YPE90M4,SA99-YS100M4,SA99-YS112M4,SA99-YS132M4,SA99-YS160M4,SA99-YS180M4,SA99-YS200M4,SA99-YS80M4,SA99-YS90M4,SA99-YVB100M4,SA99-YVB112M4,SA99-YVB132M4,SA99-YVB160M4,SA99-YVB180M4,SA99-YVB200M4,SA99-YVB80M4,SA99-YVB90M4,SA99-YVP100M4,SA99-YVP112M4,SA99-YVP132M4,SA99-YVP160M4,SA99-YVP180M4,SA99-YVP200M4,SA99-YVP80M4,SA99-YVP90M4,SA99-YVPEJ100M4,SA99-YVPEJ112M4,SA99-YVPEJ132M4,SA99-YVPEJ160M4,SA99-YVPEJ180M4,SA99-YVPEJ200M4,SA99-YVPEJ80M4,SA99-YVPEJ90M4,SA97SF80,SA97SF90,SA97SF100,SA97SF112,SA97SF115,SA97SF140,SA97SF160,SA97SF190。
SA99減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html
推薦類似型號:S99減速機
關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機
SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
