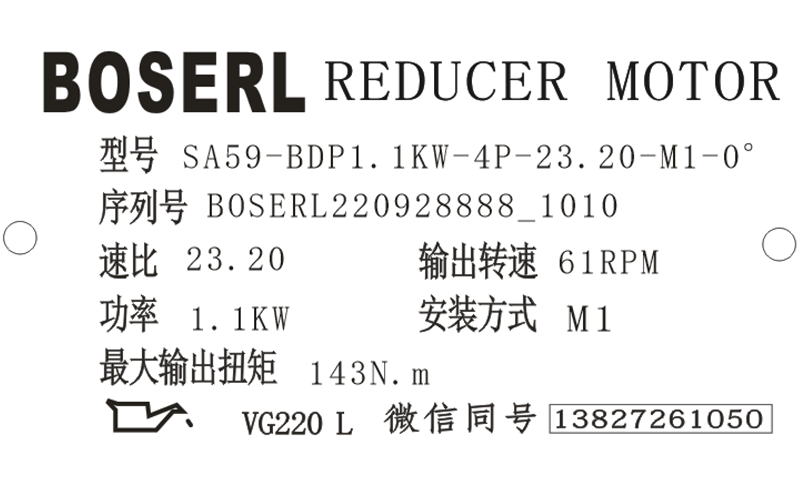

SA59減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA59減速器選型樣本。
SA59-BDP1.1KW-4P-23.20-M1-0°
SA:系列代號
59:減速機規格代號
BDP:電機
1.1KW:電機功率
4P:電機級數
23.20:減速機傳動比
M1:減速機安裝位置
0°:接線盒位置
SA59減速器逆止器安裝:
如果低于最小超越轉速,則逆止器將會發生摩擦而產生高溫,可能造成財產損失;在額外工作狀態下,不得低于最小超越轉速;在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格,逆止器的最小超越轉速如下表:
型號 | 逆止器最大逆止力矩 [Nm] | 最小超越轉速 [r/min] |
AD2/RS | 65 | 820 |
AD3/RS | 425 | 620 |
AD4/RS | 850 | 530 |
AD5/RS | 1450 | 480 |
AD6/RS | 1950 | 450 |
AD7/RS | 1950 | 450 |
AD8/RS | 1950 | 450 |
SA59減速器帶逆止器的輸入端裝置AD../RS:安裝或運送前檢查驅動裝置的旋轉方向是否正確,若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中,逆止器不需要特別維護或其他的維護措施。齒輪減速電機
逆止器用來避免逆向轉動;如此便可確保運行過程中的定向轉動。注意:逆向運轉可能導致逆止器損壞;電機不允許逆向轉動;注意供電是否正確,以確保電機定向轉動;可以使電機輸出一半的額定扭矩來檢查逆止器方向。
轉向要根據輸出軸(LSS)來確定;順時針旋轉(CW);逆時針旋轉(CCW);應在箱體上標識出許可轉向。自鎖減速機
SA59減速器無油位檢查螺栓和安裝蓋:
通過密封螺栓檢查油位:由于SA59減速器無油位螺栓或安裝蓋,因此需要通過檢查孔進行檢查;按照M5或M6的安裝位置防止SA59減速器,即檢查孔朝上;擰出密封螺栓1(見下圖);將測量標尺垂直通過檢查孔伸入減速器箱體的底部,然后再將測量標尺重新從檢查孔中垂直抽出(見下圖)。
用油標卡尺測出測量標尺上所沾的潤滑油長度(見下圖)。
將側的值“X”與下表中根據安裝位置所列的最小值進行比較,必要情況下調節油位高度;重新擰緊密封螺栓。伺服電機連接減速機
減速機型號 | 油位=測量標尺上所沾的長度X(mm)安裝位置 |
SA59減速器 | M1 | M2 | M3 | M4 | M5 | M6 |
10±1 | 24±1 | 34±1 | 37±1 | 24±1 | 24±1 |
SA59減速器型號:
XDSA57-Y0.18KW,XDSA57-Y0.25KW,XDSA57-Y0.37KW,XDSA57-Y0.55KW,XDSA57-Y0.75KW,XDSA57-Y1.1KW,XDSA57-Y1.5KW,XDSA57-Y100M4,XDSA57-Y2.2KW,XDSA57-Y3KW,XDSA57-Y63M4,XDSA57-Y71M4,XDSA57-Y80M4,XDSA57-Y90M4,XDSA57-YB100M4,XDSA57-YB63M4,XDSA57-YB71M4,XDSA57-YB80M4,XDSA57-YB90M4,XDSA57-YDP100M4,XDSA57-YDP63M4,XDSA57-YDP71M4,XDSA57-YDP80M4,XDSA57-YDP90M4,XDSA57-YE100M4,XDSA57-YE63M4,XDSA57-YE71M4,XDSA57-YE80M4,XDSA57-YE90M4,XDSA57-YEJ100M4,XDSA57-YEJ63M4,XDSA57-YEJ71M4,XDSA57-YEJ80M4,XDSA57-YEJ90M4,XDSA57-YEJB100M4,XDSA57-YEJB63M4,XDSA57-YEJB71M4,XDSA57-YEJB80M4,XDSA57-YEJB90M4,XDSA57-YP100M4,XDSA57-YP63M4,XDSA57-YP71M4,XDSA57-YP80M4,XDSA57-YP90M4,XDSA57-YPB100M4,XDSA57-YPB63M4,XDSA57-YPB71M4,XDSA57-YPB80M4,XDSA57-YPB90M4,XDSA57-YPE100M4,XDSA57-YPE63M4,XDSA57-YPE71M4,XDSA57-YPE80M4,XDSA57-YPE90M4,XDSA57-YS100M4,XDSA57-YS63M4,XDSA57-YS71M4,XDSA57-YS80M4,XDSA57-YS90M4,XDSA57-YVB100M4,XDSA57-YVB63M4,XDSA57-YVB71M4,XDSA57-YVB80M4,XDSA57-YVB90M4,XDSA57-YVP100M4,XDSA57-YVP63M4,XDSA57-YVP71M4,XDSA57-YVP80M4,XDSA57-YVP90M4,XDSA57-YVPEJ100M4,XDSA57-YVPEJ63M4,XDSA57-YVPEJ71M4,XDSA57-YVPEJ80M4,XDSA57-YVPEJ90M4,SA59-Y0.18KW,SA59-Y0.25KW,SA59-Y0.37KW,SA59-Y0.55KW,SA59-Y0.75KW,SA59-Y1.1KW,SA59-Y1.5KW,SA59-Y100M4,SA59-Y2.2KW,SA59-Y3KW,SA59-Y63M4,SA59-Y71M4,SA59-Y80M4,SA59-Y90M4,SA59-YB100M4,SA59-YB63M4,SA59-YB71M4,SA59-YB80M4,SA59-YB90M4,SA59-YDP100M4,SA59-YDP63M4,SA59-YDP71M4,SA59-YDP80M4,SA59-YDP90M4,SA59-YE100M4,SA59-YE63M4,SA59-YE71M4,SA59-YE80M4,SA59-YE90M4,SA59-YEJ100M4,SA59-YEJ63M4,SA59-YEJ71M4,SA59-YEJ80M4,SA59-YEJ90M4,SA59-YEJB100M4,SA59-YEJB63M4,SA59-YEJB71M4,SA59-YEJB80M4,SA59-YEJB90M4,SA59-YP100M4,SA59-YP63M4,SA59-YP71M4,SA59-YP80M4,SA59-YP90M4,SA59-YPB100M4,SA59-YPB63M4,SA59-YPB71M4,SA59-YPB80M4,SA59-YPB90M4,SA59-YPE100M4,SA59-YPE63M4,SA59-YPE71M4,SA59-YPE80M4,SA59-YPE90M4,SA59-YS100M4,SA59-YS63M4,SA59-YS71M4,SA59-YS80M4,SA59-YS90M4,SA59-YVB100M4,SA59-YVB63M4,SA59-YVB71M4,SA59-YVB80M4,SA59-YVB90M4,SA59-YVP100M4,SA59-YVP63M4,SA59-YVP71M4,SA59-YVP80M4,SA59-YVP90M4,SA59-YVPEJ100M4,SA59-YVPEJ63M4,SA59-YVPEJ71M4,SA59-YVPEJ80M4,SA59-YVPEJ90M4,JCSA57-Y0.18KW,JCSA57-Y0.25KW,JCSA57-Y0.37KW,JCSA57-Y0.55KW,JCSA57-Y0.75KW,JCSA57-Y1.1KW,JCSA57-Y1.5KW,JCSA57-Y100M4,JCSA57-Y2.2KW,JCSA57-Y3KW,JCSA57-Y63M4,JCSA57-Y71M4,JCSA57-Y80M4,JCSA57-Y90M4,JCSA57-YB100M4,JCSA57-YB63M4,JCSA57-YB71M4,JCSA57-YB80M4,JCSA57-YB90M4,JCSA57-YDP100M4,JCSA57-YDP63M4,JCSA57-YDP71M4,JCSA57-YDP80M4,JCSA57-YDP90M4,JCSA57-YE100M4,JCSA57-YE63M4,JCSA57-YE71M4,JCSA57-YE80M4,JCSA57-YE90M4,JCSA57-YEJ100M4,JCSA57-YEJ63M4,JCSA57-YEJ71M4,JCSA57-YEJ80M4,JCSA57-YEJ90M4,JCSA57-YEJB100M4,JCSA57-YEJB63M4,JCSA57-YEJB71M4,JCSA57-YEJB80M4,JCSA57-YEJB90M4,JCSA57-YP100M4,JCSA57-YP63M4,JCSA57-YP71M4,JCSA57-YP80M4,JCSA57-YP90M4,JCSA57-YPB100M4,JCSA57-YPB63M4,JCSA57-YPB71M4,JCSA57-YPB80M4,JCSA57-YPB90M4,JCSA57-YPE100M4,JCSA57-YPE63M4,JCSA57-YPE71M4,JCSA57-YPE80M4,JCSA57-YPE90M4,JCSA57-YS100M4,JCSA57-YS63M4,JCSA57-YS71M4,JCSA57-YS80M4,JCSA57-YS90M4,JCSA57-YVB100M4,JCSA57-YVB63M4,JCSA57-YVB71M4,JCSA57-YVB80M4,JCSA57-YVB90M4,JCSA57-YVP100M4,JCSA57-YVP63M4,JCSA57-YVP71M4,JCSA57-YVP80M4,JCSA57-YVP90M4,JCSA57-YVPEJ100M4,JCSA57-YVPEJ63M4,JCSA57-YVPEJ71M4,JCSA57-YVPEJ80M4,JCSA57-YVPEJ90M4,YQSA57-Y0.18KW,YQSA57-Y0.25KW,YQSA57-Y0.37KW,YQSA57-Y0.55KW,YQSA57-Y0.75KW,YQSA57-Y1.1KW,YQSA57-Y1.5KW,YQSA57-Y100M4,YQSA57-Y2.2KW,YQSA57-Y3KW,YQSA57-Y63M4,YQSA57-Y71M4,YQSA57-Y80M4,YQSA57-Y90M4,YQSA57-YB100M4,YQSA57-YB63M4,YQSA57-YB71M4,YQSA57-YB80M4,YQSA57-YB90M4,YQSA57-YDP100M4,YQSA57-YDP63M4,YQSA57-YDP71M4,YQSA57-YDP80M4,YQSA57-YDP90M4,YQSA57-YE100M4,YQSA57-YE63M4,YQSA57-YE71M4,YQSA57-YE80M4,YQSA57-YE90M4,YQSA57-YEJ100M4,YQSA57-YEJ63M4,YQSA57-YEJ71M4,YQSA57-YEJ80M4,YQSA57-YEJ90M4,YQSA57-YEJB100M4,YQSA57-YEJB63M4,YQSA57-YEJB71M4,YQSA57-YEJB80M4,YQSA57-YEJB90M4,YQSA57-YP100M4,YQSA57-YP63M4,YQSA57-YP71M4,YQSA57-YP80M4,YQSA57-YP90M4,YQSA57-YPB100M4,YQSA57-YPB63M4,YQSA57-YPB71M4,YQSA57-YPB80M4,YQSA57-YPB90M4,YQSA57-YPE100M4,YQSA57-YPE63M4,YQSA57-YPE71M4,YQSA57-YPE80M4,YQSA57-YPE90M4,YQSA57-YS100M4,YQSA57-YS63M4,YQSA57-YS71M4,YQSA57-YS80M4,YQSA57-YS90M4,YQSA57-YVB100M4,YQSA57-YVB63M4,YQSA57-YVB71M4,YQSA57-YVB80M4,YQSA57-YVB90M4,YQSA57-YVP100M4,YQSA57-YVP63M4,YQSA57-YVP71M4,YQSA57-YVP80M4,YQSA57-YVP90M4,YQSA57-YVPEJ100M4,YQSA57-YVPEJ63M4,YQSA57-YVPEJ71M4,YQSA57-YVPEJ80M4,YQSA57-YVPEJ90M4,SWA57-Y0.18KW,SWA57-Y0.25KW,SWA57-Y0.37KW,SWA57-Y0.55KW,SWA57-Y0.75KW,SWA57-Y1.1KW,SWA57-Y1.5KW,SWA57-Y100M4,SWA57-Y2.2KW,SWA57-Y3KW,SWA57-Y63M4,SWA57-Y71M4,SWA57-Y80M4,SWA57-Y90M4,SWA57-YB100M4,SWA57-YB63M4,SWA57-YB71M4,SWA57-YB80M4,SWA57-YB90M4,SWA57-YDP100M4,SWA57-YDP63M4,SWA57-YDP71M4,SWA57-YDP80M4,SWA57-YDP90M4,SWA57-YE100M4,SWA57-YE63M4,SWA57-YE71M4,SWA57-YE80M4,SWA57-YE90M4,SWA57-YEJ100M4,SWA57-YEJ63M4,SWA57-YEJ71M4,SWA57-YEJ80M4,SWA57-YEJ90M4,SWA57-YEJB100M4,SWA57-YEJB63M4,SWA57-YEJB71M4,SWA57-YEJB80M4,SWA57-YEJB90M4,SWA57-YP100M4,SWA57-YP63M4,SWA57-YP71M4,SWA57-YP80M4,SWA57-YP90M4,SWA57-YPB100M4,SWA57-YPB63M4,SWA57-YPB71M4,SWA57-YPB80M4,SWA57-YPB90M4,SWA57-YPE100M4,SWA57-YPE63M4,SWA57-YPE71M4,SWA57-YPE80M4,SWA57-YPE90M4,SWA57-YS100M4,SWA57-YS63M4,SWA57-YS71M4,SWA57-YS80M4,SWA57-YS90M4,SWA57-YVB100M4,SWA57-YVB63M4,SWA57-YVB71M4,SWA57-YVB80M4,SWA57-YVB90M4,SWA57-YVP100M4,SWA57-YVP63M4,SWA57-YVP71M4,SWA57-YVP80M4,SWA57-YVP90M4,SWA57-YVPEJ100M4,SWA57-YVPEJ63M4,SWA57-YVPEJ71M4,SWA57-YVPEJ80M4,SWA57-YVPEJ90M4,SA57SF80,SA57SF90,SA57SF100,SA57SF112,SA57SF115,SA57SF140,SA57SF160,SA57SF190。
SA59減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html
推薦類似型號:S59減速機
關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機
SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
