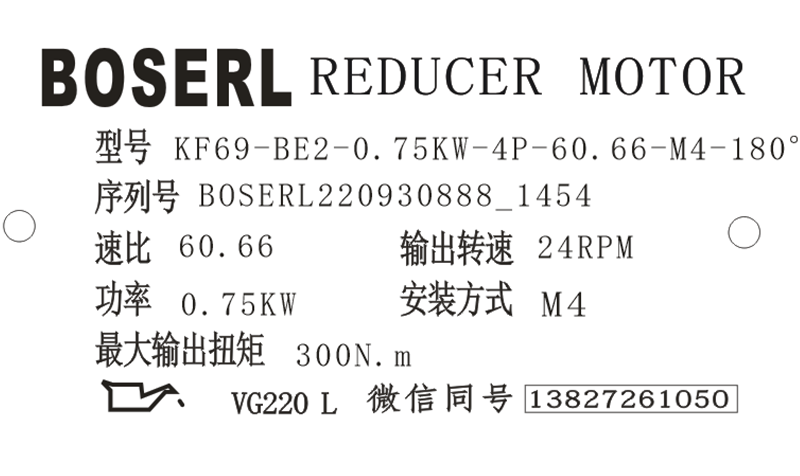

KF69減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF69減速器選型樣本。
KF69-BE2-0.75KW-4P-60.66-M4-180°
KF:系列代號
69:減速機規格代號
BE2:電機
0.75KW:電機功率
4P:電機級數
60.66:減速機傳動比
M4:減速機安裝位置
180°:接線盒位置
KF69減速器透氣閥開啟操作教程:
安裝時檢查透氣閥是否開啟,若透氣閥未開啟,則必須在啟動KF69減速器前拆下透氣閥的運輸保險!齒輪減速電機

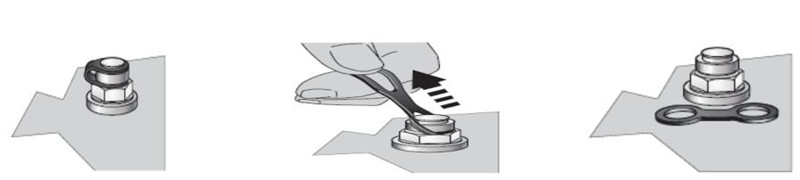

第一步帶運輸橡膠圈的透氣閥;
第二步拆下運輸橡膠圈;
第三步已經開啟的透氣閥。
KF69減速器安裝操作的正確方法:
KF69減速器噴漆:噴漆或補漆時可能對透氣閥和油封造成損傷,要求噴漆前對透氣閥和油封的密封唇進行細致封堵;噴漆后撕去封堵粘條。
KF69減速器實心軸輸出與輸出部件的裝配:不當裝配可能對軸承、箱體或軸造成損傷,可能造成財產損失!只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配;嚴禁用錘擊方式將皮帶輪、聯軸器,小齒輪等裝入軸端部;安裝皮帶輪時皮帶的正確張力要根據制造商的規定;裝配的傳動件應當進行動平衡,并且不允許出現超出許可的徑向力或者軸向力(許可值參見“本頁面附件下載中的KF69減速器選型樣本”)。直角減速機
KF69減速器潮濕或露天場地的安裝:若要在潮濕場地或露天情況下使用驅動設備,則設備要做防腐設計,供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落(如透氣閥或吊耳出),進行修補。將電機安裝到聯軸器AM、AD時,法蘭表面要采用合適的密封膠,例如Loctitlre518進行密封。
KF69減速器的透氣:安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟;例外情況:對于下列KF69減速器,BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下,采用傳動式安裝位置,傾斜位置安裝的KF69減速器,啟動KF69減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機
KF69減速器型號:
KWF67-Y0.18KWF,KWF67-Y0.25KWF,KWF67-Y0.37KWF,KWF67-Y0.55KWF,KWF67-Y0.75KWF,KWF67-Y1.1KWF,KWF67-Y1.5KWF,KWF67-Y100M4,KWF67-Y112M4,KWF67-Y2.2KWF,KWF67-Y3KWF,KWF67-Y4KWF,KWF67-Y5.5KWF,KWF67-Y63M4,KWF67-Y71M4,KWF67-Y80M4,KWF67-Y90M4,KWF67-YB100M4,KWF67-YB112M4,KWF67-YB132M4,KWF67-YB63M4,KWF67-YB71M4,KWF67-YB80M4,KWF67-YB90M4,KWF67-YDP100M4,KWF67-YDP112M4,KWF67-YDP132M4,KWF67-YDP63M4,KWF67-YDP71M4,KWF67-YDP80M4,KWF67-YDP90M4,KWF67-YE100M4,KWF67-YE112M4,KWF67-YE132M4,KWF67-YE63M4,KWF67-YE71M4,KWF67-YE80M4,KWF67-YE90M4,KWF67-YEJ100M4,KWF67-YEJ112M4,KWF67-YEJ132M4,KWF67-YEJ63M4,KWF67-YEJ71M4,KWF67-YEJ80M4,KWF67-YEJ90M4,KWF67-YEJB100M4,KWF67-YEJB112M4,KWF67-YEJB132M4,KWF67-YEJB63M4,KWF67-YEJB71M4,KWF67-YEJB80M4,KWF67-YEJB90M4,KWF67-YP100M4,KWF67-YP112M4,KWF67-YP132M4,KWF67-YP63M4,KWF67-YP71M4,KWF67-YP80M4,KWF67-YP90M4,KWF67-YPB100M4,KWF67-YPB112M4,KWF67-YPB132M4,KWF67-YPB63M4,KWF67-YPB71M4,KWF67-YPB80M4,KWF67-YPB90M4,KWF67-YPE100M4,KWF67-YPE112M4,KWF67-YPE132M4,KWF67-YPE63M4,KWF67-YPE71M4,KWF67-YPE80M4,KWF67-YPE90M4,KWF67-YS100M4,KWF67-YS112M4,KWF67-YS132M4,KWF67-YS63M4,KWF67-YS71M4,KWF67-YS80M4,KWF67-YS90M4,KWF67-YVB100M4,KWF67-YVB112M4,KWF67-YVB132M4,KWF67-YVB63M4,KWF67-YVB71M4,KWF67-YVB80M4,KWF67-YVB90M4,KWF67-YVP100M4,KWF67-YVP112M4,KWF67-YVP132M4,KWF67-YVP63M4,KWF67-YVP71M4,KWF67-YVP80M4,KWF67-YVP90M4,KWF67-YVPEJ100M4,KWF67-YVPEJ112M4,KWF67-YVPEJ132M4,KWF67-YVPEJ63M4,KWF67-YVPEJ71M4,KWF67-YVPEJ80M4,KWF67-YVPEJ90M4,XDKF67-Y0.18KWF,XDKF67-Y0.25KWF,XDKF67-Y0.37KWF,XDKF67-Y0.55KWF,XDKF67-Y0.75KWF,XDKF67-Y1.1KWF,XDKF67-Y1.5KWF,XDKF67-Y100M4,XDKF67-Y112M4,XDKF67-Y2.2KWF,XDKF67-Y3KWF,XDKF67-Y4KWF,XDKF67-Y5.5KWF,XDKF67-Y63M4,XDKF67-Y71M4,XDKF67-Y80M4,XDKF67-Y90M4,XDKF67-YB100M4,XDKF67-YB112M4,XDKF67-YB132M4,XDKF67-YB63M4,XDKF67-YB71M4,XDKF67-YB80M4,XDKF67-YB90M4,XDKF67-YDP100M4,XDKF67-YDP112M4,XDKF67-YDP132M4,XDKF67-YDP63M4,XDKF67-YDP71M4,XDKF67-YDP80M4,XDKF67-YDP90M4,XDKF67-YE100M4,XDKF67-YE112M4,XDKF67-YE132M4,XDKF67-YE63M4,XDKF67-YE71M4,XDKF67-YE80M4,XDKF67-YE90M4,XDKF67-YEJ100M4,XDKF67-YEJ112M4,XDKF67-YEJ132M4,XDKF67-YEJ63M4,XDKF67-YEJ71M4,XDKF67-YEJ80M4,XDKF67-YEJ90M4,XDKF67-YEJB100M4,XDKF67-YEJB112M4,XDKF67-YEJB132M4,XDKF67-YEJB63M4,XDKF67-YEJB71M4,XDKF67-YEJB80M4,XDKF67-YEJB90M4,XDKF67-YP100M4,XDKF67-YP112M4,XDKF67-YP132M4,XDKF67-YP63M4,XDKF67-YP71M4,XDKF67-YP80M4,XDKF67-YP90M4,XDKF67-YPB100M4,XDKF67-YPB112M4,XDKF67-YPB132M4,XDKF67-YPB63M4,XDKF67-YPB71M4,XDKF67-YPB80M4,XDKF67-YPB90M4,XDKF67-YPE100M4,XDKF67-YPE112M4,XDKF67-YPE132M4,XDKF67-YPE63M4,XDKF67-YPE71M4,XDKF67-YPE80M4,XDKF67-YPE90M4,XDKF67-YS100M4,XDKF67-YS112M4,XDKF67-YS132M4,XDKF67-YS63M4,XDKF67-YS71M4,XDKF67-YS80M4,XDKF67-YS90M4,XDKF67-YVB100M4,XDKF67-YVB112M4,XDKF67-YVB132M4,XDKF67-YVB63M4,XDKF67-YVB71M4,XDKF67-YVB80M4,XDKF67-YVB90M4,XDKF67-YVP100M4,XDKF67-YVP112M4,XDKF67-YVP132M4,XDKF67-YVP63M4,XDKF67-YVP71M4,XDKF67-YVP80M4,XDKF67-YVP90M4,XDKF67-YVPEJ100M4,XDKF67-YVPEJ112M4,XDKF67-YVPEJ132M4,XDKF67-YVPEJ63M4,XDKF67-YVPEJ71M4,XDKF67-YVPEJ80M4,XDKF67-YVPEJ90M4,JCKF67-Y0.18KWF,JCKF67-Y0.25KWF,JCKF67-Y0.37KWF,JCKF67-Y0.55KWF,JCKF67-Y0.75KWF,JCKF67-Y1.1KWF,JCKF67-Y1.5KWF,JCKF67-Y100M4,JCKF67-Y112M4,JCKF67-Y2.2KWF,JCKF67-Y3KWF,JCKF67-Y4KWF,JCKF67-Y5.5KWF,JCKF67-Y63M4,JCKF67-Y71M4,JCKF67-Y80M4,JCKF67-Y90M4,JCKF67-YB100M4,JCKF67-YB112M4,JCKF67-YB132M4,JCKF67-YB63M4,JCKF67-YB71M4,JCKF67-YB80M4,JCKF67-YB90M4,JCKF67-YDP100M4,JCKF67-YDP112M4,JCKF67-YDP132M4,JCKF67-YDP63M4,JCKF67-YDP71M4,JCKF67-YDP80M4,JCKF67-YDP90M4,JCKF67-YE100M4,JCKF67-YE112M4,JCKF67-YE132M4,JCKF67-YE63M4,JCKF67-YE71M4,JCKF67-YE80M4,JCKF67-YE90M4,JCKF67-YEJ100M4,JCKF67-YEJ112M4,JCKF67-YEJ132M4,JCKF67-YEJ63M4,JCKF67-YEJ71M4,JCKF67-YEJ80M4,JCKF67-YEJ90M4,JCKF67-YEJB100M4,JCKF67-YEJB112M4,JCKF67-YEJB132M4,JCKF67-YEJB63M4,JCKF67-YEJB71M4,JCKF67-YEJB80M4,JCKF67-YEJB90M4,JCKF67-YP100M4,JCKF67-YP112M4,JCKF67-YP132M4,JCKF67-YP63M4,JCKF67-YP71M4,JCKF67-YP80M4,JCKF67-YP90M4,JCKF67-YPB100M4,JCKF67-YPB112M4,JCKF67-YPB132M4,JCKF67-YPB63M4,JCKF67-YPB71M4,JCKF67-YPB80M4,JCKF67-YPB90M4,JCKF67-YPE100M4,JCKF67-YPE112M4,JCKF67-YPE132M4,JCKF67-YPE63M4,JCKF67-YPE71M4,JCKF67-YPE80M4,JCKF67-YPE90M4,JCKF67-YS100M4,JCKF67-YS112M4,JCKF67-YS132M4,JCKF67-YS63M4,JCKF67-YS71M4,JCKF67-YS80M4,JCKF67-YS90M4,JCKF67-YVB100M4,JCKF67-YVB112M4,JCKF67-YVB132M4,JCKF67-YVB63M4,JCKF67-YVB71M4,JCKF67-YVB80M4,JCKF67-YVB90M4,JCKF67-YVP100M4,JCKF67-YVP112M4,JCKF67-YVP132M4,JCKF67-YVP63M4,JCKF67-YVP71M4,JCKF67-YVP80M4,JCKF67-YVP90M4,JCKF67-YVPEJ100M4,JCKF67-YVPEJ112M4,JCKF67-YVPEJ132M4,JCKF67-YVPEJ63M4,JCKF67-YVPEJ71M4,JCKF67-YVPEJ80M4,JCKF67-YVPEJ90M4,YQKF67-Y0.18KWF,YQKF67-Y0.25KWF,YQKF67-Y0.37KWF,YQKF67-Y0.55KWF,YQKF67-Y0.75KWF,YQKF67-Y1.1KWF,YQKF67-Y1.5KWF,YQKF67-Y100M4,YQKF67-Y112M4,YQKF67-Y2.2KWF,YQKF67-Y3KWF,YQKF67-Y4KWF,YQKF67-Y5.5KWF,YQKF67-Y63M4,YQKF67-Y71M4,YQKF67-Y80M4,YQKF67-Y90M4,YQKF67-YB100M4,YQKF67-YB112M4,YQKF67-YB132M4,YQKF67-YB63M4,YQKF67-YB71M4,YQKF67-YB80M4,YQKF67-YB90M4,YQKF67-YDP100M4,YQKF67-YDP112M4,YQKF67-YDP132M4,YQKF67-YDP63M4,YQKF67-YDP71M4,YQKF67-YDP80M4,YQKF67-YDP90M4,YQKF67-YE100M4,YQKF67-YE112M4,YQKF67-YE132M4,YQKF67-YE63M4,YQKF67-YE71M4,YQKF67-YE80M4,YQKF67-YE90M4,YQKF67-YEJ100M4,YQKF67-YEJ112M4,YQKF67-YEJ132M4,YQKF67-YEJ63M4,YQKF67-YEJ71M4,YQKF67-YEJ80M4,YQKF67-YEJ90M4,YQKF67-YEJB100M4,YQKF67-YEJB112M4,YQKF67-YEJB132M4,YQKF67-YEJB63M4,YQKF67-YEJB71M4,YQKF67-YEJB80M4,YQKF67-YEJB90M4,YQKF67-YP100M4,YQKF67-YP112M4,YQKF67-YP132M4,YQKF67-YP63M4,YQKF67-YP71M4,YQKF67-YP80M4,YQKF67-YP90M4,YQKF67-YPB100M4,YQKF67-YPB112M4,YQKF67-YPB132M4,YQKF67-YPB63M4,YQKF67-YPB71M4,YQKF67-YPB80M4,YQKF67-YPB90M4,YQKF67-YPE100M4,YQKF67-YPE112M4,YQKF67-YPE132M4,YQKF67-YPE63M4,YQKF67-YPE71M4,YQKF67-YPE80M4,YQKF67-YPE90M4,YQKF67-YS100M4,YQKF67-YS112M4,YQKF67-YS132M4,YQKF67-YS63M4,YQKF67-YS71M4,YQKF67-YS80M4,YQKF67-YS90M4,YQKF67-YVB100M4,YQKF67-YVB112M4,YQKF67-YVB132M4,YQKF67-YVB63M4,YQKF67-YVB71M4,YQKF67-YVB80M4,YQKF67-YVB90M4,YQKF67-YVP100M4,YQKF67-YVP112M4,YQKF67-YVP132M4,YQKF67-YVP63M4,YQKF67-YVP71M4,YQKF67-YVP80M4,YQKF67-YVP90M4,YQKF67-YVPEJ100M4,YQKF67-YVPEJ112M4,YQKF67-YVPEJ132M4,YQKF67-YVPEJ63M4,YQKF67-YVPEJ71M4,YQKF67-YVPEJ80M4,YQKF67-YVPEJ90M4,KF69-Y0.18KWF,KF69-Y0.25KWF,KF69-Y0.37KWF,KF69-Y0.55KWF,KF69-Y0.75KWF,KF69-Y1.1KWF,KF69-Y1.5KWF,KF69-Y100M4,KF69-Y112M4,KF69-Y2.2KWF,KF69-Y3KWF,KF69-Y4KWF,KF69-Y5.5KWF,KF69-Y63M4,KF69-Y71M4,KF69-Y80M4,KF69-Y90M4,KF69-YB100M4,KF69-YB112M4,KF69-YB132M4,KF69-YB63M4,KF69-YB71M4,KF69-YB80M4,KF69-YB90M4,KF69-YDP100M4,KF69-YDP112M4,KF69-YDP132M4,KF69-YDP63M4,KF69-YDP71M4,KF69-YDP80M4,KF69-YDP90M4,KF69-YE100M4,KF69-YE112M4,KF69-YE132M4,KF69-YE63M4,KF69-YE71M4,KF69-YE80M4,KF69-YE90M4,KF69-YEJ100M4,KF69-YEJ112M4,KF69-YEJ132M4,KF69-YEJ63M4,KF69-YEJ71M4,KF69-YEJ80M4,KF69-YEJ90M4,KF69-YEJB100M4,KF69-YEJB112M4,KF69-YEJB132M4,KF69-YEJB63M4,KF69-YEJB71M4,KF69-YEJB80M4,KF69-YEJB90M4,KF69-YP100M4,KF69-YP112M4,KF69-YP132M4,KF69-YP63M4,KF69-YP71M4,KF69-YP80M4,KF69-YP90M4,KF69-YPB100M4,KF69-YPB112M4,KF69-YPB132M4,KF69-YPB63M4,KF69-YPB71M4,KF69-YPB80M4,KF69-YPB90M4,KF69-YPE100M4,KF69-YPE112M4,KF69-YPE132M4,KF69-YPE63M4,KF69-YPE71M4,KF69-YPE80M4,KF69-YPE90M4,KF69-YS100M4,KF69-YS112M4,KF69-YS132M4,KF69-YS63M4,KF69-YS71M4,KF69-YS80M4,KF69-YS90M4,KF69-YVB100M4,KF69-YVB112M4,KF69-YVB132M4,KF69-YVB63M4,KF69-YVB71M4,KF69-YVB80M4,KF69-YVB90M4,KF69-YVP100M4,KF69-YVP112M4,KF69-YVP132M4,KF69-YVP63M4,KF69-YVP71M4,KF69-YVP80M4,KF69-YVP90M4,KF69-YVPEJ100M4,KF69-YVPEJ112M4,KF69-YVPEJ132M4,KF69-YVPEJ63M4,KF69-YVPEJ71M4,KF69-YVPEJ80M4,KF69-YVPEJ90M4,KF67SF80,KF67SF90,KF67SF100,KF67SF112,KF67SF115,KF67SF140,KF67SF160,KF67SF190。
KF69減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kfxiliejiansuji-cn.html
推薦類似型號:K69減速機
關鍵詞:帶伺服減速機_伺服電機減速機_伺服電機減速器_伺服減速器_大扭力減速機_大扭力減速器_交流減速機_GKF系列減速機_KF系列減速機_伺服電機減速機一體機_伺服減速機一體機_KF系列減速器

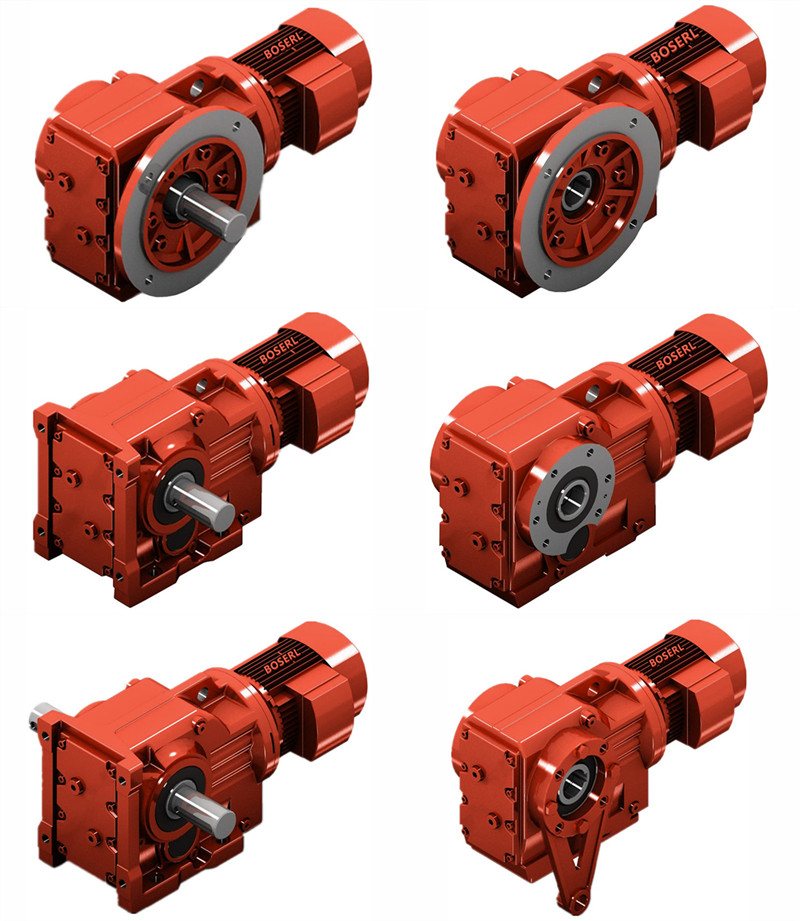

KF系列齒輪減速電機型號:KF39減速機,KF49減速機,KF59減速機,KF69減速機,KF79減速機,KF89減速機,KF99減速機,KF109減速機,KF129減速機,KF159減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
