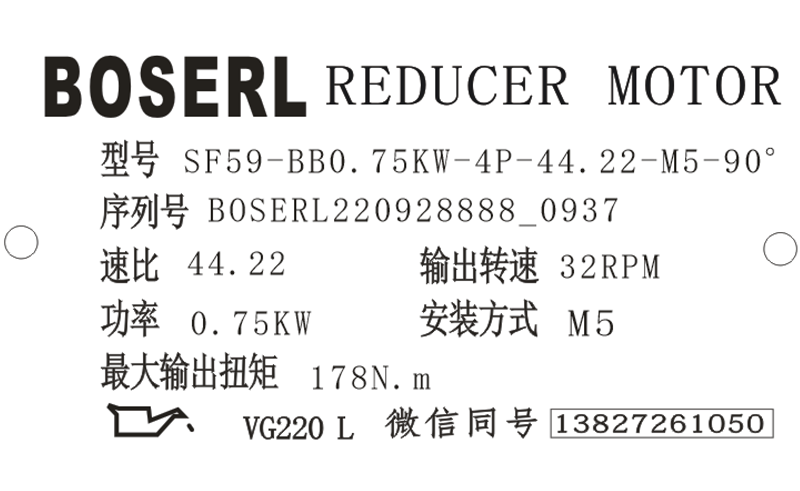

SF59減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF59減速機選型樣本。
SF59-BB0.75KW-4P-44.22-M5-90°
SF:系列代號
59:減速機規格代號
BB:電機
0.75KW:電機功率
4P:電機級數
44.22:減速機傳動比
M5:減速機安裝位置
90°:接線盒位置
SF59減速機潤滑油型號:
SF59減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
SF59減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據SF59減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“SF59減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。齒輪減速電機
SF59減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF59減速機選型樣本中列出了安裝位置從M1到M6SF59減速機相應的潤滑油加注標準,請自行下載查看。
SF59減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。
SF59減速機使用說明:
SF59減速機注意事項:若未注入正確的SF59減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。伺服電機蝸輪蝸桿減速機
SF59減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見SF59減速機說明書安裝位置章節中的內容。
SF59減速機的螺母:立式安裝SF59減速機輸出法蘭螺母規格M10;SF59減速機螺母/螺母擰緊扭矩強度等級10.9。
SF59減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
SF59減速機警告說明:由于SF59減速機發熱或SF59減速機油溫過高可能引起燙傷;對SF59減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機
SF59減速機型號:
SF59-Y0.18KW,SF59-Y0.25KW,SF59-Y0.37KW,SF59-Y0.55KW,SF59-Y0.75KW,SF59-Y1.1KW,SF59-Y1.5KW,SF59-Y100M4,SF59-Y2.2KW,SF59-Y3KW,SF59-Y63M4,SF59-Y71M4,SF59-Y80M4,SF59-Y90M4,SF59-YB100M4,SF59-YB63M4,SF59-YB71M4,SF59-YB80M4,SF59-YB90M4,SF59-YDP100M4,SF59-YDP63M4,SF59-YDP71M4,SF59-YDP80M4,SF59-YDP90M4,SF59-YE100M4,SF59-YE63M4,SF59-YE71M4,SF59-YE80M4,SF59-YE90M4,SF59-YEJ100M4,SF59-YEJ63M4,SF59-YEJ71M4,SF59-YEJ80M4,SF59-YEJ90M4,SF59-YEJB100M4,SF59-YEJB63M4,SF59-YEJB71M4,SF59-YEJB80M4,SF59-YEJB90M4,SF59-YP100M4,SF59-YP63M4,SF59-YP71M4,SF59-YP80M4,SF59-YP90M4,SF59-YPB100M4,SF59-YPB63M4,SF59-YPB71M4,SF59-YPB80M4,SF59-YPB90M4,SF59-YPE100M4,SF59-YPE63M4,SF59-YPE71M4,SF59-YPE80M4,SF59-YPE90M4,SF59-YS100M4,SF59-YS63M4,SF59-YS71M4,SF59-YS80M4,SF59-YS90M4,SF59-YVB100M4,SF59-YVB63M4,SF59-YVB71M4,SF59-YVB80M4,SF59-YVB90M4,SF59-YVP100M4,SF59-YVP63M4,SF59-YVP71M4,SF59-YVP80M4,SF59-YVP90M4,SF59-YVPEJ100M4,SF59-YVPEJ63M4,SF59-YVPEJ71M4,SF59-YVPEJ80M4,SF59-YVPEJ90M4,XDSF57-Y0.18KW,XDSF57-Y0.25KW,XDSF57-Y0.37KW,XDSF57-Y0.55KW,XDSF57-Y0.75KW,XDSF57-Y1.1KW,XDSF57-Y1.5KW,XDSF57-Y100M4,XDSF57-Y2.2KW,XDSF57-Y3KW,XDSF57-Y63M4,XDSF57-Y71M4,XDSF57-Y80M4,XDSF57-Y90M4,XDSF57-YB100M4,XDSF57-YB63M4,XDSF57-YB71M4,XDSF57-YB80M4,XDSF57-YB90M4,XDSF57-YDP100M4,XDSF57-YDP63M4,XDSF57-YDP71M4,XDSF57-YDP80M4,XDSF57-YDP90M4,XDSF57-YE100M4,XDSF57-YE63M4,XDSF57-YE71M4,XDSF57-YE80M4,XDSF57-YE90M4,XDSF57-YEJ100M4,XDSF57-YEJ63M4,XDSF57-YEJ71M4,XDSF57-YEJ80M4,XDSF57-YEJ90M4,XDSF57-YEJB100M4,XDSF57-YEJB63M4,XDSF57-YEJB71M4,XDSF57-YEJB80M4,XDSF57-YEJB90M4,XDSF57-YP100M4,XDSF57-YP63M4,XDSF57-YP71M4,XDSF57-YP80M4,XDSF57-YP90M4,XDSF57-YPB100M4,XDSF57-YPB63M4,XDSF57-YPB71M4,XDSF57-YPB80M4,XDSF57-YPB90M4,XDSF57-YPE100M4,XDSF57-YPE63M4,XDSF57-YPE71M4,XDSF57-YPE80M4,XDSF57-YPE90M4,XDSF57-YS100M4,XDSF57-YS63M4,XDSF57-YS71M4,XDSF57-YS80M4,XDSF57-YS90M4,XDSF57-YVB100M4,XDSF57-YVB63M4,XDSF57-YVB71M4,XDSF57-YVB80M4,XDSF57-YVB90M4,XDSF57-YVP100M4,XDSF57-YVP63M4,XDSF57-YVP71M4,XDSF57-YVP80M4,XDSF57-YVP90M4,XDSF57-YVPEJ100M4,XDSF57-YVPEJ63M4,XDSF57-YVPEJ71M4,XDSF57-YVPEJ80M4,XDSF57-YVPEJ90M4,JCSF57-Y0.18KW,JCSF57-Y0.25KW,JCSF57-Y0.37KW,JCSF57-Y0.55KW,JCSF57-Y0.75KW,JCSF57-Y1.1KW,JCSF57-Y1.5KW,JCSF57-Y100M4,JCSF57-Y2.2KW,JCSF57-Y3KW,JCSF57-Y63M4,JCSF57-Y71M4,JCSF57-Y80M4,JCSF57-Y90M4,JCSF57-YB100M4,JCSF57-YB63M4,JCSF57-YB71M4,JCSF57-YB80M4,JCSF57-YB90M4,JCSF57-YDP100M4,JCSF57-YDP63M4,JCSF57-YDP71M4,JCSF57-YDP80M4,JCSF57-YDP90M4,JCSF57-YE100M4,JCSF57-YE63M4,JCSF57-YE71M4,JCSF57-YE80M4,JCSF57-YE90M4,JCSF57-YEJ100M4,JCSF57-YEJ63M4,JCSF57-YEJ71M4,JCSF57-YEJ80M4,JCSF57-YEJ90M4,JCSF57-YEJB100M4,JCSF57-YEJB63M4,JCSF57-YEJB71M4,JCSF57-YEJB80M4,JCSF57-YEJB90M4,JCSF57-YP100M4,JCSF57-YP63M4,JCSF57-YP71M4,JCSF57-YP80M4,JCSF57-YP90M4,JCSF57-YPB100M4,JCSF57-YPB63M4,JCSF57-YPB71M4,JCSF57-YPB80M4,JCSF57-YPB90M4,JCSF57-YPE100M4,JCSF57-YPE63M4,JCSF57-YPE71M4,JCSF57-YPE80M4,JCSF57-YPE90M4,JCSF57-YS100M4,JCSF57-YS63M4,JCSF57-YS71M4,JCSF57-YS80M4,JCSF57-YS90M4,JCSF57-YVB100M4,JCSF57-YVB63M4,JCSF57-YVB71M4,JCSF57-YVB80M4,JCSF57-YVB90M4,JCSF57-YVP100M4,JCSF57-YVP63M4,JCSF57-YVP71M4,JCSF57-YVP80M4,JCSF57-YVP90M4,JCSF57-YVPEJ100M4,JCSF57-YVPEJ63M4,JCSF57-YVPEJ71M4,JCSF57-YVPEJ80M4,JCSF57-YVPEJ90M4,YQSF57-Y0.18KW,YQSF57-Y0.25KW,YQSF57-Y0.37KW,YQSF57-Y0.55KW,YQSF57-Y0.75KW,YQSF57-Y1.1KW,YQSF57-Y1.5KW,YQSF57-Y100M4,YQSF57-Y2.2KW,YQSF57-Y3KW,YQSF57-Y63M4,YQSF57-Y71M4,YQSF57-Y80M4,YQSF57-Y90M4,YQSF57-YB100M4,YQSF57-YB63M4,YQSF57-YB71M4,YQSF57-YB80M4,YQSF57-YB90M4,YQSF57-YDP100M4,YQSF57-YDP63M4,YQSF57-YDP71M4,YQSF57-YDP80M4,YQSF57-YDP90M4,YQSF57-YE100M4,YQSF57-YE63M4,YQSF57-YE71M4,YQSF57-YE80M4,YQSF57-YE90M4,YQSF57-YEJ100M4,YQSF57-YEJ63M4,YQSF57-YEJ71M4,YQSF57-YEJ80M4,YQSF57-YEJ90M4,YQSF57-YEJB100M4,YQSF57-YEJB63M4,YQSF57-YEJB71M4,YQSF57-YEJB80M4,YQSF57-YEJB90M4,YQSF57-YP100M4,YQSF57-YP63M4,YQSF57-YP71M4,YQSF57-YP80M4,YQSF57-YP90M4,YQSF57-YPB100M4,YQSF57-YPB63M4,YQSF57-YPB71M4,YQSF57-YPB80M4,YQSF57-YPB90M4,YQSF57-YPE100M4,YQSF57-YPE63M4,YQSF57-YPE71M4,YQSF57-YPE80M4,YQSF57-YPE90M4,YQSF57-YS100M4,YQSF57-YS63M4,YQSF57-YS71M4,YQSF57-YS80M4,YQSF57-YS90M4,YQSF57-YVB100M4,YQSF57-YVB63M4,YQSF57-YVB71M4,YQSF57-YVB80M4,YQSF57-YVB90M4,YQSF57-YVP100M4,YQSF57-YVP63M4,YQSF57-YVP71M4,YQSF57-YVP80M4,YQSF57-YVP90M4,YQSF57-YVPEJ100M4,YQSF57-YVPEJ63M4,YQSF57-YVPEJ71M4,YQSF57-YVPEJ80M4,YQSF57-YVPEJ90M4,SWF57-Y0.18KW,SWF57-Y0.25KW,SWF57-Y0.37KW,SWF57-Y0.55KW,SWF57-Y0.75KW,SWF57-Y1.1KW,SWF57-Y1.5KW,SWF57-Y100M4,SWF57-Y2.2KW,SWF57-Y3KW,SWF57-Y63M4,SWF57-Y71M4,SWF57-Y80M4,SWF57-Y90M4,SWF57-YB100M4,SWF57-YB63M4,SWF57-YB71M4,SWF57-YB80M4,SWF57-YB90M4,SWF57-YDP100M4,SWF57-YDP63M4,SWF57-YDP71M4,SWF57-YDP80M4,SWF57-YDP90M4,SWF57-YE100M4,SWF57-YE63M4,SWF57-YE71M4,SWF57-YE80M4,SWF57-YE90M4,SWF57-YEJ100M4,SWF57-YEJ63M4,SWF57-YEJ71M4,SWF57-YEJ80M4,SWF57-YEJ90M4,SWF57-YEJB100M4,SWF57-YEJB63M4,SWF57-YEJB71M4,SWF57-YEJB80M4,SWF57-YEJB90M4,SWF57-YP100M4,SWF57-YP63M4,SWF57-YP71M4,SWF57-YP80M4,SWF57-YP90M4,SWF57-YPB100M4,SWF57-YPB63M4,SWF57-YPB71M4,SWF57-YPB80M4,SWF57-YPB90M4,SWF57-YPE100M4,SWF57-YPE63M4,SWF57-YPE71M4,SWF57-YPE80M4,SWF57-YPE90M4,SWF57-YS100M4,SWF57-YS63M4,SWF57-YS71M4,SWF57-YS80M4,SWF57-YS90M4,SWF57-YVB100M4,SWF57-YVB63M4,SWF57-YVB71M4,SWF57-YVB80M4,SWF57-YVB90M4,SWF57-YVP100M4,SWF57-YVP63M4,SWF57-YVP71M4,SWF57-YVP80M4,SWF57-YVP90M4,SWF57-YVPEJ100M4,SWF57-YVPEJ63M4,SWF57-YVPEJ71M4,SWF57-YVPEJ80M4,SWF57-YVPEJ90M4。
SF59減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-sfxiliejiansuji-cn.html
推薦類似型號:S59減速機
關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器
SF系列減速機型號:SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機
SF系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
