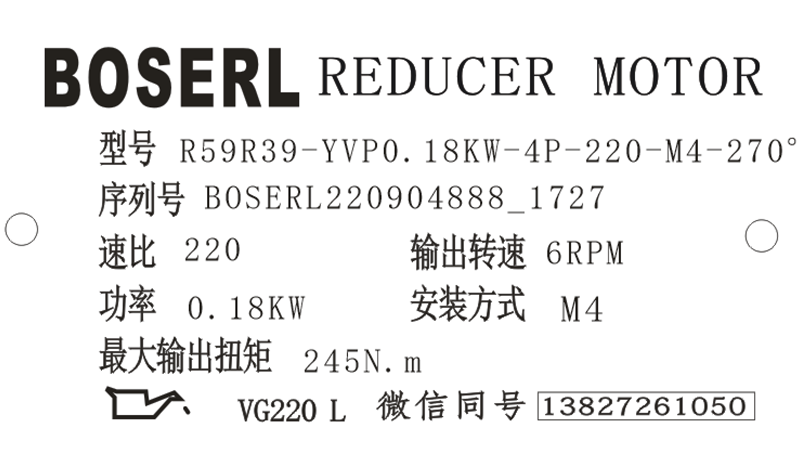

R59R39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R59R39減速機選型樣本。
R59R39-YVP0.18KW-4P-220-M4-270°
R/R:系列代號
59/39:減速機規格代號
Y:電機
VP:變頻電機
0.18KW:電機功率
4P:電機級數
220:減速機傳動比
M4:減速機安裝位置
270°:接線盒位置
R59R39減速機潤滑油檢查:

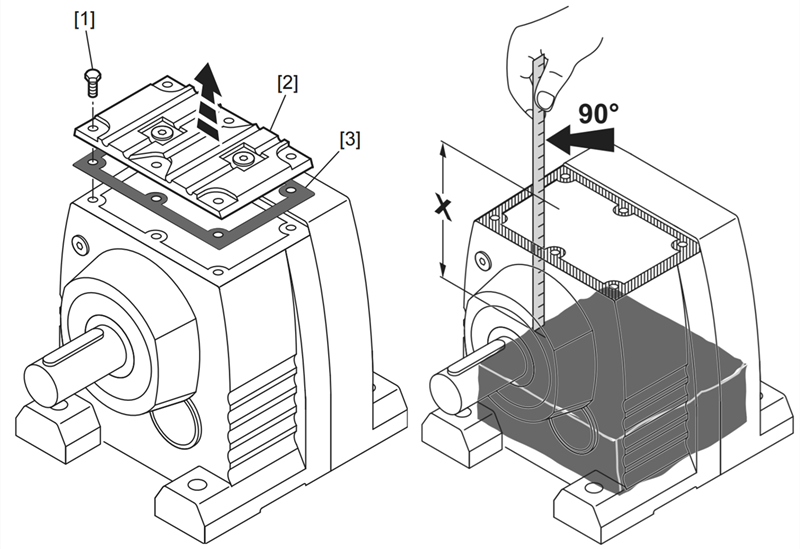

通過安裝蓋檢查油位:對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作:按照下列安裝位置放置減速器以便安裝蓋位于頂部;松開安全蓋2的螺栓1,并卸掉安裝蓋2及蓋上的密封圈3(見下圖);確定油位與減速器箱體密封面的垂直間距“X”(見下圖)。齒輪減速電機

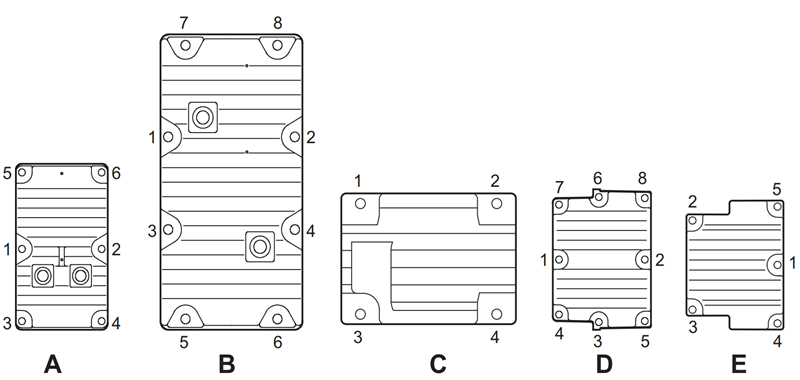

R59R39減速機油位檢查完畢后密封R59R39減速機:重新裝上安裝蓋的密封圈;注意,密封面要保持清潔、干燥;裝上安裝蓋;根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓;重復這一步驟多次,直至螺栓完全擰緊;只能采用氣動扳手或力矩扳手,避免安裝時對蓋板產生破壞,避免用力過猛或使用強沖擊的工具。
R59R39減速機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將R59R39減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。R系列減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。臥式減速機
R59R39減速電機型號:
YQR57R37-Y63M4,YQR57R37-Y71M4,YQR57RF37-Y0.12KW,YQR57RF37-Y0.18KW,YQR57RF37-Y0.25KW,YQR57RF37-Y63M4,YQR57RF37-Y71M4,YQR57RF37-YB63M4,YQR57RF37-YB71M4,YQR57RF37-YDP63M4,YQR57RF37-YDP71M4,YQR57RF37-YE63M4,YQR57RF37-YE71M4,YQR57RF37-YEJ63M4,YQR57RF37-YEJ71M4,YQR57RF37-YEJB63M4,YQR57RF37-YEJB71M4,YQR57RF37-YP63M4,YQR57RF37-YP71M4,YQR57RF37-YPB63M4,YQR57RF37-YPB71M4,YQR57RF37-YPE63M4,YQR57RF37-YPE71M4,YQR57RF37-YS63M4,YQR57RF37-YS71M4,YQR57RF37-YVB63M4,YQR57RF37-YVB71M4,YQR57RF37-YVP63M4,YQR57RF37-YVP71M4,YQR57RF37-YVPEJ63M4,YQR57RF37-YVPEJ71M4,AR57R37-Y63M4,AR57R37-Y71M4,AR57RF37-Y0.12KW,AR57RF37-Y0.18KW,AR57RF37-Y0.25KW,AR57RF37-Y63M4,AR57RF37-Y71M4,AR57RF37-YB63M4,AR57RF37-YB71M4,AR57RF37-YDP63M4,AR57RF37-YDP71M4,AR57RF37-YE63M4,AR57RF37-YE71M4,AR57RF37-YEJ63M4,AR57RF37-YEJ71M4,AR57RF37-YEJB63M4,AR57RF37-YEJB71M4,AR57RF37-YP63M4,AR57RF37-YP71M4,AR57RF37-YPB63M4,AR57RF37-YPB71M4,AR57RF37-YPE63M4,AR57RF37-YPE71M4,AR57RF37-YS63M4,AR57RF37-YS71M4,AR57RF37-YVB63M4,AR57RF37-YVB71M4,AR57RF37-YVP63M4,AR57RF37-YVP71M4,AR57RF37-YVPEJ63M4,AR57RF37-YVPEJ71M4,WR57R37-Y63M4,WR57R37-Y71M4,WR57RF37-Y0.12KW,WR57RF37-Y0.18KW,WR57RF37-Y0.25KW,WR57RF37-Y63M4,WR57RF37-Y71M4,WR57RF37-YB63M4,WR57RF37-YB71M4,WR57RF37-YDP63M4,WR57RF37-YDP71M4,WR57RF37-YE63M4,WR57RF37-YE71M4,WR57RF37-YEJ63M4,WR57RF37-YEJ71M4,WR57RF37-YEJB63M4,WR57RF37-YEJB71M4,WR57RF37-YP63M4,WR57RF37-YP71M4,WR57RF37-YPB63M4,WR57RF37-YPB71M4,WR57RF37-YPE63M4,WR57RF37-YPE71M4,WR57RF37-YS63M4,WR57RF37-YS71M4,WR57RF37-YVB63M4,WR57RF37-YVB71M4,WR57RF37-YVP63M4,WR57RF37-YVP71M4,WR57RF37-YVPEJ63M4,WR57RF37-YVPEJ71M4,SR57R37-Y63M4,SR57R37-Y71M4,SR57RF37-Y0.12KW,SR57RF37-Y0.18KW,SR57RF37-Y0.25KW,SR57RF37-Y63M4,SR57RF37-Y71M4,SR57RF37-YB63M4,SR57RF37-YB71M4,SR57RF37-YDP63M4,SR57RF37-YDP71M4,SR57RF37-YE63M4,SR57RF37-YE71M4,SR57RF37-YEJ63M4,SR57RF37-YEJ71M4,SR57RF37-YEJB63M4,SR57RF37-YEJB71M4,SR57RF37-YP63M4,SR57RF37-YP71M4,SR57RF37-YPB63M4,SR57RF37-YPB71M4,SR57RF37-YPE63M4,SR57RF37-YPE71M4,SR57RF37-YS63M4,SR57RF37-YS71M4,SR57RF37-YVB63M4,SR57RF37-YVB71M4,SR57RF37-YVP63M4,SR57RF37-YVP71M4,SR57RF37-YVPEJ63M4,SR57RF37-YVPEJ71M4,XDR57R37-Y63M4,XDR57R37-Y71M4,XDR57RF37-Y0.12KW,XDR57RF37-Y0.18KW,XDR57RF37-Y0.25KW,XDR57RF37-Y63M4,XDR57RF37-Y71M4,XDR57RF37-YB63M4,XDR57RF37-YB71M4,XDR57RF37-YDP63M4,XDR57RF37-YDP71M4,XDR57RF37-YE63M4,XDR57RF37-YE71M4,XDR57RF37-YEJ63M4,XDR57RF37-YEJ71M4,XDR57RF37-YEJB63M4,XDR57RF37-YEJB71M4,XDR57RF37-YP63M4,XDR57RF37-YP71M4,XDR57RF37-YPB63M4,XDR57RF37-YPB71M4,XDR57RF37-YPE63M4,XDR57RF37-YPE71M4,XDR57RF37-YS63M4,XDR57RF37-YS71M4,XDR57RF37-YVB63M4,XDR57RF37-YVB71M4,XDR57RF37-YVP63M4,XDR57RF37-YVP71M4,XDR57RF37-YVPEJ63M4,XDR57RF37-YVPEJ71M4,JCR57R37-Y63M4,JCR57R37-Y71M4,JCR57RF37-Y0.12KW,JCR57RF37-Y0.18KW,JCR57RF37-Y0.25KW,JCR57RF37-Y63M4,JCR57RF37-Y71M4,JCR57RF37-YB63M4,JCR57RF37-YB71M4,JCR57RF37-YDP63M4,JCR57RF37-YDP71M4,JCR57RF37-YE63M4,JCR57RF37-YE71M4,JCR57RF37-YEJ63M4,JCR57RF37-YEJ71M4,JCR57RF37-YEJB63M4,JCR57RF37-YEJB71M4,JCR57RF37-YP63M4,JCR57RF37-YP71M4,JCR57RF37-YPB63M4,JCR57RF37-YPB71M4,JCR57RF37-YPE63M4,JCR57RF37-YPE71M4,JCR57RF37-YS63M4,JCR57RF37-YS71M4,JCR57RF37-YVB63M4,JCR57RF37-YVB71M4,JCR57RF37-YVP63M4,JCR57RF37-YVP71M4,JCR57RF37-YVPEJ63M4,JCR57RF37-YVPEJ71M4,NR57R37-Y63M4,NR57R37-Y71M4,NR57RF37-Y0.12KW,NR57RF37-Y0.18KW,NR57RF37-Y0.25KW,NR57RF37-Y63M4,NR57RF37-Y71M4,NR57RF37-YB63M4,NR57RF37-YB71M4,NR57RF37-YDP63M4,NR57RF37-YDP71M4,NR57RF37-YE63M4,NR57RF37-YE71M4,NR57RF37-YEJ63M4,NR57RF37-YEJ71M4,NR57RF37-YEJB63M4,NR57RF37-YEJB71M4,NR57RF37-YP63M4,NR57RF37-YP71M4,NR57RF37-YPB63M4,NR57RF37-YPB71M4,NR57RF37-YPE63M4,NR57RF37-YPE71M4,NR57RF37-YS63M4,NR57RF37-YS71M4,NR57RF37-YVB63M4,NR57RF37-YVB71M4,NR57RF37-YVP63M4,NR57RF37-YVP71M4,NR57RF37-YVPEJ63M4,NR57RF37-YVPEJ71M4,RW57RW37-Y63M4,RW57RW37-Y71M4,RW57RWF37-Y0.12KW,RW57RWF37-Y0.18KW,RW57RWF37-Y0.25KW,RW57RWF37-Y63M4,RW57RWF37-Y71M4,RW57RWF37-YB63M4,RW57RWF37-YB71M4,RW57RWF37-YDP63M4,RW57RWF37-YDP71M4,RW57RWF37-YE63M4,RW57RWF37-YE71M4,RW57RWF37-YEJ63M4,RW57RWF37-YEJ71M4,RW57RWF37-YEJB63M4,RW57RWF37-YEJB71M4,RW57RWF37-YP63M4,RW57RWF37-YP71M4,RW57RWF37-YPB63M4,RW57RWF37-YPB71M4,RW57RWF37-YPE63M4,RW57RWF37-YPE71M4,RW57RWF37-YS63M4,RW57RWF37-YS71M4,RW57RWF37-YVB63M4,RW57RWF37-YVB71M4,RW57RWF37-YVP63M4,RW57RWF37-YVP71M4,RW57RWF37-YVPEJ63M4,RW57RWF37-YVPEJ71M4,R59R39-Y63M4,R59R39-Y71M4,R59RF39-Y0.12KW,R59RF39-Y0.18KW,R59RF39-Y0.25KW,R59RF39-Y63M4,R59RF39-Y71M4,R59RF39-YB63M4,R59RF39-YB71M4,R59RF39-YDP63M4,R59RF39-YDP71M4,R59RF39-YE63M4,R59RF39-YE71M4,R59RF39-YEJ63M4,R59RF39-YEJ71M4,R59RF39-YEJB63M4,R59RF39-YEJB71M4,R59RF39-YP63M4,R59RF39-YP71M4,R59RF39-YPB63M4,R59RF39-YPB71M4,R59RF39-YPE63M4,R59RF39-YPE71M4,R59RF39-YS63M4,R59RF39-YS71M4,R59RF39-YVB63M4,R59RF39-YVB71M4,R59RF39-YVP63M4,R59RF39-YVP71M4,R59RF39-YVPEJ63M4,R59RF39-YVPEJ71M4。
R59R39減速機生產廠家:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxiliejiansuji-cn.html
推薦型號:R59減速機
關鍵詞:GR型減速電機臥式一體機_GR型減速機_R系列減速機帶電機_R系列減速器_同向減速器_同向減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號:R19減速機,R29減速機,R39減速機,R49減速機,R59減速機,R69減速機,R79減速機,R89減速機,R99減速機,R109減速機,R139減速機,R149減速機,R169減速機
R系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
