R69R39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R69R39減速機選型樣本。
R69R39-YVP0.12KW-4P-438-M5-0°
R/R:系列代號
69/39:減速機規格代號
Y:電機
VP:變頻電機
0.12KW:電機功率
4P:電機級數
438:減速機傳動比
M5:減速機安裝位置
0°:接線盒位置
R69R39減速機潤滑油檢查:

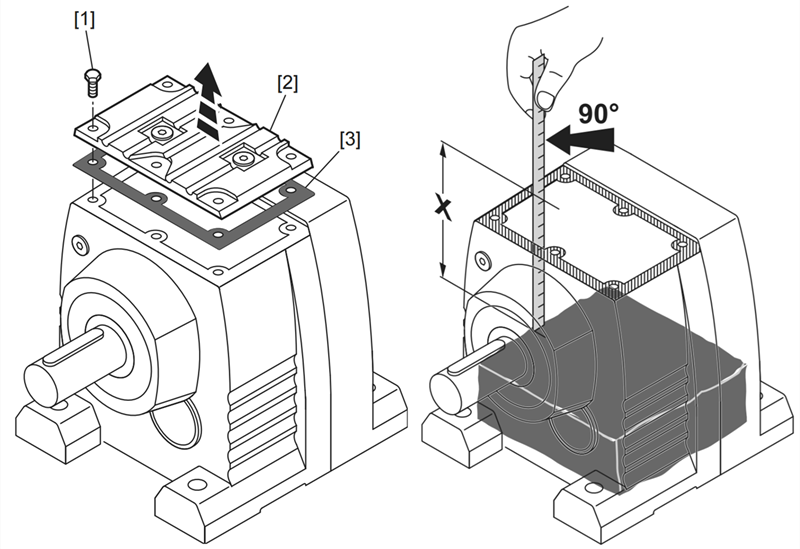

通過安裝蓋檢查油位:對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作:按照下列安裝位置放置減速器以便安裝蓋位于頂部;松開安全蓋2的螺栓1,并卸掉安裝蓋2及蓋上的密封圈3(見下圖);確定油位與減速器箱體密封面的垂直間距“X”(見下圖)。齒輪減速電機

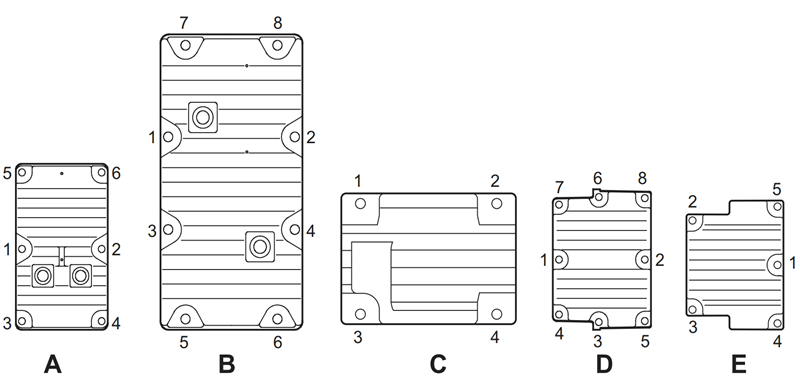

R69R39減速機油位檢查完畢后密封R69R39減速機:重新裝上安裝蓋的密封圈;注意,密封面要保持清潔、干燥;裝上安裝蓋;根據下表中的標稱擰緊扭矩按照?qǐng)D中標明的順序由內向外依次擰緊蓋上的螺栓;重復這一步驟多次,直至螺栓完全擰緊;只能采用氣動扳手或力矩扳手,避免安裝時對蓋板產生破壞,避免用力過猛或使用強沖擊的工具。
R69R39減速機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將R69R39減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。R系列減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。臥式減速機
R69R39減速機型號:
YQR67R37-Y63M4,YQR67R37-Y71M4,YQR67RF37-Y0.12KW,YQR67RF37-Y0.18KW,YQR67RF37-Y0.25KW,YQR67RF37-Y0.37KW,YQR67RF37-Y63M4,YQR67RF37-Y71M4,YQR67RF37-YB63M4,YQR67RF37-YB71M4,YQR67RF37-YDP63M4,YQR67RF37-YDP71M4,YQR67RF37-YE63M4,YQR67RF37-YE71M4,YQR67RF37-YEJ63M4,YQR67RF37-YEJ71M4,YQR67RF37-YEJB63M4,YQR67RF37-YEJB71M4,YQR67RF37-YP63M4,YQR67RF37-YP71M4,YQR67RF37-YPB63M4,YQR67RF37-YPB71M4,YQR67RF37-YPE63M4,YQR67RF37-YPE71M4,YQR67RF37-YS63M4,YQR67RF37-YS71M4,YQR67RF37-YVB63M4,YQR67RF37-YVB71M4,YQR67RF37-YVP63M4,YQR67RF37-YVP71M4,YQR67RF37-YVPEJ63M4,YQR67RF37-YVPEJ71M4,AR67R37-Y63M4,AR67R37-Y71M4,AR67RF37-Y0.12KW,AR67RF37-Y0.18KW,AR67RF37-Y0.25KW,AR67RF37-Y0.37KW,AR67RF37-Y63M4,AR67RF37-Y71M4,AR67RF37-YB63M4,AR67RF37-YB71M4,AR67RF37-YDP63M4,AR67RF37-YDP71M4,AR67RF37-YE63M4,AR67RF37-YE71M4,AR67RF37-YEJ63M4,AR67RF37-YEJ71M4,AR67RF37-YEJB63M4,AR67RF37-YEJB71M4,AR67RF37-YP63M4,AR67RF37-YP71M4,AR67RF37-YPB63M4,AR67RF37-YPB71M4,AR67RF37-YPE63M4,AR67RF37-YPE71M4,AR67RF37-YS63M4,AR67RF37-YS71M4,AR67RF37-YVB63M4,AR67RF37-YVB71M4,AR67RF37-YVP63M4,AR67RF37-YVP71M4,AR67RF37-YVPEJ63M4,AR67RF37-YVPEJ71M4,SR67R37-Y63M4,SR67R37-Y71M4,SR67RF37-Y0.12KW,SR67RF37-Y0.18KW,SR67RF37-Y0.25KW,SR67RF37-Y0.37KW,SR67RF37-Y63M4,SR67RF37-Y71M4,SR67RF37-YB63M4,SR67RF37-YB71M4,SR67RF37-YDP63M4,SR67RF37-YDP71M4,SR67RF37-YE63M4,SR67RF37-YE71M4,SR67RF37-YEJ63M4,SR67RF37-YEJ71M4,SR67RF37-YEJB63M4,SR67RF37-YEJB71M4,SR67RF37-YP63M4,SR67RF37-YP71M4,SR67RF37-YPB63M4,SR67RF37-YPB71M4,SR67RF37-YPE63M4,SR67RF37-YPE71M4,SR67RF37-YS63M4,SR67RF37-YS71M4,SR67RF37-YVB63M4,SR67RF37-YVB71M4,SR67RF37-YVP63M4,SR67RF37-YVP71M4,SR67RF37-YVPEJ63M4,SR67RF37-YVPEJ71M4,XDR67R37-Y63M4,XDR67R37-Y71M4,XDR67RF37-Y0.12KW,XDR67RF37-Y0.18KW,XDR67RF37-Y0.25KW,XDR67RF37-Y0.37KW,XDR67RF37-Y63M4,XDR67RF37-Y71M4,XDR67RF37-YB63M4,XDR67RF37-YB71M4,XDR67RF37-YDP63M4,XDR67RF37-YDP71M4,XDR67RF37-YE63M4,XDR67RF37-YE71M4,XDR67RF37-YEJ63M4,XDR67RF37-YEJ71M4,XDR67RF37-YEJB63M4,XDR67RF37-YEJB71M4,XDR67RF37-YP63M4,XDR67RF37-YP71M4,XDR67RF37-YPB63M4,XDR67RF37-YPB71M4,XDR67RF37-YPE63M4,XDR67RF37-YPE71M4,XDR67RF37-YS63M4,XDR67RF37-YS71M4,XDR67RF37-YVB63M4,XDR67RF37-YVB71M4,XDR67RF37-YVP63M4,XDR67RF37-YVP71M4,XDR67RF37-YVPEJ63M4,XDR67RF37-YVPEJ71M4,WR67R37-Y63M4,WR67R37-Y71M4,WR67RF37-Y0.12KW,WR67RF37-Y0.18KW,WR67RF37-Y0.25KW,WR67RF37-Y0.37KW,WR67RF37-Y63M4,WR67RF37-Y71M4,WR67RF37-YB63M4,WR67RF37-YB71M4,WR67RF37-YDP63M4,WR67RF37-YDP71M4,WR67RF37-YE63M4,WR67RF37-YE71M4,WR67RF37-YEJ63M4,WR67RF37-YEJ71M4,WR67RF37-YEJB63M4,WR67RF37-YEJB71M4,WR67RF37-YP63M4,WR67RF37-YP71M4,WR67RF37-YPB63M4,WR67RF37-YPB71M4,WR67RF37-YPE63M4,WR67RF37-YPE71M4,WR67RF37-YS63M4,WR67RF37-YS71M4,WR67RF37-YVB63M4,WR67RF37-YVB71M4,WR67RF37-YVP63M4,WR67RF37-YVP71M4,WR67RF37-YVPEJ63M4,WR67RF37-YVPEJ71M4,JCR67R37-Y63M4,JCR67R37-Y71M4,JCR67RF37-Y0.12KW,JCR67RF37-Y0.18KW,JCR67RF37-Y0.25KW,JCR67RF37-Y0.37KW,JCR67RF37-Y63M4,JCR67RF37-Y71M4,JCR67RF37-YB63M4,JCR67RF37-YB71M4,JCR67RF37-YDP63M4,JCR67RF37-YDP71M4,JCR67RF37-YE63M4,JCR67RF37-YE71M4,JCR67RF37-YEJ63M4,JCR67RF37-YEJ71M4,JCR67RF37-YEJB63M4,JCR67RF37-YEJB71M4,JCR67RF37-YP63M4,JCR67RF37-YP71M4,JCR67RF37-YPB63M4,JCR67RF37-YPB71M4,JCR67RF37-YPE63M4,JCR67RF37-YPE71M4,JCR67RF37-YS63M4,JCR67RF37-YS71M4,JCR67RF37-YVB63M4,JCR67RF37-YVB71M4,JCR67RF37-YVP63M4,JCR67RF37-YVP71M4,JCR67RF37-YVPEJ63M4,JCR67RF37-YVPEJ71M4,NR67R37-Y63M4,NR67R37-Y71M4,NR67RF37-Y0.12KW,NR67RF37-Y0.18KW,NR67RF37-Y0.25KW,NR67RF37-Y0.37KW,NR67RF37-Y63M4,NR67RF37-Y71M4,NR67RF37-YB63M4,NR67RF37-YB71M4,NR67RF37-YDP63M4,NR67RF37-YDP71M4,NR67RF37-YE63M4,NR67RF37-YE71M4,NR67RF37-YEJ63M4,NR67RF37-YEJ71M4,NR67RF37-YEJB63M4,NR67RF37-YEJB71M4,NR67RF37-YP63M4,NR67RF37-YP71M4,NR67RF37-YPB63M4,NR67RF37-YPB71M4,NR67RF37-YPE63M4,NR67RF37-YPE71M4,NR67RF37-YS63M4,NR67RF37-YS71M4,NR67RF37-YVB63M4,NR67RF37-YVB71M4,NR67RF37-YVP63M4,NR67RF37-YVP71M4,NR67RF37-YVPEJ63M4,NR67RF37-YVPEJ71M4,RW67RW37-Y63M4,RW67RW37-Y71M4,RW67RWF37-Y0.12KW,RW67RWF37-Y0.18KW,RW67RWF37-Y0.25KW,RW67RWF37-Y0.37KW,RW67RWF37-Y63M4,RW67RWF37-Y71M4,RW67RWF37-YB63M4,RW67RWF37-YB71M4,RW67RWF37-YDP63M4,RW67RWF37-YDP71M4,RW67RWF37-YE63M4,RW67RWF37-YE71M4,RW67RWF37-YEJ63M4,RW67RWF37-YEJ71M4,RW67RWF37-YEJB63M4,RW67RWF37-YEJB71M4,RW67RWF37-YP63M4,RW67RWF37-YP71M4,RW67RWF37-YPB63M4,RW67RWF37-YPB71M4,RW67RWF37-YPE63M4,RW67RWF37-YPE71M4,RW67RWF37-YS63M4,RW67RWF37-YS71M4,RW67RWF37-YVB63M4,RW67RWF37-YVB71M4,RW67RWF37-YVP63M4,RW67RWF37-YVP71M4,RW67RWF37-YVPEJ63M4,RW67RWF37-YVPEJ71M4,R69R39-Y63M4,R69R39-Y71M4,R69RF39-Y0.12KW,R69RF39-Y0.18KW,R69RF39-Y0.25KW,R69RF39-Y0.39KW,R69RF39-Y63M4,R69RF39-Y71M4,R69RF39-YB63M4,R69RF39-YB71M4,R69RF39-YDP63M4,R69RF39-YDP71M4,R69RF39-YE63M4,R69RF39-YE71M4,R69RF39-YEJ63M4,R69RF39-YEJ71M4,R69RF39-YEJB63M4,R69RF39-YEJB71M4,R69RF39-YP63M4,R69RF39-YP71M4,R69RF39-YPB63M4,R69RF39-YPB71M4,R69RF39-YPE63M4,R69RF39-YPE71M4,R69RF39-YS63M4,R69RF39-YS71M4,R69RF39-YVB63M4,R69RF39-YVB71M4,R69RF39-YVP63M4,R69RF39-YVP71M4,R69RF39-YVPEJ63M4,R69RF39-YVPEJ71M4。
R69R39減速機生產廠家:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxiliejiansuji-cn.html
推薦型號:R69減速機
關鍵詞:GR型減速電機臥式一體機_GR型減速機_R系列減速機帶電機_R系列減速器_同向減速器_同向減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號:R19減速機,R29減速機,R39減速機,R49減速機,R59減速機,R69減速機,R79減速機,R89減速機,R99減速機,R109減速機,R139減速機,R149減速機,R169減速機
R系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
