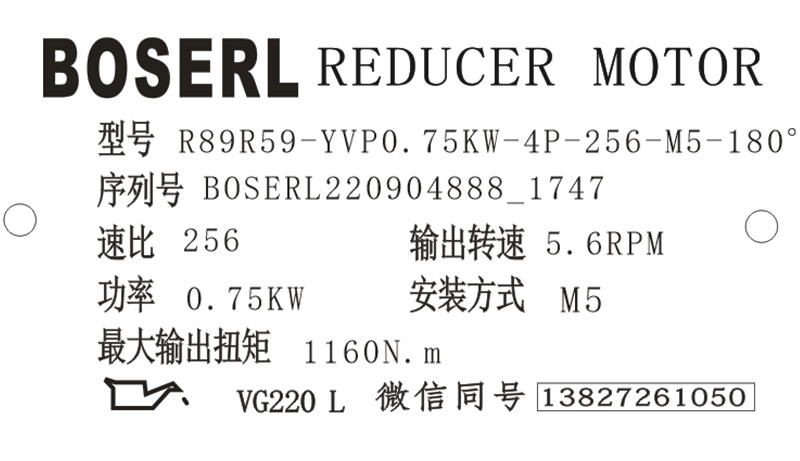

R89R59減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R89R59減速機選型樣本。
R89R59-YVP0.75KW-4P-256-M5-180°
R/R:系列代號
89/59:減速機規格代號
Y:電機
VP:變頻電機
0.75KW:電機功率
4P:電機級數
256:減速機傳動比
M5:減速機安裝位置
180°:接線盒位置
R89R59減速機潤滑油檢查:

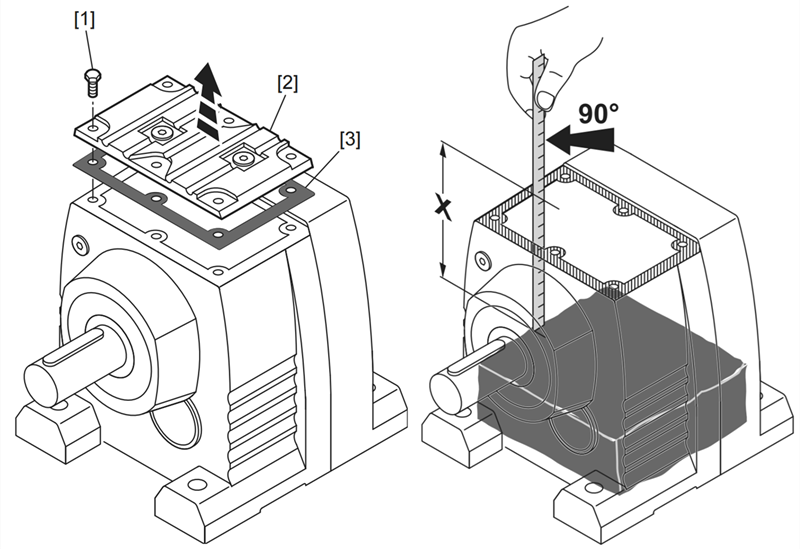

通過安裝蓋檢查油位:對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作:按照下列安裝位置放置減速器以便安裝蓋位于頂部;松開安全蓋2的螺栓1,并卸掉安裝蓋2及蓋上的密封圈3(見下圖);確定油位與減速器箱體密封面的垂直間距“X”(見下圖)。齒輪減速電機

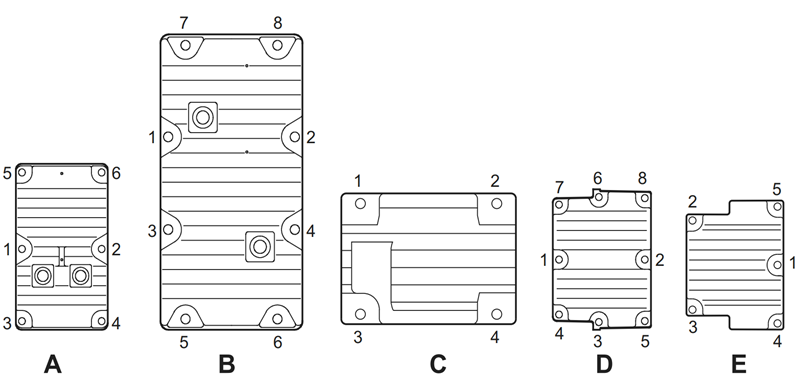

R89R59減速機油位檢查完畢后密封R89R59減速機:重新裝上安裝蓋的密封圈;注意,密封面要保持清潔、干燥;裝上安裝蓋;根據下表中的標稱擰緊扭矩按照?qǐng)D中標明的順序由內向外依次擰緊蓋上的螺栓;重復這一步驟多次,直至螺栓完全擰緊;只能采用氣動扳手或力矩扳手,避免安裝時對蓋板產生破壞,避免用力過猛或使用強沖擊的工具。
R89R59減速機安裝和電機安裝位置的調整:
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將R89R59減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。R系列減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。
裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。臥式減速機
R89R59減速機型號:
YQR87R57-Y63M4,YQR87R57-Y71M4,YQR87R57-Y80M4,YQR87R57-Y90M4,YQR87RF57-Y0.12KW,YQR87RF57-Y0.18KW,YQR87RF57-Y0.25KW,YQR87RF57-Y0.37KW,YQR87RF57-Y0.55KW,YQR87RF57-Y0.75KW,YQR87RF57-Y1.1KW,YQR87RF57-Y63M4,YQR87RF57-Y71M4,YQR87RF57-Y80M4,YQR87RF57-Y90M4,YQR87RF57-YB63M4,YQR87RF57-YB71M4,YQR87RF57-YB80M4,YQR87RF57-YB90S4,YQR87RF57-YDP63M4,YQR87RF57-YDP71M4,YQR87RF57-YDP80M4,YQR87RF57-YDP90S4,YQR87RF57-YE63M4,YQR87RF57-YE71M4,YQR87RF57-YE80M4,YQR87RF57-YE90S4,YQR87RF57-YEJ63M4,YQR87RF57-YEJ71M4,YQR87RF57-YEJ80M4,YQR87RF57-YEJ90S4,YQR87RF57-YEJB63M4,YQR87RF57-YEJB71M4,YQR87RF57-YEJB80M4,YQR87RF57-YEJB90S4,YQR87RF57-YP63M4,YQR87RF57-YP71M4,YQR87RF57-YP80M4,YQR87RF57-YP90S4,YQR87RF57-YPB63M4,YQR87RF57-YPB71M4,YQR87RF57-YPB80M4,YQR87RF57-YPB90S4,YQR87RF57-YPE63M4,YQR87RF57-YPE71M4,YQR87RF57-YPE80M4,YQR87RF57-YPE90S4,YQR87RF57-YS63M4,YQR87RF57-YS71M4,YQR87RF57-YS80M4,YQR87RF57-YS90S4,YQR87RF57-YVB63M4,YQR87RF57-YVB71M4,YQR87RF57-YVB80M4,YQR87RF57-YVB90S4,YQR87RF57-YVP63M4,YQR87RF57-YVP71M4,YQR87RF57-YVP80M4,YQR87RF57-YVP90S4,YQR87RF57-YVPEJ63M4,YQR87RF57-YVPEJ71M4,YQR87RF57-YVPEJ80M4,YQR87RF57-YVPEJ90S4,AR87R57-Y63M4,AR87R57-Y71M4,AR87R57-Y80M4,AR87R57-Y90M4,AR87RF57-Y0.12KW,AR87RF57-Y0.18KW,AR87RF57-Y0.25KW,AR87RF57-Y0.37KW,AR87RF57-Y0.55KW,AR87RF57-Y0.75KW,AR87RF57-Y1.1KW,AR87RF57-Y63M4,AR87RF57-Y71M4,AR87RF57-Y80M4,AR87RF57-Y90M4,AR87RF57-YB63M4,AR87RF57-YB71M4,AR87RF57-YB80M4,AR87RF57-YB90S4,AR87RF57-YDP63M4,AR87RF57-YDP71M4,AR87RF57-YDP80M4,AR87RF57-YDP90S4,AR87RF57-YE63M4,AR87RF57-YE71M4,AR87RF57-YE80M4,AR87RF57-YE90S4,AR87RF57-YEJ63M4,AR87RF57-YEJ71M4,AR87RF57-YEJ80M4,AR87RF57-YEJ90S4,AR87RF57-YEJB63M4,AR87RF57-YEJB71M4,AR87RF57-YEJB80M4,AR87RF57-YEJB90S4,AR87RF57-YP63M4,AR87RF57-YP71M4,AR87RF57-YP80M4,AR87RF57-YP90S4,AR87RF57-YPB63M4,AR87RF57-YPB71M4,AR87RF57-YPB80M4,AR87RF57-YPB90S4,AR87RF57-YPE63M4,AR87RF57-YPE71M4,AR87RF57-YPE80M4,AR87RF57-YPE90S4,AR87RF57-YS63M4,AR87RF57-YS71M4,AR87RF57-YS80M4,AR87RF57-YS90S4,AR87RF57-YVB63M4,AR87RF57-YVB71M4,AR87RF57-YVB80M4,AR87RF57-YVB90S4,AR87RF57-YVP63M4,AR87RF57-YVP71M4,AR87RF57-YVP80M4,AR87RF57-YVP90S4,AR87RF57-YVPEJ63M4,AR87RF57-YVPEJ71M4,AR87RF57-YVPEJ80M4,AR87RF57-YVPEJ90S4,SR87R57-Y63M4,SR87R57-Y71M4,SR87R57-Y80M4,SR87R57-Y90M4,SR87RF57-Y0.12KW,SR87RF57-Y0.18KW,SR87RF57-Y0.25KW,SR87RF57-Y0.37KW,SR87RF57-Y0.55KW,SR87RF57-Y0.75KW,SR87RF57-Y1.1KW,SR87RF57-Y63M4,SR87RF57-Y71M4,SR87RF57-Y80M4,SR87RF57-Y90M4,SR87RF57-YB63M4,SR87RF57-YB71M4,SR87RF57-YB80M4,SR87RF57-YB90S4,SR87RF57-YDP63M4,SR87RF57-YDP71M4,SR87RF57-YDP80M4,SR87RF57-YDP90S4,SR87RF57-YE63M4,SR87RF57-YE71M4,SR87RF57-YE80M4,SR87RF57-YE90S4,SR87RF57-YEJ63M4,SR87RF57-YEJ71M4,SR87RF57-YEJ80M4,SR87RF57-YEJ90S4,SR87RF57-YEJB63M4,SR87RF57-YEJB71M4,SR87RF57-YEJB80M4,SR87RF57-YEJB90S4,SR87RF57-YP63M4,SR87RF57-YP71M4,SR87RF57-YP80M4,SR87RF57-YP90S4,SR87RF57-YPB63M4,SR87RF57-YPB71M4,SR87RF57-YPB80M4,SR87RF57-YPB90S4,SR87RF57-YPE63M4,SR87RF57-YPE71M4,SR87RF57-YPE80M4,SR87RF57-YPE90S4,SR87RF57-YS63M4,SR87RF57-YS71M4,SR87RF57-YS80M4,SR87RF57-YS90S4,SR87RF57-YVB63M4,SR87RF57-YVB71M4,SR87RF57-YVB80M4,SR87RF57-YVB90S4,SR87RF57-YVP63M4,SR87RF57-YVP71M4,SR87RF57-YVP80M4,SR87RF57-YVP90S4,SR87RF57-YVPEJ63M4,SR87RF57-YVPEJ71M4,SR87RF57-YVPEJ80M4,SR87RF57-YVPEJ90S4,XDR87R57-Y63M4,XDR87R57-Y71M4,XDR87R57-Y80M4,XDR87R57-Y90M4,XDR87RF57-Y0.12KW,XDR87RF57-Y0.18KW,XDR87RF57-Y0.25KW,XDR87RF57-Y0.37KW,XDR87RF57-Y0.55KW,XDR87RF57-Y0.75KW,XDR87RF57-Y1.1KW,XDR87RF57-Y63M4,XDR87RF57-Y71M4,XDR87RF57-Y80M4,XDR87RF57-Y90M4,XDR87RF57-YB63M4,XDR87RF57-YB71M4,XDR87RF57-YB80M4,XDR87RF57-YB90S4,XDR87RF57-YDP63M4,XDR87RF57-YDP71M4,XDR87RF57-YDP80M4,XDR87RF57-YDP90S4,XDR87RF57-YE63M4,XDR87RF57-YE71M4,XDR87RF57-YE80M4,XDR87RF57-YE90S4,XDR87RF57-YEJ63M4,XDR87RF57-YEJ71M4,XDR87RF57-YEJ80M4,XDR87RF57-YEJ90S4,XDR87RF57-YEJB63M4,XDR87RF57-YEJB71M4,XDR87RF57-YEJB80M4,XDR87RF57-YEJB90S4,XDR87RF57-YP63M4,XDR87RF57-YP71M4,XDR87RF57-YP80M4,XDR87RF57-YP90S4,XDR87RF57-YPB63M4,XDR87RF57-YPB71M4,XDR87RF57-YPB80M4,XDR87RF57-YPB90S4,XDR87RF57-YPE63M4,XDR87RF57-YPE71M4,XDR87RF57-YPE80M4,XDR87RF57-YPE90S4,XDR87RF57-YS63M4,XDR87RF57-YS71M4,XDR87RF57-YS80M4,XDR87RF57-YS90S4,XDR87RF57-YVB63M4,XDR87RF57-YVB71M4,XDR87RF57-YVB80M4,XDR87RF57-YVB90S4,XDR87RF57-YVP63M4,XDR87RF57-YVP71M4,XDR87RF57-YVP80M4,XDR87RF57-YVP90S4,XDR87RF57-YVPEJ63M4,XDR87RF57-YVPEJ71M4,XDR87RF57-YVPEJ80M4,XDR87RF57-YVPEJ90S4,WR87R57-Y63M4,WR87R57-Y71M4,WR87R57-Y80M4,WR87R57-Y90M4,WR87RF57-Y0.12KW,WR87RF57-Y0.18KW,WR87RF57-Y0.25KW,WR87RF57-Y0.37KW,WR87RF57-Y0.55KW,WR87RF57-Y0.75KW,WR87RF57-Y1.1KW,WR87RF57-Y63M4,WR87RF57-Y71M4,WR87RF57-Y80M4,WR87RF57-Y90M4,WR87RF57-YB63M4,WR87RF57-YB71M4,WR87RF57-YB80M4,WR87RF57-YB90S4,WR87RF57-YDP63M4,WR87RF57-YDP71M4,WR87RF57-YDP80M4,WR87RF57-YDP90S4,WR87RF57-YE63M4,WR87RF57-YE71M4,WR87RF57-YE80M4,WR87RF57-YE90S4,WR87RF57-YEJ63M4,WR87RF57-YEJ71M4,WR87RF57-YEJ80M4,WR87RF57-YEJ90S4,WR87RF57-YEJB63M4,WR87RF57-YEJB71M4,WR87RF57-YEJB80M4,WR87RF57-YEJB90S4,WR87RF57-YP63M4,WR87RF57-YP71M4,WR87RF57-YP80M4,WR87RF57-YP90S4,WR87RF57-YPB63M4,WR87RF57-YPB71M4,WR87RF57-YPB80M4,WR87RF57-YPB90S4,WR87RF57-YPE63M4,WR87RF57-YPE71M4,WR87RF57-YPE80M4,WR87RF57-YPE90S4,WR87RF57-YS63M4,WR87RF57-YS71M4,WR87RF57-YS80M4,WR87RF57-YS90S4,WR87RF57-YVB63M4,WR87RF57-YVB71M4,WR87RF57-YVB80M4,WR87RF57-YVB90S4,WR87RF57-YVP63M4,WR87RF57-YVP71M4,WR87RF57-YVP80M4,WR87RF57-YVP90S4,WR87RF57-YVPEJ63M4,WR87RF57-YVPEJ71M4,WR87RF57-YVPEJ80M4,WR87RF57-YVPEJ90S4,JCR87R57-Y63M4,JCR87R57-Y71M4,JCR87R57-Y80M4,JCR87R57-Y90M4,JCR87RF57-Y0.12KW,JCR87RF57-Y0.18KW,JCR87RF57-Y0.25KW,JCR87RF57-Y0.37KW,JCR87RF57-Y0.55KW,JCR87RF57-Y0.75KW,JCR87RF57-Y1.1KW,JCR87RF57-Y63M4,JCR87RF57-Y71M4,JCR87RF57-Y80M4,JCR87RF57-Y90M4,JCR87RF57-YB63M4,JCR87RF57-YB71M4,JCR87RF57-YB80M4,JCR87RF57-YB90S4,JCR87RF57-YDP63M4,JCR87RF57-YDP71M4,JCR87RF57-YDP80M4,JCR87RF57-YDP90S4,JCR87RF57-YE63M4,JCR87RF57-YE71M4,JCR87RF57-YE80M4,JCR87RF57-YE90S4,JCR87RF57-YEJ63M4,JCR87RF57-YEJ71M4,JCR87RF57-YEJ80M4,JCR87RF57-YEJ90S4,JCR87RF57-YEJB63M4,JCR87RF57-YEJB71M4,JCR87RF57-YEJB80M4,JCR87RF57-YEJB90S4,JCR87RF57-YP63M4,JCR87RF57-YP71M4,JCR87RF57-YP80M4,JCR87RF57-YP90S4,JCR87RF57-YPB63M4,JCR87RF57-YPB71M4,JCR87RF57-YPB80M4,JCR87RF57-YPB90S4,JCR87RF57-YPE63M4,JCR87RF57-YPE71M4,JCR87RF57-YPE80M4,JCR87RF57-YPE90S4,JCR87RF57-YS63M4,JCR87RF57-YS71M4,JCR87RF57-YS80M4,JCR87RF57-YS90S4,JCR87RF57-YVB63M4,JCR87RF57-YVB71M4,JCR87RF57-YVB80M4,JCR87RF57-YVB90S4,JCR87RF57-YVP63M4,JCR87RF57-YVP71M4,JCR87RF57-YVP80M4,JCR87RF57-YVP90S4,JCR87RF57-YVPEJ63M4,JCR87RF57-YVPEJ71M4,JCR87RF57-YVPEJ80M4,JCR87RF57-YVPEJ90S4,NR87R57-Y63M4,NR87R57-Y71M4,NR87R57-Y80M4,NR87R57-Y90M4,NR87RF57-Y0.12KW,NR87RF57-Y0.18KW,NR87RF57-Y0.25KW,NR87RF57-Y0.37KW,NR87RF57-Y0.55KW,NR87RF57-Y0.75KW,NR87RF57-Y1.1KW,NR87RF57-Y63M4,NR87RF57-Y71M4,NR87RF57-Y80M4,NR87RF57-Y90M4,NR87RF57-YB63M4,NR87RF57-YB71M4,NR87RF57-YB80M4,NR87RF57-YB90S4,NR87RF57-YDP63M4,NR87RF57-YDP71M4,NR87RF57-YDP80M4,NR87RF57-YDP90S4,NR87RF57-YE63M4,NR87RF57-YE71M4,NR87RF57-YE80M4,NR87RF57-YE90S4,NR87RF57-YEJ63M4,NR87RF57-YEJ71M4,NR87RF57-YEJ80M4,NR87RF57-YEJ90S4,NR87RF57-YEJB63M4,NR87RF57-YEJB71M4,NR87RF57-YEJB80M4,NR87RF57-YEJB90S4,NR87RF57-YP63M4,NR87RF57-YP71M4,NR87RF57-YP80M4,NR87RF57-YP90S4,NR87RF57-YPB63M4,NR87RF57-YPB71M4,NR87RF57-YPB80M4,NR87RF57-YPB90S4,NR87RF57-YPE63M4,NR87RF57-YPE71M4,NR87RF57-YPE80M4,NR87RF57-YPE90S4,NR87RF57-YS63M4,NR87RF57-YS71M4,NR87RF57-YS80M4,NR87RF57-YS90S4,NR87RF57-YVB63M4,NR87RF57-YVB71M4,NR87RF57-YVB80M4,NR87RF57-YVB90S4,NR87RF57-YVP63M4,NR87RF57-YVP71M4,NR87RF57-YVP80M4,NR87RF57-YVP90S4,NR87RF57-YVPEJ63M4,NR87RF57-YVPEJ71M4,NR87RF57-YVPEJ80M4,NR87RF57-YVPEJ90S4,RW87RW57-Y63M4,RW87RW57-Y71M4,RW87RW57-Y80M4,RW87RW57-Y90M4,RW87RWF57-Y0.12KW,RW87RWF57-Y0.18KW,RW87RWF57-Y0.25KW,RW87RWF57-Y0.37KW,RW87RWF57-Y0.55KW,RW87RWF57-Y0.75KW,RW87RWF57-Y1.1KW,RW87RWF57-Y63M4,RW87RWF57-Y71M4,RW87RWF57-Y80M4,RW87RWF57-Y90M4,RW87RWF57-YB63M4,RW87RWF57-YB71M4,RW87RWF57-YB80M4,RW87RWF57-YB90S4,RW87RWF57-YDP63M4,RW87RWF57-YDP71M4,RW87RWF57-YDP80M4,RW87RWF57-YDP90S4,RW87RWF57-YE63M4,RW87RWF57-YE71M4,RW87RWF57-YE80M4,RW87RWF57-YE90S4,RW87RWF57-YEJ63M4,RW87RWF57-YEJ71M4,RW87RWF57-YEJ80M4,RW87RWF57-YEJ90S4,RW87RWF57-YEJB63M4,RW87RWF57-YEJB71M4,RW87RWF57-YEJB80M4,RW87RWF57-YEJB90S4,RW87RWF57-YP63M4,RW87RWF57-YP71M4,RW87RWF57-YP80M4,RW87RWF57-YP90S4,RW87RWF57-YPB63M4,RW87RWF57-YPB71M4,RW87RWF57-YPB80M4,RW87RWF57-YPB90S4,RW87RWF57-YPE63M4,RW87RWF57-YPE71M4,RW87RWF57-YPE80M4,RW87RWF57-YPE90S4,RW87RWF57-YS63M4,RW87RWF57-YS71M4,RW87RWF57-YS80M4,RW87RWF57-YS90S4,RW87RWF57-YVB63M4,RW87RWF57-YVB71M4,RW87RWF57-YVB80M4,RW87RWF57-YVB90S4,RW87RWF57-YVP63M4,RW87RWF57-YVP71M4,RW87RWF57-YVP80M4,RW87RWF57-YVP90S4,RW87RWF57-YVPEJ63M4,RW87RWF57-YVPEJ71M4,RW87RWF57-YVPEJ80M4,RW87RWF57-YVPEJ90S4,R89R59-Y63M4,R89R59-Y71M4,R89R59-Y80M4,R89R59-Y90M4,R89RF59-Y0.12KW,R89RF59-Y0.18KW,R89RF59-Y0.25KW,R89RF59-Y0.37KW,R89RF59-Y0.55KW,R89RF59-Y0.75KW,R89RF59-Y1.1KW,R89RF59-Y63M4,R89RF59-Y71M4,R89RF59-Y80M4,R89RF59-Y90M4,R89RF59-YB63M4,R89RF59-YB71M4,R89RF59-YB80M4,R89RF59-YB90S4,R89RF59-YDP63M4,R89RF59-YDP71M4,R89RF59-YDP80M4,R89RF59-YDP90S4,R89RF59-YE63M4,R89RF59-YE71M4,R89RF59-YE80M4,R89RF59-YE90S4,R89RF59-YEJ63M4,R89RF59-YEJ71M4,R89RF59-YEJ80M4,R89RF59-YEJ90S4,R89RF59-YEJB63M4,R89RF59-YEJB71M4,R89RF59-YEJB80M4,R89RF59-YEJB90S4,R89RF59-YP63M4,R89RF59-YP71M4,R89RF59-YP80M4,R89RF59-YP90S4,R89RF59-YPB63M4,R89RF59-YPB71M4,R89RF59-YPB80M4,R89RF59-YPB90S4,R89RF59-YPE63M4,R89RF59-YPE71M4,R89RF59-YPE80M4,R89RF59-YPE90S4,R89RF59-YS63M4,R89RF59-YS71M4,R89RF59-YS80M4,R89RF59-YS90S4,R89RF59-YVB63M4,R89RF59-YVB71M4,R89RF59-YVB80M4,R89RF59-YVB90S4,R89RF59-YVP63M4,R89RF59-YVP71M4,R89RF59-YVP80M4,R89RF59-YVP90S4,R89RF59-YVPEJ63M4,R89RF59-YVPEJ71M4,R89RF59-YVPEJ80M4,R89RF59-YVPEJ90S4。
