K79R39減速機詳細信息

prevnext

K79R39減速機

訂購熱線:13360667204
  1. 詳細信息

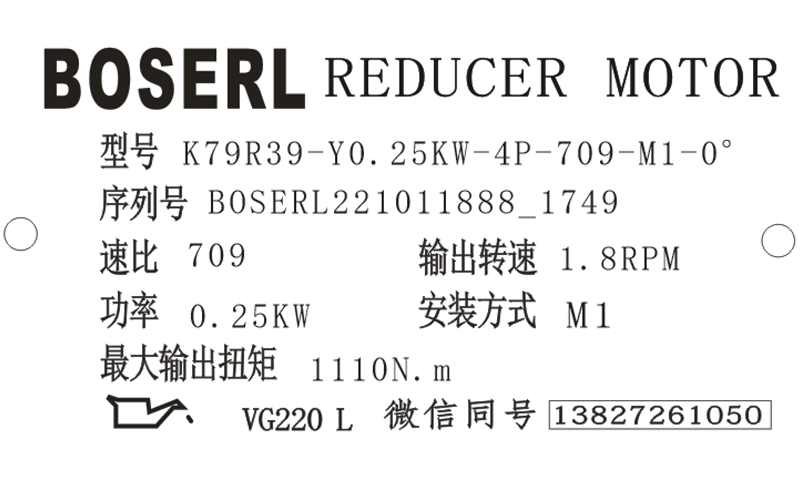

K79R39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K79R39減速機選型樣本。

K79R39-Y0.25KW-4P-709-M1-0°

K/R:系列代號

79/39:減速機規格代號

Y:電機

0.25KW:電機功率

4P:電機級數

709:減速機傳動比

M1:減速機安裝位置

0°:接線盒位置


K79R39減速機電機調試運行:

啟動前的檢查-安裝、接線結束后,接通開關前請檢查以下各點:安裝的斷路器以及過電流繼電器是否合適;接線是否有差錯;接地線是否確實接地。此外,為防范危險于未然,在運轉本減速電機預測有危險的場合,以及無法正常發揮功能的場合,為了防范危險情況,請?jiān)谘b置側多加考慮預防措施。電壓以及頻率的變動:當施加于電機的電壓和頻率不是規定值時,電機特性將發生變化,請注意。電機電壓在額定電壓上下10%以?xún)?nèi)變動,電機是可以正常使用的,超過10%,有可能燒毀電機,同時伴有出力扭矩降低或電流大等異常。齒輪減速電機

開始運轉后的性能確認旋轉方向是否正確;電流值是否有超標;是否產生異常振動或噪音;啟動頻率是否過高;是否發生沖擊。若有異常,請按BOSERL減速電機說明書中的“電機故障處理”章節所述步驟執行。

關于帶變頻器的電機運行:若電機同時配有變頻器與電磁制動器,此時制動器的電源應另外設置不可與電機電源并聯使用;當電機配變頻器使用時,建議使用頻率在30-80Hz,將可得到較具實用之性能,且可以長時間運行;若需要更高或更低的轉速,也可以通過調整減速比來實現;當電機使用頻率在30Hz以下或80Hz以上時,與30-80Hz相比,電機溫度將上升,運行噪間/振動將變大,此時電機只能短時間運行,

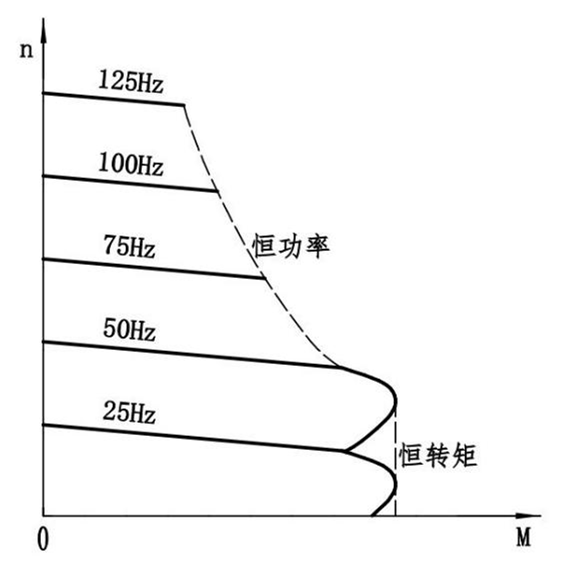

請客戶謹慎使用;變頻電機特性曲線如下圖所示,在6-50Hz的范圍內,為恒轉矩運行,電機可保持連續運轉扭矩與50Hz時的額定扭矩相同(但30Hz以下電機發熱較快,不可長時間運行);在50-120Hz的范圍內,為恒功率運行,電機可保持連續運轉輸出功率與50Hz時相同(高頻運行時電機轉速高,扭矩等比例降低,且80Hz以上電機發熱較快,不可長時間運行)。本公司變頻三相電機能夠配置變頻器進行變頻調速操作。當在低頻工作區工作時,由于電機轉速的降低而使電機原有設計的風冷系統的冷卻作用降低,電機溫升將會上升。而在高頻區工作時,過高的電機轉速使電機原有冷切風扇消耗更多的功率,增加了風摩損耗,降低了電機的效率,并且大大增加電機的運行噪聲。因此我們建議:在進行變頻操作時電機最好加裝獨立的冷卻風扇。直角減速機


K79R39減速機電機運轉時環境與操作注意點:

危險:在電機或所驅動設備上進行操作前,先切斷電源并鎖定。工作過程中一定要確保無爆炸性氣體存在;請勿在拆下接線盒罩殼的狀態下運轉。接線后,請?jiān)谠任恢冒惭b接線盒罩殼。否則有可能會導致觸電。請切實進行安裝;運轉中,請絕對不要接近旋轉體(旋轉軸等)。否則有可能會被卷入,受傷;停電時,請務必切斷電源。否則不知不覺中來電可能會導致受傷、裝置損壞。

注意:運轉中,減速電機的溫度會變得很高。請注意不要觸及手和身體。否則有可能會導致?tīng)C傷;發生異常時,請立即停止運轉。否則有可能會導致觸電、受傷、火災。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞;使電機反轉時,請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控;電機即使在正常運行狀態,有時表面溫度也會有超過70°C的現象。電機運行時,若有靠近電機的可能請制作"高溫注意”圖標井貼于電機顯眼處;電機反轉時,單相電機按接線圖進行調整,三相電機只需要將電源線兩相對調即可。K系列減速機


K79R39減速電機型號:

YQK77R37-Y63M4,YQK77R37-Y71M4,YQK77R37-Y80M4,YQK77R37-Y90M4,YQK77RF37-Y0.12KW,YQK77RF37-Y0.18KW,YQK77RF37-Y0.25KW,YQK77RF37-Y0.37KW,YQK77RF37-Y0.55KW,YQK77RF37-Y0.75KW,YQK77RF37-Y1.1KW,YQK77RF37-Y1.5KW,YQK77RF37-Y63M4,YQK77RF37-Y71M4,YQK77RF37-Y80M4,YQK77RF37-Y90M4,YQK77RF37-YB63M4,YQK77RF37-YB71M4,YQK77RF37-YB80M4,YQK77RF37-YB90S4,YQK77RF37-YDP63M4,YQK77RF37-YDP71M4,YQK77RF37-YDP80M4,YQK77RF37-YDP90S4,YQK77RF37-YE63M4,YQK77RF37-YE71M4,YQK77RF37-YE80M4,YQK77RF37-YE90S4,YQK77RF37-YEJ63M4,YQK77RF37-YEJ71M4,YQK77RF37-YEJ80M4,YQK77RF37-YEJ90S4,YQK77RF37-YEJB63M4,YQK77RF37-YEJB71M4,YQK77RF37-YEJB80M4,YQK77RF37-YEJB90S4,YQK77RF37-YP63M4,YQK77RF37-YP71M4,YQK77RF37-YP80M4,YQK77RF37-YP90S4,YQK77RF37-YPB63M4,YQK77RF37-YPB71M4,YQK77RF37-YPB80M4,YQK77RF37-YPB90S4,YQK77RF37-YPE63M4,YQK77RF37-YPE71M4,YQK77RF37-YPE80M4,YQK77RF37-YPE90S4,YQK77RF37-YS63M4,YQK77RF37-YS71M4,YQK77RF37-YS80M4,YQK77RF37-YS90S4,YQK77RF37-YVB63M4,YQK77RF37-YVB71M4,YQK77RF37-YVB80M4,YQK77RF37-YVB90S4,YQK77RF37-YVP63M4,YQK77RF37-YVP71M4,YQK77RF37-YVP80M4,YQK77RF37-YVP90S4,YQK77RF37-YVPEJ63M4,YQK77RF37-YVPEJ71M4,YQK77RF37-YVPEJ80M4,YQK77RF37-YVPEJ90S4,AK77R37-Y63M4,AK77R37-Y71M4,AK77R37-Y80M4,AK77R37-Y90M4,AK77RF37-Y0.12KW,AK77RF37-Y0.18KW,AK77RF37-Y0.25KW,AK77RF37-Y0.37KW,AK77RF37-Y0.55KW,AK77RF37-Y0.75KW,AK77RF37-Y1.1KW,AK77RF37-Y1.5KW,AK77RF37-Y63M4,AK77RF37-Y71M4,AK77RF37-Y80M4,AK77RF37-Y90M4,AK77RF37-YB63M4,AK77RF37-YB71M4,AK77RF37-YB80M4,AK77RF37-YB90S4,AK77RF37-YDP63M4,AK77RF37-YDP71M4,AK77RF37-YDP80M4,AK77RF37-YDP90S4,AK77RF37-YE63M4,AK77RF37-YE71M4,AK77RF37-YE80M4,AK77RF37-YE90S4,AK77RF37-YEJ63M4,AK77RF37-YEJ71M4,AK77RF37-YEJ80M4,AK77RF37-YEJ90S4,AK77RF37-YEJB63M4,AK77RF37-YEJB71M4,AK77RF37-YEJB80M4,AK77RF37-YEJB90S4,AK77RF37-YP63M4,AK77RF37-YP71M4,AK77RF37-YP80M4,AK77RF37-YP90S4,AK77RF37-YPB63M4,AK77RF37-YPB71M4,AK77RF37-YPB80M4,AK77RF37-YPB90S4,AK77RF37-YPE63M4,AK77RF37-YPE71M4,AK77RF37-YPE80M4,AK77RF37-YPE90S4,AK77RF37-YS63M4,AK77RF37-YS71M4,AK77RF37-YS80M4,AK77RF37-YS90S4,AK77RF37-YVB63M4,AK77RF37-YVB71M4,AK77RF37-YVB80M4,AK77RF37-YVB90S4,AK77RF37-YVP63M4,AK77RF37-YVP71M4,AK77RF37-YVP80M4,AK77RF37-YVP90S4,AK77RF37-YVPEJ63M4,AK77RF37-YVPEJ71M4,AK77RF37-YVPEJ80M4,AK77RF37-YVPEJ90S4,SK77R37-Y63M4,SK77R37-Y71M4,SK77R37-Y80M4,SK77R37-Y90M4,SK77RF37-Y0.12KW,SK77RF37-Y0.18KW,SK77RF37-Y0.25KW,SK77RF37-Y0.37KW,SK77RF37-Y0.55KW,SK77RF37-Y0.75KW,SK77RF37-Y1.1KW,SK77RF37-Y1.5KW,SK77RF37-Y63M4,SK77RF37-Y71M4,SK77RF37-Y80M4,SK77RF37-Y90M4,SK77RF37-YB63M4,SK77RF37-YB71M4,SK77RF37-YB80M4,SK77RF37-YB90S4,SK77RF37-YDP63M4,SK77RF37-YDP71M4,SK77RF37-YDP80M4,SK77RF37-YDP90S4,SK77RF37-YE63M4,SK77RF37-YE71M4,SK77RF37-YE80M4,SK77RF37-YE90S4,SK77RF37-YEJ63M4,SK77RF37-YEJ71M4,SK77RF37-YEJ80M4,SK77RF37-YEJ90S4,SK77RF37-YEJB63M4,SK77RF37-YEJB71M4,SK77RF37-YEJB80M4,SK77RF37-YEJB90S4,SK77RF37-YP63M4,SK77RF37-YP71M4,SK77RF37-YP80M4,SK77RF37-YP90S4,SK77RF37-YPB63M4,SK77RF37-YPB71M4,SK77RF37-YPB80M4,SK77RF37-YPB90S4,SK77RF37-YPE63M4,SK77RF37-YPE71M4,SK77RF37-YPE80M4,SK77RF37-YPE90S4,SK77RF37-YS63M4,SK77RF37-YS71M4,SK77RF37-YS80M4,SK77RF37-YS90S4,SK77RF37-YVB63M4,SK77RF37-YVB71M4,SK77RF37-YVB80M4,SK77RF37-YVB90S4,SK77RF37-YVP63M4,SK77RF37-YVP71M4,SK77RF37-YVP80M4,SK77RF37-YVP90S4,SK77RF37-YVPEJ63M4,SK77RF37-YVPEJ71M4,SK77RF37-YVPEJ80M4,SK77RF37-YVPEJ90S4,XDK77R37-Y63M4,XDK77R37-Y71M4,XDK77R37-Y80M4,XDK77R37-Y90M4,XDK77RF37-Y0.12KW,XDK77RF37-Y0.18KW,XDK77RF37-Y0.25KW,XDK77RF37-Y0.37KW,XDK77RF37-Y0.55KW,XDK77RF37-Y0.75KW,XDK77RF37-Y1.1KW,XDK77RF37-Y1.5KW,XDK77RF37-Y63M4,XDK77RF37-Y71M4,XDK77RF37-Y80M4,XDK77RF37-Y90M4,XDK77RF37-YB63M4,XDK77RF37-YB71M4,XDK77RF37-YB80M4,XDK77RF37-YB90S4,XDK77RF37-YDP63M4,XDK77RF37-YDP71M4,XDK77RF37-YDP80M4,XDK77RF37-YDP90S4,XDK77RF37-YE63M4,XDK77RF37-YE71M4,XDK77RF37-YE80M4,XDK77RF37-YE90S4,XDK77RF37-YEJ63M4,XDK77RF37-YEJ71M4,XDK77RF37-YEJ80M4,XDK77RF37-YEJ90S4,XDK77RF37-YEJB63M4,XDK77RF37-YEJB71M4,XDK77RF37-YEJB80M4,XDK77RF37-YEJB90S4,XDK77RF37-YP63M4,XDK77RF37-YP71M4,XDK77RF37-YP80M4,XDK77RF37-YP90S4,XDK77RF37-YPB63M4,XDK77RF37-YPB71M4,XDK77RF37-YPB80M4,XDK77RF37-YPB90S4,XDK77RF37-YPE63M4,XDK77RF37-YPE71M4,XDK77RF37-YPE80M4,XDK77RF37-YPE90S4,XDK77RF37-YS63M4,XDK77RF37-YS71M4,XDK77RF37-YS80M4,XDK77RF37-YS90S4,XDK77RF37-YVB63M4,XDK77RF37-YVB71M4,XDK77RF37-YVB80M4,XDK77RF37-YVB90S4,XDK77RF37-YVP63M4,XDK77RF37-YVP71M4,XDK77RF37-YVP80M4,XDK77RF37-YVP90S4,XDK77RF37-YVPEJ63M4,XDK77RF37-YVPEJ71M4,XDK77RF37-YVPEJ80M4,XDK77RF37-YVPEJ90S4,NK77R37-Y63M4,NK77R37-Y71M4,NK77R37-Y80M4,NK77R37-Y90M4,NK77RF37-Y0.12KW,NK77RF37-Y0.18KW,NK77RF37-Y0.25KW,NK77RF37-Y0.37KW,NK77RF37-Y0.55KW,NK77RF37-Y0.75KW,NK77RF37-Y1.1KW,NK77RF37-Y1.5KW,NK77RF37-Y63M4,NK77RF37-Y71M4,NK77RF37-Y80M4,NK77RF37-Y90M4,NK77RF37-YB63M4,NK77RF37-YB71M4,NK77RF37-YB80M4,NK77RF37-YB90S4,NK77RF37-YDP63M4,NK77RF37-YDP71M4,NK77RF37-YDP80M4,NK77RF37-YDP90S4,NK77RF37-YE63M4,NK77RF37-YE71M4,NK77RF37-YE80M4,NK77RF37-YE90S4,NK77RF37-YEJ63M4,NK77RF37-YEJ71M4,NK77RF37-YEJ80M4,NK77RF37-YEJ90S4,NK77RF37-YEJB63M4,NK77RF37-YEJB71M4,NK77RF37-YEJB80M4,NK77RF37-YEJB90S4,NK77RF37-YP63M4,NK77RF37-YP71M4,NK77RF37-YP80M4,NK77RF37-YP90S4,NK77RF37-YPB63M4,NK77RF37-YPB71M4,NK77RF37-YPB80M4,NK77RF37-YPB90S4,NK77RF37-YPE63M4,NK77RF37-YPE71M4,NK77RF37-YPE80M4,NK77RF37-YPE90S4,NK77RF37-YS63M4,NK77RF37-YS71M4,NK77RF37-YS80M4,NK77RF37-YS90S4,NK77RF37-YVB63M4,NK77RF37-YVB71M4,NK77RF37-YVB80M4,NK77RF37-YVB90S4,NK77RF37-YVP63M4,NK77RF37-YVP71M4,NK77RF37-YVP80M4,NK77RF37-YVP90S4,NK77RF37-YVPEJ63M4,NK77RF37-YVPEJ71M4,NK77RF37-YVPEJ80M4,NK77RF37-YVPEJ90S4,WK77R37-Y63M4,WK77R37-Y71M4,WK77R37-Y80M4,WK77R37-Y90M4,WK77RF37-Y0.12KW,WK77RF37-Y0.18KW,WK77RF37-Y0.25KW,WK77RF37-Y0.37KW,WK77RF37-Y0.55KW,WK77RF37-Y0.75KW,WK77RF37-Y1.1KW,WK77RF37-Y1.5KW,WK77RF37-Y63M4,WK77RF37-Y71M4,WK77RF37-Y80M4,WK77RF37-Y90M4,WK77RF37-YB63M4,WK77RF37-YB71M4,WK77RF37-YB80M4,WK77RF37-YB90S4,WK77RF37-YDP63M4,WK77RF37-YDP71M4,WK77RF37-YDP80M4,WK77RF37-YDP90S4,WK77RF37-YE63M4,WK77RF37-YE71M4,WK77RF37-YE80M4,WK77RF37-YE90S4,WK77RF37-YEJ63M4,WK77RF37-YEJ71M4,WK77RF37-YEJ80M4,WK77RF37-YEJ90S4,WK77RF37-YEJB63M4,WK77RF37-YEJB71M4,WK77RF37-YEJB80M4,WK77RF37-YEJB90S4,WK77RF37-YP63M4,WK77RF37-YP71M4,WK77RF37-YP80M4,WK77RF37-YP90S4,WK77RF37-YPB63M4,WK77RF37-YPB71M4,WK77RF37-YPB80M4,WK77RF37-YPB90S4,WK77RF37-YPE63M4,WK77RF37-YPE71M4,WK77RF37-YPE80M4,WK77RF37-YPE90S4,WK77RF37-YS63M4,WK77RF37-YS71M4,WK77RF37-YS80M4,WK77RF37-YS90S4,WK77RF37-YVB63M4,WK77RF37-YVB71M4,WK77RF37-YVB80M4,WK77RF37-YVB90S4,WK77RF37-YVP63M4,WK77RF37-YVP71M4,WK77RF37-YVP80M4,WK77RF37-YVP90S4,WK77RF37-YVPEJ63M4,WK77RF37-YVPEJ71M4,WK77RF37-YVPEJ80M4,WK77RF37-YVPEJ90S4,JCK77R37-Y63M4,JCK77R37-Y71M4,JCK77R37-Y80M4,JCK77R37-Y90M4,JCK77RF37-Y0.12KW,JCK77RF37-Y0.18KW,JCK77RF37-Y0.25KW,JCK77RF37-Y0.37KW,JCK77RF37-Y0.55KW,JCK77RF37-Y0.75KW,JCK77RF37-Y1.1KW,JCK77RF37-Y1.5KW,JCK77RF37-Y63M4,JCK77RF37-Y71M4,JCK77RF37-Y80M4,JCK77RF37-Y90M4,JCK77RF37-YB63M4,JCK77RF37-YB71M4,JCK77RF37-YB80M4,JCK77RF37-YB90S4,JCK77RF37-YDP63M4,JCK77RF37-YDP71M4,JCK77RF37-YDP80M4,JCK77RF37-YDP90S4,JCK77RF37-YE63M4,JCK77RF37-YE71M4,JCK77RF37-YE80M4,JCK77RF37-YE90S4,JCK77RF37-YEJ63M4,JCK77RF37-YEJ71M4,JCK77RF37-YEJ80M4,JCK77RF37-YEJ90S4,JCK77RF37-YEJB63M4,JCK77RF37-YEJB71M4,JCK77RF37-YEJB80M4,JCK77RF37-YEJB90S4,JCK77RF37-YP63M4,JCK77RF37-YP71M4,JCK77RF37-YP80M4,JCK77RF37-YP90S4,JCK77RF37-YPB63M4,JCK77RF37-YPB71M4,JCK77RF37-YPB80M4,JCK77RF37-YPB90S4,JCK77RF37-YPE63M4,JCK77RF37-YPE71M4,JCK77RF37-YPE80M4,JCK77RF37-YPE90S4,JCK77RF37-YS63M4,JCK77RF37-YS71M4,JCK77RF37-YS80M4,JCK77RF37-YS90S4,JCK77RF37-YVB63M4,JCK77RF37-YVB71M4,JCK77RF37-YVB80M4,JCK77RF37-YVB90S4,JCK77RF37-YVP63M4,JCK77RF37-YVP71M4,JCK77RF37-YVP80M4,JCK77RF37-YVP90S4,JCK77RF37-YVPEJ63M4,JCK77RF37-YVPEJ71M4,JCK77RF37-YVPEJ80M4,JCK77RF37-YVPEJ90S4,KW77RW37-Y63M4,KW77RW37-Y71M4,KW77RW37-Y80M4,KW77RW37-Y90M4,KW77RWF37-Y0.12KW,KW77RWF37-Y0.18KW,KW77RWF37-Y0.25KW,KW77RWF37-Y0.37KW,KW77RWF37-Y0.55KW,KW77RWF37-Y0.75KW,KW77RWF37-Y1.1KW,KW77RWF37-Y1.5KW,KW77RWF37-Y63M4,KW77RWF37-Y71M4,KW77RWF37-Y80M4,KW77RWF37-Y90M4,KW77RWF37-YB63M4,KW77RWF37-YB71M4,KW77RWF37-YB80M4,KW77RWF37-YB90S4,KW77RWF37-YDP63M4,KW77RWF37-YDP71M4,KW77RWF37-YDP80M4,KW77RWF37-YDP90S4,KW77RWF37-YE63M4,KW77RWF37-YE71M4,KW77RWF37-YE80M4,KW77RWF37-YE90S4,KW77RWF37-YEJ63M4,KW77RWF37-YEJ71M4,KW77RWF37-YEJ80M4,KW77RWF37-YEJ90S4,KW77RWF37-YEJB63M4,KW77RWF37-YEJB71M4,KW77RWF37-YEJB80M4,KW77RWF37-YEJB90S4,KW77RWF37-YP63M4,KW77RWF37-YP71M4,KW77RWF37-YP80M4,KW77RWF37-YP90S4,KW77RWF37-YPB63M4,KW77RWF37-YPB71M4,KW77RWF37-YPB80M4,KW77RWF37-YPB90S4,KW77RWF37-YPE63M4,KW77RWF37-YPE71M4,KW77RWF37-YPE80M4,KW77RWF37-YPE90S4,KW77RWF37-YS63M4,KW77RWF37-YS71M4,KW77RWF37-YS80M4,KW77RWF37-YS90S4,KW77RWF37-YVB63M4,KW77RWF37-YVB71M4,KW77RWF37-YVB80M4,KW77RWF37-YVB90S4,KW77RWF37-YVP63M4,KW77RWF37-YVP71M4,KW77RWF37-YVP80M4,KW77RWF37-YVP90S4,KW77RWF37-YVPEJ63M4,KW77RWF37-YVPEJ71M4,KW77RWF37-YVPEJ80M4,KW77RWF37-YVPEJ90S4,K79R39-Y63M4,K79R39-Y71M4,K79R39-Y80M4,K79R39-Y90M4,K79RF39-Y0.12KW,K79RF39-Y0.18KW,K79RF39-Y0.25KW,K79RF39-Y0.39KW,K79RF39-Y0.55KW,K79RF39-Y0.75KW,K79RF39-Y1.1KW,K79RF39-Y1.5KW,K79RF39-Y63M4,K79RF39-Y71M4,K79RF39-Y80M4,K79RF39-Y90M4,K79RF39-YB63M4,K79RF39-YB71M4,K79RF39-YB80M4,K79RF39-YB90S4,K79RF39-YDP63M4,K79RF39-YDP71M4,K79RF39-YDP80M4,K79RF39-YDP90S4,K79RF39-YE63M4,K79RF39-YE71M4,K79RF39-YE80M4,K79RF39-YE90S4,K79RF39-YEJ63M4,K79RF39-YEJ71M4,K79RF39-YEJ80M4,K79RF39-YEJ90S4,K79RF39-YEJB63M4,K79RF39-YEJB71M4,K79RF39-YEJB80M4,K79RF39-YEJB90S4,K79RF39-YP63M4,K79RF39-YP71M4,K79RF39-YP80M4,K79RF39-YP90S4,K79RF39-YPB63M4,K79RF39-YPB71M4,K79RF39-YPB80M4,K79RF39-YPB90S4,K79RF39-YPE63M4,K79RF39-YPE71M4,K79RF39-YPE80M4,K79RF39-YPE90S4,K79RF39-YS63M4,K79RF39-YS71M4,K79RF39-YS80M4,K79RF39-YS90S4,K79RF39-YVB63M4,K79RF39-YVB71M4,K79RF39-YVB80M4,K79RF39-YVB90S4,K79RF39-YVP63M4,K79RF39-YVP71M4,K79RF39-YVP80M4,K79RF39-YVP90S4,K79RF39-YVPEJ63M4,K79RF39-YVPEJ71M4,K79RF39-YVPEJ80M4,K79RF39-YVPEJ90S4。

K79R39減速電機生產廠家:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機


推薦型號:K79減速機

關鍵詞:雙出軸減速機帶電機一體機_K系列減速機_90度減速機_螺旋錐齒輪減速機_螺旋錐齒輪減速器_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器

K系列齒輪減速電機型號:K39減速機,K49減速機,K59減速機,K69減速機,K79減速機,K89減速機,K99減速機,K109減速機,K129減速機,K159減速機,K169減速機,K189減速機

K系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   K79R39傘齒輪減速電機生產廠家 NK77RF37減速機參數 JCK77R37減速器3D圖紙

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
K79R39減速機三維圖紙下載3D 點擊下載
K79R39減速機選型樣本 點擊下載
