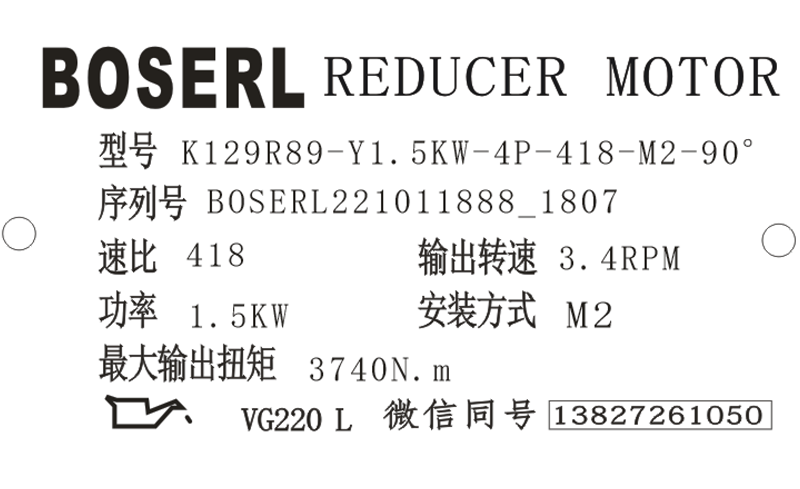

K129R89減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K129R89減速機選型樣本。
K129R89-Y1.5KW-4P-418-M2-90°
K/R:系列代號
129/89:減速機規格代號
Y:電機
1.5KW:電機功率
4P:電機級數
418:減速機傳動比
M2:減速機安裝位置
90°:接線盒位置
K129R89減速機電機調試運行:
啟動前的檢查-安裝、接線結束后,接通開關前請檢查以下各點:安裝的斷路器以及過電流繼電器是否合適;接線是否有差錯;接地線是否確實接地。此外,為防范危險于未然,在運轉本減速電機預測有危險的場合,以及無法正常發揮功能的場合,為了防范危險情況,請在裝置側多加考慮預防措施。電壓以及頻率的變動:當施加于電機的電壓和頻率不是規定值時,電機特性將發生變化,請注意。電機電壓在額定電壓上下10%以內變動,電機是可以正常使用的,超過10%,有可能燒毀電機,同時伴有出力扭矩降低或電流大等異常。齒輪減速電機
開始運轉后的性能確認旋轉方向是否正確;電流值是否有超標;是否產生異常振動或噪音;啟動頻率是否過高;是否發生沖擊。若有異常,請按BOSERL減速電機說明書中的“電機故障處理”章節所述步驟執行。
關于帶變頻器的電機運行:若電機同時配有變頻器與電磁制動器,此時制動器的電源應另外設置不可與電機電源并聯使用;當電機配變頻器使用時,建議使用頻率在30-80Hz,將可得到較具實用之性能,且可以長時間運行;若需要更高或更低的轉速,也可以通過調整減速比來實現;當電機使用頻率在30Hz以下或80Hz以上時,與30-80Hz相比,電機溫度將上升,運行噪間/振動將變大,此時電機只能短時間運行,
請客戶謹慎使用;變頻電機特性曲線如下圖所示,在6-50Hz的范圍內,為恒轉矩運行,電機可保持連續運轉扭矩與50Hz時的額定扭矩相同(但30Hz以下電機發熱較快,不可長時間運行);在50-120Hz的范圍內,為恒功率運行,電機可保持連續運轉輸出功率與50Hz時相同(高頻運行時電機轉速高,扭矩等比例降低,且80Hz以上電機發熱較快,不可長時間運行)。本公司變頻三相電機能夠配置變頻器進行變頻調速操作。當在低頻工作區工作時,由于電機轉速的降低而使電機原有設計的風冷系統的冷卻作用降低,電機溫升將會上升。而在高頻區工作時,過高的電機轉速使電機原有冷切風扇消耗更多的功率,增加了風摩損耗,降低了電機的效率,并且大大增加電機的運行噪聲。因此我們建議:在進行變頻操作時電機最好加裝獨立的冷卻風扇。直角減速機
K129R89減速機電機運轉時環境與操作注意點:
危險:在電機或所驅動設備上進行操作前,先切斷電源并鎖定。工作過程中一定要確保無爆炸性氣體存在;請勿在拆下接線盒罩殼的狀態下運轉。接線后,請在原先位置安裝接線盒罩殼。否則有可能會導致觸電。請切實進行安裝;運轉中,請絕對不要接近旋轉體(旋轉軸等)。否則有可能會被卷入,受傷;停電時,請務必切斷電源。否則不知不覺中來電可能會導致受傷、裝置損壞。
注意:運轉中,減速電機的溫度會變得很高。請注意不要觸及手和身體。否則有可能會導致燙傷;發生異常時,請立即停止運轉。否則有可能會導致觸電、受傷、火災。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞;使電機反轉時,請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控;電機即使在正常運行狀態,有時表面溫度也會有超過70°C的現象。電機運行時,若有靠近電機的可能請制作"高溫注意”圖標井貼于電機顯眼處;電機反轉時,單相電機按接線圖進行調整,三相電機只需要將電源線兩相對調即可。K系列減速機
K129R89減速電機型號:
YQK127R87-Y100M4,YQK127R87-Y112M4,YQK127R87-Y132M4,YQK127R87-Y160M4,YQK127RF87-Y100M4,YQK127RF87-Y112M4,YQK127RF87-Y11KW,YQK127RF87-Y132M4,YQK127RF87-Y15KW,YQK127RF87-Y160M4,YQK127RF87-Y2.2KW,YQK127RF87-Y3KW,YQK127RF87-Y4KW,YQK127RF87-Y5.5KW,YQK127RF87-Y7.5KW,YQK127RF87-YB100L4,YQK127RF87-YB112M4,YQK127RF87-YB132M4,YQK127RF87-YB160M4,YQK127RF87-YDP100L4,YQK127RF87-YDP112M4,YQK127RF87-YDP132M4,YQK127RF87-YDP160M4,YQK127RF87-YE100L4,YQK127RF87-YE112M4,YQK127RF87-YE132M4,YQK127RF87-YE160M4,YQK127RF87-YEJ100L4,YQK127RF87-YEJ112M4,YQK127RF87-YEJ132M4,YQK127RF87-YEJ160M4,YQK127RF87-YEJB100L4,YQK127RF87-YEJB112M4,YQK127RF87-YEJB132M4,YQK127RF87-YEJB160M4,YQK127RF87-YP100L4,YQK127RF87-YP112M4,YQK127RF87-YP132M4,YQK127RF87-YP160M4,YQK127RF87-YPB100L4,YQK127RF87-YPB112M4,YQK127RF87-YPB132M4,YQK127RF87-YPB160M4,YQK127RF87-YPE100L4,YQK127RF87-YPE112M4,YQK127RF87-YPE132M4,YQK127RF87-YPE160M4,YQK127RF87-YS100L4,YQK127RF87-YS112M4,YQK127RF87-YS132M4,YQK127RF87-YS160M4,YQK127RF87-YVB100L4,YQK127RF87-YVB112M4,YQK127RF87-YVB132M4,YQK127RF87-YVB160M4,YQK127RF87-YVP100L4,YQK127RF87-YVP112M4,YQK127RF87-YVP132M4,YQK127RF87-YVP160M4,YQK127RF87-YVPEJ100L4,YQK127RF87-YVPEJ112M4,YQK127RF87-YVPEJ132M4,YQK127RF87-YVPEJ160M4,AK127R87-Y100M4,AK127R87-Y112M4,AK127R87-Y132M4,AK127R87-Y160M4,AK127RF87-Y100M4,AK127RF87-Y112M4,AK127RF87-Y11KW,AK127RF87-Y132M4,AK127RF87-Y15KW,AK127RF87-Y160M4,AK127RF87-Y2.2KW,AK127RF87-Y3KW,AK127RF87-Y4KW,AK127RF87-Y5.5KW,AK127RF87-Y7.5KW,AK127RF87-YB100L4,AK127RF87-YB112M4,AK127RF87-YB132M4,AK127RF87-YB160M4,AK127RF87-YDP100L4,AK127RF87-YDP112M4,AK127RF87-YDP132M4,AK127RF87-YDP160M4,AK127RF87-YE100L4,AK127RF87-YE112M4,AK127RF87-YE132M4,AK127RF87-YE160M4,AK127RF87-YEJ100L4,AK127RF87-YEJ112M4,AK127RF87-YEJ132M4,AK127RF87-YEJ160M4,AK127RF87-YEJB100L4,AK127RF87-YEJB112M4,AK127RF87-YEJB132M4,AK127RF87-YEJB160M4,AK127RF87-YP100L4,AK127RF87-YP112M4,AK127RF87-YP132M4,AK127RF87-YP160M4,AK127RF87-YPB100L4,AK127RF87-YPB112M4,AK127RF87-YPB132M4,AK127RF87-YPB160M4,AK127RF87-YPE100L4,AK127RF87-YPE112M4,AK127RF87-YPE132M4,AK127RF87-YPE160M4,AK127RF87-YS100L4,AK127RF87-YS112M4,AK127RF87-YS132M4,AK127RF87-YS160M4,AK127RF87-YVB100L4,AK127RF87-YVB112M4,AK127RF87-YVB132M4,AK127RF87-YVB160M4,AK127RF87-YVP100L4,AK127RF87-YVP112M4,AK127RF87-YVP132M4,AK127RF87-YVP160M4,AK127RF87-YVPEJ100L4,AK127RF87-YVPEJ112M4,AK127RF87-YVPEJ132M4,AK127RF87-YVPEJ160M4,SK127R87-Y100M4,SK127R87-Y112M4,SK127R87-Y132M4,SK127R87-Y160M4,SK127RF87-Y100M4,SK127RF87-Y112M4,SK127RF87-Y11KW,SK127RF87-Y132M4,SK127RF87-Y15KW,SK127RF87-Y160M4,SK127RF87-Y2.2KW,SK127RF87-Y3KW,SK127RF87-Y4KW,SK127RF87-Y5.5KW,SK127RF87-Y7.5KW,SK127RF87-YB100L4,SK127RF87-YB112M4,SK127RF87-YB132M4,SK127RF87-YB160M4,SK127RF87-YDP100L4,SK127RF87-YDP112M4,SK127RF87-YDP132M4,SK127RF87-YDP160M4,SK127RF87-YE100L4,SK127RF87-YE112M4,SK127RF87-YE132M4,SK127RF87-YE160M4,SK127RF87-YEJ100L4,SK127RF87-YEJ112M4,SK127RF87-YEJ132M4,SK127RF87-YEJ160M4,SK127RF87-YEJB100L4,SK127RF87-YEJB112M4,SK127RF87-YEJB132M4,SK127RF87-YEJB160M4,SK127RF87-YP100L4,SK127RF87-YP112M4,SK127RF87-YP132M4,SK127RF87-YP160M4,SK127RF87-YPB100L4,SK127RF87-YPB112M4,SK127RF87-YPB132M4,SK127RF87-YPB160M4,SK127RF87-YPE100L4,SK127RF87-YPE112M4,SK127RF87-YPE132M4,SK127RF87-YPE160M4,SK127RF87-YS100L4,SK127RF87-YS112M4,SK127RF87-YS132M4,SK127RF87-YS160M4,SK127RF87-YVB100L4,SK127RF87-YVB112M4,SK127RF87-YVB132M4,SK127RF87-YVB160M4,SK127RF87-YVP100L4,SK127RF87-YVP112M4,SK127RF87-YVP132M4,SK127RF87-YVP160M4,SK127RF87-YVPEJ100L4,SK127RF87-YVPEJ112M4,SK127RF87-YVPEJ132M4,SK127RF87-YVPEJ160M4,XDK127R87-Y100M4,XDK127R87-Y112M4,XDK127R87-Y132M4,XDK127R87-Y160M4,XDK127RF87-Y100M4,XDK127RF87-Y112M4,XDK127RF87-Y11KW,XDK127RF87-Y132M4,XDK127RF87-Y15KW,XDK127RF87-Y160M4,XDK127RF87-Y2.2KW,XDK127RF87-Y3KW,XDK127RF87-Y4KW,XDK127RF87-Y5.5KW,XDK127RF87-Y7.5KW,XDK127RF87-YB100L4,XDK127RF87-YB112M4,XDK127RF87-YB132M4,XDK127RF87-YB160M4,XDK127RF87-YDP100L4,XDK127RF87-YDP112M4,XDK127RF87-YDP132M4,XDK127RF87-YDP160M4,XDK127RF87-YE100L4,XDK127RF87-YE112M4,XDK127RF87-YE132M4,XDK127RF87-YE160M4,XDK127RF87-YEJ100L4,XDK127RF87-YEJ112M4,XDK127RF87-YEJ132M4,XDK127RF87-YEJ160M4,XDK127RF87-YEJB100L4,XDK127RF87-YEJB112M4,XDK127RF87-YEJB132M4,XDK127RF87-YEJB160M4,XDK127RF87-YP100L4,XDK127RF87-YP112M4,XDK127RF87-YP132M4,XDK127RF87-YP160M4,XDK127RF87-YPB100L4,XDK127RF87-YPB112M4,XDK127RF87-YPB132M4,XDK127RF87-YPB160M4,XDK127RF87-YPE100L4,XDK127RF87-YPE112M4,XDK127RF87-YPE132M4,XDK127RF87-YPE160M4,XDK127RF87-YS100L4,XDK127RF87-YS112M4,XDK127RF87-YS132M4,XDK127RF87-YS160M4,XDK127RF87-YVB100L4,XDK127RF87-YVB112M4,XDK127RF87-YVB132M4,XDK127RF87-YVB160M4,XDK127RF87-YVP100L4,XDK127RF87-YVP112M4,XDK127RF87-YVP132M4,XDK127RF87-YVP160M4,XDK127RF87-YVPEJ100L4,XDK127RF87-YVPEJ112M4,XDK127RF87-YVPEJ132M4,XDK127RF87-YVPEJ160M4,WK127R87-Y100M4,WK127R87-Y112M4,WK127R87-Y132M4,WK127R87-Y160M4,WK127RF87-Y100M4,WK127RF87-Y112M4,WK127RF87-Y11KW,WK127RF87-Y132M4,WK127RF87-Y15KW,WK127RF87-Y160M4,WK127RF87-Y2.2KW,WK127RF87-Y3KW,WK127RF87-Y4KW,WK127RF87-Y5.5KW,WK127RF87-Y7.5KW,WK127RF87-YB100L4,WK127RF87-YB112M4,WK127RF87-YB132M4,WK127RF87-YB160M4,WK127RF87-YDP100L4,WK127RF87-YDP112M4,WK127RF87-YDP132M4,WK127RF87-YDP160M4,WK127RF87-YE100L4,WK127RF87-YE112M4,WK127RF87-YE132M4,WK127RF87-YE160M4,WK127RF87-YEJ100L4,WK127RF87-YEJ112M4,WK127RF87-YEJ132M4,WK127RF87-YEJ160M4,WK127RF87-YEJB100L4,WK127RF87-YEJB112M4,WK127RF87-YEJB132M4,WK127RF87-YEJB160M4,WK127RF87-YP100L4,WK127RF87-YP112M4,WK127RF87-YP132M4,WK127RF87-YP160M4,WK127RF87-YPB100L4,WK127RF87-YPB112M4,WK127RF87-YPB132M4,WK127RF87-YPB160M4,WK127RF87-YPE100L4,WK127RF87-YPE112M4,WK127RF87-YPE132M4,WK127RF87-YPE160M4,WK127RF87-YS100L4,WK127RF87-YS112M4,WK127RF87-YS132M4,WK127RF87-YS160M4,WK127RF87-YVB100L4,WK127RF87-YVB112M4,WK127RF87-YVB132M4,WK127RF87-YVB160M4,WK127RF87-YVP100L4,WK127RF87-YVP112M4,WK127RF87-YVP132M4,WK127RF87-YVP160M4,WK127RF87-YVPEJ100L4,WK127RF87-YVPEJ112M4,WK127RF87-YVPEJ132M4,WK127RF87-YVPEJ160M4,JCK127R87-Y100M4,JCK127R87-Y112M4,JCK127R87-Y132M4,JCK127R87-Y160M4,JCK127RF87-Y100M4,JCK127RF87-Y112M4,JCK127RF87-Y11KW,JCK127RF87-Y132M4,JCK127RF87-Y15KW,JCK127RF87-Y160M4,JCK127RF87-Y2.2KW,JCK127RF87-Y3KW,JCK127RF87-Y4KW,JCK127RF87-Y5.5KW,JCK127RF87-Y7.5KW,JCK127RF87-YB100L4,JCK127RF87-YB112M4,JCK127RF87-YB132M4,JCK127RF87-YB160M4,JCK127RF87-YDP100L4,JCK127RF87-YDP112M4,JCK127RF87-YDP132M4,JCK127RF87-YDP160M4,JCK127RF87-YE100L4,JCK127RF87-YE112M4,JCK127RF87-YE132M4,JCK127RF87-YE160M4,JCK127RF87-YEJ100L4,JCK127RF87-YEJ112M4,JCK127RF87-YEJ132M4,JCK127RF87-YEJ160M4,JCK127RF87-YEJB100L4,JCK127RF87-YEJB112M4,JCK127RF87-YEJB132M4,JCK127RF87-YEJB160M4,JCK127RF87-YP100L4,JCK127RF87-YP112M4,JCK127RF87-YP132M4,JCK127RF87-YP160M4,JCK127RF87-YPB100L4,JCK127RF87-YPB112M4,JCK127RF87-YPB132M4,JCK127RF87-YPB160M4,JCK127RF87-YPE100L4,JCK127RF87-YPE112M4,JCK127RF87-YPE132M4,JCK127RF87-YPE160M4,JCK127RF87-YS100L4,JCK127RF87-YS112M4,JCK127RF87-YS132M4,JCK127RF87-YS160M4,JCK127RF87-YVB100L4,JCK127RF87-YVB112M4,JCK127RF87-YVB132M4,JCK127RF87-YVB160M4,JCK127RF87-YVP100L4,JCK127RF87-YVP112M4,JCK127RF87-YVP132M4,JCK127RF87-YVP160M4,JCK127RF87-YVPEJ100L4,JCK127RF87-YVPEJ112M4,JCK127RF87-YVPEJ132M4,JCK127RF87-YVPEJ160M4,NK127R87-Y100M4,NK127R87-Y112M4,NK127R87-Y132M4,NK127R87-Y160M4,NK127RF87-Y100M4,NK127RF87-Y112M4,NK127RF87-Y11KW,NK127RF87-Y132M4,NK127RF87-Y15KW,NK127RF87-Y160M4,NK127RF87-Y2.2KW,NK127RF87-Y3KW,NK127RF87-Y4KW,NK127RF87-Y5.5KW,NK127RF87-Y7.5KW,NK127RF87-YB100L4,NK127RF87-YB112M4,NK127RF87-YB132M4,NK127RF87-YB160M4,NK127RF87-YDP100L4,NK127RF87-YDP112M4,NK127RF87-YDP132M4,NK127RF87-YDP160M4,NK127RF87-YE100L4,NK127RF87-YE112M4,NK127RF87-YE132M4,NK127RF87-YE160M4,NK127RF87-YEJ100L4,NK127RF87-YEJ112M4,NK127RF87-YEJ132M4,NK127RF87-YEJ160M4,NK127RF87-YEJB100L4,NK127RF87-YEJB112M4,NK127RF87-YEJB132M4,NK127RF87-YEJB160M4,NK127RF87-YP100L4,NK127RF87-YP112M4,NK127RF87-YP132M4,NK127RF87-YP160M4,NK127RF87-YPB100L4,NK127RF87-YPB112M4,NK127RF87-YPB132M4,NK127RF87-YPB160M4,NK127RF87-YPE100L4,NK127RF87-YPE112M4,NK127RF87-YPE132M4,NK127RF87-YPE160M4,NK127RF87-YS100L4,NK127RF87-YS112M4,NK127RF87-YS132M4,NK127RF87-YS160M4,NK127RF87-YVB100L4,NK127RF87-YVB112M4,NK127RF87-YVB132M4,NK127RF87-YVB160M4,NK127RF87-YVP100L4,NK127RF87-YVP112M4,NK127RF87-YVP132M4,NK127RF87-YVP160M4,NK127RF87-YVPEJ100L4,NK127RF87-YVPEJ112M4,NK127RF87-YVPEJ132M4,NK127RF87-YVPEJ160M4,KW127RW87-Y100M4,KW127RW87-Y112M4,KW127RW87-Y132M4,KW127RW87-Y160M4,KW127RWF87-Y100M4,KW127RWF87-Y112M4,KW127RWF87-Y11KW,KW127RWF87-Y132M4,KW127RWF87-Y15KW,KW127RWF87-Y160M4,KW127RWF87-Y2.2KW,KW127RWF87-Y3KW,KW127RWF87-Y4KW,KW127RWF87-Y5.5KW,KW127RWF87-Y7.5KW,KW127RWF87-YB100L4,KW127RWF87-YB112M4,KW127RWF87-YB132M4,KW127RWF87-YB160M4,KW127RWF87-YDP100L4,KW127RWF87-YDP112M4,KW127RWF87-YDP132M4,KW127RWF87-YDP160M4,KW127RWF87-YE100L4,KW127RWF87-YE112M4,KW127RWF87-YE132M4,KW127RWF87-YE160M4,KW127RWF87-YEJ100L4,KW127RWF87-YEJ112M4,KW127RWF87-YEJ132M4,KW127RWF87-YEJ160M4,KW127RWF87-YEJB100L4,KW127RWF87-YEJB112M4,KW127RWF87-YEJB132M4,KW127RWF87-YEJB160M4,KW127RWF87-YP100L4,KW127RWF87-YP112M4,KW127RWF87-YP132M4,KW127RWF87-YP160M4,KW127RWF87-YPB100L4,KW127RWF87-YPB112M4,KW127RWF87-YPB132M4,KW127RWF87-YPB160M4,KW127RWF87-YPE100L4,KW127RWF87-YPE112M4,KW127RWF87-YPE132M4,KW127RWF87-YPE160M4,KW127RWF87-YS100L4,KW127RWF87-YS112M4,KW127RWF87-YS132M4,KW127RWF87-YS160M4,KW127RWF87-YVB100L4,KW127RWF87-YVB112M4,KW127RWF87-YVB132M4,KW127RWF87-YVB160M4,KW127RWF87-YVP100L4,KW127RWF87-YVP112M4,KW127RWF87-YVP132M4,KW127RWF87-YVP160M4,KW127RWF87-YVPEJ100L4,KW127RWF87-YVPEJ112M4,KW127RWF87-YVPEJ132M4,KW127RWF87-YVPEJ160M4,K129R89-Y100M4,K129R89-Y112M4,K129R89-Y132M4,K129R89-Y160M4,K129RF89-Y100M4,K129RF89-Y112M4,K129RF89-Y11KW,K129RF89-Y132M4,K129RF89-Y15KW,K129RF89-Y160M4,K129RF89-Y2.2KW,K129RF89-Y3KW,K129RF89-Y4KW,K129RF89-Y5.5KW,K129RF89-Y7.5KW,K129RF89-YB100L4,K129RF89-YB112M4,K129RF89-YB132M4,K129RF89-YB160M4,K129RF89-YDP100L4,K129RF89-YDP112M4,K129RF89-YDP132M4,K129RF89-YDP160M4,K129RF89-YE100L4,K129RF89-YE112M4,K129RF89-YE132M4,K129RF89-YE160M4,K129RF89-YEJ100L4,K129RF89-YEJ112M4,K129RF89-YEJ132M4,K129RF89-YEJ160M4,K129RF89-YEJB100L4,K129RF89-YEJB112M4,K129RF89-YEJB132M4,K129RF89-YEJB160M4,K129RF89-YP100L4,K129RF89-YP112M4,K129RF89-YP132M4,K129RF89-YP160M4,K129RF89-YPB100L4,K129RF89-YPB112M4,K129RF89-YPB132M4,K129RF89-YPB160M4,K129RF89-YPE100L4,K129RF89-YPE112M4,K129RF89-YPE132M4,K129RF89-YPE160M4,K129RF89-YS100L4,K129RF89-YS112M4,K129RF89-YS132M4,K129RF89-YS160M4,K129RF89-YVB100L4,K129RF89-YVB112M4,K129RF89-YVB132M4,K129RF89-YVB160M4,K129RF89-YVP100L4,K129RF89-YVP112M4,K129RF89-YVP132M4,K129RF89-YVP160M4,K129RF89-YVPEJ100L4,K129RF89-YVPEJ112M4,K129RF89-YVPEJ132M4,K129RF89-YVPEJ160M4。
