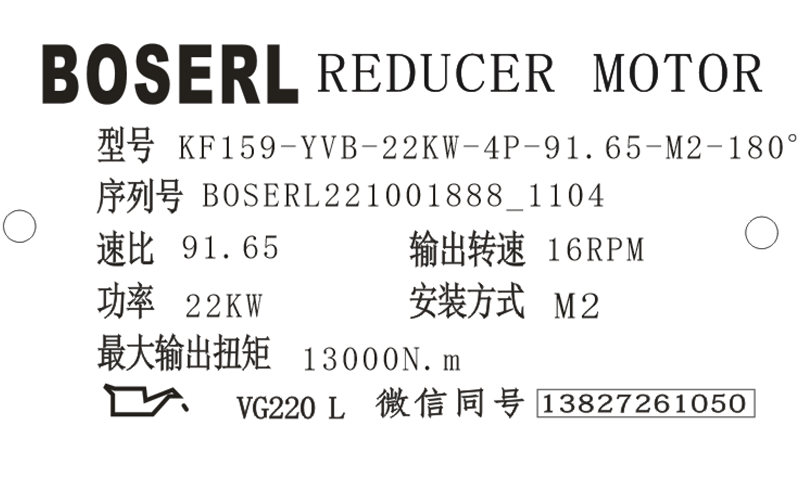

KF159減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K159減速機選型樣本。
KF159-YVB-22KW-4P-91.65-M2-180°
KF:系列代號
159:減速機規格代號
YVB:電機
22KW:電機功率
4P:電機級數
91.65:減速機傳動比
M2:減速機安裝位置
180°:接線盒位置
KF159減速機潤滑油型號:
KF159減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據KF159減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“KF159減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。直角減速機
KF159減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF159減速機選型樣本中列出了安裝位置從M1到M6KF159減速機相應的潤滑油加注標準,請自行下載查看。
KF159減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機
KF159減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
KF159減速機使用說明:
KF159減速機警告說明:由于KF159減速機發熱或KF159減速機油溫過高可能引起燙傷;對KF159減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
KF159減速機注意事項:若未注入正確的KF159減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
KF159減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見KF159減速機說明書安裝位置章節中的內容。
KF159減速機的螺母:立式安裝KF159減速機輸出法蘭螺母規格M20;KF159減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機
KF159減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
KF159減速機型號:
AKF157-Y110SKF,AKF157-Y11SKF,AKF157-Y132SKF,AKF157-Y15SKF,AKF157-Y160SKF,AKF157-Y160M4,AKF157-Y18.5SKF,AKF157-Y180M4,AKF157-Y200SKF,AKF157-Y200M4,AKF157-Y225M4,AKF157-Y22SKF,AKF157-Y250M4,AKF157-Y280M4,AKF157-Y30SKF,AKF157-Y315M4,AKF157-Y37SKF,AKF157-Y45SKF,AKF157-Y55SKF,AKF157-Y75SKF,AKF157-Y90SKF,AKF157-YB160M4,AKF157-YB180M4,AKF157-YB200M4,AKF157-YB225M4,AKF157-YB250M4,AKF157-YB280M4,AKF157-YB315M4,AKF157-YDP160M4,AKF157-YDP180M4,AKF157-YDP200M4,AKF157-YDP225M4,AKF157-YDP250M4,AKF157-YDP280M4,AKF157-YDP315M4,AKF157-YE160M4,AKF157-YE180M4,AKF157-YE200M4,AKF157-YE225M4,AKF157-YE250M4,AKF157-YE280M4,AKF157-YE315M4,AKF157-YEJ160M4,AKF157-YEJ180M4,AKF157-YEJ200M4,AKF157-YEJ225M4,AKF157-YEJ250M4,AKF157-YEJ280M4,AKF157-YEJ315M4,AKF157-YEJB160M4,AKF157-YEJB180M4,AKF157-YEJB200M4,AKF157-YEJB225M4,AKF157-YEJB250M4,AKF157-YEJB280M4,AKF157-YEJB315M4,AKF157-YP160M4,AKF157-YP180M4,AKF157-YP200M4,AKF157-YP225M4,AKF157-YP250M4,AKF157-YP280M4,AKF157-YP315M4,AKF157-YPB160M4,AKF157-YPB180M4,AKF157-YPB200M4,AKF157-YPB225M4,AKF157-YPB250M4,AKF157-YPB280M4,AKF157-YPB315M4,AKF157-YPE160M4,AKF157-YPE180M4,AKF157-YPE200M4,AKF157-YPE225M4,AKF157-YPE250M4,AKF157-YPE280M4,AKF157-YPE315M4,AKF157-YS160M4,AKF157-YS180M4,AKF157-YS200M4,AKF157-YS225M4,AKF157-YS250M4,AKF157-YS280M4,AKF157-YS315M4,AKF157-YVB160M4,AKF157-YVB180M4,AKF157-YVB200M4,AKF157-YVB225M4,AKF157-YVB250M4,AKF157-YVB280M4,AKF157-YVB315M4,AKF157-YVP160M4,AKF157-YVP180M4,AKF157-YVP200M4,AKF157-YVP225M4,AKF157-YVP250M4,AKF157-YVP280M4,AKF157-YVP315M4,AKF157-YVPEJ160M4,AKF157-YVPEJ180M4,AKF157-YVPEJ200M4,AKF157-YVPEJ225M4,AKF157-YVPEJ250M4,AKF157-YVPEJ280M4,AKF157-YVPEJ315M4,WKF157-Y110SKF,WKF157-Y11SKF,WKF157-Y132SKF,WKF157-Y15SKF,WKF157-Y160SKF,WKF157-Y160M4,WKF157-Y18.5SKF,WKF157-Y180M4,WKF157-Y200SKF,WKF157-Y200M4,WKF157-Y225M4,WKF157-Y22SKF,WKF157-Y250M4,WKF157-Y280M4,WKF157-Y30SKF,WKF157-Y315M4,WKF157-Y37SKF,WKF157-Y45SKF,WKF157-Y55SKF,WKF157-Y75SKF,WKF157-Y90SKF,WKF157-YB160M4,WKF157-YB180M4,WKF157-YB200M4,WKF157-YB225M4,WKF157-YB250M4,WKF157-YB280M4,WKF157-YB315M4,WKF157-YDP160M4,WKF157-YDP180M4,WKF157-YDP200M4,WKF157-YDP225M4,WKF157-YDP250M4,WKF157-YDP280M4,WKF157-YDP315M4,WKF157-YE160M4,WKF157-YE180M4,WKF157-YE200M4,WKF157-YE225M4,WKF157-YE250M4,WKF157-YE280M4,WKF157-YE315M4,WKF157-YEJ160M4,WKF157-YEJ180M4,WKF157-YEJ200M4,WKF157-YEJ225M4,WKF157-YEJ250M4,WKF157-YEJ280M4,WKF157-YEJ315M4,WKF157-YEJB160M4,WKF157-YEJB180M4,WKF157-YEJB200M4,WKF157-YEJB225M4,WKF157-YEJB250M4,WKF157-YEJB280M4,WKF157-YEJB315M4,WKF157-YP160M4,WKF157-YP180M4,WKF157-YP200M4,WKF157-YP225M4,WKF157-YP250M4,WKF157-YP280M4,WKF157-YP315M4,WKF157-YPB160M4,WKF157-YPB180M4,WKF157-YPB200M4,WKF157-YPB225M4,WKF157-YPB250M4,WKF157-YPB280M4,WKF157-YPB315M4,WKF157-YPE160M4,WKF157-YPE180M4,WKF157-YPE200M4,WKF157-YPE225M4,WKF157-YPE250M4,WKF157-YPE280M4,WKF157-YPE315M4,WKF157-YS160M4,WKF157-YS180M4,WKF157-YS200M4,WKF157-YS225M4,WKF157-YS250M4,WKF157-YS280M4,WKF157-YS315M4,WKF157-YVB160M4,WKF157-YVB180M4,WKF157-YVB200M4,WKF157-YVB225M4,WKF157-YVB250M4,WKF157-YVB280M4,WKF157-YVB315M4,WKF157-YVP160M4,WKF157-YVP180M4,WKF157-YVP200M4,WKF157-YVP225M4,WKF157-YVP250M4,WKF157-YVP280M4,WKF157-YVP315M4,WKF157-YVPEJ160M4,WKF157-YVPEJ180M4,WKF157-YVPEJ200M4,WKF157-YVPEJ225M4,WKF157-YVPEJ250M4,WKF157-YVPEJ280M4,WKF157-YVPEJ315M4,NKF157-Y110SKF,NKF157-Y11SKF,NKF157-Y132SKF,NKF157-Y15SKF,NKF157-Y160SKF,NKF157-Y160M4,NKF157-Y18.5SKF,NKF157-Y180M4,NKF157-Y200SKF,NKF157-Y200M4,NKF157-Y225M4,NKF157-Y22SKF,NKF157-Y250M4,NKF157-Y280M4,NKF157-Y30SKF,NKF157-Y315M4,NKF157-Y37SKF,NKF157-Y45SKF,NKF157-Y55SKF,NKF157-Y75SKF,NKF157-Y90SKF,NKF157-YB160M4,NKF157-YB180M4,NKF157-YB200M4,NKF157-YB225M4,NKF157-YB250M4,NKF157-YB280M4,NKF157-YB315M4,NKF157-YDP160M4,NKF157-YDP180M4,NKF157-YDP200M4,NKF157-YDP225M4,NKF157-YDP250M4,NKF157-YDP280M4,NKF157-YDP315M4,NKF157-YE160M4,NKF157-YE180M4,NKF157-YE200M4,NKF157-YE225M4,NKF157-YE250M4,NKF157-YE280M4,NKF157-YE315M4,NKF157-YEJ160M4,NKF157-YEJ180M4,NKF157-YEJ200M4,NKF157-YEJ225M4,NKF157-YEJ250M4,NKF157-YEJ280M4,NKF157-YEJ315M4,NKF157-YEJB160M4,NKF157-YEJB180M4,NKF157-YEJB200M4,NKF157-YEJB225M4,NKF157-YEJB250M4,NKF157-YEJB280M4,NKF157-YEJB315M4,NKF157-YP160M4,NKF157-YP180M4,NKF157-YP200M4,NKF157-YP225M4,NKF157-YP250M4,NKF157-YP280M4,NKF157-YP315M4,NKF157-YPB160M4,NKF157-YPB180M4,NKF157-YPB200M4,NKF157-YPB225M4,NKF157-YPB250M4,NKF157-YPB280M4,NKF157-YPB315M4,NKF157-YPE160M4,NKF157-YPE180M4,NKF157-YPE200M4,NKF157-YPE225M4,NKF157-YPE250M4,NKF157-YPE280M4,NKF157-YPE315M4,NKF157-YS160M4,NKF157-YS180M4,NKF157-YS200M4,NKF157-YS225M4,NKF157-YS250M4,NKF157-YS280M4,NKF157-YS315M4,NKF157-YVB160M4,NKF157-YVB180M4,NKF157-YVB200M4,NKF157-YVB225M4,NKF157-YVB250M4,NKF157-YVB280M4,NKF157-YVB315M4,NKF157-YVP160M4,NKF157-YVP180M4,NKF157-YVP200M4,NKF157-YVP225M4,NKF157-YVP250M4,NKF157-YVP280M4,NKF157-YVP315M4,NKF157-YVPEJ160M4,NKF157-YVPEJ180M4,NKF157-YVPEJ200M4,NKF157-YVPEJ225M4,NKF157-YVPEJ250M4,NKF157-YVPEJ280M4,NKF157-YVPEJ315M4,GKF159-Y110SKF,GKF159-Y11SKF,GKF159-Y132SKF,GKF159-Y15SKF,GKF159-Y160SKF,GKF159-Y160M4,GKF159-Y18.5SKF,GKF159-Y180M4,GKF159-Y200SKF,GKF159-Y200M4,GKF159-Y225M4,GKF159-Y22SKF,GKF159-Y250M4,GKF159-Y280M4,GKF159-Y30SKF,GKF159-Y315M4,GKF159-Y37SKF,GKF159-Y45SKF,GKF159-Y55SKF,GKF159-Y75SKF,GKF159-Y90SKF,GKF159-YB160M4,GKF159-YB180M4,GKF159-YB200M4,GKF159-YB225M4,GKF159-YB250M4,GKF159-YB280M4,GKF159-YB315M4,GKF159-YDP160M4,GKF159-YDP180M4,GKF159-YDP200M4,GKF159-YDP225M4,GKF159-YDP250M4,GKF159-YDP280M4,GKF159-YDP315M4,GKF159-YE160M4,GKF159-YE180M4,GKF159-YE200M4,GKF159-YE225M4,GKF159-YE250M4,GKF159-YE280M4,GKF159-YE315M4,GKF159-YEJ160M4,GKF159-YEJ180M4,GKF159-YEJ200M4,GKF159-YEJ225M4,GKF159-YEJ250M4,GKF159-YEJ280M4,GKF159-YEJ315M4,GKF159-YEJB160M4,GKF159-YEJB180M4,GKF159-YEJB200M4,GKF159-YEJB225M4,GKF159-YEJB250M4,GKF159-YEJB280M4,GKF159-YEJB315M4,GKF159-YP160M4,GKF159-YP180M4,GKF159-YP200M4,GKF159-YP225M4,GKF159-YP250M4,GKF159-YP280M4,GKF159-YP315M4,GKF159-YPB160M4,GKF159-YPB180M4,GKF159-YPB200M4,GKF159-YPB225M4,GKF159-YPB250M4,GKF159-YPB280M4,GKF159-YPB315M4,GKF159-YPE160M4,GKF159-YPE180M4,GKF159-YPE200M4,GKF159-YPE225M4,GKF159-YPE250M4,GKF159-YPE280M4,GKF159-YPE315M4,GKF159-YS160M4,GKF159-YS180M4,GKF159-YS200M4,GKF159-YS225M4,GKF159-YS250M4,GKF159-YS280M4,GKF159-YS315M4,GKF159-YVB160M4,GKF159-YVB180M4,GKF159-YVB200M4,GKF159-YVB225M4,GKF159-YVB250M4,GKF159-YVB280M4,GKF159-YVB315M4,GKF159-YVP160M4,GKF159-YVP180M4,GKF159-YVP200M4,GKF159-YVP225M4,GKF159-YVP250M4,GKF159-YVP280M4,GKF159-YVP315M4,GKF159-YVPEJ160M4,GKF159-YVPEJ180M4,GKF159-YVPEJ200M4,GKF159-YVPEJ225M4,GKF159-YVPEJ250M4,GKF159-YVPEJ280M4,GKF159-YVPEJ315M4,SKF157-Y110SKF,SKF157-Y11SKF,SKF157-Y132SKF,SKF157-Y15SKF,SKF157-Y160SKF,SKF157-Y160M4,SKF157-Y18.5SKF,SKF157-Y180M4,SKF157-Y200SKF,SKF157-Y200M4,SKF157-Y225M4,SKF157-Y22SKF,SKF157-Y250M4,SKF157-Y280M4,SKF157-Y30SKF,SKF157-Y315M4,SKF157-Y37SKF,SKF157-Y45SKF,SKF157-Y55SKF,SKF157-Y75SKF,SKF157-Y90SKF,SKF157-YB160M4,SKF157-YB180M4,SKF157-YB200M4,SKF157-YB225M4,SKF157-YB250M4,SKF157-YB280M4,SKF157-YB315M4,SKF157-YDP160M4,SKF157-YDP180M4,SKF157-YDP200M4,SKF157-YDP225M4,SKF157-YDP250M4,SKF157-YDP280M4,SKF157-YDP315M4,SKF157-YE160M4,SKF157-YE180M4,SKF157-YE200M4,SKF157-YE225M4,SKF157-YE250M4,SKF157-YE280M4,SKF157-YE315M4,SKF157-YEJ160M4,SKF157-YEJ180M4,SKF157-YEJ200M4,SKF157-YEJ225M4,SKF157-YEJ250M4,SKF157-YEJ280M4,SKF157-YEJ315M4,SKF157-YEJB160M4,SKF157-YEJB180M4,SKF157-YEJB200M4,SKF157-YEJB225M4,SKF157-YEJB250M4,SKF157-YEJB280M4,SKF157-YEJB315M4,SKF157-YP160M4,SKF157-YP180M4,SKF157-YP200M4,SKF157-YP225M4,SKF157-YP250M4,SKF157-YP280M4,SKF157-YP315M4,SKF157-YPB160M4,SKF157-YPB180M4,SKF157-YPB200M4,SKF157-YPB225M4,SKF157-YPB250M4,SKF157-YPB280M4,SKF157-YPB315M4,SKF157-YPE160M4,SKF157-YPE180M4,SKF157-YPE200M4,SKF157-YPE225M4,SKF157-YPE250M4,SKF157-YPE280M4,SKF157-YPE315M4,SKF157-YS160M4,SKF157-YS180M4,SKF157-YS200M4,SKF157-YS225M4,SKF157-YS250M4,SKF157-YS280M4,SKF157-YS315M4,SKF157-YVB160M4,SKF157-YVB180M4,SKF157-YVB200M4,SKF157-YVB225M4,SKF157-YVB250M4,SKF157-YVB280M4,SKF157-YVB315M4,SKF157-YVP160M4,SKF157-YVP180M4,SKF157-YVP200M4,SKF157-YVP225M4,SKF157-YVP250M4,SKF157-YVP280M4,SKF157-YVP315M4,SKF157-YVPEJ160M4,SKF157-YVPEJ180M4,SKF157-YVPEJ200M4,SKF157-YVPEJ225M4,SKF157-YVPEJ250M4,SKF157-YVPEJ280M4,SKF157-YVPEJ315M4。
