網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速電機 > KA系列齒輪減速電機

KA49減速機詳細信息

prevnext

KA49減速機

訂購熱線:13360667204
  1. 詳細信息

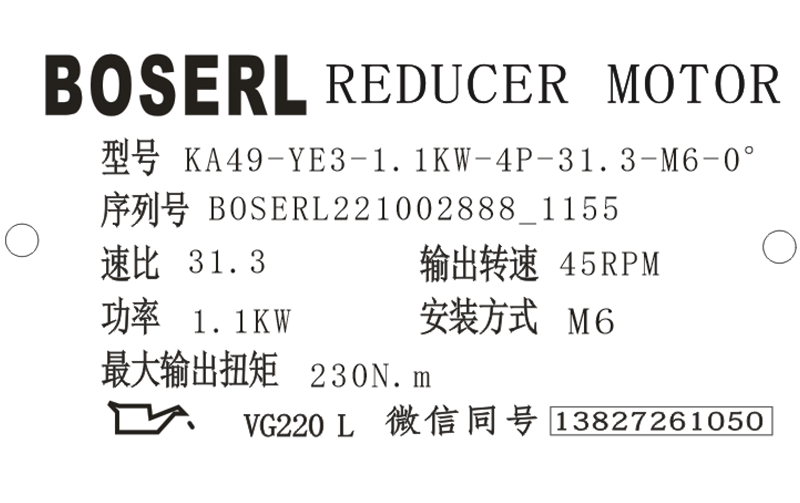

KA49減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA49減速機選型樣本。

KA49-YE3-1.1KW-4P-31.3-M6-0°

KA:系列代號

49:減速機規格代號

YE3:電機

1.1KW:電機功率

4P:電機級數

31.3:減速機傳動比

M6:減速機安裝位置

0°:接線盒位置


KA49減速機空心軸扭矩臂安裝:

裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA49減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機


減速機型號

螺栓

擰緊扭矩

KA39減速機

4Xm10x25-8.8

48Nm

KA49減速機

4Xm10x30-8.8

48Nm

KA69減速機

4Xm12x35-8.8

86Nm

KA79減速機

4Xm16x40-8.8

210Nm

KA89減速機

4Xm16x45-8.8

210Nm

KA99減速機

4Xm20x50-8.8

410Nm

KA109減速機

4Xm24x60-8.8

710Nm

KA129減速機

4Xm36x60-8.8

2500Nm

KA159減速機

4Xm36x60-8.8

2500Nm

KA169減速機

4Xm30x60-8.8

1450Nm

KA189減速機

4Xm36x60-8.8

2500Nm

KA49減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA49減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機


KA49減速機型號:

WKA47-Y0.12SKA,WKA47-Y0.18SKA,WKA47-Y0.25SKA,WKA47-Y0.37SKA,WKA47-Y0.55SKA,WKA47-Y0.75SKA,WKA47-Y1.1SKA,WKA47-Y1.5SKA,WKA47-Y100M4,WKA47-Y2.2SKA,WKA47-Y3SKA,WKA47-Y63M4,WKA47-Y71M4,WKA47-Y80M4,WKA47-Y90M4,WKA47-YB100M4,WKA47-YB63M4,WKA47-YB71M4,WKA47-YB80M4,WKA47-YB90M4,WKA47-YDP100M4,WKA47-YDP63M4,WKA47-YDP71M4,WKA47-YDP80M4,WKA47-YDP90M4,WKA47-YE100M4,WKA47-YE63M4,WKA47-YE71M4,WKA47-YE80M4,WKA47-YE90M4,WKA47-YEJ100M4,WKA47-YEJ63M4,WKA47-YEJ71M4,WKA47-YEJ80M4,WKA47-YEJ90M4,WKA47-YEJB100M4,WKA47-YEJB63M4,WKA47-YEJB71M4,WKA47-YEJB80M4,WKA47-YEJB90M4,WKA47-YP100M4,WKA47-YP63M4,WKA47-YP71M4,WKA47-YP80M4,WKA47-YP90M4,WKA47-YPB100M4,WKA47-YPB63M4,WKA47-YPB71M4,WKA47-YPB80M4,WKA47-YPB90M4,WKA47-YPE100M4,WKA47-YPE63M4,WKA47-YPE71M4,WKA47-YPE80M4,WKA47-YPE90M4,WKA47-YS100M4,WKA47-YS63M4,WKA47-YS71M4,WKA47-YS80M4,WKA47-YS90M4,WKA47-YVB100M4,WKA47-YVB63M4,WKA47-YVB71M4,WKA47-YVB80M4,WKA47-YVB90M4,WKA47-YVP100M4,WKA47-YVP63M4,WKA47-YVP71M4,WKA47-YVP80M4,WKA47-YVP90M4,WKA47-YVPEJ100M4,WKA47-YVPEJ63M4,WKA47-YVPEJ71M4,WKA47-YVPEJ80M4,WKA47-YVPEJ90M4,AKA47-Y0.12SKA,AKA47-Y0.18SKA,AKA47-Y0.25SKA,AKA47-Y0.37SKA,AKA47-Y0.55SKA,AKA47-Y0.75SKA,AKA47-Y1.1SKA,AKA47-Y1.5SKA,AKA47-Y100M4,AKA47-Y2.2SKA,AKA47-Y3SKA,AKA47-Y63M4,AKA47-Y71M4,AKA47-Y80M4,AKA47-Y90M4,AKA47-YB100M4,AKA47-YB63M4,AKA47-YB71M4,AKA47-YB80M4,AKA47-YB90M4,AKA47-YDP100M4,AKA47-YDP63M4,AKA47-YDP71M4,AKA47-YDP80M4,AKA47-YDP90M4,AKA47-YE100M4,AKA47-YE63M4,AKA47-YE71M4,AKA47-YE80M4,AKA47-YE90M4,AKA47-YEJ100M4,AKA47-YEJ63M4,AKA47-YEJ71M4,AKA47-YEJ80M4,AKA47-YEJ90M4,AKA47-YEJB100M4,AKA47-YEJB63M4,AKA47-YEJB71M4,AKA47-YEJB80M4,AKA47-YEJB90M4,AKA47-YP100M4,AKA47-YP63M4,AKA47-YP71M4,AKA47-YP80M4,AKA47-YP90M4,AKA47-YPB100M4,AKA47-YPB63M4,AKA47-YPB71M4,AKA47-YPB80M4,AKA47-YPB90M4,AKA47-YPE100M4,AKA47-YPE63M4,AKA47-YPE71M4,AKA47-YPE80M4,AKA47-YPE90M4,AKA47-YS100M4,AKA47-YS63M4,AKA47-YS71M4,AKA47-YS80M4,AKA47-YS90M4,AKA47-YVB100M4,AKA47-YVB63M4,AKA47-YVB71M4,AKA47-YVB80M4,AKA47-YVB90M4,AKA47-YVP100M4,AKA47-YVP63M4,AKA47-YVP71M4,AKA47-YVP80M4,AKA47-YVP90M4,AKA47-YVPEJ100M4,AKA47-YVPEJ63M4,AKA47-YVPEJ71M4,AKA47-YVPEJ80M4,AKA47-YVPEJ90M4,NKA47-Y0.12SKA,NKA47-Y0.18SKA,NKA47-Y0.25SKA,NKA47-Y0.37SKA,NKA47-Y0.55SKA,NKA47-Y0.75SKA,NKA47-Y1.1SKA,NKA47-Y1.5SKA,NKA47-Y100M4,NKA47-Y2.2SKA,NKA47-Y3SKA,NKA47-Y63M4,NKA47-Y71M4,NKA47-Y80M4,NKA47-Y90M4,NKA47-YB100M4,NKA47-YB63M4,NKA47-YB71M4,NKA47-YB80M4,NKA47-YB90M4,NKA47-YDP100M4,NKA47-YDP63M4,NKA47-YDP71M4,NKA47-YDP80M4,NKA47-YDP90M4,NKA47-YE100M4,NKA47-YE63M4,NKA47-YE71M4,NKA47-YE80M4,NKA47-YE90M4,NKA47-YEJ100M4,NKA47-YEJ63M4,NKA47-YEJ71M4,NKA47-YEJ80M4,NKA47-YEJ90M4,NKA47-YEJB100M4,NKA47-YEJB63M4,NKA47-YEJB71M4,NKA47-YEJB80M4,NKA47-YEJB90M4,NKA47-YP100M4,NKA47-YP63M4,NKA47-YP71M4,NKA47-YP80M4,NKA47-YP90M4,NKA47-YPB100M4,NKA47-YPB63M4,NKA47-YPB71M4,NKA47-YPB80M4,NKA47-YPB90M4,NKA47-YPE100M4,NKA47-YPE63M4,NKA47-YPE71M4,NKA47-YPE80M4,NKA47-YPE90M4,NKA47-YS100M4,NKA47-YS63M4,NKA47-YS71M4,NKA47-YS80M4,NKA47-YS90M4,NKA47-YVB100M4,NKA47-YVB63M4,NKA47-YVB71M4,NKA47-YVB80M4,NKA47-YVB90M4,NKA47-YVP100M4,NKA47-YVP63M4,NKA47-YVP71M4,NKA47-YVP80M4,NKA47-YVP90M4,NKA47-YVPEJ100M4,NKA47-YVPEJ63M4,NKA47-YVPEJ71M4,NKA47-YVPEJ80M4,NKA47-YVPEJ90M4,SKA47-Y0.12SKA,SKA47-Y0.18SKA,SKA47-Y0.25SKA,SKA47-Y0.37SKA,SKA47-Y0.55SKA,SKA47-Y0.75SKA,SKA47-Y1.1SKA,SKA47-Y1.5SKA,SKA47-Y100M4,SKA47-Y2.2SKA,SKA47-Y3SKA,SKA47-Y63M4,SKA47-Y71M4,SKA47-Y80M4,SKA47-Y90M4,SKA47-YB100M4,SKA47-YB63M4,SKA47-YB71M4,SKA47-YB80M4,SKA47-YB90M4,SKA47-YDP100M4,SKA47-YDP63M4,SKA47-YDP71M4,SKA47-YDP80M4,SKA47-YDP90M4,SKA47-YE100M4,SKA47-YE63M4,SKA47-YE71M4,SKA47-YE80M4,SKA47-YE90M4,SKA47-YEJ100M4,SKA47-YEJ63M4,SKA47-YEJ71M4,SKA47-YEJ80M4,SKA47-YEJ90M4,SKA47-YEJB100M4,SKA47-YEJB63M4,SKA47-YEJB71M4,SKA47-YEJB80M4,SKA47-YEJB90M4,SKA47-YP100M4,SKA47-YP63M4,SKA47-YP71M4,SKA47-YP80M4,SKA47-YP90M4,SKA47-YPB100M4,SKA47-YPB63M4,SKA47-YPB71M4,SKA47-YPB80M4,SKA47-YPB90M4,SKA47-YPE100M4,SKA47-YPE63M4,SKA47-YPE71M4,SKA47-YPE80M4,SKA47-YPE90M4,SKA47-YS100M4,SKA47-YS63M4,SKA47-YS71M4,SKA47-YS80M4,SKA47-YS90M4,SKA47-YVB100M4,SKA47-YVB63M4,SKA47-YVB71M4,SKA47-YVB80M4,SKA47-YVB90M4,SKA47-YVP100M4,SKA47-YVP63M4,SKA47-YVP71M4,SKA47-YVP80M4,SKA47-YVP90M4,SKA47-YVPEJ100M4,SKA47-YVPEJ63M4,SKA47-YVPEJ71M4,SKA47-YVPEJ80M4,SKA47-YVPEJ90M4,GKA49-Y0.12SKA,GKA49-Y0.18SKA,GKA49-Y0.25SKA,GKA49-Y0.37SKA,GKA49-Y0.55SKA,GKA49-Y0.75SKA,GKA49-Y1.1SKA,GKA49-Y1.5SKA,GKA49-Y100M4,GKA49-Y2.2SKA,GKA49-Y3SKA,GKA49-Y63M4,GKA49-Y71M4,GKA49-Y80M4,GKA49-Y90M4,GKA49-YB100M4,GKA49-YB63M4,GKA49-YB71M4,GKA49-YB80M4,GKA49-YB90M4,GKA49-YDP100M4,GKA49-YDP63M4,GKA49-YDP71M4,GKA49-YDP80M4,GKA49-YDP90M4,GKA49-YE100M4,GKA49-YE63M4,GKA49-YE71M4,GKA49-YE80M4,GKA49-YE90M4,GKA49-YEJ100M4,GKA49-YEJ63M4,GKA49-YEJ71M4,GKA49-YEJ80M4,GKA49-YEJ90M4,GKA49-YEJB100M4,GKA49-YEJB63M4,GKA49-YEJB71M4,GKA49-YEJB80M4,GKA49-YEJB90M4,GKA49-YP100M4,GKA49-YP63M4,GKA49-YP71M4,GKA49-YP80M4,GKA49-YP90M4,GKA49-YPB100M4,GKA49-YPB63M4,GKA49-YPB71M4,GKA49-YPB80M4,GKA49-YPB90M4,GKA49-YPE100M4,GKA49-YPE63M4,GKA49-YPE71M4,GKA49-YPE80M4,GKA49-YPE90M4,GKA49-YS100M4,GKA49-YS63M4,GKA49-YS71M4,GKA49-YS80M4,GKA49-YS90M4,GKA49-YVB100M4,GKA49-YVB63M4,GKA49-YVB71M4,GKA49-YVB80M4,GKA49-YVB90M4,GKA49-YVP100M4,GKA49-YVP63M4,GKA49-YVP71M4,GKA49-YVP80M4,GKA49-YVP90M4,GKA49-YVPEJ100M4,GKA49-YVPEJ63M4,GKA49-YVPEJ71M4,GKA49-YVPEJ80M4,GKA49-YVPEJ90M4。

KA49減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kaxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:K49減速機

關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器

KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機

KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   KA49減速機 KA47減速機結構圖 KA47減速機數模 KA47減速機樣本 KA47減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA49減速機數模 點擊下載
KA49減速機樣本 點擊下載
