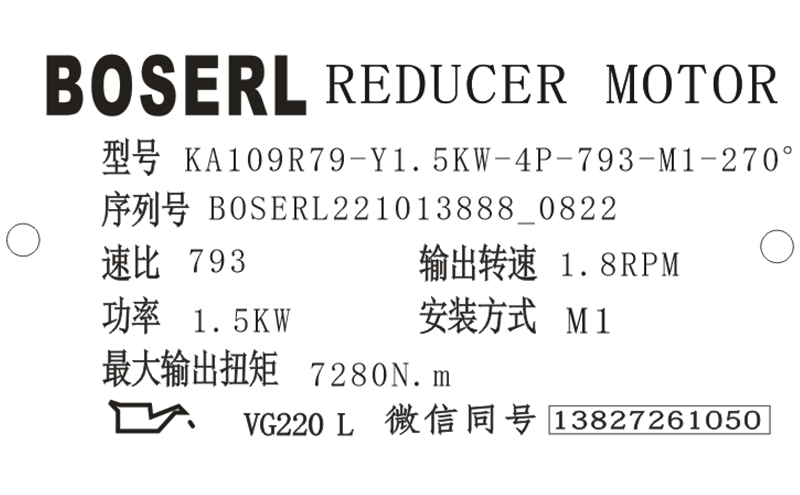

KA109R79減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA109R79減速機選型樣本。
KA109R79-Y1.5KW-4P-793-M1-270°
KA/R:系列代號
109/79:減速機規格代號
Y:電機
1.5KW:電機功率
4P:電機級數
793:減速機傳動比
M1:減速機安裝位置
270°:接線盒位置
KA109R79減速機電機保養檢查:
KA109R79減速機電機一般檢查:定期檢查電機。檢查頻率取決于周圍空氣的潮濕程度以及當?shù)氐奶鞖鉅顩r??深A(yù)先通過試驗確定,并嚴格遵守;保持電機清潔和自然通風。在多灰塵環境中使用電機時必須定期檢查通風系統并進行清潔;檢查油封的狀況,必要時應更換;檢查接線和安裝螺栓的狀況。齒輪減速電機
做一般定期檢查時,請需注意:溫度上升齒輪減速電機為F級絕緣,全密閉外扇構造,所以電機表面溫度比周圍高50°C左右即屬正常;如果溫度高于以上時,必須停機檢查(因素:電機或負載傳動系統異常)。
KA109R79減速機剎車電機剎車片因長時間使用會有磨損,請依據剎車間隙值進行調整(正常間隙值0.3~0.7mm)。
KA109R79減速機電機異常振動、噪音正常情況,本機幾乎沒有振動噪音。若有某些安裝異常使用,會產生振動噪音,所以請?zhí)貏e留意(當空載噪音值在70dB(A)/1M以下時,是被容許的);電機通風口有時會積聚雜物妨礙通風,所以請清除電機外部,以確保電機正常運行溫度;定期檢查時,請用兆歐表以500V測試電機繞組之絕緣阻抗,對地電阻應1MQ以上,以避免漏電之風險。
測定絕緣電阻時,請勿觸摸端子。否則有可能會導致觸電。減速電機工作時的表面溫度較高,請勿赤手觸摸。否則有可能會導致燙傷。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞。單相電機的啟動用電容器的通電部分,在未完全放電前請勿觸及。否則有可能會導致觸電。使電機反轉時,請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控。直角減速機
KA109R79減速機電機不轉解決方案:
電源未接通或接觸不良或電源電壓過低,排查維修;
過載跳閘,選擇大容量電機或減輕負載;
機械故障,檢查電機和傳動裝置是否可以自由轉動。檢查軸承和潤滑脂;
電機卡死,更換電機;
電源連接錯誤,核對接線是否與電機接線圖一致;空心軸減速機
定子繞組斷路,用萬用表歐姆檔檢查,若有相無電阻,則是此原因,確認后換線圈繞組;
定子繞組匝間短路,用萬用表歐姆檔檢查,若有相電阻與標佳值偏差夭于10%,則是此原因,確認后換線圈繞組;
定子繞組對地短路,用萬用表歐姆檔檢查,若線圈與機殼間有電阻小于1000歐,則是此原因,確認后換線圈繞組;
定子繞組接線錯誤,拆開電機找出錯誤,重新接線;
定子線圈的6引線接錯,換定子線圈。
KA109R79減速電機型號:
YQKA107R77-Y100M4,YQKA107R77-Y112M4,YQKA107R77-Y132M4,YQKA107R77-Y63M4,YQKA107R77-Y71M4,YQKA107R77-Y80M4,YQKA107R77-Y90M4,YQKA107RF77-Y0.12KWA,YQKA107RF77-Y0.18KWA,YQKA107RF77-Y0.25KWA,YQKA107RF77-Y0.37KWA,YQKA107RF77-Y0.55KWA,YQKA107RF77-Y0.75KWA,YQKA107RF77-Y1.1KWA,YQKA107RF77-Y1.5KWA,YQKA107RF77-Y100M4,YQKA107RF77-Y112M4,YQKA107RF77-Y132M4,YQKA107RF77-Y2.2KWA,YQKA107RF77-Y3KWA,YQKA107RF77-Y4KWA,YQKA107RF77-Y5.5KWA,YQKA107RF77-Y63M4,YQKA107RF77-Y7.5KWA,YQKA107RF77-Y71M4,YQKA107RF77-Y80M4,YQKA107RF77-Y90M4,YQKA107RF77-YB100L4,YQKA107RF77-YB112M4,YQKA107RF77-YB132M4,YQKA107RF77-YB63M4,YQKA107RF77-YB71M4,YQKA107RF77-YB80M4,YQKA107RF77-YB90S4,YQKA107RF77-YDP100L4,YQKA107RF77-YDP112M4,YQKA107RF77-YDP132M4,YQKA107RF77-YDP63M4,YQKA107RF77-YDP71M4,YQKA107RF77-YDP80M4,YQKA107RF77-YDP90S4,YQKA107RF77-YE100L4,YQKA107RF77-YE112M4,YQKA107RF77-YE132M4,YQKA107RF77-YE63M4,YQKA107RF77-YE71M4,YQKA107RF77-YE80M4,YQKA107RF77-YE90S4,YQKA107RF77-YEJ100L4,YQKA107RF77-YEJ112M4,YQKA107RF77-YEJ132M4,YQKA107RF77-YEJ63M4,YQKA107RF77-YEJ71M4,YQKA107RF77-YEJ80M4,YQKA107RF77-YEJ90S4,YQKA107RF77-YEJB100L4,YQKA107RF77-YEJB112M4,YQKA107RF77-YEJB132M4,YQKA107RF77-YEJB63M4,YQKA107RF77-YEJB71M4,YQKA107RF77-YEJB80M4,YQKA107RF77-YEJB90S4,YQKA107RF77-YP100L4,YQKA107RF77-YP112M4,YQKA107RF77-YP132M4,YQKA107RF77-YP63M4,YQKA107RF77-YP71M4,YQKA107RF77-YP80M4,YQKA107RF77-YP90S4,YQKA107RF77-YPB100L4,YQKA107RF77-YPB112M4,YQKA107RF77-YPB132M4,YQKA107RF77-YPB63M4,YQKA107RF77-YPB71M4,YQKA107RF77-YPB80M4,YQKA107RF77-YPB90S4,YQKA107RF77-YPE100L4,YQKA107RF77-YPE112M4,YQKA107RF77-YPE132M4,YQKA107RF77-YPE63M4,YQKA107RF77-YPE71M4,YQKA107RF77-YPE80M4,YQKA107RF77-YPE90S4,YQKA107RF77-YS100L4,YQKA107RF77-YS112M4,YQKA107RF77-YS132M4,YQKA107RF77-YS63M4,YQKA107RF77-YS71M4,YQKA107RF77-YS80M4,YQKA107RF77-YS90S4,YQKA107RF77-YVB100L4,YQKA107RF77-YVB112M4,YQKA107RF77-YVB132M4,YQKA107RF77-YVB63M4,YQKA107RF77-YVB71M4,YQKA107RF77-YVB80M4,YQKA107RF77-YVB90S4,YQKA107RF77-YVP100L4,YQKA107RF77-YVP112M4,YQKA107RF77-YVP132M4,YQKA107RF77-YVP63M4,YQKA107RF77-YVP71M4,YQKA107RF77-YVP80M4,YQKA107RF77-YVP90S4,YQKA107RF77-YVPEJ100L4,YQKA107RF77-YVPEJ112M4,YQKA107RF77-YVPEJ132M4,YQKA107RF77-YVPEJ63M4,YQKA107RF77-YVPEJ71M4,YQKA107RF77-YVPEJ80M4,YQKA107RF77-YVPEJ90S4,AKA107R77-Y100M4,AKA107R77-Y112M4,AKA107R77-Y132M4,AKA107R77-Y63M4,AKA107R77-Y71M4,AKA107R77-Y80M4,AKA107R77-Y90M4,AKA107RF77-Y0.12KWA,AKA107RF77-Y0.18KWA,AKA107RF77-Y0.25KWA,AKA107RF77-Y0.37KWA,AKA107RF77-Y0.55KWA,AKA107RF77-Y0.75KWA,AKA107RF77-Y1.1KWA,AKA107RF77-Y1.5KWA,AKA107RF77-Y100M4,AKA107RF77-Y112M4,AKA107RF77-Y132M4,AKA107RF77-Y2.2KWA,AKA107RF77-Y3KWA,AKA107RF77-Y4KWA,AKA107RF77-Y5.5KWA,AKA107RF77-Y63M4,AKA107RF77-Y7.5KWA,AKA107RF77-Y71M4,AKA107RF77-Y80M4,AKA107RF77-Y90M4,AKA107RF77-YB100L4,AKA107RF77-YB112M4,AKA107RF77-YB132M4,AKA107RF77-YB63M4,AKA107RF77-YB71M4,AKA107RF77-YB80M4,AKA107RF77-YB90S4,AKA107RF77-YDP100L4,AKA107RF77-YDP112M4,AKA107RF77-YDP132M4,AKA107RF77-YDP63M4,AKA107RF77-YDP71M4,AKA107RF77-YDP80M4,AKA107RF77-YDP90S4,AKA107RF77-YE100L4,AKA107RF77-YE112M4,AKA107RF77-YE132M4,AKA107RF77-YE63M4,AKA107RF77-YE71M4,AKA107RF77-YE80M4,AKA107RF77-YE90S4,AKA107RF77-YEJ100L4,AKA107RF77-YEJ112M4,AKA107RF77-YEJ132M4,AKA107RF77-YEJ63M4,AKA107RF77-YEJ71M4,AKA107RF77-YEJ80M4,AKA107RF77-YEJ90S4,AKA107RF77-YEJB100L4,AKA107RF77-YEJB112M4,AKA107RF77-YEJB132M4,AKA107RF77-YEJB63M4,AKA107RF77-YEJB71M4,AKA107RF77-YEJB80M4,AKA107RF77-YEJB90S4,AKA107RF77-YP100L4,AKA107RF77-YP112M4,AKA107RF77-YP132M4,AKA107RF77-YP63M4,AKA107RF77-YP71M4,AKA107RF77-YP80M4,AKA107RF77-YP90S4,AKA107RF77-YPB100L4,AKA107RF77-YPB112M4,AKA107RF77-YPB132M4,AKA107RF77-YPB63M4,AKA107RF77-YPB71M4,AKA107RF77-YPB80M4,AKA107RF77-YPB90S4,AKA107RF77-YPE100L4,AKA107RF77-YPE112M4,AKA107RF77-YPE132M4,AKA107RF77-YPE63M4,AKA107RF77-YPE71M4,AKA107RF77-YPE80M4,AKA107RF77-YPE90S4,AKA107RF77-YS100L4,AKA107RF77-YS112M4,AKA107RF77-YS132M4,AKA107RF77-YS63M4,AKA107RF77-YS71M4,AKA107RF77-YS80M4,AKA107RF77-YS90S4,AKA107RF77-YVB100L4,AKA107RF77-YVB112M4,AKA107RF77-YVB132M4,AKA107RF77-YVB63M4,AKA107RF77-YVB71M4,AKA107RF77-YVB80M4,AKA107RF77-YVB90S4,AKA107RF77-YVP100L4,AKA107RF77-YVP112M4,AKA107RF77-YVP132M4,AKA107RF77-YVP63M4,AKA107RF77-YVP71M4,AKA107RF77-YVP80M4,AKA107RF77-YVP90S4,AKA107RF77-YVPEJ100L4,AKA107RF77-YVPEJ112M4,AKA107RF77-YVPEJ132M4,AKA107RF77-YVPEJ63M4,AKA107RF77-YVPEJ71M4,AKA107RF77-YVPEJ80M4,AKA107RF77-YVPEJ90S4,SKA107R77-Y100M4,SKA107R77-Y112M4,SKA107R77-Y132M4,SKA107R77-Y63M4,SKA107R77-Y71M4,SKA107R77-Y80M4,SKA107R77-Y90M4,SKA107RF77-Y0.12KWA,SKA107RF77-Y0.18KWA,SKA107RF77-Y0.25KWA,SKA107RF77-Y0.37KWA,SKA107RF77-Y0.55KWA,SKA107RF77-Y0.75KWA,SKA107RF77-Y1.1KWA,SKA107RF77-Y1.5KWA,SKA107RF77-Y100M4,SKA107RF77-Y112M4,SKA107RF77-Y132M4,SKA107RF77-Y2.2KWA,SKA107RF77-Y3KWA,SKA107RF77-Y4KWA,SKA107RF77-Y5.5KWA,SKA107RF77-Y63M4,SKA107RF77-Y7.5KWA,SKA107RF77-Y71M4,SKA107RF77-Y80M4,SKA107RF77-Y90M4,SKA107RF77-YB100L4,SKA107RF77-YB112M4,SKA107RF77-YB132M4,SKA107RF77-YB63M4,SKA107RF77-YB71M4,SKA107RF77-YB80M4,SKA107RF77-YB90S4,SKA107RF77-YDP100L4,SKA107RF77-YDP112M4,SKA107RF77-YDP132M4,SKA107RF77-YDP63M4,SKA107RF77-YDP71M4,SKA107RF77-YDP80M4,SKA107RF77-YDP90S4,SKA107RF77-YE100L4,SKA107RF77-YE112M4,SKA107RF77-YE132M4,SKA107RF77-YE63M4,SKA107RF77-YE71M4,SKA107RF77-YE80M4,SKA107RF77-YE90S4,SKA107RF77-YEJ100L4,SKA107RF77-YEJ112M4,SKA107RF77-YEJ132M4,SKA107RF77-YEJ63M4,SKA107RF77-YEJ71M4,SKA107RF77-YEJ80M4,SKA107RF77-YEJ90S4,SKA107RF77-YEJB100L4,SKA107RF77-YEJB112M4,SKA107RF77-YEJB132M4,SKA107RF77-YEJB63M4,SKA107RF77-YEJB71M4,SKA107RF77-YEJB80M4,SKA107RF77-YEJB90S4,SKA107RF77-YP100L4,SKA107RF77-YP112M4,SKA107RF77-YP132M4,SKA107RF77-YP63M4,SKA107RF77-YP71M4,SKA107RF77-YP80M4,SKA107RF77-YP90S4,SKA107RF77-YPB100L4,SKA107RF77-YPB112M4,SKA107RF77-YPB132M4,SKA107RF77-YPB63M4,SKA107RF77-YPB71M4,SKA107RF77-YPB80M4,SKA107RF77-YPB90S4,SKA107RF77-YPE100L4,SKA107RF77-YPE112M4,SKA107RF77-YPE132M4,SKA107RF77-YPE63M4,SKA107RF77-YPE71M4,SKA107RF77-YPE80M4,SKA107RF77-YPE90S4,SKA107RF77-YS100L4,SKA107RF77-YS112M4,SKA107RF77-YS132M4,SKA107RF77-YS63M4,SKA107RF77-YS71M4,SKA107RF77-YS80M4,SKA107RF77-YS90S4,SKA107RF77-YVB100L4,SKA107RF77-YVB112M4,SKA107RF77-YVB132M4,SKA107RF77-YVB63M4,SKA107RF77-YVB71M4,SKA107RF77-YVB80M4,SKA107RF77-YVB90S4,SKA107RF77-YVP100L4,SKA107RF77-YVP112M4,SKA107RF77-YVP132M4,SKA107RF77-YVP63M4,SKA107RF77-YVP71M4,SKA107RF77-YVP80M4,SKA107RF77-YVP90S4,SKA107RF77-YVPEJ100L4,SKA107RF77-YVPEJ112M4,SKA107RF77-YVPEJ132M4,SKA107RF77-YVPEJ63M4,SKA107RF77-YVPEJ71M4,SKA107RF77-YVPEJ80M4,SKA107RF77-YVPEJ90S4,XDKA107R77-Y100M4,XDKA107R77-Y112M4,XDKA107R77-Y132M4,XDKA107R77-Y63M4,XDKA107R77-Y71M4,XDKA107R77-Y80M4,XDKA107R77-Y90M4,XDKA107RF77-Y0.12KWA,XDKA107RF77-Y0.18KWA,XDKA107RF77-Y0.25KWA,XDKA107RF77-Y0.37KWA,XDKA107RF77-Y0.55KWA,XDKA107RF77-Y0.75KWA,XDKA107RF77-Y1.1KWA,XDKA107RF77-Y1.5KWA,XDKA107RF77-Y100M4,XDKA107RF77-Y112M4,XDKA107RF77-Y132M4,XDKA107RF77-Y2.2KWA,XDKA107RF77-Y3KWA,XDKA107RF77-Y4KWA,XDKA107RF77-Y5.5KWA,XDKA107RF77-Y63M4,XDKA107RF77-Y7.5KWA,XDKA107RF77-Y71M4,XDKA107RF77-Y80M4,XDKA107RF77-Y90M4,XDKA107RF77-YB100L4,XDKA107RF77-YB112M4,XDKA107RF77-YB132M4,XDKA107RF77-YB63M4,XDKA107RF77-YB71M4,XDKA107RF77-YB80M4,XDKA107RF77-YB90S4,XDKA107RF77-YDP100L4,XDKA107RF77-YDP112M4,XDKA107RF77-YDP132M4,XDKA107RF77-YDP63M4,XDKA107RF77-YDP71M4,XDKA107RF77-YDP80M4,XDKA107RF77-YDP90S4,XDKA107RF77-YE100L4,XDKA107RF77-YE112M4,XDKA107RF77-YE132M4,XDKA107RF77-YE63M4,XDKA107RF77-YE71M4,XDKA107RF77-YE80M4,XDKA107RF77-YE90S4,XDKA107RF77-YEJ100L4,XDKA107RF77-YEJ112M4,XDKA107RF77-YEJ132M4,XDKA107RF77-YEJ63M4,XDKA107RF77-YEJ71M4,XDKA107RF77-YEJ80M4,XDKA107RF77-YEJ90S4,XDKA107RF77-YEJB100L4,XDKA107RF77-YEJB112M4,XDKA107RF77-YEJB132M4,XDKA107RF77-YEJB63M4,XDKA107RF77-YEJB71M4,XDKA107RF77-YEJB80M4,XDKA107RF77-YEJB90S4,XDKA107RF77-YP100L4,XDKA107RF77-YP112M4,XDKA107RF77-YP132M4,XDKA107RF77-YP63M4,XDKA107RF77-YP71M4,XDKA107RF77-YP80M4,XDKA107RF77-YP90S4,XDKA107RF77-YPB100L4,XDKA107RF77-YPB112M4,XDKA107RF77-YPB132M4,XDKA107RF77-YPB63M4,XDKA107RF77-YPB71M4,XDKA107RF77-YPB80M4,XDKA107RF77-YPB90S4,XDKA107RF77-YPE100L4,XDKA107RF77-YPE112M4,XDKA107RF77-YPE132M4,XDKA107RF77-YPE63M4,XDKA107RF77-YPE71M4,XDKA107RF77-YPE80M4,XDKA107RF77-YPE90S4,XDKA107RF77-YS100L4,XDKA107RF77-YS112M4,XDKA107RF77-YS132M4,XDKA107RF77-YS63M4,XDKA107RF77-YS71M4,XDKA107RF77-YS80M4,XDKA107RF77-YS90S4,XDKA107RF77-YVB100L4,XDKA107RF77-YVB112M4,XDKA107RF77-YVB132M4,XDKA107RF77-YVB63M4,XDKA107RF77-YVB71M4,XDKA107RF77-YVB80M4,XDKA107RF77-YVB90S4,XDKA107RF77-YVP100L4,XDKA107RF77-YVP112M4,XDKA107RF77-YVP132M4,XDKA107RF77-YVP63M4,XDKA107RF77-YVP71M4,XDKA107RF77-YVP80M4,XDKA107RF77-YVP90S4,XDKA107RF77-YVPEJ100L4,XDKA107RF77-YVPEJ112M4,XDKA107RF77-YVPEJ132M4,XDKA107RF77-YVPEJ63M4,XDKA107RF77-YVPEJ71M4,XDKA107RF77-YVPEJ80M4,XDKA107RF77-YVPEJ90S4,WKA107R77-Y100M4,WKA107R77-Y112M4,WKA107R77-Y132M4,WKA107R77-Y63M4,WKA107R77-Y71M4,WKA107R77-Y80M4,WKA107R77-Y90M4,WKA107RF77-Y0.12KWA,WKA107RF77-Y0.18KWA,WKA107RF77-Y0.25KWA,WKA107RF77-Y0.37KWA,WKA107RF77-Y0.55KWA,WKA107RF77-Y0.75KWA,WKA107RF77-Y1.1KWA,WKA107RF77-Y1.5KWA,WKA107RF77-Y100M4,WKA107RF77-Y112M4,WKA107RF77-Y132M4,WKA107RF77-Y2.2KWA,WKA107RF77-Y3KWA,WKA107RF77-Y4KWA,WKA107RF77-Y5.5KWA,WKA107RF77-Y63M4,WKA107RF77-Y7.5KWA,WKA107RF77-Y71M4,WKA107RF77-Y80M4,WKA107RF77-Y90M4,WKA107RF77-YB100L4,WKA107RF77-YB112M4,WKA107RF77-YB132M4,WKA107RF77-YB63M4,WKA107RF77-YB71M4,WKA107RF77-YB80M4,WKA107RF77-YB90S4,WKA107RF77-YDP100L4,WKA107RF77-YDP112M4,WKA107RF77-YDP132M4,WKA107RF77-YDP63M4,WKA107RF77-YDP71M4,WKA107RF77-YDP80M4,WKA107RF77-YDP90S4,WKA107RF77-YE100L4,WKA107RF77-YE112M4,WKA107RF77-YE132M4,WKA107RF77-YE63M4,WKA107RF77-YE71M4,WKA107RF77-YE80M4,WKA107RF77-YE90S4,WKA107RF77-YEJ100L4,WKA107RF77-YEJ112M4,WKA107RF77-YEJ132M4,WKA107RF77-YEJ63M4,WKA107RF77-YEJ71M4,WKA107RF77-YEJ80M4,WKA107RF77-YEJ90S4,WKA107RF77-YEJB100L4,WKA107RF77-YEJB112M4,WKA107RF77-YEJB132M4,WKA107RF77-YEJB63M4,WKA107RF77-YEJB71M4,WKA107RF77-YEJB80M4,WKA107RF77-YEJB90S4,WKA107RF77-YP100L4,WKA107RF77-YP112M4,WKA107RF77-YP132M4,WKA107RF77-YP63M4,WKA107RF77-YP71M4,WKA107RF77-YP80M4,WKA107RF77-YP90S4,WKA107RF77-YPB100L4,WKA107RF77-YPB112M4,WKA107RF77-YPB132M4,WKA107RF77-YPB63M4,WKA107RF77-YPB71M4,WKA107RF77-YPB80M4,WKA107RF77-YPB90S4,WKA107RF77-YPE100L4,WKA107RF77-YPE112M4,WKA107RF77-YPE132M4,WKA107RF77-YPE63M4,WKA107RF77-YPE71M4,WKA107RF77-YPE80M4,WKA107RF77-YPE90S4,WKA107RF77-YS100L4,WKA107RF77-YS112M4,WKA107RF77-YS132M4,WKA107RF77-YS63M4,WKA107RF77-YS71M4,WKA107RF77-YS80M4,WKA107RF77-YS90S4,WKA107RF77-YVB100L4,WKA107RF77-YVB112M4,WKA107RF77-YVB132M4,WKA107RF77-YVB63M4,WKA107RF77-YVB71M4,WKA107RF77-YVB80M4,WKA107RF77-YVB90S4,WKA107RF77-YVP100L4,WKA107RF77-YVP112M4,WKA107RF77-YVP132M4,WKA107RF77-YVP63M4,WKA107RF77-YVP71M4,WKA107RF77-YVP80M4,WKA107RF77-YVP90S4,WKA107RF77-YVPEJ100L4,WKA107RF77-YVPEJ112M4,WKA107RF77-YVPEJ132M4,WKA107RF77-YVPEJ63M4,WKA107RF77-YVPEJ71M4,WKA107RF77-YVPEJ80M4,WKA107RF77-YVPEJ90S4,JCKA107R77-Y100M4,JCKA107R77-Y112M4,JCKA107R77-Y132M4,JCKA107R77-Y63M4,JCKA107R77-Y71M4,JCKA107R77-Y80M4,JCKA107R77-Y90M4,JCKA107RF77-Y0.12KWA,JCKA107RF77-Y0.18KWA,JCKA107RF77-Y0.25KWA,JCKA107RF77-Y0.37KWA,JCKA107RF77-Y0.55KWA,JCKA107RF77-Y0.75KWA,JCKA107RF77-Y1.1KWA,JCKA107RF77-Y1.5KWA,JCKA107RF77-Y100M4,JCKA107RF77-Y112M4,JCKA107RF77-Y132M4,JCKA107RF77-Y2.2KWA,JCKA107RF77-Y3KWA,JCKA107RF77-Y4KWA,JCKA107RF77-Y5.5KWA,JCKA107RF77-Y63M4,JCKA107RF77-Y7.5KWA,JCKA107RF77-Y71M4,JCKA107RF77-Y80M4,JCKA107RF77-Y90M4,JCKA107RF77-YB100L4,JCKA107RF77-YB112M4,JCKA107RF77-YB132M4,JCKA107RF77-YB63M4,JCKA107RF77-YB71M4,JCKA107RF77-YB80M4,JCKA107RF77-YB90S4,JCKA107RF77-YDP100L4,JCKA107RF77-YDP112M4,JCKA107RF77-YDP132M4,JCKA107RF77-YDP63M4,JCKA107RF77-YDP71M4,JCKA107RF77-YDP80M4,JCKA107RF77-YDP90S4,JCKA107RF77-YE100L4,JCKA107RF77-YE112M4,JCKA107RF77-YE132M4,JCKA107RF77-YE63M4,JCKA107RF77-YE71M4,JCKA107RF77-YE80M4,JCKA107RF77-YE90S4,JCKA107RF77-YEJ100L4,JCKA107RF77-YEJ112M4,JCKA107RF77-YEJ132M4,JCKA107RF77-YEJ63M4,JCKA107RF77-YEJ71M4,JCKA107RF77-YEJ80M4,JCKA107RF77-YEJ90S4,JCKA107RF77-YEJB100L4,JCKA107RF77-YEJB112M4,JCKA107RF77-YEJB132M4,JCKA107RF77-YEJB63M4,JCKA107RF77-YEJB71M4,JCKA107RF77-YEJB80M4,JCKA107RF77-YEJB90S4,JCKA107RF77-YP100L4,JCKA107RF77-YP112M4,JCKA107RF77-YP132M4,JCKA107RF77-YP63M4,JCKA107RF77-YP71M4,JCKA107RF77-YP80M4,JCKA107RF77-YP90S4,JCKA107RF77-YPB100L4,JCKA107RF77-YPB112M4,JCKA107RF77-YPB132M4,JCKA107RF77-YPB63M4,JCKA107RF77-YPB71M4,JCKA107RF77-YPB80M4,JCKA107RF77-YPB90S4,JCKA107RF77-YPE100L4,JCKA107RF77-YPE112M4,JCKA107RF77-YPE132M4,JCKA107RF77-YPE63M4,JCKA107RF77-YPE71M4,JCKA107RF77-YPE80M4,JCKA107RF77-YPE90S4,JCKA107RF77-YS100L4,JCKA107RF77-YS112M4,JCKA107RF77-YS132M4,JCKA107RF77-YS63M4,JCKA107RF77-YS71M4,JCKA107RF77-YS80M4,JCKA107RF77-YS90S4,JCKA107RF77-YVB100L4,JCKA107RF77-YVB112M4,JCKA107RF77-YVB132M4,JCKA107RF77-YVB63M4,JCKA107RF77-YVB71M4,JCKA107RF77-YVB80M4,JCKA107RF77-YVB90S4,JCKA107RF77-YVP100L4,JCKA107RF77-YVP112M4,JCKA107RF77-YVP132M4,JCKA107RF77-YVP63M4,JCKA107RF77-YVP71M4,JCKA107RF77-YVP80M4,JCKA107RF77-YVP90S4,JCKA107RF77-YVPEJ100L4,JCKA107RF77-YVPEJ112M4,JCKA107RF77-YVPEJ132M4,JCKA107RF77-YVPEJ63M4,JCKA107RF77-YVPEJ71M4,JCKA107RF77-YVPEJ80M4,JCKA107RF77-YVPEJ90S4,NKA107R77-Y100M4,NKA107R77-Y112M4,NKA107R77-Y132M4,NKA107R77-Y63M4,NKA107R77-Y71M4,NKA107R77-Y80M4,NKA107R77-Y90M4,NKA107RF77-Y0.12KWA,NKA107RF77-Y0.18KWA,NKA107RF77-Y0.25KWA,NKA107RF77-Y0.37KWA,NKA107RF77-Y0.55KWA,NKA107RF77-Y0.75KWA,NKA107RF77-Y1.1KWA,NKA107RF77-Y1.5KWA,NKA107RF77-Y100M4,NKA107RF77-Y112M4,NKA107RF77-Y132M4,NKA107RF77-Y2.2KWA,NKA107RF77-Y3KWA,NKA107RF77-Y4KWA,NKA107RF77-Y5.5KWA,NKA107RF77-Y63M4,NKA107RF77-Y7.5KWA,NKA107RF77-Y71M4,NKA107RF77-Y80M4,NKA107RF77-Y90M4,NKA107RF77-YB100L4,NKA107RF77-YB112M4,NKA107RF77-YB132M4,NKA107RF77-YB63M4,NKA107RF77-YB71M4,NKA107RF77-YB80M4,NKA107RF77-YB90S4,NKA107RF77-YDP100L4,NKA107RF77-YDP112M4,NKA107RF77-YDP132M4,NKA107RF77-YDP63M4,NKA107RF77-YDP71M4,NKA107RF77-YDP80M4,NKA107RF77-YDP90S4,NKA107RF77-YE100L4,NKA107RF77-YE112M4,NKA107RF77-YE132M4,NKA107RF77-YE63M4,NKA107RF77-YE71M4,NKA107RF77-YE80M4,NKA107RF77-YE90S4,NKA107RF77-YEJ100L4,NKA107RF77-YEJ112M4,NKA107RF77-YEJ132M4,NKA107RF77-YEJ63M4,NKA107RF77-YEJ71M4,NKA107RF77-YEJ80M4,NKA107RF77-YEJ90S4,NKA107RF77-YEJB100L4,NKA107RF77-YEJB112M4,NKA107RF77-YEJB132M4,NKA107RF77-YEJB63M4,NKA107RF77-YEJB71M4,NKA107RF77-YEJB80M4,NKA107RF77-YEJB90S4,NKA107RF77-YP100L4,NKA107RF77-YP112M4,NKA107RF77-YP132M4,NKA107RF77-YP63M4,NKA107RF77-YP71M4,NKA107RF77-YP80M4,NKA107RF77-YP90S4,NKA107RF77-YPB100L4,NKA107RF77-YPB112M4,NKA107RF77-YPB132M4,NKA107RF77-YPB63M4,NKA107RF77-YPB71M4,NKA107RF77-YPB80M4,NKA107RF77-YPB90S4,NKA107RF77-YPE100L4,NKA107RF77-YPE112M4,NKA107RF77-YPE132M4,NKA107RF77-YPE63M4,NKA107RF77-YPE71M4,NKA107RF77-YPE80M4,NKA107RF77-YPE90S4,NKA107RF77-YS100L4,NKA107RF77-YS112M4,NKA107RF77-YS132M4,NKA107RF77-YS63M4,NKA107RF77-YS71M4,NKA107RF77-YS80M4,NKA107RF77-YS90S4,NKA107RF77-YVB100L4,NKA107RF77-YVB112M4,NKA107RF77-YVB132M4,NKA107RF77-YVB63M4,NKA107RF77-YVB71M4,NKA107RF77-YVB80M4,NKA107RF77-YVB90S4,NKA107RF77-YVP100L4,NKA107RF77-YVP112M4,NKA107RF77-YVP132M4,NKA107RF77-YVP63M4,NKA107RF77-YVP71M4,NKA107RF77-YVP80M4,NKA107RF77-YVP90S4,NKA107RF77-YVPEJ100L4,NKA107RF77-YVPEJ112M4,NKA107RF77-YVPEJ132M4,NKA107RF77-YVPEJ63M4,NKA107RF77-YVPEJ71M4,NKA107RF77-YVPEJ80M4,NKA107RF77-YVPEJ90S4,KWA107RW77-Y100M4,KWA107RW77-Y112M4,KWA107RW77-Y132M4,KWA107RW77-Y63M4,KWA107RW77-Y71M4,KWA107RW77-Y80M4,KWA107RW77-Y90M4,KWA107RWF77-Y0.12KWA,KWA107RWF77-Y0.18KWA,KWA107RWF77-Y0.25KWA,KWA107RWF77-Y0.37KWA,KWA107RWF77-Y0.55KWA,KWA107RWF77-Y0.75KWA,KWA107RWF77-Y1.1KWA,KWA107RWF77-Y1.5KWA,KWA107RWF77-Y100M4,KWA107RWF77-Y112M4,KWA107RWF77-Y132M4,KWA107RWF77-Y2.2KWA,KWA107RWF77-Y3KWA,KWA107RWF77-Y4KWA,KWA107RWF77-Y5.5KWA,KWA107RWF77-Y63M4,KWA107RWF77-Y7.5KWA,KWA107RWF77-Y71M4,KWA107RWF77-Y80M4,KWA107RWF77-Y90M4,KWA107RWF77-YB100L4,KWA107RWF77-YB112M4,KWA107RWF77-YB132M4,KWA107RWF77-YB63M4,KWA107RWF77-YB71M4,KWA107RWF77-YB80M4,KWA107RWF77-YB90S4,KWA107RWF77-YDP100L4,KWA107RWF77-YDP112M4,KWA107RWF77-YDP132M4,KWA107RWF77-YDP63M4,KWA107RWF77-YDP71M4,KWA107RWF77-YDP80M4,KWA107RWF77-YDP90S4,KWA107RWF77-YE100L4,KWA107RWF77-YE112M4,KWA107RWF77-YE132M4,KWA107RWF77-YE63M4,KWA107RWF77-YE71M4,KWA107RWF77-YE80M4,KWA107RWF77-YE90S4,KWA107RWF77-YEJ100L4,KWA107RWF77-YEJ112M4,KWA107RWF77-YEJ132M4,KWA107RWF77-YEJ63M4,KWA107RWF77-YEJ71M4,KWA107RWF77-YEJ80M4,KWA107RWF77-YEJ90S4,KWA107RWF77-YEJB100L4,KWA107RWF77-YEJB112M4,KWA107RWF77-YEJB132M4,KWA107RWF77-YEJB63M4,KWA107RWF77-YEJB71M4,KWA107RWF77-YEJB80M4,KWA107RWF77-YEJB90S4,KWA107RWF77-YP100L4,KWA107RWF77-YP112M4,KWA107RWF77-YP132M4,KWA107RWF77-YP63M4,KWA107RWF77-YP71M4,KWA107RWF77-YP80M4,KWA107RWF77-YP90S4,KWA107RWF77-YPB100L4,KWA107RWF77-YPB112M4,KWA107RWF77-YPB132M4,KWA107RWF77-YPB63M4,KWA107RWF77-YPB71M4,KWA107RWF77-YPB80M4,KWA107RWF77-YPB90S4,KWA107RWF77-YPE100L4,KWA107RWF77-YPE112M4,KWA107RWF77-YPE132M4,KWA107RWF77-YPE63M4,KWA107RWF77-YPE71M4,KWA107RWF77-YPE80M4,KWA107RWF77-YPE90S4,KWA107RWF77-YS100L4,KWA107RWF77-YS112M4,KWA107RWF77-YS132M4,KWA107RWF77-YS63M4,KWA107RWF77-YS71M4,KWA107RWF77-YS80M4,KWA107RWF77-YS90S4,KWA107RWF77-YVB100L4,KWA107RWF77-YVB112M4,KWA107RWF77-YVB132M4,KWA107RWF77-YVB63M4,KWA107RWF77-YVB71M4,KWA107RWF77-YVB80M4,KWA107RWF77-YVB90S4,KWA107RWF77-YVP100L4,KWA107RWF77-YVP112M4,KWA107RWF77-YVP132M4,KWA107RWF77-YVP63M4,KWA107RWF77-YVP71M4,KWA107RWF77-YVP80M4,KWA107RWF77-YVP90S4,KWA107RWF77-YVPEJ100L4,KWA107RWF77-YVPEJ112M4,KWA107RWF77-YVPEJ132M4,KWA107RWF77-YVPEJ63M4,KWA107RWF77-YVPEJ71M4,KWA107RWF77-YVPEJ80M4,KWA107RWF77-YVPEJ90S4,KA109R79-Y100M4,KA109R79-Y112M4,KA109R79-Y132M4,KA109R79-Y63M4,KA109R79-Y71M4,KA109R79-Y80M4,KA109R79-Y90M4,KA109RF79-Y0.12KWA,KA109RF79-Y0.18KWA,KA109RF79-Y0.25KWA,KA109RF79-Y0.37KWA,KA109RF79-Y0.55KWA,KA109RF79-Y0.75KWA,KA109RF79-Y1.1KWA,KA109RF79-Y1.5KWA,KA109RF79-Y100M4,KA109RF79-Y112M4,KA109RF79-Y132M4,KA109RF79-Y2.2KWA,KA109RF79-Y3KWA,KA109RF79-Y4KWA,KA109RF79-Y5.5KWA,KA109RF79-Y63M4,KA109RF79-Y7.5KWA,KA109RF79-Y71M4,KA109RF79-Y80M4,KA109RF79-Y90M4,KA109RF79-YB100L4,KA109RF79-YB112M4,KA109RF79-YB132M4,KA109RF79-YB63M4,KA109RF79-YB71M4,KA109RF79-YB80M4,KA109RF79-YB90S4,KA109RF79-YDP100L4,KA109RF79-YDP112M4,KA109RF79-YDP132M4,KA109RF79-YDP63M4,KA109RF79-YDP71M4,KA109RF79-YDP80M4,KA109RF79-YDP90S4,KA109RF79-YE100L4,KA109RF79-YE112M4,KA109RF79-YE132M4,KA109RF79-YE63M4,KA109RF79-YE71M4,KA109RF79-YE80M4,KA109RF79-YE90S4,KA109RF79-YEJ100L4,KA109RF79-YEJ112M4,KA109RF79-YEJ132M4,KA109RF79-YEJ63M4,KA109RF79-YEJ71M4,KA109RF79-YEJ80M4,KA109RF79-YEJ90S4,KA109RF79-YEJB100L4,KA109RF79-YEJB112M4,KA109RF79-YEJB132M4,KA109RF79-YEJB63M4,KA109RF79-YEJB71M4,KA109RF79-YEJB80M4,KA109RF79-YEJB90S4,KA109RF79-YP100L4,KA109RF79-YP112M4,KA109RF79-YP132M4,KA109RF79-YP63M4,KA109RF79-YP71M4,KA109RF79-YP80M4,KA109RF79-YP90S4,KA109RF79-YPB100L4,KA109RF79-YPB112M4,KA109RF79-YPB132M4,KA109RF79-YPB63M4,KA109RF79-YPB71M4,KA109RF79-YPB80M4,KA109RF79-YPB90S4,KA109RF79-YPE100L4,KA109RF79-YPE112M4,KA109RF79-YPE132M4,KA109RF79-YPE63M4,KA109RF79-YPE71M4,KA109RF79-YPE80M4,KA109RF79-YPE90S4,KA109RF79-YS100L4,KA109RF79-YS112M4,KA109RF79-YS132M4,KA109RF79-YS63M4,KA109RF79-YS71M4,KA109RF79-YS80M4,KA109RF79-YS90S4,KA109RF79-YVB100L4,KA109RF79-YVB112M4,KA109RF79-YVB132M4,KA109RF79-YVB63M4,KA109RF79-YVB71M4,KA109RF79-YVB80M4,KA109RF79-YVB90S4,KA109RF79-YVP100L4,KA109RF79-YVP112M4,KA109RF79-YVP132M4,KA109RF79-YVP63M4,KA109RF79-YVP71M4,KA109RF79-YVP80M4,KA109RF79-YVP90S4,KA109RF79-YVPEJ100L4,KA109RF79-YVPEJ112M4,KA109RF79-YVPEJ132M4,KA109RF79-YVPEJ63M4,KA109RF79-YVPEJ71M4,KA109RF79-YVPEJ80M4,KA109RF79-YVPEJ90S4。
