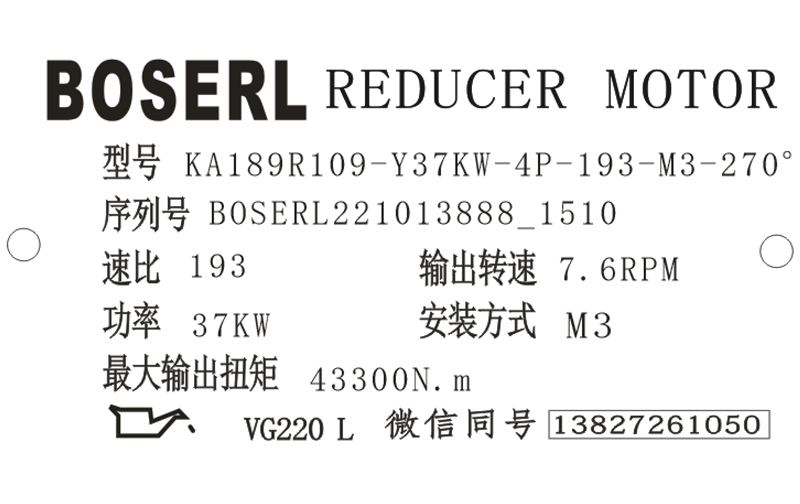

KA189R109減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA189R109減速機選型樣本。
KA189R109-Y37KW-4P-193-M3-270°
KA/R:系列代號
189/109:減速機規格代號
Y:電機
37KW:電機功率
4P:電機級數
193:減速機傳動比
M3:減速機安裝位置
270°:接線盒位置
KA189R109減速機電機保養檢查:
KA189R109減速機電機一般檢查:定期檢查電機。檢查頻率取決于周圍空氣的潮濕程度以及當?shù)氐奶鞖鉅顩r??深A(yù)先通過試驗確定,并嚴格遵守;保持電機清潔和自然通風。在多灰塵環境中使用電機時必須定期檢查通風系統并進行清潔;檢查油封的狀況,必要時應更換;檢查接線和安裝螺栓的狀況。齒輪減速電機
做一般定期檢查時,請需注意:溫度上升齒輪減速電機為F級絕緣,全密閉外扇構造,所以電機表面溫度比周圍高50°C左右即屬正常;如果溫度高于以上時,必須停機檢查(因素:電機或負載傳動系統異常)。
KA189R109減速機剎車電機剎車片因長時間使用會有磨損,請依據剎車間隙值進行調整(正常間隙值0.3~0.7mm)。
KA189R109減速機電機異常振動、噪音正常情況,本機幾乎沒有振動噪音。若有某些安裝異常使用,會產生振動噪音,所以請?zhí)貏e留意(當空載噪音值在70dB(A)/1M以下時,是被容許的);電機通風口有時會積聚雜物妨礙通風,所以請清除電機外部,以確保電機正常運行溫度;定期檢查時,請用兆歐表以500V測試電機繞組之絕緣阻抗,對地電阻應1MQ以上,以避免漏電之風險。
測定絕緣電阻時,請勿觸摸端子。否則有可能會導致觸電。減速電機工作時的表面溫度較高,請勿赤手觸摸。否則有可能會導致?tīng)C傷。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞。單相電機的啟動用電容器的通電部分,在未完全放電前請勿觸及。否則有可能會導致觸電。使電機反轉時,請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控。直角減速機
KA189R109減速機電機不轉解決方案:
電源未接通或接觸不良或電源電壓過低,排查維修;
過載跳閘,選擇大容量電機或減輕負載;
機械故障,檢查電機和傳動裝置是否可以自由轉動。檢查軸承和潤滑脂;
電機卡死,更換電機;
電源連接錯誤,核對接線是否與電機接線圖一致;空心軸減速機
定子繞組斷路,用萬用表歐姆檔檢查,若有相無電阻,則是此原因,確認后換線圈繞組;
定子繞組匝間短路,用萬用表歐姆檔檢查,若有相電阻與標佳值偏差夭于10%,則是此原因,確認后換線圈繞組;
定子繞組對地短路,用萬用表歐姆檔檢查,若線圈與機殼間有電阻小于1000歐,則是此原因,確認后換線圈繞組;
定子繞組接線錯誤,拆開電機找出錯誤,重新接線;
定子線圈的6引線接錯,換定子線圈。
KA189R109減速電機型號:
YQKA187R107-Y112M4,YQKA187R107-Y132M4,YQKA187R107-Y160M4,YQKA187R107-Y180M4,YQKA187R107-Y200M4,YQKA187R107-Y225M4,YQKA187R107-Y250M4,YQKA187RF107-Y112M4,YQKA187RF107-Y11KWA,YQKA187RF107-Y132M4,YQKA187RF107-Y15KWA,YQKA187RF107-Y160M4,YQKA187RF107-Y18.5KWA,YQKA187RF107-Y180M4,YQKA187RF107-Y200M4,YQKA187RF107-Y225M4,YQKA187RF107-Y22KWA,YQKA187RF107-Y250M4,YQKA187RF107-Y30KWA,YQKA187RF107-Y37KWA,YQKA187RF107-Y45KWA,YQKA187RF107-Y4KWA,YQKA187RF107-Y5.5KWA,YQKA187RF107-Y55KWA,YQKA187RF107-Y7.5KWA,YQKA187RF107-YB112M4,YQKA187RF107-YB132M4,YQKA187RF107-YB160M4,YQKA187RF107-YB180M4,YQKA187RF107-YB200L4,YQKA187RF107-YB225M4,YQKA187RF107-YB250M4,YQKA187RF107-YDP112M4,YQKA187RF107-YDP132M4,YQKA187RF107-YDP160M4,YQKA187RF107-YDP180M4,YQKA187RF107-YDP200L4,YQKA187RF107-YDP225M4,YQKA187RF107-YDP250M4,YQKA187RF107-YE112M4,YQKA187RF107-YE132M4,YQKA187RF107-YE160M4,YQKA187RF107-YE180M4,YQKA187RF107-YE200L4,YQKA187RF107-YE225M4,YQKA187RF107-YE250M4,YQKA187RF107-YEJ112M4,YQKA187RF107-YEJ132M4,YQKA187RF107-YEJ160M4,YQKA187RF107-YEJ180M4,YQKA187RF107-YEJ200L4,YQKA187RF107-YEJ225M4,YQKA187RF107-YEJ250M4,YQKA187RF107-YEJB112M4,YQKA187RF107-YEJB132M4,YQKA187RF107-YEJB160M4,YQKA187RF107-YEJB180M4,YQKA187RF107-YEJB200L4,YQKA187RF107-YEJB225M4,YQKA187RF107-YEJB250M4,YQKA187RF107-YP112M4,YQKA187RF107-YP132M4,YQKA187RF107-YP160M4,YQKA187RF107-YP180M4,YQKA187RF107-YP200L4,YQKA187RF107-YP225M4,YQKA187RF107-YP250M4,YQKA187RF107-YPB112M4,YQKA187RF107-YPB132M4,YQKA187RF107-YPB160M4,YQKA187RF107-YPB180M4,YQKA187RF107-YPB200L4,YQKA187RF107-YPB225M4,YQKA187RF107-YPB250M4,YQKA187RF107-YPE112M4,YQKA187RF107-YPE132M4,YQKA187RF107-YPE160M4,YQKA187RF107-YPE180M4,YQKA187RF107-YPE200L4,YQKA187RF107-YPE225M4,YQKA187RF107-YPE250M4,YQKA187RF107-YS112M4,YQKA187RF107-YS132M4,YQKA187RF107-YS160M4,YQKA187RF107-YS180M4,YQKA187RF107-YS200L4,YQKA187RF107-YS225M4,YQKA187RF107-YS250M4,YQKA187RF107-YVB112M4,YQKA187RF107-YVB132M4,YQKA187RF107-YVB160M4,YQKA187RF107-YVB180M4,YQKA187RF107-YVB200L4,YQKA187RF107-YVB225M4,YQKA187RF107-YVB250M4,YQKA187RF107-YVP112M4,YQKA187RF107-YVP132M4,YQKA187RF107-YVP160M4,YQKA187RF107-YVP180M4,YQKA187RF107-YVP200L4,YQKA187RF107-YVP225M4,YQKA187RF107-YVP250M4,YQKA187RF107-YVPEJ112M4,YQKA187RF107-YVPEJ132M4,YQKA187RF107-YVPEJ160M4,YQKA187RF107-YVPEJ180M4,YQKA187RF107-YVPEJ200L4,YQKA187RF107-YVPEJ225M4,YQKA187RF107-YVPEJ250M4,SKA187R107-Y112M4,SKA187R107-Y132M4,SKA187R107-Y160M4,SKA187R107-Y180M4,SKA187R107-Y200M4,SKA187R107-Y225M4,SKA187R107-Y250M4,SKA187RF107-Y112M4,SKA187RF107-Y11KWA,SKA187RF107-Y132M4,SKA187RF107-Y15KWA,SKA187RF107-Y160M4,SKA187RF107-Y18.5KWA,SKA187RF107-Y180M4,SKA187RF107-Y200M4,SKA187RF107-Y225M4,SKA187RF107-Y22KWA,SKA187RF107-Y250M4,SKA187RF107-Y30KWA,SKA187RF107-Y37KWA,SKA187RF107-Y45KWA,SKA187RF107-Y4KWA,SKA187RF107-Y5.5KWA,SKA187RF107-Y55KWA,SKA187RF107-Y7.5KWA,SKA187RF107-YB112M4,SKA187RF107-YB132M4,SKA187RF107-YB160M4,SKA187RF107-YB180M4,SKA187RF107-YB200L4,SKA187RF107-YB225M4,SKA187RF107-YB250M4,SKA187RF107-YDP112M4,SKA187RF107-YDP132M4,SKA187RF107-YDP160M4,SKA187RF107-YDP180M4,SKA187RF107-YDP200L4,SKA187RF107-YDP225M4,SKA187RF107-YDP250M4,SKA187RF107-YE112M4,SKA187RF107-YE132M4,SKA187RF107-YE160M4,SKA187RF107-YE180M4,SKA187RF107-YE200L4,SKA187RF107-YE225M4,SKA187RF107-YE250M4,SKA187RF107-YEJ112M4,SKA187RF107-YEJ132M4,SKA187RF107-YEJ160M4,SKA187RF107-YEJ180M4,SKA187RF107-YEJ200L4,SKA187RF107-YEJ225M4,SKA187RF107-YEJ250M4,SKA187RF107-YEJB112M4,SKA187RF107-YEJB132M4,SKA187RF107-YEJB160M4,SKA187RF107-YEJB180M4,SKA187RF107-YEJB200L4,SKA187RF107-YEJB225M4,SKA187RF107-YEJB250M4,SKA187RF107-YP112M4,SKA187RF107-YP132M4,SKA187RF107-YP160M4,SKA187RF107-YP180M4,SKA187RF107-YP200L4,SKA187RF107-YP225M4,SKA187RF107-YP250M4,SKA187RF107-YPB112M4,SKA187RF107-YPB132M4,SKA187RF107-YPB160M4,SKA187RF107-YPB180M4,SKA187RF107-YPB200L4,SKA187RF107-YPB225M4,SKA187RF107-YPB250M4,SKA187RF107-YPE112M4,SKA187RF107-YPE132M4,SKA187RF107-YPE160M4,SKA187RF107-YPE180M4,SKA187RF107-YPE200L4,SKA187RF107-YPE225M4,SKA187RF107-YPE250M4,SKA187RF107-YS112M4,SKA187RF107-YS132M4,SKA187RF107-YS160M4,SKA187RF107-YS180M4,SKA187RF107-YS200L4,SKA187RF107-YS225M4,SKA187RF107-YS250M4,SKA187RF107-YVB112M4,SKA187RF107-YVB132M4,SKA187RF107-YVB160M4,SKA187RF107-YVB180M4,SKA187RF107-YVB200L4,SKA187RF107-YVB225M4,SKA187RF107-YVB250M4,SKA187RF107-YVP112M4,SKA187RF107-YVP132M4,SKA187RF107-YVP160M4,SKA187RF107-YVP180M4,SKA187RF107-YVP200L4,SKA187RF107-YVP225M4,SKA187RF107-YVP250M4,SKA187RF107-YVPEJ112M4,SKA187RF107-YVPEJ132M4,SKA187RF107-YVPEJ160M4,SKA187RF107-YVPEJ180M4,SKA187RF107-YVPEJ200L4,SKA187RF107-YVPEJ225M4,SKA187RF107-YVPEJ250M4,AKA187R107-Y112M4,AKA187R107-Y132M4,AKA187R107-Y160M4,AKA187R107-Y180M4,AKA187R107-Y200M4,AKA187R107-Y225M4,AKA187R107-Y250M4,AKA187RF107-Y112M4,AKA187RF107-Y11KWA,AKA187RF107-Y132M4,AKA187RF107-Y15KWA,AKA187RF107-Y160M4,AKA187RF107-Y18.5KWA,AKA187RF107-Y180M4,AKA187RF107-Y200M4,AKA187RF107-Y225M4,AKA187RF107-Y22KWA,AKA187RF107-Y250M4,AKA187RF107-Y30KWA,AKA187RF107-Y37KWA,AKA187RF107-Y45KWA,AKA187RF107-Y4KWA,AKA187RF107-Y5.5KWA,AKA187RF107-Y55KWA,AKA187RF107-Y7.5KWA,AKA187RF107-YB112M4,AKA187RF107-YB132M4,AKA187RF107-YB160M4,AKA187RF107-YB180M4,AKA187RF107-YB200L4,AKA187RF107-YB225M4,AKA187RF107-YB250M4,AKA187RF107-YDP112M4,AKA187RF107-YDP132M4,AKA187RF107-YDP160M4,AKA187RF107-YDP180M4,AKA187RF107-YDP200L4,AKA187RF107-YDP225M4,AKA187RF107-YDP250M4,AKA187RF107-YE112M4,AKA187RF107-YE132M4,AKA187RF107-YE160M4,AKA187RF107-YE180M4,AKA187RF107-YE200L4,AKA187RF107-YE225M4,AKA187RF107-YE250M4,AKA187RF107-YEJ112M4,AKA187RF107-YEJ132M4,AKA187RF107-YEJ160M4,AKA187RF107-YEJ180M4,AKA187RF107-YEJ200L4,AKA187RF107-YEJ225M4,AKA187RF107-YEJ250M4,AKA187RF107-YEJB112M4,AKA187RF107-YEJB132M4,AKA187RF107-YEJB160M4,AKA187RF107-YEJB180M4,AKA187RF107-YEJB200L4,AKA187RF107-YEJB225M4,AKA187RF107-YEJB250M4,AKA187RF107-YP112M4,AKA187RF107-YP132M4,AKA187RF107-YP160M4,AKA187RF107-YP180M4,AKA187RF107-YP200L4,AKA187RF107-YP225M4,AKA187RF107-YP250M4,AKA187RF107-YPB112M4,AKA187RF107-YPB132M4,AKA187RF107-YPB160M4,AKA187RF107-YPB180M4,AKA187RF107-YPB200L4,AKA187RF107-YPB225M4,AKA187RF107-YPB250M4,AKA187RF107-YPE112M4,AKA187RF107-YPE132M4,AKA187RF107-YPE160M4,AKA187RF107-YPE180M4,AKA187RF107-YPE200L4,AKA187RF107-YPE225M4,AKA187RF107-YPE250M4,AKA187RF107-YS112M4,AKA187RF107-YS132M4,AKA187RF107-YS160M4,AKA187RF107-YS180M4,AKA187RF107-YS200L4,AKA187RF107-YS225M4,AKA187RF107-YS250M4,AKA187RF107-YVB112M4,AKA187RF107-YVB132M4,AKA187RF107-YVB160M4,AKA187RF107-YVB180M4,AKA187RF107-YVB200L4,AKA187RF107-YVB225M4,AKA187RF107-YVB250M4,AKA187RF107-YVP112M4,AKA187RF107-YVP132M4,AKA187RF107-YVP160M4,AKA187RF107-YVP180M4,AKA187RF107-YVP200L4,AKA187RF107-YVP225M4,AKA187RF107-YVP250M4,AKA187RF107-YVPEJ112M4,AKA187RF107-YVPEJ132M4,AKA187RF107-YVPEJ160M4,AKA187RF107-YVPEJ180M4,AKA187RF107-YVPEJ200L4,AKA187RF107-YVPEJ225M4,AKA187RF107-YVPEJ250M4,WKA187R107-Y112M4,WKA187R107-Y132M4,WKA187R107-Y160M4,WKA187R107-Y180M4,WKA187R107-Y200M4,WKA187R107-Y225M4,WKA187R107-Y250M4,WKA187RF107-Y112M4,WKA187RF107-Y11KWA,WKA187RF107-Y132M4,WKA187RF107-Y15KWA,WKA187RF107-Y160M4,WKA187RF107-Y18.5KWA,WKA187RF107-Y180M4,WKA187RF107-Y200M4,WKA187RF107-Y225M4,WKA187RF107-Y22KWA,WKA187RF107-Y250M4,WKA187RF107-Y30KWA,WKA187RF107-Y37KWA,WKA187RF107-Y45KWA,WKA187RF107-Y4KWA,WKA187RF107-Y5.5KWA,WKA187RF107-Y55KWA,WKA187RF107-Y7.5KWA,WKA187RF107-YB112M4,WKA187RF107-YB132M4,WKA187RF107-YB160M4,WKA187RF107-YB180M4,WKA187RF107-YB200L4,WKA187RF107-YB225M4,WKA187RF107-YB250M4,WKA187RF107-YDP112M4,WKA187RF107-YDP132M4,WKA187RF107-YDP160M4,WKA187RF107-YDP180M4,WKA187RF107-YDP200L4,WKA187RF107-YDP225M4,WKA187RF107-YDP250M4,WKA187RF107-YE112M4,WKA187RF107-YE132M4,WKA187RF107-YE160M4,WKA187RF107-YE180M4,WKA187RF107-YE200L4,WKA187RF107-YE225M4,WKA187RF107-YE250M4,WKA187RF107-YEJ112M4,WKA187RF107-YEJ132M4,WKA187RF107-YEJ160M4,WKA187RF107-YEJ180M4,WKA187RF107-YEJ200L4,WKA187RF107-YEJ225M4,WKA187RF107-YEJ250M4,WKA187RF107-YEJB112M4,WKA187RF107-YEJB132M4,WKA187RF107-YEJB160M4,WKA187RF107-YEJB180M4,WKA187RF107-YEJB200L4,WKA187RF107-YEJB225M4,WKA187RF107-YEJB250M4,WKA187RF107-YP112M4,WKA187RF107-YP132M4,WKA187RF107-YP160M4,WKA187RF107-YP180M4,WKA187RF107-YP200L4,WKA187RF107-YP225M4,WKA187RF107-YP250M4,WKA187RF107-YPB112M4,WKA187RF107-YPB132M4,WKA187RF107-YPB160M4,WKA187RF107-YPB180M4,WKA187RF107-YPB200L4,WKA187RF107-YPB225M4,WKA187RF107-YPB250M4,WKA187RF107-YPE112M4,WKA187RF107-YPE132M4,WKA187RF107-YPE160M4,WKA187RF107-YPE180M4,WKA187RF107-YPE200L4,WKA187RF107-YPE225M4,WKA187RF107-YPE250M4,WKA187RF107-YS112M4,WKA187RF107-YS132M4,WKA187RF107-YS160M4,WKA187RF107-YS180M4,WKA187RF107-YS200L4,WKA187RF107-YS225M4,WKA187RF107-YS250M4,WKA187RF107-YVB112M4,WKA187RF107-YVB132M4,WKA187RF107-YVB160M4,WKA187RF107-YVB180M4,WKA187RF107-YVB200L4,WKA187RF107-YVB225M4,WKA187RF107-YVB250M4,WKA187RF107-YVP112M4,WKA187RF107-YVP132M4,WKA187RF107-YVP160M4,WKA187RF107-YVP180M4,WKA187RF107-YVP200L4,WKA187RF107-YVP225M4,WKA187RF107-YVP250M4,WKA187RF107-YVPEJ112M4,WKA187RF107-YVPEJ132M4,WKA187RF107-YVPEJ160M4,WKA187RF107-YVPEJ180M4,WKA187RF107-YVPEJ200L4,WKA187RF107-YVPEJ225M4,WKA187RF107-YVPEJ250M4,XDKA187R107-Y112M4,XDKA187R107-Y132M4,XDKA187R107-Y160M4,XDKA187R107-Y180M4,XDKA187R107-Y200M4,XDKA187R107-Y225M4,XDKA187R107-Y250M4,XDKA187RF107-Y112M4,XDKA187RF107-Y11KWA,XDKA187RF107-Y132M4,XDKA187RF107-Y15KWA,XDKA187RF107-Y160M4,XDKA187RF107-Y18.5KWA,XDKA187RF107-Y180M4,XDKA187RF107-Y200M4,XDKA187RF107-Y225M4,XDKA187RF107-Y22KWA,XDKA187RF107-Y250M4,XDKA187RF107-Y30KWA,XDKA187RF107-Y37KWA,XDKA187RF107-Y45KWA,XDKA187RF107-Y4KWA,XDKA187RF107-Y5.5KWA,XDKA187RF107-Y55KWA,XDKA187RF107-Y7.5KWA,XDKA187RF107-YB112M4,XDKA187RF107-YB132M4,XDKA187RF107-YB160M4,XDKA187RF107-YB180M4,XDKA187RF107-YB200L4,XDKA187RF107-YB225M4,XDKA187RF107-YB250M4,XDKA187RF107-YDP112M4,XDKA187RF107-YDP132M4,XDKA187RF107-YDP160M4,XDKA187RF107-YDP180M4,XDKA187RF107-YDP200L4,XDKA187RF107-YDP225M4,XDKA187RF107-YDP250M4,XDKA187RF107-YE112M4,XDKA187RF107-YE132M4,XDKA187RF107-YE160M4,XDKA187RF107-YE180M4,XDKA187RF107-YE200L4,XDKA187RF107-YE225M4,XDKA187RF107-YE250M4,XDKA187RF107-YEJ112M4,XDKA187RF107-YEJ132M4,XDKA187RF107-YEJ160M4,XDKA187RF107-YEJ180M4,XDKA187RF107-YEJ200L4,XDKA187RF107-YEJ225M4,XDKA187RF107-YEJ250M4,XDKA187RF107-YEJB112M4,XDKA187RF107-YEJB132M4,XDKA187RF107-YEJB160M4,XDKA187RF107-YEJB180M4,XDKA187RF107-YEJB200L4,XDKA187RF107-YEJB225M4,XDKA187RF107-YEJB250M4,XDKA187RF107-YP112M4,XDKA187RF107-YP132M4,XDKA187RF107-YP160M4,XDKA187RF107-YP180M4,XDKA187RF107-YP200L4,XDKA187RF107-YP225M4,XDKA187RF107-YP250M4,XDKA187RF107-YPB112M4,XDKA187RF107-YPB132M4,XDKA187RF107-YPB160M4,XDKA187RF107-YPB180M4,XDKA187RF107-YPB200L4,XDKA187RF107-YPB225M4,XDKA187RF107-YPB250M4,XDKA187RF107-YPE112M4,XDKA187RF107-YPE132M4,XDKA187RF107-YPE160M4,XDKA187RF107-YPE180M4,XDKA187RF107-YPE200L4,XDKA187RF107-YPE225M4,XDKA187RF107-YPE250M4,XDKA187RF107-YS112M4,XDKA187RF107-YS132M4,XDKA187RF107-YS160M4,XDKA187RF107-YS180M4,XDKA187RF107-YS200L4,XDKA187RF107-YS225M4,XDKA187RF107-YS250M4,XDKA187RF107-YVB112M4,XDKA187RF107-YVB132M4,XDKA187RF107-YVB160M4,XDKA187RF107-YVB180M4,XDKA187RF107-YVB200L4,XDKA187RF107-YVB225M4,XDKA187RF107-YVB250M4,XDKA187RF107-YVP112M4,XDKA187RF107-YVP132M4,XDKA187RF107-YVP160M4,XDKA187RF107-YVP180M4,XDKA187RF107-YVP200L4,XDKA187RF107-YVP225M4,XDKA187RF107-YVP250M4,XDKA187RF107-YVPEJ112M4,XDKA187RF107-YVPEJ132M4,XDKA187RF107-YVPEJ160M4,XDKA187RF107-YVPEJ180M4,XDKA187RF107-YVPEJ200L4,XDKA187RF107-YVPEJ225M4,XDKA187RF107-YVPEJ250M4,NKA187R107-Y112M4,NKA187R107-Y132M4,NKA187R107-Y160M4,NKA187R107-Y180M4,NKA187R107-Y200M4,NKA187R107-Y225M4,NKA187R107-Y250M4,NKA187RF107-Y112M4,NKA187RF107-Y11KWA,NKA187RF107-Y132M4,NKA187RF107-Y15KWA,NKA187RF107-Y160M4,NKA187RF107-Y18.5KWA,NKA187RF107-Y180M4,NKA187RF107-Y200M4,NKA187RF107-Y225M4,NKA187RF107-Y22KWA,NKA187RF107-Y250M4,NKA187RF107-Y30KWA,NKA187RF107-Y37KWA,NKA187RF107-Y45KWA,NKA187RF107-Y4KWA,NKA187RF107-Y5.5KWA,NKA187RF107-Y55KWA,NKA187RF107-Y7.5KWA,NKA187RF107-YB112M4,NKA187RF107-YB132M4,NKA187RF107-YB160M4,NKA187RF107-YB180M4,NKA187RF107-YB200L4,NKA187RF107-YB225M4,NKA187RF107-YB250M4,NKA187RF107-YDP112M4,NKA187RF107-YDP132M4,NKA187RF107-YDP160M4,NKA187RF107-YDP180M4,NKA187RF107-YDP200L4,NKA187RF107-YDP225M4,NKA187RF107-YDP250M4,NKA187RF107-YE112M4,NKA187RF107-YE132M4,NKA187RF107-YE160M4,NKA187RF107-YE180M4,NKA187RF107-YE200L4,NKA187RF107-YE225M4,NKA187RF107-YE250M4,NKA187RF107-YEJ112M4,NKA187RF107-YEJ132M4,NKA187RF107-YEJ160M4,NKA187RF107-YEJ180M4,NKA187RF107-YEJ200L4,NKA187RF107-YEJ225M4,NKA187RF107-YEJ250M4,NKA187RF107-YEJB112M4,NKA187RF107-YEJB132M4,NKA187RF107-YEJB160M4,NKA187RF107-YEJB180M4,NKA187RF107-YEJB200L4,NKA187RF107-YEJB225M4,NKA187RF107-YEJB250M4,NKA187RF107-YP112M4,NKA187RF107-YP132M4,NKA187RF107-YP160M4,NKA187RF107-YP180M4,NKA187RF107-YP200L4,NKA187RF107-YP225M4,NKA187RF107-YP250M4,NKA187RF107-YPB112M4,NKA187RF107-YPB132M4,NKA187RF107-YPB160M4,NKA187RF107-YPB180M4,NKA187RF107-YPB200L4,NKA187RF107-YPB225M4,NKA187RF107-YPB250M4,NKA187RF107-YPE112M4,NKA187RF107-YPE132M4,NKA187RF107-YPE160M4,NKA187RF107-YPE180M4,NKA187RF107-YPE200L4,NKA187RF107-YPE225M4,NKA187RF107-YPE250M4,NKA187RF107-YS112M4,NKA187RF107-YS132M4,NKA187RF107-YS160M4,NKA187RF107-YS180M4,NKA187RF107-YS200L4,NKA187RF107-YS225M4,NKA187RF107-YS250M4,NKA187RF107-YVB112M4,NKA187RF107-YVB132M4,NKA187RF107-YVB160M4,NKA187RF107-YVB180M4,NKA187RF107-YVB200L4,NKA187RF107-YVB225M4,NKA187RF107-YVB250M4,NKA187RF107-YVP112M4,NKA187RF107-YVP132M4,NKA187RF107-YVP160M4,NKA187RF107-YVP180M4,NKA187RF107-YVP200L4,NKA187RF107-YVP225M4,NKA187RF107-YVP250M4,NKA187RF107-YVPEJ112M4,NKA187RF107-YVPEJ132M4,NKA187RF107-YVPEJ160M4,NKA187RF107-YVPEJ180M4,NKA187RF107-YVPEJ200L4,NKA187RF107-YVPEJ225M4,NKA187RF107-YVPEJ250M4,JCKA187R107-Y112M4,JCKA187R107-Y132M4,JCKA187R107-Y160M4,JCKA187R107-Y180M4,JCKA187R107-Y200M4,JCKA187R107-Y225M4,JCKA187R107-Y250M4,JCKA187RF107-Y112M4,JCKA187RF107-Y11KWA,JCKA187RF107-Y132M4,JCKA187RF107-Y15KWA,JCKA187RF107-Y160M4,JCKA187RF107-Y18.5KWA,JCKA187RF107-Y180M4,JCKA187RF107-Y200M4,JCKA187RF107-Y225M4,JCKA187RF107-Y22KWA,JCKA187RF107-Y250M4,JCKA187RF107-Y30KWA,JCKA187RF107-Y37KWA,JCKA187RF107-Y45KWA,JCKA187RF107-Y4KWA,JCKA187RF107-Y5.5KWA,JCKA187RF107-Y55KWA,JCKA187RF107-Y7.5KWA,JCKA187RF107-YB112M4,JCKA187RF107-YB132M4,JCKA187RF107-YB160M4,JCKA187RF107-YB180M4,JCKA187RF107-YB200L4,JCKA187RF107-YB225M4,JCKA187RF107-YB250M4,JCKA187RF107-YDP112M4,JCKA187RF107-YDP132M4,JCKA187RF107-YDP160M4,JCKA187RF107-YDP180M4,JCKA187RF107-YDP200L4,JCKA187RF107-YDP225M4,JCKA187RF107-YDP250M4,JCKA187RF107-YE112M4,JCKA187RF107-YE132M4,JCKA187RF107-YE160M4,JCKA187RF107-YE180M4,JCKA187RF107-YE200L4,JCKA187RF107-YE225M4,JCKA187RF107-YE250M4,JCKA187RF107-YEJ112M4,JCKA187RF107-YEJ132M4,JCKA187RF107-YEJ160M4,JCKA187RF107-YEJ180M4,JCKA187RF107-YEJ200L4,JCKA187RF107-YEJ225M4,JCKA187RF107-YEJ250M4,JCKA187RF107-YEJB112M4,JCKA187RF107-YEJB132M4,JCKA187RF107-YEJB160M4,JCKA187RF107-YEJB180M4,JCKA187RF107-YEJB200L4,JCKA187RF107-YEJB225M4,JCKA187RF107-YEJB250M4,JCKA187RF107-YP112M4,JCKA187RF107-YP132M4,JCKA187RF107-YP160M4,JCKA187RF107-YP180M4,JCKA187RF107-YP200L4,JCKA187RF107-YP225M4,JCKA187RF107-YP250M4,JCKA187RF107-YPB112M4,JCKA187RF107-YPB132M4,JCKA187RF107-YPB160M4,JCKA187RF107-YPB180M4,JCKA187RF107-YPB200L4,JCKA187RF107-YPB225M4,JCKA187RF107-YPB250M4,JCKA187RF107-YPE112M4,JCKA187RF107-YPE132M4,JCKA187RF107-YPE160M4,JCKA187RF107-YPE180M4,JCKA187RF107-YPE200L4,JCKA187RF107-YPE225M4,JCKA187RF107-YPE250M4,JCKA187RF107-YS112M4,JCKA187RF107-YS132M4,JCKA187RF107-YS160M4,JCKA187RF107-YS180M4,JCKA187RF107-YS200L4,JCKA187RF107-YS225M4,JCKA187RF107-YS250M4,JCKA187RF107-YVB112M4,JCKA187RF107-YVB132M4,JCKA187RF107-YVB160M4,JCKA187RF107-YVB180M4,JCKA187RF107-YVB200L4,JCKA187RF107-YVB225M4,JCKA187RF107-YVB250M4,JCKA187RF107-YVP112M4,JCKA187RF107-YVP132M4,JCKA187RF107-YVP160M4,JCKA187RF107-YVP180M4,JCKA187RF107-YVP200L4,JCKA187RF107-YVP225M4,JCKA187RF107-YVP250M4,JCKA187RF107-YVPEJ112M4,JCKA187RF107-YVPEJ132M4,JCKA187RF107-YVPEJ160M4,JCKA187RF107-YVPEJ180M4,JCKA187RF107-YVPEJ200L4,JCKA187RF107-YVPEJ225M4,JCKA187RF107-YVPEJ250M4,KWA187RW107-Y112M4,KWA187RW107-Y132M4,KWA187RW107-Y160M4,KWA187RW107-Y180M4,KWA187RW107-Y200M4,KWA187RW107-Y225M4,KWA187RW107-Y250M4,KWA187RWF107-Y112M4,KWA187RWF107-Y11KWA,KWA187RWF107-Y132M4,KWA187RWF107-Y15KWA,KWA187RWF107-Y160M4,KWA187RWF107-Y18.5KWA,KWA187RWF107-Y180M4,KWA187RWF107-Y200M4,KWA187RWF107-Y225M4,KWA187RWF107-Y22KWA,KWA187RWF107-Y250M4,KWA187RWF107-Y30KWA,KWA187RWF107-Y37KWA,KWA187RWF107-Y45KWA,KWA187RWF107-Y4KWA,KWA187RWF107-Y5.5KWA,KWA187RWF107-Y55KWA,KWA187RWF107-Y7.5KWA,KWA187RWF107-YB112M4,KWA187RWF107-YB132M4,KWA187RWF107-YB160M4,KWA187RWF107-YB180M4,KWA187RWF107-YB200L4,KWA187RWF107-YB225M4,KWA187RWF107-YB250M4,KWA187RWF107-YDP112M4,KWA187RWF107-YDP132M4,KWA187RWF107-YDP160M4,KWA187RWF107-YDP180M4,KWA187RWF107-YDP200L4,KWA187RWF107-YDP225M4,KWA187RWF107-YDP250M4,KWA187RWF107-YE112M4,KWA187RWF107-YE132M4,KWA187RWF107-YE160M4,KWA187RWF107-YE180M4,KWA187RWF107-YE200L4,KWA187RWF107-YE225M4,KWA187RWF107-YE250M4,KWA187RWF107-YEJ112M4,KWA187RWF107-YEJ132M4,KWA187RWF107-YEJ160M4,KWA187RWF107-YEJ180M4,KWA187RWF107-YEJ200L4,KWA187RWF107-YEJ225M4,KWA187RWF107-YEJ250M4,KWA187RWF107-YEJB112M4,KWA187RWF107-YEJB132M4,KWA187RWF107-YEJB160M4,KWA187RWF107-YEJB180M4,KWA187RWF107-YEJB200L4,KWA187RWF107-YEJB225M4,KWA187RWF107-YEJB250M4,KWA187RWF107-YP112M4,KWA187RWF107-YP132M4,KWA187RWF107-YP160M4,KWA187RWF107-YP180M4,KWA187RWF107-YP200L4,KWA187RWF107-YP225M4,KWA187RWF107-YP250M4,KWA187RWF107-YPB112M4,KWA187RWF107-YPB132M4,KWA187RWF107-YPB160M4,KWA187RWF107-YPB180M4,KWA187RWF107-YPB200L4,KWA187RWF107-YPB225M4,KWA187RWF107-YPB250M4,KWA187RWF107-YPE112M4,KWA187RWF107-YPE132M4,KWA187RWF107-YPE160M4,KWA187RWF107-YPE180M4,KWA187RWF107-YPE200L4,KWA187RWF107-YPE225M4,KWA187RWF107-YPE250M4,KWA187RWF107-YS112M4,KWA187RWF107-YS132M4,KWA187RWF107-YS160M4,KWA187RWF107-YS180M4,KWA187RWF107-YS200L4,KWA187RWF107-YS225M4,KWA187RWF107-YS250M4,KWA187RWF107-YVB112M4,KWA187RWF107-YVB132M4,KWA187RWF107-YVB160M4,KWA187RWF107-YVB180M4,KWA187RWF107-YVB200L4,KWA187RWF107-YVB225M4,KWA187RWF107-YVB250M4,KWA187RWF107-YVP112M4,KWA187RWF107-YVP132M4,KWA187RWF107-YVP160M4,KWA187RWF107-YVP180M4,KWA187RWF107-YVP200L4,KWA187RWF107-YVP225M4,KWA187RWF107-YVP250M4,KWA187RWF107-YVPEJ112M4,KWA187RWF107-YVPEJ132M4,KWA187RWF107-YVPEJ160M4,KWA187RWF107-YVPEJ180M4,KWA187RWF107-YVPEJ200L4,KWA187RWF107-YVPEJ225M4,KWA187RWF107-YVPEJ250M4,KA189R109-Y112M4,KA189R109-Y132M4,KA189R109-Y160M4,KA189R109-Y180M4,KA189R109-Y200M4,KA189R109-Y225M4,KA189R109-Y250M4,KA189RF109-Y112M4,KA189RF109-Y11KWA,KA189RF109-Y132M4,KA189RF109-Y15KWA,KA189RF109-Y160M4,KA189RF109-Y18.5KWA,KA189RF109-Y180M4,KA189RF109-Y200M4,KA189RF109-Y225M4,KA189RF109-Y22KWA,KA189RF109-Y250M4,KA189RF109-Y30KWA,KA189RF109-Y37KWA,KA189RF109-Y45KWA,KA189RF109-Y4KWA,KA189RF109-Y5.5KWA,KA189RF109-Y55KWA,KA189RF109-Y7.5KWA,KA189RF109-YB112M4,KA189RF109-YB132M4,KA189RF109-YB160M4,KA189RF109-YB180M4,KA189RF109-YB200L4,KA189RF109-YB225M4,KA189RF109-YB250M4,KA189RF109-YDP112M4,KA189RF109-YDP132M4,KA189RF109-YDP160M4,KA189RF109-YDP180M4,KA189RF109-YDP200L4,KA189RF109-YDP225M4,KA189RF109-YDP250M4,KA189RF109-YE112M4,KA189RF109-YE132M4,KA189RF109-YE160M4,KA189RF109-YE180M4,KA189RF109-YE200L4,KA189RF109-YE225M4,KA189RF109-YE250M4,KA189RF109-YEJ112M4,KA189RF109-YEJ132M4,KA189RF109-YEJ160M4,KA189RF109-YEJ180M4,KA189RF109-YEJ200L4,KA189RF109-YEJ225M4,KA189RF109-YEJ250M4,KA189RF109-YEJB112M4,KA189RF109-YEJB132M4,KA189RF109-YEJB160M4,KA189RF109-YEJB180M4,KA189RF109-YEJB200L4,KA189RF109-YEJB225M4,KA189RF109-YEJB250M4,KA189RF109-YP112M4,KA189RF109-YP132M4,KA189RF109-YP160M4,KA189RF109-YP180M4,KA189RF109-YP200L4,KA189RF109-YP225M4,KA189RF109-YP250M4,KA189RF109-YPB112M4,KA189RF109-YPB132M4,KA189RF109-YPB160M4,KA189RF109-YPB180M4,KA189RF109-YPB200L4,KA189RF109-YPB225M4,KA189RF109-YPB250M4,KA189RF109-YPE112M4,KA189RF109-YPE132M4,KA189RF109-YPE160M4,KA189RF109-YPE180M4,KA189RF109-YPE200L4,KA189RF109-YPE225M4,KA189RF109-YPE250M4,KA189RF109-YS112M4,KA189RF109-YS132M4,KA189RF109-YS160M4,KA189RF109-YS180M4,KA189RF109-YS200L4,KA189RF109-YS225M4,KA189RF109-YS250M4,KA189RF109-YVB112M4,KA189RF109-YVB132M4,KA189RF109-YVB160M4,KA189RF109-YVB180M4,KA189RF109-YVB200L4,KA189RF109-YVB225M4,KA189RF109-YVB250M4,KA189RF109-YVP112M4,KA189RF109-YVP132M4,KA189RF109-YVP160M4,KA189RF109-YVP180M4,KA189RF109-YVP200L4,KA189RF109-YVP225M4,KA189RF109-YVP250M4,KA189RF109-YVPEJ112M4,KA189RF109-YVPEJ132M4,KA189RF109-YVPEJ160M4,KA189RF109-YVPEJ180M4,KA189RF109-YVPEJ200L4,KA189RF109-YVPEJ225M4,KA189RF109-YVPEJ250M4。
KA189R109減速電機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kaxiliejiansuji-cn.html
推薦型號:K189減速機
關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機
KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
