FAF59R39減速機詳細信息

prevnext

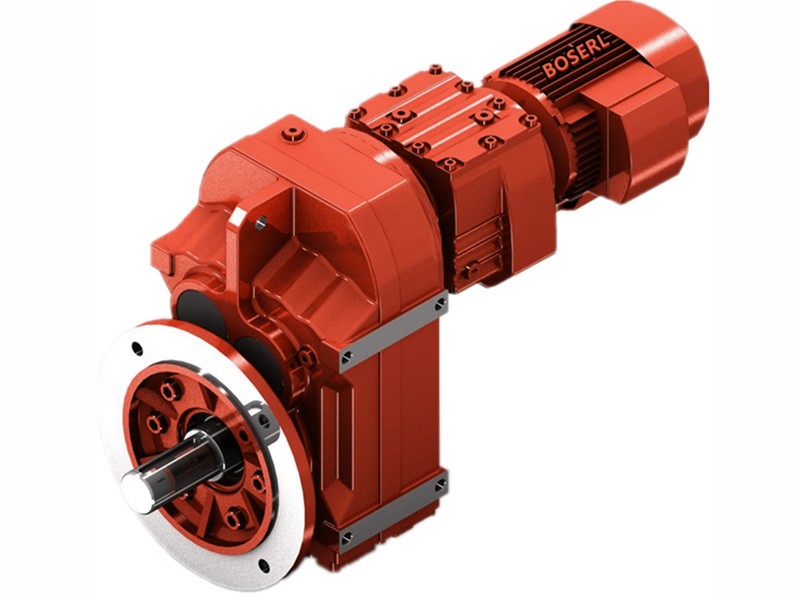

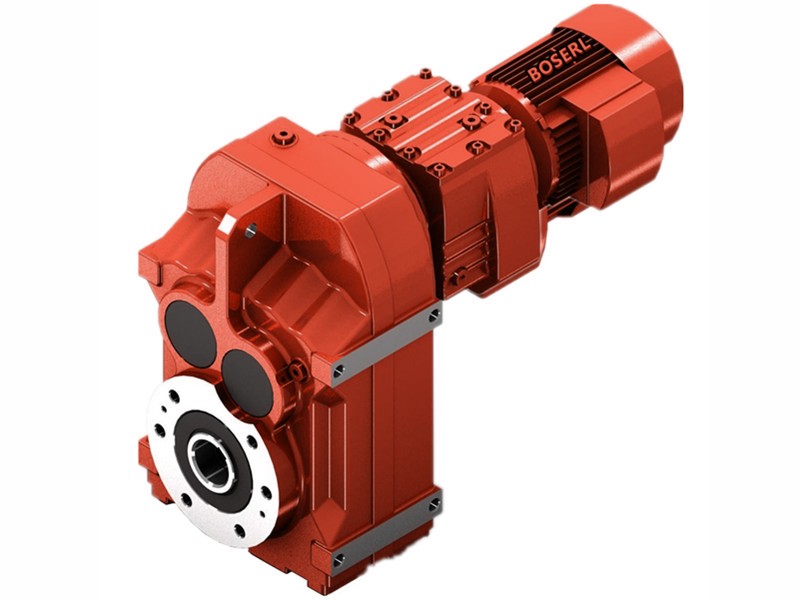

FAF59R39減速機

訂購熱線:13360667204
  1. 詳細信息

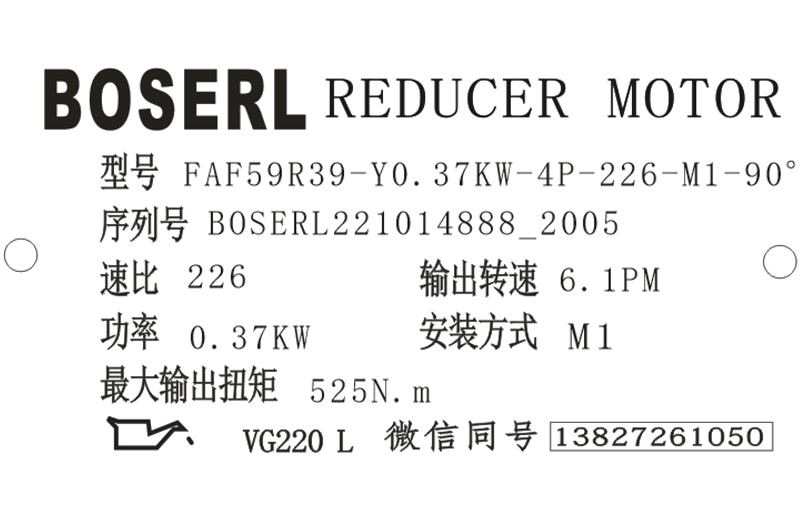

FAF59R39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF59R39減速機選型樣本。

FAF59R39-Y0.37KW-4P-226-M1-90°

FAF/R:系列代號

59/39:減速機規格代號

Y:電機

0.37KW:電機功率

4P:電機級數

226:減速機傳動比

M1:減速機安裝位置

90°:接線盒位置


FAF59R39減速機電機接線操作圖:

電氣操作必須由合格的專業人員,在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路(比如:外部風機)也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準(VDE0530標準第1部分)規定的公差(電壓+5%、頻率+2%),會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換,將可改變?nèi)嚯姍C(jī)的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖:

一、FAF59R39減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式(無變頻器)


二、FAF59R39減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式(有變頻器)


三、FAF59R39減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式(無變頻器)


四、FAF59R39減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式(有變頻器)


五、FAF59R39減速機電機5.5KW以上三相電機及剎車器接線方式(無變頻器)


六、FAF59R39減速機電機5.5KW以上三相電機及剎車器接線方式(有變頻)變頻電機減速機



FAF59R39減速電機型號:

YQFAF57R37-Y0.12KW,YQFAF57R37-Y0.18KW,YQFAF57R37-Y0.25KW,YQFAF57R37-Y0.37KW,YQFAF57R37-Y63M4,YQFAF57R37-Y71M4,YQFAF57RF37-Y63M4,YQFAF57RF37-Y71M4,YQFAF57RF37-YB63M4,YQFAF57RF37-YB71M4,YQFAF57RF37-YDP63M4,YQFAF57RF37-YDP71M4,YQFAF57RF37-YE63M4,YQFAF57RF37-YE71M4,YQFAF57RF37-YEJ63M4,YQFAF57RF37-YEJ71M4,YQFAF57RF37-YEJB63M4,YQFAF57RF37-YEJB71M4,YQFAF57RF37-YP63M4,YQFAF57RF37-YP71M4,YQFAF57RF37-YPB63M4,YQFAF57RF37-YPB71M4,YQFAF57RF37-YPE63M4,YQFAF57RF37-YPE71M4,YQFAF57RF37-YS63M4,YQFAF57RF37-YS71M4,YQFAF57RF37-YVB63M4,YQFAF57RF37-YVB71M4,YQFAF57RF37-YVP63M4,YQFAF57RF37-YVP71M4,YQFAF57RF37-YVPEJ63M4,YQFAF57RF37-YVPEJ71M4,WFAF57R37-Y0.12KW,WFAF57R37-Y0.18KW,WFAF57R37-Y0.25KW,WFAF57R37-Y0.37KW,WFAF57R37-Y63M4,WFAF57R37-Y71M4,WFAF57RF37-Y63M4,WFAF57RF37-Y71M4,WFAF57RF37-YB63M4,WFAF57RF37-YB71M4,WFAF57RF37-YDP63M4,WFAF57RF37-YDP71M4,WFAF57RF37-YE63M4,WFAF57RF37-YE71M4,WFAF57RF37-YEJ63M4,WFAF57RF37-YEJ71M4,WFAF57RF37-YEJB63M4,WFAF57RF37-YEJB71M4,WFAF57RF37-YP63M4,WFAF57RF37-YP71M4,WFAF57RF37-YPB63M4,WFAF57RF37-YPB71M4,WFAF57RF37-YPE63M4,WFAF57RF37-YPE71M4,WFAF57RF37-YS63M4,WFAF57RF37-YS71M4,WFAF57RF37-YVB63M4,WFAF57RF37-YVB71M4,WFAF57RF37-YVP63M4,WFAF57RF37-YVP71M4,WFAF57RF37-YVPEJ63M4,WFAF57RF37-YVPEJ71M4,AFAF57R37-Y0.12KW,AFAF57R37-Y0.18KW,AFAF57R37-Y0.25KW,AFAF57R37-Y0.37KW,AFAF57R37-Y63M4,AFAF57R37-Y71M4,AFAF57RF37-Y63M4,AFAF57RF37-Y71M4,AFAF57RF37-YB63M4,AFAF57RF37-YB71M4,AFAF57RF37-YDP63M4,AFAF57RF37-YDP71M4,AFAF57RF37-YE63M4,AFAF57RF37-YE71M4,AFAF57RF37-YEJ63M4,AFAF57RF37-YEJ71M4,AFAF57RF37-YEJB63M4,AFAF57RF37-YEJB71M4,AFAF57RF37-YP63M4,AFAF57RF37-YP71M4,AFAF57RF37-YPB63M4,AFAF57RF37-YPB71M4,AFAF57RF37-YPE63M4,AFAF57RF37-YPE71M4,AFAF57RF37-YS63M4,AFAF57RF37-YS71M4,AFAF57RF37-YVB63M4,AFAF57RF37-YVB71M4,AFAF57RF37-YVP63M4,AFAF57RF37-YVP71M4,AFAF57RF37-YVPEJ63M4,AFAF57RF37-YVPEJ71M4,XDFAF57R37-Y0.12KW,XDFAF57R37-Y0.18KW,XDFAF57R37-Y0.25KW,XDFAF57R37-Y0.37KW,XDFAF57R37-Y63M4,XDFAF57R37-Y71M4,XDFAF57RF37-Y63M4,XDFAF57RF37-Y71M4,XDFAF57RF37-YB63M4,XDFAF57RF37-YB71M4,XDFAF57RF37-YDP63M4,XDFAF57RF37-YDP71M4,XDFAF57RF37-YE63M4,XDFAF57RF37-YE71M4,XDFAF57RF37-YEJ63M4,XDFAF57RF37-YEJ71M4,XDFAF57RF37-YEJB63M4,XDFAF57RF37-YEJB71M4,XDFAF57RF37-YP63M4,XDFAF57RF37-YP71M4,XDFAF57RF37-YPB63M4,XDFAF57RF37-YPB71M4,XDFAF57RF37-YPE63M4,XDFAF57RF37-YPE71M4,XDFAF57RF37-YS63M4,XDFAF57RF37-YS71M4,XDFAF57RF37-YVB63M4,XDFAF57RF37-YVB71M4,XDFAF57RF37-YVP63M4,XDFAF57RF37-YVP71M4,XDFAF57RF37-YVPEJ63M4,XDFAF57RF37-YVPEJ71M4,SFAF57R37-Y0.12KW,SFAF57R37-Y0.18KW,SFAF57R37-Y0.25KW,SFAF57R37-Y0.37KW,SFAF57R37-Y63M4,SFAF57R37-Y71M4,SFAF57RF37-Y63M4,SFAF57RF37-Y71M4,SFAF57RF37-YB63M4,SFAF57RF37-YB71M4,SFAF57RF37-YDP63M4,SFAF57RF37-YDP71M4,SFAF57RF37-YE63M4,SFAF57RF37-YE71M4,SFAF57RF37-YEJ63M4,SFAF57RF37-YEJ71M4,SFAF57RF37-YEJB63M4,SFAF57RF37-YEJB71M4,SFAF57RF37-YP63M4,SFAF57RF37-YP71M4,SFAF57RF37-YPB63M4,SFAF57RF37-YPB71M4,SFAF57RF37-YPE63M4,SFAF57RF37-YPE71M4,SFAF57RF37-YS63M4,SFAF57RF37-YS71M4,SFAF57RF37-YVB63M4,SFAF57RF37-YVB71M4,SFAF57RF37-YVP63M4,SFAF57RF37-YVP71M4,SFAF57RF37-YVPEJ63M4,SFAF57RF37-YVPEJ71M4,JCFAF57R37-Y0.12KW,JCFAF57R37-Y0.18KW,JCFAF57R37-Y0.25KW,JCFAF57R37-Y0.37KW,JCFAF57R37-Y63M4,JCFAF57R37-Y71M4,JCFAF57RF37-Y63M4,JCFAF57RF37-Y71M4,JCFAF57RF37-YB63M4,JCFAF57RF37-YB71M4,JCFAF57RF37-YDP63M4,JCFAF57RF37-YDP71M4,JCFAF57RF37-YE63M4,JCFAF57RF37-YE71M4,JCFAF57RF37-YEJ63M4,JCFAF57RF37-YEJ71M4,JCFAF57RF37-YEJB63M4,JCFAF57RF37-YEJB71M4,JCFAF57RF37-YP63M4,JCFAF57RF37-YP71M4,JCFAF57RF37-YPB63M4,JCFAF57RF37-YPB71M4,JCFAF57RF37-YPE63M4,JCFAF57RF37-YPE71M4,JCFAF57RF37-YS63M4,JCFAF57RF37-YS71M4,JCFAF57RF37-YVB63M4,JCFAF57RF37-YVB71M4,JCFAF57RF37-YVP63M4,JCFAF57RF37-YVP71M4,JCFAF57RF37-YVPEJ63M4,JCFAF57RF37-YVPEJ71M4,NFAF57R37-Y0.12KW,NFAF57R37-Y0.18KW,NFAF57R37-Y0.25KW,NFAF57R37-Y0.37KW,NFAF57R37-Y63M4,NFAF57R37-Y71M4,NFAF57RF37-Y63M4,NFAF57RF37-Y71M4,NFAF57RF37-YB63M4,NFAF57RF37-YB71M4,NFAF57RF37-YDP63M4,NFAF57RF37-YDP71M4,NFAF57RF37-YE63M4,NFAF57RF37-YE71M4,NFAF57RF37-YEJ63M4,NFAF57RF37-YEJ71M4,NFAF57RF37-YEJB63M4,NFAF57RF37-YEJB71M4,NFAF57RF37-YP63M4,NFAF57RF37-YP71M4,NFAF57RF37-YPB63M4,NFAF57RF37-YPB71M4,NFAF57RF37-YPE63M4,NFAF57RF37-YPE71M4,NFAF57RF37-YS63M4,NFAF57RF37-YS71M4,NFAF57RF37-YVB63M4,NFAF57RF37-YVB71M4,NFAF57RF37-YVP63M4,NFAF57RF37-YVP71M4,NFAF57RF37-YVPEJ63M4,NFAF57RF37-YVPEJ71M4,F(xiàn)WAF57RW37-Y0.12KW,F(xiàn)WAF57RW37-Y0.18KW,F(xiàn)WAF57RW37-Y0.25KW,F(xiàn)WAF57RW37-Y0.37KW,F(xiàn)WAF57RW37-Y63M4,F(xiàn)WAF57RW37-Y71M4,F(xiàn)WAF57RWFAF37-Y63M4,F(xiàn)WAF57RWFAF37-Y71M4,F(xiàn)WAF57RWFAF37-YB63M4,F(xiàn)WAF57RWFAF37-YB71M4,F(xiàn)WAF57RWFAF37-YDP63M4,F(xiàn)WAF57RWFAF37-YDP71M4,F(xiàn)WAF57RWFAF37-YE63M4,F(xiàn)WAF57RWFAF37-YE71M4,F(xiàn)WAF57RWFAF37-YEJ63M4,F(xiàn)WAF57RWFAF37-YEJ71M4,F(xiàn)WAF57RWFAF37-YEJB63M4,F(xiàn)WAF57RWFAF37-YEJB71M4,F(xiàn)WAF57RWFAF37-YP63M4,F(xiàn)WAF57RWFAF37-YP71M4,F(xiàn)WAF57RWFAF37-YPB63M4,F(xiàn)WAF57RWFAF37-YPB71M4,F(xiàn)WAF57RWFAF37-YPE63M4,F(xiàn)WAF57RWFAF37-YPE71M4,F(xiàn)WAF57RWFAF37-YS63M4,F(xiàn)WAF57RWFAF37-YS71M4,F(xiàn)WAF57RWFAF37-YVB63M4,F(xiàn)WAF57RWFAF37-YVB71M4,F(xiàn)WAF57RWFAF37-YVP63M4,F(xiàn)WAF57RWFAF37-YVP71M4,F(xiàn)WAF57RWFAF37-YVPEJ63M4,F(xiàn)WAF57RWFAF37-YVPEJ71M4,F(xiàn)AF59R39-Y0.12KW,F(xiàn)AF59R39-Y0.18KW,F(xiàn)AF59R39-Y0.25KW,F(xiàn)AF59R39-Y0.39KW,F(xiàn)AF59R39-Y63M4,F(xiàn)AF59R39-Y71M4,F(xiàn)AF59RF39-Y63M4,F(xiàn)AF59RF39-Y71M4,F(xiàn)AF59RF39-YB63M4,F(xiàn)AF59RF39-YB71M4,F(xiàn)AF59RF39-YDP63M4,F(xiàn)AF59RF39-YDP71M4,F(xiàn)AF59RF39-YE63M4,F(xiàn)AF59RF39-YE71M4,F(xiàn)AF59RF39-YEJ63M4,F(xiàn)AF59RF39-YEJ71M4,F(xiàn)AF59RF39-YEJB63M4,F(xiàn)AF59RF39-YEJB71M4,F(xiàn)AF59RF39-YP63M4,F(xiàn)AF59RF39-YP71M4,F(xiàn)AF59RF39-YPB63M4,F(xiàn)AF59RF39-YPB71M4,F(xiàn)AF59RF39-YPE63M4,F(xiàn)AF59RF39-YPE71M4,F(xiàn)AF59RF39-YS63M4,F(xiàn)AF59RF39-YS71M4,F(xiàn)AF59RF39-YVB63M4,F(xiàn)AF59RF39-YVB71M4,F(xiàn)AF59RF39-YVP63M4,F(xiàn)AF59RF39-YVP71M4,F(xiàn)AF59RF39-YVPEJ63M4,F(xiàn)AF59RF39-YVPEJ71M4。

FAF59R39減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-fafxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦型號:F59減速機

關鍵詞:帶調速電機減速機一體機_變頻電機減速機_FAF系列減速機_扁平減速機_FAF向減速機_變頻減速機_調速減速機_GFAF系列減速機_FAF系列減速器

FAF系列齒輪減速電機型號:FAF29減速機,FAF39減速機,FAF49減速機,FAF69減速機,FAF79減速機,FAF89減速機,FAF99減速機,FAF109減速機,FAF129減速機,FAF159減速機

FAF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   FAF59R39平行軸減速機 NFAF57RF37減速電機參數 JCFAF57R37減速器生產廠家

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FAF59R39減速機三維圖紙下載3D 點擊下載
FAF59R39減速機選型樣本 點擊下載
