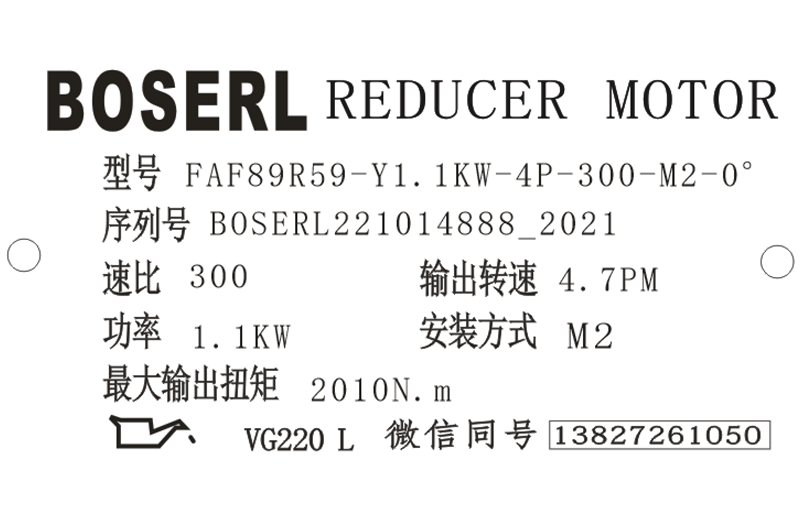

FAF89R59減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF89R59減速機選型樣本。
FAF89R59-Y1.1KW-4P-300-M2-0°
FAF/R:系列代號
89/59:減速機規格代號
Y:電機
1.1KW:電機功率
4P:電機級數
300:減速機傳動比
M2:減速機安裝位置
0°:接線盒位置
FAF89R59減速機電機接線操作圖:
電氣操作必須由合格的專業人員,在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路(比如:外部風機)也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機
超出EN 60034-1標準(VDE0530標準第1部分)規定的公差(電壓+5%、頻率+2%),會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。
將3根電源線的任意2根接線交換,將可改變三相電機的旋轉方向。平行軸斜齒輪減速機
以下為各類型電機各自的電氣接線圖:
一、FAF89R59減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式(無變頻器)
二、FAF89R59減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式(有變頻器)
三、FAF89R59減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式(無變頻器)
四、FAF89R59減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式(有變頻器)
五、FAF89R59減速機電機5.5KW以上三相電機及剎車器接線方式(無變頻器)
六、FAF89R59減速機電機5.5KW以上三相電機及剎車器接線方式(有變頻)變頻電機減速機
FAF89R59減速電機型號:
YQFAF87R57-Y0.12KW,YQFAF87R57-Y0.18KW,YQFAF87R57-Y0.25KW,YQFAF87R57-Y0.37KW,YQFAF87R57-Y0.55KW,YQFAF87R57-Y0.75KW,YQFAF87R57-Y1.1KW,YQFAF87R57-Y1.5KW,YQFAF87R57-Y63M4,YQFAF87R57-Y71M4,YQFAF87R57-Y80M4,YQFAF87R57-Y90M4,YQFAF87RF57-Y63M4,YQFAF87RF57-Y71M4,YQFAF87RF57-Y80M4,YQFAF87RF57-Y90M4,YQFAF87RF57-YB63M4,YQFAF87RF57-YB71M4,YQFAF87RF57-YB80M4,YQFAF87RF57-YB90S4,YQFAF87RF57-YDP63M4,YQFAF87RF57-YDP71M4,YQFAF87RF57-YDP80M4,YQFAF87RF57-YDP90S4,YQFAF87RF57-YE63M4,YQFAF87RF57-YE71M4,YQFAF87RF57-YE80M4,YQFAF87RF57-YE90S4,YQFAF87RF57-YEJ63M4,YQFAF87RF57-YEJ71M4,YQFAF87RF57-YEJ80M4,YQFAF87RF57-YEJ90S4,YQFAF87RF57-YEJB63M4,YQFAF87RF57-YEJB71M4,YQFAF87RF57-YEJB80M4,YQFAF87RF57-YEJB90S4,YQFAF87RF57-YP63M4,YQFAF87RF57-YP71M4,YQFAF87RF57-YP80M4,YQFAF87RF57-YP90S4,YQFAF87RF57-YPB63M4,YQFAF87RF57-YPB71M4,YQFAF87RF57-YPB80M4,YQFAF87RF57-YPB90S4,YQFAF87RF57-YPE63M4,YQFAF87RF57-YPE71M4,YQFAF87RF57-YPE80M4,YQFAF87RF57-YPE90S4,YQFAF87RF57-YS63M4,YQFAF87RF57-YS71M4,YQFAF87RF57-YS80M4,YQFAF87RF57-YS90S4,YQFAF87RF57-YVB63M4,YQFAF87RF57-YVB71M4,YQFAF87RF57-YVB80M4,YQFAF87RF57-YVB90S4,YQFAF87RF57-YVP63M4,YQFAF87RF57-YVP71M4,YQFAF87RF57-YVP80M4,YQFAF87RF57-YVP90S4,YQFAF87RF57-YVPEJ63M4,YQFAF87RF57-YVPEJ71M4,YQFAF87RF57-YVPEJ80M4,YQFAF87RF57-YVPEJ90S4,JCFAF87R57-Y0.12KW,JCFAF87R57-Y0.18KW,JCFAF87R57-Y0.25KW,JCFAF87R57-Y0.37KW,JCFAF87R57-Y0.55KW,JCFAF87R57-Y0.75KW,JCFAF87R57-Y1.1KW,JCFAF87R57-Y1.5KW,JCFAF87R57-Y63M4,JCFAF87R57-Y71M4,JCFAF87R57-Y80M4,JCFAF87R57-Y90M4,JCFAF87RF57-Y63M4,JCFAF87RF57-Y71M4,JCFAF87RF57-Y80M4,JCFAF87RF57-Y90M4,JCFAF87RF57-YB63M4,JCFAF87RF57-YB71M4,JCFAF87RF57-YB80M4,JCFAF87RF57-YB90S4,JCFAF87RF57-YDP63M4,JCFAF87RF57-YDP71M4,JCFAF87RF57-YDP80M4,JCFAF87RF57-YDP90S4,JCFAF87RF57-YE63M4,JCFAF87RF57-YE71M4,JCFAF87RF57-YE80M4,JCFAF87RF57-YE90S4,JCFAF87RF57-YEJ63M4,JCFAF87RF57-YEJ71M4,JCFAF87RF57-YEJ80M4,JCFAF87RF57-YEJ90S4,JCFAF87RF57-YEJB63M4,JCFAF87RF57-YEJB71M4,JCFAF87RF57-YEJB80M4,JCFAF87RF57-YEJB90S4,JCFAF87RF57-YP63M4,JCFAF87RF57-YP71M4,JCFAF87RF57-YP80M4,JCFAF87RF57-YP90S4,JCFAF87RF57-YPB63M4,JCFAF87RF57-YPB71M4,JCFAF87RF57-YPB80M4,JCFAF87RF57-YPB90S4,JCFAF87RF57-YPE63M4,JCFAF87RF57-YPE71M4,JCFAF87RF57-YPE80M4,JCFAF87RF57-YPE90S4,JCFAF87RF57-YS63M4,JCFAF87RF57-YS71M4,JCFAF87RF57-YS80M4,JCFAF87RF57-YS90S4,JCFAF87RF57-YVB63M4,JCFAF87RF57-YVB71M4,JCFAF87RF57-YVB80M4,JCFAF87RF57-YVB90S4,JCFAF87RF57-YVP63M4,JCFAF87RF57-YVP71M4,JCFAF87RF57-YVP80M4,JCFAF87RF57-YVP90S4,JCFAF87RF57-YVPEJ63M4,JCFAF87RF57-YVPEJ71M4,JCFAF87RF57-YVPEJ80M4,JCFAF87RF57-YVPEJ90S4,AFAF87R57-Y0.12KW,AFAF87R57-Y0.18KW,AFAF87R57-Y0.25KW,AFAF87R57-Y0.37KW,AFAF87R57-Y0.55KW,AFAF87R57-Y0.75KW,AFAF87R57-Y1.1KW,AFAF87R57-Y1.5KW,AFAF87R57-Y63M4,AFAF87R57-Y71M4,AFAF87R57-Y80M4,AFAF87R57-Y90M4,AFAF87RF57-Y63M4,AFAF87RF57-Y71M4,AFAF87RF57-Y80M4,AFAF87RF57-Y90M4,AFAF87RF57-YB63M4,AFAF87RF57-YB71M4,AFAF87RF57-YB80M4,AFAF87RF57-YB90S4,AFAF87RF57-YDP63M4,AFAF87RF57-YDP71M4,AFAF87RF57-YDP80M4,AFAF87RF57-YDP90S4,AFAF87RF57-YE63M4,AFAF87RF57-YE71M4,AFAF87RF57-YE80M4,AFAF87RF57-YE90S4,AFAF87RF57-YEJ63M4,AFAF87RF57-YEJ71M4,AFAF87RF57-YEJ80M4,AFAF87RF57-YEJ90S4,AFAF87RF57-YEJB63M4,AFAF87RF57-YEJB71M4,AFAF87RF57-YEJB80M4,AFAF87RF57-YEJB90S4,AFAF87RF57-YP63M4,AFAF87RF57-YP71M4,AFAF87RF57-YP80M4,AFAF87RF57-YP90S4,AFAF87RF57-YPB63M4,AFAF87RF57-YPB71M4,AFAF87RF57-YPB80M4,AFAF87RF57-YPB90S4,AFAF87RF57-YPE63M4,AFAF87RF57-YPE71M4,AFAF87RF57-YPE80M4,AFAF87RF57-YPE90S4,AFAF87RF57-YS63M4,AFAF87RF57-YS71M4,AFAF87RF57-YS80M4,AFAF87RF57-YS90S4,AFAF87RF57-YVB63M4,AFAF87RF57-YVB71M4,AFAF87RF57-YVB80M4,AFAF87RF57-YVB90S4,AFAF87RF57-YVP63M4,AFAF87RF57-YVP71M4,AFAF87RF57-YVP80M4,AFAF87RF57-YVP90S4,AFAF87RF57-YVPEJ63M4,AFAF87RF57-YVPEJ71M4,AFAF87RF57-YVPEJ80M4,AFAF87RF57-YVPEJ90S4,WFAF87R57-Y0.12KW,WFAF87R57-Y0.18KW,WFAF87R57-Y0.25KW,WFAF87R57-Y0.37KW,WFAF87R57-Y0.55KW,WFAF87R57-Y0.75KW,WFAF87R57-Y1.1KW,WFAF87R57-Y1.5KW,WFAF87R57-Y63M4,WFAF87R57-Y71M4,WFAF87R57-Y80M4,WFAF87R57-Y90M4,WFAF87RF57-Y63M4,WFAF87RF57-Y71M4,WFAF87RF57-Y80M4,WFAF87RF57-Y90M4,WFAF87RF57-YB63M4,WFAF87RF57-YB71M4,WFAF87RF57-YB80M4,WFAF87RF57-YB90S4,WFAF87RF57-YDP63M4,WFAF87RF57-YDP71M4,WFAF87RF57-YDP80M4,WFAF87RF57-YDP90S4,WFAF87RF57-YE63M4,WFAF87RF57-YE71M4,WFAF87RF57-YE80M4,WFAF87RF57-YE90S4,WFAF87RF57-YEJ63M4,WFAF87RF57-YEJ71M4,WFAF87RF57-YEJ80M4,WFAF87RF57-YEJ90S4,WFAF87RF57-YEJB63M4,WFAF87RF57-YEJB71M4,WFAF87RF57-YEJB80M4,WFAF87RF57-YEJB90S4,WFAF87RF57-YP63M4,WFAF87RF57-YP71M4,WFAF87RF57-YP80M4,WFAF87RF57-YP90S4,WFAF87RF57-YPB63M4,WFAF87RF57-YPB71M4,WFAF87RF57-YPB80M4,WFAF87RF57-YPB90S4,WFAF87RF57-YPE63M4,WFAF87RF57-YPE71M4,WFAF87RF57-YPE80M4,WFAF87RF57-YPE90S4,WFAF87RF57-YS63M4,WFAF87RF57-YS71M4,WFAF87RF57-YS80M4,WFAF87RF57-YS90S4,WFAF87RF57-YVB63M4,WFAF87RF57-YVB71M4,WFAF87RF57-YVB80M4,WFAF87RF57-YVB90S4,WFAF87RF57-YVP63M4,WFAF87RF57-YVP71M4,WFAF87RF57-YVP80M4,WFAF87RF57-YVP90S4,WFAF87RF57-YVPEJ63M4,WFAF87RF57-YVPEJ71M4,WFAF87RF57-YVPEJ80M4,WFAF87RF57-YVPEJ90S4,NFAF87R57-Y0.12KW,NFAF87R57-Y0.18KW,NFAF87R57-Y0.25KW,NFAF87R57-Y0.37KW,NFAF87R57-Y0.55KW,NFAF87R57-Y0.75KW,NFAF87R57-Y1.1KW,NFAF87R57-Y1.5KW,NFAF87R57-Y63M4,NFAF87R57-Y71M4,NFAF87R57-Y80M4,NFAF87R57-Y90M4,NFAF87RF57-Y63M4,NFAF87RF57-Y71M4,NFAF87RF57-Y80M4,NFAF87RF57-Y90M4,NFAF87RF57-YB63M4,NFAF87RF57-YB71M4,NFAF87RF57-YB80M4,NFAF87RF57-YB90S4,NFAF87RF57-YDP63M4,NFAF87RF57-YDP71M4,NFAF87RF57-YDP80M4,NFAF87RF57-YDP90S4,NFAF87RF57-YE63M4,NFAF87RF57-YE71M4,NFAF87RF57-YE80M4,NFAF87RF57-YE90S4,NFAF87RF57-YEJ63M4,NFAF87RF57-YEJ71M4,NFAF87RF57-YEJ80M4,NFAF87RF57-YEJ90S4,NFAF87RF57-YEJB63M4,NFAF87RF57-YEJB71M4,NFAF87RF57-YEJB80M4,NFAF87RF57-YEJB90S4,NFAF87RF57-YP63M4,NFAF87RF57-YP71M4,NFAF87RF57-YP80M4,NFAF87RF57-YP90S4,NFAF87RF57-YPB63M4,NFAF87RF57-YPB71M4,NFAF87RF57-YPB80M4,NFAF87RF57-YPB90S4,NFAF87RF57-YPE63M4,NFAF87RF57-YPE71M4,NFAF87RF57-YPE80M4,NFAF87RF57-YPE90S4,NFAF87RF57-YS63M4,NFAF87RF57-YS71M4,NFAF87RF57-YS80M4,NFAF87RF57-YS90S4,NFAF87RF57-YVB63M4,NFAF87RF57-YVB71M4,NFAF87RF57-YVB80M4,NFAF87RF57-YVB90S4,NFAF87RF57-YVP63M4,NFAF87RF57-YVP71M4,NFAF87RF57-YVP80M4,NFAF87RF57-YVP90S4,NFAF87RF57-YVPEJ63M4,NFAF87RF57-YVPEJ71M4,NFAF87RF57-YVPEJ80M4,NFAF87RF57-YVPEJ90S4,SFAF87R57-Y0.12KW,SFAF87R57-Y0.18KW,SFAF87R57-Y0.25KW,SFAF87R57-Y0.37KW,SFAF87R57-Y0.55KW,SFAF87R57-Y0.75KW,SFAF87R57-Y1.1KW,SFAF87R57-Y1.5KW,SFAF87R57-Y63M4,SFAF87R57-Y71M4,SFAF87R57-Y80M4,SFAF87R57-Y90M4,SFAF87RF57-Y63M4,SFAF87RF57-Y71M4,SFAF87RF57-Y80M4,SFAF87RF57-Y90M4,SFAF87RF57-YB63M4,SFAF87RF57-YB71M4,SFAF87RF57-YB80M4,SFAF87RF57-YB90S4,SFAF87RF57-YDP63M4,SFAF87RF57-YDP71M4,SFAF87RF57-YDP80M4,SFAF87RF57-YDP90S4,SFAF87RF57-YE63M4,SFAF87RF57-YE71M4,SFAF87RF57-YE80M4,SFAF87RF57-YE90S4,SFAF87RF57-YEJ63M4,SFAF87RF57-YEJ71M4,SFAF87RF57-YEJ80M4,SFAF87RF57-YEJ90S4,SFAF87RF57-YEJB63M4,SFAF87RF57-YEJB71M4,SFAF87RF57-YEJB80M4,SFAF87RF57-YEJB90S4,SFAF87RF57-YP63M4,SFAF87RF57-YP71M4,SFAF87RF57-YP80M4,SFAF87RF57-YP90S4,SFAF87RF57-YPB63M4,SFAF87RF57-YPB71M4,SFAF87RF57-YPB80M4,SFAF87RF57-YPB90S4,SFAF87RF57-YPE63M4,SFAF87RF57-YPE71M4,SFAF87RF57-YPE80M4,SFAF87RF57-YPE90S4,SFAF87RF57-YS63M4,SFAF87RF57-YS71M4,SFAF87RF57-YS80M4,SFAF87RF57-YS90S4,SFAF87RF57-YVB63M4,SFAF87RF57-YVB71M4,SFAF87RF57-YVB80M4,SFAF87RF57-YVB90S4,SFAF87RF57-YVP63M4,SFAF87RF57-YVP71M4,SFAF87RF57-YVP80M4,SFAF87RF57-YVP90S4,SFAF87RF57-YVPEJ63M4,SFAF87RF57-YVPEJ71M4,SFAF87RF57-YVPEJ80M4,SFAF87RF57-YVPEJ90S4,XDFAF87R57-Y0.12KW,XDFAF87R57-Y0.18KW,XDFAF87R57-Y0.25KW,XDFAF87R57-Y0.37KW,XDFAF87R57-Y0.55KW,XDFAF87R57-Y0.75KW,XDFAF87R57-Y1.1KW,XDFAF87R57-Y1.5KW,XDFAF87R57-Y63M4,XDFAF87R57-Y71M4,XDFAF87R57-Y80M4,XDFAF87R57-Y90M4,XDFAF87RF57-Y63M4,XDFAF87RF57-Y71M4,XDFAF87RF57-Y80M4,XDFAF87RF57-Y90M4,XDFAF87RF57-YB63M4,XDFAF87RF57-YB71M4,XDFAF87RF57-YB80M4,XDFAF87RF57-YB90S4,XDFAF87RF57-YDP63M4,XDFAF87RF57-YDP71M4,XDFAF87RF57-YDP80M4,XDFAF87RF57-YDP90S4,XDFAF87RF57-YE63M4,XDFAF87RF57-YE71M4,XDFAF87RF57-YE80M4,XDFAF87RF57-YE90S4,XDFAF87RF57-YEJ63M4,XDFAF87RF57-YEJ71M4,XDFAF87RF57-YEJ80M4,XDFAF87RF57-YEJ90S4,XDFAF87RF57-YEJB63M4,XDFAF87RF57-YEJB71M4,XDFAF87RF57-YEJB80M4,XDFAF87RF57-YEJB90S4,XDFAF87RF57-YP63M4,XDFAF87RF57-YP71M4,XDFAF87RF57-YP80M4,XDFAF87RF57-YP90S4,XDFAF87RF57-YPB63M4,XDFAF87RF57-YPB71M4,XDFAF87RF57-YPB80M4,XDFAF87RF57-YPB90S4,XDFAF87RF57-YPE63M4,XDFAF87RF57-YPE71M4,XDFAF87RF57-YPE80M4,XDFAF87RF57-YPE90S4,XDFAF87RF57-YS63M4,XDFAF87RF57-YS71M4,XDFAF87RF57-YS80M4,XDFAF87RF57-YS90S4,XDFAF87RF57-YVB63M4,XDFAF87RF57-YVB71M4,XDFAF87RF57-YVB80M4,XDFAF87RF57-YVB90S4,XDFAF87RF57-YVP63M4,XDFAF87RF57-YVP71M4,XDFAF87RF57-YVP80M4,XDFAF87RF57-YVP90S4,XDFAF87RF57-YVPEJ63M4,XDFAF87RF57-YVPEJ71M4,XDFAF87RF57-YVPEJ80M4,XDFAF87RF57-YVPEJ90S4,F(xiàn)WAF87RW57-Y0.12KW,F(xiàn)WAF87RW57-Y0.18KW,F(xiàn)WAF87RW57-Y0.25KW,F(xiàn)WAF87RW57-Y0.37KW,F(xiàn)WAF87RW57-Y0.55KW,F(xiàn)WAF87RW57-Y0.75KW,F(xiàn)WAF87RW57-Y1.1KW,F(xiàn)WAF87RW57-Y1.5KW,F(xiàn)WAF87RW57-Y63M4,F(xiàn)WAF87RW57-Y71M4,F(xiàn)WAF87RW57-Y80M4,F(xiàn)WAF87RW57-Y90M4,F(xiàn)WAF87RWFAF57-Y63M4,F(xiàn)WAF87RWFAF57-Y71M4,F(xiàn)WAF87RWFAF57-Y80M4,F(xiàn)WAF87RWFAF57-Y90M4,F(xiàn)WAF87RWFAF57-YB63M4,F(xiàn)WAF87RWFAF57-YB71M4,F(xiàn)WAF87RWFAF57-YB80M4,F(xiàn)WAF87RWFAF57-YB90S4,F(xiàn)WAF87RWFAF57-YDP63M4,F(xiàn)WAF87RWFAF57-YDP71M4,F(xiàn)WAF87RWFAF57-YDP80M4,F(xiàn)WAF87RWFAF57-YDP90S4,F(xiàn)WAF87RWFAF57-YE63M4,F(xiàn)WAF87RWFAF57-YE71M4,F(xiàn)WAF87RWFAF57-YE80M4,F(xiàn)WAF87RWFAF57-YE90S4,F(xiàn)WAF87RWFAF57-YEJ63M4,F(xiàn)WAF87RWFAF57-YEJ71M4,F(xiàn)WAF87RWFAF57-YEJ80M4,F(xiàn)WAF87RWFAF57-YEJ90S4,F(xiàn)WAF87RWFAF57-YEJB63M4,F(xiàn)WAF87RWFAF57-YEJB71M4,F(xiàn)WAF87RWFAF57-YEJB80M4,F(xiàn)WAF87RWFAF57-YEJB90S4,F(xiàn)WAF87RWFAF57-YP63M4,F(xiàn)WAF87RWFAF57-YP71M4,F(xiàn)WAF87RWFAF57-YP80M4,F(xiàn)WAF87RWFAF57-YP90S4,F(xiàn)WAF87RWFAF57-YPB63M4,F(xiàn)WAF87RWFAF57-YPB71M4,F(xiàn)WAF87RWFAF57-YPB80M4,F(xiàn)WAF87RWFAF57-YPB90S4,F(xiàn)WAF87RWFAF57-YPE63M4,F(xiàn)WAF87RWFAF57-YPE71M4,F(xiàn)WAF87RWFAF57-YPE80M4,F(xiàn)WAF87RWFAF57-YPE90S4,F(xiàn)WAF87RWFAF57-YS63M4,F(xiàn)WAF87RWFAF57-YS71M4,F(xiàn)WAF87RWFAF57-YS80M4,F(xiàn)WAF87RWFAF57-YS90S4,F(xiàn)WAF87RWFAF57-YVB63M4,F(xiàn)WAF87RWFAF57-YVB71M4,F(xiàn)WAF87RWFAF57-YVB80M4,F(xiàn)WAF87RWFAF57-YVB90S4,F(xiàn)WAF87RWFAF57-YVP63M4,F(xiàn)WAF87RWFAF57-YVP71M4,F(xiàn)WAF87RWFAF57-YVP80M4,F(xiàn)WAF87RWFAF57-YVP90S4,F(xiàn)WAF87RWFAF57-YVPEJ63M4,F(xiàn)WAF87RWFAF57-YVPEJ71M4,F(xiàn)WAF87RWFAF57-YVPEJ80M4,F(xiàn)WAF87RWFAF57-YVPEJ90S4,F(xiàn)AF89R59-Y0.12KW,F(xiàn)AF89R59-Y0.18KW,F(xiàn)AF89R59-Y0.25KW,F(xiàn)AF89R59-Y0.37KW,F(xiàn)AF89R59-Y0.55KW,F(xiàn)AF89R59-Y0.75KW,F(xiàn)AF89R59-Y1.1KW,F(xiàn)AF89R59-Y1.5KW,F(xiàn)AF89R59-Y63M4,F(xiàn)AF89R59-Y71M4,F(xiàn)AF89R59-Y80M4,F(xiàn)AF89R59-Y90M4,F(xiàn)AF89RF59-Y63M4,F(xiàn)AF89RF59-Y71M4,F(xiàn)AF89RF59-Y80M4,F(xiàn)AF89RF59-Y90M4,F(xiàn)AF89RF59-YB63M4,F(xiàn)AF89RF59-YB71M4,F(xiàn)AF89RF59-YB80M4,F(xiàn)AF89RF59-YB90S4,F(xiàn)AF89RF59-YDP63M4,F(xiàn)AF89RF59-YDP71M4,F(xiàn)AF89RF59-YDP80M4,F(xiàn)AF89RF59-YDP90S4,F(xiàn)AF89RF59-YE63M4,F(xiàn)AF89RF59-YE71M4,F(xiàn)AF89RF59-YE80M4,F(xiàn)AF89RF59-YE90S4,F(xiàn)AF89RF59-YEJ63M4,F(xiàn)AF89RF59-YEJ71M4,F(xiàn)AF89RF59-YEJ80M4,F(xiàn)AF89RF59-YEJ90S4,F(xiàn)AF89RF59-YEJB63M4,F(xiàn)AF89RF59-YEJB71M4,F(xiàn)AF89RF59-YEJB80M4,F(xiàn)AF89RF59-YEJB90S4,F(xiàn)AF89RF59-YP63M4,F(xiàn)AF89RF59-YP71M4,F(xiàn)AF89RF59-YP80M4,F(xiàn)AF89RF59-YP90S4,F(xiàn)AF89RF59-YPB63M4,F(xiàn)AF89RF59-YPB71M4,F(xiàn)AF89RF59-YPB80M4,F(xiàn)AF89RF59-YPB90S4,F(xiàn)AF89RF59-YPE63M4,F(xiàn)AF89RF59-YPE71M4,F(xiàn)AF89RF59-YPE80M4,F(xiàn)AF89RF59-YPE90S4,F(xiàn)AF89RF59-YS63M4,F(xiàn)AF89RF59-YS71M4,F(xiàn)AF89RF59-YS80M4,F(xiàn)AF89RF59-YS90S4,F(xiàn)AF89RF59-YVB63M4,F(xiàn)AF89RF59-YVB71M4,F(xiàn)AF89RF59-YVB80M4,F(xiàn)AF89RF59-YVB90S4,F(xiàn)AF89RF59-YVP63M4,F(xiàn)AF89RF59-YVP71M4,F(xiàn)AF89RF59-YVP80M4,F(xiàn)AF89RF59-YVP90S4,F(xiàn)AF89RF59-YVPEJ63M4,F(xiàn)AF89RF59-YVPEJ71M4,F(xiàn)AF89RF59-YVPEJ80M4,F(xiàn)AF89RF59-YVPEJ90S4。
FAF89R59減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-fafxiliejiansuji-cn.html
推薦型號:F89減速機
關鍵詞:帶調速電機減速機一體機_變頻電機減速機_FAF系列減速機_扁平減速機_FAF向減速機_變頻減速機_調速減速機_GFAF系列減速機_FAF系列減速器
FAF系列齒輪減速電機型號:FAF29減速機,FAF39減速機,FAF49減速機,FAF69減速機,FAF79減速機,FAF89減速機,FAF99減速機,FAF109減速機,FAF129減速機,FAF159減速機
FAF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
標簽:   FAF89R59平行軸減速機 NFAF87RF57減速電機參數 JCFAF87R57減速器生產廠家
