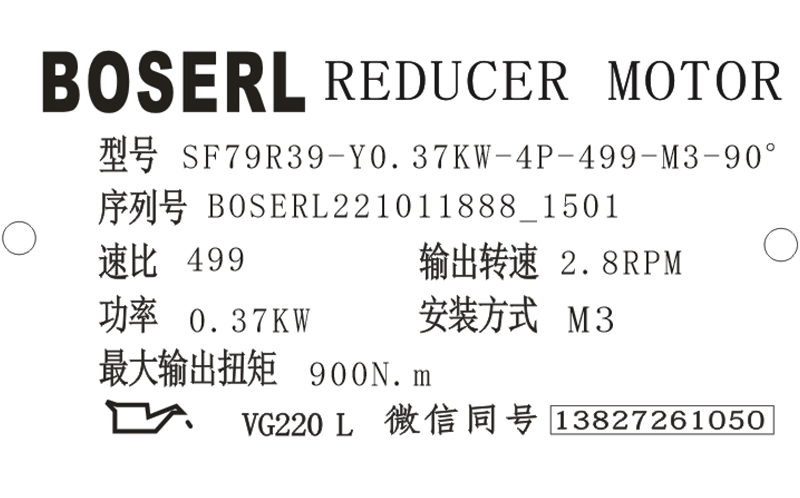

SF79R39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF79R39減速機選型樣本。
SF79R39-Y0.37KW-4P-499-M3-90°
SF/R:系列代號
79/39:減速機規格代號
Y:電機
0.37KW:電機功率
4P:電機級數
499:減速機傳動比
M3:減速機安裝位置
90°:接線盒位置
SF79R39減速機電機安裝注意事項:
注意要將設備擺放平穩,固定好地腳和法蘭,并精確校準直接連接的聯軸器。防止安裝不當造成旋轉頻率和雙倍電源頻率的諧振。用手轉動轉子,檢查有無異常摩擦聲。在未聯接外部設備的狀態下檢查轉向。齒輪減速電機
SF79R39減速機電機安裝在塵?;倚蓟蛩蔚容^多處,會對本機器會產生不良影響時,請用覆蓋物蓋住,覆蓋物不要密封,必須留有通氣口(若工作環境粉塵密聚或需要防水機種,購買時請?zhí)貏e說明)。
嚴禁在SF79R39減速機電機的周圍放置可燃物。否則有可能會導致火災。
嚴禁在SF79R39減速機電機的周圍放置阻礙通風的障礙物。否則,可能會因冷卻不暢、異常過熱而導致燙傷、火災等情況。
嚴禁站立在SF79R39減速機電機上面或懸掛其上。否則有可能會導致受傷。
請勿赤手觸摸SF79R39減速機電機的軸端部、內徑部的鍵槽。否則有可能會導致受傷。自鎖減速機
安裝完后,檢查電機是否通風良好。且確認沒有鄰近設備、表面或直射陽光向電機額外輻射熱量。
SF79R39減速機電機電流異常解決方案:
SF79R39減速機電機外殼帶電:電源線碰機殼,且絕緣皮破損,電源線修復;繞組受潮、絕緣老化、接地裝置壞,維修換定子線圈,重裝接地線。
SF79R39減速機電機三相電流不平衡:三相電壓不平衡,維修電源電壓;線圈部分線圈短路,更換定子線圈;線圈內有一個線苞嵌反,更換定子線圈。
SF79R39減速機電機電流過大:電源電壓偏差大,維修電源電壓;接法錯誤,應是Y接法錯用為△接法,接法更正;更換電機,定轉子擦;負載過大,選用大容量電機或減小負載。伺服電機蝸輪蝸桿減速機
SF79R39減速電機型號:
YQSF77R37-Y63M4,YQSF77R37-Y71M4,YQSF77R37-Y80M4,YQSF77R37-Y90M4,YQSF77RF37-Y0.12KW,YQSF77RF37-Y0.18KW,YQSF77RF37-Y0.25KW,YQSF77RF37-Y0.37KW,YQSF77RF37-Y0.55KW,YQSF77RF37-Y0.75KW,YQSF77RF37-Y1.1KW,YQSF77RF37-Y63M4,YQSF77RF37-Y71M4,YQSF77RF37-Y80M4,YQSF77RF37-Y90M4,YQSF77RF37-YB63M4,YQSF77RF37-YB71M4,YQSF77RF37-YB80M4,YQSF77RF37-YB90S4,YQSF77RF37-YDP63M4,YQSF77RF37-YDP71M4,YQSF77RF37-YDP80M4,YQSF77RF37-YDP90S4,YQSF77RF37-YE63M4,YQSF77RF37-YE71M4,YQSF77RF37-YE80M4,YQSF77RF37-YE90S4,YQSF77RF37-YEJ63M4,YQSF77RF37-YEJ71M4,YQSF77RF37-YEJ80M4,YQSF77RF37-YEJ90S4,YQSF77RF37-YEJB63M4,YQSF77RF37-YEJB71M4,YQSF77RF37-YEJB80M4,YQSF77RF37-YEJB90S4,YQSF77RF37-YP63M4,YQSF77RF37-YP71M4,YQSF77RF37-YP80M4,YQSF77RF37-YP90S4,YQSF77RF37-YPB63M4,YQSF77RF37-YPB71M4,YQSF77RF37-YPB80M4,YQSF77RF37-YPB90S4,YQSF77RF37-YPE63M4,YQSF77RF37-YPE71M4,YQSF77RF37-YPE80M4,YQSF77RF37-YPE90S4,YQSF77RF37-YSF63M4,YQSF77RF37-YSF71M4,YQSF77RF37-YSF80M4,YQSF77RF37-YSF90S4,YQSF77RF37-YVB63M4,YQSF77RF37-YVB71M4,YQSF77RF37-YVB80M4,YQSF77RF37-YVB90S4,YQSF77RF37-YVP63M4,YQSF77RF37-YVP71M4,YQSF77RF37-YVP80M4,YQSF77RF37-YVP90S4,ASF77R37-Y63M4,ASF77R37-Y71M4,ASF77R37-Y80M4,ASF77R37-Y90M4,ASF77RF37-Y0.12KW,ASF77RF37-Y0.18KW,ASF77RF37-Y0.25KW,ASF77RF37-Y0.37KW,ASF77RF37-Y0.55KW,ASF77RF37-Y0.75KW,ASF77RF37-Y1.1KW,ASF77RF37-Y63M4,ASF77RF37-Y71M4,ASF77RF37-Y80M4,ASF77RF37-Y90M4,ASF77RF37-YB63M4,ASF77RF37-YB71M4,ASF77RF37-YB80M4,ASF77RF37-YB90S4,ASF77RF37-YDP63M4,ASF77RF37-YDP71M4,ASF77RF37-YDP80M4,ASF77RF37-YDP90S4,ASF77RF37-YE63M4,ASF77RF37-YE71M4,ASF77RF37-YE80M4,ASF77RF37-YE90S4,ASF77RF37-YEJ63M4,ASF77RF37-YEJ71M4,ASF77RF37-YEJ80M4,ASF77RF37-YEJ90S4,ASF77RF37-YEJB63M4,ASF77RF37-YEJB71M4,ASF77RF37-YEJB80M4,ASF77RF37-YEJB90S4,ASF77RF37-YP63M4,ASF77RF37-YP71M4,ASF77RF37-YP80M4,ASF77RF37-YP90S4,ASF77RF37-YPB63M4,ASF77RF37-YPB71M4,ASF77RF37-YPB80M4,ASF77RF37-YPB90S4,ASF77RF37-YPE63M4,ASF77RF37-YPE71M4,ASF77RF37-YPE80M4,ASF77RF37-YPE90S4,ASF77RF37-YSF63M4,ASF77RF37-YSF71M4,ASF77RF37-YSF80M4,ASF77RF37-YSF90S4,ASF77RF37-YVB63M4,ASF77RF37-YVB71M4,ASF77RF37-YVB80M4,ASF77RF37-YVB90S4,ASF77RF37-YVP63M4,ASF77RF37-YVP71M4,ASF77RF37-YVP80M4,ASF77RF37-YVP90S4,SSF77R37-Y63M4,SSF77R37-Y71M4,SSF77R37-Y80M4,SSF77R37-Y90M4,SSF77RF37-Y0.12KW,SSF77RF37-Y0.18KW,SSF77RF37-Y0.25KW,SSF77RF37-Y0.37KW,SSF77RF37-Y0.55KW,SSF77RF37-Y0.75KW,SSF77RF37-Y1.1KW,SSF77RF37-Y63M4,SSF77RF37-Y71M4,SSF77RF37-Y80M4,SSF77RF37-Y90M4,SSF77RF37-YB63M4,SSF77RF37-YB71M4,SSF77RF37-YB80M4,SSF77RF37-YB90S4,SSF77RF37-YDP63M4,SSF77RF37-YDP71M4,SSF77RF37-YDP80M4,SSF77RF37-YDP90S4,SSF77RF37-YE63M4,SSF77RF37-YE71M4,SSF77RF37-YE80M4,SSF77RF37-YE90S4,SSF77RF37-YEJ63M4,SSF77RF37-YEJ71M4,SSF77RF37-YEJ80M4,SSF77RF37-YEJ90S4,SSF77RF37-YEJB63M4,SSF77RF37-YEJB71M4,SSF77RF37-YEJB80M4,SSF77RF37-YEJB90S4,SSF77RF37-YP63M4,SSF77RF37-YP71M4,SSF77RF37-YP80M4,SSF77RF37-YP90S4,SSF77RF37-YPB63M4,SSF77RF37-YPB71M4,SSF77RF37-YPB80M4,SSF77RF37-YPB90S4,SSF77RF37-YPE63M4,SSF77RF37-YPE71M4,SSF77RF37-YPE80M4,SSF77RF37-YPE90S4,SSF77RF37-YSF63M4,SSF77RF37-YSF71M4,SSF77RF37-YSF80M4,SSF77RF37-YSF90S4,SSF77RF37-YVB63M4,SSF77RF37-YVB71M4,SSF77RF37-YVB80M4,SSF77RF37-YVB90S4,SSF77RF37-YVP63M4,SSF77RF37-YVP71M4,SSF77RF37-YVP80M4,SSF77RF37-YVP90S4,WSF77R37-Y63M4,WSF77R37-Y71M4,WSF77R37-Y80M4,WSF77R37-Y90M4,WSF77RF37-Y0.12KW,WSF77RF37-Y0.18KW,WSF77RF37-Y0.25KW,WSF77RF37-Y0.37KW,WSF77RF37-Y0.55KW,WSF77RF37-Y0.75KW,WSF77RF37-Y1.1KW,WSF77RF37-Y63M4,WSF77RF37-Y71M4,WSF77RF37-Y80M4,WSF77RF37-Y90M4,WSF77RF37-YB63M4,WSF77RF37-YB71M4,WSF77RF37-YB80M4,WSF77RF37-YB90S4,WSF77RF37-YDP63M4,WSF77RF37-YDP71M4,WSF77RF37-YDP80M4,WSF77RF37-YDP90S4,WSF77RF37-YE63M4,WSF77RF37-YE71M4,WSF77RF37-YE80M4,WSF77RF37-YE90S4,WSF77RF37-YEJ63M4,WSF77RF37-YEJ71M4,WSF77RF37-YEJ80M4,WSF77RF37-YEJ90S4,WSF77RF37-YEJB63M4,WSF77RF37-YEJB71M4,WSF77RF37-YEJB80M4,WSF77RF37-YEJB90S4,WSF77RF37-YP63M4,WSF77RF37-YP71M4,WSF77RF37-YP80M4,WSF77RF37-YP90S4,WSF77RF37-YPB63M4,WSF77RF37-YPB71M4,WSF77RF37-YPB80M4,WSF77RF37-YPB90S4,WSF77RF37-YPE63M4,WSF77RF37-YPE71M4,WSF77RF37-YPE80M4,WSF77RF37-YPE90S4,WSF77RF37-YSF63M4,WSF77RF37-YSF71M4,WSF77RF37-YSF80M4,WSF77RF37-YSF90S4,WSF77RF37-YVB63M4,WSF77RF37-YVB71M4,WSF77RF37-YVB80M4,WSF77RF37-YVB90S4,WSF77RF37-YVP63M4,WSF77RF37-YVP71M4,WSF77RF37-YVP80M4,WSF77RF37-YVP90S4,XDSF77R37-Y63M4,XDSF77R37-Y71M4,XDSF77R37-Y80M4,XDSF77R37-Y90M4,XDSF77RF37-Y0.12KW,XDSF77RF37-Y0.18KW,XDSF77RF37-Y0.25KW,XDSF77RF37-Y0.37KW,XDSF77RF37-Y0.55KW,XDSF77RF37-Y0.75KW,XDSF77RF37-Y1.1KW,XDSF77RF37-Y63M4,XDSF77RF37-Y71M4,XDSF77RF37-Y80M4,XDSF77RF37-Y90M4,XDSF77RF37-YB63M4,XDSF77RF37-YB71M4,XDSF77RF37-YB80M4,XDSF77RF37-YB90S4,XDSF77RF37-YDP63M4,XDSF77RF37-YDP71M4,XDSF77RF37-YDP80M4,XDSF77RF37-YDP90S4,XDSF77RF37-YE63M4,XDSF77RF37-YE71M4,XDSF77RF37-YE80M4,XDSF77RF37-YE90S4,XDSF77RF37-YEJ63M4,XDSF77RF37-YEJ71M4,XDSF77RF37-YEJ80M4,XDSF77RF37-YEJ90S4,XDSF77RF37-YEJB63M4,XDSF77RF37-YEJB71M4,XDSF77RF37-YEJB80M4,XDSF77RF37-YEJB90S4,XDSF77RF37-YP63M4,XDSF77RF37-YP71M4,XDSF77RF37-YP80M4,XDSF77RF37-YP90S4,XDSF77RF37-YPB63M4,XDSF77RF37-YPB71M4,XDSF77RF37-YPB80M4,XDSF77RF37-YPB90S4,XDSF77RF37-YPE63M4,XDSF77RF37-YPE71M4,XDSF77RF37-YPE80M4,XDSF77RF37-YPE90S4,XDSF77RF37-YSF63M4,XDSF77RF37-YSF71M4,XDSF77RF37-YSF80M4,XDSF77RF37-YSF90S4,XDSF77RF37-YVB63M4,XDSF77RF37-YVB71M4,XDSF77RF37-YVB80M4,XDSF77RF37-YVB90S4,XDSF77RF37-YVP63M4,XDSF77RF37-YVP71M4,XDSF77RF37-YVP80M4,XDSF77RF37-YVP90S4,JCSF77R37-Y63M4,JCSF77R37-Y71M4,JCSF77R37-Y80M4,JCSF77R37-Y90M4,JCSF77RF37-Y0.12KW,JCSF77RF37-Y0.18KW,JCSF77RF37-Y0.25KW,JCSF77RF37-Y0.37KW,JCSF77RF37-Y0.55KW,JCSF77RF37-Y0.75KW,JCSF77RF37-Y1.1KW,JCSF77RF37-Y63M4,JCSF77RF37-Y71M4,JCSF77RF37-Y80M4,JCSF77RF37-Y90M4,JCSF77RF37-YB63M4,JCSF77RF37-YB71M4,JCSF77RF37-YB80M4,JCSF77RF37-YB90S4,JCSF77RF37-YDP63M4,JCSF77RF37-YDP71M4,JCSF77RF37-YDP80M4,JCSF77RF37-YDP90S4,JCSF77RF37-YE63M4,JCSF77RF37-YE71M4,JCSF77RF37-YE80M4,JCSF77RF37-YE90S4,JCSF77RF37-YEJ63M4,JCSF77RF37-YEJ71M4,JCSF77RF37-YEJ80M4,JCSF77RF37-YEJ90S4,JCSF77RF37-YEJB63M4,JCSF77RF37-YEJB71M4,JCSF77RF37-YEJB80M4,JCSF77RF37-YEJB90S4,JCSF77RF37-YP63M4,JCSF77RF37-YP71M4,JCSF77RF37-YP80M4,JCSF77RF37-YP90S4,JCSF77RF37-YPB63M4,JCSF77RF37-YPB71M4,JCSF77RF37-YPB80M4,JCSF77RF37-YPB90S4,JCSF77RF37-YPE63M4,JCSF77RF37-YPE71M4,JCSF77RF37-YPE80M4,JCSF77RF37-YPE90S4,JCSF77RF37-YSF63M4,JCSF77RF37-YSF71M4,JCSF77RF37-YSF80M4,JCSF77RF37-YSF90S4,JCSF77RF37-YVB63M4,JCSF77RF37-YVB71M4,JCSF77RF37-YVB80M4,JCSF77RF37-YVB90S4,JCSF77RF37-YVP63M4,JCSF77RF37-YVP71M4,JCSF77RF37-YVP80M4,JCSF77RF37-YVP90S4,NSF77R37-Y63M4,NSF77R37-Y71M4,NSF77R37-Y80M4,NSF77R37-Y90M4,NSF77RF37-Y0.12KW,NSF77RF37-Y0.18KW,NSF77RF37-Y0.25KW,NSF77RF37-Y0.37KW,NSF77RF37-Y0.55KW,NSF77RF37-Y0.75KW,NSF77RF37-Y1.1KW,NSF77RF37-Y63M4,NSF77RF37-Y71M4,NSF77RF37-Y80M4,NSF77RF37-Y90M4,NSF77RF37-YB63M4,NSF77RF37-YB71M4,NSF77RF37-YB80M4,NSF77RF37-YB90S4,NSF77RF37-YDP63M4,NSF77RF37-YDP71M4,NSF77RF37-YDP80M4,NSF77RF37-YDP90S4,NSF77RF37-YE63M4,NSF77RF37-YE71M4,NSF77RF37-YE80M4,NSF77RF37-YE90S4,NSF77RF37-YEJ63M4,NSF77RF37-YEJ71M4,NSF77RF37-YEJ80M4,NSF77RF37-YEJ90S4,NSF77RF37-YEJB63M4,NSF77RF37-YEJB71M4,NSF77RF37-YEJB80M4,NSF77RF37-YEJB90S4,NSF77RF37-YP63M4,NSF77RF37-YP71M4,NSF77RF37-YP80M4,NSF77RF37-YP90S4,NSF77RF37-YPB63M4,NSF77RF37-YPB71M4,NSF77RF37-YPB80M4,NSF77RF37-YPB90S4,NSF77RF37-YPE63M4,NSF77RF37-YPE71M4,NSF77RF37-YPE80M4,NSF77RF37-YPE90S4,NSF77RF37-YSF63M4,NSF77RF37-YSF71M4,NSF77RF37-YSF80M4,NSF77RF37-YSF90S4,NSF77RF37-YVB63M4,NSF77RF37-YVB71M4,NSF77RF37-YVB80M4,NSF77RF37-YVB90S4,NSF77RF37-YVP63M4,NSF77RF37-YVP71M4,NSF77RF37-YVP80M4,NSF77RF37-YVP90S4,SWF77RW37-Y63M4,SWF77RW37-Y71M4,SWF77RW37-Y80M4,SWF77RW37-Y90M4,SWF77RWF37-Y0.12KW,SWF77RWF37-Y0.18KW,SWF77RWF37-Y0.25KW,SWF77RWF37-Y0.37KW,SWF77RWF37-Y0.55KW,SWF77RWF37-Y0.75KW,SWF77RWF37-Y1.1KW,SWF77RWF37-Y63M4,SWF77RWF37-Y71M4,SWF77RWF37-Y80M4,SWF77RWF37-Y90M4,SWF77RWF37-YB63M4,SWF77RWF37-YB71M4,SWF77RWF37-YB80M4,SWF77RWF37-YB90S4,SWF77RWF37-YDP63M4,SWF77RWF37-YDP71M4,SWF77RWF37-YDP80M4,SWF77RWF37-YDP90S4,SWF77RWF37-YE63M4,SWF77RWF37-YE71M4,SWF77RWF37-YE80M4,SWF77RWF37-YE90S4,SWF77RWF37-YEJ63M4,SWF77RWF37-YEJ71M4,SWF77RWF37-YEJ80M4,SWF77RWF37-YEJ90S4,SWF77RWF37-YEJB63M4,SWF77RWF37-YEJB71M4,SWF77RWF37-YEJB80M4,SWF77RWF37-YEJB90S4,SWF77RWF37-YP63M4,SWF77RWF37-YP71M4,SWF77RWF37-YP80M4,SWF77RWF37-YP90S4,SWF77RWF37-YPB63M4,SWF77RWF37-YPB71M4,SWF77RWF37-YPB80M4,SWF77RWF37-YPB90S4,SWF77RWF37-YPE63M4,SWF77RWF37-YPE71M4,SWF77RWF37-YPE80M4,SWF77RWF37-YPE90S4,SWF77RWF37-YSF63M4,SWF77RWF37-YSF71M4,SWF77RWF37-YSF80M4,SWF77RWF37-YSF90S4,SWF77RWF37-YVB63M4,SWF77RWF37-YVB71M4,SWF77RWF37-YVB80M4,SWF77RWF37-YVB90S4,SWF77RWF37-YVP63M4,SWF77RWF37-YVP71M4,SWF77RWF37-YVP80M4,SWF77RWF37-YVP90S4,SF79R39-Y63M4,SF79R39-Y71M4,SF79R39-Y80M4,SF79R39-Y90M4,SF79RF39-Y0.12KW,SF79RF39-Y0.18KW,SF79RF39-Y0.25KW,SF79RF39-Y0.39KW,SF79RF39-Y0.55KW,SF79RF39-Y0.75KW,SF79RF39-Y1.1KW,SF79RF39-Y63M4,SF79RF39-Y71M4,SF79RF39-Y80M4,SF79RF39-Y90M4,SF79RF39-YB63M4,SF79RF39-YB71M4,SF79RF39-YB80M4,SF79RF39-YB90S4,SF79RF39-YDP63M4,SF79RF39-YDP71M4,SF79RF39-YDP80M4,SF79RF39-YDP90S4,SF79RF39-YE63M4,SF79RF39-YE71M4,SF79RF39-YE80M4,SF79RF39-YE90S4,SF79RF39-YEJ63M4,SF79RF39-YEJ71M4,SF79RF39-YEJ80M4,SF79RF39-YEJ90S4,SF79RF39-YEJB63M4,SF79RF39-YEJB71M4,SF79RF39-YEJB80M4,SF79RF39-YEJB90S4,SF79RF39-YP63M4,SF79RF39-YP71M4,SF79RF39-YP80M4,SF79RF39-YP90S4,SF79RF39-YPB63M4,SF79RF39-YPB71M4,SF79RF39-YPB80M4,SF79RF39-YPB90S4,SF79RF39-YPE63M4,SF79RF39-YPE71M4,SF79RF39-YPE80M4,SF79RF39-YPE90S4,SF79RF39-YSF63M4,SF79RF39-YSF71M4,SF79RF39-YSF80M4,SF79RF39-YSF90S4,SF79RF39-YVB63M4,SF79RF39-YVB71M4,SF79RF39-YVB80M4,SF79RF39-YVB90S4,SF79RF39-YVP63M4,SF79RF39-YVP71M4,SF79RF39-YVP80M4,SF79RF39-YVP90S4。
