網站首頁 > BOSERL減速機 > 同軸斜齒輪減速電機 > R系列齒輪減速電機

R79減速器詳細信息

prevnext

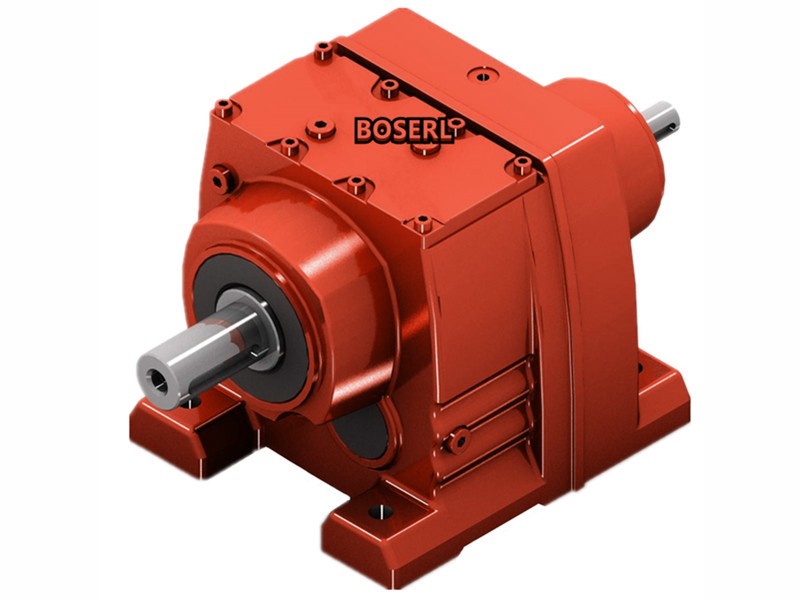

R79減速器

訂購熱線:13360667204
  1. 詳細信息

R79減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R79減速器選型樣本。

R79-BEJ0.55KW-4P-65.77-M5-270°

R:系列代號

79:減速機規格代號

B:電機

EJ:剎車

0.55KW:電機功率

4P:電機級數

65.77:減速機傳動比

M5:減速機安裝位置

270°:接線盒位置


R79減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義

圖       標

含   義


透氣閥


油位檢查螺栓


放油螺栓

R79減速器安裝所需工具以及材料:

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(R79減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。齒輪減速電機

R79減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。R79減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將R79減速器的安裝位置改變?yōu)镸5或M6,或者M5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將R79減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在R79減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對R79減速器箱體進行連接接地。

RX - 副本 - 副本 - 副本 - 副本.jpg

R79減速器故障售后服務統籌:

在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對R79減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。臥式減速機

R79減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“R79減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“R79減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;

R79減速器潤滑油泄露:R79減速器密封面密封性能不良,擰緊R79減速器蓋上的螺釘并觀察R79減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;R79減速器透氣閥失效,給R79減速器透氣參見“R79減速器說明書的安裝位置”章節。

R79減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“R79減速器說明書的檢查/維護”章節;R79減速器安裝位置錯誤,正確安裝透氣閥參見“R79減速器說明書的安裝位置”章節,調節油位參見“R79減速器說明書的檢查/維護”章節。

R79減速器電機或輸入軸轉動,而輸出軸不轉:R79減速器中的軸輪轂聯接斷裂,將R79減速器或減速電機送來我司修理。R系列減速機

R79減速器型號:

R79-AM100M4,R79-AM112M4,R79-AM132M4,R79-AM160M4,R79-AM71M4,R79-AM80M4,R79-AM90M4,R79-Y0.18KW,R79-Y0.25KW,R79-Y0.37KW,R79-Y0.55KW,R79-Y0.75KW,R79-Y1.1KW,R79-Y1.5KW,R79-Y100M4,R79-Y112M4,R79-Y11KW,R79-Y132M4,R79-Y15KW,R79-Y160M4,R79-Y2.2KW,R79-Y3KW,R79-Y4KW,R79-Y5.5KW,R79-Y7.5KW,R79-Y71M4,R79-Y80M4,R79-Y90M4,R79-YB100M4,R79-YB112M4,R79-YB132M4,R79-YB160M4,R79-YB71M4,R79-YB80M4,R79-YB90M4,R79-YDP100M4,R79-YDP112M4,R79-YDP132M4,R79-YDP160M4,R79-YDP71M4,R79-YDP80M4,R79-YDP90M4,R79-YE100M4,R79-YE112M4,R79-YE132M4,R79-YE160M4,R79-YE71M4,R79-YE80M4,R79-YE90M4,R79-YEJ100M4,R79-YEJ112M4,R79-YEJ132M4,R79-YEJ160M4,R79-YEJ71M4,R79-YEJ80M4,R79-YEJ90M4,R79-YEJB100M4,R79-YEJB112M4,R79-YEJB132M4,R79-YEJB160M4,R79-YEJB71M4,R79-YEJB80M4,R79-YEJB90M4,R79-YP100M4,R79-YP112M4,R79-YP132M4,R79-YP160M4,R79-YP71M4,R79-YP80M4,R79-YP90M4,R79-YPB100M4,R79-YPB112M4,R79-YPB132M4,R79-YPB160M4,R79-YPB71M4,R79-YPB80M4,R79-YPB90M4,R79-YPE100M4,R79-YPE112M4,R79-YPE132M4,R79-YPE160M4,R79-YPE71M4,R79-YPE80M4,R79-YPE90M4,R79-YS100M4,R79-YS112M4,R79-YS132M4,R79-YS160M4,R79-YS71M4,R79-YS80M4,R79-YS90M4,R79-YVB100M4,R79-YVB112M4,R79-YVB132M4,R79-YVB160M4,R79-YVB71M4,R79-YVB80M4,R79-YVB90M4,R79-YVP100M4,R79-YVP112M4,R79-YVP132M4,R79-YVP160M4,R79-YVP71M4,R79-YVP80M4,R79-YVP90M4,R79-YVPEJ100M4,R79-YVPEJ112M4,R79-YVPEJ132M4,R79-YVPEJ160M4,R79-YVPEJ71M4,R79-YVPEJ80M4,R79-YVPEJ90M4,RW77-AM100M4,RW77-AM112M4,RW77-AM132M4,RW77-AM160M4,RW77-AM71M4,RW77-AM80M4,RW77-AM90M4,RW77-Y0.18KW,RW77-Y0.25KW,RW77-Y0.37KW,RW77-Y0.55KW,RW77-Y0.75KW,RW77-Y1.1KW,RW77-Y1.5KW,RW77-Y100M4,RW77-Y112M4,RW77-Y11KW,RW77-Y132M4,RW77-Y15KW,RW77-Y160M4,RW77-Y2.2KW,RW77-Y3KW,RW77-Y4KW,RW77-Y5.5KW,RW77-Y7.5KW,RW77-Y71M4,RW77-Y80M4,RW77-Y90M4,RW77-YB100M4,RW77-YB112M4,RW77-YB132M4,RW77-YB160M4,RW77-YB71M4,RW77-YB80M4,RW77-YB90M4,RW77-YDP100M4,RW77-YDP112M4,RW77-YDP132M4,RW77-YDP160M4,RW77-YDP71M4,RW77-YDP80M4,RW77-YDP90M4,RW77-YE100M4,RW77-YE112M4,RW77-YE132M4,RW77-YE160M4,RW77-YE71M4,RW77-YE80M4,RW77-YE90M4,RW77-YEJ100M4,RW77-YEJ112M4,RW77-YEJ132M4,RW77-YEJ160M4,RW77-YEJ71M4,RW77-YEJ80M4,RW77-YEJ90M4,RW77-YEJB100M4,RW77-YEJB112M4,RW77-YEJB132M4,RW77-YEJB160M4,RW77-YEJB71M4,RW77-YEJB80M4,RW77-YEJB90M4,RW77-YP100M4,RW77-YP112M4,RW77-YP132M4,RW77-YP160M4,RW77-YP71M4,RW77-YP80M4,RW77-YP90M4,RW77-YPB100M4,RW77-YPB112M4,RW77-YPB132M4,RW77-YPB160M4,RW77-YPB71M4,RW77-YPB80M4,RW77-YPB90M4,RW77-YPE100M4,RW77-YPE112M4,RW77-YPE132M4,RW77-YPE160M4,RW77-YPE71M4,RW77-YPE80M4,RW77-YPE90M4,RW77-YS100M4,RW77-YS112M4,RW77-YS132M4,RW77-YS160M4,RW77-YS71M4,RW77-YS80M4,RW77-YS90M4,RW77-YVB100M4,RW77-YVB112M4,RW77-YVB132M4,RW77-YVB160M4,RW77-YVB71M4,RW77-YVB80M4,RW77-YVB90M4,RW77-YVP100M4,RW77-YVP112M4,RW77-YVP132M4,RW77-YVP160M4,RW77-YVP71M4,RW77-YVP80M4,RW77-YVP90M4,RW77-YVPEJ100M4,RW77-YVPEJ112M4,RW77-YVPEJ132M4,RW77-YVPEJ160M4,RW77-YVPEJ71M4,RW77-YVPEJ80M4,RW77-YVPEJ90M4,YQR77-AM100M4,YQR77-AM112M4,YQR77-AM132M4,YQR77-AM160M4,YQR77-AM71M4,YQR77-AM80M4,YQR77-AM90M4,YQR77-Y0.18KW,YQR77-Y0.25KW,YQR77-Y0.37KW,YQR77-Y0.55KW,YQR77-Y0.75KW,YQR77-Y1.1KW,YQR77-Y1.5KW,YQR77-Y100M4,YQR77-Y112M4,YQR77-Y11KW,YQR77-Y132M4,YQR77-Y15KW,YQR77-Y160M4,YQR77-Y2.2KW,YQR77-Y3KW,YQR77-Y4KW,YQR77-Y5.5KW,YQR77-Y7.5KW,YQR77-Y71M4,YQR77-Y80M4,YQR77-Y90M4,YQR77-YB100M4,YQR77-YB112M4,YQR77-YB132M4,YQR77-YB160M4,YQR77-YB71M4,YQR77-YB80M4,YQR77-YB90M4,YQR77-YDP100M4,YQR77-YDP112M4,YQR77-YDP132M4,YQR77-YDP160M4,YQR77-YDP71M4,YQR77-YDP80M4,YQR77-YDP90M4,YQR77-YE100M4,YQR77-YE112M4,YQR77-YE132M4,YQR77-YE160M4,YQR77-YE71M4,YQR77-YE80M4,YQR77-YE90M4,YQR77-YEJ100M4,YQR77-YEJ112M4,YQR77-YEJ132M4,YQR77-YEJ160M4,YQR77-YEJ71M4,YQR77-YEJ80M4,YQR77-YEJ90M4,YQR77-YEJB100M4,YQR77-YEJB112M4,YQR77-YEJB132M4,YQR77-YEJB160M4,YQR77-YEJB71M4,YQR77-YEJB80M4,YQR77-YEJB90M4,YQR77-YP100M4,YQR77-YP112M4,YQR77-YP132M4,YQR77-YP160M4,YQR77-YP71M4,YQR77-YP80M4,YQR77-YP90M4,YQR77-YPB100M4,YQR77-YPB112M4,YQR77-YPB132M4,YQR77-YPB160M4,YQR77-YPB71M4,YQR77-YPB80M4,YQR77-YPB90M4,YQR77-YPE100M4,YQR77-YPE112M4,YQR77-YPE132M4,YQR77-YPE160M4,YQR77-YPE71M4,YQR77-YPE80M4,YQR77-YPE90M4,YQR77-YS100M4,YQR77-YS112M4,YQR77-YS132M4,YQR77-YS160M4,YQR77-YS71M4,YQR77-YS80M4,YQR77-YS90M4,YQR77-YVB100M4,YQR77-YVB112M4,YQR77-YVB132M4,YQR77-YVB160M4,YQR77-YVB71M4,YQR77-YVB80M4,YQR77-YVB90M4,YQR77-YVP100M4,YQR77-YVP112M4,YQR77-YVP132M4,YQR77-YVP160M4,YQR77-YVP71M4,YQR77-YVP80M4,YQR77-YVP90M4,YQR77-YVPEJ100M4,YQR77-YVPEJ112M4,YQR77-YVPEJ132M4,YQR77-YVPEJ160M4,YQR77-YVPEJ71M4,YQR77-YVPEJ80M4,YQR77-YVPEJ90M4,JCR77-AM100M4,JCR77-AM112M4,JCR77-AM132M4,JCR77-AM160M4,JCR77-AM71M4,JCR77-AM80M4,JCR77-AM90M4,JCR77-Y0.18KW,JCR77-Y0.25KW,JCR77-Y0.37KW,JCR77-Y0.55KW,JCR77-Y0.75KW,JCR77-Y1.1KW,JCR77-Y1.5KW,JCR77-Y100M4,JCR77-Y112M4,JCR77-Y11KW,JCR77-Y132M4,JCR77-Y15KW,JCR77-Y160M4,JCR77-Y2.2KW,JCR77-Y3KW,JCR77-Y4KW,JCR77-Y5.5KW,JCR77-Y7.5KW,JCR77-Y71M4,JCR77-Y80M4,JCR77-Y90M4,JCR77-YB100M4,JCR77-YB112M4,JCR77-YB132M4,JCR77-YB160M4,JCR77-YB71M4,JCR77-YB80M4,JCR77-YB90M4,JCR77-YDP100M4,JCR77-YDP112M4,JCR77-YDP132M4,JCR77-YDP160M4,JCR77-YDP71M4,JCR77-YDP80M4,JCR77-YDP90M4,JCR77-YE100M4,JCR77-YE112M4,JCR77-YE132M4,JCR77-YE160M4,JCR77-YE71M4,JCR77-YE80M4,JCR77-YE90M4,JCR77-YEJ100M4,JCR77-YEJ112M4,JCR77-YEJ132M4,JCR77-YEJ160M4,JCR77-YEJ71M4,JCR77-YEJ80M4,JCR77-YEJ90M4,JCR77-YEJB100M4,JCR77-YEJB112M4,JCR77-YEJB132M4,JCR77-YEJB160M4,JCR77-YEJB71M4,JCR77-YEJB80M4,JCR77-YEJB90M4,JCR77-YP100M4,JCR77-YP112M4,JCR77-YP132M4,JCR77-YP160M4,JCR77-YP71M4,JCR77-YP80M4,JCR77-YP90M4,JCR77-YPB100M4,JCR77-YPB112M4,JCR77-YPB132M4,JCR77-YPB160M4,JCR77-YPB71M4,JCR77-YPB80M4,JCR77-YPB90M4,JCR77-YPE100M4,JCR77-YPE112M4,JCR77-YPE132M4,JCR77-YPE160M4,JCR77-YPE71M4,JCR77-YPE80M4,JCR77-YPE90M4,JCR77-YS100M4,JCR77-YS112M4,JCR77-YS132M4,JCR77-YS160M4,JCR77-YS71M4,JCR77-YS80M4,JCR77-YS90M4,JCR77-YVB100M4,JCR77-YVB112M4,JCR77-YVB132M4,JCR77-YVB160M4,JCR77-YVB71M4,JCR77-YVB80M4,JCR77-YVB90M4,JCR77-YVP100M4,JCR77-YVP112M4,JCR77-YVP132M4,JCR77-YVP160M4,JCR77-YVP71M4,JCR77-YVP80M4,JCR77-YVP90M4,JCR77-YVPEJ100M4,JCR77-YVPEJ112M4,JCR77-YVPEJ132M4,JCR77-YVPEJ160M4,JCR77-YVPEJ71M4,JCR77-YVPEJ80M4,JCR77-YVPEJ90M4,XDR77-AM100M4,XDR77-AM112M4,XDR77-AM132M4,XDR77-AM160M4,XDR77-AM71M4,XDR77-AM80M4,XDR77-AM90M4,XDR77-Y0.18KW,XDR77-Y0.25KW,XDR77-Y0.37KW,XDR77-Y0.55KW,XDR77-Y0.75KW,XDR77-Y1.1KW,XDR77-Y1.5KW,XDR77-Y100M4,XDR77-Y112M4,XDR77-Y11KW,XDR77-Y132M4,XDR77-Y15KW,XDR77-Y160M4,XDR77-Y2.2KW,XDR77-Y3KW,XDR77-Y4KW,XDR77-Y5.5KW,XDR77-Y7.5KW,XDR77-Y71M4,XDR77-Y80M4,XDR77-Y90M4,XDR77-YB100M4,XDR77-YB112M4,XDR77-YB132M4,XDR77-YB160M4,XDR77-YB71M4,XDR77-YB80M4,XDR77-YB90M4,XDR77-YDP100M4,XDR77-YDP112M4,XDR77-YDP132M4,XDR77-YDP160M4,XDR77-YDP71M4,XDR77-YDP80M4,XDR77-YDP90M4,XDR77-YE100M4,XDR77-YE112M4,XDR77-YE132M4,XDR77-YE160M4,XDR77-YE71M4,XDR77-YE80M4,XDR77-YE90M4,XDR77-YEJ100M4,XDR77-YEJ112M4,XDR77-YEJ132M4,XDR77-YEJ160M4,XDR77-YEJ71M4,XDR77-YEJ80M4,XDR77-YEJ90M4,XDR77-YEJB100M4,XDR77-YEJB112M4,XDR77-YEJB132M4,XDR77-YEJB160M4,XDR77-YEJB71M4,XDR77-YEJB80M4,XDR77-YEJB90M4,XDR77-YP100M4,XDR77-YP112M4,XDR77-YP132M4,XDR77-YP160M4,XDR77-YP71M4,XDR77-YP80M4,XDR77-YP90M4,XDR77-YPB100M4,XDR77-YPB112M4,XDR77-YPB132M4,XDR77-YPB160M4,XDR77-YPB71M4,XDR77-YPB80M4,XDR77-YPB90M4,XDR77-YPE100M4,XDR77-YPE112M4,XDR77-YPE132M4,XDR77-YPE160M4,XDR77-YPE71M4,XDR77-YPE80M4,XDR77-YPE90M4,XDR77-YS100M4,XDR77-YS112M4,XDR77-YS132M4,XDR77-YS160M4,XDR77-YS71M4,XDR77-YS80M4,XDR77-YS90M4,XDR77-YVB100M4,XDR77-YVB112M4,XDR77-YVB132M4,XDR77-YVB160M4,XDR77-YVB71M4,XDR77-YVB80M4,XDR77-YVB90M4,XDR77-YVP100M4,XDR77-YVP112M4,XDR77-YVP132M4,XDR77-YVP160M4,XDR77-YVP71M4,XDR77-YVP80M4,XDR77-YVP90M4,XDR77-YVPEJ100M4,XDR77-YVPEJ112M4,XDR77-YVPEJ132M4,XDR77-YVPEJ160M4,XDR77-YVPEJ71M4,XDR77-YVPEJ80M4,XDR77-YVPEJ90M4,R77SF80,R77SF90,R77SF100,R77SF112,R77SF115,R77SF140,R77SF160,R77SF190。

R79減速器廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxiliejiansuji-cn.html

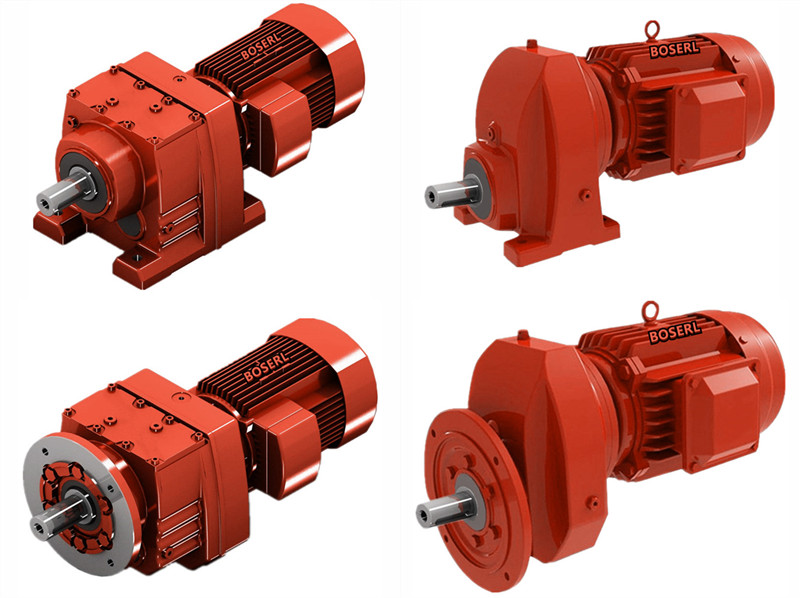

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:R79減速機

關鍵詞:GR型減速電機臥式一體機_GR型減速機_R系列減速機帶電機_R系列減速器_同向減速器_同向減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機

R系列減速機型號:R19減速機,R29減速機,R39減速機,R49減速機,R59減速機,R69減速機,R79減速機,R89減速機,R99減速機,R109減速機,R139減速機,R149減速機,R169減速機

R系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   R79減速器 R77斜齒輪減速機 R77減速機3D模型 R77型減速機選型參數 R77臥式減速機一體機 R77伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
R79減速器3D模型 點擊下載
R79減速器選型參數 點擊下載
