網站首頁 > BOSERL減速機 > 同軸斜齒輪減速電機 > R系列齒輪減速電機

R39減速器詳細信息

prevnext

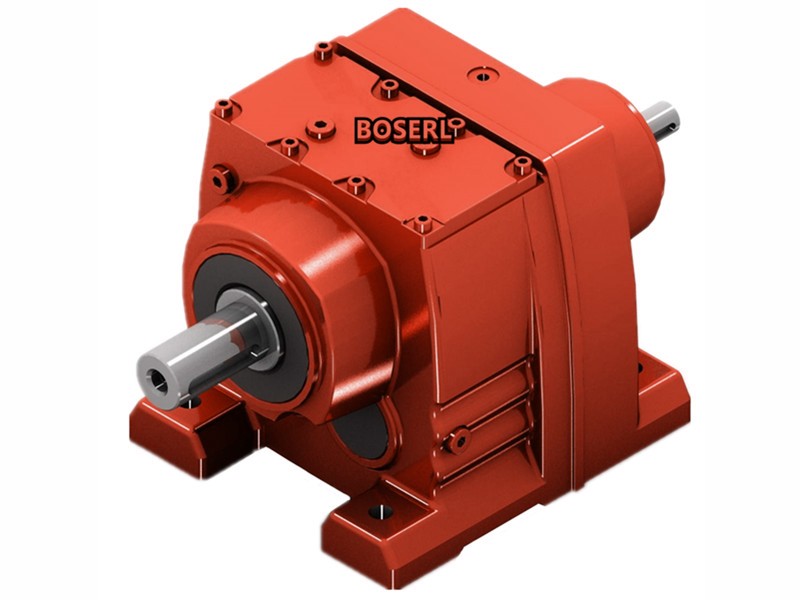

R39減速器

訂購熱線:13360667204
  1. 詳細信息

R39減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R39減速器選型樣本。

R39-BEJ1.5KW-4P-4.05-M4-270°

R:系列代號

39:減速機規格代號

B:電機

EJ:剎車

1.5KW:電機功率

4P:電機級數

4.05:減速機傳動比

M4:減速機安裝位置

270°:接線盒位置


R39減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義

圖       標

含   義


透氣閥


油位檢查螺栓


放油螺栓

R39減速器安裝所需工具以及材料:

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(R39減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。齒輪減速電機

R39減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。R39減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將R39減速器的安裝位置改變?yōu)镸5或M6,或者M5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將R39減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在R39減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對R39減速器箱體進行連接接地。

RX - 副本 - 副本 - 副本 - 副本.jpg

R39減速器故障售后服務統籌:

在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對R39減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。臥式減速機

R39減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“R39減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“R39減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;

R39減速器潤滑油泄露:R39減速器密封面密封性能不良,擰緊R39減速器蓋上的螺釘并觀察R39減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;R39減速器透氣閥失效,給R39減速器透氣參見“R39減速器說明書的安裝位置”章節。

R39減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“R39減速器說明書的檢查/維護”章節;R39減速器安裝位置錯誤,正確安裝透氣閥參見“R39減速器說明書的安裝位置”章節,調節油位參見“R39減速器說明書的檢查/維護”章節。

R39減速器電機或輸入軸轉動,而輸出軸不轉:R39減速器中的軸輪轂聯接斷裂,將R39減速器或減速電機送來我司修理。R系列減速機

R39減速器型號:

R39-AM100M4,R39-AM63M4,R39-AM71M4,R39-AM80M4,R39-AM90M4,R39-Y0.12KW,R39-Y0.18KW,R39-Y0.25KW,R39-Y0.37KW,R39-Y0.55KW,R39-Y0.75KW,R39-Y1.1KW,R39-Y1.5KW,R39-Y100M4,R39-Y2.2KW,R39-Y3KW,R39-Y63M4,R39-Y71M4,R39-Y80M4,R39-Y90M4,R39-YB100M4,R39-YB63M4,R39-YB71M4,R39-YB80M4,R39-YB90M4,R39-YDP100M4,R39-YDP63M4,R39-YDP71M4,R39-YDP80M4,R39-YDP90M4,R39-YE100M4,R39-YE63M4,R39-YE71M4,R39-YE80M4,R39-YE90M4,R39-YEJ100M4,R39-YEJ63M4,R39-YEJ71M4,R39-YEJ80M4,R39-YEJ90M4,R39-YEJB100M4,R39-YEJB63M4,R39-YEJB71M4,R39-YEJB80M4,R39-YEJB90M4,R39-YP100M4,R39-YP63M4,R39-YP71M4,R39-YP80M4,R39-YP90M4,R39-YPB100M4,R39-YPB63M4,R39-YPB71M4,R39-YPB80M4,R39-YPB90M4,R39-YPE100M4,R39-YPE63M4,R39-YPE71M4,R39-YPE80M4,R39-YPE90M4,R39-YS100M4,R39-YS63M4,R39-YS71M4,R39-YS80M4,R39-YS90M4,R39-YVB100M4,R39-YVB63M4,R39-YVB71M4,R39-YVB80M4,R39-YVB90M4,R39-YVP100M4,R39-YVP63M4,R39-YVP71M4,R39-YVP80M4,R39-YVP90M4,R39-YVPEJ100M4,R39-YVPEJ63M4,R39-YVPEJ71M4,R39-YVPEJ80M4,R39-YVPEJ90M4,RW37-AM100M4,RW37-AM63M4,RW37-AM71M4,RW37-AM80M4,RW37-AM90M4,RW37-Y0.12KW,RW37-Y0.18KW,RW37-Y0.25KW,RW37-Y0.37KW,RW37-Y0.55KW,RW37-Y0.75KW,RW37-Y1.1KW,RW37-Y1.5KW,RW37-Y100M4,RW37-Y2.2KW,RW37-Y3KW,RW37-Y63M4,RW37-Y71M4,RW37-Y80M4,RW37-Y90M4,RW37-YB100M4,RW37-YB63M4,RW37-YB71M4,RW37-YB80M4,RW37-YB90M4,RW37-YDP100M4,RW37-YDP63M4,RW37-YDP71M4,RW37-YDP80M4,RW37-YDP90M4,RW37-YE100M4,RW37-YE63M4,RW37-YE71M4,RW37-YE80M4,RW37-YE90M4,RW37-YEJ100M4,RW37-YEJ63M4,RW37-YEJ71M4,RW37-YEJ80M4,RW37-YEJ90M4,RW37-YEJB100M4,RW37-YEJB63M4,RW37-YEJB71M4,RW37-YEJB80M4,RW37-YEJB90M4,RW37-YP100M4,RW37-YP63M4,RW37-YP71M4,RW37-YP80M4,RW37-YP90M4,RW37-YPB100M4,RW37-YPB63M4,RW37-YPB71M4,RW37-YPB80M4,RW37-YPB90M4,RW37-YPE100M4,RW37-YPE63M4,RW37-YPE71M4,RW37-YPE80M4,RW37-YPE90M4,RW37-YS100M4,RW37-YS63M4,RW37-YS71M4,RW37-YS80M4,RW37-YS90M4,RW37-YVB100M4,RW37-YVB63M4,RW37-YVB71M4,RW37-YVB80M4,RW37-YVB90M4,RW37-YVP100M4,RW37-YVP63M4,RW37-YVP71M4,RW37-YVP80M4,RW37-YVP90M4,RW37-YVPEJ100M4,RW37-YVPEJ63M4,RW37-YVPEJ71M4,RW37-YVPEJ80M4,RW37-YVPEJ90M4,XDR37-AM100M4,XDR37-AM63M4,XDR37-AM71M4,XDR37-AM80M4,XDR37-AM90M4,XDR37-Y0.12KW,XDR37-Y0.18KW,XDR37-Y0.25KW,XDR37-Y0.37KW,XDR37-Y0.55KW,XDR37-Y0.75KW,XDR37-Y1.1KW,XDR37-Y1.5KW,XDR37-Y100M4,XDR37-Y2.2KW,XDR37-Y3KW,XDR37-Y63M4,XDR37-Y71M4,XDR37-Y80M4,XDR37-Y90M4,XDR37-YB100M4,XDR37-YB63M4,XDR37-YB71M4,XDR37-YB80M4,XDR37-YB90M4,XDR37-YDP100M4,XDR37-YDP63M4,XDR37-YDP71M4,XDR37-YDP80M4,XDR37-YDP90M4,XDR37-YE100M4,XDR37-YE63M4,XDR37-YE71M4,XDR37-YE80M4,XDR37-YE90M4,XDR37-YEJ100M4,XDR37-YEJ63M4,XDR37-YEJ71M4,XDR37-YEJ80M4,XDR37-YEJ90M4,XDR37-YEJB100M4,XDR37-YEJB63M4,XDR37-YEJB71M4,XDR37-YEJB80M4,XDR37-YEJB90M4,XDR37-YP100M4,XDR37-YP63M4,XDR37-YP71M4,XDR37-YP80M4,XDR37-YP90M4,XDR37-YPB100M4,XDR37-YPB63M4,XDR37-YPB71M4,XDR37-YPB80M4,XDR37-YPB90M4,XDR37-YPE100M4,XDR37-YPE63M4,XDR37-YPE71M4,XDR37-YPE80M4,XDR37-YPE90M4,XDR37-YS100M4,XDR37-YS63M4,XDR37-YS71M4,XDR37-YS80M4,XDR37-YS90M4,XDR37-YVB100M4,XDR37-YVB63M4,XDR37-YVB71M4,XDR37-YVB80M4,XDR37-YVB90M4,XDR37-YVP100M4,XDR37-YVP63M4,XDR37-YVP71M4,XDR37-YVP80M4,XDR37-YVP90M4,XDR37-YVPEJ100M4,XDR37-YVPEJ63M4,XDR37-YVPEJ71M4,XDR37-YVPEJ80M4,XDR37-YVPEJ90M4,JCR37-AM100M4,JCR37-AM63M4,JCR37-AM71M4,JCR37-AM80M4,JCR37-AM90M4,JCR37-Y0.12KW,JCR37-Y0.18KW,JCR37-Y0.25KW,JCR37-Y0.37KW,JCR37-Y0.55KW,JCR37-Y0.75KW,JCR37-Y1.1KW,JCR37-Y1.5KW,JCR37-Y100M4,JCR37-Y2.2KW,JCR37-Y3KW,JCR37-Y63M4,JCR37-Y71M4,JCR37-Y80M4,JCR37-Y90M4,JCR37-YB100M4,JCR37-YB63M4,JCR37-YB71M4,JCR37-YB80M4,JCR37-YB90M4,JCR37-YDP100M4,JCR37-YDP63M4,JCR37-YDP71M4,JCR37-YDP80M4,JCR37-YDP90M4,JCR37-YE100M4,JCR37-YE63M4,JCR37-YE71M4,JCR37-YE80M4,JCR37-YE90M4,JCR37-YEJ100M4,JCR37-YEJ63M4,JCR37-YEJ71M4,JCR37-YEJ80M4,JCR37-YEJ90M4,JCR37-YEJB100M4,JCR37-YEJB63M4,JCR37-YEJB71M4,JCR37-YEJB80M4,JCR37-YEJB90M4,JCR37-YP100M4,JCR37-YP63M4,JCR37-YP71M4,JCR37-YP80M4,JCR37-YP90M4,JCR37-YPB100M4,JCR37-YPB63M4,JCR37-YPB71M4,JCR37-YPB80M4,JCR37-YPB90M4,JCR37-YPE100M4,JCR37-YPE63M4,JCR37-YPE71M4,JCR37-YPE80M4,JCR37-YPE90M4,JCR37-YS100M4,JCR37-YS63M4,JCR37-YS71M4,JCR37-YS80M4,JCR37-YS90M4,JCR37-YVB100M4,JCR37-YVB63M4,JCR37-YVB71M4,JCR37-YVB80M4,JCR37-YVB90M4,JCR37-YVP100M4,JCR37-YVP63M4,JCR37-YVP71M4,JCR37-YVP80M4,JCR37-YVP90M4,JCR37-YVPEJ100M4,JCR37-YVPEJ63M4,JCR37-YVPEJ71M4,JCR37-YVPEJ80M4,JCR37-YVPEJ90M4,YQR37-AM100M4,YQR37-AM63M4,YQR37-AM71M4,YQR37-AM80M4,YQR37-AM90M4,YQR37-Y0.12KW,YQR37-Y0.18KW,YQR37-Y0.25KW,YQR37-Y0.37KW,YQR37-Y0.55KW,YQR37-Y0.75KW,YQR37-Y1.1KW,YQR37-Y1.5KW,YQR37-Y100M4,YQR37-Y2.2KW,YQR37-Y3KW,YQR37-Y63M4,YQR37-Y71M4,YQR37-Y80M4,YQR37-Y90M4,YQR37-YB100M4,YQR37-YB63M4,YQR37-YB71M4,YQR37-YB80M4,YQR37-YB90M4,YQR37-YDP100M4,YQR37-YDP63M4,YQR37-YDP71M4,YQR37-YDP80M4,YQR37-YDP90M4,YQR37-YE100M4,YQR37-YE63M4,YQR37-YE71M4,YQR37-YE80M4,YQR37-YE90M4,YQR37-YEJ100M4,YQR37-YEJ63M4,YQR37-YEJ71M4,YQR37-YEJ80M4,YQR37-YEJ90M4,YQR37-YEJB100M4,YQR37-YEJB63M4,YQR37-YEJB71M4,YQR37-YEJB80M4,YQR37-YEJB90M4,YQR37-YP100M4,YQR37-YP63M4,YQR37-YP71M4,YQR37-YP80M4,YQR37-YP90M4,YQR37-YPB100M4,YQR37-YPB63M4,YQR37-YPB71M4,YQR37-YPB80M4,YQR37-YPB90M4,YQR37-YPE100M4,YQR37-YPE63M4,YQR37-YPE71M4,YQR37-YPE80M4,YQR37-YPE90M4,YQR37-YS100M4,YQR37-YS63M4,YQR37-YS71M4,YQR37-YS80M4,YQR37-YS90M4,YQR37-YVB100M4,YQR37-YVB63M4,YQR37-YVB71M4,YQR37-YVB80M4,YQR37-YVB90M4,YQR37-YVP100M4,YQR37-YVP63M4,YQR37-YVP71M4,YQR37-YVP80M4,YQR37-YVP90M4,YQR37-YVPEJ100M4,YQR37-YVPEJ63M4,YQR37-YVPEJ71M4,YQR37-YVPEJ80M4,YQR37-YVPEJ90M4,R37SF80,R37SF90,R37SF100,R37SF112,R37SF115,R37SF140,R37SF160,R37SF190。

R39減速器廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:R39減速機

關鍵詞:GR型減速電機臥式一體機_GR型減速機_R系列減速機帶電機_R系列減速器_同向減速器_同向減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機

R系列減速機型號:R19減速機,R29減速機,R39減速機,R49減速機,R59減速機,R69減速機,R79減速機,R89減速機,R99減速機,R109減速機,R139減速機,R149減速機,R169減速機

R系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   R39減速器 R37斜齒輪減速機 R37減速機3D模型 R37型減速機選型參數 R37臥式減速機一體機 R37伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
R39減速器3D模型 點擊下載
R39減速器選型參數 點擊下載
