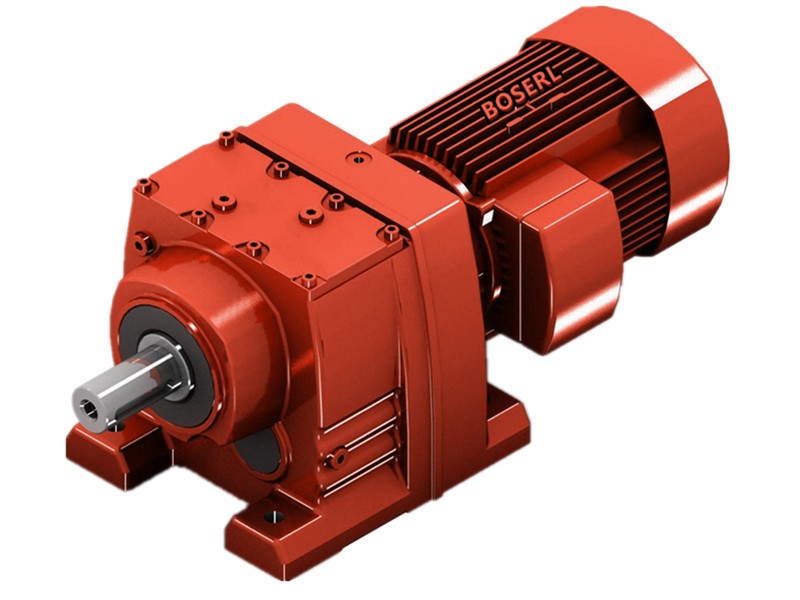

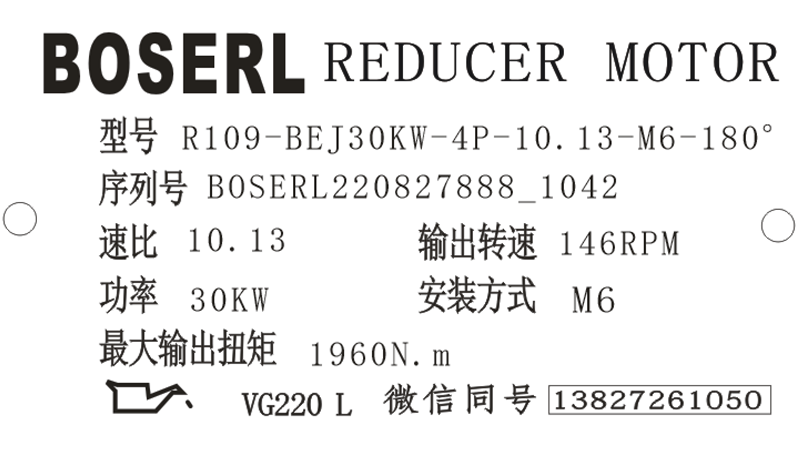

R109減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R109減速器選型樣本。
R109-BEJ30KW-4P-10.13-M6-180°
R:系列代號
109:減速機規格代號
B:電機
EJ:剎車
30KW:電機功率
4P:電機級數
10.13:減速機傳動比
M6:減速機安裝位置
180°:接線盒位置
R109減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義
圖 標 | 含 義 |
| 透氣閥 |
| 油位檢查螺栓 |
| 放油螺栓 |
R109減速器安裝所需工具以及材料:
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(R109減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。齒輪減速電機
R109減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。R109減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將R109減速器的安裝位置改變?yōu)镸5或M6,或者M(jìn)5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將R109減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在R109減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對R109減速器箱體進行連接接地。
R109減速器故障售后服務統籌:
在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對R109減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。臥式減速機
R109減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“R109減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“R109減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;
R109減速器潤滑油泄露:R109減速器密封面密封性能不良,擰緊R109減速器蓋上的螺釘并觀察R109減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;R109減速器透氣閥失效,給R109減速器透氣參見“R109減速器說明書的安裝位置”章節。
R109減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“R109減速器說明書的檢查/維護”章節;R109減速器安裝位置錯誤,正確安裝透氣閥參見“R109減速器說明書的安裝位置”章節,調節油位參見“R109減速器說明書的檢查/維護”章節。
R109減速器電機或輸入軸轉動,而輸出軸不轉:R109減速器中的軸輪轂聯接斷裂,將R109減速器或減速電機送來我司修理。R系列減速機
R109減速器型號:
R109-AM100M4,R109-AM112M4,R109-AM132M4,R109-AM160M4,R109-AM180M4,R109-AM200M4,R109-AM225M4,R109-AM90M4,R109-Y1.5KW,R109-Y100M4,R109-Y112M4,R109-Y11KW,R109-Y132M4,R109-Y15KW,R109-Y160M4,R109-Y18.5KW,R109-Y180M4,R109-Y2.2KW,R109-Y200M4,R109-Y225M4,R109-Y22KW,R109-Y30KW,R109-Y37KW,R109-Y3KW,R109-Y45KW,R109-Y4KW,R109-Y5.5KW,R109-Y7.5KW,R109-Y90M4,R109-YB100M4,R109-YB112M4,R109-YB132M4,R109-YB160M4,R109-YB180M4,R109-YB200M4,R109-YB225M4,R109-YB90M4,R109-YDP100M4,R109-YDP112M4,R109-YDP132M4,R109-YDP160M4,R109-YDP180M4,R109-YDP200M4,R109-YDP225M4,R109-YDP90M4,R109-YE100M4,R109-YE112M4,R109-YE132M4,R109-YE160M4,R109-YE180M4,R109-YE200M4,R109-YE225M4,R109-YE90M4,R109-YEJ100M4,R109-YEJ112M4,R109-YEJ132M4,R109-YEJ160M4,R109-YEJ180M4,R109-YEJ200M4,R109-YEJ225M4,R109-YEJ90M4,R109-YEJB100M4,R109-YEJB112M4,R109-YEJB132M4,R109-YEJB160M4,R109-YEJB180M4,R109-YEJB200M4,R109-YEJB225M4,R109-YEJB90M4,R109-YP100M4,R109-YP112M4,R109-YP132M4,R109-YP160M4,R109-YP180M4,R109-YP200M4,R109-YP225M4,R109-YP90M4,R109-YPB100M4,R109-YPB112M4,R109-YPB132M4,R109-YPB160M4,R109-YPB180M4,R109-YPB200M4,R109-YPB225M4,R109-YPB90M4,R109-YPE100M4,R109-YPE112M4,R109-YPE132M4,R109-YPE160M4,R109-YPE180M4,R109-YPE200M4,R109-YPE225M4,R109-YPE90M4,R109-YS100M4,R109-YS112M4,R109-YS132M4,R109-YS160M4,R109-YS180M4,R109-YS200M4,R109-YS225M4,R109-YS90M4,R109-YVB100M4,R109-YVB112M4,R109-YVB132M4,R109-YVB160M4,R109-YVB180M4,R109-YVB200M4,R109-YVB225M4,R109-YVB90M4,R109-YVP100M4,R109-YVP112M4,R109-YVP132M4,R109-YVP160M4,R109-YVP180M4,R109-YVP200M4,R109-YVP225M4,R109-YVP90M4,R109-YVPEJ100M4,R109-YVPEJ112M4,R109-YVPEJ132M4,R109-YVPEJ160M4,R109-YVPEJ180M4,R109-YVPEJ200M4,R109-YVPEJ225M4,R109-YVPEJ90M4,RW107-AM100M4,RW107-AM112M4,RW107-AM132M4,RW107-AM160M4,RW107-AM180M4,RW107-AM200M4,RW107-AM225M4,RW107-AM90M4,RW107-Y1.5KW,RW107-Y100M4,RW107-Y112M4,RW107-Y11KW,RW107-Y132M4,RW107-Y15KW,RW107-Y160M4,RW107-Y18.5KW,RW107-Y180M4,RW107-Y2.2KW,RW107-Y200M4,RW107-Y225M4,RW107-Y22KW,RW107-Y30KW,RW107-Y37KW,RW107-Y3KW,RW107-Y45KW,RW107-Y4KW,RW107-Y5.5KW,RW107-Y7.5KW,RW107-Y90M4,RW107-YB100M4,RW107-YB112M4,RW107-YB132M4,RW107-YB160M4,RW107-YB180M4,RW107-YB200M4,RW107-YB225M4,RW107-YB90M4,RW107-YDP100M4,RW107-YDP112M4,RW107-YDP132M4,RW107-YDP160M4,RW107-YDP180M4,RW107-YDP200M4,RW107-YDP225M4,RW107-YDP90M4,RW107-YE100M4,RW107-YE112M4,RW107-YE132M4,RW107-YE160M4,RW107-YE180M4,RW107-YE200M4,RW107-YE225M4,RW107-YE90M4,RW107-YEJ100M4,RW107-YEJ112M4,RW107-YEJ132M4,RW107-YEJ160M4,RW107-YEJ180M4,RW107-YEJ200M4,RW107-YEJ225M4,RW107-YEJ90M4,RW107-YEJB100M4,RW107-YEJB112M4,RW107-YEJB132M4,RW107-YEJB160M4,RW107-YEJB180M4,RW107-YEJB200M4,RW107-YEJB225M4,RW107-YEJB90M4,RW107-YP100M4,RW107-YP112M4,RW107-YP132M4,RW107-YP160M4,RW107-YP180M4,RW107-YP200M4,RW107-YP225M4,RW107-YP90M4,RW107-YPB100M4,RW107-YPB112M4,RW107-YPB132M4,RW107-YPB160M4,RW107-YPB180M4,RW107-YPB200M4,RW107-YPB225M4,RW107-YPB90M4,RW107-YPE100M4,RW107-YPE112M4,RW107-YPE132M4,RW107-YPE160M4,RW107-YPE180M4,RW107-YPE200M4,RW107-YPE225M4,RW107-YPE90M4,RW107-YS100M4,RW107-YS112M4,RW107-YS132M4,RW107-YS160M4,RW107-YS180M4,RW107-YS200M4,RW107-YS225M4,RW107-YS90M4,RW107-YVB100M4,RW107-YVB112M4,RW107-YVB132M4,RW107-YVB160M4,RW107-YVB180M4,RW107-YVB200M4,RW107-YVB225M4,RW107-YVB90M4,RW107-YVP100M4,RW107-YVP112M4,RW107-YVP132M4,RW107-YVP160M4,RW107-YVP180M4,RW107-YVP200M4,RW107-YVP225M4,RW107-YVP90M4,RW107-YVPEJ100M4,RW107-YVPEJ112M4,RW107-YVPEJ132M4,RW107-YVPEJ160M4,RW107-YVPEJ180M4,RW107-YVPEJ200M4,RW107-YVPEJ225M4,RW107-YVPEJ90M4,YQR107-AM100M4,YQR107-AM112M4,YQR107-AM132M4,YQR107-AM160M4,YQR107-AM180M4,YQR107-AM200M4,YQR107-AM225M4,YQR107-AM90M4,YQR107-Y1.5KW,YQR107-Y100M4,YQR107-Y112M4,YQR107-Y11KW,YQR107-Y132M4,YQR107-Y15KW,YQR107-Y160M4,YQR107-Y18.5KW,YQR107-Y180M4,YQR107-Y2.2KW,YQR107-Y200M4,YQR107-Y225M4,YQR107-Y22KW,YQR107-Y30KW,YQR107-Y37KW,YQR107-Y3KW,YQR107-Y45KW,YQR107-Y4KW,YQR107-Y5.5KW,YQR107-Y7.5KW,YQR107-Y90M4,YQR107-YB100M4,YQR107-YB112M4,YQR107-YB132M4,YQR107-YB160M4,YQR107-YB180M4,YQR107-YB200M4,YQR107-YB225M4,YQR107-YB90M4,YQR107-YDP100M4,YQR107-YDP112M4,YQR107-YDP132M4,YQR107-YDP160M4,YQR107-YDP180M4,YQR107-YDP200M4,YQR107-YDP225M4,YQR107-YDP90M4,YQR107-YE100M4,YQR107-YE112M4,YQR107-YE132M4,YQR107-YE160M4,YQR107-YE180M4,YQR107-YE200M4,YQR107-YE225M4,YQR107-YE90M4,YQR107-YEJ100M4,YQR107-YEJ112M4,YQR107-YEJ132M4,YQR107-YEJ160M4,YQR107-YEJ180M4,YQR107-YEJ200M4,YQR107-YEJ225M4,YQR107-YEJ90M4,YQR107-YEJB100M4,YQR107-YEJB112M4,YQR107-YEJB132M4,YQR107-YEJB160M4,YQR107-YEJB180M4,YQR107-YEJB200M4,YQR107-YEJB225M4,YQR107-YEJB90M4,YQR107-YP100M4,YQR107-YP112M4,YQR107-YP132M4,YQR107-YP160M4,YQR107-YP180M4,YQR107-YP200M4,YQR107-YP225M4,YQR107-YP90M4,YQR107-YPB100M4,YQR107-YPB112M4,YQR107-YPB132M4,YQR107-YPB160M4,YQR107-YPB180M4,YQR107-YPB200M4,YQR107-YPB225M4,YQR107-YPB90M4,YQR107-YPE100M4,YQR107-YPE112M4,YQR107-YPE132M4,YQR107-YPE160M4,YQR107-YPE180M4,YQR107-YPE200M4,YQR107-YPE225M4,YQR107-YPE90M4,YQR107-YS100M4,YQR107-YS112M4,YQR107-YS132M4,YQR107-YS160M4,YQR107-YS180M4,YQR107-YS200M4,YQR107-YS225M4,YQR107-YS90M4,YQR107-YVB100M4,YQR107-YVB112M4,YQR107-YVB132M4,YQR107-YVB160M4,YQR107-YVB180M4,YQR107-YVB200M4,YQR107-YVB225M4,YQR107-YVB90M4,YQR107-YVP100M4,YQR107-YVP112M4,YQR107-YVP132M4,YQR107-YVP160M4,YQR107-YVP180M4,YQR107-YVP200M4,YQR107-YVP225M4,YQR107-YVP90M4,YQR107-YVPEJ100M4,YQR107-YVPEJ112M4,YQR107-YVPEJ132M4,YQR107-YVPEJ160M4,YQR107-YVPEJ180M4,YQR107-YVPEJ200M4,YQR107-YVPEJ225M4,YQR107-YVPEJ90M4,JCR107-AM100M4,JCR107-AM112M4,JCR107-AM132M4,JCR107-AM160M4,JCR107-AM180M4,JCR107-AM200M4,JCR107-AM225M4,JCR107-AM90M4,JCR107-Y1.5KW,JCR107-Y100M4,JCR107-Y112M4,JCR107-Y11KW,JCR107-Y132M4,JCR107-Y15KW,JCR107-Y160M4,JCR107-Y18.5KW,JCR107-Y180M4,JCR107-Y2.2KW,JCR107-Y200M4,JCR107-Y225M4,JCR107-Y22KW,JCR107-Y30KW,JCR107-Y37KW,JCR107-Y3KW,JCR107-Y45KW,JCR107-Y4KW,JCR107-Y5.5KW,JCR107-Y7.5KW,JCR107-Y90M4,JCR107-YB100M4,JCR107-YB112M4,JCR107-YB132M4,JCR107-YB160M4,JCR107-YB180M4,JCR107-YB200M4,JCR107-YB225M4,JCR107-YB90M4,JCR107-YDP100M4,JCR107-YDP112M4,JCR107-YDP132M4,JCR107-YDP160M4,JCR107-YDP180M4,JCR107-YDP200M4,JCR107-YDP225M4,JCR107-YDP90M4,JCR107-YE100M4,JCR107-YE112M4,JCR107-YE132M4,JCR107-YE160M4,JCR107-YE180M4,JCR107-YE200M4,JCR107-YE225M4,JCR107-YE90M4,JCR107-YEJ100M4,JCR107-YEJ112M4,JCR107-YEJ132M4,JCR107-YEJ160M4,JCR107-YEJ180M4,JCR107-YEJ200M4,JCR107-YEJ225M4,JCR107-YEJ90M4,JCR107-YEJB100M4,JCR107-YEJB112M4,JCR107-YEJB132M4,JCR107-YEJB160M4,JCR107-YEJB180M4,JCR107-YEJB200M4,JCR107-YEJB225M4,JCR107-YEJB90M4,JCR107-YP100M4,JCR107-YP112M4,JCR107-YP132M4,JCR107-YP160M4,JCR107-YP180M4,JCR107-YP200M4,JCR107-YP225M4,JCR107-YP90M4,JCR107-YPB100M4,JCR107-YPB112M4,JCR107-YPB132M4,JCR107-YPB160M4,JCR107-YPB180M4,JCR107-YPB200M4,JCR107-YPB225M4,JCR107-YPB90M4,JCR107-YPE100M4,JCR107-YPE112M4,JCR107-YPE132M4,JCR107-YPE160M4,JCR107-YPE180M4,JCR107-YPE200M4,JCR107-YPE225M4,JCR107-YPE90M4,JCR107-YS100M4,JCR107-YS112M4,JCR107-YS132M4,JCR107-YS160M4,JCR107-YS180M4,JCR107-YS200M4,JCR107-YS225M4,JCR107-YS90M4,JCR107-YVB100M4,JCR107-YVB112M4,JCR107-YVB132M4,JCR107-YVB160M4,JCR107-YVB180M4,JCR107-YVB200M4,JCR107-YVB225M4,JCR107-YVB90M4,JCR107-YVP100M4,JCR107-YVP112M4,JCR107-YVP132M4,JCR107-YVP160M4,JCR107-YVP180M4,JCR107-YVP200M4,JCR107-YVP225M4,JCR107-YVP90M4,JCR107-YVPEJ100M4,JCR107-YVPEJ112M4,JCR107-YVPEJ132M4,JCR107-YVPEJ160M4,JCR107-YVPEJ180M4,JCR107-YVPEJ200M4,JCR107-YVPEJ225M4,JCR107-YVPEJ90M4,XDR107-AM100M4,XDR107-AM112M4,XDR107-AM132M4,XDR107-AM160M4,XDR107-AM180M4,XDR107-AM200M4,XDR107-AM225M4,XDR107-AM90M4,XDR107-Y1.5KW,XDR107-Y100M4,XDR107-Y112M4,XDR107-Y11KW,XDR107-Y132M4,XDR107-Y15KW,XDR107-Y160M4,XDR107-Y18.5KW,XDR107-Y180M4,XDR107-Y2.2KW,XDR107-Y200M4,XDR107-Y225M4,XDR107-Y22KW,XDR107-Y30KW,XDR107-Y37KW,XDR107-Y3KW,XDR107-Y45KW,XDR107-Y4KW,XDR107-Y5.5KW,XDR107-Y7.5KW,XDR107-Y90M4,XDR107-YB100M4,XDR107-YB112M4,XDR107-YB132M4,XDR107-YB160M4,XDR107-YB180M4,XDR107-YB200M4,XDR107-YB225M4,XDR107-YB90M4,XDR107-YDP100M4,XDR107-YDP112M4,XDR107-YDP132M4,XDR107-YDP160M4,XDR107-YDP180M4,XDR107-YDP200M4,XDR107-YDP225M4,XDR107-YDP90M4,XDR107-YE100M4,XDR107-YE112M4,XDR107-YE132M4,XDR107-YE160M4,XDR107-YE180M4,XDR107-YE200M4,XDR107-YE225M4,XDR107-YE90M4,XDR107-YEJ100M4,XDR107-YEJ112M4,XDR107-YEJ132M4,XDR107-YEJ160M4,XDR107-YEJ180M4,XDR107-YEJ200M4,XDR107-YEJ225M4,XDR107-YEJ90M4,XDR107-YEJB100M4,XDR107-YEJB112M4,XDR107-YEJB132M4,XDR107-YEJB160M4,XDR107-YEJB180M4,XDR107-YEJB200M4,XDR107-YEJB225M4,XDR107-YEJB90M4,XDR107-YP100M4,XDR107-YP112M4,XDR107-YP132M4,XDR107-YP160M4,XDR107-YP180M4,XDR107-YP200M4,XDR107-YP225M4,XDR107-YP90M4,XDR107-YPB100M4,XDR107-YPB112M4,XDR107-YPB132M4,XDR107-YPB160M4,XDR107-YPB180M4,XDR107-YPB200M4,XDR107-YPB225M4,XDR107-YPB90M4,XDR107-YPE100M4,XDR107-YPE112M4,XDR107-YPE132M4,XDR107-YPE160M4,XDR107-YPE180M4,XDR107-YPE200M4,XDR107-YPE225M4,XDR107-YPE90M4,XDR107-YS100M4,XDR107-YS112M4,XDR107-YS132M4,XDR107-YS160M4,XDR107-YS180M4,XDR107-YS200M4,XDR107-YS225M4,XDR107-YS90M4,XDR107-YVB100M4,XDR107-YVB112M4,XDR107-YVB132M4,XDR107-YVB160M4,XDR107-YVB180M4,XDR107-YVB200M4,XDR107-YVB225M4,XDR107-YVB90M4,XDR107-YVP100M4,XDR107-YVP112M4,XDR107-YVP132M4,XDR107-YVP160M4,XDR107-YVP180M4,XDR107-YVP200M4,XDR107-YVP225M4,XDR107-YVP90M4,XDR107-YVPEJ100M4,XDR107-YVPEJ112M4,XDR107-YVPEJ132M4,XDR107-YVPEJ160M4,XDR107-YVPEJ180M4,XDR107-YVPEJ200M4,XDR107-YVPEJ225M4,XDR107-YVPEJ90M4,R107SF80,R107SF90,R107SF100,R107SF112,R107SF115,R107SF140,R107SF160,R107SF190。
R109減速器廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxiliejiansuji-cn.html
推薦類似型號:R109減速機
關鍵詞:GR型減速電機臥式一體機_GR型減速機_R系列減速機帶電機_R系列減速器_同向減速器_同向減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機

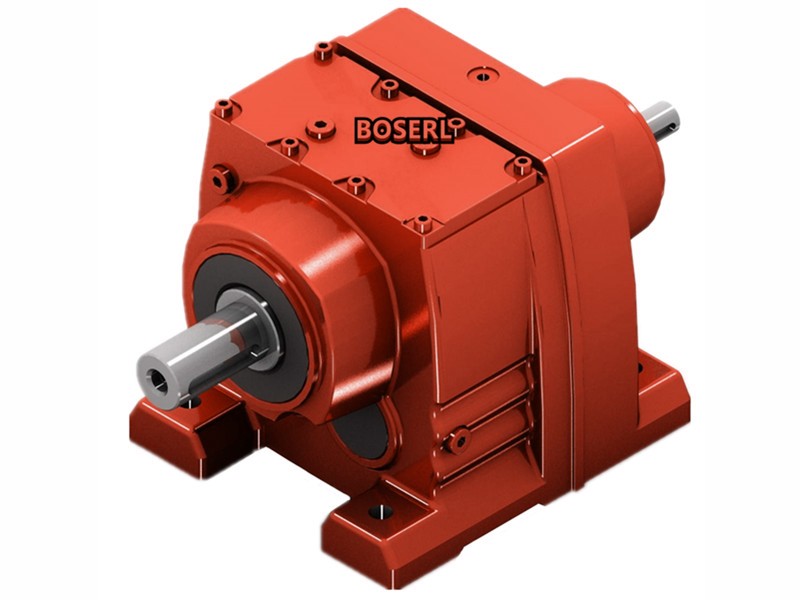

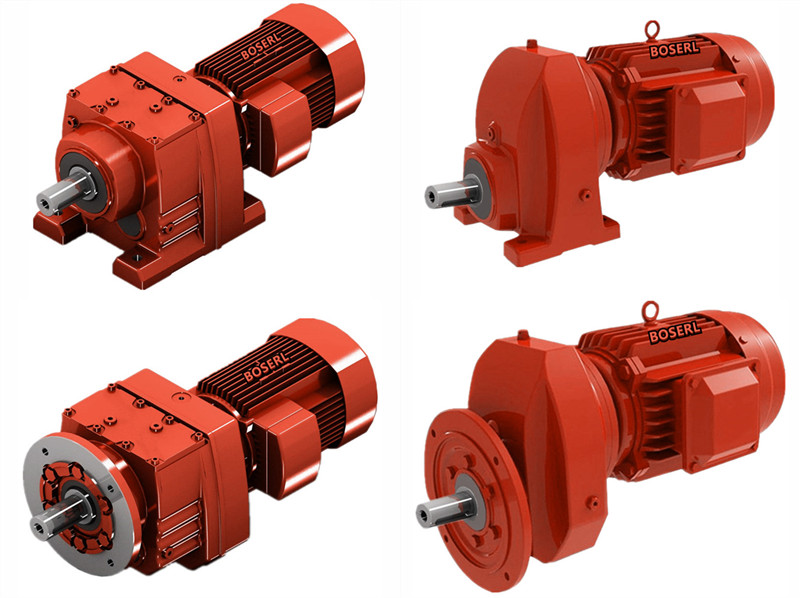

R系列減速機型號:R19減速機,R29減速機,R39減速機,R49減速機,R59減速機,R69減速機,R79減速機,R89減速機,R99減速機,R109減速機,R139減速機,R149減速機,R169減速機
