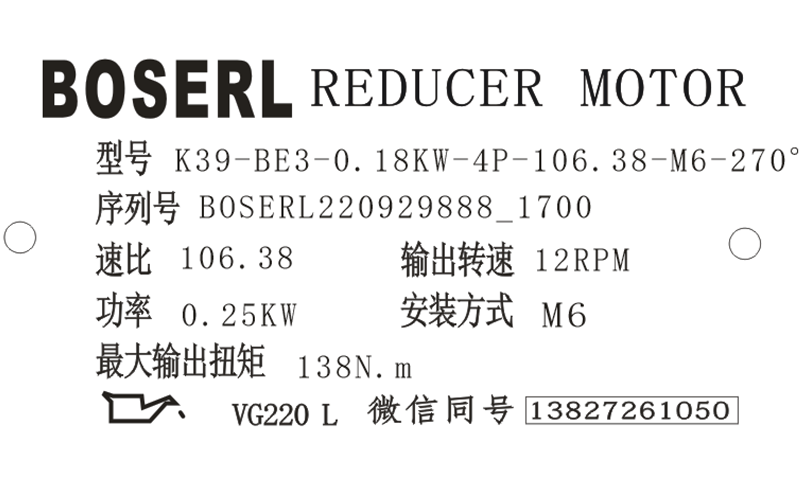

K39減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K39減速器選型樣本。
K39-BE3-0.18KW-4P-106.38-M6-270°
K:系列代號
39:減速機規格代號
BE3:電機
0.18KW:電機功率
4P:電機級數
106.38:減速機傳動比
M6:減速機安裝位置
270°:接線盒位置
K39減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義
圖 標 | 含 義 |
| 透氣閥 |
| 油位檢查螺栓 |
| 放油螺栓 |
K39減速器安裝所需工具以及材料:
由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。K39減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K39減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K39減速器的安裝位置改變?yōu)镸5或M6,或者M5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將K39減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在K39減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對K39減速器箱體進行連接接地。直角減速機
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(K39減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。
K39減速器故障售后服務統籌:
K39減速器潤滑油泄露:K39減速器密封面密封性能不良,擰緊K39減速器蓋上的螺釘并觀察K39減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;K39減速器透氣閥失效,給K39減速器透氣參見“K39減速器說明書的安裝位置”章節。齒輪減速電機
K39減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“K39減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“K39減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;
K39減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“K39減速器說明書的檢查/維護”章節;K39減速器安裝位置錯誤,正確安裝透氣閥參見“K39減速器說明書的安裝位置”章節,調節油位參見“K39減速器說明書的檢查/維護”章節。
K39減速器電機或輸入軸轉動,而輸出軸不轉:K39減速器中的軸輪轂聯接斷裂,將K39減速器或減速電機送來我司修理。K系列減速機
在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對K39減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。
