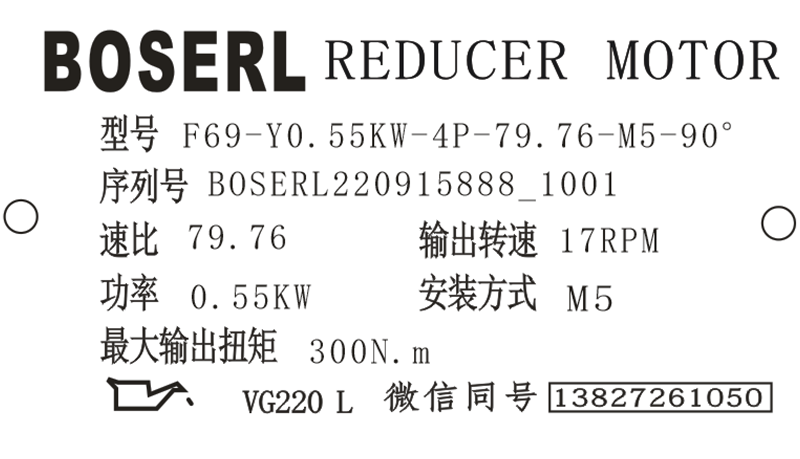

F69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F69減速器選型樣本。

F69-Y0.55KW-4P-79.76-M5-90°

F：系列代號

69：減速機規格代號

Y：電機

0.55KW：電機功率

4P：電機級數

79.76：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

F69減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

F69減速器安裝所需工具以及材料：

F69減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。F69減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將F69減速器的安裝位置改變?yōu)镸5或M6，或者M(jìn)5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將F69減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在F69減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對F69減速器箱體進行連接接地。F系列減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（F69減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

F69減速器故障售后服務統籌：

F69減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“F69減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“F69減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；齒輪減速電機

F69減速器潤滑油泄露：F69減速器密封面密封性能不良，擰緊F69減速器蓋上的螺釘并觀察F69減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；F69減速器透氣閥失效，給F69減速器透氣參見“F69減速器說明書的安裝位置”章節。

F69減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“F69減速器說明書的檢查/維護”章節；F69減速器安裝位置錯誤，正確安裝透氣閥參見“F69減速器說明書的安裝位置”章節，調節油位參見“F69減速器說明書的檢查/維護”章節。

F69減速器電機或輸入軸轉動，而輸出軸不轉：F69減速器中的軸輪轂聯接斷裂，將F69減速器或減速電機送來我司修理。

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對F69減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。平行軸斜齒輪減速機

F69減速器型號：

FW67-Y0.18KW，F(xiàn)W67-Y0.25KW，F(xiàn)W67-Y0.37KW，F(xiàn)W67-Y0.55KW，F(xiàn)W67-Y0.75KW，F(xiàn)W67-Y1.1KW，F(xiàn)W67-Y1.5KW，F(xiàn)W67-Y100M4，F(xiàn)W67-Y112M4，F(xiàn)W67-Y132M4，F(xiàn)W67-Y2.2KW，F(xiàn)W67-Y3KW，F(xiàn)W67-Y4KW，F(xiàn)W67-Y5.5KW，F(xiàn)W67-Y63M4，F(xiàn)W67-Y71M4，F(xiàn)W67-Y80M4，F(xiàn)W67-Y90M4，F(xiàn)W67-YB100M4，F(xiàn)W67-YB112M4，F(xiàn)W67-YB132M4，F(xiàn)W67-YB63M4，F(xiàn)W67-YB71M4，F(xiàn)W67-YB80M4，F(xiàn)W67-YB90M4，F(xiàn)W67-YDP100M4，F(xiàn)W67-YDP112M4，F(xiàn)W67-YDP132M4，F(xiàn)W67-YDP63M4，F(xiàn)W67-YDP71M4，F(xiàn)W67-YDP80M4，F(xiàn)W67-YDP90M4，F(xiàn)W67-YE100M4，F(xiàn)W67-YE112M4，F(xiàn)W67-YE132M4，F(xiàn)W67-YE63M4，F(xiàn)W67-YE71M4，F(xiàn)W67-YE80M4，F(xiàn)W67-YE90M4，F(xiàn)W67-YEJ100M4，F(xiàn)W67-YEJ112M4，F(xiàn)W67-YEJ132M4，F(xiàn)W67-YEJ63M4，F(xiàn)W67-YEJ71M4，F(xiàn)W67-YEJ80M4，F(xiàn)W67-YEJ90M4，F(xiàn)W67-YEJB100M4，F(xiàn)W67-YEJB112M4，F(xiàn)W67-YEJB132M4，F(xiàn)W67-YEJB63M4，F(xiàn)W67-YEJB71M4，F(xiàn)W67-YEJB80M4，F(xiàn)W67-YEJB90M4，F(xiàn)W67-YP100M4，F(xiàn)W67-YP112M4，F(xiàn)W67-YP132M4，F(xiàn)W67-YP63M4，F(xiàn)W67-YP71M4，F(xiàn)W67-YP80M4，F(xiàn)W67-YP90M4，F(xiàn)W67-YPB100M4，F(xiàn)W67-YPB112M4，F(xiàn)W67-YPB132M4，F(xiàn)W67-YPB63M4，F(xiàn)W67-YPB71M4，F(xiàn)W67-YPB80M4，F(xiàn)W67-YPB90M4，F(xiàn)W67-YPE100M4，F(xiàn)W67-YPE112M4，F(xiàn)W67-YPE132M4，F(xiàn)W67-YPE63M4，F(xiàn)W67-YPE71M4，F(xiàn)W67-YPE80M4，F(xiàn)W67-YPE90M4，F(xiàn)W67-YS100M4，F(xiàn)W67-YS112M4，F(xiàn)W67-YS132M4，F(xiàn)W67-YS63M4，F(xiàn)W67-YS71M4，F(xiàn)W67-YS80M4，F(xiàn)W67-YS90M4，F(xiàn)W67-YVB100M4，F(xiàn)W67-YVB112M4，F(xiàn)W67-YVB132M4，F(xiàn)W67-YVB63M4，F(xiàn)W67-YVB71M4，F(xiàn)W67-YVB80M4，F(xiàn)W67-YVB90M4，F(xiàn)W67-YVP100M4，F(xiàn)W67-YVP112M4，F(xiàn)W67-YVP132M4，F(xiàn)W67-YVP63M4，F(xiàn)W67-YVP71M4，F(xiàn)W67-YVP80M4，F(xiàn)W67-YVP90M4，F(xiàn)W67-YVPEJ100M4，F(xiàn)W67-YVPEJ112M4，F(xiàn)W67-YVPEJ132M4，F(xiàn)W67-YVPEJ63M4，F(xiàn)W67-YVPEJ71M4，F(xiàn)W67-YVPEJ80M4，F(xiàn)W67-YVPEJ90M4，JCF67-Y0.18KW，JCF67-Y0.25KW，JCF67-Y0.37KW，JCF67-Y0.55KW，JCF67-Y0.75KW，JCF67-Y1.1KW，JCF67-Y1.5KW，JCF67-Y100M4，JCF67-Y112M4，JCF67-Y132M4，JCF67-Y2.2KW，JCF67-Y3KW，JCF67-Y4KW，JCF67-Y5.5KW，JCF67-Y63M4，JCF67-Y71M4，JCF67-Y80M4，JCF67-Y90M4，JCF67-YB100M4，JCF67-YB112M4，JCF67-YB132M4，JCF67-YB63M4，JCF67-YB71M4，JCF67-YB80M4，JCF67-YB90M4，JCF67-YDP100M4，JCF67-YDP112M4，JCF67-YDP132M4，JCF67-YDP63M4，JCF67-YDP71M4，JCF67-YDP80M4，JCF67-YDP90M4，JCF67-YE100M4，JCF67-YE112M4，JCF67-YE132M4，JCF67-YE63M4，JCF67-YE71M4，JCF67-YE80M4，JCF67-YE90M4，JCF67-YEJ100M4，JCF67-YEJ112M4，JCF67-YEJ132M4，JCF67-YEJ63M4，JCF67-YEJ71M4，JCF67-YEJ80M4，JCF67-YEJ90M4，JCF67-YEJB100M4，JCF67-YEJB112M4，JCF67-YEJB132M4，JCF67-YEJB63M4，JCF67-YEJB71M4，JCF67-YEJB80M4，JCF67-YEJB90M4，JCF67-YP100M4，JCF67-YP112M4，JCF67-YP132M4，JCF67-YP63M4，JCF67-YP71M4，JCF67-YP80M4，JCF67-YP90M4，JCF67-YPB100M4，JCF67-YPB112M4，JCF67-YPB132M4，JCF67-YPB63M4，JCF67-YPB71M4，JCF67-YPB80M4，JCF67-YPB90M4，JCF67-YPE100M4，JCF67-YPE112M4，JCF67-YPE132M4，JCF67-YPE63M4，JCF67-YPE71M4，JCF67-YPE80M4，JCF67-YPE90M4，JCF67-YS100M4，JCF67-YS112M4，JCF67-YS132M4，JCF67-YS63M4，JCF67-YS71M4，JCF67-YS80M4，JCF67-YS90M4，JCF67-YVB100M4，JCF67-YVB112M4，JCF67-YVB132M4，JCF67-YVB63M4，JCF67-YVB71M4，JCF67-YVB80M4，JCF67-YVB90M4，JCF67-YVP100M4，JCF67-YVP112M4，JCF67-YVP132M4，JCF67-YVP63M4，JCF67-YVP71M4，JCF67-YVP80M4，JCF67-YVP90M4，JCF67-YVPEJ100M4，JCF67-YVPEJ112M4，JCF67-YVPEJ132M4，JCF67-YVPEJ63M4，JCF67-YVPEJ71M4，JCF67-YVPEJ80M4，JCF67-YVPEJ90M4，XDF67-Y0.18KW，XDF67-Y0.25KW，XDF67-Y0.37KW，XDF67-Y0.55KW，XDF67-Y0.75KW，XDF67-Y1.1KW，XDF67-Y1.5KW，XDF67-Y100M4，XDF67-Y112M4，XDF67-Y132M4，XDF67-Y2.2KW，XDF67-Y3KW，XDF67-Y4KW，XDF67-Y5.5KW，XDF67-Y63M4，XDF67-Y71M4，XDF67-Y80M4，XDF67-Y90M4，XDF67-YB100M4，XDF67-YB112M4，XDF67-YB132M4，XDF67-YB63M4，XDF67-YB71M4，XDF67-YB80M4，XDF67-YB90M4，XDF67-YDP100M4，XDF67-YDP112M4，XDF67-YDP132M4，XDF67-YDP63M4，XDF67-YDP71M4，XDF67-YDP80M4，XDF67-YDP90M4，XDF67-YE100M4，XDF67-YE112M4，XDF67-YE132M4，XDF67-YE63M4，XDF67-YE71M4，XDF67-YE80M4，XDF67-YE90M4，XDF67-YEJ100M4，XDF67-YEJ112M4，XDF67-YEJ132M4，XDF67-YEJ63M4，XDF67-YEJ71M4，XDF67-YEJ80M4，XDF67-YEJ90M4，XDF67-YEJB100M4，XDF67-YEJB112M4，XDF67-YEJB132M4，XDF67-YEJB63M4，XDF67-YEJB71M4，XDF67-YEJB80M4，XDF67-YEJB90M4，XDF67-YP100M4，XDF67-YP112M4，XDF67-YP132M4，XDF67-YP63M4，XDF67-YP71M4，XDF67-YP80M4，XDF67-YP90M4，XDF67-YPB100M4，XDF67-YPB112M4，XDF67-YPB132M4，XDF67-YPB63M4，XDF67-YPB71M4，XDF67-YPB80M4，XDF67-YPB90M4，XDF67-YPE100M4，XDF67-YPE112M4，XDF67-YPE132M4，XDF67-YPE63M4，XDF67-YPE71M4，XDF67-YPE80M4，XDF67-YPE90M4，XDF67-YS100M4，XDF67-YS112M4，XDF67-YS132M4，XDF67-YS63M4，XDF67-YS71M4，XDF67-YS80M4，XDF67-YS90M4，XDF67-YVB100M4，XDF67-YVB112M4，XDF67-YVB132M4，XDF67-YVB63M4，XDF67-YVB71M4，XDF67-YVB80M4，XDF67-YVB90M4，XDF67-YVP100M4，XDF67-YVP112M4，XDF67-YVP132M4，XDF67-YVP63M4，XDF67-YVP71M4，XDF67-YVP80M4，XDF67-YVP90M4，XDF67-YVPEJ100M4，XDF67-YVPEJ112M4，XDF67-YVPEJ132M4，XDF67-YVPEJ63M4，XDF67-YVPEJ71M4，XDF67-YVPEJ80M4，XDF67-YVPEJ90M4，YQF67-Y0.18KW，YQF67-Y0.25KW，YQF67-Y0.37KW，YQF67-Y0.55KW，YQF67-Y0.75KW，YQF67-Y1.1KW，YQF67-Y1.5KW，YQF67-Y100M4，YQF67-Y112M4，YQF67-Y132M4，YQF67-Y2.2KW，YQF67-Y3KW，YQF67-Y4KW，YQF67-Y5.5KW，YQF67-Y63M4，YQF67-Y71M4，YQF67-Y80M4，YQF67-Y90M4，YQF67-YB100M4，YQF67-YB112M4，YQF67-YB132M4，YQF67-YB63M4，YQF67-YB71M4，YQF67-YB80M4，YQF67-YB90M4，YQF67-YDP100M4，YQF67-YDP112M4，YQF67-YDP132M4，YQF67-YDP63M4，YQF67-YDP71M4，YQF67-YDP80M4，YQF67-YDP90M4，YQF67-YE100M4，YQF67-YE112M4，YQF67-YE132M4，YQF67-YE63M4，YQF67-YE71M4，YQF67-YE80M4，YQF67-YE90M4，YQF67-YEJ100M4，YQF67-YEJ112M4，YQF67-YEJ132M4，YQF67-YEJ63M4，YQF67-YEJ71M4，YQF67-YEJ80M4，YQF67-YEJ90M4，YQF67-YEJB100M4，YQF67-YEJB112M4，YQF67-YEJB132M4，YQF67-YEJB63M4，YQF67-YEJB71M4，YQF67-YEJB80M4，YQF67-YEJB90M4，YQF67-YP100M4，YQF67-YP112M4，YQF67-YP132M4，YQF67-YP63M4，YQF67-YP71M4，YQF67-YP80M4，YQF67-YP90M4，YQF67-YPB100M4，YQF67-YPB112M4，YQF67-YPB132M4，YQF67-YPB63M4，YQF67-YPB71M4，YQF67-YPB80M4，YQF67-YPB90M4，YQF67-YPE100M4，YQF67-YPE112M4，YQF67-YPE132M4，YQF67-YPE63M4，YQF67-YPE71M4，YQF67-YPE80M4，YQF67-YPE90M4，YQF67-YS100M4，YQF67-YS112M4，YQF67-YS132M4，YQF67-YS63M4，YQF67-YS71M4，YQF67-YS80M4，YQF67-YS90M4，YQF67-YVB100M4，YQF67-YVB112M4，YQF67-YVB132M4，YQF67-YVB63M4，YQF67-YVB71M4，YQF67-YVB80M4，YQF67-YVB90M4，YQF67-YVP100M4，YQF67-YVP112M4，YQF67-YVP132M4，YQF67-YVP63M4，YQF67-YVP71M4，YQF67-YVP80M4，YQF67-YVP90M4，YQF67-YVPEJ100M4，YQF67-YVPEJ112M4，YQF67-YVPEJ132M4，YQF67-YVPEJ63M4，YQF67-YVPEJ71M4，YQF67-YVPEJ80M4，YQF67-YVPEJ90M4，F(xiàn)69-Y0.18KW，F(xiàn)69-Y0.25KW，F(xiàn)69-Y0.37KW，F(xiàn)69-Y0.55KW，F(xiàn)69-Y0.75KW，F(xiàn)69-Y1.1KW，F(xiàn)69-Y1.5KW，F(xiàn)69-Y100M4，F(xiàn)69-Y112M4，F(xiàn)69-Y132M4，F(xiàn)69-Y2.2KW，F(xiàn)69-Y3KW，F(xiàn)69-Y4KW，F(xiàn)69-Y5.5KW，F(xiàn)69-Y63M4，F(xiàn)69-Y71M4，F(xiàn)69-Y80M4，F(xiàn)69-Y90M4，F(xiàn)69-YB100M4，F(xiàn)69-YB112M4，F(xiàn)69-YB132M4，F(xiàn)69-YB63M4，F(xiàn)69-YB71M4，F(xiàn)69-YB80M4，F(xiàn)69-YB90M4，F(xiàn)69-YDP100M4，F(xiàn)69-YDP112M4，F(xiàn)69-YDP132M4，F(xiàn)69-YDP63M4，F(xiàn)69-YDP71M4，F(xiàn)69-YDP80M4，F(xiàn)69-YDP90M4，F(xiàn)69-YE100M4，F(xiàn)69-YE112M4，F(xiàn)69-YE132M4，F(xiàn)69-YE63M4，F(xiàn)69-YE71M4，F(xiàn)69-YE80M4，F(xiàn)69-YE90M4，F(xiàn)69-YEJ100M4，F(xiàn)69-YEJ112M4，F(xiàn)69-YEJ132M4，F(xiàn)69-YEJ63M4，F(xiàn)69-YEJ71M4，F(xiàn)69-YEJ80M4，F(xiàn)69-YEJ90M4，F(xiàn)69-YEJB100M4，F(xiàn)69-YEJB112M4，F(xiàn)69-YEJB132M4，F(xiàn)69-YEJB63M4，F(xiàn)69-YEJB71M4，F(xiàn)69-YEJB80M4，F(xiàn)69-YEJB90M4，F(xiàn)69-YP100M4，F(xiàn)69-YP112M4，F(xiàn)69-YP132M4，F(xiàn)69-YP63M4，F(xiàn)69-YP71M4，F(xiàn)69-YP80M4，F(xiàn)69-YP90M4，F(xiàn)69-YPB100M4，F(xiàn)69-YPB112M4，F(xiàn)69-YPB132M4，F(xiàn)69-YPB63M4，F(xiàn)69-YPB71M4，F(xiàn)69-YPB80M4，F(xiàn)69-YPB90M4，F(xiàn)69-YPE100M4，F(xiàn)69-YPE112M4，F(xiàn)69-YPE132M4，F(xiàn)69-YPE63M4，F(xiàn)69-YPE71M4，F(xiàn)69-YPE80M4，F(xiàn)69-YPE90M4，F(xiàn)69-YS100M4，F(xiàn)69-YS112M4，F(xiàn)69-YS132M4，F(xiàn)69-YS63M4，F(xiàn)69-YS71M4，F(xiàn)69-YS80M4，F(xiàn)69-YS90M4，F(xiàn)69-YVB100M4，F(xiàn)69-YVB112M4，F(xiàn)69-YVB132M4，F(xiàn)69-YVB63M4，F(xiàn)69-YVB71M4，F(xiàn)69-YVB80M4，F(xiàn)69-YVB90M4，F(xiàn)69-YVP100M4，F(xiàn)69-YVP112M4，F(xiàn)69-YVP132M4，F(xiàn)69-YVP63M4，F(xiàn)69-YVP71M4，F(xiàn)69-YVP80M4，F(xiàn)69-YVP90M4，F(xiàn)69-YVPEJ100M4，F(xiàn)69-YVPEJ112M4，F(xiàn)69-YVPEJ132M4，F(xiàn)69-YVPEJ63M4，F(xiàn)69-YVPEJ71M4，F(xiàn)69-YVPEJ80M4，F(xiàn)69-YVPEJ90M4，F(xiàn)67SF80，F(xiàn)67SF90，F(xiàn)67SF100，F(xiàn)67SF112，F(xiàn)67SF115，F(xiàn)67SF140，F(xiàn)67SF160，F(xiàn)67SF190。
