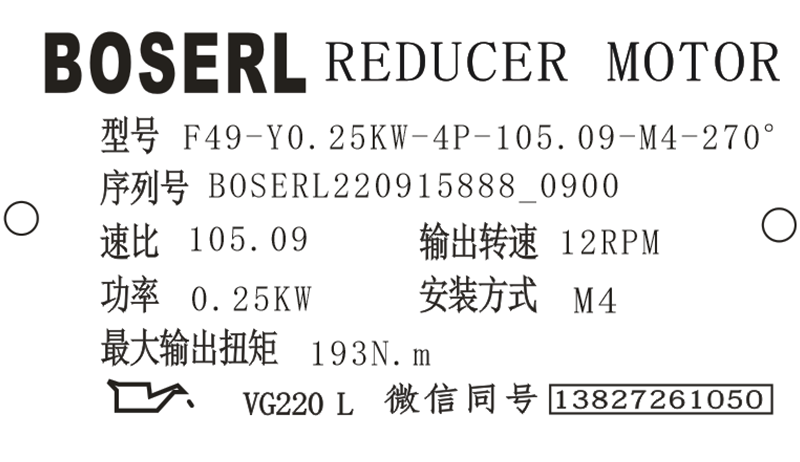

F49減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F49減速器選型樣本。
F49-Y0.25KW-4P-105.09-M4-270°
F:系列代號
49:減速機規格代號
Y:電機
0.25KW:電機功率
4P:電機級數
105.09:減速機傳動比
M4:減速機安裝位置
270°:接線盒位置
F49減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義
圖 標 | 含 義 |
| 透氣閥 |
| 油位檢查螺栓 |
| 放油螺栓 |
F49減速器安裝所需工具以及材料:
F49減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。F49減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將F49減速器的安裝位置改變?yōu)镸5或M6,或者M(jìn)5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將F49減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在F49減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對F49減速器箱體進行連接接地。F系列減速機
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(F49減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。
F49減速器故障售后服務統籌:
F49減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“F49減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“F49減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;齒輪減速電機
F49減速器潤滑油泄露:F49減速器密封面密封性能不良,擰緊F49減速器蓋上的螺釘并觀察F49減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;F49減速器透氣閥失效,給F49減速器透氣參見“F49減速器說明書的安裝位置”章節。
F49減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“F49減速器說明書的檢查/維護”章節;F49減速器安裝位置錯誤,正確安裝透氣閥參見“F49減速器說明書的安裝位置”章節,調節油位參見“F49減速器說明書的檢查/維護”章節。
F49減速器電機或輸入軸轉動,而輸出軸不轉:F49減速器中的軸輪轂聯接斷裂,將F49減速器或減速電機送來我司修理。
在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對F49減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。平行軸斜齒輪減速機
F49減速器型號:
FW47-Y0.12KW,F(xiàn)W47-Y0.18KW,F(xiàn)W47-Y0.25KW,F(xiàn)W47-Y0.37KW,F(xiàn)W47-Y0.55KW,F(xiàn)W47-Y0.75KW,F(xiàn)W47-Y1.1KW,F(xiàn)W47-Y1.5KW,F(xiàn)W47-Y100M4,F(xiàn)W47-Y2.2KW,F(xiàn)W47-Y3KW,F(xiàn)W47-Y63M4,F(xiàn)W47-Y71M4,F(xiàn)W47-Y80M4,F(xiàn)W47-Y90M4,F(xiàn)W47-YB100M4,F(xiàn)W47-YB63M4,F(xiàn)W47-YB71M4,F(xiàn)W47-YB80M4,F(xiàn)W47-YB90M4,F(xiàn)W47-YDP100M4,F(xiàn)W47-YDP63M4,F(xiàn)W47-YDP71M4,F(xiàn)W47-YDP80M4,F(xiàn)W47-YDP90M4,F(xiàn)W47-YE100M4,F(xiàn)W47-YE63M4,F(xiàn)W47-YE71M4,F(xiàn)W47-YE80M4,F(xiàn)W47-YE90M4,F(xiàn)W47-YEJ100M4,F(xiàn)W47-YEJ63M4,F(xiàn)W47-YEJ71M4,F(xiàn)W47-YEJ80M4,F(xiàn)W47-YEJ90M4,F(xiàn)W47-YEJB100M4,F(xiàn)W47-YEJB63M4,F(xiàn)W47-YEJB71M4,F(xiàn)W47-YEJB80M4,F(xiàn)W47-YEJB90M4,F(xiàn)W47-YP100M4,F(xiàn)W47-YP63M4,F(xiàn)W47-YP71M4,F(xiàn)W47-YP80M4,F(xiàn)W47-YP90M4,F(xiàn)W47-YPB100M4,F(xiàn)W47-YPB63M4,F(xiàn)W47-YPB71M4,F(xiàn)W47-YPB80M4,F(xiàn)W47-YPB90M4,F(xiàn)W47-YPE100M4,F(xiàn)W47-YPE63M4,F(xiàn)W47-YPE71M4,F(xiàn)W47-YPE80M4,F(xiàn)W47-YPE90M4,F(xiàn)W47-YS100M4,F(xiàn)W47-YS63M4,F(xiàn)W47-YS71M4,F(xiàn)W47-YS80M4,F(xiàn)W47-YS90M4,F(xiàn)W47-YVB100M4,F(xiàn)W47-YVB63M4,F(xiàn)W47-YVB71M4,F(xiàn)W47-YVB80M4,F(xiàn)W47-YVB90M4,F(xiàn)W47-YVP100M4,F(xiàn)W47-YVP63M4,F(xiàn)W47-YVP71M4,F(xiàn)W47-YVP80M4,F(xiàn)W47-YVP90M4,F(xiàn)W47-YVPEJ100M4,F(xiàn)W47-YVPEJ63M4,F(xiàn)W47-YVPEJ71M4,F(xiàn)W47-YVPEJ80M4,F(xiàn)W47-YVPEJ90M4,JCF47-Y0.12KW,JCF47-Y0.18KW,JCF47-Y0.25KW,JCF47-Y0.37KW,JCF47-Y0.55KW,JCF47-Y0.75KW,JCF47-Y1.1KW,JCF47-Y1.5KW,JCF47-Y100M4,JCF47-Y2.2KW,JCF47-Y3KW,JCF47-Y63M4,JCF47-Y71M4,JCF47-Y80M4,JCF47-Y90M4,JCF47-YB100M4,JCF47-YB63M4,JCF47-YB71M4,JCF47-YB80M4,JCF47-YB90M4,JCF47-YDP100M4,JCF47-YDP63M4,JCF47-YDP71M4,JCF47-YDP80M4,JCF47-YDP90M4,JCF47-YE100M4,JCF47-YE63M4,JCF47-YE71M4,JCF47-YE80M4,JCF47-YE90M4,JCF47-YEJ100M4,JCF47-YEJ63M4,JCF47-YEJ71M4,JCF47-YEJ80M4,JCF47-YEJ90M4,JCF47-YEJB100M4,JCF47-YEJB63M4,JCF47-YEJB71M4,JCF47-YEJB80M4,JCF47-YEJB90M4,JCF47-YP100M4,JCF47-YP63M4,JCF47-YP71M4,JCF47-YP80M4,JCF47-YP90M4,JCF47-YPB100M4,JCF47-YPB63M4,JCF47-YPB71M4,JCF47-YPB80M4,JCF47-YPB90M4,JCF47-YPE100M4,JCF47-YPE63M4,JCF47-YPE71M4,JCF47-YPE80M4,JCF47-YPE90M4,JCF47-YS100M4,JCF47-YS63M4,JCF47-YS71M4,JCF47-YS80M4,JCF47-YS90M4,JCF47-YVB100M4,JCF47-YVB63M4,JCF47-YVB71M4,JCF47-YVB80M4,JCF47-YVB90M4,JCF47-YVP100M4,JCF47-YVP63M4,JCF47-YVP71M4,JCF47-YVP80M4,JCF47-YVP90M4,JCF47-YVPEJ100M4,JCF47-YVPEJ63M4,JCF47-YVPEJ71M4,JCF47-YVPEJ80M4,JCF47-YVPEJ90M4,XDF47-Y0.12KW,XDF47-Y0.18KW,XDF47-Y0.25KW,XDF47-Y0.37KW,XDF47-Y0.55KW,XDF47-Y0.75KW,XDF47-Y1.1KW,XDF47-Y1.5KW,XDF47-Y100M4,XDF47-Y2.2KW,XDF47-Y3KW,XDF47-Y63M4,XDF47-Y71M4,XDF47-Y80M4,XDF47-Y90M4,XDF47-YB100M4,XDF47-YB63M4,XDF47-YB71M4,XDF47-YB80M4,XDF47-YB90M4,XDF47-YDP100M4,XDF47-YDP63M4,XDF47-YDP71M4,XDF47-YDP80M4,XDF47-YDP90M4,XDF47-YE100M4,XDF47-YE63M4,XDF47-YE71M4,XDF47-YE80M4,XDF47-YE90M4,XDF47-YEJ100M4,XDF47-YEJ63M4,XDF47-YEJ71M4,XDF47-YEJ80M4,XDF47-YEJ90M4,XDF47-YEJB100M4,XDF47-YEJB63M4,XDF47-YEJB71M4,XDF47-YEJB80M4,XDF47-YEJB90M4,XDF47-YP100M4,XDF47-YP63M4,XDF47-YP71M4,XDF47-YP80M4,XDF47-YP90M4,XDF47-YPB100M4,XDF47-YPB63M4,XDF47-YPB71M4,XDF47-YPB80M4,XDF47-YPB90M4,XDF47-YPE100M4,XDF47-YPE63M4,XDF47-YPE71M4,XDF47-YPE80M4,XDF47-YPE90M4,XDF47-YS100M4,XDF47-YS63M4,XDF47-YS71M4,XDF47-YS80M4,XDF47-YS90M4,XDF47-YVB100M4,XDF47-YVB63M4,XDF47-YVB71M4,XDF47-YVB80M4,XDF47-YVB90M4,XDF47-YVP100M4,XDF47-YVP63M4,XDF47-YVP71M4,XDF47-YVP80M4,XDF47-YVP90M4,XDF47-YVPEJ100M4,XDF47-YVPEJ63M4,XDF47-YVPEJ71M4,XDF47-YVPEJ80M4,XDF47-YVPEJ90M4,YQF47-Y0.12KW,YQF47-Y0.18KW,YQF47-Y0.25KW,YQF47-Y0.37KW,YQF47-Y0.55KW,YQF47-Y0.75KW,YQF47-Y1.1KW,YQF47-Y1.5KW,YQF47-Y100M4,YQF47-Y2.2KW,YQF47-Y3KW,YQF47-Y63M4,YQF47-Y71M4,YQF47-Y80M4,YQF47-Y90M4,YQF47-YB100M4,YQF47-YB63M4,YQF47-YB71M4,YQF47-YB80M4,YQF47-YB90M4,YQF47-YDP100M4,YQF47-YDP63M4,YQF47-YDP71M4,YQF47-YDP80M4,YQF47-YDP90M4,YQF47-YE100M4,YQF47-YE63M4,YQF47-YE71M4,YQF47-YE80M4,YQF47-YE90M4,YQF47-YEJ100M4,YQF47-YEJ63M4,YQF47-YEJ71M4,YQF47-YEJ80M4,YQF47-YEJ90M4,YQF47-YEJB100M4,YQF47-YEJB63M4,YQF47-YEJB71M4,YQF47-YEJB80M4,YQF47-YEJB90M4,YQF47-YP100M4,YQF47-YP63M4,YQF47-YP71M4,YQF47-YP80M4,YQF47-YP90M4,YQF47-YPB100M4,YQF47-YPB63M4,YQF47-YPB71M4,YQF47-YPB80M4,YQF47-YPB90M4,YQF47-YPE100M4,YQF47-YPE63M4,YQF47-YPE71M4,YQF47-YPE80M4,YQF47-YPE90M4,YQF47-YS100M4,YQF47-YS63M4,YQF47-YS71M4,YQF47-YS80M4,YQF47-YS90M4,YQF47-YVB100M4,YQF47-YVB63M4,YQF47-YVB71M4,YQF47-YVB80M4,YQF47-YVB90M4,YQF47-YVP100M4,YQF47-YVP63M4,YQF47-YVP71M4,YQF47-YVP80M4,YQF47-YVP90M4,YQF47-YVPEJ100M4,YQF47-YVPEJ63M4,YQF47-YVPEJ71M4,YQF47-YVPEJ80M4,YQF47-YVPEJ90M4,F(xiàn)49-Y0.12KW,F(xiàn)49-Y0.18KW,F(xiàn)49-Y0.25KW,F(xiàn)49-Y0.37KW,F(xiàn)49-Y0.55KW,F(xiàn)49-Y0.75KW,F(xiàn)49-Y1.1KW,F(xiàn)49-Y1.5KW,F(xiàn)49-Y100M4,F(xiàn)49-Y2.2KW,F(xiàn)49-Y3KW,F(xiàn)49-Y63M4,F(xiàn)49-Y71M4,F(xiàn)49-Y80M4,F(xiàn)49-Y90M4,F(xiàn)49-YB100M4,F(xiàn)49-YB63M4,F(xiàn)49-YB71M4,F(xiàn)49-YB80M4,F(xiàn)49-YB90M4,F(xiàn)49-YDP100M4,F(xiàn)49-YDP63M4,F(xiàn)49-YDP71M4,F(xiàn)49-YDP80M4,F(xiàn)49-YDP90M4,F(xiàn)49-YE100M4,F(xiàn)49-YE63M4,F(xiàn)49-YE71M4,F(xiàn)49-YE80M4,F(xiàn)49-YE90M4,F(xiàn)49-YEJ100M4,F(xiàn)49-YEJ63M4,F(xiàn)49-YEJ71M4,F(xiàn)49-YEJ80M4,F(xiàn)49-YEJ90M4,F(xiàn)49-YEJB100M4,F(xiàn)49-YEJB63M4,F(xiàn)49-YEJB71M4,F(xiàn)49-YEJB80M4,F(xiàn)49-YEJB90M4,F(xiàn)49-YP100M4,F(xiàn)49-YP63M4,F(xiàn)49-YP71M4,F(xiàn)49-YP80M4,F(xiàn)49-YP90M4,F(xiàn)49-YPB100M4,F(xiàn)49-YPB63M4,F(xiàn)49-YPB71M4,F(xiàn)49-YPB80M4,F(xiàn)49-YPB90M4,F(xiàn)49-YPE100M4,F(xiàn)49-YPE63M4,F(xiàn)49-YPE71M4,F(xiàn)49-YPE80M4,F(xiàn)49-YPE90M4,F(xiàn)49-YS100M4,F(xiàn)49-YS63M4,F(xiàn)49-YS71M4,F(xiàn)49-YS80M4,F(xiàn)49-YS90M4,F(xiàn)49-YVB100M4,F(xiàn)49-YVB63M4,F(xiàn)49-YVB71M4,F(xiàn)49-YVB80M4,F(xiàn)49-YVB90M4,F(xiàn)49-YVP100M4,F(xiàn)49-YVP63M4,F(xiàn)49-YVP71M4,F(xiàn)49-YVP80M4,F(xiàn)49-YVP90M4,F(xiàn)49-YVPEJ100M4,F(xiàn)49-YVPEJ63M4,F(xiàn)49-YVPEJ71M4,F(xiàn)49-YVPEJ80M4,F(xiàn)49-YVPEJ90M4,F(xiàn)47SF80,F(xiàn)47SF90,F(xiàn)47SF100,F(xiàn)47SF112,F(xiàn)47SF115,F(xiàn)47SF140,F(xiàn)47SF160,F(xiàn)47SF190。
F49減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-fxiliejiansuji-cn.html
