網站首頁 > BOSERL減速機 > 斜齒輪蝸輪蝸桿減速機 > SA系列齒輪減速電機

SA69減速器詳細信息

prevnext

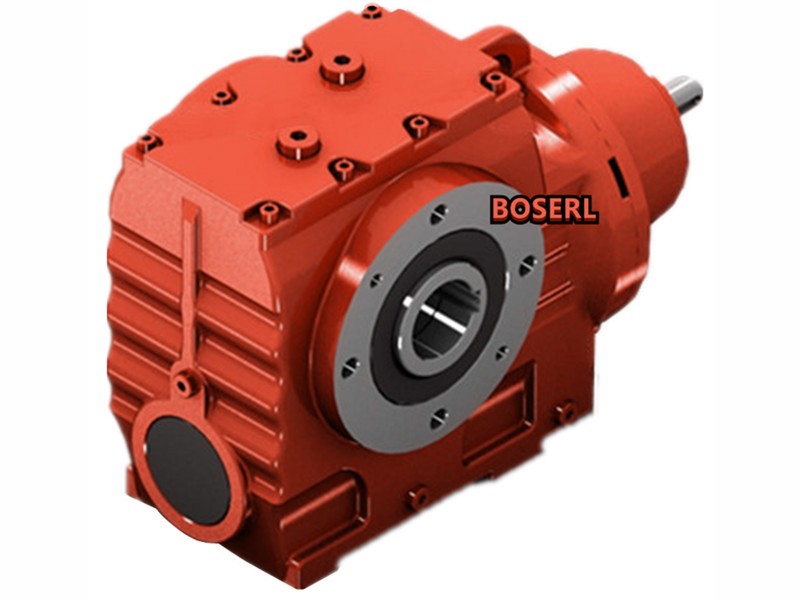

SA69減速器

訂購熱線:13360667204
  1. 詳細信息

SA69減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA69減速器選型樣本。

SA69-BDP1.5KW-4P-46.40-M1-90°

SA:系列代號

69:減速機規格代號

BDP:電機

1.5KW:電機功率

4P:電機級數

46.40:減速機傳動比

M1:減速機安裝位置

90°:接線盒位置


SA69減速器逆止器安裝:

如果低于最小超越轉速,則逆止器將會發生摩擦而產生高溫,可能造成財產損失;在額外工作狀態下,不得低于最小超越轉速;在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格,逆止器的最小超越轉速如下表:

型號

逆止器最大逆止力矩

[Nm]

最小超越轉速

[r/min]

AD2/RS

65

820

AD3/RS

425

620

AD4/RS

850

530

AD5/RS

1450

480

AD6/RS

1950

450

AD7/RS

1950

450

AD8/RS

1950

450

SA69減速器帶逆止器的輸入端裝置AD../RS:安裝或運送前檢查驅動裝置的旋轉方向是否正確,若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中,逆止器不需要特別維護或其他的維護措施。齒輪減速電機

逆止器用來避免逆向轉動;如此便可確保運行過程中的定向轉動。注意:逆向運轉可能導致逆止器損壞;電機不允許逆向轉動;注意供電是否正確,以確保電機定向轉動;可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸(LSS)來確定;順時針旋轉(CW);逆時針旋轉(CCW);應在箱體上標識出許可轉向。自鎖減速機


SA69減速器無油位檢查螺栓和安裝蓋:

通過密封螺栓檢查油位:由于SA69減速器無油位螺栓或安裝蓋,因此需要通過檢查孔進行檢查;按照M5或M6的安裝位置防止SA69減速器,即檢查孔朝上;擰出密封螺栓1(見下圖);將測量標尺垂直通過檢查孔伸入減速器箱體的底部,然后再將測量標尺重新從檢查孔中垂直抽出(見下圖)。


用油標卡尺測出測量標尺上所沾的潤滑油長度(見下圖)。


將側的值“X”與下表中根據安裝位置所列的最小值進行比較,必要情況下調節油位高度;重新擰緊密封螺栓。伺服電機連接減速機

減速機型號

油位=測量標尺上所沾的長度X(mm)安裝位置

SA69減速器

M1

M2

M3

M4

M5

M6

10±1

24±1

34±1

37±1

24±1

24±1


SA69減速器型號:

XDSA67-Y0.18KW,XDSA67-Y0.25KW,XDSA67-Y0.37KW,XDSA67-Y0.55KW,XDSA67-Y0.75KW,XDSA67-Y1.1KW,XDSA67-Y1.5KW,XDSA67-Y100M4,XDSA67-Y112M4,XDSA67-Y132M4,XDSA67-Y2.2KW,XDSA67-Y3KW,XDSA67-Y4KW,XDSA67-Y5.5KW,XDSA67-Y63M4,XDSA67-Y71M4,XDSA67-Y80M4,XDSA67-Y90M4,XDSA67-YB100M4,XDSA67-YB112M4,XDSA67-YB132M4,XDSA67-YB63M4,XDSA67-YB71M4,XDSA67-YB80M4,XDSA67-YB90M4,XDSA67-YDP100M4,XDSA67-YDP112M4,XDSA67-YDP132M4,XDSA67-YDP63M4,XDSA67-YDP71M4,XDSA67-YDP80M4,XDSA67-YDP90M4,XDSA67-YE100M4,XDSA67-YE112M4,XDSA67-YE132M4,XDSA67-YE63M4,XDSA67-YE71M4,XDSA67-YE80M4,XDSA67-YE90M4,XDSA67-YEJ100M4,XDSA67-YEJ112M4,XDSA67-YEJ132M4,XDSA67-YEJ63M4,XDSA67-YEJ71M4,XDSA67-YEJ80M4,XDSA67-YEJ90M4,XDSA67-YEJB100M4,XDSA67-YEJB112M4,XDSA67-YEJB132M4,XDSA67-YEJB63M4,XDSA67-YEJB71M4,XDSA67-YEJB80M4,XDSA67-YEJB90M4,XDSA67-YP100M4,XDSA67-YP112M4,XDSA67-YP132M4,XDSA67-YP63M4,XDSA67-YP71M4,XDSA67-YP80M4,XDSA67-YP90M4,XDSA67-YPB100M4,XDSA67-YPB112M4,XDSA67-YPB132M4,XDSA67-YPB63M4,XDSA67-YPB71M4,XDSA67-YPB80M4,XDSA67-YPB90M4,XDSA67-YPE100M4,XDSA67-YPE112M4,XDSA67-YPE132M4,XDSA67-YPE63M4,XDSA67-YPE71M4,XDSA67-YPE80M4,XDSA67-YPE90M4,XDSA67-YS100M4,XDSA67-YS112M4,XDSA67-YS132M4,XDSA67-YS63M4,XDSA67-YS71M4,XDSA67-YS80M4,XDSA67-YS90M4,XDSA67-YVB100M4,XDSA67-YVB112M4,XDSA67-YVB132M4,XDSA67-YVB63M4,XDSA67-YVB71M4,XDSA67-YVB80M4,XDSA67-YVB90M4,XDSA67-YVP100M4,XDSA67-YVP112M4,XDSA67-YVP132M4,XDSA67-YVP63M4,XDSA67-YVP71M4,XDSA67-YVP80M4,XDSA67-YVP90M4,XDSA67-YVPEJ100M4,XDSA67-YVPEJ112M4,XDSA67-YVPEJ132M4,XDSA67-YVPEJ63M4,XDSA67-YVPEJ71M4,XDSA67-YVPEJ80M4,XDSA67-YVPEJ90M4,SWA67-Y0.18KW,SWA67-Y0.25KW,SWA67-Y0.37KW,SWA67-Y0.55KW,SWA67-Y0.75KW,SWA67-Y1.1KW,SWA67-Y1.5KW,SWA67-Y100M4,SWA67-Y112M4,SWA67-Y132M4,SWA67-Y2.2KW,SWA67-Y3KW,SWA67-Y4KW,SWA67-Y5.5KW,SWA67-Y63M4,SWA67-Y71M4,SWA67-Y80M4,SWA67-Y90M4,SWA67-YB100M4,SWA67-YB112M4,SWA67-YB132M4,SWA67-YB63M4,SWA67-YB71M4,SWA67-YB80M4,SWA67-YB90M4,SWA67-YDP100M4,SWA67-YDP112M4,SWA67-YDP132M4,SWA67-YDP63M4,SWA67-YDP71M4,SWA67-YDP80M4,SWA67-YDP90M4,SWA67-YE100M4,SWA67-YE112M4,SWA67-YE132M4,SWA67-YE63M4,SWA67-YE71M4,SWA67-YE80M4,SWA67-YE90M4,SWA67-YEJ100M4,SWA67-YEJ112M4,SWA67-YEJ132M4,SWA67-YEJ63M4,SWA67-YEJ71M4,SWA67-YEJ80M4,SWA67-YEJ90M4,SWA67-YEJB100M4,SWA67-YEJB112M4,SWA67-YEJB132M4,SWA67-YEJB63M4,SWA67-YEJB71M4,SWA67-YEJB80M4,SWA67-YEJB90M4,SWA67-YP100M4,SWA67-YP112M4,SWA67-YP132M4,SWA67-YP63M4,SWA67-YP71M4,SWA67-YP80M4,SWA67-YP90M4,SWA67-YPB100M4,SWA67-YPB112M4,SWA67-YPB132M4,SWA67-YPB63M4,SWA67-YPB71M4,SWA67-YPB80M4,SWA67-YPB90M4,SWA67-YPE100M4,SWA67-YPE112M4,SWA67-YPE132M4,SWA67-YPE63M4,SWA67-YPE71M4,SWA67-YPE80M4,SWA67-YPE90M4,SWA67-YS100M4,SWA67-YS112M4,SWA67-YS132M4,SWA67-YS63M4,SWA67-YS71M4,SWA67-YS80M4,SWA67-YS90M4,SWA67-YVB100M4,SWA67-YVB112M4,SWA67-YVB132M4,SWA67-YVB63M4,SWA67-YVB71M4,SWA67-YVB80M4,SWA67-YVB90M4,SWA67-YVP100M4,SWA67-YVP112M4,SWA67-YVP132M4,SWA67-YVP63M4,SWA67-YVP71M4,SWA67-YVP80M4,SWA67-YVP90M4,SWA67-YVPEJ100M4,SWA67-YVPEJ112M4,SWA67-YVPEJ132M4,SWA67-YVPEJ63M4,SWA67-YVPEJ71M4,SWA67-YVPEJ80M4,SWA67-YVPEJ90M4,JCSA67-Y0.18KW,JCSA67-Y0.25KW,JCSA67-Y0.37KW,JCSA67-Y0.55KW,JCSA67-Y0.75KW,JCSA67-Y1.1KW,JCSA67-Y1.5KW,JCSA67-Y100M4,JCSA67-Y112M4,JCSA67-Y132M4,JCSA67-Y2.2KW,JCSA67-Y3KW,JCSA67-Y4KW,JCSA67-Y5.5KW,JCSA67-Y63M4,JCSA67-Y71M4,JCSA67-Y80M4,JCSA67-Y90M4,JCSA67-YB100M4,JCSA67-YB112M4,JCSA67-YB132M4,JCSA67-YB63M4,JCSA67-YB71M4,JCSA67-YB80M4,JCSA67-YB90M4,JCSA67-YDP100M4,JCSA67-YDP112M4,JCSA67-YDP132M4,JCSA67-YDP63M4,JCSA67-YDP71M4,JCSA67-YDP80M4,JCSA67-YDP90M4,JCSA67-YE100M4,JCSA67-YE112M4,JCSA67-YE132M4,JCSA67-YE63M4,JCSA67-YE71M4,JCSA67-YE80M4,JCSA67-YE90M4,JCSA67-YEJ100M4,JCSA67-YEJ112M4,JCSA67-YEJ132M4,JCSA67-YEJ63M4,JCSA67-YEJ71M4,JCSA67-YEJ80M4,JCSA67-YEJ90M4,JCSA67-YEJB100M4,JCSA67-YEJB112M4,JCSA67-YEJB132M4,JCSA67-YEJB63M4,JCSA67-YEJB71M4,JCSA67-YEJB80M4,JCSA67-YEJB90M4,JCSA67-YP100M4,JCSA67-YP112M4,JCSA67-YP132M4,JCSA67-YP63M4,JCSA67-YP71M4,JCSA67-YP80M4,JCSA67-YP90M4,JCSA67-YPB100M4,JCSA67-YPB112M4,JCSA67-YPB132M4,JCSA67-YPB63M4,JCSA67-YPB71M4,JCSA67-YPB80M4,JCSA67-YPB90M4,JCSA67-YPE100M4,JCSA67-YPE112M4,JCSA67-YPE132M4,JCSA67-YPE63M4,JCSA67-YPE71M4,JCSA67-YPE80M4,JCSA67-YPE90M4,JCSA67-YS100M4,JCSA67-YS112M4,JCSA67-YS132M4,JCSA67-YS63M4,JCSA67-YS71M4,JCSA67-YS80M4,JCSA67-YS90M4,JCSA67-YVB100M4,JCSA67-YVB112M4,JCSA67-YVB132M4,JCSA67-YVB63M4,JCSA67-YVB71M4,JCSA67-YVB80M4,JCSA67-YVB90M4,JCSA67-YVP100M4,JCSA67-YVP112M4,JCSA67-YVP132M4,JCSA67-YVP63M4,JCSA67-YVP71M4,JCSA67-YVP80M4,JCSA67-YVP90M4,JCSA67-YVPEJ100M4,JCSA67-YVPEJ112M4,JCSA67-YVPEJ132M4,JCSA67-YVPEJ63M4,JCSA67-YVPEJ71M4,JCSA67-YVPEJ80M4,JCSA67-YVPEJ90M4,YQSA67-Y0.18KW,YQSA67-Y0.25KW,YQSA67-Y0.37KW,YQSA67-Y0.55KW,YQSA67-Y0.75KW,YQSA67-Y1.1KW,YQSA67-Y1.5KW,YQSA67-Y100M4,YQSA67-Y112M4,YQSA67-Y132M4,YQSA67-Y2.2KW,YQSA67-Y3KW,YQSA67-Y4KW,YQSA67-Y5.5KW,YQSA67-Y63M4,YQSA67-Y71M4,YQSA67-Y80M4,YQSA67-Y90M4,YQSA67-YB100M4,YQSA67-YB112M4,YQSA67-YB132M4,YQSA67-YB63M4,YQSA67-YB71M4,YQSA67-YB80M4,YQSA67-YB90M4,YQSA67-YDP100M4,YQSA67-YDP112M4,YQSA67-YDP132M4,YQSA67-YDP63M4,YQSA67-YDP71M4,YQSA67-YDP80M4,YQSA67-YDP90M4,YQSA67-YE100M4,YQSA67-YE112M4,YQSA67-YE132M4,YQSA67-YE63M4,YQSA67-YE71M4,YQSA67-YE80M4,YQSA67-YE90M4,YQSA67-YEJ100M4,YQSA67-YEJ112M4,YQSA67-YEJ132M4,YQSA67-YEJ63M4,YQSA67-YEJ71M4,YQSA67-YEJ80M4,YQSA67-YEJ90M4,YQSA67-YEJB100M4,YQSA67-YEJB112M4,YQSA67-YEJB132M4,YQSA67-YEJB63M4,YQSA67-YEJB71M4,YQSA67-YEJB80M4,YQSA67-YEJB90M4,YQSA67-YP100M4,YQSA67-YP112M4,YQSA67-YP132M4,YQSA67-YP63M4,YQSA67-YP71M4,YQSA67-YP80M4,YQSA67-YP90M4,YQSA67-YPB100M4,YQSA67-YPB112M4,YQSA67-YPB132M4,YQSA67-YPB63M4,YQSA67-YPB71M4,YQSA67-YPB80M4,YQSA67-YPB90M4,YQSA67-YPE100M4,YQSA67-YPE112M4,YQSA67-YPE132M4,YQSA67-YPE63M4,YQSA67-YPE71M4,YQSA67-YPE80M4,YQSA67-YPE90M4,YQSA67-YS100M4,YQSA67-YS112M4,YQSA67-YS132M4,YQSA67-YS63M4,YQSA67-YS71M4,YQSA67-YS80M4,YQSA67-YS90M4,YQSA67-YVB100M4,YQSA67-YVB112M4,YQSA67-YVB132M4,YQSA67-YVB63M4,YQSA67-YVB71M4,YQSA67-YVB80M4,YQSA67-YVB90M4,YQSA67-YVP100M4,YQSA67-YVP112M4,YQSA67-YVP132M4,YQSA67-YVP63M4,YQSA67-YVP71M4,YQSA67-YVP80M4,YQSA67-YVP90M4,YQSA67-YVPEJ100M4,YQSA67-YVPEJ112M4,YQSA67-YVPEJ132M4,YQSA67-YVPEJ63M4,YQSA67-YVPEJ71M4,YQSA67-YVPEJ80M4,YQSA67-YVPEJ90M4,SA69-Y0.18KW,SA69-Y0.25KW,SA69-Y0.37KW,SA69-Y0.55KW,SA69-Y0.75KW,SA69-Y1.1KW,SA69-Y1.5KW,SA69-Y100M4,SA69-Y112M4,SA69-Y132M4,SA69-Y2.2KW,SA69-Y3KW,SA69-Y4KW,SA69-Y5.5KW,SA69-Y63M4,SA69-Y71M4,SA69-Y80M4,SA69-Y90M4,SA69-YB100M4,SA69-YB112M4,SA69-YB132M4,SA69-YB63M4,SA69-YB71M4,SA69-YB80M4,SA69-YB90M4,SA69-YDP100M4,SA69-YDP112M4,SA69-YDP132M4,SA69-YDP63M4,SA69-YDP71M4,SA69-YDP80M4,SA69-YDP90M4,SA69-YE100M4,SA69-YE112M4,SA69-YE132M4,SA69-YE63M4,SA69-YE71M4,SA69-YE80M4,SA69-YE90M4,SA69-YEJ100M4,SA69-YEJ112M4,SA69-YEJ132M4,SA69-YEJ63M4,SA69-YEJ71M4,SA69-YEJ80M4,SA69-YEJ90M4,SA69-YEJB100M4,SA69-YEJB112M4,SA69-YEJB132M4,SA69-YEJB63M4,SA69-YEJB71M4,SA69-YEJB80M4,SA69-YEJB90M4,SA69-YP100M4,SA69-YP112M4,SA69-YP132M4,SA69-YP63M4,SA69-YP71M4,SA69-YP80M4,SA69-YP90M4,SA69-YPB100M4,SA69-YPB112M4,SA69-YPB132M4,SA69-YPB63M4,SA69-YPB71M4,SA69-YPB80M4,SA69-YPB90M4,SA69-YPE100M4,SA69-YPE112M4,SA69-YPE132M4,SA69-YPE63M4,SA69-YPE71M4,SA69-YPE80M4,SA69-YPE90M4,SA69-YS100M4,SA69-YS112M4,SA69-YS132M4,SA69-YS63M4,SA69-YS71M4,SA69-YS80M4,SA69-YS90M4,SA69-YVB100M4,SA69-YVB112M4,SA69-YVB132M4,SA69-YVB63M4,SA69-YVB71M4,SA69-YVB80M4,SA69-YVB90M4,SA69-YVP100M4,SA69-YVP112M4,SA69-YVP132M4,SA69-YVP63M4,SA69-YVP71M4,SA69-YVP80M4,SA69-YVP90M4,SA69-YVPEJ100M4,SA69-YVPEJ112M4,SA69-YVPEJ132M4,SA69-YVPEJ63M4,SA69-YVPEJ71M4,SA69-YVPEJ80M4,SA69-YVPEJ90M4,SA67SF80,SA67SF90,SA67SF100,SA67SF112,SA67SF115,SA67SF140,SA67SF160,SA67SF190。

SA69減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-saxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S69減速機

關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器

SA系列減速機型號:SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機

SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SA69減速器 SA67斜齒輪減速機 SA67減速機3D模型 SA67型減速機選型參數 SA67臥式減速機一體機 SA67伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SA69減速器3D模型 點擊下載
SA69減速器選型參數 點擊下載
