S39減速器詳細信息

prevnext

S39減速器

訂購熱線:13360667204
  1. 詳細信息

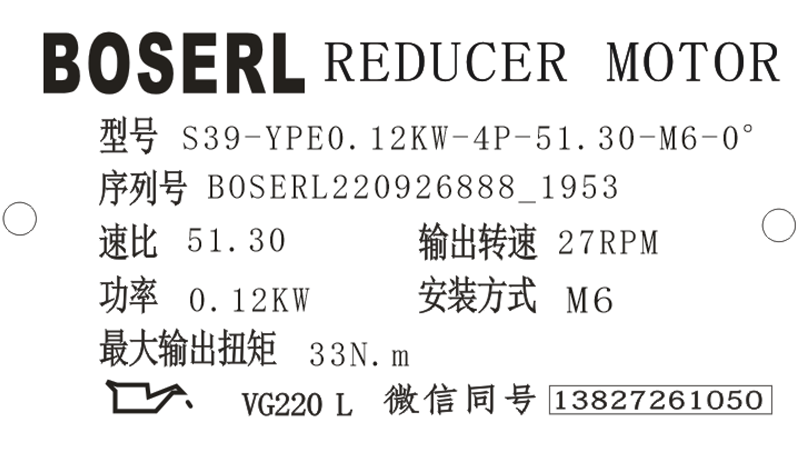

S39減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的S39減速器選型樣本。

S39-YPE0.12KW-4P-51.30-M6-0°

S:系列代號

39:減速機規格代號

YPE:電機

0.12KW:電機功率

4P:電機級數

51.30:減速機傳動比

M6:減速機安裝位置

0°:接線盒位置


S39減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義

圖       標

含   義


透氣閥


油位檢查螺栓


放油螺栓

S39減速器安裝所需工具以及材料:

要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將S39減速器的安裝位置改變?yōu)镸5或M6,或者M(jìn)5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將S39減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。S39減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。S39減速器在出廠時加注了相應油量的潤滑油。為了防止電化學腐蝕,請您在S39減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對S39減速器箱體進行連接接地。

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(S39減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。齒輪減速電機


S39減速器故障售后服務統籌:

S39減速器電機或輸入軸轉動,而輸出軸不轉:S39減速器中的軸輪轂聯接斷裂,將S39減速器或減速電機送來我司修理。

S39減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“S39減速器說明書的檢查/維護”章節;S39減速器安裝位置錯誤,正確安裝透氣閥參見“S39減速器說明書的安裝位置”章節,調節油位參見“S39減速器說明書的檢查/維護”章節。

S39減速器潤滑油泄露:S39減速器密封面密封性能不良,擰緊S39減速器蓋上的螺釘并觀察S39減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;S39減速器透氣閥失效,給S39減速器透氣參見“S39減速器說明書的安裝位置”章節。自鎖減速機

在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對S39減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。

S39減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“S39減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“S39減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;S系列減速機

S39減速器型號:

XDS37-Y0.12KW,XDS37-Y0.18KW,XDS37-Y0.25KW,XDS37-Y0.37KW,XDS37-Y0.55KW,XDS37-Y0.75KW,XDS37-Y1.1KW,XDS37-Y1.5KW,XDS37-Y63M4,XDS37-Y71M4,XDS37-Y80M4,XDS37-Y90M4,XDS37-YB63M4,XDS37-YB71M4,XDS37-YB80M4,XDS37-YB90M4,XDS37-YDP63M4,XDS37-YDP71M4,XDS37-YDP80M4,XDS37-YDP90M4,XDS37-YE63M4,XDS37-YE71M4,XDS37-YE80M4,XDS37-YE90M4,XDS37-YEJ63M4,XDS37-YEJ71M4,XDS37-YEJ80M4,XDS37-YEJ90M4,XDS37-YEJB63M4,XDS37-YEJB71M4,XDS37-YEJB80M4,XDS37-YEJB90M4,XDS37-YP63M4,XDS37-YP71M4,XDS37-YP80M4,XDS37-YP90M4,XDS37-YPB63M4,XDS37-YPB71M4,XDS37-YPB80M4,XDS37-YPB90M4,XDS37-YPE63M4,XDS37-YPE71M4,XDS37-YPE80M4,XDS37-YPE90M4,XDS37-YS63M4,XDS37-YS71M4,XDS37-YS80M4,XDS37-YS90M4,XDS37-YVB63M4,XDS37-YVB71M4,XDS37-YVB80M4,XDS37-YVB90M4,XDS37-YVP63M4,XDS37-YVP71M4,XDS37-YVP80M4,XDS37-YVP90M4,XDS37-YVPEJ63M4,XDS37-YVPEJ71M4,XDS37-YVPEJ80M4,XDS37-YVPEJ90M4,JCS37-Y0.12KW,JCS37-Y0.18KW,JCS37-Y0.25KW,JCS37-Y0.37KW,JCS37-Y0.55KW,JCS37-Y0.75KW,JCS37-Y1.1KW,JCS37-Y1.5KW,JCS37-Y63M4,JCS37-Y71M4,JCS37-Y80M4,JCS37-Y90M4,JCS37-YB63M4,JCS37-YB71M4,JCS37-YB80M4,JCS37-YB90M4,JCS37-YDP63M4,JCS37-YDP71M4,JCS37-YDP80M4,JCS37-YDP90M4,JCS37-YE63M4,JCS37-YE71M4,JCS37-YE80M4,JCS37-YE90M4,JCS37-YEJ63M4,JCS37-YEJ71M4,JCS37-YEJ80M4,JCS37-YEJ90M4,JCS37-YEJB63M4,JCS37-YEJB71M4,JCS37-YEJB80M4,JCS37-YEJB90M4,JCS37-YP63M4,JCS37-YP71M4,JCS37-YP80M4,JCS37-YP90M4,JCS37-YPB63M4,JCS37-YPB71M4,JCS37-YPB80M4,JCS37-YPB90M4,JCS37-YPE63M4,JCS37-YPE71M4,JCS37-YPE80M4,JCS37-YPE90M4,JCS37-YS63M4,JCS37-YS71M4,JCS37-YS80M4,JCS37-YS90M4,JCS37-YVB63M4,JCS37-YVB71M4,JCS37-YVB80M4,JCS37-YVB90M4,JCS37-YVP63M4,JCS37-YVP71M4,JCS37-YVP80M4,JCS37-YVP90M4,JCS37-YVPEJ63M4,JCS37-YVPEJ71M4,JCS37-YVPEJ80M4,JCS37-YVPEJ90M4,YQS37-Y0.12KW,YQS37-Y0.18KW,YQS37-Y0.25KW,YQS37-Y0.37KW,YQS37-Y0.55KW,YQS37-Y0.75KW,YQS37-Y1.1KW,YQS37-Y1.5KW,YQS37-Y63M4,YQS37-Y71M4,YQS37-Y80M4,YQS37-Y90M4,YQS37-YB63M4,YQS37-YB71M4,YQS37-YB80M4,YQS37-YB90M4,YQS37-YDP63M4,YQS37-YDP71M4,YQS37-YDP80M4,YQS37-YDP90M4,YQS37-YE63M4,YQS37-YE71M4,YQS37-YE80M4,YQS37-YE90M4,YQS37-YEJ63M4,YQS37-YEJ71M4,YQS37-YEJ80M4,YQS37-YEJ90M4,YQS37-YEJB63M4,YQS37-YEJB71M4,YQS37-YEJB80M4,YQS37-YEJB90M4,YQS37-YP63M4,YQS37-YP71M4,YQS37-YP80M4,YQS37-YP90M4,YQS37-YPB63M4,YQS37-YPB71M4,YQS37-YPB80M4,YQS37-YPB90M4,YQS37-YPE63M4,YQS37-YPE71M4,YQS37-YPE80M4,YQS37-YPE90M4,YQS37-YS63M4,YQS37-YS71M4,YQS37-YS80M4,YQS37-YS90M4,YQS37-YVB63M4,YQS37-YVB71M4,YQS37-YVB80M4,YQS37-YVB90M4,YQS37-YVP63M4,YQS37-YVP71M4,YQS37-YVP80M4,YQS37-YVP90M4,YQS37-YVPEJ63M4,YQS37-YVPEJ71M4,YQS37-YVPEJ80M4,YQS37-YVPEJ90M4,SW37-Y0.12KW,SW37-Y0.18KW,SW37-Y0.25KW,SW37-Y0.37KW,SW37-Y0.55KW,SW37-Y0.75KW,SW37-Y1.1KW,SW37-Y1.5KW,SW37-Y63M4,SW37-Y71M4,SW37-Y80M4,SW37-Y90M4,SW37-YB63M4,SW37-YB71M4,SW37-YB80M4,SW37-YB90M4,SW37-YDP63M4,SW37-YDP71M4,SW37-YDP80M4,SW37-YDP90M4,SW37-YE63M4,SW37-YE71M4,SW37-YE80M4,SW37-YE90M4,SW37-YEJ63M4,SW37-YEJ71M4,SW37-YEJ80M4,SW37-YEJ90M4,SW37-YEJB63M4,SW37-YEJB71M4,SW37-YEJB80M4,SW37-YEJB90M4,SW37-YP63M4,SW37-YP71M4,SW37-YP80M4,SW37-YP90M4,SW37-YPB63M4,SW37-YPB71M4,SW37-YPB80M4,SW37-YPB90M4,SW37-YPE63M4,SW37-YPE71M4,SW37-YPE80M4,SW37-YPE90M4,SW37-YS63M4,SW37-YS71M4,SW37-YS80M4,SW37-YS90M4,SW37-YVB63M4,SW37-YVB71M4,SW37-YVB80M4,SW37-YVB90M4,SW37-YVP63M4,SW37-YVP71M4,SW37-YVP80M4,SW37-YVP90M4,SW37-YVPEJ63M4,SW37-YVPEJ71M4,SW37-YVPEJ80M4,SW37-YVPEJ90M4,S39-Y0.12KW,S39-Y0.18KW,S39-Y0.25KW,S39-Y0.37KW,S39-Y0.55KW,S39-Y0.75KW,S39-Y1.1KW,S39-Y1.5KW,S39-Y63M4,S39-Y71M4,S39-Y80M4,S39-Y90M4,S39-YB63M4,S39-YB71M4,S39-YB80M4,S39-YB90M4,S39-YDP63M4,S39-YDP71M4,S39-YDP80M4,S39-YDP90M4,S39-YE63M4,S39-YE71M4,S39-YE80M4,S39-YE90M4,S39-YEJ63M4,S39-YEJ71M4,S39-YEJ80M4,S39-YEJ90M4,S39-YEJB63M4,S39-YEJB71M4,S39-YEJB80M4,S39-YEJB90M4,S39-YP63M4,S39-YP71M4,S39-YP80M4,S39-YP90M4,S39-YPB63M4,S39-YPB71M4,S39-YPB80M4,S39-YPB90M4,S39-YPE63M4,S39-YPE71M4,S39-YPE80M4,S39-YPE90M4,S39-YS63M4,S39-YS71M4,S39-YS80M4,S39-YS90M4,S39-YVB63M4,S39-YVB71M4,S39-YVB80M4,S39-YVB90M4,S39-YVP63M4,S39-YVP71M4,S39-YVP80M4,S39-YVP90M4,S39-YVPEJ63M4,S39-YVPEJ71M4,S39-YVPEJ80M4,S39-YVPEJ90M4,S37SF80,S37SF90,S37SF100,S37SF112,S37SF115,S37SF140,S37SF160,S37SF190。

S39減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-sxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S39減速機

關鍵詞:減速機帶司服電機連接一體機_S系列減速機_G系列減速機_S型減速機_司服電機減速機_S系列斜齒輪蝸輪蝸桿減速機_S系列減速器_司服減速機

S系列減速機型號:S39減速機,S49減速機,S59減速機,S69減速機,S79減速機,S89減速機,S99齒輪減速電機

S系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   S39減速器 S37斜齒輪減速機 S37減速機3D模型 S37型減速機選型參數 S37臥式減速機一體機 S37伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
S39減速器3D模型 點擊下載
S39減速器選型參數 點擊下載
