RX89減速器詳細信息

prevnext

RX89減速器

訂購熱線:13360667204
  1. 詳細信息

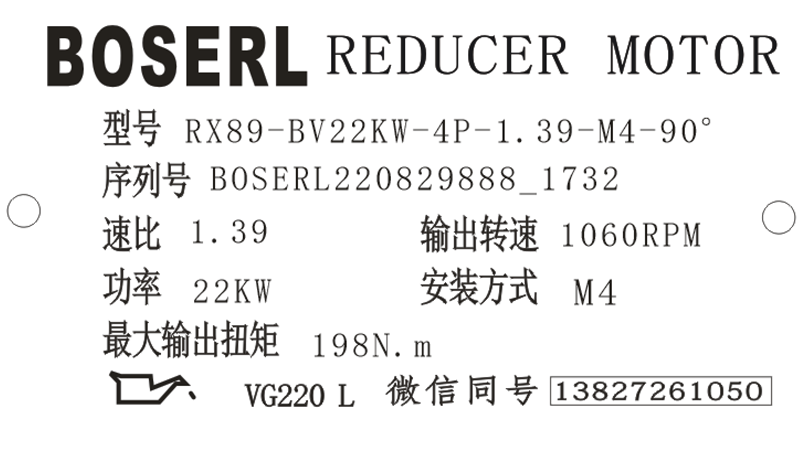

RX89減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX89減速器選型樣本。

RX89-BV22KW-4P-1.39-M4-90°

RX:系列代號

89:減速機規格代號

BV:電機

22KW:電機功率

4P:電機級數

1.39:減速機傳動比

M4:減速機安裝位置

90°:接線盒位置


RX89減速器逆止器安裝:

逆止器用來避免逆向轉動;如此便可確保運行過程中的定向轉動。注意:逆向運轉可能導致逆止器損壞;電機不允許逆向轉動;注意供電是否正確,以確保電機定向轉動;可以使電機輸出一半的額定扭矩來檢查逆止器方向。電機減速機一體機

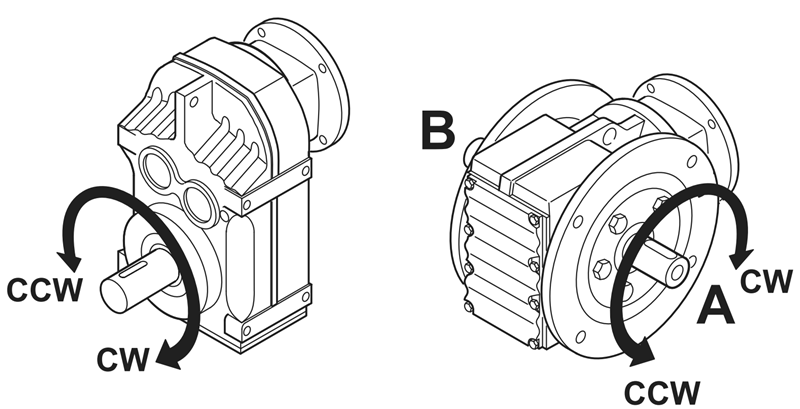

轉向要根據輸出軸(LSS)來確定;順時針旋轉(CW);逆時針旋轉(CCW);應在箱體上標識出許可轉向。


RX89減速器帶逆止器的輸入端裝置AD../RS:安裝或運送前檢查驅動裝置的旋轉方向是否正確,若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中,逆止器不需要特別維護或其他的維護措施。

如果低于最小超越轉速,則逆止器將會發生摩擦而產生高溫,可能造成財產損失;在額外工作狀態下,不得低于最小超越轉速;在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格,逆止器的最小超越轉速如下表:

型號

逆止器最大逆止力矩

[Nm]

最小超越轉速

[r/min]

AD2/RS

65

820

AD3/RS

425

620

AD4/RS

850

530

AD5/RS

1450

480

AD6/RS

1950

450

AD7/RS

1950

450

AD8/RS

1950

450

RX89減速器潤滑油檢查:

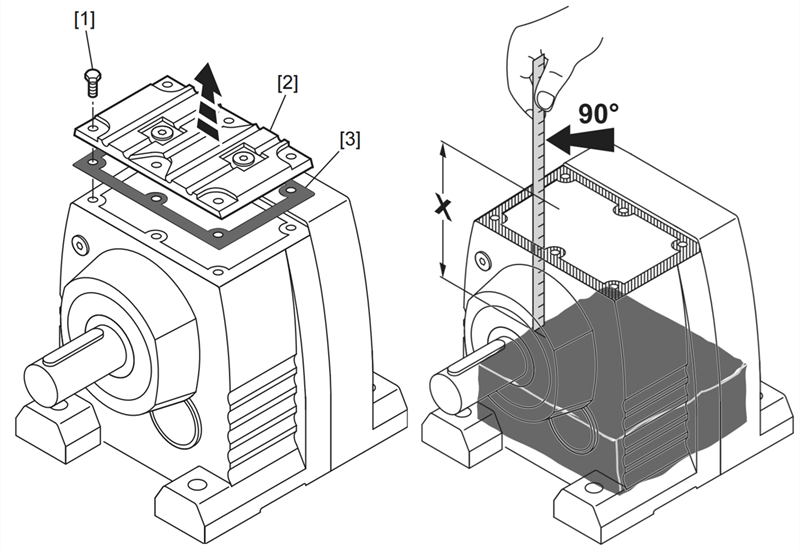

通過安裝蓋檢查油位:對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作:按照下列安裝位置放置減速器以便安裝蓋位于頂部;松開安全蓋2的螺栓1,并卸掉安裝蓋2及蓋上的密封圈3(見下圖);確定油位與減速器箱體密封面的垂直間距“X”(見下圖)。齒輪減速電機

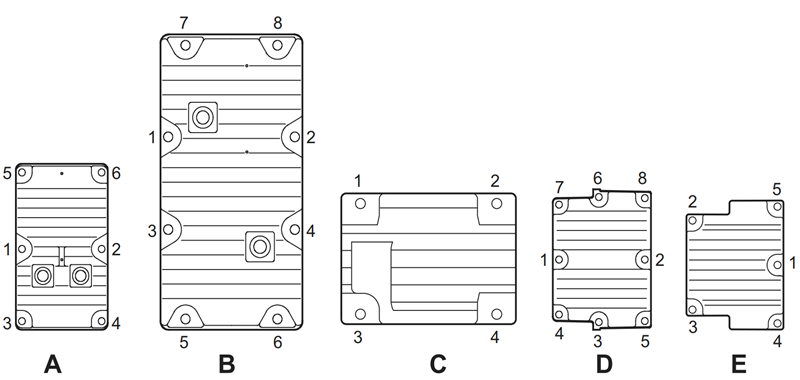

RX89減速器油位檢查完畢后密封RX89減速器:重新裝上安裝蓋的密封圈;注意,密封面要保持清潔、干燥;裝上安裝蓋;根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓;重復這一步驟多次,直至螺栓完全擰緊;只能采用氣動扳手或力矩扳手,避免安裝時對蓋板產生破壞,避免用力過猛或使用強沖擊的工具。臥式減速機


RF - 副本 - 副本 - 副本.jpg

RX89減速器型號:

NRX87-AM100M4,NRX87-AM112M4,NRX87-AM132M4,NRX87-AM160M4,NRX87-AM180M4,NRX87-AM200M4,NRX87-AM71M4,NRX87-AM80M4,NRX87-AM90M4,NRX87-Y0.37KW,NRX87-Y0.55KW,NRX87-Y0.75KW,NRX87-Y1.1KW,NRX87-Y1.5KW,NRX87-Y100M4,NRX87-Y112M4,NRX87-Y11KW,NRX87-Y132M4,NRX87-Y15KW,NRX87-Y160M4,NRX87-Y18.5KW,NRX87-Y180M4,NRX87-Y2.2KW,NRX87-Y200M4,NRX87-Y22KW,NRX87-Y30KW,NRX87-Y3KW,NRX87-Y4KW,NRX87-Y5.5KW,NRX87-Y7.5KW,NRX87-Y71M4,NRX87-Y80M4,NRX87-Y90M4,NRX87-YB100M4,NRX87-YB112M4,NRX87-YB132M4,NRX87-YB160M4,NRX87-YB180M4,NRX87-YB200M4,NRX87-YB71M4,NRX87-YB80M4,NRX87-YB90M4,NRX87-YDP100M4,NRX87-YDP112M4,NRX87-YDP132M4,NRX87-YDP160M4,NRX87-YDP180M4,NRX87-YDP200M4,NRX87-YDP71M4,NRX87-YDP80M4,NRX87-YDP90M4,NRX87-YE100M4,NRX87-YE112M4,NRX87-YE132M4,NRX87-YE160M4,NRX87-YE180M4,NRX87-YE200M4,NRX87-YE71M4,NRX87-YE80M4,NRX87-YE90M4,NRX87-YEJ100M4,NRX87-YEJ112M4,NRX87-YEJ132M4,NRX87-YEJ160M4,NRX87-YEJ180M4,NRX87-YEJ200M4,NRX87-YEJ71M4,NRX87-YEJ80M4,NRX87-YEJ90M4,NRX87-YEJB100M4,NRX87-YEJB112M4,NRX87-YEJB132M4,NRX87-YEJB160M4,NRX87-YEJB180M4,NRX87-YEJB200M4,NRX87-YEJB71M4,NRX87-YEJB80M4,NRX87-YEJB90M4,NRX87-YP100M4,NRX87-YP112M4,NRX87-YP132M4,NRX87-YP160M4,NRX87-YP180M4,NRX87-YP200M4,NRX87-YP71M4,NRX87-YP80M4,NRX87-YP90M4,NRX87-YPB100M4,NRX87-YPB112M4,NRX87-YPB132M4,NRX87-YPB160M4,NRX87-YPB180M4,NRX87-YPB200M4,NRX87-YPB71M4,NRX87-YPB80M4,NRX87-YPB90M4,NRX87-YPE100M4,NRX87-YPE112M4,NRX87-YPE132M4,NRX87-YPE160M4,NRX87-YPE180M4,NRX87-YPE200M4,NRX87-YPE71M4,NRX87-YPE80M4,NRX87-YPE90M4,NRX87-YS100M4,NRX87-YS112M4,NRX87-YS132M4,NRX87-YS160M4,NRX87-YS180M4,NRX87-YS200M4,NRX87-YS71M4,NRX87-YS80M4,NRX87-YS90M4,NRX87-YVB100M4,NRX87-YVB112M4,NRX87-YVB132M4,NRX87-YVB160M4,NRX87-YVB180M4,NRX87-YVB200M4,NRX87-YVB71M4,NRX87-YVB80M4,NRX87-YVB90M4,NRX87-YVP100M4,NRX87-YVP112M4,NRX87-YVP132M4,NRX87-YVP160M4,NRX87-YVP180M4,NRX87-YVP200M4,NRX87-YVP71M4,NRX87-YVP80M4,NRX87-YVP90M4,NRX87-YVPEJ100M4,NRX87-YVPEJ112M4,NRX87-YVPEJ132M4,NRX87-YVPEJ160M4,NRX87-YVPEJ180M4,NRX87-YVPEJ200M4,NRX87-YVPEJ71M4,NRX87-YVPEJ80M4,NRX87-YVPEJ90M4,GRX89-AM100M4,GRX89-AM112M4,GRX89-AM132M4,GRX89-AM160M4,GRX89-AM180M4,GRX89-AM200M4,GRX89-AM71M4,GRX89-AM80M4,GRX89-AM90M4,GRX89-Y0.37KW,GRX89-Y0.55KW,GRX89-Y0.75KW,GRX89-Y1.1KW,GRX89-Y1.5KW,GRX89-Y100M4,GRX89-Y112M4,GRX89-Y11KW,GRX89-Y132M4,GRX89-Y15KW,GRX89-Y160M4,GRX89-Y18.5KW,GRX89-Y180M4,GRX89-Y2.2KW,GRX89-Y200M4,GRX89-Y22KW,GRX89-Y30KW,GRX89-Y3KW,GRX89-Y4KW,GRX89-Y5.5KW,GRX89-Y7.5KW,GRX89-Y71M4,GRX89-Y80M4,GRX89-Y90M4,GRX89-YB100M4,GRX89-YB112M4,GRX89-YB132M4,GRX89-YB160M4,GRX89-YB180M4,GRX89-YB200M4,GRX89-YB71M4,GRX89-YB80M4,GRX89-YB90M4,GRX89-YDP100M4,GRX89-YDP112M4,GRX89-YDP132M4,GRX89-YDP160M4,GRX89-YDP180M4,GRX89-YDP200M4,GRX89-YDP71M4,GRX89-YDP80M4,GRX89-YDP90M4,GRX89-YE100M4,GRX89-YE112M4,GRX89-YE132M4,GRX89-YE160M4,GRX89-YE180M4,GRX89-YE200M4,GRX89-YE71M4,GRX89-YE80M4,GRX89-YE90M4,GRX89-YEJ100M4,GRX89-YEJ112M4,GRX89-YEJ132M4,GRX89-YEJ160M4,GRX89-YEJ180M4,GRX89-YEJ200M4,GRX89-YEJ71M4,GRX89-YEJ80M4,GRX89-YEJ90M4,GRX89-YEJB100M4,GRX89-YEJB112M4,GRX89-YEJB132M4,GRX89-YEJB160M4,GRX89-YEJB180M4,GRX89-YEJB200M4,GRX89-YEJB71M4,GRX89-YEJB80M4,GRX89-YEJB90M4,GRX89-YP100M4,GRX89-YP112M4,GRX89-YP132M4,GRX89-YP160M4,GRX89-YP180M4,GRX89-YP200M4,GRX89-YP71M4,GRX89-YP80M4,GRX89-YP90M4,GRX89-YPB100M4,GRX89-YPB112M4,GRX89-YPB132M4,GRX89-YPB160M4,GRX89-YPB180M4,GRX89-YPB200M4,GRX89-YPB71M4,GRX89-YPB80M4,GRX89-YPB90M4,GRX89-YPE100M4,GRX89-YPE112M4,GRX89-YPE132M4,GRX89-YPE160M4,GRX89-YPE180M4,GRX89-YPE200M4,GRX89-YPE71M4,GRX89-YPE80M4,GRX89-YPE90M4,GRX89-YS100M4,GRX89-YS112M4,GRX89-YS132M4,GRX89-YS160M4,GRX89-YS180M4,GRX89-YS200M4,GRX89-YS71M4,GRX89-YS80M4,GRX89-YS90M4,GRX89-YVB100M4,GRX89-YVB112M4,GRX89-YVB132M4,GRX89-YVB160M4,GRX89-YVB180M4,GRX89-YVB200M4,GRX89-YVB71M4,GRX89-YVB80M4,GRX89-YVB90M4,GRX89-YVP100M4,GRX89-YVP112M4,GRX89-YVP132M4,GRX89-YVP160M4,GRX89-YVP180M4,GRX89-YVP200M4,GRX89-YVP71M4,GRX89-YVP80M4,GRX89-YVP90M4,GRX89-YVPEJ100M4,GRX89-YVPEJ112M4,GRX89-YVPEJ132M4,GRX89-YVPEJ160M4,GRX89-YVPEJ180M4,GRX89-YVPEJ200M4,GRX89-YVPEJ71M4,GRX89-YVPEJ80M4,GRX89-YVPEJ90M4,ARX87-AM100M4,ARX87-AM112M4,ARX87-AM132M4,ARX87-AM160M4,ARX87-AM180M4,ARX87-AM200M4,ARX87-AM71M4,ARX87-AM80M4,ARX87-AM90M4,ARX87-Y0.37KW,ARX87-Y0.55KW,ARX87-Y0.75KW,ARX87-Y1.1KW,ARX87-Y1.5KW,ARX87-Y100M4,ARX87-Y112M4,ARX87-Y11KW,ARX87-Y132M4,ARX87-Y15KW,ARX87-Y160M4,ARX87-Y18.5KW,ARX87-Y180M4,ARX87-Y2.2KW,ARX87-Y200M4,ARX87-Y22KW,ARX87-Y30KW,ARX87-Y3KW,ARX87-Y4KW,ARX87-Y5.5KW,ARX87-Y7.5KW,ARX87-Y71M4,ARX87-Y80M4,ARX87-Y90M4,ARX87-YB100M4,ARX87-YB112M4,ARX87-YB132M4,ARX87-YB160M4,ARX87-YB180M4,ARX87-YB200M4,ARX87-YB71M4,ARX87-YB80M4,ARX87-YB90M4,ARX87-YDP100M4,ARX87-YDP112M4,ARX87-YDP132M4,ARX87-YDP160M4,ARX87-YDP180M4,ARX87-YDP200M4,ARX87-YDP71M4,ARX87-YDP80M4,ARX87-YDP90M4,ARX87-YE100M4,ARX87-YE112M4,ARX87-YE132M4,ARX87-YE160M4,ARX87-YE180M4,ARX87-YE200M4,ARX87-YE71M4,ARX87-YE80M4,ARX87-YE90M4,ARX87-YEJ100M4,ARX87-YEJ112M4,ARX87-YEJ132M4,ARX87-YEJ160M4,ARX87-YEJ180M4,ARX87-YEJ200M4,ARX87-YEJ71M4,ARX87-YEJ80M4,ARX87-YEJ90M4,ARX87-YEJB100M4,ARX87-YEJB112M4,ARX87-YEJB132M4,ARX87-YEJB160M4,ARX87-YEJB180M4,ARX87-YEJB200M4,ARX87-YEJB71M4,ARX87-YEJB80M4,ARX87-YEJB90M4,ARX87-YP100M4,ARX87-YP112M4,ARX87-YP132M4,ARX87-YP160M4,ARX87-YP180M4,ARX87-YP200M4,ARX87-YP71M4,ARX87-YP80M4,ARX87-YP90M4,ARX87-YPB100M4,ARX87-YPB112M4,ARX87-YPB132M4,ARX87-YPB160M4,ARX87-YPB180M4,ARX87-YPB200M4,ARX87-YPB71M4,ARX87-YPB80M4,ARX87-YPB90M4,ARX87-YPE100M4,ARX87-YPE112M4,ARX87-YPE132M4,ARX87-YPE160M4,ARX87-YPE180M4,ARX87-YPE200M4,ARX87-YPE71M4,ARX87-YPE80M4,ARX87-YPE90M4,ARX87-YS100M4,ARX87-YS112M4,ARX87-YS132M4,ARX87-YS160M4,ARX87-YS180M4,ARX87-YS200M4,ARX87-YS71M4,ARX87-YS80M4,ARX87-YS90M4,ARX87-YVB100M4,ARX87-YVB112M4,ARX87-YVB132M4,ARX87-YVB160M4,ARX87-YVB180M4,ARX87-YVB200M4,ARX87-YVB71M4,ARX87-YVB80M4,ARX87-YVB90M4,ARX87-YVP100M4,ARX87-YVP112M4,ARX87-YVP132M4,ARX87-YVP160M4,ARX87-YVP180M4,ARX87-YVP200M4,ARX87-YVP71M4,ARX87-YVP80M4,ARX87-YVP90M4,ARX87-YVPEJ100M4,ARX87-YVPEJ112M4,ARX87-YVPEJ132M4,ARX87-YVPEJ160M4,ARX87-YVPEJ180M4,ARX87-YVPEJ200M4,ARX87-YVPEJ71M4,ARX87-YVPEJ80M4,ARX87-YVPEJ90M4,WRX87-AM100M4,WRX87-AM112M4,WRX87-AM132M4,WRX87-AM160M4,WRX87-AM180M4,WRX87-AM200M4,WRX87-AM71M4,WRX87-AM80M4,WRX87-AM90M4,WRX87-Y0.37KW,WRX87-Y0.55KW,WRX87-Y0.75KW,WRX87-Y1.1KW,WRX87-Y1.5KW,WRX87-Y100M4,WRX87-Y112M4,WRX87-Y11KW,WRX87-Y132M4,WRX87-Y15KW,WRX87-Y160M4,WRX87-Y18.5KW,WRX87-Y180M4,WRX87-Y2.2KW,WRX87-Y200M4,WRX87-Y22KW,WRX87-Y30KW,WRX87-Y3KW,WRX87-Y4KW,WRX87-Y5.5KW,WRX87-Y7.5KW,WRX87-Y71M4,WRX87-Y80M4,WRX87-Y90M4,WRX87-YB100M4,WRX87-YB112M4,WRX87-YB132M4,WRX87-YB160M4,WRX87-YB180M4,WRX87-YB200M4,WRX87-YB71M4,WRX87-YB80M4,WRX87-YB90M4,WRX87-YDP100M4,WRX87-YDP112M4,WRX87-YDP132M4,WRX87-YDP160M4,WRX87-YDP180M4,WRX87-YDP200M4,WRX87-YDP71M4,WRX87-YDP80M4,WRX87-YDP90M4,WRX87-YE100M4,WRX87-YE112M4,WRX87-YE132M4,WRX87-YE160M4,WRX87-YE180M4,WRX87-YE200M4,WRX87-YE71M4,WRX87-YE80M4,WRX87-YE90M4,WRX87-YEJ100M4,WRX87-YEJ112M4,WRX87-YEJ132M4,WRX87-YEJ160M4,WRX87-YEJ180M4,WRX87-YEJ200M4,WRX87-YEJ71M4,WRX87-YEJ80M4,WRX87-YEJ90M4,WRX87-YEJB100M4,WRX87-YEJB112M4,WRX87-YEJB132M4,WRX87-YEJB160M4,WRX87-YEJB180M4,WRX87-YEJB200M4,WRX87-YEJB71M4,WRX87-YEJB80M4,WRX87-YEJB90M4,WRX87-YP100M4,WRX87-YP112M4,WRX87-YP132M4,WRX87-YP160M4,WRX87-YP180M4,WRX87-YP200M4,WRX87-YP71M4,WRX87-YP80M4,WRX87-YP90M4,WRX87-YPB100M4,WRX87-YPB112M4,WRX87-YPB132M4,WRX87-YPB160M4,WRX87-YPB180M4,WRX87-YPB200M4,WRX87-YPB71M4,WRX87-YPB80M4,WRX87-YPB90M4,WRX87-YPE100M4,WRX87-YPE112M4,WRX87-YPE132M4,WRX87-YPE160M4,WRX87-YPE180M4,WRX87-YPE200M4,WRX87-YPE71M4,WRX87-YPE80M4,WRX87-YPE90M4,WRX87-YS100M4,WRX87-YS112M4,WRX87-YS132M4,WRX87-YS160M4,WRX87-YS180M4,WRX87-YS200M4,WRX87-YS71M4,WRX87-YS80M4,WRX87-YS90M4,WRX87-YVB100M4,WRX87-YVB112M4,WRX87-YVB132M4,WRX87-YVB160M4,WRX87-YVB180M4,WRX87-YVB200M4,WRX87-YVB71M4,WRX87-YVB80M4,WRX87-YVB90M4,WRX87-YVP100M4,WRX87-YVP112M4,WRX87-YVP132M4,WRX87-YVP160M4,WRX87-YVP180M4,WRX87-YVP200M4,WRX87-YVP71M4,WRX87-YVP80M4,WRX87-YVP90M4,WRX87-YVPEJ100M4,WRX87-YVPEJ112M4,WRX87-YVPEJ132M4,WRX87-YVPEJ160M4,WRX87-YVPEJ180M4,WRX87-YVPEJ200M4,WRX87-YVPEJ71M4,WRX87-YVPEJ80M4,WRX87-YVPEJ90M4,SRX87-AM100M4,SRX87-AM112M4,SRX87-AM132M4,SRX87-AM160M4,SRX87-AM180M4,SRX87-AM200M4,SRX87-AM71M4,SRX87-AM80M4,SRX87-AM90M4,SRX87-Y0.37KW,SRX87-Y0.55KW,SRX87-Y0.75KW,SRX87-Y1.1KW,SRX87-Y1.5KW,SRX87-Y100M4,SRX87-Y112M4,SRX87-Y11KW,SRX87-Y132M4,SRX87-Y15KW,SRX87-Y160M4,SRX87-Y18.5KW,SRX87-Y180M4,SRX87-Y2.2KW,SRX87-Y200M4,SRX87-Y22KW,SRX87-Y30KW,SRX87-Y3KW,SRX87-Y4KW,SRX87-Y5.5KW,SRX87-Y7.5KW,SRX87-Y71M4,SRX87-Y80M4,SRX87-Y90M4,SRX87-YB100M4,SRX87-YB112M4,SRX87-YB132M4,SRX87-YB160M4,SRX87-YB180M4,SRX87-YB200M4,SRX87-YB71M4,SRX87-YB80M4,SRX87-YB90M4,SRX87-YDP100M4,SRX87-YDP112M4,SRX87-YDP132M4,SRX87-YDP160M4,SRX87-YDP180M4,SRX87-YDP200M4,SRX87-YDP71M4,SRX87-YDP80M4,SRX87-YDP90M4,SRX87-YE100M4,SRX87-YE112M4,SRX87-YE132M4,SRX87-YE160M4,SRX87-YE180M4,SRX87-YE200M4,SRX87-YE71M4,SRX87-YE80M4,SRX87-YE90M4,SRX87-YEJ100M4,SRX87-YEJ112M4,SRX87-YEJ132M4,SRX87-YEJ160M4,SRX87-YEJ180M4,SRX87-YEJ200M4,SRX87-YEJ71M4,SRX87-YEJ80M4,SRX87-YEJ90M4,SRX87-YEJB100M4,SRX87-YEJB112M4,SRX87-YEJB132M4,SRX87-YEJB160M4,SRX87-YEJB180M4,SRX87-YEJB200M4,SRX87-YEJB71M4,SRX87-YEJB80M4,SRX87-YEJB90M4,SRX87-YP100M4,SRX87-YP112M4,SRX87-YP132M4,SRX87-YP160M4,SRX87-YP180M4,SRX87-YP200M4,SRX87-YP71M4,SRX87-YP80M4,SRX87-YP90M4,SRX87-YPB100M4,SRX87-YPB112M4,SRX87-YPB132M4,SRX87-YPB160M4,SRX87-YPB180M4,SRX87-YPB200M4,SRX87-YPB71M4,SRX87-YPB80M4,SRX87-YPB90M4,SRX87-YPE100M4,SRX87-YPE112M4,SRX87-YPE132M4,SRX87-YPE160M4,SRX87-YPE180M4,SRX87-YPE200M4,SRX87-YPE71M4,SRX87-YPE80M4,SRX87-YPE90M4,SRX87-YS100M4,SRX87-YS112M4,SRX87-YS132M4,SRX87-YS160M4,SRX87-YS180M4,SRX87-YS200M4,SRX87-YS71M4,SRX87-YS80M4,SRX87-YS90M4,SRX87-YVB100M4,SRX87-YVB112M4,SRX87-YVB132M4,SRX87-YVB160M4,SRX87-YVB180M4,SRX87-YVB200M4,SRX87-YVB71M4,SRX87-YVB80M4,SRX87-YVB90M4,SRX87-YVP100M4,SRX87-YVP112M4,SRX87-YVP132M4,SRX87-YVP160M4,SRX87-YVP180M4,SRX87-YVP200M4,SRX87-YVP71M4,SRX87-YVP80M4,SRX87-YVP90M4,SRX87-YVPEJ100M4,SRX87-YVPEJ112M4,SRX87-YVPEJ132M4,SRX87-YVPEJ160M4,SRX87-YVPEJ180M4,SRX87-YVPEJ200M4,SRX87-YVPEJ71M4,SRX87-YVPEJ80M4,SRX87-YVPEJ90M4,RX87SF80,RX87SF90,RX87SF100,RX87SF112,RX87SF115,RX87SF140,RX87SF160,RX87SF190。

RX89減速器廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:R89減速機

關鍵詞:減速器帶電機一體機_減速機帶電機一體機_RX系列減速器_減速機馬達一體機_RX系列減速機_RX型減速機_電機減速機一體機_GRX系列減速機_減速機電機一體機

RX系列斜齒輪減速機型號:RX59減速機,RX69減速機,RX79減速機,RX89減速機,RX99減速機,RX109減速機

RX系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-45KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   RX89減速器 RX87斜齒輪減速機 RX87減速機3D模型 RX87型減速機選型參數 RX87臥式減速機一體機 RX87伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
RX89減速器3D模型 點擊下載
RX89減速器選型參數 點擊下載
