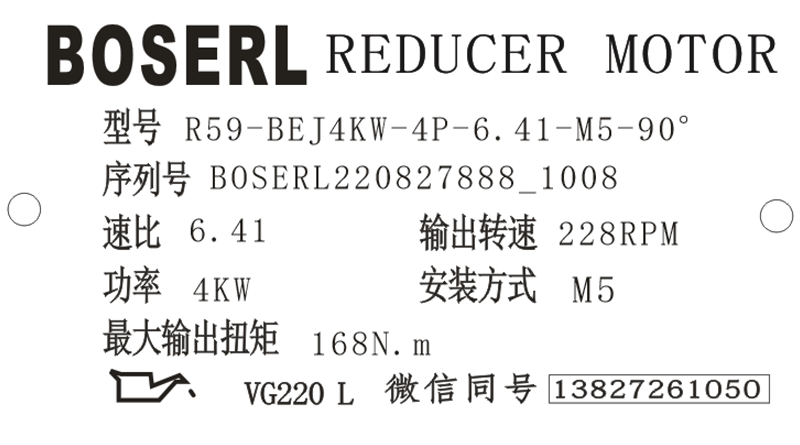

R59減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R59減速器選型樣本。
R59-BEJ4KW-4P-6.41-M5-90°
R:系列代號
59:減速機規格代號
B:電機
EJ:剎車
4KW:電機功率
4P:電機級數
6.41:減速機傳動比
M5:減速機安裝位置
90°:接線盒位置
R59減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義
圖 標 | 含 義 |
| 透氣閥 |
| 油位檢查螺栓 |
| 放油螺栓 |
R59減速器安裝所需工具以及材料:
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(R59減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。齒輪減速電機
R59減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。R59減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將R59減速器的安裝位置改變?yōu)镸5或M6,或者M(jìn)5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將R59減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在R59減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對R59減速器箱體進行連接接地。
R59減速器故障售后服務統籌:
在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對R59減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。臥式減速機
R59減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“R59減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“R59減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;
R59減速器潤滑油泄露:R59減速器密封面密封性能不良,擰緊R59減速器蓋上的螺釘并觀察R59減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;R59減速器透氣閥失效,給R59減速器透氣參見“R59減速器說明書的安裝位置”章節。
R59減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“R59減速器說明書的檢查/維護”章節;R59減速器安裝位置錯誤,正確安裝透氣閥參見“R59減速器說明書的安裝位置”章節,調節油位參見“R59減速器說明書的檢查/維護”章節。
R59減速器電機或輸入軸轉動,而輸出軸不轉:R59減速器中的軸輪轂聯接斷裂,將R59減速器或減速電機送來我司修理。R系列減速機
R59減速器型號:
R59-AM100M4,R59-AM112M4,R59-AM132M4,R59-AM63M4,R59-AM71M4,R59-AM80M4,R59-AM90M4,R59-Y0.12KW,R59-Y0.18KW,R59-Y0.25KW,R59-Y0.37KW,R59-Y0.55KW,R59-Y0.75KW,R59-Y1.1KW,R59-Y1.5KW,R59-Y100M4,R59-Y112M4,R59-Y132M4,R59-Y2.2KW,R59-Y3KW,R59-Y4KW,R59-Y5.5KW,R59-Y63M4,R59-Y7.5KW,R59-Y71M4,R59-Y80M4,R59-Y90M4,R59-YB100M4,R59-YB112M4,R59-YB132M4,R59-YB63M4,R59-YB71M4,R59-YB80M4,R59-YB90M4,R59-YDP100M4,R59-YDP112M4,R59-YDP132M4,R59-YDP63M4,R59-YDP71M4,R59-YDP80M4,R59-YDP90M4,R59-YE100M4,R59-YE112M4,R59-YE132M4,R59-YE63M4,R59-YE71M4,R59-YE80M4,R59-YE90M4,R59-YEJ100M4,R59-YEJ112M4,R59-YEJ132M4,R59-YEJ63M4,R59-YEJ71M4,R59-YEJ80M4,R59-YEJ90M4,R59-YEJB100M4,R59-YEJB112M4,R59-YEJB132M4,R59-YEJB63M4,R59-YEJB71M4,R59-YEJB80M4,R59-YEJB90M4,R59-YP100M4,R59-YP112M4,R59-YP132M4,R59-YP63M4,R59-YP71M4,R59-YP80M4,R59-YP90M4,R59-YPB100M4,R59-YPB112M4,R59-YPB132M4,R59-YPB63M4,R59-YPB71M4,R59-YPB80M4,R59-YPB90M4,R59-YPE100M4,R59-YPE112M4,R59-YPE132M4,R59-YPE63M4,R59-YPE71M4,R59-YPE80M4,R59-YPE90M4,R59-YS100M4,R59-YS112M4,R59-YS132M4,R59-YS63M4,R59-YS71M4,R59-YS80M4,R59-YS90M4,R59-YVB100M4,R59-YVB112M4,R59-YVB132M4,R59-YVB63M4,R59-YVB71M4,R59-YVB80M4,R59-YVB90M4,R59-YVP100M4,R59-YVP112M4,R59-YVP132M4,R59-YVP63M4,R59-YVP71M4,R59-YVP80M4,R59-YVP90M4,R59-YVPEJ100M4,R59-YVPEJ112M4,R59-YVPEJ132M4,R59-YVPEJ63M4,R59-YVPEJ71M4,R59-YVPEJ80M4,R59-YVPEJ90M4,RW57-AM100M4,RW57-AM112M4,RW57-AM132M4,RW57-AM63M4,RW57-AM71M4,RW57-AM80M4,RW57-AM90M4,RW57-Y0.12KW,RW57-Y0.18KW,RW57-Y0.25KW,RW57-Y0.37KW,RW57-Y0.55KW,RW57-Y0.75KW,RW57-Y1.1KW,RW57-Y1.5KW,RW57-Y100M4,RW57-Y112M4,RW57-Y132M4,RW57-Y2.2KW,RW57-Y3KW,RW57-Y4KW,RW57-Y5.5KW,RW57-Y63M4,RW57-Y7.5KW,RW57-Y71M4,RW57-Y80M4,RW57-Y90M4,RW57-YB100M4,RW57-YB112M4,RW57-YB132M4,RW57-YB63M4,RW57-YB71M4,RW57-YB80M4,RW57-YB90M4,RW57-YDP100M4,RW57-YDP112M4,RW57-YDP132M4,RW57-YDP63M4,RW57-YDP71M4,RW57-YDP80M4,RW57-YDP90M4,RW57-YE100M4,RW57-YE112M4,RW57-YE132M4,RW57-YE63M4,RW57-YE71M4,RW57-YE80M4,RW57-YE90M4,RW57-YEJ100M4,RW57-YEJ112M4,RW57-YEJ132M4,RW57-YEJ63M4,RW57-YEJ71M4,RW57-YEJ80M4,RW57-YEJ90M4,RW57-YEJB100M4,RW57-YEJB112M4,RW57-YEJB132M4,RW57-YEJB63M4,RW57-YEJB71M4,RW57-YEJB80M4,RW57-YEJB90M4,RW57-YP100M4,RW57-YP112M4,RW57-YP132M4,RW57-YP63M4,RW57-YP71M4,RW57-YP80M4,RW57-YP90M4,RW57-YPB100M4,RW57-YPB112M4,RW57-YPB132M4,RW57-YPB63M4,RW57-YPB71M4,RW57-YPB80M4,RW57-YPB90M4,RW57-YPE100M4,RW57-YPE112M4,RW57-YPE132M4,RW57-YPE63M4,RW57-YPE71M4,RW57-YPE80M4,RW57-YPE90M4,RW57-YS100M4,RW57-YS112M4,RW57-YS132M4,RW57-YS63M4,RW57-YS71M4,RW57-YS80M4,RW57-YS90M4,RW57-YVB100M4,RW57-YVB112M4,RW57-YVB132M4,RW57-YVB63M4,RW57-YVB71M4,RW57-YVB80M4,RW57-YVB90M4,RW57-YVP100M4,RW57-YVP112M4,RW57-YVP132M4,RW57-YVP63M4,RW57-YVP71M4,RW57-YVP80M4,RW57-YVP90M4,RW57-YVPEJ100M4,RW57-YVPEJ112M4,RW57-YVPEJ132M4,RW57-YVPEJ63M4,RW57-YVPEJ71M4,RW57-YVPEJ80M4,RW57-YVPEJ90M4,YQR57-AM100M4,YQR57-AM112M4,YQR57-AM132M4,YQR57-AM63M4,YQR57-AM71M4,YQR57-AM80M4,YQR57-AM90M4,YQR57-Y0.12KW,YQR57-Y0.18KW,YQR57-Y0.25KW,YQR57-Y0.37KW,YQR57-Y0.55KW,YQR57-Y0.75KW,YQR57-Y1.1KW,YQR57-Y1.5KW,YQR57-Y100M4,YQR57-Y112M4,YQR57-Y132M4,YQR57-Y2.2KW,YQR57-Y3KW,YQR57-Y4KW,YQR57-Y5.5KW,YQR57-Y63M4,YQR57-Y7.5KW,YQR57-Y71M4,YQR57-Y80M4,YQR57-Y90M4,YQR57-YB100M4,YQR57-YB112M4,YQR57-YB132M4,YQR57-YB63M4,YQR57-YB71M4,YQR57-YB80M4,YQR57-YB90M4,YQR57-YDP100M4,YQR57-YDP112M4,YQR57-YDP132M4,YQR57-YDP63M4,YQR57-YDP71M4,YQR57-YDP80M4,YQR57-YDP90M4,YQR57-YE100M4,YQR57-YE112M4,YQR57-YE132M4,YQR57-YE63M4,YQR57-YE71M4,YQR57-YE80M4,YQR57-YE90M4,YQR57-YEJ100M4,YQR57-YEJ112M4,YQR57-YEJ132M4,YQR57-YEJ63M4,YQR57-YEJ71M4,YQR57-YEJ80M4,YQR57-YEJ90M4,YQR57-YEJB100M4,YQR57-YEJB112M4,YQR57-YEJB132M4,YQR57-YEJB63M4,YQR57-YEJB71M4,YQR57-YEJB80M4,YQR57-YEJB90M4,YQR57-YP100M4,YQR57-YP112M4,YQR57-YP132M4,YQR57-YP63M4,YQR57-YP71M4,YQR57-YP80M4,YQR57-YP90M4,YQR57-YPB100M4,YQR57-YPB112M4,YQR57-YPB132M4,YQR57-YPB63M4,YQR57-YPB71M4,YQR57-YPB80M4,YQR57-YPB90M4,YQR57-YPE100M4,YQR57-YPE112M4,YQR57-YPE132M4,YQR57-YPE63M4,YQR57-YPE71M4,YQR57-YPE80M4,YQR57-YPE90M4,YQR57-YS100M4,YQR57-YS112M4,YQR57-YS132M4,YQR57-YS63M4,YQR57-YS71M4,YQR57-YS80M4,YQR57-YS90M4,YQR57-YVB100M4,YQR57-YVB112M4,YQR57-YVB132M4,YQR57-YVB63M4,YQR57-YVB71M4,YQR57-YVB80M4,YQR57-YVB90M4,YQR57-YVP100M4,YQR57-YVP112M4,YQR57-YVP132M4,YQR57-YVP63M4,YQR57-YVP71M4,YQR57-YVP80M4,YQR57-YVP90M4,YQR57-YVPEJ100M4,YQR57-YVPEJ112M4,YQR57-YVPEJ132M4,YQR57-YVPEJ63M4,YQR57-YVPEJ71M4,YQR57-YVPEJ80M4,YQR57-YVPEJ90M4,JCR57-AM100M4,JCR57-AM112M4,JCR57-AM132M4,JCR57-AM63M4,JCR57-AM71M4,JCR57-AM80M4,JCR57-AM90M4,JCR57-Y0.12KW,JCR57-Y0.18KW,JCR57-Y0.25KW,JCR57-Y0.37KW,JCR57-Y0.55KW,JCR57-Y0.75KW,JCR57-Y1.1KW,JCR57-Y1.5KW,JCR57-Y100M4,JCR57-Y112M4,JCR57-Y132M4,JCR57-Y2.2KW,JCR57-Y3KW,JCR57-Y4KW,JCR57-Y5.5KW,JCR57-Y63M4,JCR57-Y7.5KW,JCR57-Y71M4,JCR57-Y80M4,JCR57-Y90M4,JCR57-YB100M4,JCR57-YB112M4,JCR57-YB132M4,JCR57-YB63M4,JCR57-YB71M4,JCR57-YB80M4,JCR57-YB90M4,JCR57-YDP100M4,JCR57-YDP112M4,JCR57-YDP132M4,JCR57-YDP63M4,JCR57-YDP71M4,JCR57-YDP80M4,JCR57-YDP90M4,JCR57-YE100M4,JCR57-YE112M4,JCR57-YE132M4,JCR57-YE63M4,JCR57-YE71M4,JCR57-YE80M4,JCR57-YE90M4,JCR57-YEJ100M4,JCR57-YEJ112M4,JCR57-YEJ132M4,JCR57-YEJ63M4,JCR57-YEJ71M4,JCR57-YEJ80M4,JCR57-YEJ90M4,JCR57-YEJB100M4,JCR57-YEJB112M4,JCR57-YEJB132M4,JCR57-YEJB63M4,JCR57-YEJB71M4,JCR57-YEJB80M4,JCR57-YEJB90M4,JCR57-YP100M4,JCR57-YP112M4,JCR57-YP132M4,JCR57-YP63M4,JCR57-YP71M4,JCR57-YP80M4,JCR57-YP90M4,JCR57-YPB100M4,JCR57-YPB112M4,JCR57-YPB132M4,JCR57-YPB63M4,JCR57-YPB71M4,JCR57-YPB80M4,JCR57-YPB90M4,JCR57-YPE100M4,JCR57-YPE112M4,JCR57-YPE132M4,JCR57-YPE63M4,JCR57-YPE71M4,JCR57-YPE80M4,JCR57-YPE90M4,JCR57-YS100M4,JCR57-YS112M4,JCR57-YS132M4,JCR57-YS63M4,JCR57-YS71M4,JCR57-YS80M4,JCR57-YS90M4,JCR57-YVB100M4,JCR57-YVB112M4,JCR57-YVB132M4,JCR57-YVB63M4,JCR57-YVB71M4,JCR57-YVB80M4,JCR57-YVB90M4,JCR57-YVP100M4,JCR57-YVP112M4,JCR57-YVP132M4,JCR57-YVP63M4,JCR57-YVP71M4,JCR57-YVP80M4,JCR57-YVP90M4,JCR57-YVPEJ100M4,JCR57-YVPEJ112M4,JCR57-YVPEJ132M4,JCR57-YVPEJ63M4,JCR57-YVPEJ71M4,JCR57-YVPEJ80M4,JCR57-YVPEJ90M4,XDR57-AM100M4,XDR57-AM112M4,XDR57-AM132M4,XDR57-AM63M4,XDR57-AM71M4,XDR57-AM80M4,XDR57-AM90M4,XDR57-Y0.12KW,XDR57-Y0.18KW,XDR57-Y0.25KW,XDR57-Y0.37KW,XDR57-Y0.55KW,XDR57-Y0.75KW,XDR57-Y1.1KW,XDR57-Y1.5KW,XDR57-Y100M4,XDR57-Y112M4,XDR57-Y132M4,XDR57-Y2.2KW,XDR57-Y3KW,XDR57-Y4KW,XDR57-Y5.5KW,XDR57-Y63M4,XDR57-Y7.5KW,XDR57-Y71M4,XDR57-Y80M4,XDR57-Y90M4,XDR57-YB100M4,XDR57-YB112M4,XDR57-YB132M4,XDR57-YB63M4,XDR57-YB71M4,XDR57-YB80M4,XDR57-YB90M4,XDR57-YDP100M4,XDR57-YDP112M4,XDR57-YDP132M4,XDR57-YDP63M4,XDR57-YDP71M4,XDR57-YDP80M4,XDR57-YDP90M4,XDR57-YE100M4,XDR57-YE112M4,XDR57-YE132M4,XDR57-YE63M4,XDR57-YE71M4,XDR57-YE80M4,XDR57-YE90M4,XDR57-YEJ100M4,XDR57-YEJ112M4,XDR57-YEJ132M4,XDR57-YEJ63M4,XDR57-YEJ71M4,XDR57-YEJ80M4,XDR57-YEJ90M4,XDR57-YEJB100M4,XDR57-YEJB112M4,XDR57-YEJB132M4,XDR57-YEJB63M4,XDR57-YEJB71M4,XDR57-YEJB80M4,XDR57-YEJB90M4,XDR57-YP100M4,XDR57-YP112M4,XDR57-YP132M4,XDR57-YP63M4,XDR57-YP71M4,XDR57-YP80M4,XDR57-YP90M4,XDR57-YPB100M4,XDR57-YPB112M4,XDR57-YPB132M4,XDR57-YPB63M4,XDR57-YPB71M4,XDR57-YPB80M4,XDR57-YPB90M4,XDR57-YPE100M4,XDR57-YPE112M4,XDR57-YPE132M4,XDR57-YPE63M4,XDR57-YPE71M4,XDR57-YPE80M4,XDR57-YPE90M4,XDR57-YS100M4,XDR57-YS112M4,XDR57-YS132M4,XDR57-YS63M4,XDR57-YS71M4,XDR57-YS80M4,XDR57-YS90M4,XDR57-YVB100M4,XDR57-YVB112M4,XDR57-YVB132M4,XDR57-YVB63M4,XDR57-YVB71M4,XDR57-YVB80M4,XDR57-YVB90M4,XDR57-YVP100M4,XDR57-YVP112M4,XDR57-YVP132M4,XDR57-YVP63M4,XDR57-YVP71M4,XDR57-YVP80M4,XDR57-YVP90M4,XDR57-YVPEJ100M4,XDR57-YVPEJ112M4,XDR57-YVPEJ132M4,XDR57-YVPEJ63M4,XDR57-YVPEJ71M4,XDR57-YVPEJ80M4,XDR57-YVPEJ90M4,R57SF80,R57SF90,R57SF100,R57SF112,R57SF115,R57SF140,R57SF160,R57SF190。
