德國BOSERL研發制造節能環保齒輪減速電機一體機,蝸輪蝸桿減速馬達,齒輪減速機帶電機19年創辦中國BOSERL齒輪減速電機生產廠家”伯仕傳動”

齒輪減速電機一體機_蝸輪蝸桿減速馬達-德國BOSERL齒輪減速機帶電機生產廠家

咨詢服務熱線:

13360667204

微信13360667204

同軸減速機
網站首頁 > BOSERL減速機 > 同軸斜齒輪減速電機 > R系列齒輪減速電機

R29減速器詳細信息

prevnext

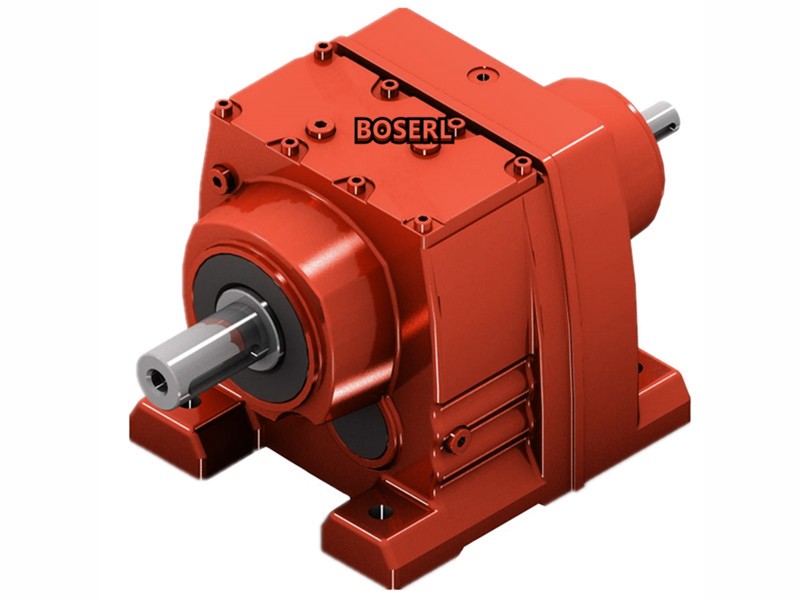

R29減速器

訂購熱線:13360667204
  1. 詳細信息

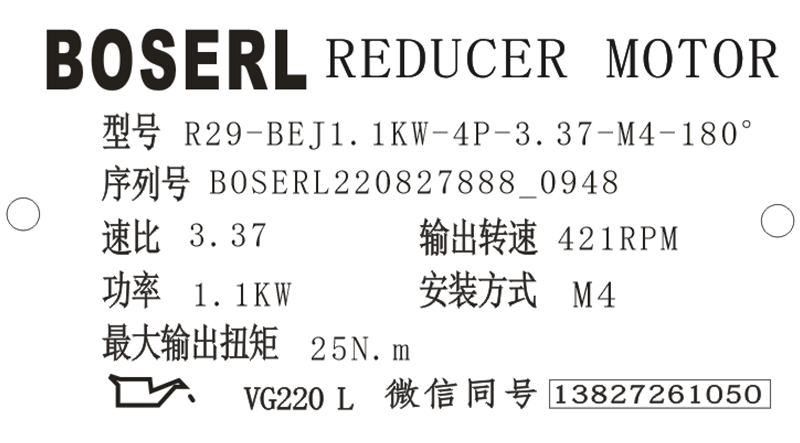

R29減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R29減速器選型樣本。

R29-BEJ1.1KW-4P-3.37-M4-180°

R:系列代號

29:減速機規格代號

B:電機

EJ:剎車

1.1KW:電機功率

4P:電機級數

3.37:減速機傳動比

M4:減速機安裝位置

180°:接線盒位置


R29減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義

圖       標

含   義


透氣閥


油位檢查螺栓


放油螺栓

R29減速器安裝所需工具以及材料:

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(R29減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。齒輪減速電機

R29減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。R29減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將R29減速器的安裝位置改變?yōu)镸5或M6,或者M5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將R29減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在R29減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對R29減速器箱體進行連接接地。

RX - 副本 - 副本 - 副本 - 副本.jpg

R29減速器故障售后服務統籌:

在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對R29減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。臥式減速機

R29減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“R29減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“R29減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;

R29減速器潤滑油泄露:R29減速器密封面密封性能不良,擰緊R29減速器蓋上的螺釘并觀察R29減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;R29減速器透氣閥失效,給R29減速器透氣參見“R29減速器說明書的安裝位置”章節。

R29減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“R29減速器說明書的檢查/維護”章節;R29減速器安裝位置錯誤,正確安裝透氣閥參見“R29減速器說明書的安裝位置”章節,調節油位參見“R29減速器說明書的檢查/維護”章節。

R29減速器電機或輸入軸轉動,而輸出軸不轉:R29減速器中的軸輪轂聯接斷裂,將R29減速器或減速電機送來我司修理。R系列減速機

R29減速器型號:

R29-AM100M4,R29-AM63M4,R29-AM71M4,R29-AM80M4,R29-AM90M4,R29-Y0.12KW,R29-Y0.18KW,R29-Y0.25KW,R29-Y0.37KW,R29-Y0.55KW,R29-Y0.75KW,R29-Y1.1KW,R29-Y1.5KW,R29-Y100M4,R29-Y2.2KW,R29-Y3KW,R29-Y63M4,R29-Y71M4,R29-Y80M4,R29-Y90M4,R29-YB100M4,R29-YB63M4,R29-YB71M4,R29-YB80M4,R29-YB90M4,R29-YDP100M4,R29-YDP63M4,R29-YDP71M4,R29-YDP80M4,R29-YDP90M4,R29-YE100M4,R29-YE63M4,R29-YE71M4,R29-YE80M4,R29-YE90M4,R29-YEJ100M4,R29-YEJ63M4,R29-YEJ71M4,R29-YEJ80M4,R29-YEJ90M4,R29-YEJB100M4,R29-YEJB63M4,R29-YEJB71M4,R29-YEJB80M4,R29-YEJB90M4,R29-YP100M4,R29-YP63M4,R29-YP71M4,R29-YP80M4,R29-YP90M4,R29-YPB100M4,R29-YPB63M4,R29-YPB71M4,R29-YPB80M4,R29-YPB90M4,R29-YPE100M4,R29-YPE63M4,R29-YPE71M4,R29-YPE80M4,R29-YPE90M4,R29-YS100M4,R29-YS63M4,R29-YS71M4,R29-YS80M4,R29-YS90M4,R29-YVB100M4,R29-YVB63M4,R29-YVB71M4,R29-YVB80M4,R29-YVB90M4,R29-YVP100M4,R29-YVP63M4,R29-YVP71M4,R29-YVP80M4,R29-YVP90M4,R29-YVPEJ100M4,R29-YVPEJ63M4,R29-YVPEJ71M4,R29-YVPEJ80M4,R29-YVPEJ90M4,RW27-AM100M4,RW27-AM63M4,RW27-AM71M4,RW27-AM80M4,RW27-AM90M4,RW27-Y0.12KW,RW27-Y0.18KW,RW27-Y0.25KW,RW27-Y0.37KW,RW27-Y0.55KW,RW27-Y0.75KW,RW27-Y1.1KW,RW27-Y1.5KW,RW27-Y100M4,RW27-Y2.2KW,RW27-Y3KW,RW27-Y63M4,RW27-Y71M4,RW27-Y80M4,RW27-Y90M4,RW27-YB100M4,RW27-YB63M4,RW27-YB71M4,RW27-YB80M4,RW27-YB90M4,RW27-YDP100M4,RW27-YDP63M4,RW27-YDP71M4,RW27-YDP80M4,RW27-YDP90M4,RW27-YE100M4,RW27-YE63M4,RW27-YE71M4,RW27-YE80M4,RW27-YE90M4,RW27-YEJ100M4,RW27-YEJ63M4,RW27-YEJ71M4,RW27-YEJ80M4,RW27-YEJ90M4,RW27-YEJB100M4,RW27-YEJB63M4,RW27-YEJB71M4,RW27-YEJB80M4,RW27-YEJB90M4,RW27-YP100M4,RW27-YP63M4,RW27-YP71M4,RW27-YP80M4,RW27-YP90M4,RW27-YPB100M4,RW27-YPB63M4,RW27-YPB71M4,RW27-YPB80M4,RW27-YPB90M4,RW27-YPE100M4,RW27-YPE63M4,RW27-YPE71M4,RW27-YPE80M4,RW27-YPE90M4,RW27-YS100M4,RW27-YS63M4,RW27-YS71M4,RW27-YS80M4,RW27-YS90M4,RW27-YVB100M4,RW27-YVB63M4,RW27-YVB71M4,RW27-YVB80M4,RW27-YVB90M4,RW27-YVP100M4,RW27-YVP63M4,RW27-YVP71M4,RW27-YVP80M4,RW27-YVP90M4,RW27-YVPEJ100M4,RW27-YVPEJ63M4,RW27-YVPEJ71M4,RW27-YVPEJ80M4,RW27-YVPEJ90M4,YQR27-AM100M4,YQR27-AM63M4,YQR27-AM71M4,YQR27-AM80M4,YQR27-AM90M4,YQR27-Y0.12KW,YQR27-Y0.18KW,YQR27-Y0.25KW,YQR27-Y0.37KW,YQR27-Y0.55KW,YQR27-Y0.75KW,YQR27-Y1.1KW,YQR27-Y1.5KW,YQR27-Y100M4,YQR27-Y2.2KW,YQR27-Y3KW,YQR27-Y63M4,YQR27-Y71M4,YQR27-Y80M4,YQR27-Y90M4,YQR27-YB100M4,YQR27-YB63M4,YQR27-YB71M4,YQR27-YB80M4,YQR27-YB90M4,YQR27-YDP100M4,YQR27-YDP63M4,YQR27-YDP71M4,YQR27-YDP80M4,YQR27-YDP90M4,YQR27-YE100M4,YQR27-YE63M4,YQR27-YE71M4,YQR27-YE80M4,YQR27-YE90M4,YQR27-YEJ100M4,YQR27-YEJ63M4,YQR27-YEJ71M4,YQR27-YEJ80M4,YQR27-YEJ90M4,YQR27-YEJB100M4,YQR27-YEJB63M4,YQR27-YEJB71M4,YQR27-YEJB80M4,YQR27-YEJB90M4,YQR27-YP100M4,YQR27-YP63M4,YQR27-YP71M4,YQR27-YP80M4,YQR27-YP90M4,YQR27-YPB100M4,YQR27-YPB63M4,YQR27-YPB71M4,YQR27-YPB80M4,YQR27-YPB90M4,YQR27-YPE100M4,YQR27-YPE63M4,YQR27-YPE71M4,YQR27-YPE80M4,YQR27-YPE90M4,YQR27-YS100M4,YQR27-YS63M4,YQR27-YS71M4,YQR27-YS80M4,YQR27-YS90M4,YQR27-YVB100M4,YQR27-YVB63M4,YQR27-YVB71M4,YQR27-YVB80M4,YQR27-YVB90M4,YQR27-YVP100M4,YQR27-YVP63M4,YQR27-YVP71M4,YQR27-YVP80M4,YQR27-YVP90M4,YQR27-YVPEJ100M4,YQR27-YVPEJ63M4,YQR27-YVPEJ71M4,YQR27-YVPEJ80M4,YQR27-YVPEJ90M4,JCR27-AM100M4,JCR27-AM63M4,JCR27-AM71M4,JCR27-AM80M4,JCR27-AM90M4,JCR27-Y0.12KW,JCR27-Y0.18KW,JCR27-Y0.25KW,JCR27-Y0.37KW,JCR27-Y0.55KW,JCR27-Y0.75KW,JCR27-Y1.1KW,JCR27-Y1.5KW,JCR27-Y100M4,JCR27-Y2.2KW,JCR27-Y3KW,JCR27-Y63M4,JCR27-Y71M4,JCR27-Y80M4,JCR27-Y90M4,JCR27-YB100M4,JCR27-YB63M4,JCR27-YB71M4,JCR27-YB80M4,JCR27-YB90M4,JCR27-YDP100M4,JCR27-YDP63M4,JCR27-YDP71M4,JCR27-YDP80M4,JCR27-YDP90M4,JCR27-YE100M4,JCR27-YE63M4,JCR27-YE71M4,JCR27-YE80M4,JCR27-YE90M4,JCR27-YEJ100M4,JCR27-YEJ63M4,JCR27-YEJ71M4,JCR27-YEJ80M4,JCR27-YEJ90M4,JCR27-YEJB100M4,JCR27-YEJB63M4,JCR27-YEJB71M4,JCR27-YEJB80M4,JCR27-YEJB90M4,JCR27-YP100M4,JCR27-YP63M4,JCR27-YP71M4,JCR27-YP80M4,JCR27-YP90M4,JCR27-YPB100M4,JCR27-YPB63M4,JCR27-YPB71M4,JCR27-YPB80M4,JCR27-YPB90M4,JCR27-YPE100M4,JCR27-YPE63M4,JCR27-YPE71M4,JCR27-YPE80M4,JCR27-YPE90M4,JCR27-YS100M4,JCR27-YS63M4,JCR27-YS71M4,JCR27-YS80M4,JCR27-YS90M4,JCR27-YVB100M4,JCR27-YVB63M4,JCR27-YVB71M4,JCR27-YVB80M4,JCR27-YVB90M4,JCR27-YVP100M4,JCR27-YVP63M4,JCR27-YVP71M4,JCR27-YVP80M4,JCR27-YVP90M4,JCR27-YVPEJ100M4,JCR27-YVPEJ63M4,JCR27-YVPEJ71M4,JCR27-YVPEJ80M4,JCR27-YVPEJ90M4,XDR27-AM100M4,XDR27-AM63M4,XDR27-AM71M4,XDR27-AM80M4,XDR27-AM90M4,XDR27-Y0.12KW,XDR27-Y0.18KW,XDR27-Y0.25KW,XDR27-Y0.37KW,XDR27-Y0.55KW,XDR27-Y0.75KW,XDR27-Y1.1KW,XDR27-Y1.5KW,XDR27-Y100M4,XDR27-Y2.2KW,XDR27-Y3KW,XDR27-Y63M4,XDR27-Y71M4,XDR27-Y80M4,XDR27-Y90M4,XDR27-YB100M4,XDR27-YB63M4,XDR27-YB71M4,XDR27-YB80M4,XDR27-YB90M4,XDR27-YDP100M4,XDR27-YDP63M4,XDR27-YDP71M4,XDR27-YDP80M4,XDR27-YDP90M4,XDR27-YE100M4,XDR27-YE63M4,XDR27-YE71M4,XDR27-YE80M4,XDR27-YE90M4,XDR27-YEJ100M4,XDR27-YEJ63M4,XDR27-YEJ71M4,XDR27-YEJ80M4,XDR27-YEJ90M4,XDR27-YEJB100M4,XDR27-YEJB63M4,XDR27-YEJB71M4,XDR27-YEJB80M4,XDR27-YEJB90M4,XDR27-YP100M4,XDR27-YP63M4,XDR27-YP71M4,XDR27-YP80M4,XDR27-YP90M4,XDR27-YPB100M4,XDR27-YPB63M4,XDR27-YPB71M4,XDR27-YPB80M4,XDR27-YPB90M4,XDR27-YPE100M4,XDR27-YPE63M4,XDR27-YPE71M4,XDR27-YPE80M4,XDR27-YPE90M4,XDR27-YS100M4,XDR27-YS63M4,XDR27-YS71M4,XDR27-YS80M4,XDR27-YS90M4,XDR27-YVB100M4,XDR27-YVB63M4,XDR27-YVB71M4,XDR27-YVB80M4,XDR27-YVB90M4,XDR27-YVP100M4,XDR27-YVP63M4,XDR27-YVP71M4,XDR27-YVP80M4,XDR27-YVP90M4,XDR27-YVPEJ100M4,XDR27-YVPEJ63M4,XDR27-YVPEJ71M4,XDR27-YVPEJ80M4,XDR27-YVPEJ90M4,R27SF80,R27SF90,R27SF100,R27SF112,R27SF115,R27SF140,R27SF160,R27SF190。

R29減速器廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-rxiliejiansuji-cn.html

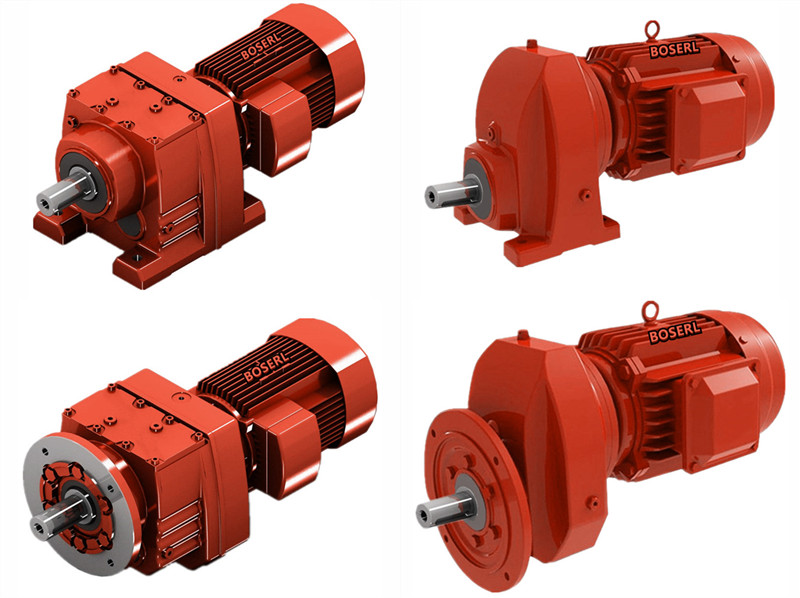

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:R29減速機

關鍵詞:GR型減速電機臥式一體機_GR型減速機_R系列減速機帶電機_R系列減速器_同向減速器_同向減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機

R系列減速機型號:R19減速機,R29減速機,R39減速機,R49減速機,R59減速機,R69減速機,R79減速機,R89減速機,R99減速機,R109減速機,R139減速機,R149減速機,R169減速機

R系列齒輪減速電機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   R29減速器 R27斜齒輪減速機 R27減速機3D模型 R27型減速機選型參數 R27臥式減速機一體機 R27伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
R29減速器3D模型 點擊下載
R29減速器選型參數 點擊下載
