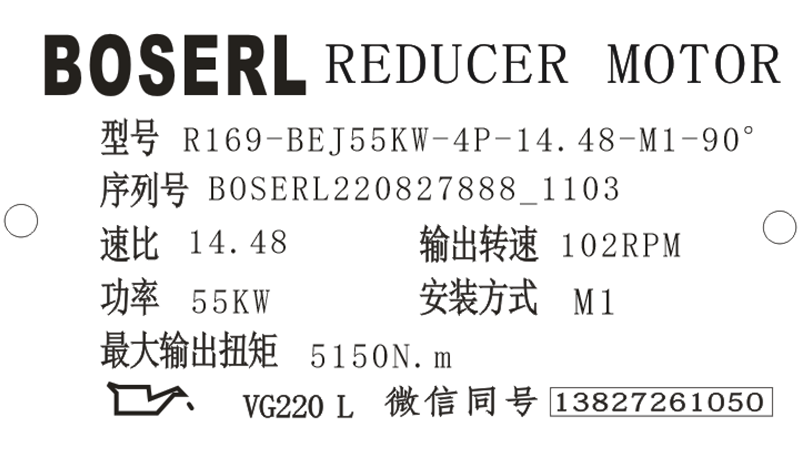

R169減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R169減速器選型樣本。
R169-BEJ55KW-4P-14.48-M1-90°
R:系列代號
169:減速機規格代號
B:電機
EJ:剎車
55KW:電機功率
4P:電機級數
14.48:減速機傳動比
M1:減速機安裝位置
90°:接線盒位置
R169減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義
R169減速器安裝所需工具以及材料:
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(R169減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。齒輪減速電機
R169減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。R169減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將R169減速器的安裝位置改變?yōu)镸5或M6,或者M5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將R169減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在R169減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對R169減速器箱體進行連接接地。
R169減速器故障售后服務統籌:
在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對R169減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。臥式減速機
R169減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“R169減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“R169減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;
R169減速器潤滑油泄露:R169減速器密封面密封性能不良,擰緊R169減速器蓋上的螺釘并觀察R169減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;R169減速器透氣閥失效,給R169減速器透氣參見“R169減速器說明書的安裝位置”章節。
R169減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“R169減速器說明書的檢查/維護”章節;R169減速器安裝位置錯誤,正確安裝透氣閥參見“R169減速器說明書的安裝位置”章節,調節油位參見“R169減速器說明書的檢查/維護”章節。
R169減速器電機或輸入軸轉動,而輸出軸不轉:R169減速器中的軸輪轂聯接斷裂,將R169減速器或減速電機送來我司修理。R系列減速機
R169減速器型號:
R169-AM160M4,R169-AM180M4,R169-AM200M4,R169-AM225M4,R169-AM250M4,R169-AM280M4,R169-AM315M4,R169-Y110KW,R169-Y11KW,R169-Y132KW,R169-Y15KW,R169-Y160M4,R169-Y18.5KW,R169-Y180M4,R169-Y200M4,R169-Y225M4,R169-Y22KW,R169-Y250M4,R169-Y280M4,R169-Y30KW,R169-Y315M4,R169-Y37KW,R169-Y45KW,R169-Y55KW,R169-Y75KW,R169-Y90KW,R169-YB160M4,R169-YB180M4,R169-YB200M4,R169-YB225M4,R169-YB250M4,R169-YB280M4,R169-YB315M4,R169-YDP160M4,R169-YDP180M4,R169-YDP200M4,R169-YDP225M4,R169-YDP250M4,R169-YDP280M4,R169-YDP315M4,R169-YE160M4,R169-YE180M4,R169-YE200M4,R169-YE225M4,R169-YE250M4,R169-YE280M4,R169-YE315M4,R169-YEJ160M4,R169-YEJ180M4,R169-YEJ200M4,R169-YEJ225M4,R169-YEJ250M4,R169-YEJ280M4,R169-YEJ315M4,R169-YEJB160M4,R169-YEJB180M4,R169-YEJB200M4,R169-YEJB225M4,R169-YEJB250M4,R169-YEJB280M4,R169-YEJB315M4,R169-YP160M4,R169-YP180M4,R169-YP200M4,R169-YP225M4,R169-YP250M4,R169-YP280M4,R169-YP315M4,R169-YPB160M4,R169-YPB180M4,R169-YPB200M4,R169-YPB225M4,R169-YPB250M4,R169-YPB280M4,R169-YPB315M4,R169-YPE160M4,R169-YPE180M4,R169-YPE200M4,R169-YPE225M4,R169-YPE250M4,R169-YPE280M4,R169-YPE315M4,R169-YS160M4,R169-YS180M4,R169-YS200M4,R169-YS225M4,R169-YS250M4,R169-YS280M4,R169-YS315M4,R169-YVB160M4,R169-YVB180M4,R169-YVB200M4,R169-YVB225M4,R169-YVB250M4,R169-YVB280M4,R169-YVB315M4,R169-YVP160M4,R169-YVP180M4,R169-YVP200M4,R169-YVP225M4,R169-YVP250M4,R169-YVP280M4,R169-YVP315M4,R169-YVPEJ160M4,R169-YVPEJ180M4,R169-YVPEJ200M4,R169-YVPEJ225M4,R169-YVPEJ250M4,R169-YVPEJ280M4,R169-YVPEJ315M4,RW167-AM160M4,RW167-AM180M4,RW167-AM200M4,RW167-AM225M4,RW167-AM250M4,RW167-AM280M4,RW167-AM315M4,RW167-Y110KW,RW167-Y11KW,RW167-Y132KW,RW167-Y15KW,RW167-Y160M4,RW167-Y18.5KW,RW167-Y180M4,RW167-Y200M4,RW167-Y225M4,RW167-Y22KW,RW167-Y250M4,RW167-Y280M4,RW167-Y30KW,RW167-Y315M4,RW167-Y37KW,RW167-Y45KW,RW167-Y55KW,RW167-Y75KW,RW167-Y90KW,RW167-YB160M4,RW167-YB180M4,RW167-YB200M4,RW167-YB225M4,RW167-YB250M4,RW167-YB280M4,RW167-YB315M4,RW167-YDP160M4,RW167-YDP180M4,RW167-YDP200M4,RW167-YDP225M4,RW167-YDP250M4,RW167-YDP280M4,RW167-YDP315M4,RW167-YE160M4,RW167-YE180M4,RW167-YE200M4,RW167-YE225M4,RW167-YE250M4,RW167-YE280M4,RW167-YE315M4,RW167-YEJ160M4,RW167-YEJ180M4,RW167-YEJ200M4,RW167-YEJ225M4,RW167-YEJ250M4,RW167-YEJ280M4,RW167-YEJ315M4,RW167-YEJB160M4,RW167-YEJB180M4,RW167-YEJB200M4,RW167-YEJB225M4,RW167-YEJB250M4,RW167-YEJB280M4,RW167-YEJB315M4,RW167-YP160M4,RW167-YP180M4,RW167-YP200M4,RW167-YP225M4,RW167-YP250M4,RW167-YP280M4,RW167-YP315M4,RW167-YPB160M4,RW167-YPB180M4,RW167-YPB200M4,RW167-YPB225M4,RW167-YPB250M4,RW167-YPB280M4,RW167-YPB315M4,RW167-YPE160M4,RW167-YPE180M4,RW167-YPE200M4,RW167-YPE225M4,RW167-YPE250M4,RW167-YPE280M4,RW167-YPE315M4,RW167-YS160M4,RW167-YS180M4,RW167-YS200M4,RW167-YS225M4,RW167-YS250M4,RW167-YS280M4,RW167-YS315M4,RW167-YVB160M4,RW167-YVB180M4,RW167-YVB200M4,RW167-YVB225M4,RW167-YVB250M4,RW167-YVB280M4,RW167-YVB315M4,RW167-YVP160M4,RW167-YVP180M4,RW167-YVP200M4,RW167-YVP225M4,RW167-YVP250M4,RW167-YVP280M4,RW167-YVP315M4,RW167-YVPEJ160M4,RW167-YVPEJ180M4,RW167-YVPEJ200M4,RW167-YVPEJ225M4,RW167-YVPEJ250M4,RW167-YVPEJ280M4,RW167-YVPEJ315M4,YQR167-AM160M4,YQR167-AM180M4,YQR167-AM200M4,YQR167-AM225M4,YQR167-AM250M4,YQR167-AM280M4,YQR167-AM315M4,YQR167-Y110KW,YQR167-Y11KW,YQR167-Y132KW,YQR167-Y15KW,YQR167-Y160M4,YQR167-Y18.5KW,YQR167-Y180M4,YQR167-Y200M4,YQR167-Y225M4,YQR167-Y22KW,YQR167-Y250M4,YQR167-Y280M4,YQR167-Y30KW,YQR167-Y315M4,YQR167-Y37KW,YQR167-Y45KW,YQR167-Y55KW,YQR167-Y75KW,YQR167-Y90KW,YQR167-YB160M4,YQR167-YB180M4,YQR167-YB200M4,YQR167-YB225M4,YQR167-YB250M4,YQR167-YB280M4,YQR167-YB315M4,YQR167-YDP160M4,YQR167-YDP180M4,YQR167-YDP200M4,YQR167-YDP225M4,YQR167-YDP250M4,YQR167-YDP280M4,YQR167-YDP315M4,YQR167-YE160M4,YQR167-YE180M4,YQR167-YE200M4,YQR167-YE225M4,YQR167-YE250M4,YQR167-YE280M4,YQR167-YE315M4,YQR167-YEJ160M4,YQR167-YEJ180M4,YQR167-YEJ200M4,YQR167-YEJ225M4,YQR167-YEJ250M4,YQR167-YEJ280M4,YQR167-YEJ315M4,YQR167-YEJB160M4,YQR167-YEJB180M4,YQR167-YEJB200M4,YQR167-YEJB225M4,YQR167-YEJB250M4,YQR167-YEJB280M4,YQR167-YEJB315M4,YQR167-YP160M4,YQR167-YP180M4,YQR167-YP200M4,YQR167-YP225M4,YQR167-YP250M4,YQR167-YP280M4,YQR167-YP315M4,YQR167-YPB160M4,YQR167-YPB180M4,YQR167-YPB200M4,YQR167-YPB225M4,YQR167-YPB250M4,YQR167-YPB280M4,YQR167-YPB315M4,YQR167-YPE160M4,YQR167-YPE180M4,YQR167-YPE200M4,YQR167-YPE225M4,YQR167-YPE250M4,YQR167-YPE280M4,YQR167-YPE315M4,YQR167-YS160M4,YQR167-YS180M4,YQR167-YS200M4,YQR167-YS225M4,YQR167-YS250M4,YQR167-YS280M4,YQR167-YS315M4,YQR167-YVB160M4,YQR167-YVB180M4,YQR167-YVB200M4,YQR167-YVB225M4,YQR167-YVB250M4,YQR167-YVB280M4,YQR167-YVB315M4,YQR167-YVP160M4,YQR167-YVP180M4,YQR167-YVP200M4,YQR167-YVP225M4,YQR167-YVP250M4,YQR167-YVP280M4,YQR167-YVP315M4,YQR167-YVPEJ160M4,YQR167-YVPEJ180M4,YQR167-YVPEJ200M4,YQR167-YVPEJ225M4,YQR167-YVPEJ250M4,YQR167-YVPEJ280M4,YQR167-YVPEJ315M4,JCR167-AM160M4,JCR167-AM180M4,JCR167-AM200M4,JCR167-AM225M4,JCR167-AM250M4,JCR167-AM280M4,JCR167-AM315M4,JCR167-Y110KW,JCR167-Y11KW,JCR167-Y132KW,JCR167-Y15KW,JCR167-Y160M4,JCR167-Y18.5KW,JCR167-Y180M4,JCR167-Y200M4,JCR167-Y225M4,JCR167-Y22KW,JCR167-Y250M4,JCR167-Y280M4,JCR167-Y30KW,JCR167-Y315M4,JCR167-Y37KW,JCR167-Y45KW,JCR167-Y55KW,JCR167-Y75KW,JCR167-Y90KW,JCR167-YB160M4,JCR167-YB180M4,JCR167-YB200M4,JCR167-YB225M4,JCR167-YB250M4,JCR167-YB280M4,JCR167-YB315M4,JCR167-YDP160M4,JCR167-YDP180M4,JCR167-YDP200M4,JCR167-YDP225M4,JCR167-YDP250M4,JCR167-YDP280M4,JCR167-YDP315M4,JCR167-YE160M4,JCR167-YE180M4,JCR167-YE200M4,JCR167-YE225M4,JCR167-YE250M4,JCR167-YE280M4,JCR167-YE315M4,JCR167-YEJ160M4,JCR167-YEJ180M4,JCR167-YEJ200M4,JCR167-YEJ225M4,JCR167-YEJ250M4,JCR167-YEJ280M4,JCR167-YEJ315M4,JCR167-YEJB160M4,JCR167-YEJB180M4,JCR167-YEJB200M4,JCR167-YEJB225M4,JCR167-YEJB250M4,JCR167-YEJB280M4,JCR167-YEJB315M4,JCR167-YP160M4,JCR167-YP180M4,JCR167-YP200M4,JCR167-YP225M4,JCR167-YP250M4,JCR167-YP280M4,JCR167-YP315M4,JCR167-YPB160M4,JCR167-YPB180M4,JCR167-YPB200M4,JCR167-YPB225M4,JCR167-YPB250M4,JCR167-YPB280M4,JCR167-YPB315M4,JCR167-YPE160M4,JCR167-YPE180M4,JCR167-YPE200M4,JCR167-YPE225M4,JCR167-YPE250M4,JCR167-YPE280M4,JCR167-YPE315M4,JCR167-YS160M4,JCR167-YS180M4,JCR167-YS200M4,JCR167-YS225M4,JCR167-YS250M4,JCR167-YS280M4,JCR167-YS315M4,JCR167-YVB160M4,JCR167-YVB180M4,JCR167-YVB200M4,JCR167-YVB225M4,JCR167-YVB250M4,JCR167-YVB280M4,JCR167-YVB315M4,JCR167-YVP160M4,JCR167-YVP180M4,JCR167-YVP200M4,JCR167-YVP225M4,JCR167-YVP250M4,JCR167-YVP280M4,JCR167-YVP315M4,JCR167-YVPEJ160M4,JCR167-YVPEJ180M4,JCR167-YVPEJ200M4,JCR167-YVPEJ225M4,JCR167-YVPEJ250M4,JCR167-YVPEJ280M4,JCR167-YVPEJ315M4,XDR167-AM160M4,XDR167-AM180M4,XDR167-AM200M4,XDR167-AM225M4,XDR167-AM250M4,XDR167-AM280M4,XDR167-AM315M4,XDR167-Y110KW,XDR167-Y11KW,XDR167-Y132KW,XDR167-Y15KW,XDR167-Y160M4,XDR167-Y18.5KW,XDR167-Y180M4,XDR167-Y200M4,XDR167-Y225M4,XDR167-Y22KW,XDR167-Y250M4,XDR167-Y280M4,XDR167-Y30KW,XDR167-Y315M4,XDR167-Y37KW,XDR167-Y45KW,XDR167-Y55KW,XDR167-Y75KW,XDR167-Y90KW,XDR167-YB160M4,XDR167-YB180M4,XDR167-YB200M4,XDR167-YB225M4,XDR167-YB250M4,XDR167-YB280M4,XDR167-YB315M4,XDR167-YDP160M4,XDR167-YDP180M4,XDR167-YDP200M4,XDR167-YDP225M4,XDR167-YDP250M4,XDR167-YDP280M4,XDR167-YDP315M4,XDR167-YE160M4,XDR167-YE180M4,XDR167-YE200M4,XDR167-YE225M4,XDR167-YE250M4,XDR167-YE280M4,XDR167-YE315M4,XDR167-YEJ160M4,XDR167-YEJ180M4,XDR167-YEJ200M4,XDR167-YEJ225M4,XDR167-YEJ250M4,XDR167-YEJ280M4,XDR167-YEJ315M4,XDR167-YEJB160M4,XDR167-YEJB180M4,XDR167-YEJB200M4,XDR167-YEJB225M4,XDR167-YEJB250M4,XDR167-YEJB280M4,XDR167-YEJB315M4,XDR167-YP160M4,XDR167-YP180M4,XDR167-YP200M4,XDR167-YP225M4,XDR167-YP250M4,XDR167-YP280M4,XDR167-YP315M4,XDR167-YPB160M4,XDR167-YPB180M4,XDR167-YPB200M4,XDR167-YPB225M4,XDR167-YPB250M4,XDR167-YPB280M4,XDR167-YPB315M4,XDR167-YPE160M4,XDR167-YPE180M4,XDR167-YPE200M4,XDR167-YPE225M4,XDR167-YPE250M4,XDR167-YPE280M4,XDR167-YPE315M4,XDR167-YS160M4,XDR167-YS180M4,XDR167-YS200M4,XDR167-YS225M4,XDR167-YS250M4,XDR167-YS280M4,XDR167-YS315M4,XDR167-YVB160M4,XDR167-YVB180M4,XDR167-YVB200M4,XDR167-YVB225M4,XDR167-YVB250M4,XDR167-YVB280M4,XDR167-YVB315M4,XDR167-YVP160M4,XDR167-YVP180M4,XDR167-YVP200M4,XDR167-YVP225M4,XDR167-YVP250M4,XDR167-YVP280M4,XDR167-YVP315M4,XDR167-YVPEJ160M4,XDR167-YVPEJ180M4,XDR167-YVPEJ200M4,XDR167-YVPEJ225M4,XDR167-YVPEJ250M4,XDR167-YVPEJ280M4,XDR167-YVPEJ315M4,R167SF80,R167SF90,R167SF100,R167SF112,R167SF115,R167SF140,R167SF160,R167SF190。
