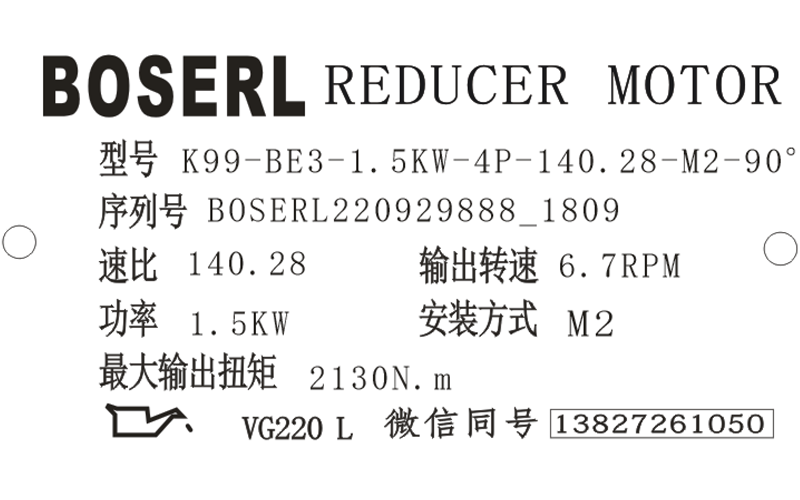

K99減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K99減速器選型樣本。
K99-BE3-1.5KW-4P-140.28-M2-90°
K:系列代號
99:減速機規格代號
BE3:電機
1.5KW:電機功率
4P:電機級數
140.28:減速機傳動比
M2:減速機安裝位置
90°:接線盒位置
K99減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義
圖 標 | 含 義 |
| 透氣閥 |
| 油位檢查螺栓 |
| 放油螺栓 |
K99減速器安裝所需工具以及材料:
由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。K99減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K99減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K99減速器的安裝位置改變?yōu)镸5或M6,或者M(jìn)5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將K99減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在K99減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對K99減速器箱體進行連接接地。直角減速機
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(K99減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。
K99減速器故障售后服務統籌:
K99減速器潤滑油泄露:K99減速器密封面密封性能不良,擰緊K99減速器蓋上的螺釘并觀察K99減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;K99減速器透氣閥失效,給K99減速器透氣參見“K99減速器說明書的安裝位置”章節。齒輪減速電機
K99減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“K99減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“K99減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;
K99減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“K99減速器說明書的檢查/維護”章節;K99減速器安裝位置錯誤,正確安裝透氣閥參見“K99減速器說明書的安裝位置”章節,調節油位參見“K99減速器說明書的檢查/維護”章節。
K99減速器電機或輸入軸轉動,而輸出軸不轉:K99減速器中的軸輪轂聯接斷裂,將K99減速器或減速電機送來我司修理。K系列減速機
在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對K99減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。
K99減速器型號:
KW97-Y1.1KW,KW97-Y1.5KW,KW97-Y100M4,KW97-Y112M4,KW97-Y11KW,KW97-Y132M4,KW97-Y15KW,KW97-Y160M4,KW97-Y18.5KW,KW97-Y180M4,KW97-Y2.2KW,KW97-Y200M4,KW97-Y22KW,KW97-Y30KW,KW97-Y3KW,KW97-Y4KW,KW97-Y5.5KW,KW97-Y7.5KW,KW97-Y80M4,KW97-Y90M4,KW97-YB100M4,KW97-YB112M4,KW97-YB132M4,KW97-YB160M4,KW97-YB180M4,KW97-YB200M4,KW97-YB80M4,KW97-YB90M4,KW97-YDP100M4,KW97-YDP112M4,KW97-YDP132M4,KW97-YDP160M4,KW97-YDP180M4,KW97-YDP200M4,KW97-YDP80M4,KW97-YDP90M4,KW97-YE100M4,KW97-YE112M4,KW97-YE132M4,KW97-YE160M4,KW97-YE180M4,KW97-YE200M4,KW97-YE80M4,KW97-YE90M4,KW97-YEJ100M4,KW97-YEJ112M4,KW97-YEJ132M4,KW97-YEJ160M4,KW97-YEJ180M4,KW97-YEJ200M4,KW97-YEJ80M4,KW97-YEJ90M4,KW97-YEJB100M4,KW97-YEJB112M4,KW97-YEJB132M4,KW97-YEJB160M4,KW97-YEJB180M4,KW97-YEJB200M4,KW97-YEJB80M4,KW97-YEJB90M4,KW97-YP100M4,KW97-YP112M4,KW97-YP132M4,KW97-YP160M4,KW97-YP180M4,KW97-YP200M4,KW97-YP80M4,KW97-YP90M4,KW97-YPB100M4,KW97-YPB112M4,KW97-YPB132M4,KW97-YPB160M4,KW97-YPB180M4,KW97-YPB200M4,KW97-YPB80M4,KW97-YPB90M4,KW97-YPE100M4,KW97-YPE112M4,KW97-YPE132M4,KW97-YPE160M4,KW97-YPE180M4,KW97-YPE200M4,KW97-YPE80M4,KW97-YPE90M4,KW97-YS100M4,KW97-YS112M4,KW97-YS132M4,KW97-YS160M4,KW97-YS180M4,KW97-YS200M4,KW97-YS80M4,KW97-YS90M4,KW97-YVB100M4,KW97-YVB112M4,KW97-YVB132M4,KW97-YVB160M4,KW97-YVB180M4,KW97-YVB200M4,KW97-YVB80M4,KW97-YVB90M4,KW97-YVP100M4,KW97-YVP112M4,KW97-YVP132M4,KW97-YVP160M4,KW97-YVP180M4,KW97-YVP200M4,KW97-YVP80M4,KW97-YVP90M4,KW97-YVPEJ100M4,KW97-YVPEJ112M4,KW97-YVPEJ132M4,KW97-YVPEJ160M4,KW97-YVPEJ180M4,KW97-YVPEJ200M4,KW97-YVPEJ80M4,KW97-YVPEJ90M4,XDK97-Y1.1KW,XDK97-Y1.5KW,XDK97-Y100M4,XDK97-Y112M4,XDK97-Y11KW,XDK97-Y132M4,XDK97-Y15KW,XDK97-Y160M4,XDK97-Y18.5KW,XDK97-Y180M4,XDK97-Y2.2KW,XDK97-Y200M4,XDK97-Y22KW,XDK97-Y30KW,XDK97-Y3KW,XDK97-Y4KW,XDK97-Y5.5KW,XDK97-Y7.5KW,XDK97-Y80M4,XDK97-Y90M4,XDK97-YB100M4,XDK97-YB112M4,XDK97-YB132M4,XDK97-YB160M4,XDK97-YB180M4,XDK97-YB200M4,XDK97-YB80M4,XDK97-YB90M4,XDK97-YDP100M4,XDK97-YDP112M4,XDK97-YDP132M4,XDK97-YDP160M4,XDK97-YDP180M4,XDK97-YDP200M4,XDK97-YDP80M4,XDK97-YDP90M4,XDK97-YE100M4,XDK97-YE112M4,XDK97-YE132M4,XDK97-YE160M4,XDK97-YE180M4,XDK97-YE200M4,XDK97-YE80M4,XDK97-YE90M4,XDK97-YEJ100M4,XDK97-YEJ112M4,XDK97-YEJ132M4,XDK97-YEJ160M4,XDK97-YEJ180M4,XDK97-YEJ200M4,XDK97-YEJ80M4,XDK97-YEJ90M4,XDK97-YEJB100M4,XDK97-YEJB112M4,XDK97-YEJB132M4,XDK97-YEJB160M4,XDK97-YEJB180M4,XDK97-YEJB200M4,XDK97-YEJB80M4,XDK97-YEJB90M4,XDK97-YP100M4,XDK97-YP112M4,XDK97-YP132M4,XDK97-YP160M4,XDK97-YP180M4,XDK97-YP200M4,XDK97-YP80M4,XDK97-YP90M4,XDK97-YPB100M4,XDK97-YPB112M4,XDK97-YPB132M4,XDK97-YPB160M4,XDK97-YPB180M4,XDK97-YPB200M4,XDK97-YPB80M4,XDK97-YPB90M4,XDK97-YPE100M4,XDK97-YPE112M4,XDK97-YPE132M4,XDK97-YPE160M4,XDK97-YPE180M4,XDK97-YPE200M4,XDK97-YPE80M4,XDK97-YPE90M4,XDK97-YS100M4,XDK97-YS112M4,XDK97-YS132M4,XDK97-YS160M4,XDK97-YS180M4,XDK97-YS200M4,XDK97-YS80M4,XDK97-YS90M4,XDK97-YVB100M4,XDK97-YVB112M4,XDK97-YVB132M4,XDK97-YVB160M4,XDK97-YVB180M4,XDK97-YVB200M4,XDK97-YVB80M4,XDK97-YVB90M4,XDK97-YVP100M4,XDK97-YVP112M4,XDK97-YVP132M4,XDK97-YVP160M4,XDK97-YVP180M4,XDK97-YVP200M4,XDK97-YVP80M4,XDK97-YVP90M4,XDK97-YVPEJ100M4,XDK97-YVPEJ112M4,XDK97-YVPEJ132M4,XDK97-YVPEJ160M4,XDK97-YVPEJ180M4,XDK97-YVPEJ200M4,XDK97-YVPEJ80M4,XDK97-YVPEJ90M4,YQK97-Y1.1KW,YQK97-Y1.5KW,YQK97-Y100M4,YQK97-Y112M4,YQK97-Y11KW,YQK97-Y132M4,YQK97-Y15KW,YQK97-Y160M4,YQK97-Y18.5KW,YQK97-Y180M4,YQK97-Y2.2KW,YQK97-Y200M4,YQK97-Y22KW,YQK97-Y30KW,YQK97-Y3KW,YQK97-Y4KW,YQK97-Y5.5KW,YQK97-Y7.5KW,YQK97-Y80M4,YQK97-Y90M4,YQK97-YB100M4,YQK97-YB112M4,YQK97-YB132M4,YQK97-YB160M4,YQK97-YB180M4,YQK97-YB200M4,YQK97-YB80M4,YQK97-YB90M4,YQK97-YDP100M4,YQK97-YDP112M4,YQK97-YDP132M4,YQK97-YDP160M4,YQK97-YDP180M4,YQK97-YDP200M4,YQK97-YDP80M4,YQK97-YDP90M4,YQK97-YE100M4,YQK97-YE112M4,YQK97-YE132M4,YQK97-YE160M4,YQK97-YE180M4,YQK97-YE200M4,YQK97-YE80M4,YQK97-YE90M4,YQK97-YEJ100M4,YQK97-YEJ112M4,YQK97-YEJ132M4,YQK97-YEJ160M4,YQK97-YEJ180M4,YQK97-YEJ200M4,YQK97-YEJ80M4,YQK97-YEJ90M4,YQK97-YEJB100M4,YQK97-YEJB112M4,YQK97-YEJB132M4,YQK97-YEJB160M4,YQK97-YEJB180M4,YQK97-YEJB200M4,YQK97-YEJB80M4,YQK97-YEJB90M4,YQK97-YP100M4,YQK97-YP112M4,YQK97-YP132M4,YQK97-YP160M4,YQK97-YP180M4,YQK97-YP200M4,YQK97-YP80M4,YQK97-YP90M4,YQK97-YPB100M4,YQK97-YPB112M4,YQK97-YPB132M4,YQK97-YPB160M4,YQK97-YPB180M4,YQK97-YPB200M4,YQK97-YPB80M4,YQK97-YPB90M4,YQK97-YPE100M4,YQK97-YPE112M4,YQK97-YPE132M4,YQK97-YPE160M4,YQK97-YPE180M4,YQK97-YPE200M4,YQK97-YPE80M4,YQK97-YPE90M4,YQK97-YS100M4,YQK97-YS112M4,YQK97-YS132M4,YQK97-YS160M4,YQK97-YS180M4,YQK97-YS200M4,YQK97-YS80M4,YQK97-YS90M4,YQK97-YVB100M4,YQK97-YVB112M4,YQK97-YVB132M4,YQK97-YVB160M4,YQK97-YVB180M4,YQK97-YVB200M4,YQK97-YVB80M4,YQK97-YVB90M4,YQK97-YVP100M4,YQK97-YVP112M4,YQK97-YVP132M4,YQK97-YVP160M4,YQK97-YVP180M4,YQK97-YVP200M4,YQK97-YVP80M4,YQK97-YVP90M4,YQK97-YVPEJ100M4,YQK97-YVPEJ112M4,YQK97-YVPEJ132M4,YQK97-YVPEJ160M4,YQK97-YVPEJ180M4,YQK97-YVPEJ200M4,YQK97-YVPEJ80M4,YQK97-YVPEJ90M4,JCK97-Y1.1KW,JCK97-Y1.5KW,JCK97-Y100M4,JCK97-Y112M4,JCK97-Y11KW,JCK97-Y132M4,JCK97-Y15KW,JCK97-Y160M4,JCK97-Y18.5KW,JCK97-Y180M4,JCK97-Y2.2KW,JCK97-Y200M4,JCK97-Y22KW,JCK97-Y30KW,JCK97-Y3KW,JCK97-Y4KW,JCK97-Y5.5KW,JCK97-Y7.5KW,JCK97-Y80M4,JCK97-Y90M4,JCK97-YB100M4,JCK97-YB112M4,JCK97-YB132M4,JCK97-YB160M4,JCK97-YB180M4,JCK97-YB200M4,JCK97-YB80M4,JCK97-YB90M4,JCK97-YDP100M4,JCK97-YDP112M4,JCK97-YDP132M4,JCK97-YDP160M4,JCK97-YDP180M4,JCK97-YDP200M4,JCK97-YDP80M4,JCK97-YDP90M4,JCK97-YE100M4,JCK97-YE112M4,JCK97-YE132M4,JCK97-YE160M4,JCK97-YE180M4,JCK97-YE200M4,JCK97-YE80M4,JCK97-YE90M4,JCK97-YEJ100M4,JCK97-YEJ112M4,JCK97-YEJ132M4,JCK97-YEJ160M4,JCK97-YEJ180M4,JCK97-YEJ200M4,JCK97-YEJ80M4,JCK97-YEJ90M4,JCK97-YEJB100M4,JCK97-YEJB112M4,JCK97-YEJB132M4,JCK97-YEJB160M4,JCK97-YEJB180M4,JCK97-YEJB200M4,JCK97-YEJB80M4,JCK97-YEJB90M4,JCK97-YP100M4,JCK97-YP112M4,JCK97-YP132M4,JCK97-YP160M4,JCK97-YP180M4,JCK97-YP200M4,JCK97-YP80M4,JCK97-YP90M4,JCK97-YPB100M4,JCK97-YPB112M4,JCK97-YPB132M4,JCK97-YPB160M4,JCK97-YPB180M4,JCK97-YPB200M4,JCK97-YPB80M4,JCK97-YPB90M4,JCK97-YPE100M4,JCK97-YPE112M4,JCK97-YPE132M4,JCK97-YPE160M4,JCK97-YPE180M4,JCK97-YPE200M4,JCK97-YPE80M4,JCK97-YPE90M4,JCK97-YS100M4,JCK97-YS112M4,JCK97-YS132M4,JCK97-YS160M4,JCK97-YS180M4,JCK97-YS200M4,JCK97-YS80M4,JCK97-YS90M4,JCK97-YVB100M4,JCK97-YVB112M4,JCK97-YVB132M4,JCK97-YVB160M4,JCK97-YVB180M4,JCK97-YVB200M4,JCK97-YVB80M4,JCK97-YVB90M4,JCK97-YVP100M4,JCK97-YVP112M4,JCK97-YVP132M4,JCK97-YVP160M4,JCK97-YVP180M4,JCK97-YVP200M4,JCK97-YVP80M4,JCK97-YVP90M4,JCK97-YVPEJ100M4,JCK97-YVPEJ112M4,JCK97-YVPEJ132M4,JCK97-YVPEJ160M4,JCK97-YVPEJ180M4,JCK97-YVPEJ200M4,JCK97-YVPEJ80M4,JCK97-YVPEJ90M4,K99-Y1.1KW,K99-Y1.5KW,K99-Y100M4,K99-Y112M4,K99-Y11KW,K99-Y132M4,K99-Y15KW,K99-Y160M4,K99-Y18.5KW,K99-Y180M4,K99-Y2.2KW,K99-Y200M4,K99-Y22KW,K99-Y30KW,K99-Y3KW,K99-Y4KW,K99-Y5.5KW,K99-Y7.5KW,K99-Y80M4,K99-Y90M4,K99-YB100M4,K99-YB112M4,K99-YB132M4,K99-YB160M4,K99-YB180M4,K99-YB200M4,K99-YB80M4,K99-YB90M4,K99-YDP100M4,K99-YDP112M4,K99-YDP132M4,K99-YDP160M4,K99-YDP180M4,K99-YDP200M4,K99-YDP80M4,K99-YDP90M4,K99-YE100M4,K99-YE112M4,K99-YE132M4,K99-YE160M4,K99-YE180M4,K99-YE200M4,K99-YE80M4,K99-YE90M4,K99-YEJ100M4,K99-YEJ112M4,K99-YEJ132M4,K99-YEJ160M4,K99-YEJ180M4,K99-YEJ200M4,K99-YEJ80M4,K99-YEJ90M4,K99-YEJB100M4,K99-YEJB112M4,K99-YEJB132M4,K99-YEJB160M4,K99-YEJB180M4,K99-YEJB200M4,K99-YEJB80M4,K99-YEJB90M4,K99-YP100M4,K99-YP112M4,K99-YP132M4,K99-YP160M4,K99-YP180M4,K99-YP200M4,K99-YP80M4,K99-YP90M4,K99-YPB100M4,K99-YPB112M4,K99-YPB132M4,K99-YPB160M4,K99-YPB180M4,K99-YPB200M4,K99-YPB80M4,K99-YPB90M4,K99-YPE100M4,K99-YPE112M4,K99-YPE132M4,K99-YPE160M4,K99-YPE180M4,K99-YPE200M4,K99-YPE80M4,K99-YPE90M4,K99-YS100M4,K99-YS112M4,K99-YS132M4,K99-YS160M4,K99-YS180M4,K99-YS200M4,K99-YS80M4,K99-YS90M4,K99-YVB100M4,K99-YVB112M4,K99-YVB132M4,K99-YVB160M4,K99-YVB180M4,K99-YVB200M4,K99-YVB80M4,K99-YVB90M4,K99-YVP100M4,K99-YVP112M4,K99-YVP132M4,K99-YVP160M4,K99-YVP180M4,K99-YVP200M4,K99-YVP80M4,K99-YVP90M4,K99-YVPEJ100M4,K99-YVPEJ112M4,K99-YVPEJ132M4,K99-YVPEJ160M4,K99-YVPEJ180M4,K99-YVPEJ200M4,K99-YVPEJ80M4,K99-YVPEJ90M4,K97SF80,K97SF90,K97SF100,K97SF112,K97SF115,K97SF140,K97SF160,K97SF190。
K99減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kxiliejiansuji-cn.html
推薦類似型號:K99減速機
關鍵詞:雙出軸減速機帶電機一體機_K系列減速機_90度減速機_螺旋錐齒輪減速機_螺旋錐齒輪減速器_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速電機型號:K39減速機,K49減速機,K59減速機,K69減速機,K79減速機,K89減速機,K99減速機,K109減速機,K129減速機,K159減速機,K169減速機,K189減速機
K系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
