K59減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K59減速器選型樣本。

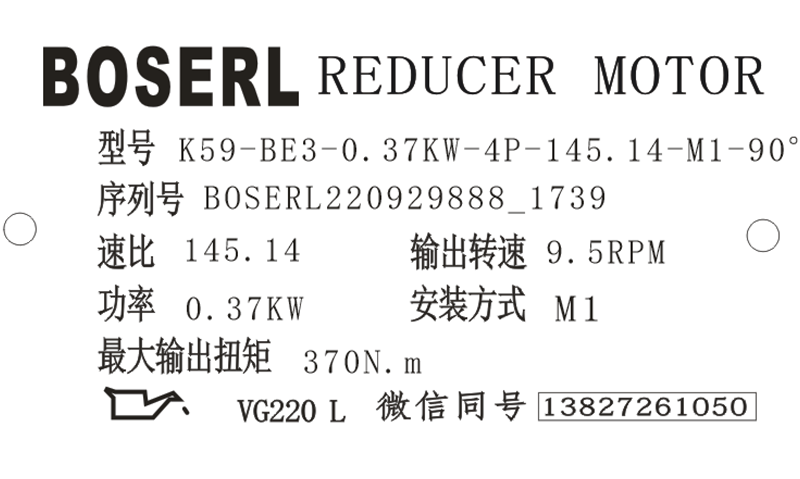

K59-BE3-0.37KW-4P-145.14-M1-90°
K:系列代號
59:減速機規格代號
BE3:電機
0.37KW:電機功率
4P:電機級數
145.14:減速機傳動比
M1:減速機安裝位置
90°:接線盒位置
K59減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義
圖 標 | 含 義 |
| 透氣閥 |
| 油位檢查螺栓 |
| 放油螺栓 |
K59減速器安裝所需工具以及材料:
由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。K59減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K59減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K59減速器的安裝位置改變?yōu)镸5或M6,或者M(jìn)5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將K59減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在K59減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對K59減速器箱體進行連接接地。直角減速機
輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(K59減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。
K59減速器故障售后服務統籌:
K59減速器潤滑油泄露:K59減速器密封面密封性能不良,擰緊K59減速器蓋上的螺釘并觀察K59減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;K59減速器透氣閥失效,給K59減速器透氣參見“K59減速器說明書的安裝位置”章節。齒輪減速電機
K59減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“K59減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“K59減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;
K59減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“K59減速器說明書的檢查/維護”章節;K59減速器安裝位置錯誤,正確安裝透氣閥參見“K59減速器說明書的安裝位置”章節,調節油位參見“K59減速器說明書的檢查/維護”章節。
K59減速器電機或輸入軸轉動,而輸出軸不轉:K59減速器中的軸輪轂聯接斷裂,將K59減速器或減速電機送來我司修理。K系列減速機
在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對K59減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。
K59減速器型號:
KW57-Y0.12KW,KW57-Y0.18KW,KW57-Y0.25KW,KW57-Y0.37KW,KW57-Y0.55KW,KW57-Y0.75KW,KW57-Y1.1KW,KW57-Y1.5KW,KW57-Y100M4,KW57-Y112M4,KW57-Y2.2KW,KW57-Y3KW,KW57-Y4KW,KW57-Y63M4,KW57-Y71M4,KW57-Y80M4,KW57-Y90M4,KW57-YB100M4,KW57-YB112M4,KW57-YB63M4,KW57-YB71M4,KW57-YB80M4,KW57-YB90M4,KW57-YDP100M4,KW57-YDP112M4,KW57-YDP63M4,KW57-YDP71M4,KW57-YDP80M4,KW57-YDP90M4,KW57-YE100M4,KW57-YE112M4,KW57-YE63M4,KW57-YE71M4,KW57-YE80M4,KW57-YE90M4,KW57-YEJ100M4,KW57-YEJ112M4,KW57-YEJ63M4,KW57-YEJ71M4,KW57-YEJ80M4,KW57-YEJ90M4,KW57-YEJB100M4,KW57-YEJB112M4,KW57-YEJB63M4,KW57-YEJB71M4,KW57-YEJB80M4,KW57-YEJB90M4,KW57-YP100M4,KW57-YP112M4,KW57-YP63M4,KW57-YP71M4,KW57-YP80M4,KW57-YP90M4,KW57-YPB100M4,KW57-YPB112M4,KW57-YPB63M4,KW57-YPB71M4,KW57-YPB80M4,KW57-YPB90M4,KW57-YPE100M4,KW57-YPE112M4,KW57-YPE63M4,KW57-YPE71M4,KW57-YPE80M4,KW57-YPE90M4,KW57-YS100M4,KW57-YS112M4,KW57-YS63M4,KW57-YS71M4,KW57-YS80M4,KW57-YS90M4,KW57-YVB100M4,KW57-YVB112M4,KW57-YVB63M4,KW57-YVB71M4,KW57-YVB80M4,KW57-YVB90M4,KW57-YVP100M4,KW57-YVP112M4,KW57-YVP63M4,KW57-YVP71M4,KW57-YVP80M4,KW57-YVP90M4,KW57-YVPEJ100M4,KW57-YVPEJ112M4,KW57-YVPEJ63M4,KW57-YVPEJ71M4,KW57-YVPEJ80M4,KW57-YVPEJ90M4,XDK57-Y0.12KW,XDK57-Y0.18KW,XDK57-Y0.25KW,XDK57-Y0.37KW,XDK57-Y0.55KW,XDK57-Y0.75KW,XDK57-Y1.1KW,XDK57-Y1.5KW,XDK57-Y100M4,XDK57-Y112M4,XDK57-Y2.2KW,XDK57-Y3KW,XDK57-Y4KW,XDK57-Y63M4,XDK57-Y71M4,XDK57-Y80M4,XDK57-Y90M4,XDK57-YB100M4,XDK57-YB112M4,XDK57-YB63M4,XDK57-YB71M4,XDK57-YB80M4,XDK57-YB90M4,XDK57-YDP100M4,XDK57-YDP112M4,XDK57-YDP63M4,XDK57-YDP71M4,XDK57-YDP80M4,XDK57-YDP90M4,XDK57-YE100M4,XDK57-YE112M4,XDK57-YE63M4,XDK57-YE71M4,XDK57-YE80M4,XDK57-YE90M4,XDK57-YEJ100M4,XDK57-YEJ112M4,XDK57-YEJ63M4,XDK57-YEJ71M4,XDK57-YEJ80M4,XDK57-YEJ90M4,XDK57-YEJB100M4,XDK57-YEJB112M4,XDK57-YEJB63M4,XDK57-YEJB71M4,XDK57-YEJB80M4,XDK57-YEJB90M4,XDK57-YP100M4,XDK57-YP112M4,XDK57-YP63M4,XDK57-YP71M4,XDK57-YP80M4,XDK57-YP90M4,XDK57-YPB100M4,XDK57-YPB112M4,XDK57-YPB63M4,XDK57-YPB71M4,XDK57-YPB80M4,XDK57-YPB90M4,XDK57-YPE100M4,XDK57-YPE112M4,XDK57-YPE63M4,XDK57-YPE71M4,XDK57-YPE80M4,XDK57-YPE90M4,XDK57-YS100M4,XDK57-YS112M4,XDK57-YS63M4,XDK57-YS71M4,XDK57-YS80M4,XDK57-YS90M4,XDK57-YVB100M4,XDK57-YVB112M4,XDK57-YVB63M4,XDK57-YVB71M4,XDK57-YVB80M4,XDK57-YVB90M4,XDK57-YVP100M4,XDK57-YVP112M4,XDK57-YVP63M4,XDK57-YVP71M4,XDK57-YVP80M4,XDK57-YVP90M4,XDK57-YVPEJ100M4,XDK57-YVPEJ112M4,XDK57-YVPEJ63M4,XDK57-YVPEJ71M4,XDK57-YVPEJ80M4,XDK57-YVPEJ90M4,YQK57-Y0.12KW,YQK57-Y0.18KW,YQK57-Y0.25KW,YQK57-Y0.37KW,YQK57-Y0.55KW,YQK57-Y0.75KW,YQK57-Y1.1KW,YQK57-Y1.5KW,YQK57-Y100M4,YQK57-Y112M4,YQK57-Y2.2KW,YQK57-Y3KW,YQK57-Y4KW,YQK57-Y63M4,YQK57-Y71M4,YQK57-Y80M4,YQK57-Y90M4,YQK57-YB100M4,YQK57-YB112M4,YQK57-YB63M4,YQK57-YB71M4,YQK57-YB80M4,YQK57-YB90M4,YQK57-YDP100M4,YQK57-YDP112M4,YQK57-YDP63M4,YQK57-YDP71M4,YQK57-YDP80M4,YQK57-YDP90M4,YQK57-YE100M4,YQK57-YE112M4,YQK57-YE63M4,YQK57-YE71M4,YQK57-YE80M4,YQK57-YE90M4,YQK57-YEJ100M4,YQK57-YEJ112M4,YQK57-YEJ63M4,YQK57-YEJ71M4,YQK57-YEJ80M4,YQK57-YEJ90M4,YQK57-YEJB100M4,YQK57-YEJB112M4,YQK57-YEJB63M4,YQK57-YEJB71M4,YQK57-YEJB80M4,YQK57-YEJB90M4,YQK57-YP100M4,YQK57-YP112M4,YQK57-YP63M4,YQK57-YP71M4,YQK57-YP80M4,YQK57-YP90M4,YQK57-YPB100M4,YQK57-YPB112M4,YQK57-YPB63M4,YQK57-YPB71M4,YQK57-YPB80M4,YQK57-YPB90M4,YQK57-YPE100M4,YQK57-YPE112M4,YQK57-YPE63M4,YQK57-YPE71M4,YQK57-YPE80M4,YQK57-YPE90M4,YQK57-YS100M4,YQK57-YS112M4,YQK57-YS63M4,YQK57-YS71M4,YQK57-YS80M4,YQK57-YS90M4,YQK57-YVB100M4,YQK57-YVB112M4,YQK57-YVB63M4,YQK57-YVB71M4,YQK57-YVB80M4,YQK57-YVB90M4,YQK57-YVP100M4,YQK57-YVP112M4,YQK57-YVP63M4,YQK57-YVP71M4,YQK57-YVP80M4,YQK57-YVP90M4,YQK57-YVPEJ100M4,YQK57-YVPEJ112M4,YQK57-YVPEJ63M4,YQK57-YVPEJ71M4,YQK57-YVPEJ80M4,YQK57-YVPEJ90M4,JCK57-Y0.12KW,JCK57-Y0.18KW,JCK57-Y0.25KW,JCK57-Y0.37KW,JCK57-Y0.55KW,JCK57-Y0.75KW,JCK57-Y1.1KW,JCK57-Y1.5KW,JCK57-Y100M4,JCK57-Y112M4,JCK57-Y2.2KW,JCK57-Y3KW,JCK57-Y4KW,JCK57-Y63M4,JCK57-Y71M4,JCK57-Y80M4,JCK57-Y90M4,JCK57-YB100M4,JCK57-YB112M4,JCK57-YB63M4,JCK57-YB71M4,JCK57-YB80M4,JCK57-YB90M4,JCK57-YDP100M4,JCK57-YDP112M4,JCK57-YDP63M4,JCK57-YDP71M4,JCK57-YDP80M4,JCK57-YDP90M4,JCK57-YE100M4,JCK57-YE112M4,JCK57-YE63M4,JCK57-YE71M4,JCK57-YE80M4,JCK57-YE90M4,JCK57-YEJ100M4,JCK57-YEJ112M4,JCK57-YEJ63M4,JCK57-YEJ71M4,JCK57-YEJ80M4,JCK57-YEJ90M4,JCK57-YEJB100M4,JCK57-YEJB112M4,JCK57-YEJB63M4,JCK57-YEJB71M4,JCK57-YEJB80M4,JCK57-YEJB90M4,JCK57-YP100M4,JCK57-YP112M4,JCK57-YP63M4,JCK57-YP71M4,JCK57-YP80M4,JCK57-YP90M4,JCK57-YPB100M4,JCK57-YPB112M4,JCK57-YPB63M4,JCK57-YPB71M4,JCK57-YPB80M4,JCK57-YPB90M4,JCK57-YPE100M4,JCK57-YPE112M4,JCK57-YPE63M4,JCK57-YPE71M4,JCK57-YPE80M4,JCK57-YPE90M4,JCK57-YS100M4,JCK57-YS112M4,JCK57-YS63M4,JCK57-YS71M4,JCK57-YS80M4,JCK57-YS90M4,JCK57-YVB100M4,JCK57-YVB112M4,JCK57-YVB63M4,JCK57-YVB71M4,JCK57-YVB80M4,JCK57-YVB90M4,JCK57-YVP100M4,JCK57-YVP112M4,JCK57-YVP63M4,JCK57-YVP71M4,JCK57-YVP80M4,JCK57-YVP90M4,JCK57-YVPEJ100M4,JCK57-YVPEJ112M4,JCK57-YVPEJ63M4,JCK57-YVPEJ71M4,JCK57-YVPEJ80M4,JCK57-YVPEJ90M4,K59-Y0.12KW,K59-Y0.18KW,K59-Y0.25KW,K59-Y0.37KW,K59-Y0.55KW,K59-Y0.75KW,K59-Y1.1KW,K59-Y1.5KW,K59-Y100M4,K59-Y112M4,K59-Y2.2KW,K59-Y3KW,K59-Y4KW,K59-Y63M4,K59-Y71M4,K59-Y80M4,K59-Y90M4,K59-YB100M4,K59-YB112M4,K59-YB63M4,K59-YB71M4,K59-YB80M4,K59-YB90M4,K59-YDP100M4,K59-YDP112M4,K59-YDP63M4,K59-YDP71M4,K59-YDP80M4,K59-YDP90M4,K59-YE100M4,K59-YE112M4,K59-YE63M4,K59-YE71M4,K59-YE80M4,K59-YE90M4,K59-YEJ100M4,K59-YEJ112M4,K59-YEJ63M4,K59-YEJ71M4,K59-YEJ80M4,K59-YEJ90M4,K59-YEJB100M4,K59-YEJB112M4,K59-YEJB63M4,K59-YEJB71M4,K59-YEJB80M4,K59-YEJB90M4,K59-YP100M4,K59-YP112M4,K59-YP63M4,K59-YP71M4,K59-YP80M4,K59-YP90M4,K59-YPB100M4,K59-YPB112M4,K59-YPB63M4,K59-YPB71M4,K59-YPB80M4,K59-YPB90M4,K59-YPE100M4,K59-YPE112M4,K59-YPE63M4,K59-YPE71M4,K59-YPE80M4,K59-YPE90M4,K59-YS100M4,K59-YS112M4,K59-YS63M4,K59-YS71M4,K59-YS80M4,K59-YS90M4,K59-YVB100M4,K59-YVB112M4,K59-YVB63M4,K59-YVB71M4,K59-YVB80M4,K59-YVB90M4,K59-YVP100M4,K59-YVP112M4,K59-YVP63M4,K59-YVP71M4,K59-YVP80M4,K59-YVP90M4,K59-YVPEJ100M4,K59-YVPEJ112M4,K59-YVPEJ63M4,K59-YVPEJ71M4,K59-YVPEJ80M4,K59-YVPEJ90M4,K57SF80,K57SF90,K57SF100,K57SF112,K57SF115,K57SF140,K57SF160,K57SF190。
K59減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kxiliejiansuji-cn.html
推薦類似型號:K59減速機
關鍵詞:雙出軸減速機帶電機一體機_K系列減速機_90度減速機_螺旋錐齒輪減速機_螺旋錐齒輪減速器_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速電機型號:K39減速機,K49減速機,K59減速機,K69減速機,K79減速機,K89減速機,K99減速機,K109減速機,K129減速機,K159減速機,K169減速機,K189減速機
K系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
