網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速電機 > K系列齒輪減速電機

K109減速器詳細信息

prevnext

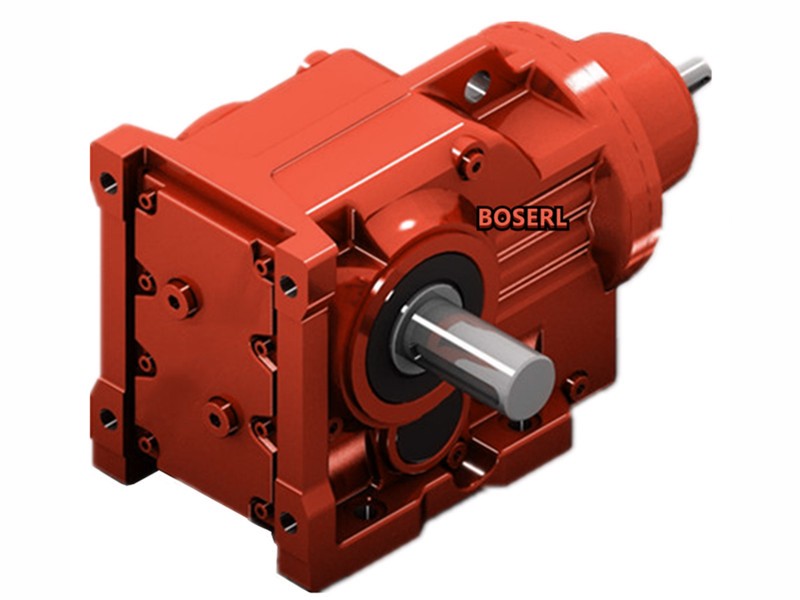

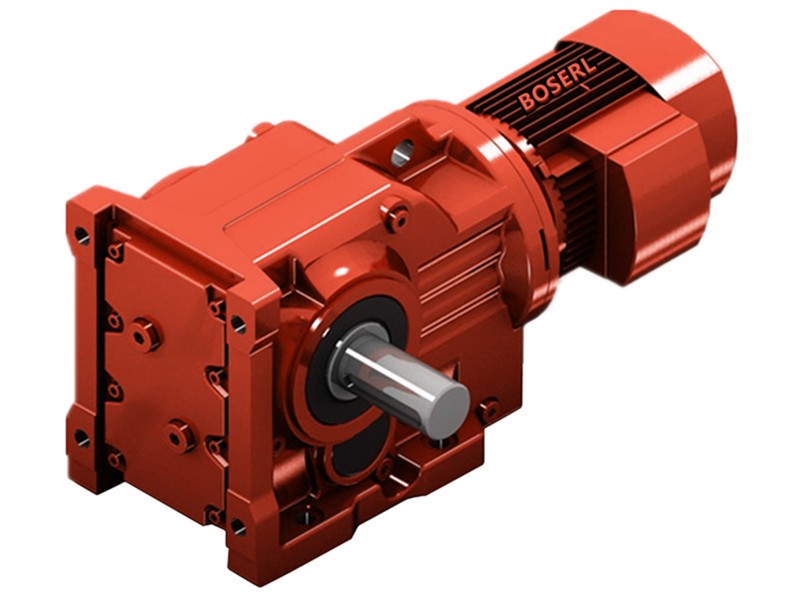

K109減速器

訂購熱線:13360667204
  1. 詳細信息

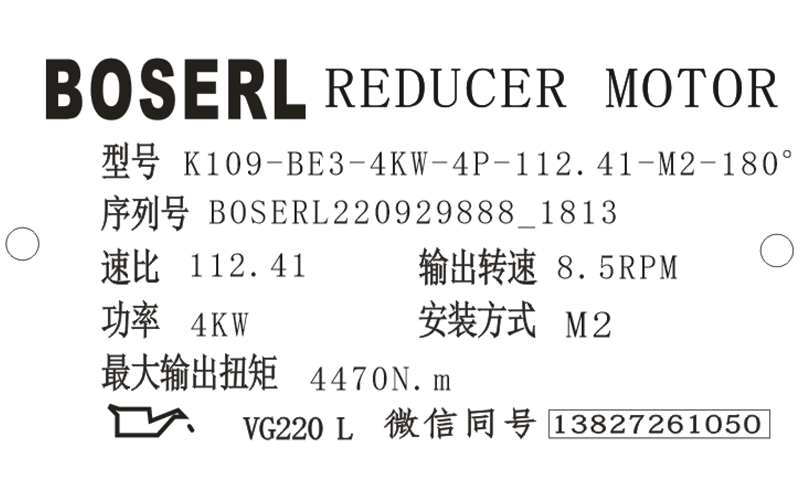

K109減速器銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K109減速器選型樣本。

K109-BE3-4KW-4P-112.41-M2-180°

K:系列代號

109:減速機規格代號

BE3:電機

4KW:電機功率

4P:電機級數

112.41:減速機傳動比

M2:減速機安裝位置

180°:接線盒位置


K109減速器上的圖標說明:下表列出安裝位置章節中所采用的圖標及其含義

圖       標

含   義


透氣閥


油位檢查螺栓


放油螺栓

K109減速器安裝所需工具以及材料:

由于安裝位置的原因,從油位螺栓觀察,油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時,潤滑油加注油量和透氣閥的位置必須作相應的調整。K109減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近!同時還要檢查,注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K109減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K109減速器的安裝位置改變?yōu)镸5或M6,或者M(jìn)5、M6之間的安裝位置,請您咨詢BOSERL公司客戶服務部。若要將K109減速器改裝成M2或M3時,請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕,請您在K109減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須<109Ω。電化學腐蝕可能發生在不同的金屬物質之間,如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片!還要通過電機上的接地螺栓對K109減速器箱體進行連接接地。直角減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件(墊片、間隔環)、輸入/輸出元件的緊固裝置、 潤滑油(K109減速器出廠已經自帶潤滑油)、用于緊固螺栓的密封膠(針對帶對中軸肩的輸入軸裝置AD/ZR),所有的標準部件均不是供貨范圍。


K109減速器故障售后服務統籌:

K109減速器潤滑油泄露:K109減速器密封面密封性能不良,擰緊K109減速器蓋上的螺釘并觀察K109減速器。如果潤滑油繼續泄露,請向客戶服務部咨詢;密封圈損壞,請向客戶服務部咨詢;K109減速器透氣閥失效,給K109減速器透氣參見“K109減速器說明書的安裝位置”章節。齒輪減速電機

K109減速器異常、無規律的運轉噪音:軸承損壞,檢查潤滑油參見“K109減速器說明書的檢查/維護”章節,更換軸承;齒輪有損失,請向客戶服務部咨詢;潤滑油中有異物,檢查潤滑油參見“K109減速器說明書的檢查/維護”章節;傳動裝置停車,請向客戶服務部咨詢;

K109減速器潤滑油從透氣閥處滲出:潤滑油太多,調節油量參見“K109減速器說明書的檢查/維護”章節;K109減速器安裝位置錯誤,正確安裝透氣閥參見“K109減速器說明書的安裝位置”章節,調節油位參見“K109減速器說明書的檢查/維護”章節。

K109減速器電機或輸入軸轉動,而輸出軸不轉:K109減速器中的軸輪轂聯接斷裂,將K109減速器或減速電機送來我司修理。K系列減速機

在磨合期(48小時的運轉時間內)油封可能出現短期內的滲油或油脂的現象。對K109減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障,請與BOSERL公司客戶服務部聯系。

K109減速器型號:

XDK107-Y100M4,XDK107-Y112M4,XDK107-Y11KW,XDK107-Y132M4,XDK107-Y15KW,XDK107-Y160M4,XDK107-Y18.5KW,XDK107-Y180M4,XDK107-Y200M4,XDK107-Y225M4,XDK107-Y22KW,XDK107-Y30KW,XDK107-Y37KW,XDK107-Y3KW,XDK107-Y45KW,XDK107-Y4KW,XDK107-Y5.5KW,XDK107-Y7.5KW,XDK107-YB100M4,XDK107-YB112M4,XDK107-YB132M4,XDK107-YB160M4,XDK107-YB180M4,XDK107-YB200M4,XDK107-YB225M4,XDK107-YDP100M4,XDK107-YDP112M4,XDK107-YDP132M4,XDK107-YDP160M4,XDK107-YDP180M4,XDK107-YDP200M4,XDK107-YDP225M4,XDK107-YE100M4,XDK107-YE112M4,XDK107-YE132M4,XDK107-YE160M4,XDK107-YE180M4,XDK107-YE200M4,XDK107-YE225M4,XDK107-YEJ100M4,XDK107-YEJ112M4,XDK107-YEJ132M4,XDK107-YEJ160M4,XDK107-YEJ180M4,XDK107-YEJ200M4,XDK107-YEJ225M4,XDK107-YEJB100M4,XDK107-YEJB112M4,XDK107-YEJB132M4,XDK107-YEJB160M4,XDK107-YEJB180M4,XDK107-YEJB200M4,XDK107-YEJB225M4,XDK107-YP100M4,XDK107-YP112M4,XDK107-YP132M4,XDK107-YP160M4,XDK107-YP180M4,XDK107-YP200M4,XDK107-YP225M4,XDK107-YPB100M4,XDK107-YPB112M4,XDK107-YPB132M4,XDK107-YPB160M4,XDK107-YPB180M4,XDK107-YPB200M4,XDK107-YPB225M4,XDK107-YPE100M4,XDK107-YPE112M4,XDK107-YPE132M4,XDK107-YPE160M4,XDK107-YPE180M4,XDK107-YPE200M4,XDK107-YPE225M4,XDK107-YS100M4,XDK107-YS112M4,XDK107-YS132M4,XDK107-YS160M4,XDK107-YS180M4,XDK107-YS200M4,XDK107-YS225M4,XDK107-YVB100M4,XDK107-YVB112M4,XDK107-YVB132M4,XDK107-YVB160M4,XDK107-YVB180M4,XDK107-YVB200M4,XDK107-YVB225M4,XDK107-YVP100M4,XDK107-YVP112M4,XDK107-YVP132M4,XDK107-YVP160M4,XDK107-YVP180M4,XDK107-YVP200M4,XDK107-YVP225M4,XDK107-YVPEJ100M4,XDK107-YVPEJ112M4,XDK107-YVPEJ132M4,XDK107-YVPEJ160M4,XDK107-YVPEJ180M4,XDK107-YVPEJ200M4,XDK107-YVPEJ225M4,YQK107-Y100M4,YQK107-Y112M4,YQK107-Y11KW,YQK107-Y132M4,YQK107-Y15KW,YQK107-Y160M4,YQK107-Y18.5KW,YQK107-Y180M4,YQK107-Y200M4,YQK107-Y225M4,YQK107-Y22KW,YQK107-Y30KW,YQK107-Y37KW,YQK107-Y3KW,YQK107-Y45KW,YQK107-Y4KW,YQK107-Y5.5KW,YQK107-Y7.5KW,YQK107-YB100M4,YQK107-YB112M4,YQK107-YB132M4,YQK107-YB160M4,YQK107-YB180M4,YQK107-YB200M4,YQK107-YB225M4,YQK107-YDP100M4,YQK107-YDP112M4,YQK107-YDP132M4,YQK107-YDP160M4,YQK107-YDP180M4,YQK107-YDP200M4,YQK107-YDP225M4,YQK107-YE100M4,YQK107-YE112M4,YQK107-YE132M4,YQK107-YE160M4,YQK107-YE180M4,YQK107-YE200M4,YQK107-YE225M4,YQK107-YEJ100M4,YQK107-YEJ112M4,YQK107-YEJ132M4,YQK107-YEJ160M4,YQK107-YEJ180M4,YQK107-YEJ200M4,YQK107-YEJ225M4,YQK107-YEJB100M4,YQK107-YEJB112M4,YQK107-YEJB132M4,YQK107-YEJB160M4,YQK107-YEJB180M4,YQK107-YEJB200M4,YQK107-YEJB225M4,YQK107-YP100M4,YQK107-YP112M4,YQK107-YP132M4,YQK107-YP160M4,YQK107-YP180M4,YQK107-YP200M4,YQK107-YP225M4,YQK107-YPB100M4,YQK107-YPB112M4,YQK107-YPB132M4,YQK107-YPB160M4,YQK107-YPB180M4,YQK107-YPB200M4,YQK107-YPB225M4,YQK107-YPE100M4,YQK107-YPE112M4,YQK107-YPE132M4,YQK107-YPE160M4,YQK107-YPE180M4,YQK107-YPE200M4,YQK107-YPE225M4,YQK107-YS100M4,YQK107-YS112M4,YQK107-YS132M4,YQK107-YS160M4,YQK107-YS180M4,YQK107-YS200M4,YQK107-YS225M4,YQK107-YVB100M4,YQK107-YVB112M4,YQK107-YVB132M4,YQK107-YVB160M4,YQK107-YVB180M4,YQK107-YVB200M4,YQK107-YVB225M4,YQK107-YVP100M4,YQK107-YVP112M4,YQK107-YVP132M4,YQK107-YVP160M4,YQK107-YVP180M4,YQK107-YVP200M4,YQK107-YVP225M4,YQK107-YVPEJ100M4,YQK107-YVPEJ112M4,YQK107-YVPEJ132M4,YQK107-YVPEJ160M4,YQK107-YVPEJ180M4,YQK107-YVPEJ200M4,YQK107-YVPEJ225M4,JCK107-Y100M4,JCK107-Y112M4,JCK107-Y11KW,JCK107-Y132M4,JCK107-Y15KW,JCK107-Y160M4,JCK107-Y18.5KW,JCK107-Y180M4,JCK107-Y200M4,JCK107-Y225M4,JCK107-Y22KW,JCK107-Y30KW,JCK107-Y37KW,JCK107-Y3KW,JCK107-Y45KW,JCK107-Y4KW,JCK107-Y5.5KW,JCK107-Y7.5KW,JCK107-YB100M4,JCK107-YB112M4,JCK107-YB132M4,JCK107-YB160M4,JCK107-YB180M4,JCK107-YB200M4,JCK107-YB225M4,JCK107-YDP100M4,JCK107-YDP112M4,JCK107-YDP132M4,JCK107-YDP160M4,JCK107-YDP180M4,JCK107-YDP200M4,JCK107-YDP225M4,JCK107-YE100M4,JCK107-YE112M4,JCK107-YE132M4,JCK107-YE160M4,JCK107-YE180M4,JCK107-YE200M4,JCK107-YE225M4,JCK107-YEJ100M4,JCK107-YEJ112M4,JCK107-YEJ132M4,JCK107-YEJ160M4,JCK107-YEJ180M4,JCK107-YEJ200M4,JCK107-YEJ225M4,JCK107-YEJB100M4,JCK107-YEJB112M4,JCK107-YEJB132M4,JCK107-YEJB160M4,JCK107-YEJB180M4,JCK107-YEJB200M4,JCK107-YEJB225M4,JCK107-YP100M4,JCK107-YP112M4,JCK107-YP132M4,JCK107-YP160M4,JCK107-YP180M4,JCK107-YP200M4,JCK107-YP225M4,JCK107-YPB100M4,JCK107-YPB112M4,JCK107-YPB132M4,JCK107-YPB160M4,JCK107-YPB180M4,JCK107-YPB200M4,JCK107-YPB225M4,JCK107-YPE100M4,JCK107-YPE112M4,JCK107-YPE132M4,JCK107-YPE160M4,JCK107-YPE180M4,JCK107-YPE200M4,JCK107-YPE225M4,JCK107-YS100M4,JCK107-YS112M4,JCK107-YS132M4,JCK107-YS160M4,JCK107-YS180M4,JCK107-YS200M4,JCK107-YS225M4,JCK107-YVB100M4,JCK107-YVB112M4,JCK107-YVB132M4,JCK107-YVB160M4,JCK107-YVB180M4,JCK107-YVB200M4,JCK107-YVB225M4,JCK107-YVP100M4,JCK107-YVP112M4,JCK107-YVP132M4,JCK107-YVP160M4,JCK107-YVP180M4,JCK107-YVP200M4,JCK107-YVP225M4,JCK107-YVPEJ100M4,JCK107-YVPEJ112M4,JCK107-YVPEJ132M4,JCK107-YVPEJ160M4,JCK107-YVPEJ180M4,JCK107-YVPEJ200M4,JCK107-YVPEJ225M4,KW107-Y100M4,KW107-Y112M4,KW107-Y11KW,KW107-Y132M4,KW107-Y15KW,KW107-Y160M4,KW107-Y18.5KW,KW107-Y180M4,KW107-Y200M4,KW107-Y225M4,KW107-Y22KW,KW107-Y30KW,KW107-Y37KW,KW107-Y3KW,KW107-Y45KW,KW107-Y4KW,KW107-Y5.5KW,KW107-Y7.5KW,KW107-YB100M4,KW107-YB112M4,KW107-YB132M4,KW107-YB160M4,KW107-YB180M4,KW107-YB200M4,KW107-YB225M4,KW107-YDP100M4,KW107-YDP112M4,KW107-YDP132M4,KW107-YDP160M4,KW107-YDP180M4,KW107-YDP200M4,KW107-YDP225M4,KW107-YE100M4,KW107-YE112M4,KW107-YE132M4,KW107-YE160M4,KW107-YE180M4,KW107-YE200M4,KW107-YE225M4,KW107-YEJ100M4,KW107-YEJ112M4,KW107-YEJ132M4,KW107-YEJ160M4,KW107-YEJ180M4,KW107-YEJ200M4,KW107-YEJ225M4,KW107-YEJB100M4,KW107-YEJB112M4,KW107-YEJB132M4,KW107-YEJB160M4,KW107-YEJB180M4,KW107-YEJB200M4,KW107-YEJB225M4,KW107-YP100M4,KW107-YP112M4,KW107-YP132M4,KW107-YP160M4,KW107-YP180M4,KW107-YP200M4,KW107-YP225M4,KW107-YPB100M4,KW107-YPB112M4,KW107-YPB132M4,KW107-YPB160M4,KW107-YPB180M4,KW107-YPB200M4,KW107-YPB225M4,KW107-YPE100M4,KW107-YPE112M4,KW107-YPE132M4,KW107-YPE160M4,KW107-YPE180M4,KW107-YPE200M4,KW107-YPE225M4,KW107-YS100M4,KW107-YS112M4,KW107-YS132M4,KW107-YS160M4,KW107-YS180M4,KW107-YS200M4,KW107-YS225M4,KW107-YVB100M4,KW107-YVB112M4,KW107-YVB132M4,KW107-YVB160M4,KW107-YVB180M4,KW107-YVB200M4,KW107-YVB225M4,KW107-YVP100M4,KW107-YVP112M4,KW107-YVP132M4,KW107-YVP160M4,KW107-YVP180M4,KW107-YVP200M4,KW107-YVP225M4,KW107-YVPEJ100M4,KW107-YVPEJ112M4,KW107-YVPEJ132M4,KW107-YVPEJ160M4,KW107-YVPEJ180M4,KW107-YVPEJ200M4,KW107-YVPEJ225M4,K109-Y100M4,K109-Y112M4,K109-Y11KW,K109-Y132M4,K109-Y15KW,K109-Y160M4,K109-Y18.5KW,K109-Y180M4,K109-Y200M4,K109-Y225M4,K109-Y22KW,K109-Y30KW,K109-Y37KW,K109-Y3KW,K109-Y45KW,K109-Y4KW,K109-Y5.5KW,K109-Y7.5KW,K109-YB100M4,K109-YB112M4,K109-YB132M4,K109-YB160M4,K109-YB180M4,K109-YB200M4,K109-YB225M4,K109-YDP100M4,K109-YDP112M4,K109-YDP132M4,K109-YDP160M4,K109-YDP180M4,K109-YDP200M4,K109-YDP225M4,K109-YE100M4,K109-YE112M4,K109-YE132M4,K109-YE160M4,K109-YE180M4,K109-YE200M4,K109-YE225M4,K109-YEJ100M4,K109-YEJ112M4,K109-YEJ132M4,K109-YEJ160M4,K109-YEJ180M4,K109-YEJ200M4,K109-YEJ225M4,K109-YEJB100M4,K109-YEJB112M4,K109-YEJB132M4,K109-YEJB160M4,K109-YEJB180M4,K109-YEJB200M4,K109-YEJB225M4,K109-YP100M4,K109-YP112M4,K109-YP132M4,K109-YP160M4,K109-YP180M4,K109-YP200M4,K109-YP225M4,K109-YPB100M4,K109-YPB112M4,K109-YPB132M4,K109-YPB160M4,K109-YPB180M4,K109-YPB200M4,K109-YPB225M4,K109-YPE100M4,K109-YPE112M4,K109-YPE132M4,K109-YPE160M4,K109-YPE180M4,K109-YPE200M4,K109-YPE225M4,K109-YS100M4,K109-YS112M4,K109-YS132M4,K109-YS160M4,K109-YS180M4,K109-YS200M4,K109-YS225M4,K109-YVB100M4,K109-YVB112M4,K109-YVB132M4,K109-YVB160M4,K109-YVB180M4,K109-YVB200M4,K109-YVB225M4,K109-YVP100M4,K109-YVP112M4,K109-YVP132M4,K109-YVP160M4,K109-YVP180M4,K109-YVP200M4,K109-YVP225M4,K109-YVPEJ100M4,K109-YVPEJ112M4,K109-YVPEJ132M4,K109-YVPEJ160M4,K109-YVPEJ180M4,K109-YVPEJ200M4,K109-YVPEJ225M4,K107SF80,K107SF90,K107SF100,K107SF112,K107SF115,K107SF140,K107SF160,K107SF190。

K109減速器生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-kxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:K109減速機

關鍵詞:雙出軸減速機帶電機一體機_K系列減速機_90度減速機_螺旋錐齒輪減速機_螺旋錐齒輪減速器_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器

K系列齒輪減速電機型號:K39減速機,K49減速機,K59減速機,K69減速機,K79減速機,K89減速機,K99減速機,K109減速機,K129減速機,K159減速機,K169減速機,K189減速機

K系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   K109減速器 K107斜齒輪減速機 K107減速機3D模型 K107型減速機選型參數 K107臥式減速機一體機 K107伺服減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
K109減速器3D模型 點擊下載
K109減速器選型參數 點擊下載
