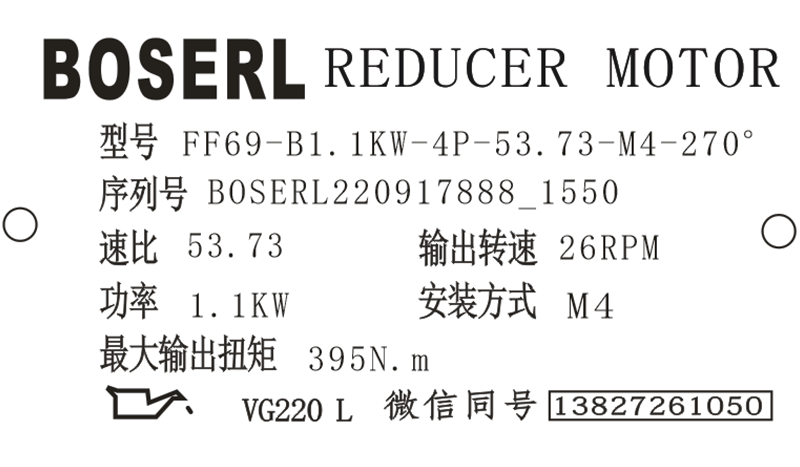

FF69減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF69減速機選型樣本。
FF69-YVPEJ1.1KW-4P-53.73-M4-270°
FF:系列代號
69:減速機規格代號
Y:電機
VPEJ:變頻剎車電機
1.1KW:電機功率
4P:電機級數
53.73:減速機傳動比
M4:減速機安裝位置
270°:接線盒位置
FF69減速機潤滑油型號:
FF69減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF69減速機選型樣本中列出了安裝位置從M1到M6FF69減速機相應的潤滑油加注標準,請自行下載查看。平行軸斜齒輪減速機
FF69減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據FF69減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“FF69減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。
FF69減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機
FF69減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
FF69減速機使用說明:
FF69減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
FF69減速機警告說明:由于FF69減速機發熱或FF69減速機油溫過高可能引起燙傷;對FF69減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
FF69減速機注意事項:若未注入正確的FF69減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
FF69減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見FF69減速機說明書安裝位置章節中的內容。剎車電機減速機
FF69減速機的螺母:立式安裝FF69減速機輸出法蘭螺母規格M12;FF69減速機螺母/螺母擰緊扭矩強度等級10.9。
FF69減速機型號:
SFF67-Y0.18KW,SFF67-Y0.25KW,SFF67-Y0.37KW,SFF67-Y0.55KW,SFF67-Y0.75KW,SFF67-Y1.1KW,SFF67-Y1.5KW,SFF67-Y100M4,SFF67-Y112M4,SFF67-Y132M4,SFF67-Y2.2KW,SFF67-Y3KW,SFF67-Y4KW,SFF67-Y5.5KW,SFF67-Y63M4,SFF67-Y71M4,SFF67-Y80M4,SFF67-Y90M4,SFF67-YB100M4,SFF67-YB112M4,SFF67-YB132M4,SFF67-YB63M4,SFF67-YB71M4,SFF67-YB80M4,SFF67-YB90M4,SFF67-YDP100M4,SFF67-YDP112M4,SFF67-YDP132M4,SFF67-YDP63M4,SFF67-YDP71M4,SFF67-YDP80M4,SFF67-YDP90M4,SFF67-YE100M4,SFF67-YE112M4,SFF67-YE132M4,SFF67-YE63M4,SFF67-YE71M4,SFF67-YE80M4,SFF67-YE90M4,SFF67-YEJ100M4,SFF67-YEJ112M4,SFF67-YEJ132M4,SFF67-YEJ63M4,SFF67-YEJ71M4,SFF67-YEJ80M4,SFF67-YEJ90M4,SFF67-YEJB100M4,SFF67-YEJB112M4,SFF67-YEJB132M4,SFF67-YEJB63M4,SFF67-YEJB71M4,SFF67-YEJB80M4,SFF67-YEJB90M4,SFF67-YP100M4,SFF67-YP112M4,SFF67-YP132M4,SFF67-YP63M4,SFF67-YP71M4,SFF67-YP80M4,SFF67-YP90M4,SFF67-YPB100M4,SFF67-YPB112M4,SFF67-YPB132M4,SFF67-YPB63M4,SFF67-YPB71M4,SFF67-YPB80M4,SFF67-YPB90M4,SFF67-YPE100M4,SFF67-YPE112M4,SFF67-YPE132M4,SFF67-YPE63M4,SFF67-YPE71M4,SFF67-YPE80M4,SFF67-YPE90M4,SFF67-YS100M4,SFF67-YS112M4,SFF67-YS132M4,SFF67-YS63M4,SFF67-YS71M4,SFF67-YS80M4,SFF67-YS90M4,SFF67-YVB100M4,SFF67-YVB112M4,SFF67-YVB132M4,SFF67-YVB63M4,SFF67-YVB71M4,SFF67-YVB80M4,SFF67-YVB90M4,SFF67-YVP100M4,SFF67-YVP112M4,SFF67-YVP132M4,SFF67-YVP63M4,SFF67-YVP71M4,SFF67-YVP80M4,SFF67-YVP90M4,SFF67-YVPEJ100M4,SFF67-YVPEJ112M4,SFF67-YVPEJ132M4,SFF67-YVPEJ63M4,SFF67-YVPEJ71M4,SFF67-YVPEJ80M4,SFF67-YVPEJ90M4,NFF67-Y0.18KW,NFF67-Y0.25KW,NFF67-Y0.37KW,NFF67-Y0.55KW,NFF67-Y0.75KW,NFF67-Y1.1KW,NFF67-Y1.5KW,NFF67-Y100M4,NFF67-Y112M4,NFF67-Y132M4,NFF67-Y2.2KW,NFF67-Y3KW,NFF67-Y4KW,NFF67-Y5.5KW,NFF67-Y63M4,NFF67-Y71M4,NFF67-Y80M4,NFF67-Y90M4,NFF67-YB100M4,NFF67-YB112M4,NFF67-YB132M4,NFF67-YB63M4,NFF67-YB71M4,NFF67-YB80M4,NFF67-YB90M4,NFF67-YDP100M4,NFF67-YDP112M4,NFF67-YDP132M4,NFF67-YDP63M4,NFF67-YDP71M4,NFF67-YDP80M4,NFF67-YDP90M4,NFF67-YE100M4,NFF67-YE112M4,NFF67-YE132M4,NFF67-YE63M4,NFF67-YE71M4,NFF67-YE80M4,NFF67-YE90M4,NFF67-YEJ100M4,NFF67-YEJ112M4,NFF67-YEJ132M4,NFF67-YEJ63M4,NFF67-YEJ71M4,NFF67-YEJ80M4,NFF67-YEJ90M4,NFF67-YEJB100M4,NFF67-YEJB112M4,NFF67-YEJB132M4,NFF67-YEJB63M4,NFF67-YEJB71M4,NFF67-YEJB80M4,NFF67-YEJB90M4,NFF67-YP100M4,NFF67-YP112M4,NFF67-YP132M4,NFF67-YP63M4,NFF67-YP71M4,NFF67-YP80M4,NFF67-YP90M4,NFF67-YPB100M4,NFF67-YPB112M4,NFF67-YPB132M4,NFF67-YPB63M4,NFF67-YPB71M4,NFF67-YPB80M4,NFF67-YPB90M4,NFF67-YPE100M4,NFF67-YPE112M4,NFF67-YPE132M4,NFF67-YPE63M4,NFF67-YPE71M4,NFF67-YPE80M4,NFF67-YPE90M4,NFF67-YS100M4,NFF67-YS112M4,NFF67-YS132M4,NFF67-YS63M4,NFF67-YS71M4,NFF67-YS80M4,NFF67-YS90M4,NFF67-YVB100M4,NFF67-YVB112M4,NFF67-YVB132M4,NFF67-YVB63M4,NFF67-YVB71M4,NFF67-YVB80M4,NFF67-YVB90M4,NFF67-YVP100M4,NFF67-YVP112M4,NFF67-YVP132M4,NFF67-YVP63M4,NFF67-YVP71M4,NFF67-YVP80M4,NFF67-YVP90M4,NFF67-YVPEJ100M4,NFF67-YVPEJ112M4,NFF67-YVPEJ132M4,NFF67-YVPEJ63M4,NFF67-YVPEJ71M4,NFF67-YVPEJ80M4,NFF67-YVPEJ90M4,WFF67-Y0.18KW,WFF67-Y0.25KW,WFF67-Y0.37KW,WFF67-Y0.55KW,WFF67-Y0.75KW,WFF67-Y1.1KW,WFF67-Y1.5KW,WFF67-Y100M4,WFF67-Y112M4,WFF67-Y132M4,WFF67-Y2.2KW,WFF67-Y3KW,WFF67-Y4KW,WFF67-Y5.5KW,WFF67-Y63M4,WFF67-Y71M4,WFF67-Y80M4,WFF67-Y90M4,WFF67-YB100M4,WFF67-YB112M4,WFF67-YB132M4,WFF67-YB63M4,WFF67-YB71M4,WFF67-YB80M4,WFF67-YB90M4,WFF67-YDP100M4,WFF67-YDP112M4,WFF67-YDP132M4,WFF67-YDP63M4,WFF67-YDP71M4,WFF67-YDP80M4,WFF67-YDP90M4,WFF67-YE100M4,WFF67-YE112M4,WFF67-YE132M4,WFF67-YE63M4,WFF67-YE71M4,WFF67-YE80M4,WFF67-YE90M4,WFF67-YEJ100M4,WFF67-YEJ112M4,WFF67-YEJ132M4,WFF67-YEJ63M4,WFF67-YEJ71M4,WFF67-YEJ80M4,WFF67-YEJ90M4,WFF67-YEJB100M4,WFF67-YEJB112M4,WFF67-YEJB132M4,WFF67-YEJB63M4,WFF67-YEJB71M4,WFF67-YEJB80M4,WFF67-YEJB90M4,WFF67-YP100M4,WFF67-YP112M4,WFF67-YP132M4,WFF67-YP63M4,WFF67-YP71M4,WFF67-YP80M4,WFF67-YP90M4,WFF67-YPB100M4,WFF67-YPB112M4,WFF67-YPB132M4,WFF67-YPB63M4,WFF67-YPB71M4,WFF67-YPB80M4,WFF67-YPB90M4,WFF67-YPE100M4,WFF67-YPE112M4,WFF67-YPE132M4,WFF67-YPE63M4,WFF67-YPE71M4,WFF67-YPE80M4,WFF67-YPE90M4,WFF67-YS100M4,WFF67-YS112M4,WFF67-YS132M4,WFF67-YS63M4,WFF67-YS71M4,WFF67-YS80M4,WFF67-YS90M4,WFF67-YVB100M4,WFF67-YVB112M4,WFF67-YVB132M4,WFF67-YVB63M4,WFF67-YVB71M4,WFF67-YVB80M4,WFF67-YVB90M4,WFF67-YVP100M4,WFF67-YVP112M4,WFF67-YVP132M4,WFF67-YVP63M4,WFF67-YVP71M4,WFF67-YVP80M4,WFF67-YVP90M4,WFF67-YVPEJ100M4,WFF67-YVPEJ112M4,WFF67-YVPEJ132M4,WFF67-YVPEJ63M4,WFF67-YVPEJ71M4,WFF67-YVPEJ80M4,WFF67-YVPEJ90M4,AFF67-Y0.18KW,AFF67-Y0.25KW,AFF67-Y0.37KW,AFF67-Y0.55KW,AFF67-Y0.75KW,AFF67-Y1.1KW,AFF67-Y1.5KW,AFF67-Y100M4,AFF67-Y112M4,AFF67-Y132M4,AFF67-Y2.2KW,AFF67-Y3KW,AFF67-Y4KW,AFF67-Y5.5KW,AFF67-Y63M4,AFF67-Y71M4,AFF67-Y80M4,AFF67-Y90M4,AFF67-YB100M4,AFF67-YB112M4,AFF67-YB132M4,AFF67-YB63M4,AFF67-YB71M4,AFF67-YB80M4,AFF67-YB90M4,AFF67-YDP100M4,AFF67-YDP112M4,AFF67-YDP132M4,AFF67-YDP63M4,AFF67-YDP71M4,AFF67-YDP80M4,AFF67-YDP90M4,AFF67-YE100M4,AFF67-YE112M4,AFF67-YE132M4,AFF67-YE63M4,AFF67-YE71M4,AFF67-YE80M4,AFF67-YE90M4,AFF67-YEJ100M4,AFF67-YEJ112M4,AFF67-YEJ132M4,AFF67-YEJ63M4,AFF67-YEJ71M4,AFF67-YEJ80M4,AFF67-YEJ90M4,AFF67-YEJB100M4,AFF67-YEJB112M4,AFF67-YEJB132M4,AFF67-YEJB63M4,AFF67-YEJB71M4,AFF67-YEJB80M4,AFF67-YEJB90M4,AFF67-YP100M4,AFF67-YP112M4,AFF67-YP132M4,AFF67-YP63M4,AFF67-YP71M4,AFF67-YP80M4,AFF67-YP90M4,AFF67-YPB100M4,AFF67-YPB112M4,AFF67-YPB132M4,AFF67-YPB63M4,AFF67-YPB71M4,AFF67-YPB80M4,AFF67-YPB90M4,AFF67-YPE100M4,AFF67-YPE112M4,AFF67-YPE132M4,AFF67-YPE63M4,AFF67-YPE71M4,AFF67-YPE80M4,AFF67-YPE90M4,AFF67-YS100M4,AFF67-YS112M4,AFF67-YS132M4,AFF67-YS63M4,AFF67-YS71M4,AFF67-YS80M4,AFF67-YS90M4,AFF67-YVB100M4,AFF67-YVB112M4,AFF67-YVB132M4,AFF67-YVB63M4,AFF67-YVB71M4,AFF67-YVB80M4,AFF67-YVB90M4,AFF67-YVP100M4,AFF67-YVP112M4,AFF67-YVP132M4,AFF67-YVP63M4,AFF67-YVP71M4,AFF67-YVP80M4,AFF67-YVP90M4,AFF67-YVPEJ100M4,AFF67-YVPEJ112M4,AFF67-YVPEJ132M4,AFF67-YVPEJ63M4,AFF67-YVPEJ71M4,AFF67-YVPEJ80M4,AFF67-YVPEJ90M4,GFF69-Y0.18KW,GFF69-Y0.25KW,GFF69-Y0.37KW,GFF69-Y0.55KW,GFF69-Y0.75KW,GFF69-Y1.1KW,GFF69-Y1.5KW,GFF69-Y100M4,GFF69-Y112M4,GFF69-Y132M4,GFF69-Y2.2KW,GFF69-Y3KW,GFF69-Y4KW,GFF69-Y5.5KW,GFF69-Y63M4,GFF69-Y71M4,GFF69-Y80M4,GFF69-Y90M4,GFF69-YB100M4,GFF69-YB112M4,GFF69-YB132M4,GFF69-YB63M4,GFF69-YB71M4,GFF69-YB80M4,GFF69-YB90M4,GFF69-YDP100M4,GFF69-YDP112M4,GFF69-YDP132M4,GFF69-YDP63M4,GFF69-YDP71M4,GFF69-YDP80M4,GFF69-YDP90M4,GFF69-YE100M4,GFF69-YE112M4,GFF69-YE132M4,GFF69-YE63M4,GFF69-YE71M4,GFF69-YE80M4,GFF69-YE90M4,GFF69-YEJ100M4,GFF69-YEJ112M4,GFF69-YEJ132M4,GFF69-YEJ63M4,GFF69-YEJ71M4,GFF69-YEJ80M4,GFF69-YEJ90M4,GFF69-YEJB100M4,GFF69-YEJB112M4,GFF69-YEJB132M4,GFF69-YEJB63M4,GFF69-YEJB71M4,GFF69-YEJB80M4,GFF69-YEJB90M4,GFF69-YP100M4,GFF69-YP112M4,GFF69-YP132M4,GFF69-YP63M4,GFF69-YP71M4,GFF69-YP80M4,GFF69-YP90M4,GFF69-YPB100M4,GFF69-YPB112M4,GFF69-YPB132M4,GFF69-YPB63M4,GFF69-YPB71M4,GFF69-YPB80M4,GFF69-YPB90M4,GFF69-YPE100M4,GFF69-YPE112M4,GFF69-YPE132M4,GFF69-YPE63M4,GFF69-YPE71M4,GFF69-YPE80M4,GFF69-YPE90M4,GFF69-YS100M4,GFF69-YS112M4,GFF69-YS132M4,GFF69-YS63M4,GFF69-YS71M4,GFF69-YS80M4,GFF69-YS90M4,GFF69-YVB100M4,GFF69-YVB112M4,GFF69-YVB132M4,GFF69-YVB63M4,GFF69-YVB71M4,GFF69-YVB80M4,GFF69-YVB90M4,GFF69-YVP100M4,GFF69-YVP112M4,GFF69-YVP132M4,GFF69-YVP63M4,GFF69-YVP71M4,GFF69-YVP80M4,GFF69-YVP90M4,GFF69-YVPEJ100M4,GFF69-YVPEJ112M4,GFF69-YVPEJ132M4,GFF69-YVPEJ63M4,GFF69-YVPEJ71M4,GFF69-YVPEJ80M4,GFF69-YVPEJ90M4。
FF69減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-ffxiliejiansuji-cn.html
推薦類似型號:F69減速機
關鍵詞:帶抱閘減速機馬達一體機_帶剎車電機減速機_FF系列減速器_制動電機減速機_減速器帶抱閘_減速機帶抱閘_FF系列減速機_FF型減速機_GFF系列減速機_帶剎車減速機_帶制動減速機_抱閘電機減速機
FF系列齒輪減速電機型號:FF29減速機,FF39減速機,FF49減速機,FF69減速機,FF79減速機,FF89減速機,FF99減速機,FF109減速機,FF129減速機,FF159減速機
FF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
