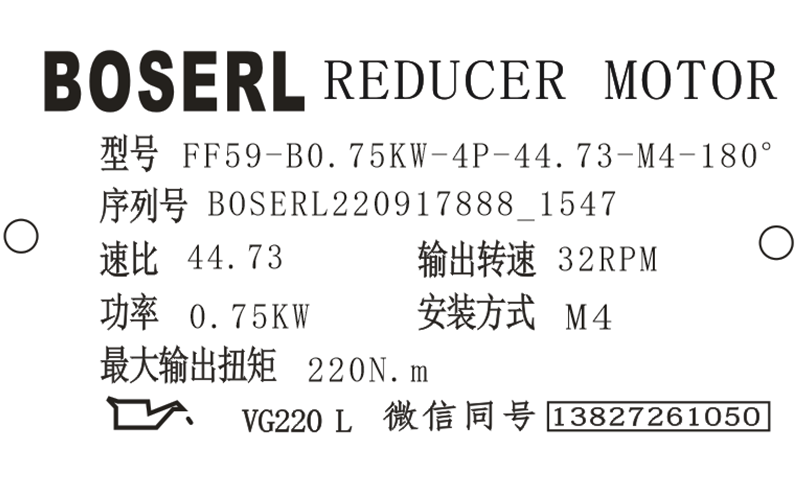

FF59減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF59減速機選型樣本。
FF59-YVPEJ0.75KW-4P-44.73-M4-180°
FF:系列代號
59:減速機規格代號
Y:電機
VPEJ:變頻剎車電機
0.75KW:電機功率
4P:電機級數
44.73:減速機傳動比
M4:減速機安裝位置
180°:接線盒位置
FF59減速機潤滑油型號:
FF59減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF59減速機選型樣本中列出了安裝位置從M1到M6FF59減速機相應的潤滑油加注標準,請自行下載查看。平行軸斜齒輪減速機
FF59減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據FF59減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“FF59減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。
FF59減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機
FF59減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
FF59減速機使用說明:
FF59減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
FF59減速機警告說明:由于FF59減速機發熱或FF59減速機油溫過高可能引起燙傷;對FF59減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
FF59減速機注意事項:若未注入正確的FF59減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
FF59減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見FF59減速機說明書安裝位置章節中的內容。剎車電機減速機
FF59減速機的螺母:立式安裝FF59減速機輸出法蘭螺母規格M12;FF59減速機螺母/螺母擰緊扭矩強度等級10.9。
FF59減速機型號:
WFF57-Y0.12KW,WFF57-Y0.18KW,WFF57-Y0.25KW,WFF57-Y0.37KW,WFF57-Y0.55KW,WFF57-Y0.75KW,WFF57-Y1.1KW,WFF57-Y1.5KW,WFF57-Y100M4,WFF57-Y112M4,WFF57-Y132M4,WFF57-Y2.2KW,WFF57-Y3KW,WFF57-Y4KW,WFF57-Y5.5KW,WFF57-Y63M4,WFF57-Y71M4,WFF57-Y80M4,WFF57-Y90M4,WFF57-YB100M4,WFF57-YB112M4,WFF57-YB132M4,WFF57-YB63M4,WFF57-YB71M4,WFF57-YB80M4,WFF57-YB90M4,WFF57-YDP100M4,WFF57-YDP112M4,WFF57-YDP132M4,WFF57-YDP63M4,WFF57-YDP71M4,WFF57-YDP80M4,WFF57-YDP90M4,WFF57-YE100M4,WFF57-YE112M4,WFF57-YE132M4,WFF57-YE63M4,WFF57-YE71M4,WFF57-YE80M4,WFF57-YE90M4,WFF57-YEJ100M4,WFF57-YEJ112M4,WFF57-YEJ132M4,WFF57-YEJ63M4,WFF57-YEJ71M4,WFF57-YEJ80M4,WFF57-YEJ90M4,WFF57-YEJB100M4,WFF57-YEJB112M4,WFF57-YEJB132M4,WFF57-YEJB63M4,WFF57-YEJB71M4,WFF57-YEJB80M4,WFF57-YEJB90M4,WFF57-YP100M4,WFF57-YP112M4,WFF57-YP132M4,WFF57-YP63M4,WFF57-YP71M4,WFF57-YP80M4,WFF57-YP90M4,WFF57-YPB100M4,WFF57-YPB112M4,WFF57-YPB132M4,WFF57-YPB63M4,WFF57-YPB71M4,WFF57-YPB80M4,WFF57-YPB90M4,WFF57-YPE100M4,WFF57-YPE112M4,WFF57-YPE132M4,WFF57-YPE63M4,WFF57-YPE71M4,WFF57-YPE80M4,WFF57-YPE90M4,WFF57-YS100M4,WFF57-YS112M4,WFF57-YS132M4,WFF57-YS63M4,WFF57-YS71M4,WFF57-YS80M4,WFF57-YS90M4,WFF57-YVB100M4,WFF57-YVB112M4,WFF57-YVB132M4,WFF57-YVB63M4,WFF57-YVB71M4,WFF57-YVB80M4,WFF57-YVB90M4,WFF57-YVP100M4,WFF57-YVP112M4,WFF57-YVP132M4,WFF57-YVP63M4,WFF57-YVP71M4,WFF57-YVP80M4,WFF57-YVP90M4,WFF57-YVPEJ100M4,WFF57-YVPEJ112M4,WFF57-YVPEJ132M4,WFF57-YVPEJ63M4,WFF57-YVPEJ71M4,WFF57-YVPEJ80M4,WFF57-YVPEJ90M4,NFF57-Y0.12KW,NFF57-Y0.18KW,NFF57-Y0.25KW,NFF57-Y0.37KW,NFF57-Y0.55KW,NFF57-Y0.75KW,NFF57-Y1.1KW,NFF57-Y1.5KW,NFF57-Y100M4,NFF57-Y112M4,NFF57-Y132M4,NFF57-Y2.2KW,NFF57-Y3KW,NFF57-Y4KW,NFF57-Y5.5KW,NFF57-Y63M4,NFF57-Y71M4,NFF57-Y80M4,NFF57-Y90M4,NFF57-YB100M4,NFF57-YB112M4,NFF57-YB132M4,NFF57-YB63M4,NFF57-YB71M4,NFF57-YB80M4,NFF57-YB90M4,NFF57-YDP100M4,NFF57-YDP112M4,NFF57-YDP132M4,NFF57-YDP63M4,NFF57-YDP71M4,NFF57-YDP80M4,NFF57-YDP90M4,NFF57-YE100M4,NFF57-YE112M4,NFF57-YE132M4,NFF57-YE63M4,NFF57-YE71M4,NFF57-YE80M4,NFF57-YE90M4,NFF57-YEJ100M4,NFF57-YEJ112M4,NFF57-YEJ132M4,NFF57-YEJ63M4,NFF57-YEJ71M4,NFF57-YEJ80M4,NFF57-YEJ90M4,NFF57-YEJB100M4,NFF57-YEJB112M4,NFF57-YEJB132M4,NFF57-YEJB63M4,NFF57-YEJB71M4,NFF57-YEJB80M4,NFF57-YEJB90M4,NFF57-YP100M4,NFF57-YP112M4,NFF57-YP132M4,NFF57-YP63M4,NFF57-YP71M4,NFF57-YP80M4,NFF57-YP90M4,NFF57-YPB100M4,NFF57-YPB112M4,NFF57-YPB132M4,NFF57-YPB63M4,NFF57-YPB71M4,NFF57-YPB80M4,NFF57-YPB90M4,NFF57-YPE100M4,NFF57-YPE112M4,NFF57-YPE132M4,NFF57-YPE63M4,NFF57-YPE71M4,NFF57-YPE80M4,NFF57-YPE90M4,NFF57-YS100M4,NFF57-YS112M4,NFF57-YS132M4,NFF57-YS63M4,NFF57-YS71M4,NFF57-YS80M4,NFF57-YS90M4,NFF57-YVB100M4,NFF57-YVB112M4,NFF57-YVB132M4,NFF57-YVB63M4,NFF57-YVB71M4,NFF57-YVB80M4,NFF57-YVB90M4,NFF57-YVP100M4,NFF57-YVP112M4,NFF57-YVP132M4,NFF57-YVP63M4,NFF57-YVP71M4,NFF57-YVP80M4,NFF57-YVP90M4,NFF57-YVPEJ100M4,NFF57-YVPEJ112M4,NFF57-YVPEJ132M4,NFF57-YVPEJ63M4,NFF57-YVPEJ71M4,NFF57-YVPEJ80M4,NFF57-YVPEJ90M4,SFF57-Y0.12KW,SFF57-Y0.18KW,SFF57-Y0.25KW,SFF57-Y0.37KW,SFF57-Y0.55KW,SFF57-Y0.75KW,SFF57-Y1.1KW,SFF57-Y1.5KW,SFF57-Y100M4,SFF57-Y112M4,SFF57-Y132M4,SFF57-Y2.2KW,SFF57-Y3KW,SFF57-Y4KW,SFF57-Y5.5KW,SFF57-Y63M4,SFF57-Y71M4,SFF57-Y80M4,SFF57-Y90M4,SFF57-YB100M4,SFF57-YB112M4,SFF57-YB132M4,SFF57-YB63M4,SFF57-YB71M4,SFF57-YB80M4,SFF57-YB90M4,SFF57-YDP100M4,SFF57-YDP112M4,SFF57-YDP132M4,SFF57-YDP63M4,SFF57-YDP71M4,SFF57-YDP80M4,SFF57-YDP90M4,SFF57-YE100M4,SFF57-YE112M4,SFF57-YE132M4,SFF57-YE63M4,SFF57-YE71M4,SFF57-YE80M4,SFF57-YE90M4,SFF57-YEJ100M4,SFF57-YEJ112M4,SFF57-YEJ132M4,SFF57-YEJ63M4,SFF57-YEJ71M4,SFF57-YEJ80M4,SFF57-YEJ90M4,SFF57-YEJB100M4,SFF57-YEJB112M4,SFF57-YEJB132M4,SFF57-YEJB63M4,SFF57-YEJB71M4,SFF57-YEJB80M4,SFF57-YEJB90M4,SFF57-YP100M4,SFF57-YP112M4,SFF57-YP132M4,SFF57-YP63M4,SFF57-YP71M4,SFF57-YP80M4,SFF57-YP90M4,SFF57-YPB100M4,SFF57-YPB112M4,SFF57-YPB132M4,SFF57-YPB63M4,SFF57-YPB71M4,SFF57-YPB80M4,SFF57-YPB90M4,SFF57-YPE100M4,SFF57-YPE112M4,SFF57-YPE132M4,SFF57-YPE63M4,SFF57-YPE71M4,SFF57-YPE80M4,SFF57-YPE90M4,SFF57-YS100M4,SFF57-YS112M4,SFF57-YS132M4,SFF57-YS63M4,SFF57-YS71M4,SFF57-YS80M4,SFF57-YS90M4,SFF57-YVB100M4,SFF57-YVB112M4,SFF57-YVB132M4,SFF57-YVB63M4,SFF57-YVB71M4,SFF57-YVB80M4,SFF57-YVB90M4,SFF57-YVP100M4,SFF57-YVP112M4,SFF57-YVP132M4,SFF57-YVP63M4,SFF57-YVP71M4,SFF57-YVP80M4,SFF57-YVP90M4,SFF57-YVPEJ100M4,SFF57-YVPEJ112M4,SFF57-YVPEJ132M4,SFF57-YVPEJ63M4,SFF57-YVPEJ71M4,SFF57-YVPEJ80M4,SFF57-YVPEJ90M4,AFF57-Y0.12KW,AFF57-Y0.18KW,AFF57-Y0.25KW,AFF57-Y0.37KW,AFF57-Y0.55KW,AFF57-Y0.75KW,AFF57-Y1.1KW,AFF57-Y1.5KW,AFF57-Y100M4,AFF57-Y112M4,AFF57-Y132M4,AFF57-Y2.2KW,AFF57-Y3KW,AFF57-Y4KW,AFF57-Y5.5KW,AFF57-Y63M4,AFF57-Y71M4,AFF57-Y80M4,AFF57-Y90M4,AFF57-YB100M4,AFF57-YB112M4,AFF57-YB132M4,AFF57-YB63M4,AFF57-YB71M4,AFF57-YB80M4,AFF57-YB90M4,AFF57-YDP100M4,AFF57-YDP112M4,AFF57-YDP132M4,AFF57-YDP63M4,AFF57-YDP71M4,AFF57-YDP80M4,AFF57-YDP90M4,AFF57-YE100M4,AFF57-YE112M4,AFF57-YE132M4,AFF57-YE63M4,AFF57-YE71M4,AFF57-YE80M4,AFF57-YE90M4,AFF57-YEJ100M4,AFF57-YEJ112M4,AFF57-YEJ132M4,AFF57-YEJ63M4,AFF57-YEJ71M4,AFF57-YEJ80M4,AFF57-YEJ90M4,AFF57-YEJB100M4,AFF57-YEJB112M4,AFF57-YEJB132M4,AFF57-YEJB63M4,AFF57-YEJB71M4,AFF57-YEJB80M4,AFF57-YEJB90M4,AFF57-YP100M4,AFF57-YP112M4,AFF57-YP132M4,AFF57-YP63M4,AFF57-YP71M4,AFF57-YP80M4,AFF57-YP90M4,AFF57-YPB100M4,AFF57-YPB112M4,AFF57-YPB132M4,AFF57-YPB63M4,AFF57-YPB71M4,AFF57-YPB80M4,AFF57-YPB90M4,AFF57-YPE100M4,AFF57-YPE112M4,AFF57-YPE132M4,AFF57-YPE63M4,AFF57-YPE71M4,AFF57-YPE80M4,AFF57-YPE90M4,AFF57-YS100M4,AFF57-YS112M4,AFF57-YS132M4,AFF57-YS63M4,AFF57-YS71M4,AFF57-YS80M4,AFF57-YS90M4,AFF57-YVB100M4,AFF57-YVB112M4,AFF57-YVB132M4,AFF57-YVB63M4,AFF57-YVB71M4,AFF57-YVB80M4,AFF57-YVB90M4,AFF57-YVP100M4,AFF57-YVP112M4,AFF57-YVP132M4,AFF57-YVP63M4,AFF57-YVP71M4,AFF57-YVP80M4,AFF57-YVP90M4,AFF57-YVPEJ100M4,AFF57-YVPEJ112M4,AFF57-YVPEJ132M4,AFF57-YVPEJ63M4,AFF57-YVPEJ71M4,AFF57-YVPEJ80M4,AFF57-YVPEJ90M4,GFF59-Y0.12KW,GFF59-Y0.18KW,GFF59-Y0.25KW,GFF59-Y0.37KW,GFF59-Y0.55KW,GFF59-Y0.75KW,GFF59-Y1.1KW,GFF59-Y1.5KW,GFF59-Y100M4,GFF59-Y112M4,GFF59-Y132M4,GFF59-Y2.2KW,GFF59-Y3KW,GFF59-Y4KW,GFF59-Y5.5KW,GFF59-Y63M4,GFF59-Y71M4,GFF59-Y80M4,GFF59-Y90M4,GFF59-YB100M4,GFF59-YB112M4,GFF59-YB132M4,GFF59-YB63M4,GFF59-YB71M4,GFF59-YB80M4,GFF59-YB90M4,GFF59-YDP100M4,GFF59-YDP112M4,GFF59-YDP132M4,GFF59-YDP63M4,GFF59-YDP71M4,GFF59-YDP80M4,GFF59-YDP90M4,GFF59-YE100M4,GFF59-YE112M4,GFF59-YE132M4,GFF59-YE63M4,GFF59-YE71M4,GFF59-YE80M4,GFF59-YE90M4,GFF59-YEJ100M4,GFF59-YEJ112M4,GFF59-YEJ132M4,GFF59-YEJ63M4,GFF59-YEJ71M4,GFF59-YEJ80M4,GFF59-YEJ90M4,GFF59-YEJB100M4,GFF59-YEJB112M4,GFF59-YEJB132M4,GFF59-YEJB63M4,GFF59-YEJB71M4,GFF59-YEJB80M4,GFF59-YEJB90M4,GFF59-YP100M4,GFF59-YP112M4,GFF59-YP132M4,GFF59-YP63M4,GFF59-YP71M4,GFF59-YP80M4,GFF59-YP90M4,GFF59-YPB100M4,GFF59-YPB112M4,GFF59-YPB132M4,GFF59-YPB63M4,GFF59-YPB71M4,GFF59-YPB80M4,GFF59-YPB90M4,GFF59-YPE100M4,GFF59-YPE112M4,GFF59-YPE132M4,GFF59-YPE63M4,GFF59-YPE71M4,GFF59-YPE80M4,GFF59-YPE90M4,GFF59-YS100M4,GFF59-YS112M4,GFF59-YS132M4,GFF59-YS63M4,GFF59-YS71M4,GFF59-YS80M4,GFF59-YS90M4,GFF59-YVB100M4,GFF59-YVB112M4,GFF59-YVB132M4,GFF59-YVB63M4,GFF59-YVB71M4,GFF59-YVB80M4,GFF59-YVB90M4,GFF59-YVP100M4,GFF59-YVP112M4,GFF59-YVP132M4,GFF59-YVP63M4,GFF59-YVP71M4,GFF59-YVP80M4,GFF59-YVP90M4,GFF59-YVPEJ100M4,GFF59-YVPEJ112M4,GFF59-YVPEJ132M4,GFF59-YVPEJ63M4,GFF59-YVPEJ71M4,GFF59-YVPEJ80M4,GFF59-YVPEJ90M4。
FF59減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-ffxiliejiansuji-cn.html
推薦類似型號:F59減速機
關鍵詞:帶抱閘減速機馬達一體機_帶剎車電機減速機_FF系列減速器_制動電機減速機_減速器帶抱閘_減速機帶抱閘_FF系列減速機_FF型減速機_GFF系列減速機_帶剎車減速機_帶制動減速機_抱閘電機減速機
FF系列齒輪減速電機型號:FF29減速機,FF39減速機,FF49減速機,FF69減速機,FF79減速機,FF89減速機,FF99減速機,FF109減速機,FF129減速機,FF159減速機
FF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
