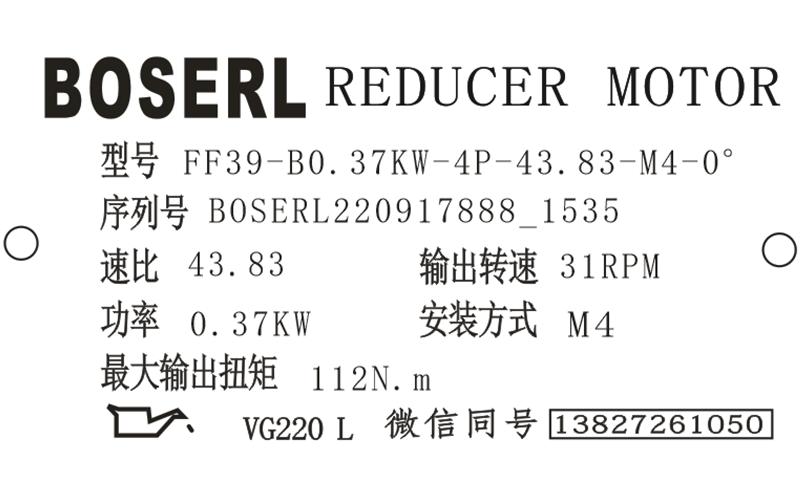

FF39減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF39減速機選型樣本。
FF39-YVPEJ0.37KW-4P-43.83-M4-0°
FF:系列代號
39:減速機規格代號
Y:電機
VPEJ:變頻剎車電機
0.37KW:電機功率
4P:電機級數
43.83:減速機傳動比
M4:減速機安裝位置
0°:接線盒位置
FF39減速機潤滑油型號:
FF39減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF39減速機選型樣本中列出了安裝位置從M1到M6FF39減速機相應的潤滑油加注標準,請自行下載查看。平行軸斜齒輪減速機
FF39減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據FF39減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“FF39減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。
FF39減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機
FF39減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
FF39減速機使用說明:
FF39減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
FF39減速機警告說明:由于FF39減速機發熱或FF39減速機油溫過高可能引起燙傷;對FF39減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
FF39減速機注意事項:若未注入正確的FF39減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
FF39減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見FF39減速機說明書安裝位置章節中的內容。剎車電機減速機
FF39減速機的螺母:立式安裝FF39減速機輸出法蘭螺母規格M8;FF39減速機螺母/螺母擰緊扭矩強度等級10.9。
FF39減速機型號:
SFF37-Y0.12KW,SFF37-Y0.18KW,SFF37-Y0.25KW,SFF37-Y0.37KW,SFF37-Y0.55KW,SFF37-Y0.75KW,SFF37-Y1.1KW,SFF37-Y1.5KW,SFF37-Y100M4,SFF37-Y2.2KW,SFF37-Y3KW,SFF37-Y63M4,SFF37-Y71M4,SFF37-Y80M4,SFF37-Y90M4,SFF37-YB100M4,SFF37-YB63M4,SFF37-YB71M4,SFF37-YB80M4,SFF37-YB90M4,SFF37-YDP100M4,SFF37-YDP63M4,SFF37-YDP71M4,SFF37-YDP80M4,SFF37-YDP90M4,SFF37-YE100M4,SFF37-YE63M4,SFF37-YE71M4,SFF37-YE80M4,SFF37-YE90M4,SFF37-YEJ100M4,SFF37-YEJ63M4,SFF37-YEJ71M4,SFF37-YEJ80M4,SFF37-YEJ90M4,SFF37-YEJB100M4,SFF37-YEJB63M4,SFF37-YEJB71M4,SFF37-YEJB80M4,SFF37-YEJB90M4,SFF37-YP100M4,SFF37-YP63M4,SFF37-YP71M4,SFF37-YP80M4,SFF37-YP90M4,SFF37-YPB100M4,SFF37-YPB63M4,SFF37-YPB71M4,SFF37-YPB80M4,SFF37-YPB90M4,SFF37-YPE100M4,SFF37-YPE63M4,SFF37-YPE71M4,SFF37-YPE80M4,SFF37-YPE90M4,SFF37-YS100M4,SFF37-YS63M4,SFF37-YS71M4,SFF37-YS80M4,SFF37-YS90M4,SFF37-YVB100M4,SFF37-YVB63M4,SFF37-YVB71M4,SFF37-YVB80M4,SFF37-YVB90M4,SFF37-YVP100M4,SFF37-YVP63M4,SFF37-YVP71M4,SFF37-YVP80M4,SFF37-YVP90M4,SFF37-YVPEJ100M4,SFF37-YVPEJ63M4,SFF37-YVPEJ71M4,SFF37-YVPEJ80M4,SFF37-YVPEJ90M4,NFF37-Y0.12KW,NFF37-Y0.18KW,NFF37-Y0.25KW,NFF37-Y0.37KW,NFF37-Y0.55KW,NFF37-Y0.75KW,NFF37-Y1.1KW,NFF37-Y1.5KW,NFF37-Y100M4,NFF37-Y2.2KW,NFF37-Y3KW,NFF37-Y63M4,NFF37-Y71M4,NFF37-Y80M4,NFF37-Y90M4,NFF37-YB100M4,NFF37-YB63M4,NFF37-YB71M4,NFF37-YB80M4,NFF37-YB90M4,NFF37-YDP100M4,NFF37-YDP63M4,NFF37-YDP71M4,NFF37-YDP80M4,NFF37-YDP90M4,NFF37-YE100M4,NFF37-YE63M4,NFF37-YE71M4,NFF37-YE80M4,NFF37-YE90M4,NFF37-YEJ100M4,NFF37-YEJ63M4,NFF37-YEJ71M4,NFF37-YEJ80M4,NFF37-YEJ90M4,NFF37-YEJB100M4,NFF37-YEJB63M4,NFF37-YEJB71M4,NFF37-YEJB80M4,NFF37-YEJB90M4,NFF37-YP100M4,NFF37-YP63M4,NFF37-YP71M4,NFF37-YP80M4,NFF37-YP90M4,NFF37-YPB100M4,NFF37-YPB63M4,NFF37-YPB71M4,NFF37-YPB80M4,NFF37-YPB90M4,NFF37-YPE100M4,NFF37-YPE63M4,NFF37-YPE71M4,NFF37-YPE80M4,NFF37-YPE90M4,NFF37-YS100M4,NFF37-YS63M4,NFF37-YS71M4,NFF37-YS80M4,NFF37-YS90M4,NFF37-YVB100M4,NFF37-YVB63M4,NFF37-YVB71M4,NFF37-YVB80M4,NFF37-YVB90M4,NFF37-YVP100M4,NFF37-YVP63M4,NFF37-YVP71M4,NFF37-YVP80M4,NFF37-YVP90M4,NFF37-YVPEJ100M4,NFF37-YVPEJ63M4,NFF37-YVPEJ71M4,NFF37-YVPEJ80M4,NFF37-YVPEJ90M4,WFF37-Y0.12KW,WFF37-Y0.18KW,WFF37-Y0.25KW,WFF37-Y0.37KW,WFF37-Y0.55KW,WFF37-Y0.75KW,WFF37-Y1.1KW,WFF37-Y1.5KW,WFF37-Y100M4,WFF37-Y2.2KW,WFF37-Y3KW,WFF37-Y63M4,WFF37-Y71M4,WFF37-Y80M4,WFF37-Y90M4,WFF37-YB100M4,WFF37-YB63M4,WFF37-YB71M4,WFF37-YB80M4,WFF37-YB90M4,WFF37-YDP100M4,WFF37-YDP63M4,WFF37-YDP71M4,WFF37-YDP80M4,WFF37-YDP90M4,WFF37-YE100M4,WFF37-YE63M4,WFF37-YE71M4,WFF37-YE80M4,WFF37-YE90M4,WFF37-YEJ100M4,WFF37-YEJ63M4,WFF37-YEJ71M4,WFF37-YEJ80M4,WFF37-YEJ90M4,WFF37-YEJB100M4,WFF37-YEJB63M4,WFF37-YEJB71M4,WFF37-YEJB80M4,WFF37-YEJB90M4,WFF37-YP100M4,WFF37-YP63M4,WFF37-YP71M4,WFF37-YP80M4,WFF37-YP90M4,WFF37-YPB100M4,WFF37-YPB63M4,WFF37-YPB71M4,WFF37-YPB80M4,WFF37-YPB90M4,WFF37-YPE100M4,WFF37-YPE63M4,WFF37-YPE71M4,WFF37-YPE80M4,WFF37-YPE90M4,WFF37-YS100M4,WFF37-YS63M4,WFF37-YS71M4,WFF37-YS80M4,WFF37-YS90M4,WFF37-YVB100M4,WFF37-YVB63M4,WFF37-YVB71M4,WFF37-YVB80M4,WFF37-YVB90M4,WFF37-YVP100M4,WFF37-YVP63M4,WFF37-YVP71M4,WFF37-YVP80M4,WFF37-YVP90M4,WFF37-YVPEJ100M4,WFF37-YVPEJ63M4,WFF37-YVPEJ71M4,WFF37-YVPEJ80M4,WFF37-YVPEJ90M4,AFF37-Y0.12KW,AFF37-Y0.18KW,AFF37-Y0.25KW,AFF37-Y0.37KW,AFF37-Y0.55KW,AFF37-Y0.75KW,AFF37-Y1.1KW,AFF37-Y1.5KW,AFF37-Y100M4,AFF37-Y2.2KW,AFF37-Y3KW,AFF37-Y63M4,AFF37-Y71M4,AFF37-Y80M4,AFF37-Y90M4,AFF37-YB100M4,AFF37-YB63M4,AFF37-YB71M4,AFF37-YB80M4,AFF37-YB90M4,AFF37-YDP100M4,AFF37-YDP63M4,AFF37-YDP71M4,AFF37-YDP80M4,AFF37-YDP90M4,AFF37-YE100M4,AFF37-YE63M4,AFF37-YE71M4,AFF37-YE80M4,AFF37-YE90M4,AFF37-YEJ100M4,AFF37-YEJ63M4,AFF37-YEJ71M4,AFF37-YEJ80M4,AFF37-YEJ90M4,AFF37-YEJB100M4,AFF37-YEJB63M4,AFF37-YEJB71M4,AFF37-YEJB80M4,AFF37-YEJB90M4,AFF37-YP100M4,AFF37-YP63M4,AFF37-YP71M4,AFF37-YP80M4,AFF37-YP90M4,AFF37-YPB100M4,AFF37-YPB63M4,AFF37-YPB71M4,AFF37-YPB80M4,AFF37-YPB90M4,AFF37-YPE100M4,AFF37-YPE63M4,AFF37-YPE71M4,AFF37-YPE80M4,AFF37-YPE90M4,AFF37-YS100M4,AFF37-YS63M4,AFF37-YS71M4,AFF37-YS80M4,AFF37-YS90M4,AFF37-YVB100M4,AFF37-YVB63M4,AFF37-YVB71M4,AFF37-YVB80M4,AFF37-YVB90M4,AFF37-YVP100M4,AFF37-YVP63M4,AFF37-YVP71M4,AFF37-YVP80M4,AFF37-YVP90M4,AFF37-YVPEJ100M4,AFF37-YVPEJ63M4,AFF37-YVPEJ71M4,AFF37-YVPEJ80M4,AFF37-YVPEJ90M4,GFF39-Y0.12KW,GFF39-Y0.18KW,GFF39-Y0.25KW,GFF39-Y0.37KW,GFF39-Y0.55KW,GFF39-Y0.75KW,GFF39-Y1.1KW,GFF39-Y1.5KW,GFF39-Y100M4,GFF39-Y2.2KW,GFF39-Y3KW,GFF39-Y63M4,GFF39-Y71M4,GFF39-Y80M4,GFF39-Y90M4,GFF39-YB100M4,GFF39-YB63M4,GFF39-YB71M4,GFF39-YB80M4,GFF39-YB90M4,GFF39-YDP100M4,GFF39-YDP63M4,GFF39-YDP71M4,GFF39-YDP80M4,GFF39-YDP90M4,GFF39-YE100M4,GFF39-YE63M4,GFF39-YE71M4,GFF39-YE80M4,GFF39-YE90M4,GFF39-YEJ100M4,GFF39-YEJ63M4,GFF39-YEJ71M4,GFF39-YEJ80M4,GFF39-YEJ90M4,GFF39-YEJB100M4,GFF39-YEJB63M4,GFF39-YEJB71M4,GFF39-YEJB80M4,GFF39-YEJB90M4,GFF39-YP100M4,GFF39-YP63M4,GFF39-YP71M4,GFF39-YP80M4,GFF39-YP90M4,GFF39-YPB100M4,GFF39-YPB63M4,GFF39-YPB71M4,GFF39-YPB80M4,GFF39-YPB90M4,GFF39-YPE100M4,GFF39-YPE63M4,GFF39-YPE71M4,GFF39-YPE80M4,GFF39-YPE90M4,GFF39-YS100M4,GFF39-YS63M4,GFF39-YS71M4,GFF39-YS80M4,GFF39-YS90M4,GFF39-YVB100M4,GFF39-YVB63M4,GFF39-YVB71M4,GFF39-YVB80M4,GFF39-YVB90M4,GFF39-YVP100M4,GFF39-YVP63M4,GFF39-YVP71M4,GFF39-YVP80M4,GFF39-YVP90M4,GFF39-YVPEJ100M4,GFF39-YVPEJ63M4,GFF39-YVPEJ71M4,GFF39-YVPEJ80M4,GFF39-YVPEJ90M4。
FF39減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-ffxiliejiansuji-cn.html
推薦類似型號:F39減速機
