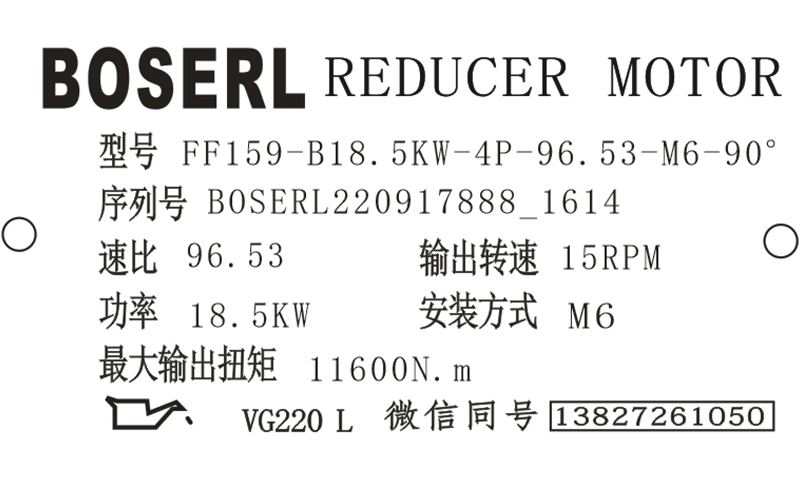

FF159減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF159減速機選型樣本。
FF159-YVPEJ18.5KW-4P-96.53-M6-90°
FF:系列代號
159:減速機規格代號
Y:電機
VPEJ:變頻剎車電機
18.5KW:電機功率
4P:電機級數
96.53:減速機傳動比
M6:減速機安裝位置
90°:接線盒位置
FF159減速機潤滑油型號:
FF159減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF159減速機選型樣本中列出了安裝位置從M1到M6FF159減速機相應的潤滑油加注標準,請自行下載查看。平行軸斜齒輪減速機
FF159減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據FF159減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“FF159減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。
FF159減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機
FF159減速機推薦使用的潤滑油,其等級和粘度指標見下表:
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG220 | -10-+40 | R系列、F系列、K系列減速機 |
ISOVG680 | 0-+40 | S系列減速機 |
ISO標準潤滑油 | 粘貼指標 | 環境溫度°C | 減速機型號 |
MINERALOILCLP(cc) | ISOVG100 | -20-+25 | R系列、F系列、K系列減速機 |
Synthetic fluid,clp pg | ISOVG220 | -25-+80 | R系列、F系列、K系列減速機 |
Synthetic fluid,CLP HC | ISOVG460 | -30-+80 | S系列減速機 |
FF159減速機使用說明:
FF159減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!
FF159減速機警告說明:由于FF159減速機發熱或FF159減速機油溫過高可能引起燙傷;對FF159減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。
FF159減速機注意事項:若未注入正確的FF159減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。
FF159減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見FF159減速機說明書安裝位置章節中的內容。剎車電機減速機
FF159減速機的螺母:立式安裝FF159減速機輸出法蘭螺母規格M20;FF159減速機螺母/螺母擰緊扭矩強度等級10.9。
FF159減速機型號:
AFF157-Y110KW,AFF157-Y11KW,AFF157-Y132KW,AFF157-Y15KW,AFF157-Y160M4,AFF157-Y18.5KW,AFF157-Y180M4,AFF157-Y200M4,AFF157-Y225M4,AFF157-Y22KW,AFF157-Y250M4,AFF157-Y280M4,AFF157-Y30KW,AFF157-Y315M4,AFF157-Y37KW,AFF157-Y45KW,AFF157-Y55KW,AFF157-Y75KW,AFF157-Y90KW,AFF157-YB160M4,AFF157-YB180M4,AFF157-YB200M4,AFF157-YB225M4,AFF157-YB250M4,AFF157-YB280M4,AFF157-YB315M4,AFF157-YDP160M4,AFF157-YDP180M4,AFF157-YDP200M4,AFF157-YDP225M4,AFF157-YDP250M4,AFF157-YDP280M4,AFF157-YDP315M4,AFF157-YE160M4,AFF157-YE180M4,AFF157-YE200M4,AFF157-YE225M4,AFF157-YE250M4,AFF157-YE280M4,AFF157-YE315M4,AFF157-YEJ160M4,AFF157-YEJ180M4,AFF157-YEJ200M4,AFF157-YEJ225M4,AFF157-YEJ250M4,AFF157-YEJ280M4,AFF157-YEJ315M4,AFF157-YEJB160M4,AFF157-YEJB180M4,AFF157-YEJB200M4,AFF157-YEJB225M4,AFF157-YEJB250M4,AFF157-YEJB280M4,AFF157-YEJB315M4,AFF157-YP160M4,AFF157-YP180M4,AFF157-YP200M4,AFF157-YP225M4,AFF157-YP250M4,AFF157-YP280M4,AFF157-YP315M4,AFF157-YPB160M4,AFF157-YPB180M4,AFF157-YPB200M4,AFF157-YPB225M4,AFF157-YPB250M4,AFF157-YPB280M4,AFF157-YPB315M4,AFF157-YPE160M4,AFF157-YPE180M4,AFF157-YPE200M4,AFF157-YPE225M4,AFF157-YPE250M4,AFF157-YPE280M4,AFF157-YPE315M4,AFF157-YS160M4,AFF157-YS180M4,AFF157-YS200M4,AFF157-YS225M4,AFF157-YS250M4,AFF157-YS280M4,AFF157-YS315M4,AFF157-YVB160M4,AFF157-YVB180M4,AFF157-YVB200M4,AFF157-YVB225M4,AFF157-YVB250M4,AFF157-YVB280M4,AFF157-YVB315M4,AFF157-YVP160M4,AFF157-YVP180M4,AFF157-YVP200M4,AFF157-YVP225M4,AFF157-YVP250M4,AFF157-YVP280M4,AFF157-YVP315M4,AFF157-YVPEJ160M4,AFF157-YVPEJ180M4,AFF157-YVPEJ200M4,AFF157-YVPEJ225M4,AFF157-YVPEJ250M4,AFF157-YVPEJ280M4,AFF157-YVPEJ315M4,NFF157-Y110KW,NFF157-Y11KW,NFF157-Y132KW,NFF157-Y15KW,NFF157-Y160M4,NFF157-Y18.5KW,NFF157-Y180M4,NFF157-Y200M4,NFF157-Y225M4,NFF157-Y22KW,NFF157-Y250M4,NFF157-Y280M4,NFF157-Y30KW,NFF157-Y315M4,NFF157-Y37KW,NFF157-Y45KW,NFF157-Y55KW,NFF157-Y75KW,NFF157-Y90KW,NFF157-YB160M4,NFF157-YB180M4,NFF157-YB200M4,NFF157-YB225M4,NFF157-YB250M4,NFF157-YB280M4,NFF157-YB315M4,NFF157-YDP160M4,NFF157-YDP180M4,NFF157-YDP200M4,NFF157-YDP225M4,NFF157-YDP250M4,NFF157-YDP280M4,NFF157-YDP315M4,NFF157-YE160M4,NFF157-YE180M4,NFF157-YE200M4,NFF157-YE225M4,NFF157-YE250M4,NFF157-YE280M4,NFF157-YE315M4,NFF157-YEJ160M4,NFF157-YEJ180M4,NFF157-YEJ200M4,NFF157-YEJ225M4,NFF157-YEJ250M4,NFF157-YEJ280M4,NFF157-YEJ315M4,NFF157-YEJB160M4,NFF157-YEJB180M4,NFF157-YEJB200M4,NFF157-YEJB225M4,NFF157-YEJB250M4,NFF157-YEJB280M4,NFF157-YEJB315M4,NFF157-YP160M4,NFF157-YP180M4,NFF157-YP200M4,NFF157-YP225M4,NFF157-YP250M4,NFF157-YP280M4,NFF157-YP315M4,NFF157-YPB160M4,NFF157-YPB180M4,NFF157-YPB200M4,NFF157-YPB225M4,NFF157-YPB250M4,NFF157-YPB280M4,NFF157-YPB315M4,NFF157-YPE160M4,NFF157-YPE180M4,NFF157-YPE200M4,NFF157-YPE225M4,NFF157-YPE250M4,NFF157-YPE280M4,NFF157-YPE315M4,NFF157-YS160M4,NFF157-YS180M4,NFF157-YS200M4,NFF157-YS225M4,NFF157-YS250M4,NFF157-YS280M4,NFF157-YS315M4,NFF157-YVB160M4,NFF157-YVB180M4,NFF157-YVB200M4,NFF157-YVB225M4,NFF157-YVB250M4,NFF157-YVB280M4,NFF157-YVB315M4,NFF157-YVP160M4,NFF157-YVP180M4,NFF157-YVP200M4,NFF157-YVP225M4,NFF157-YVP250M4,NFF157-YVP280M4,NFF157-YVP315M4,NFF157-YVPEJ160M4,NFF157-YVPEJ180M4,NFF157-YVPEJ200M4,NFF157-YVPEJ225M4,NFF157-YVPEJ250M4,NFF157-YVPEJ280M4,NFF157-YVPEJ315M4,SFF157-Y110KW,SFF157-Y11KW,SFF157-Y132KW,SFF157-Y15KW,SFF157-Y160M4,SFF157-Y18.5KW,SFF157-Y180M4,SFF157-Y200M4,SFF157-Y225M4,SFF157-Y22KW,SFF157-Y250M4,SFF157-Y280M4,SFF157-Y30KW,SFF157-Y315M4,SFF157-Y37KW,SFF157-Y45KW,SFF157-Y55KW,SFF157-Y75KW,SFF157-Y90KW,SFF157-YB160M4,SFF157-YB180M4,SFF157-YB200M4,SFF157-YB225M4,SFF157-YB250M4,SFF157-YB280M4,SFF157-YB315M4,SFF157-YDP160M4,SFF157-YDP180M4,SFF157-YDP200M4,SFF157-YDP225M4,SFF157-YDP250M4,SFF157-YDP280M4,SFF157-YDP315M4,SFF157-YE160M4,SFF157-YE180M4,SFF157-YE200M4,SFF157-YE225M4,SFF157-YE250M4,SFF157-YE280M4,SFF157-YE315M4,SFF157-YEJ160M4,SFF157-YEJ180M4,SFF157-YEJ200M4,SFF157-YEJ225M4,SFF157-YEJ250M4,SFF157-YEJ280M4,SFF157-YEJ315M4,SFF157-YEJB160M4,SFF157-YEJB180M4,SFF157-YEJB200M4,SFF157-YEJB225M4,SFF157-YEJB250M4,SFF157-YEJB280M4,SFF157-YEJB315M4,SFF157-YP160M4,SFF157-YP180M4,SFF157-YP200M4,SFF157-YP225M4,SFF157-YP250M4,SFF157-YP280M4,SFF157-YP315M4,SFF157-YPB160M4,SFF157-YPB180M4,SFF157-YPB200M4,SFF157-YPB225M4,SFF157-YPB250M4,SFF157-YPB280M4,SFF157-YPB315M4,SFF157-YPE160M4,SFF157-YPE180M4,SFF157-YPE200M4,SFF157-YPE225M4,SFF157-YPE250M4,SFF157-YPE280M4,SFF157-YPE315M4,SFF157-YS160M4,SFF157-YS180M4,SFF157-YS200M4,SFF157-YS225M4,SFF157-YS250M4,SFF157-YS280M4,SFF157-YS315M4,SFF157-YVB160M4,SFF157-YVB180M4,SFF157-YVB200M4,SFF157-YVB225M4,SFF157-YVB250M4,SFF157-YVB280M4,SFF157-YVB315M4,SFF157-YVP160M4,SFF157-YVP180M4,SFF157-YVP200M4,SFF157-YVP225M4,SFF157-YVP250M4,SFF157-YVP280M4,SFF157-YVP315M4,SFF157-YVPEJ160M4,SFF157-YVPEJ180M4,SFF157-YVPEJ200M4,SFF157-YVPEJ225M4,SFF157-YVPEJ250M4,SFF157-YVPEJ280M4,SFF157-YVPEJ315M4,WFF157-Y110KW,WFF157-Y11KW,WFF157-Y132KW,WFF157-Y15KW,WFF157-Y160M4,WFF157-Y18.5KW,WFF157-Y180M4,WFF157-Y200M4,WFF157-Y225M4,WFF157-Y22KW,WFF157-Y250M4,WFF157-Y280M4,WFF157-Y30KW,WFF157-Y315M4,WFF157-Y37KW,WFF157-Y45KW,WFF157-Y55KW,WFF157-Y75KW,WFF157-Y90KW,WFF157-YB160M4,WFF157-YB180M4,WFF157-YB200M4,WFF157-YB225M4,WFF157-YB250M4,WFF157-YB280M4,WFF157-YB315M4,WFF157-YDP160M4,WFF157-YDP180M4,WFF157-YDP200M4,WFF157-YDP225M4,WFF157-YDP250M4,WFF157-YDP280M4,WFF157-YDP315M4,WFF157-YE160M4,WFF157-YE180M4,WFF157-YE200M4,WFF157-YE225M4,WFF157-YE250M4,WFF157-YE280M4,WFF157-YE315M4,WFF157-YEJ160M4,WFF157-YEJ180M4,WFF157-YEJ200M4,WFF157-YEJ225M4,WFF157-YEJ250M4,WFF157-YEJ280M4,WFF157-YEJ315M4,WFF157-YEJB160M4,WFF157-YEJB180M4,WFF157-YEJB200M4,WFF157-YEJB225M4,WFF157-YEJB250M4,WFF157-YEJB280M4,WFF157-YEJB315M4,WFF157-YP160M4,WFF157-YP180M4,WFF157-YP200M4,WFF157-YP225M4,WFF157-YP250M4,WFF157-YP280M4,WFF157-YP315M4,WFF157-YPB160M4,WFF157-YPB180M4,WFF157-YPB200M4,WFF157-YPB225M4,WFF157-YPB250M4,WFF157-YPB280M4,WFF157-YPB315M4,WFF157-YPE160M4,WFF157-YPE180M4,WFF157-YPE200M4,WFF157-YPE225M4,WFF157-YPE250M4,WFF157-YPE280M4,WFF157-YPE315M4,WFF157-YS160M4,WFF157-YS180M4,WFF157-YS200M4,WFF157-YS225M4,WFF157-YS250M4,WFF157-YS280M4,WFF157-YS315M4,WFF157-YVB160M4,WFF157-YVB180M4,WFF157-YVB200M4,WFF157-YVB225M4,WFF157-YVB250M4,WFF157-YVB280M4,WFF157-YVB315M4,WFF157-YVP160M4,WFF157-YVP180M4,WFF157-YVP200M4,WFF157-YVP225M4,WFF157-YVP250M4,WFF157-YVP280M4,WFF157-YVP315M4,WFF157-YVPEJ160M4,WFF157-YVPEJ180M4,WFF157-YVPEJ200M4,WFF157-YVPEJ225M4,WFF157-YVPEJ250M4,WFF157-YVPEJ280M4,WFF157-YVPEJ315M4,GFF159-Y110KW,GFF159-Y11KW,GFF159-Y132KW,GFF159-Y15KW,GFF159-Y160M4,GFF159-Y18.5KW,GFF159-Y180M4,GFF159-Y200M4,GFF159-Y225M4,GFF159-Y22KW,GFF159-Y250M4,GFF159-Y280M4,GFF159-Y30KW,GFF159-Y315M4,GFF159-Y37KW,GFF159-Y45KW,GFF159-Y55KW,GFF159-Y75KW,GFF159-Y90KW,GFF159-YB160M4,GFF159-YB180M4,GFF159-YB200M4,GFF159-YB225M4,GFF159-YB250M4,GFF159-YB280M4,GFF159-YB315M4,GFF159-YDP160M4,GFF159-YDP180M4,GFF159-YDP200M4,GFF159-YDP225M4,GFF159-YDP250M4,GFF159-YDP280M4,GFF159-YDP315M4,GFF159-YE160M4,GFF159-YE180M4,GFF159-YE200M4,GFF159-YE225M4,GFF159-YE250M4,GFF159-YE280M4,GFF159-YE315M4,GFF159-YEJ160M4,GFF159-YEJ180M4,GFF159-YEJ200M4,GFF159-YEJ225M4,GFF159-YEJ250M4,GFF159-YEJ280M4,GFF159-YEJ315M4,GFF159-YEJB160M4,GFF159-YEJB180M4,GFF159-YEJB200M4,GFF159-YEJB225M4,GFF159-YEJB250M4,GFF159-YEJB280M4,GFF159-YEJB315M4,GFF159-YP160M4,GFF159-YP180M4,GFF159-YP200M4,GFF159-YP225M4,GFF159-YP250M4,GFF159-YP280M4,GFF159-YP315M4,GFF159-YPB160M4,GFF159-YPB180M4,GFF159-YPB200M4,GFF159-YPB225M4,GFF159-YPB250M4,GFF159-YPB280M4,GFF159-YPB315M4,GFF159-YPE160M4,GFF159-YPE180M4,GFF159-YPE200M4,GFF159-YPE225M4,GFF159-YPE250M4,GFF159-YPE280M4,GFF159-YPE315M4,GFF159-YS160M4,GFF159-YS180M4,GFF159-YS200M4,GFF159-YS225M4,GFF159-YS250M4,GFF159-YS280M4,GFF159-YS315M4,GFF159-YVB160M4,GFF159-YVB180M4,GFF159-YVB200M4,GFF159-YVB225M4,GFF159-YVB250M4,GFF159-YVB280M4,GFF159-YVB315M4,GFF159-YVP160M4,GFF159-YVP180M4,GFF159-YVP200M4,GFF159-YVP225M4,GFF159-YVP250M4,GFF159-YVP280M4,GFF159-YVP315M4,GFF159-YVPEJ160M4,GFF159-YVPEJ180M4,GFF159-YVPEJ200M4,GFF159-YVPEJ225M4,GFF159-YVPEJ250M4,GFF159-YVPEJ280M4,GFF159-YVPEJ315M4。
FF159減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://njxyx.com/product/list-ffxiliejiansuji-cn.html
推薦類似型號:F159減速機
關鍵詞:帶抱閘減速機馬達一體機_帶剎車電機減速機_FF系列減速器_制動電機減速機_減速器帶抱閘_減速機帶抱閘_FF系列減速機_FF型減速機_GFF系列減速機_帶剎車減速機_帶制動減速機_抱閘電機減速機
FF系列齒輪減速電機型號:FF29減速機,FF39減速機,FF49減速機,FF69減速機,FF79減速機,FF89減速機,FF99減速機,FF109減速機,FF129減速機,FF159減速機
FF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
